Inside a 130-Head Tajima Embroidery Factory: The Real Workflow Behind Fast Tackle Twill, Laser Appliqué, and Clean Output

When you walk into a high-throughput facility like Hotline Apparel, the first thing you notice isn’t the size of the machines. It’s the rhythm. Every department is synchronized, and every decision is engineered to protect two holy grails: repeatability and throughput.

Embroidery is not just art; it is a discipline of physics and logistics. Whether you are running a single-head machine in a spare room or a 12-head industrial line, the lessons from a full custom-apparel pipeline—dye sublimation, digital cutting, Chenille, and Tajima multi-heads—are identical. You must master the friction between your material, your machine, and your workflow.

This analysis breaks down the production numbers that matter (like why 750 RPM is a "magic number") and separates hobbyist habits from professional results. We will focus heavily on the two variables that kill profit and quality: hooping consistency and tension control.

From Garage to Warehouse: Designing for Flow, Not Just Space

Hotline Apparel started in a garage—a trajectory many of you are currently on. Their sophisticated layout today teaches a critical operational lesson: Growth only works when your workflow stops depending on heroics.

In a professional environment, "quality" isn't defined by producing one perfect hoodie. Quality is defined by the 200th hoodie looking exactly like the 1st, without the operator suffering from fatigue.

The "Flow First" Protocol:

• Batching: Work is staged in sets (e.g., weeding 12 units at a time) to minimize mental switching costs.
• Pacing: The embroidery floor runs at a speed that balances stitch time with hooping time. If the machine runs too fast, the operator rushes the hooping (causing errors). If it runs too slow, the operator stands idle.
• Standardization: Machines are chosen to reduce human variability.

For the smaller shop owner, you don’t need 130 heads to mimic this. You need to identify your "Choke Point." If your machine finishes sewing before you have the next hoop ready, you are the bottleneck.

Dye Sublimation on Tackle Twill: The Bond of Heat and Pressure

The dye-sublimation workflow for tackle twill is a prime example of material order. It’s straightforward, but if you get the physics wrong, you ruin the batch.

The "Paper Under, Twill Over" Rule:

1. Bottom Layer: The transfer paper feeds on the bottom belt.
2. Top Layer: The white tackle twill sits on top (face down against the ink).
3. The Process: They travel through the Monti Antonio heat press. Heat turns the ink into gas, which rises and bonds into the polyester twill fibers.

You can verify the success visually: the twill exits with a bright, crisp pattern, while the transfer paper is left dull and brown.

Expert Note (Material Science): Tackle twill is favored in production because it provides high-impact coverage with low stitch counts. However, it introduces a new "Quality Gate." Since the fabric creates the color block, your tackdown stitching must be flawless. If your fabric shifts even 1mm, the satin stitch won't cover the raw edge.

Tool-Up Path (Stabilizing the Foundation): If you struggle with waviness or shifting in twill work, the issue is rarely the machine—it is the stabilization.

• Level 1: Switch to a heavier cutaway stabilizer to support the fabric density.
• Level 2: Use temporary adhesive spray (correctly) to prevent micro-movements.
• Level 3: Upgrade hoop quality to magnetic systems that provide even tension across the entire surface area.


Zund Digital Cutter: Ideally Automated, Yet Human-Dependent

In the cutting department, a Zund cutter uses a camera system to spot registration dots, ensuring the cut aligns perfectly with the print. However, the machine only cuts; it doesn't clean. Humans must separate the waste matrix (weeding).

The Efficiency Trap: The tour reveals that while cutting is automated, weeding is still manual time. They weed in batches of 12 to maintain rhythm.

Production Reality Check: Many shops undercount labor costs here. If placement and trimming take longer than the actual stitching, you aren't scaling.

Tool-up Path (Appliqué Workflow):

• Scenario: You spend too minutes meticulously cutting fabric with hand scissors inside the hoop.
• Criteria: If you produce 50+ items of the same design.
• Solution Options:
  • Outsource: Order pre-cut laser letters.
  • In-House Tech: Use a laser bridge (expensive) or a prosumer cutting machine (Cricut/Cameo) for smaller runs to prep fabric before it touches the needle.


The Tajima Appliqué Sequence: Precision Meets Chemistry

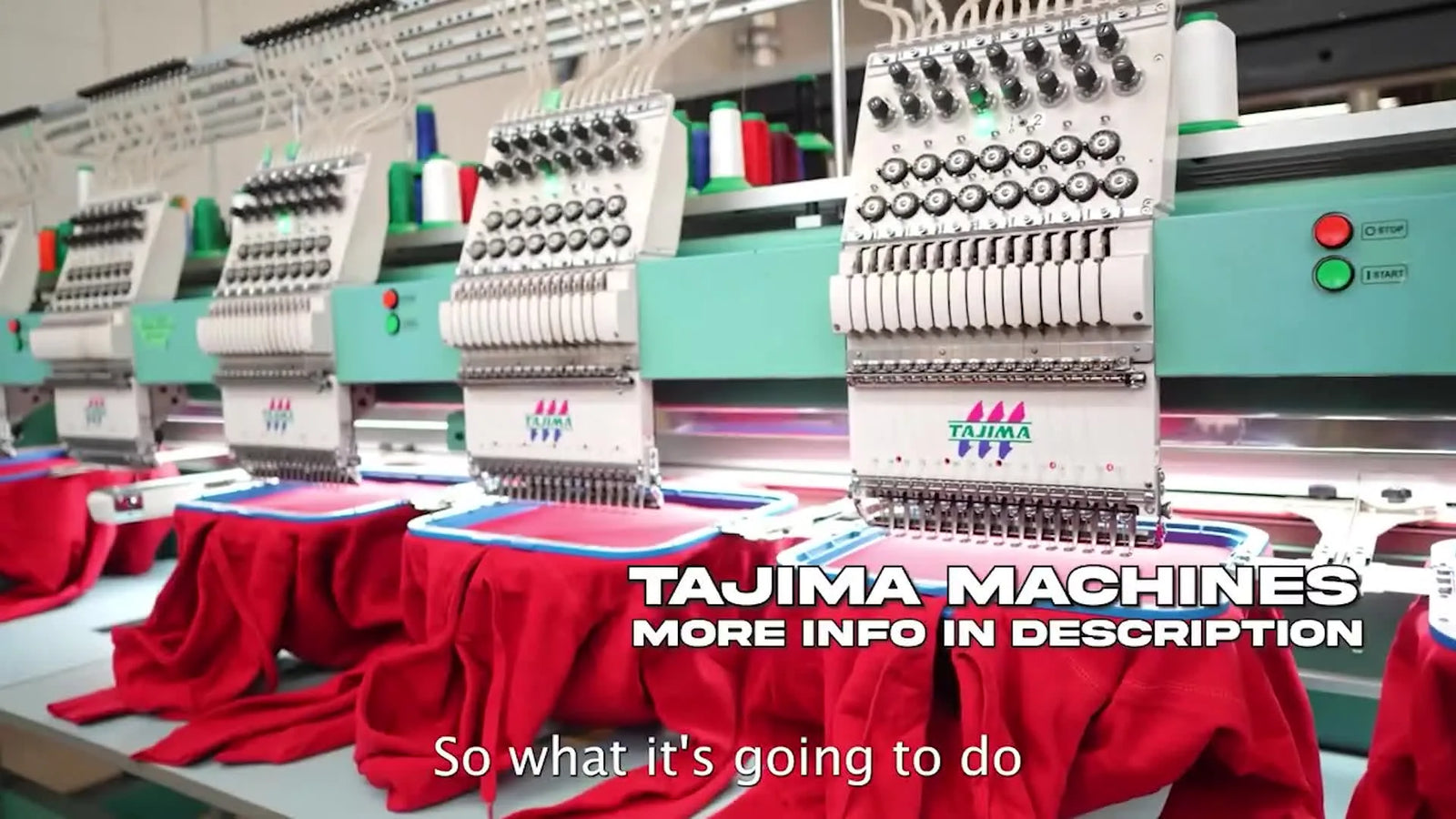

The appliqué process on the Tajima multi-head line follows a strict sequence to ensure crisp edges. Beginners often skip steps here, leading to peeling letters later.

The Standard Routine:

1. Placement Stitch: A running stitch outlines where the fabric goes.
2. Adhesive Application: The operator sprays the back of the twill letter.
3. Positioning: The letter is pressed inside the placement line.
4. Tackdown: A zigzag or satin stitch seals the edge.

Crucial Detail: The operator uses a cardboard shield when spraying. This is non-negotiable.

Warning: Mechanical & Chemical Safety
Spray adhesive and embroidery machines are natural enemies. Never spray near the machine. Overspray settles on needle bars and sensors, creating a sticky "sludge" that causes thread breaks and seized motors. Always use a spray booth or a cardboard box shield away from the equipment.

The 750 RPM Sweet Spot: Hotline runs their machines at ~750 RPM. Why not 1000+?

• Vibration Control: Excessive speed increases whip and vibration, reducing stitch precision.
• Operator Sync: 750 RPM balances the sew time with the human steps (hooping/peeling).
• Beginner Calibration: If you are new or running a home machine, start at 600-650 RPM. Speed is not efficiency; uninterrupted sewing is efficiency.

Prep Checklist (The "Pre-Flight" Check)

• Needle Check: Are you using 75/11 Sharp needles for woven twill? (Ballpoints may deflect).
• Bobbin Sensing: Is the bobbin sensor cleaned of lint?
• Adhesive Protocol: Is the spray box set up away from the machine?
• Consumables: Do you have a fresh can of spray and a pair of fine-tip tweezers for positioning?

"Outside to Center" Stitch Direction: Physics of Fabric Movement

This is a masterclass technique. When digitizing or planning the sew path for large areas like twill, you must sew from the outside toward the center.

• The Physics: As the needle creates stitches, it slightly pushes fabric. If you sew from the center out, you push a "wave" of loose fabric toward the edge, resulting in a bubble that the satin stitch cannot trap.
• The Fix: Sewing outside-in effectively pins the perimeter tight like a drum, forcing any slack into the center where the tackdown will cover it.

Troubleshooting: If you see "pillowing" on your hoodies, check your digitizing path before you blame your stabilizer. If you run tajima embroidery machines, you have the precision to execute this perfectly, provided the file is built right.

The "Butted" Appliqué Method: Lean Manufacturing

Modern production prefers "butted" appliqué (edges touching, no overlap) over layering.

• Old School: Layering fabrics requires thinner bottom layers and creates bulk.
• Modern: Butted edges save thread, reduce stiffness, and look cleaner.

Expert Nuance: This method has zero tolerance for cutting errors. Use it only if your cutting method (Laser/Zund) is dialed in.

Pulse Dashboard: Managing the "Invisible" Downtime

The shop targets 45–55% efficiency. This sounds low to novices, but it counts actual run time versus an 8-hour shift.

Commercial Scalability: If you create custom goods, your biggest cost is the machine sitting still.

• The Problem: Hooping time.
• The Solution: If hooping is your bottleneck, investing in a specific hoopmaster hooping station ensures every logo is placed at the exact same height, eliminating the "measure twice" hesitation that kills profit.

Setup Checklist (Machine Readiness)

• RPM Calibration: Set speed to 700-750 RPM for optimal twill handling.
• Color Sequence: Verify the stop commands (for placing fabric) are programmed.
• Thread Path: Check for "pigtails" or twists in the thread cone before the tensioner.
• Backing: Ensure you are using a backing distinct from the fabric weight (e.g., 2.5oz Cutaway for hoodies).

Chenille and 60 Tex Thread: The Heavy Lifters

The Chenille heads run 60 Tex thread (much thicker than standard 40wt). This creates the "loops" reminiscent of varsity jackets.

Sensory Feedback Anchor: When running heavy thread or Chenille:

• Listen: You should hear a rhythmic "thump-thump," deeper than standard embroidery. A sharp "clack" usually means a needle deflection.
• Feel: The fabric should vibrate more significantly.
• Hidden Consumable: You cannot use standard needles. Ensure you have large-eye needles (Size 90/14 or 100/16) to accommodate the 60 Tex thickness without shredding.

SEIT Laser Bridge: In-Hoop Precision

The SEIT laser bridge cuts fabric while it is still hooped on the embroidery machine.

This eliminates the registration error. It is the gold standard for high-end appliqué.

Warning: Laser Operations
Lasers burn fabric. This produces smoke and carbon build-up. Ensure your extraction filters are clean. Never bypass safety interlocks—the laser beam is invisible and instantly blinding/damaging to skin.

Magnetic Hoops: The Secret to High-Volume Throughput

A subtle but crucial detail in the tour is the stack of Mighty Hoops lying on the table. They aren't locked away; they are staged for action.

Why "Hoop Burn" Happens: Traditional plastic hoops require you to force an inner ring into an outer ring. This friction creates "hoop burn" (shiny marks) on delicate fabrics and crushes velvet/corduroy.

The Magnetic Solution: Mighty Hoops magnetic embroidery hoops clamp the fabric using vertical magnetic force, not friction.

• Sensory Check: You hear a solid snap when they engage.
• Tactile Check: The fabric feels taut like a drum skin, but without the "stretched" accumulation at the edges.

Tool-Up Path (Hooping Upgrade):

• Trigger: You are getting wrist pain, or you see hoop marks on dark polyester shirts.
• Criteria: Production runs where speed is essential.
• Options:
  • Home Users: Magnetic Frames for single-needle machines (easier clipping).
  • Pro Users: Mighty Hoops (Standardize clamping pressure).

If you own a specific commercial brand, compatibility is key. Users often search for mighty hoops for tajima or magnetic hoops for tajima embroidery machines to ensure the brackets fit their specific arm width.

Expert Note: Magnetic hoops are heavy. Ensure your machine’s pantograph (the moving arm) can handle the inertia. Most commercial machines (Tajima, Ricoma, Barudan) handle them easily.

Warning: Magnetic Hazard
These are industrial rare-earth magnets. They can pinch fingers severely (blood blister risk). Keep them away from pacemakers, credit cards, and hard drives. Do not let two hoops snap together without a separator tool.

Bobbin Tension: The Foundation of Every Stitch

The owner’s advice is absolute: "Learn tension. Bobbin tension is everything."

If your bobbin is too loose, you get loops on top. If too tight, you get thread breaks and puckering.

The "Drop Test" (Sensory Anchor):

1. Remove the bobbin case.
2. Hold the thread tail.
3. The Drop: Gently bounce the case. It should drop a few inches and stop.
   • Falls to floor? Too loose.
   • Doesn't move? Too tight.
4. The Feel: When pulling thread, it should feel like pulling dental floss—smooth but with slight resistance (approx 18-25g tension gauge).

Digitizing Department: Pulse DG16

Even if you don't digitize, you must understand the logic. The digitizing room uses Pulse DG16 to set density, underlay, and pull compensation.

Owner Insight: You need to know enough to audit your files. If the density is too high on a t-shirt, no amount of stabilizer will save it from bullet-proof stiffness.

The Vintage Lesson: Adaptability

The tour concludes with a 1991 paper tape reader. It’s a reminder that technology changes, but the physics of thread and fabric do not.

Decision Tree: Fabric -> Stabilizer -> Hooping

Use this logic flow to reduce production errors.

1. Is the Fabric Elastic? (e.g., Performance Knits, Hoodies)

• YES:
  • Stabilizer: Cutaway (2.5oz minimum).
  • Hooping: mighty hoops canada or similar magnetic options are preferred to avoid stretching the knit while hooping.
  • Tech: Use ballpoint needles.
• NO (Structured Caps, Twill, Denim):
  • Stabilizer: Tearaway is often sufficient.
  • Hooping: Standard hoops or stiff clamping systems work well.

2. Are you experiencing Hoop Burn?

• YES: Immediately switch to magnetic frames or "float" the material using adhesive stabilizer.
• NO: Continue with current setup, but monitor tension.

3. Is speed your bottleneck?

• YES: Look for tajima fast frames or magnetic systems to speed up the changeover between garments.

The "Run It Like a Line" Mindset

You don’t need a SEIT laser or a Zund cutter to adopt Hotline Apparel’s mindset.

1. Standardize your consumables: Pick one good thread, one good backing, and stick to them.
2. Rhythm over Speed: Find the RPM (e.g., 700-750) where you can keep up with the machine.
3. Respect the Tension: Check your bobbin case every morning.

Operation Checklist (Daily Grind)

• Sound Check: Run a test sew. Does it sound rhythmic and smooth?
• Hooping Station: Are hoops staged and ready? (Operators shouldn't walk to find tools).
• Thread Tree: Are threads untangled?
• Safety: Is the spray shield in place?
• Bobbin: Has the bobbin case been cleaned and tension-checked (Drop Test)?

By mastering these variables, you move from "hoping it works" to "knowing it will work." That is the difference between a garage hobby and a commercial operation.

FAQ

• Q: How do I set embroidery machine RPM for tackle twill appliqué to avoid vibration, misregistration, and operator rushing?
  A: Use ~750 RPM as a balanced production speed for twill appliqué, and start slower (600–650 RPM) when calibrating a new setup—uninterrupted sewing beats peak speed.
  • Set machine speed around 700–750 RPM for twill runs where hooping/placing letters must stay synchronized.
  • Start at 600–650 RPM when learning, testing a new design, or chasing frequent breaks, then increase only after stability improves.
  • Success check: Stitches stay crisp with less “shake,” and the operator can place/peel/hoop without rushing between stops.
  • If it still fails… audit hooping consistency and bobbin tension before pushing RPM higher.
• Q: How do I perform the embroidery bobbin case “Drop Test” to set bobbin tension and prevent top loops, thread breaks, and puckering?
  A: Use the bobbin case drop test: the case should drop a few inches and stop, and the thread should feel like dental floss—smooth with slight resistance.
  • Remove the bobbin case and hold it by the thread tail.
  • Gently bounce the case to see how far it drops.
  • Success check: The case drops a few inches then stops; pulling the thread feels smooth with slight resistance (not free-falling, not locked).
  • If it still fails… clean lint from the bobbin area/sensor and re-check the full thread path for twists before blaming the design.
• Q: What embroidery needle type should be used for woven tackle twill appliqué versus elastic performance knits to reduce deflection and fabric damage?
  A: Match needle point to fabric: use 75/11 Sharp needles for woven twill, and use ballpoint needles for elastic knits to reduce damage and distortion.
  • Install a 75/11 Sharp needle when sewing woven tackle twill (ballpoints may deflect on structured material).
  • Switch to a ballpoint needle when sewing elastic fabrics like performance knits and hoodies.
  • Success check: The machine sound stays rhythmic (no sharp “clack”), and stitch lines track cleanly without skipped stitches or needle marks.
  • If it still fails… slow RPM to a safe starting point and re-check hooping/stabilizer choice; confirm needle size/type in the machine manual.
• Q: How do I avoid spray adhesive overspray damaging embroidery machine needle bars and sensors during tackle twill appliqué?
  A: Never spray adhesive near the embroidery machine—spray away from the equipment using a spray booth or a cardboard box shield to stop sticky buildup that causes breaks and jams.
  • Move the garment/letters to a separate spray area before applying adhesive.
  • Use a cardboard shield/box method every time to contain overspray.
  • Success check: Needle bars and sensor areas stay dry/clean (no sticky film), and thread breaks do not increase after adhesive use.
  • If it still fails… clean residue from affected parts and tighten the spray protocol (less spray, better shielding, more distance).
• Q: How do I use “outside-to-center” stitch direction for tackle twill appliqué to prevent pillowing and edge bubbles on hoodies?
  A: Sew from the outside toward the center to pin the perimeter first, pushing any slack inward where the tackdown can control it.
  • Digitize/plan the sew path so the perimeter is secured before filling toward the center.
  • Watch large twill areas closely—small fabric waves can become edge bubbles if sewn center-out.
  • Success check: The edge stays flat and the satin/tackdown cleanly traps the raw edge without a raised “bubble.”
  • If it still fails… inspect the stitch path in the file before changing stabilizer; confirm hooping tension is even.
• Q: How do magnetic embroidery hoops reduce hoop burn and wrist strain compared with traditional plastic hoops on dark polyester, velvet, or corduroy?
  A: Magnetic hoops clamp with vertical magnetic force instead of friction, which reduces shiny hoop marks (hoop burn) and makes hooping faster with less strain.
  • Switch to magnetic hoops when hoop marks appear on delicate/dark fabrics or when inner-ring force causes wrist pain.
  • Hooping action: place fabric and let the magnets clamp—avoid forcing rings that grind the fibers.
  • Success check: You hear a solid snap on engagement, and the fabric feels drum-taut without stretched edges or shiny crush marks.
  • If it still fails… consider “floating” material with adhesive stabilizer and confirm the hoop size/fit is correct for the garment thickness.
• Q: What magnetic hoop safety rules prevent finger pinches and protect pacemakers, credit cards, and electronics when using rare-earth magnetic embroidery hoops?
  A: Treat magnetic hoops as industrial magnets: keep fingers clear, keep magnets away from pacemakers and sensitive items, and prevent two hoops from snapping together uncontrolled.
  • Separate and handle hoops deliberately; do not let magnets “jump” together.
  • Keep magnetic hoops away from pacemakers, credit cards, and hard drives.
  • Success check: No uncontrolled snapping events occur, and operators can clamp/unclamp without finger pinch incidents.
  • If it still fails… add a dedicated handling routine (staging area, separator tool) and retrain anyone who is new to magnetic systems.
