1. Introduction to the Inbro IB-TUN1206-45 Embroidery Machine
The inbro ib tun1206 45 (Inbro IB-TUN1206-45) sits in the medium-production class: a six-head, multi-needle commercial workhorse aimed at shops that run repeatable garment orders. This guide zeroes in on what readers ask for most: the core technical specs (power, speed, memory, hooping range), practical fixes for color-change and alignment issues, and real-world viability for purchase or repair. We also synthesize comparison context, hard-to-find documentation tips, and what to expect from support—so you can run, service, or evaluate the IB‑TUN1206‑45 with confidence.
Table of Contents
- 1. Introduction to the Inbro IB-TUN1206-45 Embroidery Machine
- 2. Technical Specifications and Machine Architecture
- 3. Troubleshooting Common Operational Issues
- 4. Evaluating the IB-TUN1206-45: Purchase and Repair Considerations
- 5. Comparative Analysis: IB-TUN1206-45 vs. Industry Alternatives
- 6. Operating Resources and Support Networks
- 7. Conclusion: Is the IB-TUN1206-45 Right for You?
- 8. Frequently Asked Questions (FAQ)
2. Technical Specifications and Machine Architecture
2.1 Core Specifications: Power, Memory, and Performance
For its generation, the IB‑TUN1206‑45 delivers solid commercial metrics backed by practical electrical flexibility and robust automation:
- Power and drive
- 1‑phase AC input: 100–240V; approx. 1 kW consumption
- Main drive: servo or induction motor options, with stepping motors for frame positioning
- Grounding: more than 10 MΩ (measured by a 500V insulation tester)
- Speed and memory
- Up to 1,200 stitches per minute
- Memory for about 200 designs totaling roughly 2,000,000 stitches
- 3.5-inch floppy disk storage consistent with its era
- Environmental tolerances
- Operating: 0°C to 40°C; 30–95% RH (no condensation)
- Storage: -10°C to 60°C
These fundamentals position the IB‑TUN1206‑45 well for steady, medium-volume production while maintaining design capacity and environmental resilience.
2.2 Sewing Field Dimensions and Hoop Compatibility
Published, model-specific sewing-field data for the IB‑TUN1206‑45 is scarce, but closely related Inbro sources help triangulate:
- Related model references
- IB‑TU1204: 500 × 450 mm sewing field
- IB‑TB1206‑45 (video): 400 × 450 mm sewing field
- Inbro 12‑needle flagships of the era also cite 520 × 360 mm in some configurations
In practice, the IB‑TUN1206‑45 typically supports flat, tubular, and cap embroidery (270-degree capability noted across comparable Inbro models). Frame packages documented for this class include a broad assortment of inbro embroidery machine hoops for shop versatility, such as:
- 12 pieces of size‑12 frames
- 13 pieces of size‑18 frames
- 11 pieces of size‑15 frames
- 9 pieces of size‑33×28 frames
- 6 hat frames
Bracket and arm spacing matter. According to HoopMaster’s Inbro notes:
- IB‑TUN‑1206‑45 measures 15.5 inches wide at the arms
- While many Inbro machines use the IN350 bracket, for the IB‑TUN‑1206‑45, SWF392 brackets have been recommended as a better fit in practice
Bottom line: verify your exact sewing field on your current hoops, confirm the 15.5-inch arm width, and match brackets accordingly (SWF392 is a vetted recommendation for this model). This avoids mis-purchases and ensures full travel without collisions.
2.3 Needle Systems and Automation Features
The IB‑TUN1206‑45 generation emphasizes multi-needle flexibility and automated uptime:
- Needle configurations: 6 / 9 / 12 needles (choose based on color counts)
- Pneumatic self-threading: air-driven threading reduces setup time (proper compressor performance is essential)
- Automation: auto thread trimming, wiper system, and upper/lower thread-break detection
- Color change mechanism: designed for indexed needle selection; correct sensor feedback and smooth needle-case travel are critical to reliability
A related IB‑TB1206‑45 demonstration highlights thread trimming, thread-break sensors, and adjustable table height in this family, offering a window into the operating experience users can expect from Inbro’s multi-head lineup of that era.
3. Troubleshooting Common Operational Issues
3.1 Resolving Color Change Errors and Motor Lock-Ups
inbro embroidery machine error codes often manifest as color-change faults, which trace back to needle-case position, sensor feedback, or mechanical obstruction. Use this systematic approach:
- Reset and reference
- Power down safely.
- Manually return the needle case to its home position if it’s stuck between needles.
- Power up and verify the machine displays the correct needle number (not zero or flashing).
- Inspect color-change sensing
- Check the color-change sensor and wiring for loose connections, dust, or damage.
- Listen for abnormal sounds during indexing; investigate any binding points.
- Clear mechanical obstructions (Error 06: motor lock-up)
- Disconnect power.
- Remove the needle plate and rotary hook cover; clear tangled thread or lint (thread wrapping behind the hook is common).
- Inspect the needle for bends/nicks before reseating.
- Reassemble, then perform a clean restart to clear the error.
- Prevent thread-binding cascades
- Clean and maintain the thread feed path; thread binding can overload the color-change system and create repeat errors.
User reports echo these patterns. A reseller video of an IB‑TUN1206‑45 listed for “spares or repairs” cites the machine “picking up the wrong color thread,” while forum users describe mis-selections that appear randomly on otherwise stable jobs. T-ShirtForums contributors also flagged memory-heavy machines and misalignment episodes that reseating and cleaning sometimes alleviated.
3.2 Thread Break Diagnostics and Electrical Failures
Address thread breaks and electrical faults with targeted, repeatable checks:
- Upper thread breaks
- Reseat the thread path.
- Clean the thread-sensing plate weekly.
- Replace needles regularly to maintain a clean tip and consistent penetration.
- Lower thread breaks
- Clean the bobbin case and hook area with compressed air; remove debris.
- Verify bobbin seating and adjust tensions; a practical target is about 2:1 upper-to-lower tension.
- Confirm hook alignment.
- Sensor and catcher health
- False thread-break alerts often result from dirty sensors or mis-tension; clean and recalibrate.
- Inspect the upper thread catcher for motor/connector issues that can cascade into detection faults.
- Electrical protection and power stability
- Fuses: F1 (250V/3A), F2 (250V/4A) on the board; noise filter fuse (250V/6.3A) in the power module. Always replace with the exact rating.
- Ensure stable input power (110V, 3A, 50/60Hz noted in documentation); unstable voltage can trigger intermittent errors or damage boards.
- Error 20 (main driver not ready)
- Inspect fuses via the arm-side cover to access the joint board.
- Check main motor belt integrity and tension.
- Clean/verify the 100° position sensor.
- Tighten wiring connections throughout the drive path.
- If unresolved, suspect deeper board faults and re-check power stability before escalating to service.
Community reports frequently mention inconsistent support responsiveness; your best defense is disciplined preventive maintenance: weekly sensor and plate cleaning, light oiling as specified, and strict safety (power off) before any cover removal.
3.3 Optimizing Garment Embroidery Stability
Fabric shifts and sudden jolts are classic culprits behind “everything was perfect—until it wasn’t.” One forum user traced random misalignment to hoop screws catching during travel—a small collision that throws the whole run off-center.

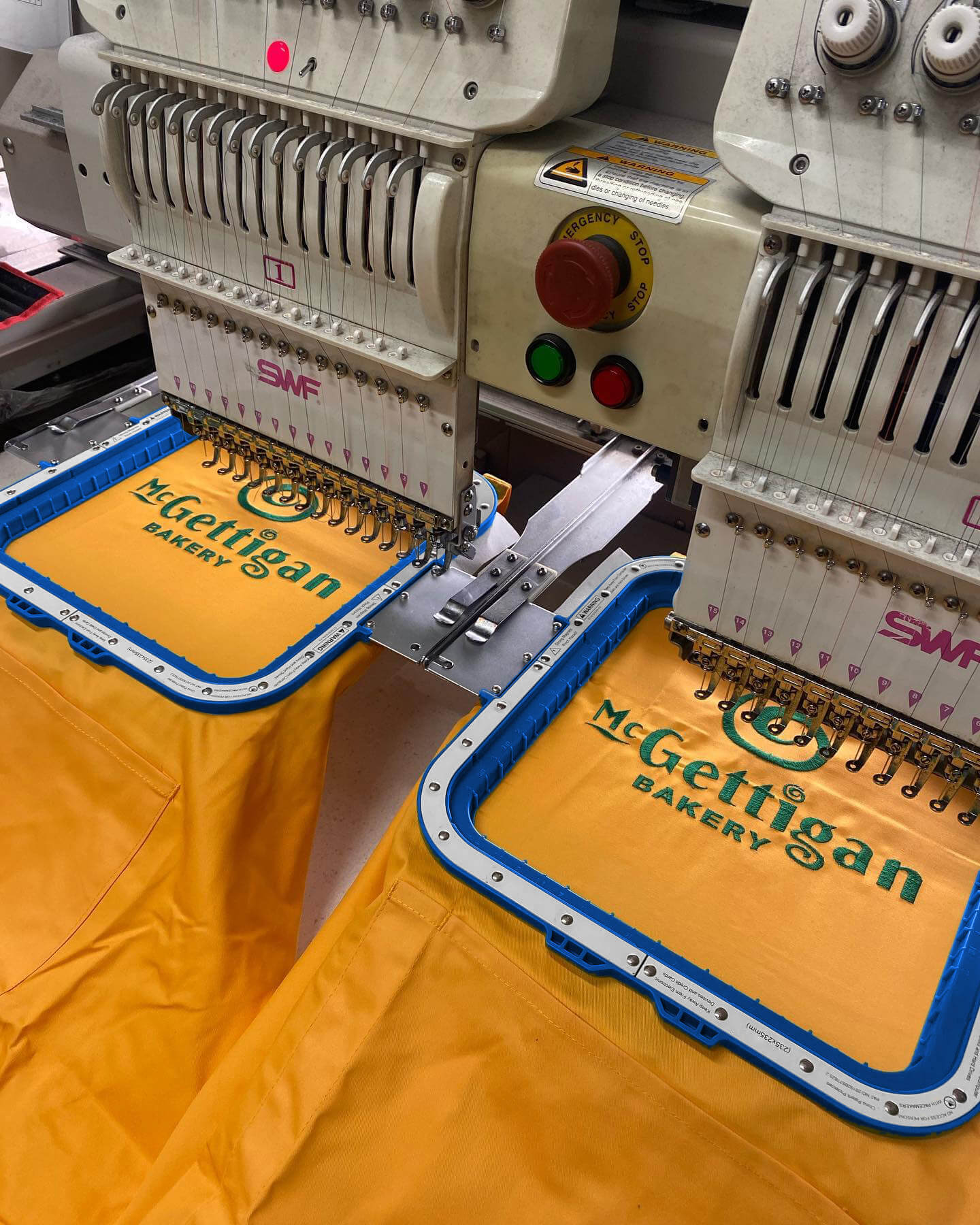

For garment workflows, switching to magnetic embroidery hooping systems helps in two ways:
- No protruding adjustment screws to snag during carriage travel
- More even, repeatable fabric hold so weight and drag don’t walk the design mid-run
If you’re aiming for speed and stability, Sewtalent magnetic embroidery hoops are a practical upgrade for garment hooping:
- Faster hooping: moving from screw-based hoops to magnetic hooping can reduce per-garment hooping time from about 3 minutes to 30 seconds—roughly a 90% time savings in repetitive tasks.
- Strong, durable build: Sewtalent emphasizes industrial-grade materials and publishes durability testing (impact and angle-pressure) and continuous monitoring that demonstrate long service life under heavy use.
- Broad compatibility and sizes: 17+ sizes cover common garment placements. Choose the correct bracket to fit your machine’s arms.
Implementation tips for the IB‑TUN1206‑45:
- Verify your sewing field and the machine’s 15.5-inch arm width.
- Match your hooping system’s brackets accordingly; HoopMaster’s Inbro notes recommend SWF392 for this model.
- Always test the full-design travel after setup to confirm clearance on the back of the machine and around arm hardware.
Note: Sewtalent hoops are intended for garment hooping, not for cap embroidery.
4. Evaluating the IB-TUN1206-45: Purchase and Repair Considerations
4.1 Market Availability and Pricing Insights
The IB‑TUN1206‑45 surfaces sporadically on the used market, often in Europe. Documented examples include:
- A 2005 IB‑TUN‑1206‑45B in the Czech Republic bundled with extensive frames: 12 (size‑12), 13 (size‑18), 11 (size‑15), 9 (33×28), plus 6 hat frames.
- A 2007 IB‑TB1206‑45 listed in European channels.
Most sellers advertise “price on request,” so condition, hours, and accessory bundles strongly influence final cost. One UK “spares or repairs” listing notes the machine “picking up the wrong color thread,” sold with a pallet of miscellaneous spares—useful context for negotiating risk and price.
Accessory value can be substantial. Full frame sets and the right brackets dramatically reduce setup friction. HoopMaster’s Inbro notes call out the IB‑TUN1206‑45’s 15.5-inch arm width and recommend SWF392 brackets (instead of the more common IN350) for better fit—important if your package lacks brackets or you plan to upgrade hooping hardware.
Key takeaways:
- Expect used-only availability and bundle-heavy listings.
- Budget beyond the base machine for brackets verified to the 15.5-inch arm spacing (SWF392 recommended in practice).
- Weigh the value of included frames; replacing large assortments later is time-consuming and costly.
4.2 Spare Parts Sourcing and Reliability Risks
inbro embroidery machine spare parts scarcity is the IB‑TUN1206‑45’s biggest long-term challenge. Operators report difficulty sourcing specific components, especially:
- Pneumatic self‑threading parts (air-dependent and sensitive to compressor performance)
- Take‑up levers and threading-path hardware
- Model-specific brackets (SWF392 recommended for the 15.5-inch width)
Third-party marketplaces (e.g., AliExpress, embstore) can help, but availability fluctuates and part quality varies. Community feedback highlights inconsistent support and occasional wrong‑part shipments, so verifying part numbers and fitment before purchase is essential.
Practical risk mitigations:
- Stock consumables and small protections: board fuses (F1: 250V/3A; F2: 250V/4A) and the noise-filter fuse (250V/6.3A), needles, sensor-cleaning supplies.
- Validate bracket fitment to the machine’s arm width; HoopMaster notes point to SWF392 as a better real‑world match for this model.
- Treat the pneumatic system as both an asset and a vulnerability. Underperforming compressors or aging pneumatics can cause stitch inconsistency and downtime.
A durability‑minded accessory option for garment workflows
If you’re modernizing hooping while you stabilize operations, Sewtalent magnetic embroidery hoops are a practical upgrade for garment embroidery:
- Faster hooping: moving from screw‑style hoops to magnetic hooping can reduce hooping time from about 3 minutes to ~30 seconds—a roughly 90% time savings in repetitive garment runs.
- Heavy‑use durability: Sewtalent publishes impact and angle‑pressure durability testing and continuous monitoring that show long service life under industrial use.
- Broad size range and machine fit: 17+ sizes, with bracket matching to your machine’s 15.5-inch arm width. Confirm SWF392-type brackets for IB‑TUN1206‑45.
Note: Sewtalent hoops are for garment hooping, not for cap embroidery.
4.3 Long-Term Viability in Modern Workflows
Strengths
- Proven stitch quality and 6‑head productivity for medium‑volume shops
- Automation including auto‑trim and thread‑break detection
- Widely reported consistency when pneumatic and electronic systems are healthy
Limitations
- Legacy storage (3.5-inch floppy) complicates file handling; community resources note USB conversion kits as workflow upgrades
- Parts scarcity and limited factory support require planning and self‑reliance
Pre‑purchase inspection priorities:
- Electronics: check main boards, cabling integrity, fuses, and sensors; ask for a run‑test with designs that exercise the full sewing field
- Pneumatics: verify compressor performance and the self‑threading system’s operation under load
- Hoops/brackets: confirm arm width (15.5 inches) and bracket type (SWF392 recommended), and test full travel with your largest frames
Site setup and care:
- Follow documented installation clearances (≥50 cm on left/right/back) and environmental ranges (0–40°C; 30–95% RH, non‑condensing) to avoid heat‑related or access‑related maintenance hurdles over time.
5. Comparative Analysis: IB-TUN1206-45 vs. Industry Alternatives
inbro embroidery machine reviews often compare the IB-TUN1206-45 with industry alternatives like Tajima and SWF machines.
5.1 Performance Benchmarks Against Tajima and SWF
Positioning
- Inbro IB‑TUN1206‑45: 6‑head, commercial class; working area commonly cited around 520 × 360 mm in related Inbro documentation, with 1,200 SPM and up to 200 designs/2,000,000 stitches.
- Tajima TFMX‑IIC 1208: 8 heads, 360 × 450 mm working area (comparable field, higher head count).
- SWF WH1215‑55: 15 heads, 12 colors, 550 × 450 mm field (significantly higher head count and a wide field).
- Additional context: Tajima TFGN‑1212 (12 heads) targets a much larger class with expansive frame dimensions; SWF WL912‑75 illustrates the market’s push toward more heads and broad fields.
What this means:
- Head count: The IB‑TUN1206‑45 sits mid‑range; 8‑, 12‑, or 15‑head rivals increase throughput on large orders.
- Field size: Inbro’s field is competitive for jacket backs and larger garment graphics in its class.
- Feature flavor: Inbro’s self‑threading pneumatic system is a hallmark convenience—when the air system is dialed in, setup time drops and uptime improves.
Quality and reliability
- Practitioners have compared pre‑2012 Inbro output favorably to mainstream brands, citing consistent stitch quality.
- Reliability hinges on healthy pneumatics and sensors. Older units may demand more frequent attention to compressors, encoders, and detection systems.
Bottom line: If your order mix favors medium batches and you value a generous working field with automation, the Inbro remains viable. If maximum throughput on big runs is paramount, 8‑ to 15‑head options from Tajima or SWF may fit better.
5.2 Value Assessment: Cost vs. Capability
Total cost of ownership variables:
- Acquisition cost: Used‑only market, commonly "price on request," with condition and accessory bundles driving value.
- Maintenance: Parts scarcity can raise both cost and lead time. Pneumatic system and legacy electronics require competent in‑house maintenance or reliable third‑party help.
- Productivity: A 6‑head machine can be extremely efficient for mid‑volume shops, but larger head counts reduce cycle time on big, single‑design orders.
Where IB‑TUN1206‑45 delivers value:
- Strong stitch quality and capable field size for garment work
- Automation that reduces operator burden when pneumatics and sensors are maintained
- Accessory bundles (frames, hat kits, brackets) can tilt the equation decisively in the buyer’s favor
Where to be cautious:
- Discontinued manufacturer support means community‑driven documentation and third‑party sourcing are part of the plan.
- Factor in upgrade paths (e.g., USB conversions noted in community resources) to avoid floppy‑based bottlenecks.
- Verify bracket fitment (SWF392 recommended) and ensure your largest frames can travel safely without collisions.
6. Operating Resources and Support Networks
6.1 Accessing Manuals and Training Materials
The official inbro embroidery machine manual for the IB-TUN1206-45 is sparse. The most practical workaround is the IB-C1201 operation manual, which aligns with the TUN series on core architecture and procedures: - Power and memory baselines: single-phase 100–240V, approx. 1 kW consumption; up to 200 designs totaling ~2,000,000 stitches; 3.5-inch floppy storage - Safety and setup: installation clearances and environmental specs applicable across Inbro models - Maintenance procedures: encoder/sensor routines and board-level protections Critical technical references adapted from Inbro manuals and shared resources: - Encoder calibration: set the main shaft handle at 100° (acceptable 98°–102°), then follow the documented sequence for sensor alignment - Fuse references for joint/power boards: F1 (250V/3A), F2 (250V/4A), noise-filter fuse (250V/6.3A) - Common automation: automatic upper/under thread trimming, power-failure control, thread-break detection Community-driven guides and forums fill the gaps with practical workflows (file handling for floppy-centric systems and discussion of USB conversion kits) and troubleshooting playbooks. However, users frequently note the absence of TUN1206-45-specific videos, so expect to extrapolate from related Inbro models and shared operator experiences. Action plan: - Use IB-C1201 as your baseline manual. - Archive forum-shared procedures for encoder setup, error checks, and preventive maintenance into your shop SOPs. - Document your own calibration steps with photos so future operators can repeat successful setups.6.2 Navigating Technical Support Challenges
User reports describe uneven responsiveness and difficulty obtaining the right parts. Forum discussions include: - Random misalignment and color-selection issues that required board swaps or deeper alignment work - Prolonged downtime awaiting parts and uncertainty around repair costs - Repeated requests for training manuals, threading diagrams, and model-specific guidance Practical ways to reduce support dependency: - Preventive maintenance cadence: weekly sensor cleaning, thread-path housekeeping, light oiling per manual, periodic encoder verification - Electrical readiness: keep the correct fuses on hand and confirm stable input power - Pneumatic diligence: monitor compressor performance and air filtration to keep the self-threading system consistent - Knowledge capture: create in-house checklists for Error 06/20 handling, color-change resets, and hook area cleanouts When you do need help, third-party technicians and community networks are often the fastest route. Share clear photos, error codes, and the exact steps already tried; it accelerates remote diagnosis when official documentation comes up short.7. Conclusion: Is the IB-TUN1206-45 Right for You?
If you run medium-volume garment orders and can handle basic electronics, the inbro embroidery machine IB‑TUN1206‑45 remains a capable six‑head option with proven stitch quality. Plan around parts scarcity and uneven support: prioritize inspections of the pneumatic self‑threading system, sensors/encoders, and boards; verify the 15.5-inch arm width and bracket fit (SWF392 is a vetted recommendation). Modernize file handling with a USB conversion to avoid floppy bottlenecks, and document shop SOPs for Error 06/20 and color‑change resets to extend the machine’s useful life.
