Import Stitch Embroidery Fonts into mySewnet Font Manager—Fast Drag-and-Drop Mapping (Plus the Baseline Fix for “j” and “g”)

If you’ve ever downloaded a beautiful stitch font, opened mySewnet with high hopes, and then stared at the screen wondering, “Okay… now how do I actually use this?”, you are not alone. I see that exact frustration in students constantly. You have the digital assets, but the workflow feels unlocked, hidden behind a wall of technical confusion.

This guide rebuilds Brenda’s process into a clean, repeatable Standard Operating Procedure (SOP). We will transform a chaotic folder of files into a typing-ready font, map letters without opening folders 26 times, and solve the infamous “floating lowercase” problem.

More importantly, we will bridge the gap between software preparation and physical production, ensuring that when you finally hit "Stitch," your results match your vision.

Calm the Panic: mySewnet Font Manager Is the Gatekeeper (and You’re Not Doing Anything Wrong)

When a downloaded font won’t show up in your normal font list, it is usually not because the font file is “corrupted” or “bad”—it is simply because mySewnet needs you to teach it which embroidery file equals which keyboard character.

Think of Font Manager not as a barrier, but as a translator. It builds a usable bridge inside the software by mapping each individual .pes, .hus, or .dst letter file to a specific keystroke. Once you complete this mapping, the font graduates from a loose collection of files to a resident of the MyFonts category, behaving exactly like a built-in system font.

A viewer summed it up perfectly: they “downloaded a couple of fonts and could not figure out how to actually use them.” This workflow is the missing manual that turns raw data into a usable tool.

The “Hidden” Prep Pros Do First: Folder Hygiene, Naming, and a Reality Check on What You Downloaded

Amateurs dive straight into the software. Professionals start with Digital Mise-en-place. Before you click a single button in mySewnet, invest two minutes in preparation. This prevents the "Where did I save that?" panic that kills creativity.

What you need (The Physical & Digital Kit)

• Software: mySewnet Embroidery (running).
• Asset: A downloaded stitch font folder (unzipped). Brenda uses Jam and Berries.
• System: Windows File Explorer access.

What experienced shops do (The Strategy)

1. Isolate the Asset: Move the unzipped font folder to a "Staging Area"—the Desktop is fine for temporary work, but a dedicated "Embroidery Assets" drive is better for long-term storage.
2. Verify Integrity: Open the folder. Do you see individual files for A, B, C? If you see one giant file, you likely have a "font sheet" (which requires a different process). We need individual letters here.
3. Naming Convention: Decide on a name now. Do not call it "New Font." Call it something descriptive, like JamBerries_25mm_Satin. Future You will thank Present You when searching through 500 fonts next year.

Prep Checklist (Pre-Flight Safety Check):

• Location: The specific font folder is unzipped and placed on the Desktop.
• Visibility: You have opened the folder and visually confirmed individual letter files exist.
• Naming: You have written down the exact name you will use in the software.
• Sampling: You have identified the first three letters (A, B, C) for the initial test.
• Risk Identification: You have noted which letters are "descenders" (j, g, p, q, y) that will require baseline adjustment.


Open the mySewnet Letter Tab + Font Manager Without Wandering the Menus

Efficiency is about muscle memory. In mySewnet, follow this precise path:

1. Navigate to the Letter tab at the top ribbon.
2. Locate and click the Font Manager icon.

A new window will float over your grid. This is your "Workbench."

Crucial Concept: This is where you build the tool. Do not try to find the font in your standard dropdown menu yet. It doesn't exist there until we build it here.

Create the New Font Entry: “Import Font from Embroideries” + a Name You’ll Recognize

Inside the Font Manager workbench:

1. Click the icon that looks like a needle with a letter “A”: Import Font from Embroideries.
2. A dialog box appears. Type your chosen name (e.g., “Jam and Berries”).
3. Click OK or accept the name.

Pro Tip: If you are building a library for commercial use (team jerseys, monograms), start the name with a category code, like SCRIPT_JamBerries. This groups similar styles together in your list later.

Import the First Letter the Traditional Way (So You Know You’re Pointing at the Right Folder)

We will do the first letter the "slow way" to establish the connection path.

1. mySewnet will prompt you to browse your computer. Navigate to your Desktop (or where you staged the folder).
2. Select the file for capital A.
3. Click Open.

You should now see the letter A appear in the preview grid. Look closely at the Baseline Indicator—the horizontal line running beneath the letter.

Data Reality Check: Brenda’s example shows Letter A Height: 27.0 mm.

• Beginner Note: Your number does not need to be 27.0mm. It depends entirely on the digitized size of the font you bought.
• Safety Range: If your letter imports as 200mm+, you may have accidentally selected a "full alphabet sheet" file or a jumbo hoop design. If it imports as 3mm, it might be too small for standard thread (40wt). Standard stitch fonts usually range from 15mm to 50mm without issues.


The Speed Trick That Saves Your Sanity: Split-Screen Windows File Explorer + mySewnet

Mapping 52 characters (upper and lowercase) one by one using the "Browse" button is a recipe for repetitive strain injury and burnout. Here is the workflow upgrade:

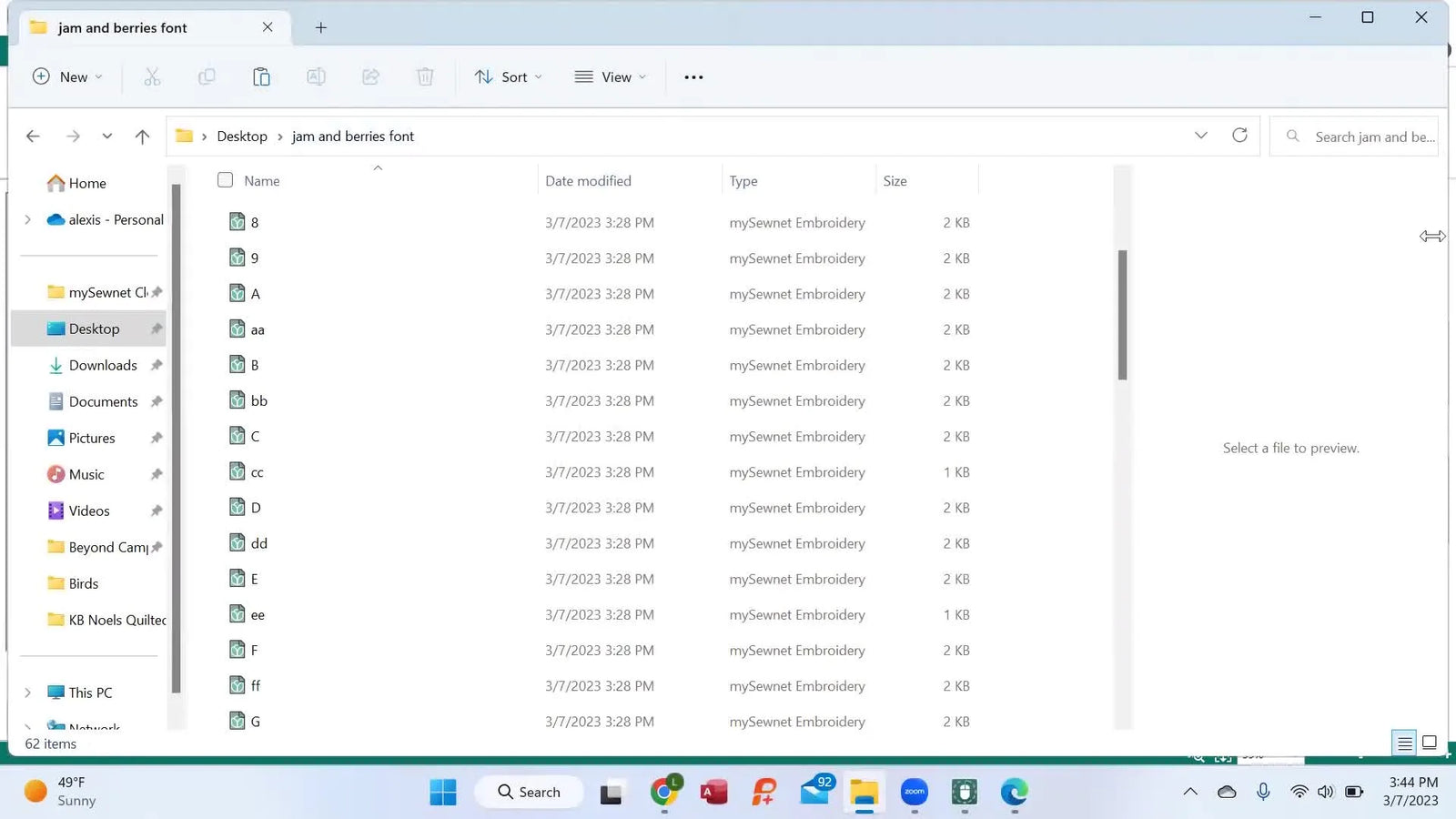

1. Open your font folder in Windows File Explorer as a separate window.
2. Resize this window so it takes up only the right one-third of your screen.
3. Position it side-by-side with the mySewnet Font Manager window.

Now, instead of clicking through menus, you have a direct visual line of sight. You can see the file B.pes, and you can see the empty slot where it belongs.

Drag-and-Drop Letter Mapping in mySewnet: The Fast Way to Build the Alphabet

This is the "Flow State" phase. With your split-screen set up:

1. In File Explorer, click the next letter file (e.g., B).
2. Hold the left mouse button—feel the grab.
3. Drag the file across the screen into mySewnet’s Defined Characters grid area.
4. Drop it.

Sensory Check: You should see the character update immediately in the preview box. It should happen instantly—no loading bars.

Production Logic: If you are running a shop, time is money. This drag-and-drop method turns a 30-minute chore into a 5-minute task. It transforms "I'll do it later" into "Ready for production."

Setup Checklist (The "Flow" Verification)

• Environment: Split-screen is active; File Explorer and mySewnet are not overlapping in a way that blocks the drop zone.
• Connection: You successfully imported "A" via the menu to establish the path.
• Velocity: You successfully dragged and dropped "B" and "C".
• Visuals: You can see the Baseline Indicator (red/blue line) in the preview window for every letter you drop.

The “Gravity” Problem: Fix Floating Descenders (j, g) with Baseline Adjustment

This is the detail that separates amateur "homemade" looks from professional "custom" embroidery.

In typography, most letters sit on the line (baseline). However, descenders (j, g, p, q, y) must hang below the line. By default, mySewnet imports the bottom of the embroidery design to sit ON the line. This makes a lowercase 'j' look like it is floating in mid-air.

The Fix:

1. Drag in the lowercase j.
2. Observe the error: The bottom curve of the 'j' is sitting on the red line.
3. Click the Baseline Indicator (the horizontal line in the preview).
4. Drag the line UPWARD.
5. Visual Goal: Stop dragging when the loop of the 'j' is below the line, and the top part of the 'j' aligns with where a letter like 'a' or 'e' would sit.

Technical Insight: The Letter j Height (e.g., 27.0 mm) remains the same. You are not shrinking the letter; you are shifting its center of gravity relative to the text line.

Pro tip from the shop floor

If you skip this step, your stitched names will look "bouncy." Inspect your font before you map it. Identify the descenders.

• The Usual Suspects: g, j, p, q, y.
• The Edge Cases: f (in some scripts), z (in cursive).

When File Explorer Vanishes Behind mySewnet: The Taskbar Recovery Move

A common frustration: You click back into mySewnet to adjust a baseline, and your folder window disappears behind the main software. This breaks your flow.

The Refocus Maneuver:

• Look at the taskbar at the very bottom of your monitor.
• Click the yellow file folder icon.
• This forces File Explorer back to the "Front Layer" of your screen.

Do not minimize mySewnet; just layering windows correctly keeps the assembly line moving.

Repeat the Descender Fix for “g” (and Any Letter That Needs to Hang Below)

Consolidate your learning by repeating the action for the letter g.

1. Drag in g.
2. Visual Check: It looks like it is jumping.
3. Action: Drag the baseline up.
4. Verification: Imagine the word "bag." The bulb of the 'g' should sit level with the 'b' and 'a', while the tail hangs down.




Watch out: The "Bad File" Myth

Users often post in forums: "I bought a bad font, the letters are all over the place!" Reality: The digitizer did their job. The file is fine. The mapping software simply defaults to "bottom alignment" until you tell it otherwise. You are the pilot; you have to set the trim.

Test the Imported Font in the Letter Tab: Find It Under MyFonts and Type “ABC”

Never assume a font works until you see it generated.

1. Close Font Manager (the workbench).
2. Return to the main Letter tab.
3. Open the font dropdown menu.
4. Scroll to the category: MyFonts.
5. Select your new font (e.g., “Jam and Berries”).
6. Type a test string: Agj (This tests a standard letter and two descenders).
7. Click Apply.

Success Metric: The stitches generate on your screen. The 'g' and 'j' tails should dip below the 'A'.

Clarification: From Screen to Machine

A viewer asked, “So, I have to put it on Sewnet THEN to my machine?”

The Workflow:

1. Build: Create the font in mySewnet (this tutorial).
2. Design: Type your text ("Happy Birthday") and generate the design.
3. Export: Save/Export the final design file (e.g., .pes, .vp3) to a USB drive or send it via cloud/WiFi.
4. Stitch: Load that file onto your machine.

Note: You cannot typically load the raw .bx or font folders directly to the machine to type on the machine's screen. The computer does the heavy lifting; the machine does the stitching.

Add Missing Letters Later: “Edit Imported Font” Saves You from Starting Over

Did you only map A, B, and C for a test, and now you need to stitch "ZEBRA"? You do not need to delete the font and start over.

1. Open Font Manager again.
2. Select your font from the list.
3. Click the Edit Imported Font icon (looks like a pencil).
4. The mapping grid reopens.
5. Drag and drop 'Z', 'E', 'R' from your folder.

This flexibility allows you to build your library "on demand" rather than spending a whole Sunday mapping fonts you might not use yet.

The “Why” That Prevents Rework: Baselines, Consistency, and What Makes a Font Feel Professional

Here is the physics of why this matters.

• Visual Tension: The human eye is incredibly sensitive to alignment. Even a 1mm deviation makes text look "slordy" (sloppy + dirty).
• Needle Mechanics: If your baseline involves frequent jumps, your machine performs more trims. More trims = more potential for thread pull-outs or bird nests. Consistent baselines promote smoother machine rhythm.

Decision Tree: When to Keep It in mySewnet vs. When to Upgrade Your Production Workflow

You have mastered the software side. Now, look at your physical workflow. Use this logic to decide your next step.

A) Are you stitching unique names occasionally (Gifts, Hobby)?

• Yes: Keep your process nimble. Map only the letters you need. Use standard hoops.
• No: Go to B.

B) Are you stitching the same text/logo repeatedly (Team gear, Etsy orders)?

• Yes: Map the full alphabet immediately. Verify every descender. Save the font with a clear name.
• Challenge: Is the physical hooping slowing you down? Go to C.

C) Are you facing "Hoop Burn," crooked placement, or wrist fatigue?

• Yes: Your bottleneck is hardware, not software.
• Solution Level 1: Use "floating" techniques with adhesive stabilizer (risk of gumming needles).
• Solution Level 2 (Recommended): Upgrade to a magnetic embroidery hoop.

This is not just a luxury; it is a mechanical advantage. Traditional screw hoops create tension by distorting fabric fibers (hoop burn). Magnetic hoops hold by vertical force, allowing you to slide fabric in and out without unthreading the outer ring, drastically reducing setup time and fabric damage.

The Upgrade Path: Where Software Speed Ends and Real Production Begins

This tutorial optimized your digital setup. But in a real embroidery environment, the "Time Thief" is usually Hooping.

If you have optimized your software workflow but are still spending 5 minutes hooping a shirt that takes 2 minutes to stitch, your ratio is inverted.

• For Home Machines (Single Needle): If you struggle with thick towels or delicate knits, a magnetic embroidery hoop designed for home machines (like the MaggieFrame style) eliminates the need to wrestle with inner rings.
• For Production (Multi-Needle): If you are running batches, magnetic embroidery frames act like a clamp system. They allow for rapid changes without "popping" the hoop, keeping your production rhythm (SPM) high.

Warning (Magnet Safety): These are industrial-strength neodymium magnets. They can pinch skin severely.
* Pacemakers: Keep at least 6 inches away from implanted medical devices.
* Electronics: Do not place directly on credit cards or laptop hard drives.
* Handling: Always slide magnets apart; do not try to pull them straight up.

Two Fast Troubleshooting Fixes (The Ones That Waste the Most Time)

When things go wrong, consult this triage table before changing settings.

Operation Checklist (The Final Quality Gate)

Do not press "Start" on the machine until you pass this gate.

• Software: Font appears in MyFonts list and types correctly.
• Alignment: You have visually verified that descenders (j, g) hang below the baseline in the preview.
• Stabilizer: You have selected the correct backing (Cutaway for knits/stretch, Tearaway for woven/stable).
• Consumables: You have 505 spray (if floating) or a water-soluble topper (if stitching on terry cloth/fleece).
• Test Stitch: You have run a test on scrap fabric (similar to final fabric) to verify tension and density.

Hidden Consumable Alert: Always keep a stash of Sharp Embroidery Needles (75/11). A dull needle will ruin even the perfectly mapped font.

A Practical Note for Embroiderers Who Sell: Fonts Are Only Half the Battle

Clean fonts sell the product, but consistency keeps the customer.

When you scale from one-offs to orders of 10 or 20 shirts, alignment becomes your biggest stressor. While software handles the design alignment, magnetic hoops for embroidery machines handle the physical alignment. They reduce the variable of "human hand strength" from tightening screws, ensuring that Shirt #1 and Shirt #50 have the exact same tension.

Warning (Mechanical Safety): Even though this guide focused on software, remember that embroidery machines are powerful industrial tools.
* Keep fingers clear of the moving pantograph.
* Power down or lock the screen before changing needles.
* Eye Protection: If a needle hits a hard spot (like a hoop frame), it can shatter. Safety glasses are recommended during high-speed stitching.

One Last Efficiency Nudge: Don’t Let “Font Setup” Steal Your Stitching Time

Brenda’s split-screen drag-and-drop method is the kind of "micro-efficiency" that compounds over time. If you save 10 minutes per font setup, and you set up 3 fonts a week, you gain back 26 hours of production time a year.

Use that recovered time to refine your craft, maintain your machine, or upgrade your physical tools. Whether it is mastering the embroidery hooping system or organizing your thread library, every minute you stop fighting the process is a minute you spend creating value.

FAQ

• Q: Why does a downloaded embroidery stitch font not appear in the mySewnet Embroidery font dropdown, and how do I make the font show under MyFonts?
  A: This is common—mySewnet Embroidery will not list a downloaded stitch font until the letters are mapped in Font Manager as an imported font.
  • Open the Letter tab → click Font Manager.
  • Click Import Font from Embroideries, name the font, and import the capital A from the unzipped folder.
  • Drag-and-drop the remaining letter files into the Defined Characters grid.
  • Success check: The font appears under MyFonts in the Letter tab and typing “ABC” generates stitches on-screen.
  • If it still fails: Re-check that the download contains individual letter files (A, B, C…) rather than one “alphabet sheet” design file.
• Q: How do I confirm a downloaded embroidery font folder is the correct type for mySewnet Font Manager (individual letters vs one big file)?
  A: Use a quick folder reality check—Font Manager needs individual letter files, not one combined “font sheet.”
  • Open the unzipped folder in Windows File Explorer.
  • Verify you can see separate files for letters like A, B, C (not a single large design).
  • Stage the folder somewhere easy to find (Desktop is fine for temporary work) and choose a descriptive font name before importing.
  • Success check: You can select a single A file and it imports as one letter preview in Font Manager.
  • If it still fails: If the import comes in extremely large (e.g., 200mm+) or extremely tiny (e.g., 3mm), you likely selected the wrong file type from the folder.
• Q: How do I speed up mapping letters in mySewnet Embroidery Font Manager without browsing for every letter file one-by-one?
  A: Use split-screen and drag-and-drop—this usually cuts mapping time dramatically.
  • Import A the traditional way first to confirm you are in the correct folder path.
  • Open the font folder in Windows File Explorer and resize it to one side of the screen.
  • Drag each letter file (B, C, D…) directly into the Font Manager Defined Characters grid.
  • Success check: Each drop updates instantly in the preview with no delays, and the baseline indicator is visible for the mapped letters.
  • If it still fails: Make sure the File Explorer window is not covering the Font Manager drop zone and that you are dropping into the character grid area (not the main canvas).
• Q: How do I fix “floating lowercase letters” (descenders like j and g) in mySewnet Embroidery Font Manager baseline mapping?
  A: Adjust the baseline—mySewnet often bottom-aligns imported letters until the baseline is moved for descenders.
  • Drag in the lowercase j (or g) and look for the tail/loop sitting on the baseline instead of hanging below it.
  • Click the baseline indicator line in the preview.
  • Drag the baseline upward until the descender hangs below the line while the main body aligns like a normal lowercase letter.
  • Success check: Typing a test like Agj shows the g and j tails dipping below the A baseline in the preview.
  • If it still fails: Repeat the baseline adjustment for other descenders (p, q, y) and check “edge case” letters like f in some script fonts.
• Q: How do I bring Windows File Explorer back when it disappears behind mySewnet Embroidery during Font Manager drag-and-drop mapping?
  A: Use the taskbar refocus move—this is a Windows window-layering issue, not a mySewnet problem.
  • Look at the Windows taskbar at the bottom of the screen.
  • Click the yellow File Explorer folder icon to bring the font folder window to the front.
  • Keep both windows side-by-side instead of minimizing mySewnet to maintain drag-and-drop flow.
  • Success check: The File Explorer window stays visible and you can continue dragging letter files without re-browsing.
  • If it still fails: Resize the mySewnet Font Manager window so the drop grid remains exposed and not hidden behind other panels.
• Q: How do I export text created in mySewnet Embroidery to a home embroidery machine file format like .PES, and why can’t the machine type directly from the raw font folder?
  A: Create and export a finished design file—most machines stitch design files (like .PES), not raw font folders or font setup data.
  • Build the font in mySewnet Font Manager, then type the text in the Letter tab.
  • Generate the lettering and Export/Save the final design in your machine’s format (for example, .PES).
  • Transfer via USB (or your preferred method) and load that exported design onto the machine.
  • Success check: The embroidery machine lists the exported design file and shows a stitch preview (not missing/blank).
  • If it still fails: Re-export in the correct machine format and check USB basics (the blog notes that USB size can matter, and keeping it under 32GB can avoid read issues).
• Q: What are the critical safety precautions for magnetic embroidery hoops (neodymium magnets) when hooping garments for embroidery production?
  A: Treat magnetic embroidery hoops as industrial clamps—powerful magnets can pinch skin and must be kept away from medical implants and sensitive items.
  • Slide magnets apart instead of pulling straight up to reduce pinch risk.
  • Keep magnets at least 6 inches away from pacemakers or implanted medical devices.
  • Keep magnets away from electronics and magnetic-stripe cards (credit cards).
  • Success check: Magnets separate and re-seat smoothly without snapping, and fingers stay clear of pinch points during placement.
  • If it still fails: Stop and reset the setup—reposition fabric and magnets calmly rather than forcing alignment, because forced separation is when pinches happen most.
