Image Trace for Embroidery in Adobe Illustrator: Clean Vectors, Fewer Thread Breaks, and Files Your Embroidery Software Actually Opens

If you have ever stared at your embroidery machine screen, baffled as to why your crisp, clean logo turned into a "birdnest" of thread or simply disappeared entirely, you are standing at the same threshold every master digitizer once crossed.

The frustration is real. You hear the machine grinding, you see the spacing is wrong, and you feel the panic of a wasted garment. But here is the industry secret: 90% of embroidery failures happen before the machine is even turned on. They happen during the artwork preparation.

Embroidery is a physical discipline disguised as a digital art. Unlike printing, where ink simply sits on top of fabric, stitches pull, push, and distort the material. This guide rebuilds the workflow from BEAM’s "Image Tracing for Embroidery" lesson, but it adds the Chief Embroidery Officer’s production layer—the sensory checks, the safety margins, and the hardware logic that turns a "computer file" into a profitable, flawless product.

Calm the Panic: “My Embroidery Software Can’t Read My Illustrator File” Is Usually a Save-Version Problem

When you open a file in your digitizing software (Wilcom, Hatch, PE Design, etc.) and see missing colors, invisible shapes, or just an empty screen, do not blame the software. The culprit is almost always the file version.

Modern vector software (Illustrator CC) utilizes complex compression algorithms that older digitizing kernels simply cannot read. It is like trying to play a Blu-Ray disc in a VHS player.

In the tutorial video, the critical compatibility move is saving your vector as Illustrator 8 or Illustrator 9. If you skip this, your embroidery software may strip out color data or curve information.

The Mindset Shift:

• Your Software is a Translator, Not an Artist: Digitizing software needs simple, mathematical geometry (vectors), not complex modern effects.
• Think in "Stitch Density": Every line you trace will eventually have physical width. If you trace a line thinner than 1mm, you are asking the machine to place needle penetrations so close together they may cut the fabric.


The “Hidden” Prep Pros Do First: Set the Artboard Like a Hoop Boundary (Before You Trace Anything)

Most beginners open Illustrator and start drawing on a giant canvas. This is a mistake. In embroidery, Scale is King.

The video begins by creating a new document with specific settings. This is not administrative busywork; it is your first safety check. By setting the artboard to the size of your intended hoop, you create a visual anchor. If the logo doesn't fit the artboard, it won't fit the physical hoop.

The Professional Setup Routine (Exact Settings)

1. Click Create New.
2. Navigate to the Art & Illustration tab.
3. Crucial Step: Set Units to Inches (or mm if your shop runs metric).
4. Set dimensions to match your target hoop (Video uses 4 inches x 4 inches).
5. Open Advanced Options:
   • Color Mode: RGB Color (Embroidery software creates thread charts from RGB values, not CMYK print values).
   • Raster Effects: High (300 ppi). Note: Low resolution traces result in "stair-step" edges that cause jagged stitching.
6. Click Create.


Why this matters on the shop floor

I have seen countless operators trace a logo on a large artboard, only to shrink it down by 50% later in the digitizing software.

• The Result: Shapes that looked distinct become microscopic clumps.
• The Sound: You will hear the machine making a heavy "thud-thud" sound as it tries to force too many stitches into a tiny area.
• The Fix: Design at the scale you intend to stitch. A 4x4 inch artboard enforces discipline.

Hidden Consumable Alert: Before you even start digital prep, ensure you have the basics for the physical test run: Stabilizer (Cutaway for knits, Tearaway for wovens), Temporary Spray Adhesive, and high-quality Topstitch Needles (75/11 is a safe "sweet spot" for general logo work).

Prep Checklist (Pre-Flight):

• define the physical limit: Artboard size = Hoop size (e.g., 4" x 4").
• Set Units to verify physical scale immediately.
• Set Color Mode to RGB to match screen-to-thread limitations.
• Check your Raster Effects are at 300 ppi (Low res inputs = Garbage outputs).


Import the JPG/PNG Without Drama: Drag-and-Drop, Then Select It So Image Trace Actually Wakes Up

The import process is deceptively simple:

1. Drag your image file onto the artboard.
2. Use the Selection Tool (Black Arrow) to click the image.

Sensory Check: If the image is not selected, the "Image Trace" button at the top (or in the properties panel) will be greyed out or missing. It’s like trying to drive a car without turning the ignition. You must tell the software what you want to trace.

A Diagnosis on Source Images

The video demonstrates with a clean logo. This is the "Happy Path." In reality, clients send low-res screenshots or photos of business cards.

• The Rule: Clean edges = Clean stitches.
• The Risk: If the image is fuzzy (pixelated), Illustrator will try to trace the "fuzz." This creates hundreds of tiny vector nodes. In the embroidery world, thousands of nodes = thousands of unnecessary machine commands, slowing down your run time and increasing the risk of thread breaks.


Turn On Adobe Illustrator Image Trace and Dock It Where You Can See It (Because You’ll Be Iterating)

Do not rely on the simple "Make" button. You need the full control panel.

1. Go to Window > Image Trace.
2. Dock this panel on the right side of your screen.

You are about to act as a surgeon, tweaking parameters to clean up the "body" of the artwork. You need your instruments visible.

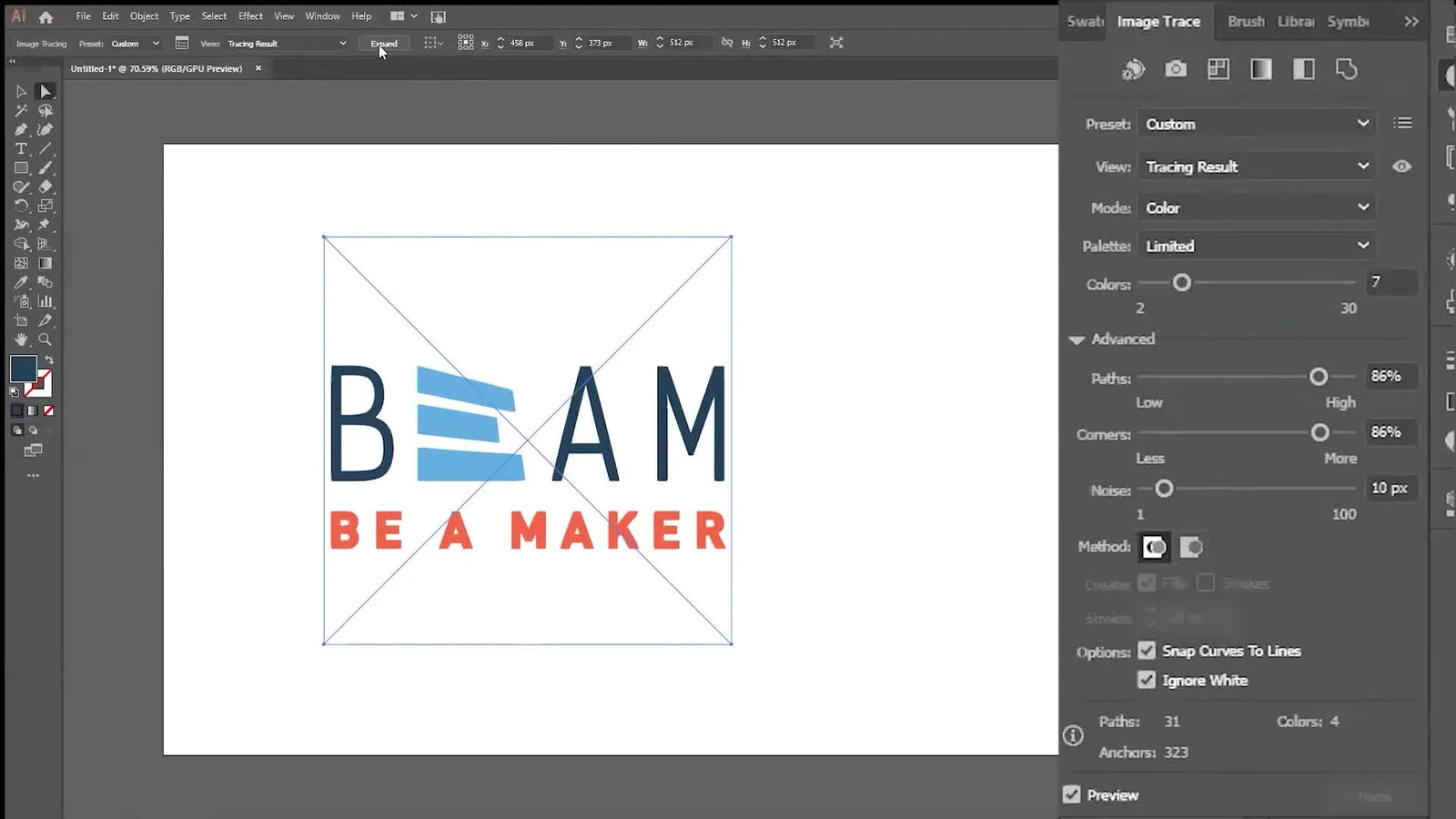

Get a “Digitizer-Friendly” Trace: Color Mode + Limited Palette + Ignore White (So You Don’t Stitch a Background Box)

This section contains the most critical "anti-frustration" settings for embroiderers. If you use default settings, you will get a photorealistic trace that is un-stitchable.

The Protocol:

1. Mode: Set to Color.
2. Palette: Set to Limited.
3. Colors: Reduce this number aggressively (Video uses 7).
   • Why: Thread is not ink. You cannot easily blend 50 shades of blue. You need distinct blocks of color that correspond to specific spools of thread.
4. Ignore White: CHECK THIS BOX.
   • The Consequence: If you leave this unchecked, Illustrator creates a white vector square behind your logo. Your digitizing software will interpret this as "Fill this massive square with 15,000 stitches of white thread." This is a waste of time, thread, and creates a "bulletproof" patch on the shirt.
5. Preview: Turn On.






The Commercial Reality: Tiny Islands Sink Ships

When you look at the preview, look for tiny specs or "dust" in the artwork.

• Clean Art = Consistent Hooping: If your artwork is messy, you spend hours fixing files. If your artwork is clean, you can focus on physical production. Reliable production relies on standard procedures, such as hooping for embroidery machine setups that are repeatable. A clean file ensures that what you see on the screen matches where you placed your hoop on the garment.

The Three Sliders That Decide Whether Your Vector Is Clean or a Nightmare: Paths, Corners, Noise

Expand the Advanced tab. These three sliders control the "physics" of your future embroidery.

• Paths: Controls how tightly the vector line hugs the original pixel pixels.
• Corners: Controls how sharp the turns are.
• Noise: Controls the minimum size of details allowed.






The "Embroidery Physicist" Calibration Guide

You are not designing for a screen; you are designing for a needle that is moving up and down 800 times a minute.

1. Paths (The Jitter Filter)

• Too High: The line mimics every pixelated bump. This creates "jagged" stitching instructions.
• Sweet Spot: Lower is often better. You want smooth, flowing curves that the machine's pantograph (the arm moving the hoop) can follow gracefully.

2. Corners (The Sharpness Check)

• Too High: Creates razor-sharp points.
• The Danger: In embroidery, a point that is too sharp means stitches pile up in one spot, creating a hard knot or breaking the needle.
• Sweet Spot: Slightly lower. Rounder corners allow the thread to wrap around the fabric turn without piling up.

3. Noise (The "Speckle" Killer) - MOST IMPORTANT

• Definition: This tells Illustrator, "Ignore any shape smaller than X pixels."
• The Trap: If Noise is too low (e.g., 1-5 px), you will trace dust specs.
• The Symptom: Later on, the machine will try to make 3 stitches for a piece of dust. It will perform a Trim, move 2mm, stitch 3 times, and Trim again. This sounds like a machine gun stuttering and creates a mess of thread tails on the back.
• The Fix: Increase Noise (try 15-25 px or higher) until small, irrelevant details vanish.

Warning: Mechanical Safety. Do not try to preserve details smaller than 1mm in width. A standard 40wt thread is roughly 0.4mm wide. If your vector shape is smaller than the thread itself, the needle has nowhere to put the stitch.

The Moment That Makes It “Real” Vector Art: Expand, Then Ungroup So You Can Edit Like a Pro

Once the preview looks clean:

1. Click Expand (Top Toolbar). The image changes from a "preview" to actual blue vector outlines.
2. Right-click > Ungroup.




Why Ungrouping is Non-Negotiable

Digitizing software treats grouped vectors as one object. By ungrouping, you can select just the text, or just the logo icon.

• The Cleanup: Use the selection tool to click on any leftover background bits or "ghost shapes" (clear shapes with no color) and hit DELETE.
• The Test: Click a shape and move it slightly. Does it move alone? Good. That means your digitizing software can assign stitch types (e.g., Satin Stitch vs. Tatami Fill) to that specific area.

The “Secret Save Setting” That Prevents Missing Colors: Save As Illustrator 8 or 9 (Yes, Really)

This is the step that separates the amateurs from the pros who understand the software ecosystem.

1. File > Save As.
2. Choose output location (Flash Drive or Network Folder).
3. Illustrator Options Window: Change Version to Illustrator 8 or Illustrator 9.
4. Click OK. Ignore the warnings about "legacy formats."


Why are we using software from 1998?

The "kernel" (the core code) of many major embroidery software packages relies on older vector coding standards to import data. Modern "CC" files contain excessive metadata (transparency, extensive color profiles) that confuse the translation engine, resulting in:

• Original colors turning black.
• Curved lines turning into straight jagged lines.
• File simply failing to open.

Saving as Illustrator 8 strips away the modern "fluff" and leaves pure, geometric vector data—exactly what the machine needs.

Structured Troubleshooting: When It Doesn't Look Right

If your trace looks wrong, do not randomly slide bars. diagnose the symptom using this Logic Tree.

Decision Tree: Is Your Image Ready for Tracing?

Before you even start, look at your client's artwork and follow this path:

1. Is it a Photo (JPG)?
   • Yes: STOP. Image trace will create a mess. You need to manually redraw this or hire a digitizer.
   • No: Proceed to 2.
2. Is it a Screenshot / Web Logo (Low Res)?
   • Yes: Proceed with caution. Set Noise high to remove pixel artifacts.
   • No (It is high res): Proceed to 3.
3. Does it have Gradients (Fading colors)?
   • Yes: Warning. Tracing will create "bands" of solid color. Simplify the art to solid colors first.
   • No (Solid Colors): Green Light. Proceed with the tutorial above.

The Upgrade Path: From Software Cleanliness to Production Profitability

You have mastered the software prep. Your clean vector files are now producing clean stitch files. But as you scale up, you will hit a new bottleneck: Physical Limitations.

Even the perfect file cannot prevent "hoop burn" (the shiny ring left by tight plastic hoops) or the physical fatigue of re-hooping 50 shirts for a team order.

Diagnosis: When to Upgrade Your Tooling

• The Symptom: You are rejecting garments because of hoop marks, or you struggle to hoop thick items like Carhartt jackets.
  • The Prescription: This is where magnetic embroidery hoops change the game. Unlike traditional rings that rely on friction and muscle power, magnetic frames snap fabrics securely without crushing the fibers.
• The Symptom: Your wrists hurt from repetitive strain, or logos are consistently crooked.
  • The Prescription: Consistency requires a system. Implementing a dedicated embroidery hooping station ensures every chest logo is exactly 4 inches down, every time.
• The Symptom: You are spending more time changing thread colors than stitching.
  • The Prescription: If you have outgrown your single-needle machine, look into SEWTECH multi-needle solutions. Moving from 1 needle to 10+ needles allows you to queue up colors and walk away—that is how a hobby becomes a business.

Warning: Magnet Safety. Professional magnetic hoops use industrial-grade magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Safety: Keep them at least 6 inches away from pacemakers.
* Storage: Never leave them where they can snap together uncontrolled; store them with separators.

For those engaging in high-volume production, tools like the hoopmaster system, combined with magnetic hooping station technology, provide the ergonomic relief and speed necessary to turn your clean Illustrator files into finished products at a profitable rate.

Setup Checklist (Do This Before You Trace)

• Image placed on Artboard and Selected.
• Image Trace Panel Open.
• Mode = Color.
• Palette = Limited (Colors reduced to <10).
• Ignore White = Checked (Crucial!).
• Preview = On.

Operation Checklist (Do This Before You Export)

• Click Expand to create vectors.
• Right-click Ungroup.
• Delete any "ghost" artifacts or background noise.
• File > Save As -> Illustrator 8 or 9.
• Verify the file is saved to your transfer drive.

Mastering the connection between Illustrator and your machine is the first step. By combining clean data with the right physical tools—quality stabilizers, correct needles, and efficiency-boosting hoops—you move from "hoping it works" to "knowing it will sell."

FAQ

• Q: Why does Wilcom Hatch PE-Design show an empty screen or missing colors when importing an Adobe Illustrator CC .AI file?
  A: Re-save the artwork as Adobe Illustrator 8 or 9, because many digitizing import engines cannot read modern Illustrator CC compression/metadata reliably.
  • Use File > Save As in Adobe Illustrator.
  • Set Version = Illustrator 8 or Illustrator 9 in the Illustrator Options window, then save.
  • Re-import the new .AI file into Wilcom/Hatch/PE-Design and check that shapes and colors appear.
  • Success check: the design opens with visible vector shapes (not blank) and intended color blocks (not all black).
  • If it still fails: remove modern effects (extra metadata, complex appearances) by simplifying the artwork before saving again.
• Q: How can Adobe Illustrator Image Trace avoid creating a stitchable white background box for Wilcom or Hatch digitizing?
  A: Turn on Ignore White in Adobe Illustrator Image Trace so the trace does not generate a large white rectangle behind the logo.
  • Open Window > Image Trace to access the full panel.
  • Set Mode = Color, Palette = Limited, reduce Colors aggressively (for example, 7 was used in the workflow).
  • Check Ignore White, then enable Preview and re-trace.
  • Success check: the preview shows only the logo shapes, and no big background square outline appears.
  • If it still fails: click Expand, Ungroup, then select and delete any leftover “ghost” background shapes.
• Q: What Adobe Illustrator Image Trace settings prevent random dots and tiny “dust” shapes that cause trims and thread tails in embroidery digitizing software?
  A: Increase the Noise value in Adobe Illustrator Image Trace Advanced settings to remove tiny specs before converting to vectors.
  • Go to Window > Image Trace, then expand Advanced.
  • Raise Noise (a common working range is 15–25 px or higher) until irrelevant specks disappear.
  • Re-check Colors is kept low and Ignore White is enabled.
  • Success check: the trace preview stops showing tiny isolated islands, and the vector result does not contain scattered mini-shapes.
  • If it still fails: lower Paths slightly to smooth pixel jitter, or start from a cleaner/higher-resolution source image.
• Q: How do Adobe Illustrator Image Trace “Paths” and “Corners” cause jagged edges or clipped corners in embroidery digitizing?
  A: Adjust Paths and Corners in Image Trace Advanced—lower Paths to reduce jaggedness, and raise Corners if sharp angles are being clipped.
  • Lower Paths when the outline is following pixel bumps too tightly.
  • Increase Corners when points look chopped off or rounded too much.
  • Re-run Preview, then Expand and inspect the vector nodes before exporting.
  • Success check: curves look smooth (not stair-stepped), and corners keep their intended shape without razor-sharp needle-pileup points.
  • If it still fails: reduce artwork complexity (fewer colors, fewer tiny details) before tracing again.
• Q: What is the safest way to set up an Adobe Illustrator artboard for embroidery so the design actually fits a 4" x 4" hoop boundary?
  A: Create the Illustrator document at the intended hoop size first (for example, 4 inches x 4 inches) and design at final stitch scale instead of shrinking later.
  • Click Create New, set Units = Inches (or mm), and set artboard dimensions to match the target hoop.
  • Set Color Mode = RGB and Raster Effects = High (300 ppi) for cleaner trace edges.
  • Place the logo and confirm it fits inside the artboard before tracing.
  • Success check: the logo fits the artboard with realistic spacing; no elements must be “shrunk 50% later” to fit.
  • If it still fails: stop and simplify details that become microscopic at the target size (generally avoid details under ~1 mm).
• Q: What “pre-flight” consumables should be ready before running an embroidery test stitch from a freshly traced Illustrator vector?
  A: Prepare stabilizer, temporary spray adhesive, and appropriate needles before the first sew-out, because clean artwork still needs correct physical support.
  • Choose cutaway stabilizer for knits and tearaway stabilizer for wovens as a starting point (verify with the machine manual and fabric behavior).
  • Apply temporary spray adhesive to control shifting during the test run.
  • Install a quality topstitch needle (75/11 is a safe starting point for general logo work) and confirm it is not bent/dull.
  • Success check: the sew-out runs without excessive shifting, and the fabric does not pucker or distort immediately around the design.
  • If it still fails: re-check design scale/density choices and confirm the traced artwork did not preserve details smaller than the thread can physically resolve.
• Q: When frequent hoop burn or slow re-hooping becomes a production bottleneck, how should an embroidery shop choose between magnetic embroidery hoops and a SEWTECH multi-needle embroidery machine?
  A: Use a staged upgrade path: optimize technique first, then upgrade to magnetic hoops for hooping consistency, then consider a multi-needle machine when color changes become the bottleneck.
  • Level 1 (technique): standardize hoop placement and keep artwork clean (limited colors, no tiny islands) to reduce rework.
  • Level 2 (tooling): switch to magnetic embroidery hoops when hoop burn, thick garments, or repetitive strain makes hooping inconsistent or painful.
  • Level 3 (capacity): move to a SEWTECH multi-needle setup when time is lost mainly to thread/color changes rather than stitching.
  • Success check: fewer rejected garments from hoop marks, faster consistent hooping, and more uninterrupted run time per order.
  • If it still fails: add a dedicated hooping station to standardize placement and reduce crooked logos.
• Q: What magnet safety rules should embroidery operators follow when using industrial magnetic embroidery hoops on thick jackets or high-volume runs?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from medical devices and uncontrolled snapping.
  • Keep fingers clear of the snap zone and close the frame deliberately.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Store magnetic hoops with separators so they cannot slam together unexpectedly.
  • Success check: the frame closes without finger pinches, and the work area stays controlled with no sudden magnet-to-magnet impacts.
  • If it still fails: pause production and reorganize the hoop handling/storage workflow before continuing.
