Illustrator-to-PES Logo Digitizing That Actually Stitches Clean: The Nike Swoosh Workflow (and the Traps That Waste Hours)

You are not just learning software today; you are learning embroidery engineering.

Logo digitizing feels like a maze because it is one. One wrong file version, one sloppy node trace, or one "default" density setting, and your clean swoosh turns into a thread-shredding disaster that leaves gaps in the fabric and frustration in your mind.

This guide rebuilds the exact workflow shown in the video (Illustrator → Brother software → PES). However, I am going to layer in 20 years of shop-floor reality. The video shows you how to click the buttons; I will teach you why those clicks prevent needle breaks, puckering, and wasted garments.

First, a quick reality check: copyrighted logos and what your Brother PE770/SE625 can (and can’t) do

In the video, Nate is clear: the Nike logo is copyrighted, and the demo is for personal educational use. Treat that warning seriously. In the commercial world, stitching a trademark you don't own is a fast track to legal trouble.

On the technical side, you need to adjust your mental model. Your Brother machine does not read "pictures." It reads coordinates and commands. It reads an embroidery file (here, a .PES). The game is a chain of custody:

1. Source: Start with a high-resolution image (Garbage In, Garbage Out).
2. Vector: Convert pixels into mathematical paths (Bezier curves).
3. Digitize: Convert paths into stitch instructions with physical logic (density, pull compensation).
4. Output: Export a language your specific machine understands.

If you keep this chain unbroken, your results jump from "amateur craft" to "professional production."

The “clean source image” rule: Google Images settings that save you from jagged vectors later

Nate starts where every pro starts: sourcing a high-quality image.

He uses Google Images and goes to Tools → Size → Large. In the video, he chooses an image around 5000 × 1800 px and specifically prefers one with no background (transparent) to bypass cleanup.

Why this matters in embroidery physics: A low-resolution image forces Illustrator to "guess" where the edge is. These guesses create hundreds of tiny, unnecessary "nodes" (anchor points).

• The Chain Reaction: Ragged nodes = Shaky travel paths = The needle entering the fabric at erratic angles = Thread shreds and wobbly satin columns.

Sensory Check: Zoom in on your source image until it fills the screen. If the edges look like a staircase (pixelated), find a better image. You want smooth slopes, not steps.

The Illustrator Image Trace setup that keeps edges crisp (Black & White + Ignore White)

Nate drags the image into Adobe Illustrator CS6, then uses Fit to Art so the artboard matches the logo boundaries.

Next, he verifies transparency by going to View → Show Transparency Grid. This is your visual safety net—if you see the checkered grid, you are safe. If you see solid white, you have a background that will turn into a massive block of stitches later.

Then he opens Image Trace and uses specific settings to "calm down" the geometry:

• Mode: Black and White
• Corners: 50
• Paths: 50
• Ignore White: On
• Noise: Turned down (low pixel count)

After previewing, he clicks Expand to convert the trace into editable vector nodes.

Pro tip from the shop: “Noise down” is really about stitch stability

In the video, "turn the noise down" looks like a visual cleanup. To an embroidery engineer, it is mechanical preservation.

A "jittery" traced edge with high noise creates micro-direction changes in the vector path.

• The Physics: Satin stitches hate micro-changes. If a satin column has to adjust its angle every 0.5mm, the thread twists, reflecting light poorly.
• The Result: Your logo won't look like a glossy ribbon; it will look like a fuzzy caterpillar. On athletic shorts (which are slippery and stretchy), these jittery stitches will also chew through the fabric, causing holes.

The Golden Rule: Smooth vectors equal smooth sewing.

The compatibility hack that stops the “Brother software won’t open my AI file” headache (Save as Illustrator CS3)

This is the single most common failure point for beginners.

Nate saves the vector as an Illustrator file, but he changes the version to Illustrator CS3 in the Save options. He does this because older Digitizing software engines cannot parse the complex code of modern Creative Cloud (CC) files.

If you skip this, you will hit the "Silent Failure":

• Problem: You import the file, and nothing happens. Or worse, you get a generic "Import Error."
• Cause: The software is confused by new metadata.
• Fix: Always "Save Down" to legacy formats (CS3 is the industry standard safe harbor).


Warning: Do not try to "force" a modern AI file by renaming it. Some embroidery programs might import it but silently delete complex curves or holes, leaving you with a corrupted solid shape. If the import looks wrong, deleting it and re-saving as CS3 is faster than trying to fix the nodes.

Importing into Brother PE-Design the way the video does it (New → PES, then Import Vector Art)

In the video, Nate opens the Brother software and:

1. Goes to File → New.
2. Chooses PES format (The native language of Brother machines).
3. Imports using the specific Import Vector Art tool.

Crucial Distinction: You are not importing a Picture (bitmap); you are importing Geometry (vector). If you use the wrong import button, the software will try to "Autodigitize" the image again, ruining all the cleanup work you did in Illustrator.

Comment question I hear constantly: “Will this work on PE800 / PE500 / SE600?”

Several viewers ask if this workflow applies to other models like the PE800, SE600, or SE1900.

The Answer: Yes.

• Digitizing Stage: Happens on your PC. It is machine-agnostic.
• Transfer Stage: Happens via USB.

If your machine is a Brother, it likely speaks .PES. However, while the file works, the experience using standard hoops on these machines can vary. The standard plastic hoops provided with the PE800 or SE600 often struggle to hold thick or slippery items (like commercial hoodies or basketball shorts) without leaving circular "hoop burn" marks.

Many users eventually upgrade their workflow by searching for magnetic embroidery hoops for brother machines. These aftermarket tools use magnetic force rather than friction screws to hold fabric, which is essential when you move from testing on scrap fabric to stitching on expensive garments.

The hoop boundary moment: selecting the Micro Mini Hoop and using “Fit Hoop” before you digitize stitches

Nate selects the Micro Mini Hoop in the software because he is targeting a small area on basketball shorts.

He encounters a classic issue: The imported vector is huge.

• The Fix: Select the design → Click Fit to Hoop.
• The Result: The software scales the design to the maximum safe sewing field (usually leaving a few millimeters of safety margin).


The hidden prep that prevents “why is my design distorted on shorts?”

The video focuses on software sizing, but let's talk about the physical reality of athletic shorts. They are the enemy of stability: they stretch, they slide, and they pucker.

If you rely solely on the software's "Fit to Hoop" but fail the physical hooping, the design will warp. You need to create a "sandwich" that mimics a drum skin.

1. Stabilizer: Use Cutaway (essential for knits).
2. Adhesion: Use a light spray adhesive (like 505) to bond the shorts to the stabilizer.
3. Topping: Use a water-soluble topping (Solvy) to prevent stitches from sinking into the mesh.

Correct physical setup is arguably more critical than software settings. This is often referenced in industry discussions as the art of hooping for embroidery machine success—if the fabric moves 1mm, the outline is off by 1mm.

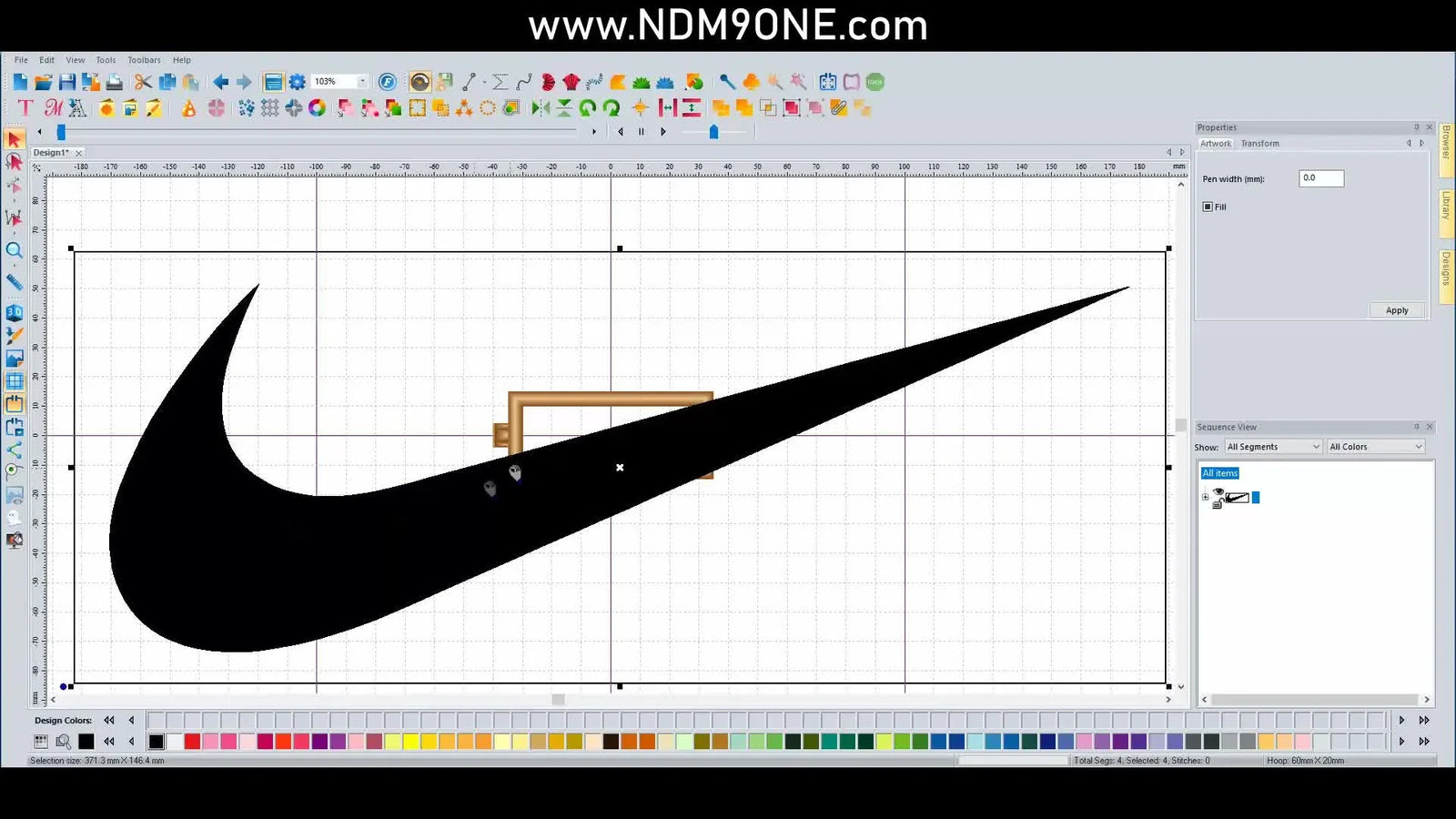

Turning the vector into stitches: Auto Satin + density 0.3 (Point 30) for a solid fill

Once the design fits the hoop, Nate converts the geometry to thread:

• Selects the artwork.
• Chooses Auto Satin.
• Opens sewing attributes.
• Changes density to 0.3 (Point 30).

His reasoning is sound: He wants a solid fill where you cannot see the fabric color through the thread.

Why 0.3 works here (and when you should be cautious)

Experience Check: A density of 0.3mm (Point 30) is extremely high/tight. The standard default is usually 0.4mm or 0.45mm.

• Why Nate uses 0.3: For small logos on high-contrast fabric (e.g., White thread on Black shorts), you need max coverage to prevent the black from peeking through.
• The Risk Factor: Tighter density = More needle penetrations in the same space.
  • If you use 0.3 density on a thick canvas or a cap seam, you risk gaps (wire-effect) or needle breaks because there is nowhere for the new thread to go.
  • Beginner Recommendation: Start at 0.35mm. If you see gaps, go down to 0.3mm. If the machine sounds like it is hammering hard or the thread keeps snapping, loosen it to 0.4mm.


The “empty shapes” trap: cleaning throwaway objects before you stitch

Nate notes that he sometimes sees "throwaway files"—empty bounding boxes or invisible shapes—that import from Illustrator.

Visual Check: Look at your "Sewing Order" or "Object List" panel on the right side of the screen.

• Do you see an object with 0 stitches?
• Do you see a color block that isn't in your design?

Delete them immediately. Even if they are invisible, the machine might read them as a command to "Jump" to that location and trim, creating a mess of thread tails (bird's nest) underneath your fabric.

Use the 3D preview and stitch simulator like a pro (it’s not just for looks)

Nate utilizes the 3D view for texture and the Stitch Simulator to watch the pathing.

What you are actually looking for in the Simulation:

1. Logic: Does it stitch from Left to Right (or Center Out)? You don't want it jumping wildly from one side to the other.
2. Entry/Exit Points: Does the finish point of one letter naturally lead to the start of the next?
3. Jumps: Are there long yellow/dotted lines crossing the design? These are jump stitches you will have to trim by hand later.

Simulators maximize efficiency. Watching a 30-second simulation saves you 10 minutes of picking out bad stitches with tweezers.

Exporting the PES to a USB flash drive (and the simple file-transfer confusion beginners hit)

Nate saves the final design as a .PES directly to a USB flash drive.

The Workflow:

1. Insert USB into PC.
2. File → Save As / Export.
3. Select Drive (E: or F:).
4. Crucial: Name it something short (e.g., NIKE_SML_03.PES). Some older machines struggle to display long filenames or special characters like & or #.

Folder Hygiene: Create a dedicated folder on your USB drive labeled EMB_FILES. Do not dump 500 files into the root directory; it slows down the machine's processor when it tries to read the drive.

Prep checklist (before you trace anything)

• Source: Found a high-res (1000px+) image with a transparent background?
• Hoop Target: Did you measure the actual available space on your garment? (e.g., A pocket area is smaller than the hoop area).
• Software: Is Illustrator (or Inkscape) and your Digitizing suite open?
• Consumables: Only realize you are out of stabilizer when you start? Check for Cutaway stabilizer, Temporary Spray Adhesive (505), and a Ballpoint Needle (Size 75/11 is best for athletic shorts).

Setup checklist (Illustrator + Brother software settings that matter)

• Transparency: View → Show Transparency Grid is ON. (Do you see the checkerboard?)
• Tracing: Set to Black & White, Ignore White CHECKED, Noise LOW (1-5px).
• Compatibility: Save Vector as Illustrator CS3 (Legacy).
• Canvas: File → New → PES Format.
• Import: Use Import Vector (Not Import Image).
• Density: Set Satin Density to 0.35mm (Safe start) or 0.30mm (High coverage).
• Clean Up: Check Object List for empty/ghost shapes and delete them.

Operation checklist (The "Pre-Flight" check at the machine)

• Bobbin: Is the bobbin full? (Running out mid-satin stitch is a nightmare to fix).
• Threading: Is the presser foot UP when you thread the machine? (If down, tension discs are closed, and you will get a bird's nest).
• Orientation: Double-check the rotation. Is the top of the logo actually pointing to the waist of the shorts?
• Clearance: Is the rest of the shorts fabric folded safely away so it doesn't get sewn to the back of the logo? (Use clips or tape to hold excess fabric back).

Warning: Machine Safety: Satin stitches at 0.3mm density build up heat and friction. If you hear a rhythmic "thumping" sound getting louder, STOP. This usually means the needle is struggling to penetrate a knot of thread building up below the throat plate. Don't force it; check the bobbin area.

A stabilizer decision tree for shorts and patches (so your satin doesn’t ripple)

The video focuses on the digital file, but the physical "sandwich" determines the victory.

Decision Tree: What goes under the hoop?

1. Is the fabric Stretchy (T-Shirt, Jersey, Performace Shorts)?
   • YES: Use Cutaway Stabilizer. (No exceptions. Tearaway will allow the stitches to distort over time).
   • Pro Addition: Add a layer of Water Soluble Topping on top to keep stitches elevated.
2. Is the fabric Stable (Denim, Canvas, Twill)?
   • YES: Tearaway Stabilizer is sufficient.
3. Are you making a standalone Patch?
   • YES: Use thick Water Soluble Stabilizer (looks like heavy plastic) OR specialized patch twill.

When you are doing production runs—stitching the same logo on 20 pairs of shorts—consistency is king. Using an embroidery hooping station can help align the logo in the exact same spot on every leg, which is the mark of a pro shop versus a hobbyist.

Troubleshooting: symptoms → likely cause → fix (based on the video)

The upgrade path when you’re tired of slow hooping (and want cleaner results on athletic shorts)

Digitizing is only half the battle. The other half is mechanics. If you master the software (Nate's workflow) but struggle with the hardware, you will burnout.

If you find yourself dreading the "Hooping" step because slippery shorts keep sliding out of the plastic frame, consider this your upgrade trigger.

• The Trap: Traditional screw-hoops require two hands and a lot of wrist strength to get tight enough without burning the fabric.
• The Solution:
  • For users with the classic PE770/PE700 machines, searching for magnetic embroidery hoops for brother pe770 will reveal frames that snap shut instantly. This prevents the "slide" that happens when you tighten the screw.
  • If you are on the popular PE800, a brother pe800 magnetic hoop upgrade allows you to hoop thick seams (like the hem of shorts) that plastic hoops literally cannot clamp.
  • Even for smaller entry-level machines, checking for compatible brother pe500 hoops in magnetic styles can save your wrists and your sanity.

When to scale up? If you are asked to do 50 logos for a local team, a single-needle machine will take you 3 days. A multi-needle machine (like the Sewtech models) allows you to set up the next color while the machine runs, handling production speed without overheating.

Warning: Magnetic Safety: Magnetic hoops use powerful N52 industrial magnets.
* Pinch Hazard: They snap shut with immense force. Keep fingers clear of the edges.
* Medical: If you have a pacemaker, consult your doctor before using high-strength magnetic hoops.
* Electronics: Keep credit cards and phones at least 12 inches away from the magnets.

One last comment-driven myth to clear up: “Do I need matching bobbin thread for every color?”

A beginner asked a great question: Do you need to change the white bobbin thread to black when sewing the black Swoosh?

The Expert Answer: generally, No.

• Embroidery machines are calibrated for a "1/3 rule." If you flip the finished embroidery over, you should see 1/3 top thread on the left, 1/3 bobbin (white) in the middle, and 1/3 top thread on the right.
• If your Tension is correct, the white bobbin thread will pull the top thread down, hiding itself completely on the underside.
• Exception: If you use 0.3mm density on a very thin fabric, tiny loops of white might peek through. In that specialized case, using a black pre-wound bobbin is a valid "cheat code" to hide tension imperfections.

The takeaway: keep the chain clean—image quality → vector quality → stitch settings → hoop reality

Nate’s workflow works because it respects the process:

1. High-Res Image (No guessing).
2. Clean Vectors (No jitter).
3. Correct Density (0.3mm - 0.35mm for coverage).
4. Hooping Integrity (No sliding).

Do those in order, and you stop fighting the machine and start producing professional embroidery.

FAQ

• Q: Why does Brother PE-Design import an Adobe Illustrator AI logo but show a blank screen or an “Import Error”?
  A: Save the vector as Illustrator CS3 (legacy), then re-import using the vector import tool.
  • Re-save: In Illustrator, use Save As → Illustrator CS3 (do not rename file extensions to “force” it).
  • Re-import: In Brother PE-Design, use Import Vector Art (not an image/bitmap import button).
  • Success check: The artwork appears immediately with clean outlines, and the shape holes/edges look intact (not filled in or missing).
  • If it still fails: Export the artwork again from Illustrator after simplifying/cleaning nodes, then repeat the CS3 save-down.
• Q: How do I prevent a white stitched “background box” when digitizing a logo from Adobe Illustrator into Brother PE-Design?
  A: Confirm transparency and re-trace with Ignore White ON before exporting the vector.
  • Verify: In Illustrator, turn on View → Show Transparency Grid and confirm the checkerboard shows behind the logo.
  • Re-trace: Use Image Trace (Black & White) and ensure Ignore White is enabled before Expand.
  • Success check: In Brother PE-Design, there is no large rectangular object/color block in the Object List, and the design preview shows only the logo shapes.
  • If it still fails: Delete any extra “ghost” objects in the Object List (including 0-stitch objects) and re-check the sewing order.
• Q: Why does a Brother PE770/SE625 (and other Brother .PES machines) show gaps between satin stitches when using Auto Satin in Brother PE-Design?
  A: Tighten satin density cautiously—0.35 mm is a safe start, and 0.30 mm is high coverage for small, high-contrast logos.
  • Set: In sewing attributes, start around 0.35 mm; reduce toward 0.30 mm only if fabric color shows through.
  • Test: Stitch a small sample on the same fabric type before committing to a garment.
  • Success check: Satin looks solid with minimal fabric show-through and the machine runs smoothly without “hammering.”
  • If it still fails: If thread starts breaking or the machine sounds like it’s struggling, loosen density toward 0.40 mm and install a fresh needle.
• Q: How do I stop fabric puckering and logo distortion when hooping athletic shorts for a Brother PE800/PE770/SE625 embroidery machine?
  A: Build a stable “sandwich”: cutaway stabilizer + light temporary spray adhesive + water-soluble topping, then hoop drum-tight.
  • Use: Choose cutaway stabilizer for stretchy shorts, and add a water-soluble topping to prevent stitch sink.
  • Bond: Apply a light layer of temporary spray adhesive (e.g., 505) to reduce shifting during stitching.
  • Success check: The hooped area feels like a drum skin (firm, not wavy), and the stitched outline matches the intended shape without ripples.
  • If it still fails: Re-hoop tighter and confirm excess garment fabric is secured away so it can’t pull during sewing.
• Q: Why does a Brother embroidery machine create a “bird’s nest” (thread nest) under the fabric during stitching?
  A: Re-thread with the presser foot UP, because threading with the foot down often causes incorrect tension and nesting.
  • Re-thread: Raise the presser foot fully, then re-thread the top path carefully.
  • Check: Verify the bobbin is seated correctly and there isn’t loose thread caught near the bobbin area.
  • Success check: The underside shows balanced tension (often described as a “1/3 rule” look) and the stitch-out runs without tangling under the hoop.
  • If it still fails: Stop and inspect for any “ghost” objects causing unnecessary trims/jumps, and confirm the design is not excessively dense for the fabric.
• Q: What safety steps should I follow when stitching dense satin (0.30 mm) on a Brother embroidery machine to avoid jams or damage?
  A: Stop immediately if the machine develops a louder rhythmic “thumping,” because it often signals buildup or a jam forming under the throat plate.
  • Stop: Pause the machine as soon as the sound changes—do not force it to power through.
  • Inspect: Check the bobbin area for thread buildup and confirm the needle is not bent/dull; replace with a fresh needle if needed.
  • Success check: After clearing and restarting, the machine runs smoothly with consistent sound and no resistance.
  • If it still fails: Increase density slightly (toward 0.35–0.40 mm) and re-test on scrap to reduce penetration load.
• Q: What safety precautions are required when using N52 magnetic embroidery hoops with Brother-style embroidery setups?
  A: Treat magnetic hoops as pinch-hazard tools and keep sensitive medical devices and electronics away from the magnets.
  • Keep fingers clear: Let the frame snap shut away from fingertips and edges.
  • Maintain distance: Keep phones, credit cards, and similar items at least 12 inches away from the magnets.
  • Success check: The hoop closes cleanly without finger contact, and the fabric is held firmly without over-tightening screws.
  • If it still fails: If handling feels unsafe or uncontrolled, switch back to a standard hoop for that garment and practice magnetic hoop handling on scrap fabric first.
• Q: When should Brother single-needle embroidery users upgrade from plastic screw hoops to magnetic hoops, and when should they consider a multi-needle machine like SEWTECH?
  A: Upgrade in layers: first optimize hooping and stabilization, then use magnetic hoops if fabric keeps sliding or hoop burn is frequent, and consider a multi-needle machine when order volume outgrows single-needle speed.
  • Level 1 (technique): Improve stabilization (cutaway for stretch) and hoop “drum tight,” plus topping for knits/mesh.
  • Level 2 (tool): Move to magnetic hoops if plastic hoops cannot clamp thick/slippery items consistently or hoop burn becomes a repeat issue.
  • Success check: You can stitch repeat logos with consistent placement, minimal puckering, and less re-hooping time.
  • If it still fails: If production demand is high (e.g., dozens of logos) and color changes/throughput are the bottleneck, a multi-needle platform is often the next practical step (confirm specs with the machine manual and your workflow needs).
