Watch the video: “Threading Your Baby Lock Alliance” by Sew At Home Classes
If you’ve ever stared at your single-needle machine and wondered which guide goes where, this is the calm, crystal-clear walkthrough you’ve been craving. In just a few minutes, you’ll see the clean, numbered path, how to stage future colors on the four-spool stand, and the exact moves to make the automatic needle threader work on the first try.
What you’ll learn
- The purpose of the four-spool stand on a single-needle machine and how to use it to “stage” colors.
- The full upper threading path—what the un-circled numbers mean and how to seat thread in tension areas.
- A reliable, two-press method for using the automatic needle threader.
- How to stage the next color and perform a quick color change by tying on and pulling through.
Pro tip Before you start, give the thread end a quick twist to a fine point. It’s a tiny move that makes every guide easier to hit. magnetic embroidery hoop
Why a 4-Spool Stand on a Single-Needle Machine? You’ll notice the Alliance has space for four spools even though it’s a single-needle machine. That’s by design: you can “stage” your next colors on the stand so they’re pre-positioned and ready when it’s time to change. This simple workflow upgrade prevents rummaging and reduces downtime.
The Advantage of Staging Colors With future colors already on the stand, you can pre-route them through the first guide and secure their tails. When it’s time for a change, you’re not starting from scratch—you’re already halfway there.
Boosting Your Embroidery Efficiency Color-rich designs mean more transitions. Staging colors streamlines those transitions so your stitching rhythm continues with far fewer pauses. It’s a small habit that pays off on every multi-color design. babylock hoops
Step-by-Step: Your Guide to Threading the Alliance Navigating the Upper Thread Path For upper threading, follow the un-circled numbers. Start by twisting the thread end to a point, then pass it through guide #1 from back to front and go straight to #2. The un-circled numbering distinguishes the sewing path from the bobbin path (which uses circled numbers).
Watch out Skipping a guide—or missing the “click” of the tension areas—invites snarls. If you’re unsure you seated the thread, rethread the upper path deliberately. best embroidery machine for beginners
Engaging the Tension Dials Correctly Pass under the pre-tension disc, then wrap around the main tension dial. Seat the thread in the tension disc just below the dial. A helpful visual check: you want to see about 2.5 to 3 lines on the side of the main tension dial as a starting point. This is a baseline—final tension depends on thread, fabric, and stabilizer.
Quick check Look side-on at the main tension dial: are roughly 2.5–3 lines visible? That’s your initial setting. If your stitch quality looks off in testing, you can fine-tune from there.
Completing the Path to the Needle Follow the channel down, then up to hook the take-up lever. Come back down the channel, pass through the lower metal guide, and you’re now set just above the needle area. Missing the take-up lever will prevent stitches from forming, so if needed, bring it to its highest position and re-hook the thread.
From the comments Several viewers asked for tighter camera shots at this stage. While the video covers the full route clearly, take your time here—pause the player as needed and ensure you can see and feel each guide as the thread seats. magnetic hoops for embroidery machines

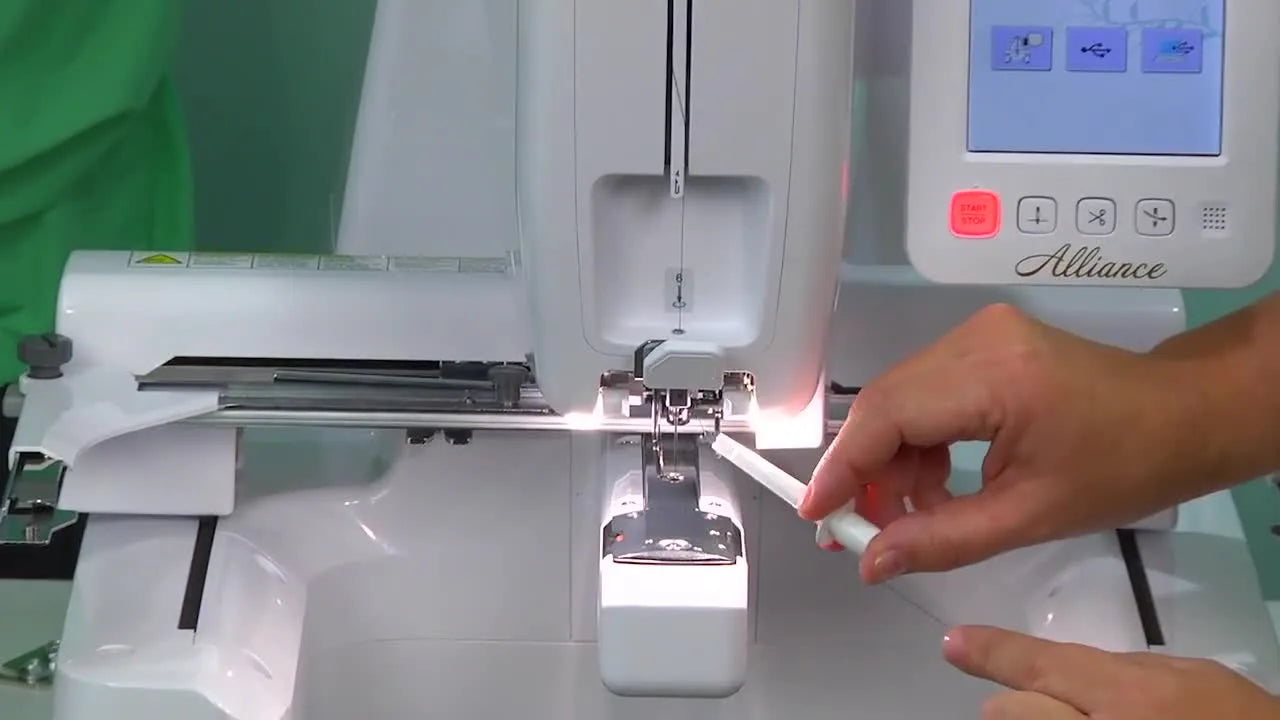

Mastering the Automatic Needle Threader Using the Special Threading Tool Right above the needle is a small guide that can be tricky to catch with your fingers. The accessory threading tool (the white forked tool) makes this easy—use it to lift the thread into that final guide so the automatic threader can do its job reliably.
The Two-Press Threading Process On the LCD, press the needle threader icon to engage the mechanism. Two small prongs descend to surround the needle. Guide the thread under those prongs and catch it in the tiny left-side hook, then bring the thread to the right-side cutter and trim. Press the threader button again: the mechanism retracts and pulls a loop of thread through the eye from front to back. Remove the loop, and you’re threaded.
Watch out If the thread isn’t in the upper guide or left-side hook, the threader can’t catch and will fail. Disengage, reseat the thread with the tool, and try again. brother embroidery machine
The Secret to Lightning-Fast Color Changes How to Stage Your Next Thread While your current color stitches, place the next spool on an open pin of the thread stand. Pass its end through the first guide (from back to front) and follow the marked path along the white antenna. Secure the tail in the built-in holder/cutter so it’s neat and ready. This keeps your next color close, tidy, and out of the sewing path.
Pro tip Securing the staged thread tail in the antenna cutter prevents tangles and saves seconds when you’re ready to transition. baby lock magnetic hoop
The Knot and Pull-Through Technique Here’s the time-saver: after a color finishes, unthread the needle and pull the old thread back up through the guides to the antenna. Secure its end in the antenna cutter. Take the new color’s end (already staged) and tie it to the old color’s end with a small, secure knot. At the needle area, gently pull the old color down so the knot travels through all the guides. When the new color emerges at the needle, snip behind the knot. Then use the automatic threader to finish.
Watch out If the knot is too bulky, it can hang up in the tension discs or guides. Keep the knot small and pull smoothly—don’t yank. If it gets stuck, guide it gently. If the thread breaks, rethread from the start.
From the comments One viewer worried about rethreading for multiple color changes—this tie-on method is exactly how you avoid that. Another viewer noted their knot sometimes comes undone near the tensioner; a firm, small knot helps it glide and stay put during the pull.
A Quick Note on Thread Tension Finding the Right Starting Point A practical baseline is to see about 2.5–3 lines on the side of the main tension dial. That’s a starting point, not a universal rule. Since thread, fabric, and stabilizer vary, sew a small test and adjust. If your upper thread snaps, recheck the thread’s seating under the pre-tension disc, around the main dial, and in the lower guide, then slightly loosen tension and test again. melco embroidery machine
Quick check
- Is the thread fully seated under the pre-tension disc and in the tension disc below the dial?
- Is the take-up lever threaded?
- Does a gentle pull feel smooth, not jerky?
- Does a short test stitch look balanced? If not, adjust incrementally.
From the Comments: Real-World Questions Answered
- “Zoom in more, please.” Some viewers wanted tighter close-ups, especially during the early guides. Pause as needed and confirm you’re following un-circled numbers for the upper path. The brand has noted they’re working on adding more close-ups in future videos.
- “I can’t thread my machine properly—help!” The brand directed users to their Product Support contact page for one-on-one assistance. If you’re stuck, re-seat the thread in each guide and use the threading tool before engaging the auto-threader.
- “My tension’s wrong and my thread breaks.” Breakage often points to thread not fully seated in a tension area, overly tight tension, or a missed take-up lever. Start at 2.5–3 lines on the dial, re-seat, and test.
- “Show it sewing!” The brand replied that they have additional videos and classes that demonstrate the machine in action.
- “What thread cones were used?” A reply cited Rheingold 5000 m spools available through a Baby Lock retailer.
- “Does tying on really save time?” Yes—when the knot is small and secure, it pulls the new color through the entire path and gets you back to stitching quickly. magnetic hoops for brother embroidery machines
FAQ Q: What is the correct upper tension setting for the Baby Lock Alliance? A: A good starting point is to have about 2.5–3 lines visible on the side of the main tension dial. Adjust as needed for your specific thread, fabric, and stabilizer.
Q: Do I have to use the special forked tool to thread the needle? A: You might manage without it, but the tool makes it far easier to catch the small guide above the needle. That step is essential for the automatic needle threader to succeed.
Q: What if the knot gets stuck during the pull-through? A: If the knot is too big, it can catch in the guides or tension discs. Guide it gently if it snags. If it’s firmly stuck or the thread breaks, cut the thread and rethread from the beginning.
Quick reference checklist
- Use un-circled numbers for upper threading; circled numbers are for bobbin winding.
- Pre-tension disc → wrap main tension dial → seat in lower tension disc.
- Take-up lever threaded from right to left, then down through the lower guide.
- Use the tool to place thread in the guide above the needle.
- Auto-threader: press to engage → thread under prongs and into left hook → trim → press again.
- Stage the next color in the antenna guide and cutter.
- Tie small knot, pull smoothly, snip behind knot, auto-thread the new color. magnetic
Why this method works
- Consistency: Following the same numbered path ensures repeatable results.
- Reliability: The threading tool plus the two-press auto-threader sequence reduces misthreads.
- Speed: Staging colors and tying on keeps your momentum between colors.
If you’re exploring accessories or broader machine ecosystems, many stitchers research terms like “magnetic hoops” and “brand-specific hoop systems” to optimize their workflow and hooping comfort. Use neutral searches to learn what’s possible for your setup without assuming cross-compatibility. magnetic hoops for embroidery
