How to Choose the Best Embroidery Design Machine for Your Projects

1. Introduction to Embroidery Design Machines

Machine embroidery has leapt from hand-driven artistry to fully computerized precision. Today’s systems stitch intricate motifs, manage multiple colors, and read digital files with printer-like accuracy. You’ll see options from beginner-friendly single-needle models to multi-needle, multi-head commercial units that handle complex projects at scale. Two fundamentals shape everything that follows: the hoop’s stitchable area (the actual rectangle your machine can sew inside) and the machine’s feature set (speed, interface, file support). Master those, and choosing the best embroidery machines becomes straightforward for any project size or skill level.

Table of Contents

• 1. Introduction to Embroidery Design Machines
• 2. Core Machine Types and Technical Capabilities
• 3. Comparative Analysis of Leading Brands
• 4. Selection Framework: Matching Machines to Your Needs
• 5. Practical Operation Guide
• 6. Software and Digitizing Ecosystem
• 7. Business Growth and Advanced Applications
• 8. Conclusion: Building Your Embroidery Journey
• 9. Frequently Asked Questions

2. Core Machine Types and Technical Capabilities

2.1 Machine Categories: From Home to Industrial Systems

Modern embroidery spans seven core categories (reflecting how the market actually evolved and is packaged today):

• Hand-operated/traditional machines
  Manual, artisan-focused tools that deliver heritage-quality detail at slower speeds.
• Single-needle embroidery machines
  Entry point for most users; one color at a time and lower upfront cost. Example: Brother PE535 offers a 4" x 4" area, 80 built-in designs, and 9 fonts.
• Multi needle embroidery machines
  4–10+ needles with automatic color changes for faster, multi-color work. Premium example: Bernina E 16 Plus with 16 needles, speeds up to 1,400 SPM, and a 15.7" x 13.8" area.
• Computerized (CNC) embroidery machines
  Upload DST/PES files for repeatable, precise results and efficient batch production.
• Multi-head commercial systems
  2–30+ heads embroidering multiple items simultaneously for maximum throughput.
• Specialized configurations
  Flatbed vs tubular for cut panels vs finished garments; variants for 3D puff, chenille, and sequin embellishment.

Use-case contrast: An entry-level Brother PE535 suits personalized gifts and small monograms, while a Bernina E 16 Plus targets higher throughput, multi-color branding, and larger, more complex layouts.

2.2 Critical Performance Features Explained

• High-speed stitching
  Consumer units commonly run up to 800 SPM, while premium models such as the Bernina E 16 Plus reach 1,400 SPM. The Tajima TMBR2-SC is cited up to 1,200 SPM.
• Multi-needle productivity
  Multiple needles eliminate manual rethreading between colors, enabling efficient multi-color designs and batch runs.
• Automated thread management
  Automatic threading/cutting plus smart tensioning improve quality and reduce operator workload.
• Advanced user interfaces
  LCD touchscreens streamline design selection and on-machine editing. Tajima TMBR2-SC features a 12.1" touch panel with multilingual support and AI-driven aids that simplify operation.
• File compatibility and connectivity
  Widely used formats include DST and PES, with USB and (on many models) wireless transfer for quick file loading and updates.
• Precision tech and safeguards
  Laser positioning helps align designs accurately. Thread detection halts the machine during breaks to prevent wasted materials.

2.3 Specifications That Impact Your Projects

• Embroidery field dimensions
  Projects range from compact 4" x 4" (typical beginner machines) to expansive 40" x 48" fields on industrial platforms. The Tajima HAR series reaches 1,000 x 1,200 mm (40" x 48"), enabling large automotive interiors and furniture applications.
• Power requirements
  Single-phase 100–120V/200–240V covers many commercial setups; heavier industrial systems may require 3-phase 200–240V. (Power draw varies by model.)
• Production metrics
  Multi-head arrangements multiply output; for example, systems like the Tajima HAR can produce up to 8 products at once with 9 colors per head. Compared to older approaches, processing time reductions of up to 30% are cited in modern workflows.

What it means for you: Define your stitchable area needs first, then align speed, file workflow, and power constraints with your production goals.

3. Comparative Analysis of Leading Brands

3.1 Market Segments: Hobbyist to Commercial Solutions

• Entry-level (consumer) Brother SE600 (~$389) is a popular beginner choice with approachable controls and a starter-friendly embroidery field. Brother’s line is known for intuitive interfaces and built-in tutorials.
• Prosumer/small business Janome MB-7 (~$7,900) provides 7-needle efficiency, larger fields, and accessories (e.g., independent bobbin winding) that support steady semi-pro production.
• Commercial/industrial Bai Vision industrial embroidery machines (often $14,000+) targets high-volume workflows with 12–15 needles, larger fields, and multi-head configurations.
• “Best-of” highlight for versatility Bernette B79 (dual sewing/embroidery) includes 208 built-in designs, a large work table, a 10" x 6.3" hoop, and can reach up to 1,000 SPM—an attractive all-in-one for ambitious home studios.

3.2 Performance Benchmarks: Speed, Precision, Capacity

• Speed and accuracy Barudan’s C01/BEKT-S1501CBIII reaches up to 1,300 SPM with reported stitch error rates under 1% in the provided data. Consumer machines typically operate in the 400–1,000 SPM range.
• Working area comparisons Brother PR1050X delivers a robust 8" x 12" field for the prosumer tier, while industrial options (e.g., certain Happy Japan models) extend to around 400 x 600 mm, enabling oversized layouts and fewer rehoops.
• Commercial fields Bai Vision series offers around 500 x 400 mm, with multi-head scalability for bulk orders and faster turnarounds.

Bottom line: If you need speed with precision, industrial single- or multi-head systems outpace consumer units. If you need larger motifs (jackets, panels, décor), choose machines with bigger hoops and rigid frames.

3.3 Skill-Level Alignment and Investment Returns

• Beginner-friendly Brother’s consumer lineup emphasizes simple touchscreens, step-by-step resources, and easy threading—ideal for first projects and light custom work.
• Advanced features for experienced users Bernina’s 700 Series targets demanding applications, with a jumbo 400 x 400 mm field and advanced control features (e.g., stitch regulation on compatible models) for high-precision work.
• ROI considerations For commercial buyers, throughput pays the bills. The Ricoma MT-1501 (in the provided data) can handle 12 items simultaneously and cites about a 40% setup-time reduction versus sequential processing. Multi-head compatibility and larger fields compound time savings; over a year, that efficiency often outweighs higher upfront costs.

How to choose: Match your machine to your learning curve and your order types. Prioritize hoop size, needle count, speed, and workflow features that directly reduce setup time and color-change overhead.

4. Selection Framework: Matching Machines to Your Needs

4.1 Hoop Size Considerations and Design Limitations

Think in “stitchable area,” not outer hoop dimensions. The stitchable area is the inner rectangle your machine can actually sew. As Riley Blake’s team explains, you measure inside the hoop, not the frame—so always confirm the true stitchable area before you commit a design.

• Common sizes and what they mean
• 4" x 4": Great for monograms and patches; note the usable field can be slightly smaller (around 3.94" x 3.94").
• 5" x 7": The home-user sweet spot for versatility; many machines define a full 5" x 7" field.
• 6" x 10" and 8" x 12": Larger motifs, fewer re-hoops, continuous layouts.
• Commercial fields: Up to about 19.7" x 17.7" (500 x 400 mm) on certain industrial units for oversized applications.

• Home vs commercial expectations

Home users typically center around 5" x 7" because it balances cost and creative range.

Commercial shops lean larger (e.g., 19.7" x 17.7") for jacket backs, décor panels, and faster throughput with fewer re-hoops.

• Why this matters

Designs that crowd the hoop boundaries invite puckering, pathing errors, and re-hoops. Give your design room and select stabilizer sizes that extend 0.5–1" beyond the hoop’s outer edge for proper support.

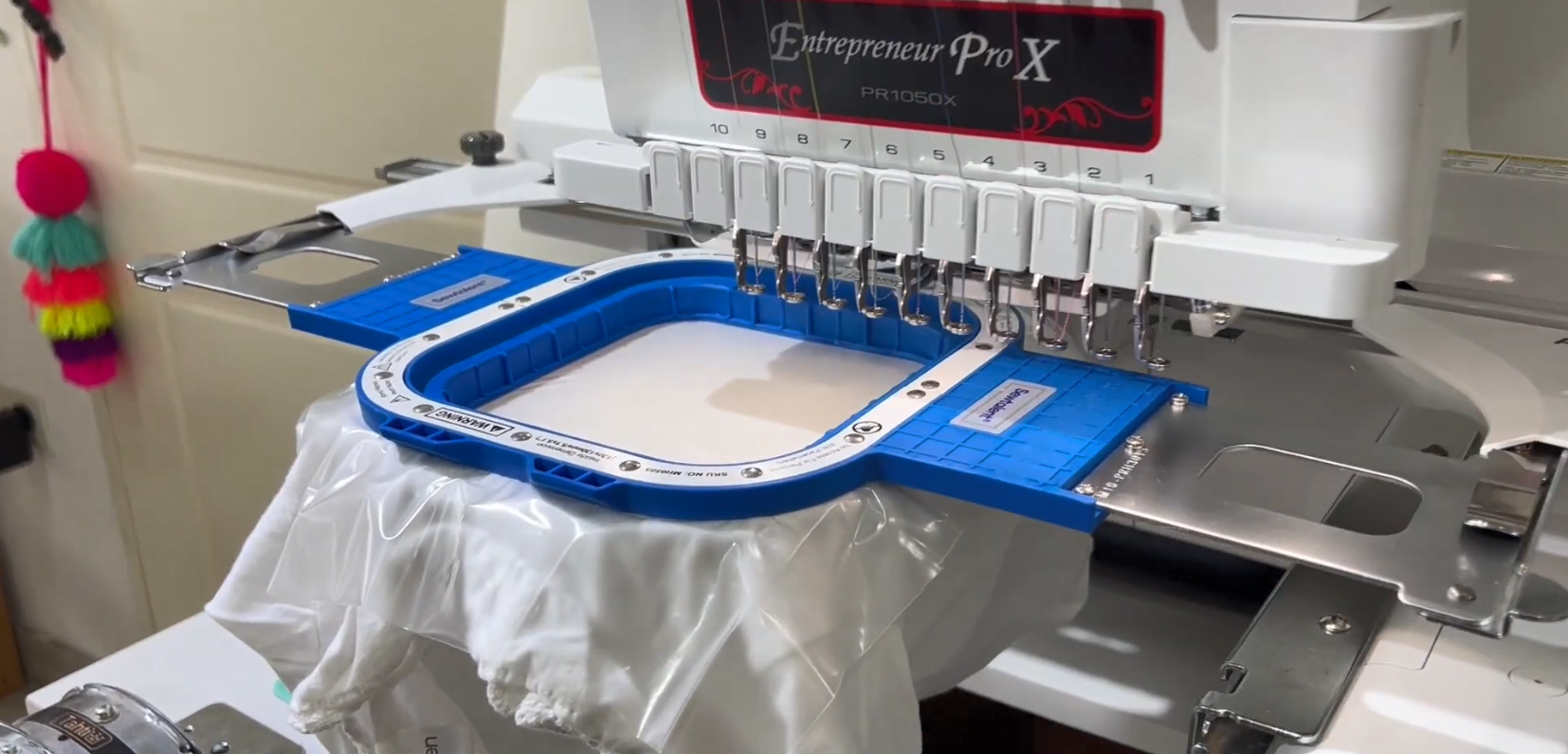

Sewtalent magnetic embroidery hoops for garment projects

If you embroider apparel, magnetic hoops can sharpen accuracy and speed. Sewtalent’s magnetic hoops secure fabric evenly across a wide thickness range, helping reduce hoop marks and misalignment while making hooping faster for repeatable garment placements. The brand offers 17+ sizes (from 3.9" x 3.9" to 17" x 15.5") and wide machine compatibility (e.g., Brother, Baby Lock, Janome, Tajima, Barudan, SWF, Happy Japan, Ricoma, ZSK, Melco, and more). For production teams, that translates to practical time savings on every hoop, fewer defects from fabric shift, and easier training for operators. Note: Sewtalent is designed for garment hooping, not caps/hats.

Tip: Plan your “biggest design” first. If you foresee chest-wide graphics or jacket backs, step up from 4" x 4" early to avoid rework and split designs later.

4.2 Software Compatibility and Built-in Resources

Two levers shape your day-to-day: built‑in content and file/transfer workflow.

• Built‑in designs and fonts
• Brother PE535: 80 built‑in designs (4" x 4").
• Bernette B79: 208 built‑in designs and a large 10" x 6.3" hoop capacity.

Built‑ins are great for quick wins, monograms, and fast personalization. As your skills grow, editing tools usually matter more than sheer quantity.

• File formats and machine compatibility

Commonly supported formats include DST, PES, and EXP (many BERNINA models also read PEC, JEF, SEW, PCS, XXX). Broad format support lets you source designs from libraries and designers without conversion headaches.

• Connectivity and transfers

USB remains universal. Some Brother models add wireless transfer; Good Housekeeping highlights the SE2000’s wireless uploads alongside a 5" x 7" area and intuitive touchscreen. Choose the path that fits your space and habits—USB for simplicity; wireless for convenience.

Bottom line: Confirm the formats you’ll use (DST/PES/EXP are safe bets), check whether you prefer on‑machine editing vs. computer software, and decide if wireless transfers are worth the added cost.

4.3 Use-Case Optimization: Home, Business, Specialized

Use this fast decision map to match machine to mission—then scale up features only where they pay back.

• Hobbyist/starter
• Brother PE800 (around $480): A proven embroidery‑only path with a larger field than 4" x 4" models for more design freedom from day one.
• Brother PE535 (entry-level 4" x 4" with 80 designs): Perfect for small motifs and learning the ropes.

• Semi‑pro/small business
• Janome MB‑7 (~$7,900): 7 needles, 9.45" x 7.87" field, improved speed/reliability; ideal for moderate volume and multi‑color efficiency without manual color changes.

• Commercial volume
• Happy Japan Journey HCH‑701: Up to 1,000 SPM with a 12.5" x 12.5" field for larger motifs and continuous workflows.
• Industrial frames around 500 x 400 mm reduce re‑hoops for oversized goods.

Where efficiency compounds

If you’re embroidering garments in batches, two upgrades raise output immediately:

• Hoop size that matches your largest frequent design (fewer re‑hoops, better registration), and
• Magnetic embroidery hoops for precise, repeatable hooping. Sewtalent’s magnetic hoops are built for garment hooping and can shorten hooping steps while enhancing fabric stability—gains that matter when you’re processing dozens or hundreds of items a week.

Action step: List your top three project types (e.g., left‑chest logos, 10" x 6" back pieces, quilt blocks). Choose the smallest machine/hoop combo that handles them without split designs, then add workflow helpers (USB/wireless, editing tools, magnetic hoops) that remove your biggest bottlenecks.

5. Practical Operation Guide

5.1 Hooping Techniques for Different Fabrics

How to make a patch on embroidery machine: start by prepping the hoop and stabilizer.

• Prep the hoop and stabilizer
• Match stabilizer to fabric:
• Stretchy knits/tees/hoodies: cutaway or no‑show mesh (light but strong, helps prevent “shadowing”).
• Stable fabrics (denim, canvas, totes, leather): tear‑away for easy removal.
• Lofty/terry surfaces (towels): add a wash‑away topper to keep stitches from sinking.
• Cut stabilizer 0.5–1" larger than the hoop’s outside dimensions for proper support.

• Pre‑adjust tension the smart way Loosen the hoop to match fabric thickness first; avoid cranking down after hooping (prevents distortion and hoop burn). Use temporary spray adhesive to bond stabilizer to the fabric’s back for added stability on tricky textiles.
• Hooping sequence that works Place the outer hoop on a flat surface, set fabric + stabilizer on top, then press in the inner ring in one smooth motion. Aim for “drum‑tight” without stretching the fabric out of shape. Smooth wrinkles before tightening the screw to lock position.

Tip: For designs near hoop edges, step up one hoop size and use a larger stabilizer to maintain support through the stitch path.

5.2 Thread Selection and Machine Setup

• Needle/thread pairing A 75/11 embroidery needle with 40‑weight polyester thread covers the majority of projects cleanly and reliably.
• Bobbins and threading Pre‑wound bobbins can save time; confirm the correct bobbin size for your model. Thread the machine per the numbered guides and use the automatic needle threader if available.
• Test‑run protocol Before stitching your final piece, do a quick test on similar fabric/stabilizer. Check tension (no top thread on the back and no bobbin showing on top), trim tails after the first few stitches, and verify color order.

5.3 Executing Flawless Embroidery

• Precise positioning Use your machine’s positioning controls to nudge designs a few millimeters if needed—no re‑hooping required. Trace the outline to ensure the needle won’t hit the hoop.
• During the stitch‑out Lower the presser foot, start the design, and pause early to trim top tails. If your machine doesn’t auto‑cut jump stitches, trim them periodically to keep the surface clean.
• Quality control on the fly Watch for puckering (often tension or stabilizer mismatch) and misalignment (hooping tension or fabric shift). The Brother SE family’s clear on‑screen prompts and design previews make it easier to spot and correct issues as you go.
• Finishing Remove the hoop, trim away tear‑away, or neatly cut cutaway/no‑show mesh. Rinse off toppers for towels. Give the piece a light press (from the back, with a pressing cloth) to relax any hoop marks.

Pro move: Build a repeatable checklist—stabilizer choice, needle/thread, trace, tension check, trim tails—to eliminate “gotchas” on production runs.

6. Software and Digitizing Ecosystem

6.1 Professional vs Open-Source Solutions

• Professional tier
• Wilcom Embroidery Studio (approx. $3,499): Advanced stitch editing, CorelDRAW integration, sophisticated fills, 3D puff effects—built for commercial precision and output.
• Tajima DG/ML by Pulse: Tier‑one toolset geared toward fashion/textile workflows, with robust simulation and production‑ready refinement.

• Mid‑range tools
• Hatch (by Wilcom): Modular and scalable with auto‑digitizing, broad format support (.DST, .PES, .EXP), and a 30‑day trial—ideal for growing from editing to full digitizing.
• Embrilliance Essentials: Mac/Windows native, one‑time license with modular add‑ons—straightforward for lettering, combining, and everyday edits.
• Chroma (Ricoma): Cloud‑enabled with multiple tiers for different business needs and standard format compatibility.

• Open‑source
• Ink/Stitch (Inkscape extension): Free, cross‑platform, multilingual, with a strong lettering system, stitch simulation, extensive stitch types, tutorials, and a supportive community. Great for learning digitizing fundamentals and producing real‑world files without upfront cost.

Guiding principle: Choose based on how much you’ll edit vs. fully digitize, your budget, and the need for simulation/production proofing.

6.2 Workflow Integration Strategies

• File flow that just works
• Use USB for universal reliability; enable wireless/cloud where supported to speed transfers.
• Standardize on common formats (.DST, .PES, .EXP) to simplify collaboration between software and machines.

• Smart conversion and trials
• Ink/Stitch: Convert vector SVGs into stitch objects, simulate, then export to machine formats—excellent for learning pathing, density, and push/pull.
• Hatch: Take advantage of the 30‑day trial to evaluate auto‑digitizing accuracy, manual refinement, and organization features before committing.

• Production hygiene
• Keep a master folder per client/project containing native files (e.g., SVG/EMB), stitch files (DST/PES/EXP), color charts, and notes (needle/thread, stabilizer, hoop size).
• Version your edits to track changes and roll back if needed.

Result: A clean, format‑friendly pipeline that moves from concept to hoop with fewer surprises—whether you’re editing built‑ins, customizing monograms, or digitizing from scratch.

7. Business Growth and Advanced Applications

7.1 Profitability Analysis and Scaling Models

Embroidery can be a healthy business when you match pricing, workflow, and equipment to demand. Industry ranges from the provided research and market roundups:

• Profit margins: typically 15–20% for average shops; well‑optimized operations can reach 40–60%.
• Annual revenue: commonly $40,000–$250,000, driven by client mix, order size, and repeat business.
• Startup costs: about $2,000–$10,000 for a single‑head setup, basic software, consumables, and initial marketing.

Pricing models you can mix and test:

• Flat fee: simple per‑item pricing (e.g., $12 per shirt for basic logos).
• Per piece tiering: examples include ~$18 per shirt for 1–5 pieces vs ~$12 for 21+ units.
• Hourly: around $30/hour for complex/custom work.
• Per stitch: e.g., $1.25 per 1,000 stitches.
• Wholesale rule of thumb: set price at (Labor + Materials) × 2–2.5; adjust for rush, density, and color changes.

What to sell (and why) from real shop experience:

• Fast sellers: towels, tote bags, zipper pouches, aprons, pillows, and even rope bowls—quick to stitch and great for gifting.
• Design themes that move: nature motifs, witty text, and “special interests” tied to local pride, hobbies, pets, or the specific event/venue.
• Efficiency edge: prefer designs with lower stitch counts and fewer color changes to speed runs and protect margins.

Marketing and display tips that work at craft fairs or online:

• Curate a niche so your table/store doesn’t look like everyone else’s.
• Use a few “showpiece” items to draw attention even if they sell less often.
• Display vertically (racks for totes), and keep backs tidy (e.g., cover towel backs for a clean finish).

Scale where it pays:

• First, standardize your intake → digitizing → stitch‑out QC → finishing.
• Then, scale production with larger hoops and multi‑needle machines to cut color‑change downtime.
• Finally, add heads for volume. Multi‑head systems shine on bulk orders; labor and setup time per item drop, which is where ROI compounds on larger contracts.

Automation advantage:

• Automated, computer‑guided units are a growing share of the market, helping shops reduce labor, boost consistency, and protect margins—especially on repeat designs and corporate orders.

7.2 AI and Multi-Machine Integration

Modern tech shortens the path from file to flawless stitch‑out:

• AI‑assisted stitch control: Research notes that advanced systems can fine‑tune thread tension, adjust stitch density, and analyze fabric behavior to reduce waste and keep output consistent.
• IoT monitoring: Cloud connectivity enables remote uploads, job tracking, and clearer visibility into uptime, stops, and operator interventions.
• Multi‑unit orchestration: Run mirrored queues across multiple heads; pre‑thread common palettes; standardize stabilizer/needle settings per fabric type to minimize operator variability.

Choosing your growth path:

• Personalization wave: Single‑head machines continue to expand with direct‑to‑consumer customization; they’re ideal for fast‑turn, on‑demand work.
• Bulk economics: Multi‑head equipment dominates revenue share for good reason—batch orders see the biggest efficiency gains.
• Unified platforms: Chassis that support diverse applications (e.g., Tajima TMBP2‑SC’s unified approach) help shops pivot between flat goods, bulky items, and specialty pieces without rethinking the entire floor.

Practical integration roadmap:

• Phase 1: Standardize files and color charts; adopt reliable transfer (USB/cloud) and a checklist‑driven SOP.
• Phase 2: Add smart tension routines and on‑machine aids; document best‑known settings for your top fabrics.
• Phase 3: Orchestrate multiple heads with shared palettes, staggered start times, and job dashboards to smooth operator workload and reduce idle time.

8. Conclusion: Building Your Embroidery Journey

Match machine capabilities to your project scale, then grow deliberately. Start by locking in hoop size, file format support, and an intuitive workflow. For many creators, a mid‑range, easy‑to‑use model like Brother SE1900 offers enough field size and features to learn, validate demand, and sell confidently. As orders grow, add multi‑needle or multi‑head capacity and smarter workflow tools. Choose tech that removes your biggest bottlenecks—and keep stitching forward.

9. Frequently Asked Questions

9.1 Q: What’s the difference between single‑needle and multi‑needle machines?

A: Single‑needle machines stitch one color at a time. They’re typically embroidery/sewing combos, beginner‑friendly, and budget‑conscious; you rethread between colors. Multi‑needle machines hold multiple colors at once, automate color changes, and accelerate batch work—great for business throughput. Consumer units often run 4"×4" to 5"×7" fields; prosumer/industrial gear offers larger fields and more advanced features, per brand guides and lab reviews.

9.1 Q: How much does a good starter machine cost?

A: Examples from the provided sources: Brother SE600 around $389; Brother PE535 listed at ~$379.99 (brand site) and also shown at ~$480 in a retail roundup; Brother PE800 about $800; Brother SE2000 around $1,600. Pick based on hoop size (5"×7" is a sweet spot for beginners who want room to grow), built‑in designs, and how you prefer to transfer files (USB or wireless).

9.2 Q: Why does my thread keep breaking—and how do I fix it?

A: Most breaks trace to tension, needle, or thread issues. Start with a fresh 75/11 embroidery needle and 40‑weight polyester thread. Rethread top and bobbin, then test on scrap. If too tight, thread snaps; if too loose, the top/bottom swap shows. Adjust slowly, and verify your stabilizer matches the fabric.

9.2 Q: My fabric shifts in the hoop. What should I do?

A: Use the right stabilizer (cutaway/no‑show mesh for knits; tear‑away for stable fabrics; add a wash‑away topper for towels). Hoop “drum‑tight” without stretching the garment, and use temporary spray adhesive for tricky textiles. For designs near hoop edges, step up one hoop size and ensure stabilizer extends beyond the hoop.

9.2 Q: My machine shows on‑screen errors. How do I interpret them?

A: Follow the machine’s prompts: rethread, re‑seat the bobbin, and confirm hoop size and position match the selected design. Use the trace function to ensure the needle won’t hit the hoop. If issues persist, consult the manual/tutorials; many models include on‑screen guides and clear step‑by‑step help.

9.2 Q: How can I prevent puckering and misalignment?

A: Match stabilizer to fabric, keep designs within the stitchable area, and run a quick test stitch‑out on similar material. Verify tension (no bobbin thread showing on top; no top thread on the back), trim jump stitches as needed, and press from the back with a cloth after removing stabilizer for a clean finish.
