Hooping Rigid Canvas Baskets with Metal Rods: The Fast Magnetic Hoop + Hoop Master Station Method That Won’t Crush Your Order

The "Impossible" Basket: A Master Class in Inverted Hooping and Magnetic Stabilization

If you’ve ever tried to hoop a “cute” structured canvas basket and immediately felt your stomach drop—because the rim has metal rods and your machine arm is about to collide—you’re not alone. This is one of those jobs that looks simple until you’re 10 pieces in, your hands hurt, and every basket sits a little differently.

In my 20 years on the production floor, I have seen more needles broken on rigid baskets than on any other item. The variable isn't just the fabric; it's the physics of the container.

The good news: the workflow in this video is exactly what a production shop needs—fast, repeatable, and designed around the physical reality of a rigid basket. The key move is inverted hooping on a station: you slide the basket over the fixture instead of trying to force the fixture into the basket.

Metal Rod Canvas Baskets: Why Standard Tubular Hooping Fails (and How Machine Arm Collisions Happen)

The basket in the video has a rigid metal structure: a metal wire ring around the rim and vertical supports inside the sides. The presenter shows that internal wire frame and calls out the real problem—if you hoop it “normally” (forcing the inner ring inside the basket), those rods can obstruct the machine arm.

Here’s what’s happening in plain shop terms explaining why standard plastic hoops fail here:

• The Friction Fallacy: Standard hoops rely on friction (inner ring pressing against outer ring) to hold fabric. A metal-rimmed basket fights this pressure. It will pop out mid-stitch.
• The Clearance Thief: Even if you physically clamp it, the basket’s rim and supports sit above the hoop plane, directly in the path of the machine’s needle bar case.
• The "Trampoline" Effect: When you force a rigid item into a hoop, you create a "trampoline" effect where the fabric bounces. This causes flagging, resulting in skipped stitches or bird nesting.

If you’re running a multi-needle head (the video shows a HappyJapan machine stitching a multi-color logo), clearance and repeatability matter more than brute strength.

The Tool Stack That Makes This Job Feel Easy: Hoop Master Station + 5.5" Magnetic Frame

The video uses a Hoop Master station with a fixture/jig and a magnetic frame (shown as a blue Mighty Hoop, estimated around 5.5" x 5.5"). This combination is popular in commercial shops for one reason: it turns hooping into a position-and-snap routine instead of a wrestling match.

If you’re building a similar workflow, the “tool upgrade path” I recommend follows a clear logic based on your bottlenecks:

• Trigger: You are spending more than 2 minutes hooping a single item.
  • Solution: A station-style setup. Professionals looking for a hoop master embroidery hooping station are essentially buying back time. It standardizes where the hoop lands, removing the "eyeball" guesswork.
• Trigger: You suffer from "Hoop Burn" or hand strain from tightening screws on thick canvas.
  • Solution: magnetic embroidery hoops. These reduce the clamp-force problem because the magnets verify the grip, not your wrist strength.
• Trigger: You have orders of 50+ pieces and drown in thread changes.
  • Solution: A multi-needle platform. While the video shows a HappyJapan, SEWTECH multi-needle machines are the logical "next step" for growing shops, offering the same tubular arm clearance needed for basket work at a high-ROI price point.

This isn’t about brand loyalty—it’s about matching the tool to the bottleneck.

The “Hidden” Prep Pros Do Before Hooping a Structured Basket (So the Snap Is Clean and the Sew-Out Stays Flat)

The video moves quickly (as production videos should), but there are a few prep checks that prevent 80% of the ugly surprises on rigid baskets.

What the video shows for prep: The bottom ring is placed into the station recess, then a sheet of cut-away stabilizer is laid flat and secured with the fixture’s side clips/tabs.

Here’s the pro-level reasoning behind that, calibrated for safety:

• The "Cut-Away" Rule: Structured canvas looks sturdy, but the needle perforations will act like a "tear strip" on cardboard. You must use Cut-Away stabilizer (usually 2.5oz - 3.0oz). It provides the permanent skeleton the embroidery holds onto.
• The Flat Plane: Any wrinkle in the stabilizer becomes a “hinge” point where the basket can shift under stitch load. The stabilizer must be flat against the jig.
• The "Taut" Test: Your hooping tension should be “taut,” not “drum-tight.” With rigid items, over-tension causes the fabric to snap back after release, puckering the design.

Hidden Consumables List

Don't start without these:

• Extended Seam Ripper: For reaching into deep baskets if a thread nest occurs.
• Masking Tape: To tape down loose straps or handles so they don't catch on the presser foot.
• 75/11 Sharp Needles: Ballpoints may struggle to pierce thick canvas coating; Sharps provide a cleaner penetration.

Warning: Projectiles & Needle Breaks. Metal-rimmed baskets can hit the machine body. Always do a "Trace" or "Contour Check" with the needle bar down (manual rotation) to ensure the presser foot does not strike the basket rim. A collision at 800 SPM can shatter the needle and send metal flying.

Prep Checklist (Do this before the basket touches the station)

1. [ ] Locate the Hardware: Physically squeeze the basket rim to find where the metal rods end. Mark this "No Fly Zone" with chalk if needed.
2. [ ] Select Stabilizer: Use Cut-Away (2.5oz+). Do not use Tear-Away, as the needle impact on canvas is too aggressive.
3. [ ] Visual Inspection: Check the sewing field for thick seams or rivets.
4. [ ] Bobbin Check: Ensure you have a full bobbin. Changing a bobbin on a hooped basket is difficult and risks shifting the alignment.

The Angled Jig Setup: The Inverted Hooping Trick That Keeps Metal Hardware Out of the Embroidery Field

The presenter sets the Hoop Master fixture at a steep angle. That angle is not cosmetic—it’s what allows the basket to be slid on upside down, so the basket drapes over the station arm instead of being forced open from the inside.

This is the “physics” win:

• Gravity Assist: The basket hangs naturally, pulling the embroidery face flat against the station.
• Rim Displacement: The rigid metal rim sits below the hooping area, completely out of the way of the magnetic seal.
• Isolation: The embroidery panel is isolated. You are no longer fighting the shape of the box; you are just hooping a flat panel of fabric.

If you’ve ever had a basket that almost fits, this is the difference between “it works once” and “it works 50 times in a row.”

The Exact Hooping Sequence on a Hoop Master Fixture: Bottom Ring + Cut-Away + Basket + Top Magnet

This is the heart of the video. Follow the order exactly, because each step sets up the next. We will use sensory anchors to ensure you get it right.

1) Seat the bottom ring in the station recess

The video shows the bottom magnetic ring placed into the Hoop Master recess so it can’t wander.

• Sensory Check: Wiggle it. It should not move left or right.

2) Lay cut-away stabilizer flat and secure it

A sheet of cut-away stabilizer is placed over the bottom ring and held in place with the fixture’s side clips/tabs.

• Sensory Check: Run your hand over it. It should feel smooth, with no ripples.

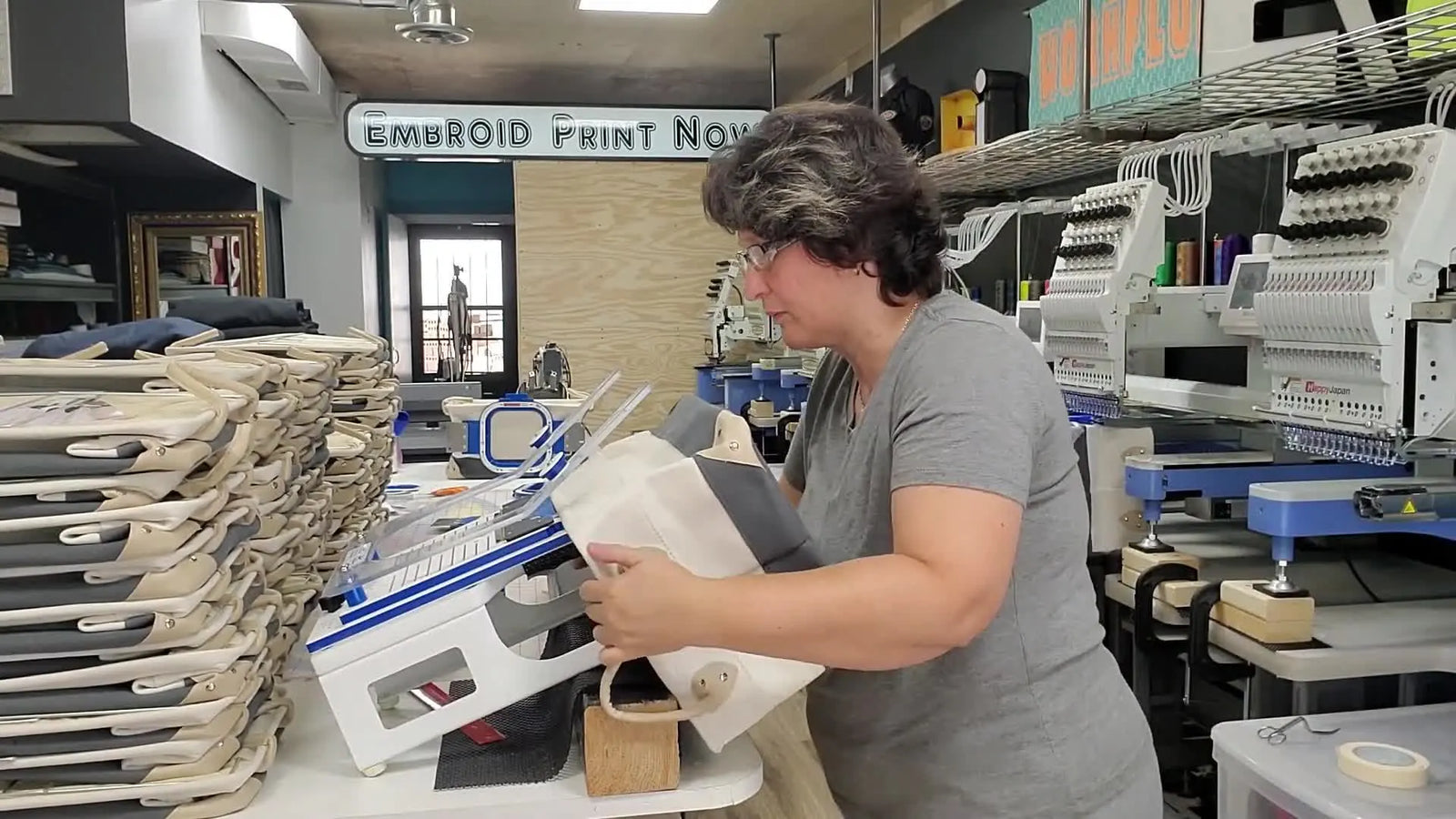

3) Slide the basket opening over the jig—upside down

The presenter slides the basket over the top of the fixture and pushes the canvas down. The metal rim sits below the hooping area.

• Action: Push the canvas down until it meets the backing.
• Sensory Check: The fabric should feel "taut" (like a well-made bed sheet), not "stretched" (like a rubber band).


4) Align the top magnetic frame using the fixture guides

She aligns the top frame with the guide tabs on the fixture.

• Critical: Do not let the magnets grab yet. Hover the top frame and align the tabs.


5) Let the magnets snap together—hands clear

The video shows using hand pressure/body weight so the magnets clamp instantly.

Warning: Magnetic Pinch Hazard. Powerful magnetic frames like the one shown snap shut with over 10 lbs of force. Keep fingertips away from the mating surface. Hold the frame by the outer edges only. Users with pacemakers should maintain a safe distance (usually 6 inches) from high-power magnetic hoops.

• Sensory Check: You should hear a sharp, solid "CLACK". If you hear a muffled thud, fabric may be bunched in the magnet line.


Setup Checklist (End this phase before you walk to the machine)

1. [ ] Seat Check: Bottom ring is fully seated in the station recess.
2. [ ] Flatness: Cut-away stabilizer is flat and secured—no wrinkles.
3. [ ] Inversion: Basket is inverted; metal rim is visibly below the hooping zone.
4. [ ] Alignment: Top frame is square on fixture guides.
5. [ ] The Snap: The magnetic seal is audible and solid.

“I Struggle to Pull the Hoop Apart”: The Strength Hack and the Wear Pattern Nobody Mentions

One commenter noticed how quickly the presenter separates the hoop sections, while they struggle. The channel reply is basically “you’ll get the hang of it,” which is true—but here’s what I’d add after years of watching shops fight magnetic frames:

• Slide, Don't Pry: Do not try to lift the top frame straight up. Slide the top frame laterally (sideways) until the magnets overhang, then lift.
• The "Twist" Technique: Grip opposite corners and apply a slight twisting motion to break the magnetic seal.
• Check for Traps: If a hoop feels "stuck," check for stabilizer caught in the seam. A tiny fold can lock the frame tighter than normal.

For high-volume shops, hand fatigue is a hidden cost. A compatible magnetic frame system (including our SEWTECH magnetic hoops for home single-needle machines and industrial multi-needle machines) becomes more than a convenience—it’s an ergonomics upgrade that prevents Carpal Tunnel symptoms.

If you need a deep dive on basics, many users search for how to use magnetic embroidery hoop tutorials, but the key is always: practice on scrap canvas first to learn the "release" feel.

Bulk Order Rhythm on a Multi-Needle Head: Keep the Machine Sewing, Not Waiting

The video opens and closes with stacks of finished NBC-branded baskets and shows the machine actively stitching a multi-color logo. That’s the real story: this is a production order, and the hooping method is designed to keep throughput high.

Speed Calibration (The "Sweet Spot"):

• Novice/Home Machine: Run at 500-600 SPM. Rigid baskets vibrate heavily.
• Pro/Multi-Needle: Run at 700-800 SPM. Do not run at max speed (1000+) on structured items; the swaying of the basket can cause registration errors (outlines not matching fill).

The Workflow:

1. Batch Hooping: Hoop 3-5 baskets while the machine runs one.
2. The "Fixture" Rule: Treat the station like a precision instrument. Nothing else lives on it.
3. Trace Every Time: Because baskets vary, run a trace on every piece to ensure the metal rim hasn't drifted into the needle path.

A station-based workflow, often referred to as a magnetic hooping station setup, is the cleanest way to maintain this rhythm.

Stabilizer Decision Tree for Structured Baskets, Totes, and Other “Hard-to-Hoop” Items

The video uses cut-away stabilizer. Why? Because the item will be handled, stuffed, and moved. Use this decision tree to avoid guessing.

Decision Tree: Fabric/Item → Stabilizer Choice

1. Is the item structured canvas/nylon with minimal stretch?
   • Yes: Cut-Away (2.5oz). This is your safe baseline.
   • No: Go to #2.
2. Is the fabric stretchy, thin, or a knit basket liner?
   • Yes: Fusible Cut-Away (Mesh) or Heavy Cut-Away. You need to stop the stretch.
   • No: Go to #3.
3. Is the design very dense (high stitch count, e.g., >15,000 stitches)?
   • Yes: Double up your Cut-Away or use a 3.0oz Performance backing.
   • No: Go to #4.
4. Is the back visible and aesthetic softness is required (e.g., a tote bag)?
   • Yes: You can use Tear-Away, but you risk outline alignment issues. A better choice is a clean Cut-Away that you trim neatly with appliqué scissors.
   • No: Stick to Cut-Away.

If you sell stabilizers, keep a "triad" stock: Performance Cut-Away, Tear-Away, and Soluble Topping. That covers 90% of jobs.

Troubleshooting Structured Basket Hooping: Symptom → Likely Cause → Fix

The video explicitly calls out the big issue—metal frame obstruction—and solves it with the elevated station method. Below are the most common shop-floor symptoms that show up on this exact type of job.

The “Why” Behind the Method: Tension, Compression, and Why Magnetic Frames Shine on Rigid Items

Standard plastic hoops work by compression and friction. You are trying to sandwich a thick canvas between two plastic rings. The canvas fights back, pushing the rings apart.

Magnetic frames work by vertical force.

• The magnets apply direct vertical clamping pressure.
• They do not rely on friction to hold the fabric side-to-side; the stabilizer does that work.
• This allows the canvas to sit flat rather than being distorted into a bowl shape.

If you’re currently using a standard hoop and “making it work,” you’re paying for it in hidden ways: slower hooping, more rejects, and operator fatigue.

For home single-needle users, magnetic hoops can reduce "hoop burn" (the shiny ring left on fabric). For industrial users, magnetic hoops can turn a 2-minute struggle into a 20-second snap.

The 5.5-inch size (similar to the mighty hoop 5.5 shown) is the "Goldilocks" size: large enough for left-chest logos, small enough to fit inside the tight radius of a medium basket.

Finishing Standards for Customer-Ready Baskets: What to Check Before You Stack the Order

The video shows stacks of completed baskets. Quality control is the final step.

Before you call the order “done,” do a quick sensory check:

1. The Scratch Test: Run your finger over the back. Are the knots trimmed? Is the stabilizer trimmed round (not square corners that scratch)?
2. The Crush Test: Ensure the basket wire frame wasn't bent during the hooping process. Reshape if necessary.
3. The Visual: Confirm the logo is parallel to the rim.


The Upgrade Moment: When a Station + Magnetic Frames (or a Multi-Needle) Pays for Itself

This video is a perfect example of a “tool pays for itself” job. Structured baskets are hard to hoop, and the volume makes speed matter.

• Level 1 (Technique): If you do 5 baskets a year, use the "Inverted" technique with your standard hoops (if they fit) and run slow.
• Level 2 (Tooling): If you do 5 baskets a week, a hoop master station + Magnetic Hoop eliminates the pain and guarantees alignment.
• Level 3 (Scale): If you do 50 baskets a week, you need the clearance of a tubular arm. If you are outgrowing your single-needle, SEWTECH multi-needle machines are built to handle this specific "deep clearance" requirement.


Operation Checklist (End this phase before you start the next basket)

1. [ ] Clearance: Hooped basket clears the machine arm path (Trace run completed).
2. [ ] Start-Up: Hold the thread tail for the first 3-4 stitches to prevent nesting.
3. [ ] Audio Check: Listen for the rhythmic thump-thump. A loud clank means the rim is hitting the arm—STOP immediately.
4. [ ] Inspection: Check the first finished piece for straightness relative to the rim.
5. [ ] Storage: Stack finished baskets so the embroidered face isn’t crushed.

If you’re running a happy embroidery machine or similar production setup, this repeatable hooping method keeps your machine sewing and your operator calm—exactly what you want when the order is big and the deadline is real.

FAQ

• Q: How do I hoop a metal-rod canvas basket on a Hoop Master embroidery hooping station without a machine arm collision on a HappyJapan multi-needle embroidery machine?
  A: Use inverted hooping on the station so the basket slides over the fixture and the metal rim stays below the hoop plane.
  • Seat the bottom ring fully in the station recess before anything else.
  • Clip cut-away stabilizer flat on the jig, then slide the basket on upside down and push the panel down evenly.
  • Run a Trace/Contour Check with the needle bar down (manual rotation) before stitching.
  • Success check: the metal rim is visibly below the hooping zone and the trace clears with no contact sounds.
  • If it still fails: re-hoop with a steeper station angle and confirm the hoop is not positioned too close to the rim hardware.
• Q: What stabilizer should I use for structured canvas baskets on a multi-needle embroidery machine to prevent puckering and design distortion?
  A: Use cut-away stabilizer (usually 2.5 oz–3.0 oz) as the safe baseline for structured canvas baskets.
  • Choose cut-away first; avoid tear-away on this type of rigid canvas job.
  • Lay the stabilizer perfectly flat on the station to prevent shifting under stitch load.
  • Match stabilizer strength to density by doubling cut-away for very dense designs (a common shop practice).
  • Success check: the sew-out stays flat with no “hinge” wrinkles around the logo after unhooping.
  • If it still fails: reduce hooping tension (taut, not drum-tight) and slow the machine speed to reduce vibration.
• Q: How tight should the fabric feel when hooping a rigid structured basket with a 5.5-inch magnetic embroidery hoop to avoid puckering after release?
  A: Aim for “taut, not stretched” tension so the canvas does not snap back and pucker the design.
  • Push the basket panel down until it meets the backing without forcing the fabric like a rubber band.
  • Avoid over-tightening; let the magnetic frame clamp evenly instead of muscling the material.
  • Keep the stabilizer smooth and flat so the fabric is supported, not suspended.
  • Success check: the fabric feels like a well-made bedsheet (taut) and the logo area stays smooth after unhooping.
  • If it still fails: reposition to avoid hooping directly over thick seams and consider heavier cut-away to dampen bounce.
• Q: How do I know the magnetic embroidery hoop is seated correctly on a Hoop Master fixture before I walk it to an industrial embroidery machine?
  A: Confirm seating, flatness, inversion, alignment, and a clean magnetic snap before moving to the machine.
  • Wiggle-check the bottom ring in the recess so it cannot wander left/right.
  • Hand-sweep the stabilizer surface to confirm no ripples or wrinkles.
  • Hover-align the top frame on the fixture guides before letting magnets grab.
  • Success check: you hear a sharp, solid “CLACK” (not a muffled thud) and the frame sits square on the guides.
  • If it still fails: look for fabric/stabilizer bunched in the magnet line and re-snap with clean edges.
• Q: What are the safest steps to prevent needle breaks and flying debris when embroidering a metal-rim structured basket on a tubular-arm multi-needle embroidery machine?
  A: Stop collisions before they happen by tracing every piece and listening for contact during the first stitches.
  • Locate the metal hardware by squeezing/feeling the rim and mark a “no-fly zone” if needed.
  • Perform a Trace/Contour Check with the needle bar down (manual rotation) to confirm presser foot and basket clearances.
  • Start slower on rigid items and hold the thread tail for the first 3–4 stitches to prevent nesting.
  • Success check: the machine makes a steady rhythmic stitch sound; any loud “clank” means STOP immediately.
  • If it still fails: re-hoop inverted so the rim sits lower, and do not proceed until the trace clears fully.
• Q: What magnetic embroidery hoop safety rules should operators follow to avoid pinch injuries and pacemaker risks during hooping?
  A: Treat magnetic frames like a pinch hazard—align first, then snap with fingers completely clear, and keep pacemakers at a safe distance.
  • Hold the frame by the outer edges only; never place fingertips near the mating surfaces.
  • Hover and align using fixture guides, then let the magnets snap shut in one controlled motion.
  • Keep users with pacemakers away from high-power magnetic hoops (a commonly recommended precaution) and follow medical/device guidance.
  • Success check: the hoop closes cleanly in one snap without fingers getting pulled toward the seam.
  • If it still fails: slow down the snap step and use the station guides to prevent misalignment that causes sudden grabs.
• Q: How do I fix a magnetic embroidery hoop that feels impossible to pull apart during production hooping of thick canvas baskets?
  A: Release magnetic frames by sliding and twisting—do not pry straight up.
  • Slide the top frame sideways until the magnets slightly overhang, then lift.
  • Twist slightly by gripping opposite corners to break the seal.
  • Inspect for stabilizer or fabric caught in the seam, which can “lock” the hoop tighter than normal.
  • Success check: the hoop releases with a controlled break and no sudden jerk that strains wrists.
  • If it still fails: re-check that no excess stabilizer is trapped in the magnet line and trim/position backing flatter before snapping.
• Q: When should a shop upgrade from standard hoops to a magnetic hooping station setup or to a SEWTECH multi-needle embroidery machine for structured basket orders?
  A: Use the bottleneck triggers: time-per-hoop, operator strain/hoop burn, and order volume with thread-change overload.
  • If hooping takes more than ~2 minutes per item, move to a station-style positioning workflow to standardize placement.
  • If hoop burn or hand strain is recurring on thick canvas, magnetic hoops are often the next practical step.
  • If orders are 50+ pieces and thread changes dominate the day, a multi-needle platform is typically the productivity upgrade path.
  • Success check: hooping becomes repeatable (position-and-snap), rejects drop, and the machine spends more time sewing than waiting.
  • If it still fails: audit the specific failure mode first (collision, crooked placement, puckering, popping open) and upgrade the tool that directly addresses that constraint.
