Hooping a Structured Cap for 3D Puff on a Ricoma: The “Scary Part” Made Predictable (and Repeatable)

The "Fearless" Guide to 3D Puff Hat Embroidery: From Panic to Production

If you’ve ever stared at a cap driver and thought, "Nope—hats are where embroidery goes to die," you are validating a universal truth. Beginners are scared of hats because they violate the first rule of embroidery: flatness. Hats are curved, stiff, and unforgiving.

But here is the secret that separates hobbyists from shop owners: Cap embroidery is not an art; it is a mechanical locking process.

The following guide rebuilds the standard workflow into a "shop-ready" protocol. We will move beyond basic instructions to cover the sensory details—the sounds, feelings, and safety numbers—that guarantee a sellable product.

Machine Embroidery Basics: The "Two-Brain" Approach

To conquer hats, you must separate your workflow into two distinct disciplines. If you mix them up, you will get distorted logos and broken needles.

1. The Digital Brain (Digitizing): This determines the map. A file digitized for a flat t-shirt cannot be used for 3D puff on a hat. The stitch density must be higher (to slice the foam), and the pathing must push the foam away from the center.
   • The Rule: If you didn't digitize it specifically for puff caps, do not run it.
2. The Physical Brain (Hooping): This determines stability. Your job is to force a 3D object to act like a 2D flat surface for the 10 minutes it is under the needle.


Reading the Control Panel: Speed is Your "Risk Dial"

The video reference shows a machine running at 790 RPM (Stitches Per Minute) with a capacity of 1000 SPM.

Stop right there.

While industrial machines can run at 1000 SPM, doing so on 3D puff is a recipe for needle deflection and thread breaks.

• The Beginner Sweet Spot: Set your speed to 550–650 SPM.
• The Expert Zone: 750–850 SPM (only after perfect hooping is confirmed).

The Math of Production: Stitch count creates your timeline. A standard 3D puff logo is often 8,000–12,000 stitches.

• @ 600 SPM = ~18-20 minutes.
• @ 900 SPM = ~12-14 minutes.
• The Reality Check: Saving 5 minutes isn't worth ruining a $15 hat blank. Run it slow until you trust your hands.


The Cap Station: Your "Mechanical Third Hand"

You cannot hoop a hat in mid-air. The cap station (the heavy gauge bolted to your table) is critical because it provides the counter-pressure needed to lock the hat without twisting it.

• The Sensory Check: When the cap driver snaps into the station, you should hear a metallic clank and feel zero wiggle. If it wobbles here, your design will be crooked later.
• Tooling Note: If your station feels loose or struggle to hold the cap ring, you are fighting a losing battle. Professionals invest heavily in stable hooping stations because stabilization starts at the table, not the needle.


The "Hidden" Prep: Pre-Flight Safety Checks

Before you touch the hat, you must prepare your consumables. Missing these steps causes 90% of "random" failures.

Prep Checklist (Yes/No):

• Needle Check: Is the needle size usually #75/11 or #80/12? (3D puff often needs a slightly larger needle to penetrate foam and canvas).
• Bobbin Check: Is your bobbin at least 50% full? running out mid-puff creates a visible seam that ruins the 3D effect.
• Foam Cut: Is your foam rectangle cut 1 inch wider than the design on all sides?
• Consumables: Do you have a heat gun or lighter ready to clean up foam fuzz later?
• Stabilizer: Do you have tearaway backing ready? (Even on structured hats, backing adds friction to prevent slipping).


Hooping Step 1: The "Seating" Maneuver

This is the moment that determines if your logo is centered.

1. Unfold: Peel back the sweatband completely.
2. Slide & Seat: Slide the cap onto the driver.
3. The Sensory Anchor: Push the cap forward until the sweatband hits the metal locator tab. You should feel a solid stop.
4. The Center Check: Look at the center seam of the hat. It must align perfectly with the red/notched mark on the cap ring.

Why this matters: You are indexing a 3D object to a digital zero-point. If you are 2mm off here, your design is 2mm off center.

Hooping Step 2: The "White Knuckle" Lock

The metal strap (band) is what holds the cap during the violence of stitching.

1. The Hook: Pull the strap over the bill and hook it onto the latch.
2. The Smooth-Out: Before locking, use your thumbs to smooth the lower sides of the cap. The fabric should feel tight against the gauge—like a drum skin.
3. The Lock: Clamp the latch down.

How tight is "Tight"?

• Visual: The sweatband should look compressed.
• Touch: If you can pull the fabric on the bill and see the front panel ripple, it is too loose. It needs to be immovable.

Industry Insight: If you find yourself struggling with hand pain or creating "hoop burn" (shiny marks) on the cap from over-tightening, this is a trigger point to look at ricoma hoops or specifically magnetic cap frames, which use magnetic force rather than mechanical leverage to secure the material.

Stabilizer Decision Tree: The Safety Net

A common myth is "structured hats don't need backing." While true for rigid hats, it is dangerous for beginners.

Decision Tree (Fabric → Stabilizer):

• Case A: Trucker Hat / Rigid Canvas
  • Action: 1 layer of Tearaway Stabilizer.
  • Why: To add friction between the metal arm and the hat, preventing slippage.
• Case B: "Dad Hat" / Unstructured Cotton
  • Action: 1-2 layers of Cap Cutaway Stabilizer.
  • Why: The fabric has no skeleton; the stabilizer becomes the skeleton.
• Case C: Stretchy Fit / Flexfit
  • Action: Adhesive Cutaway (Stick-on).
  • Why: To glue the fibers in place so they don't distort when stretched.

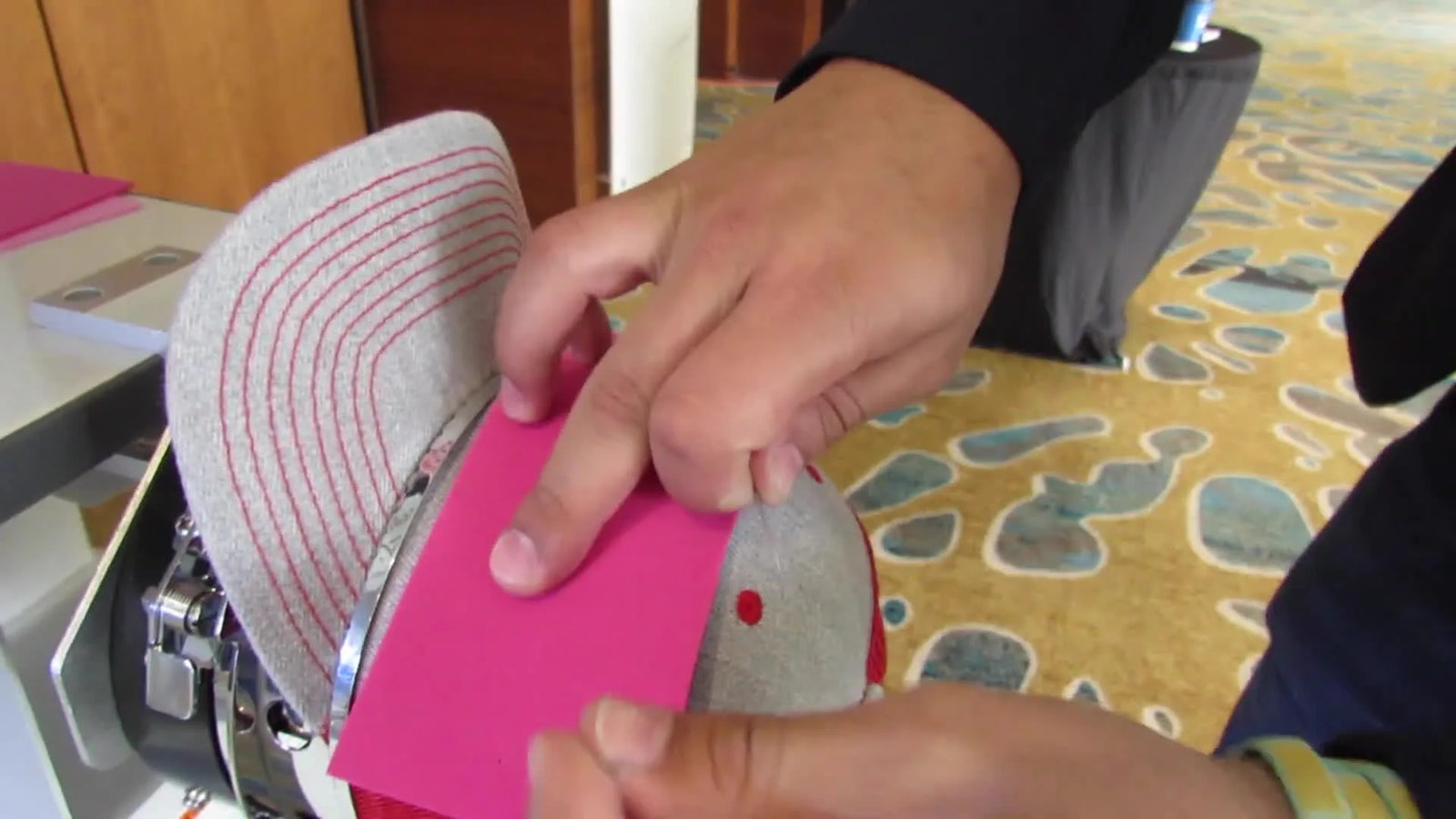

The "Pinning" Technique for 3D Foam

Adhesive spray can gum up your needles. The pro method is "Pinning."

1. Lay your 3D foam over the design area.
2. Take two sewing pins.
3. Pin the corners of the foam into the hat fabric, well outside the embroidery area.

Warning: Physical Safety
Never place pins inside the area where the machine will stitch. If the needle strikes a metal pin, it can shatter the needle mechanism or send metal shrapnel flying.

If you are constantly fighting to keep materials flat, you might be researching hooping for embroidery machine techniques. For 3D foam, manual pinning is the gold standard for cleanliness and hold.

Loading onto the Machine: The "Click" of Confidence

Transferring the hoop from the station to the machine driver is a precise mechanical connection.

• The Action: Slide the hoop onto the driver rails.
• The Sound: Listen for distinct clicks as the spring-loaded locks engage.
• The Check: Grab the hat bill and give it a firm tug. If the hoop slides off, it wasn't locked. If it stays rigid, you are safe.


Threading Like a Pro: Bottom-to-Top Visibility

Threading a needle on a multi-needle machine can be frustrating because your hand blocks the LED light.

• The Trick: Hold the thread short. Approach the needle eye from below, moving upward into the light, then push the thread through.
• Why: This keeps your knuckles out of the shadow line, letting you see the eye clearly.

If you are comparing equipment, ease of maintenance and threading is a huge factor. Users often search reviews for the ricoma embroidery machine to see how accessible the needle bar area is for daily tasks like this.

Setup Discipline: The "Pre-Start" Ritual

You are about to run a high-speed needle through a $20 item. Pause and verify.

Setup Checklist (Yes/No):

• Clearance: Rotate the hat manually to ensure the bill won't hit the machine arm.
• Trace: Run a "Trace" (Design Outline) on the screen. Does the laser stay on the foam? Does it hit the pins?
• Speed: Is the machine speed dialled down to 600 SPM for 3D puff?
• Start Point: Is the needle positioned correctly over the center seam?


Troubleshooting: The "Why Did It Fail?" Matrix

When things go wrong, don't panic. Use this diagnostic table (sorted from cheapest fix to most expensive).

The Physics of Structure vs. Stability

Here is the concept that will advance your skills: Structure is not Stability. A hard hat (Structure) can still slide left and right (Instability) if not clamped correctly.

Your goal is to marry the two. The cap station provides the structure; your hands and the strap provide the stability. If you skip using a proper station, you are trying to stabilize a moving object with unstable friction. It will never work consistently.

The Upgrade Path: When to Scale Your Tools

As you move from doing 5 hats a week to 50, physical pain and efficiency become your bottlenecks.

Process Upgrade 1: Consumables

• Switch to premium SEWTECH High-Tenacity Thread to reduce breaks at high friction.
• Use pre-cut stabilizer sheets to save prep time.

Process Upgrade 2: Tooling (The Hoop Burn Killer)

• Traditional clamp hoops put immense pressure on the bill, often leaving marks ("hoop burn").
• Solution: Magnetic Hoops. These use powerful magnets to hold the hat without the crushing mechanical force of a screw-clamp. They are faster to hoop and gentler on delicate fabrics.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely and interfere with pacemakers. Handle with care.

Process Upgrade 3: Machinery

• If you are turning away orders because you can't stitch fast enough, searching for a ricoma mt-1501 embroidery machine or similar multi-needle commercial units is the next logical step. These machines handle continuous running loads that would burn out a home motor.


Operation Checklist: The "Walk Away" Test

You should only walk away from the machine once you have confirmed stability.

Operation Checklist (Yes/No):

• First layer of stitches (underlay) tacked the foam down successfully?
• No "bird nesting" sound (a rapid, clunking thud) from the bobbin area?
• Foam is not lifting at the edges?

If you are transitioning from flat garments, remember that standard machine embroidery hoops operate differently than cap drivers. The physics of the cylinder arm are unique—respect the curve.

Scaling Up: The Production Mindset

The video concludes with the power of multi-head machines. But you can simulate "industrial efficiency" with a single needle:

1. Batch Hooping: If you have two cap rings, hoop the second hat while the first one stitches.
2. Assembly Line: Cut all foam, stabilizers, and thread before you turn the machine on.
3. Process Consistency: Do not change your method. If you use pins on Hat #1, use pins on Hat #100.

Whether you are using a starter rig or a ricoma mighty hoop starter kit, reliability comes from repetition. Master the mechanical lock, respect the speed limits, and your hats will come off the machine looking like they came from a factory.

FAQ

• Q: For 3D puff hat embroidery on a multi-needle cap driver, what machine speed (SPM/RPM) should be used to prevent needle deflection and thread breaks?
  A: Set the machine to 550–650 SPM as a safe beginner range; high speed is a common cause of breaks on foam.
  • Dial down speed before the first stitch, even if the machine is rated to 1000 SPM.
  • Stay slow until hooping is consistently solid; only then consider 750–850 SPM.
  • Success check: stitching sounds steady (not harsh), and top thread is not shredding during satin coverage.
  • If it still fails: reduce speed further and re-check foam-specific digitizing (density/pathing) before changing hardware.
• Q: For 3D puff hat embroidery, what “pre-flight” consumables checklist prevents random failures like visible seams or foam issues?
  A: Do a quick needle/bobbin/foam/stabilizer readiness check before hooping; most “random” failures start here.
  • Verify needle choice (3D puff often needs a slightly larger needle like #75/11 or #80/12) and replace any questionable needle.
  • Confirm bobbin is at least 50% full to avoid running out mid-design.
  • Cut foam at least 1 inch wider than the design on all sides and keep a heat gun/lighter ready for foam fuzz cleanup.
  • Prepare tearaway backing even on structured hats to add friction and reduce slippage.
  • Success check: foam fully covers the stitch area with margin, and bobbin/thread supply will comfortably finish the run.
  • If it still fails: slow the machine down and re-check hooping lock/tightness before blaming thread tension.
• Q: When hooping a hat on a cap station, how can the cap driver be seated and centered so the logo does not stitch off-center?
  A: Seat the sweatband firmly against the locator stop and align the center seam to the cap ring mark before locking anything.
  • Peel the sweatband back completely, then slide the cap onto the driver.
  • Push forward until the sweatband hits the metal locator tab with a solid stop.
  • Align the hat’s center seam precisely with the red/notched mark on the cap ring.
  • Success check: the driver “clanks” into the station with zero wiggle, and the seam-to-mark alignment looks exact before clamping.
  • If it still fails: repeat seating from the start—being 2 mm off at seating will stay 2 mm off in stitching.
• Q: On a traditional cap frame strap, how tight should the metal strap latch be to stop slippage without causing hoop burn marks on hats?
  A: Lock the strap tight enough that the front panel cannot ripple, but not so tight that it crushes and leaves shiny marks.
  • Smooth the lower sides with thumbs before clamping so the fabric is drum-tight against the gauge.
  • Test by pulling the fabric near the bill; if the front panel ripples, the strap is too loose.
  • Back off slightly if shiny “hoop burn” marks appear after stitching.
  • Success check: the cap feels immovable on the driver, with no left-right slip when tugging the bill.
  • If it still fails: treat recurring hoop burn or hand strain as a tooling trigger—consider switching to magnetic hoops to reduce clamp pressure.
• Q: For 3D puff foam placement on hats, how can foam be secured without adhesive spray, and what needle safety rule prevents machine damage?
  A: Use the “pinning” method by pinning only the foam corners well outside the stitch area; never let the needle hit a pin.
  • Lay foam over the design area, then pin only the corners outside the embroidery field.
  • Keep all pins far from the trace path and any stitch lines.
  • Run a trace/design outline to confirm the needle path will not contact pins.
  • Success check: foam stays flat with no shifting while tracing, and the trace path clears every pin.
  • If it still fails: reposition pins farther out and re-trace; do not start stitching until clearance is confirmed.
• Q: If 3D puff hat embroidery shows foam poking out or the top thread starts shredding, what is the fastest troubleshooting order to fix the issue?
  A: Treat “foam poking out” as a digitizing density issue, and treat “top thread shredding” as a speed risk issue first.
  • For foam poking out: switch to a puff-cap digitized file with proper density (satin coverage that slices foam).
  • For top thread shredding: reduce speed toward 550 SPM and re-run; foam adds friction and punishes high SPM.
  • Success check: satin columns fully cover and cut the foam cleanly, with no fuzzy edges and no thread fraying mid-run.
  • If it still fails: re-check hoop stability (seat/strap/station wobble) and confirm foam is oversized and pinned/held flat.
• Q: When should hat embroidery workflow upgrade from technique changes to magnetic hoops and then to a multi-needle commercial machine (SEWTECH) for production scaling?
  A: Upgrade in layers: fix process first, move to magnetic hoops when clamping causes pain/marks, and consider a multi-needle machine when speed/volume becomes the bottleneck.
  • Level 1 (technique): slow to 550–650 SPM, use the cap station correctly, add stabilizer friction, and standardize the prep checklist.
  • Level 2 (tooling): move to magnetic hoops if hoop burn or hand strain keeps happening, or if hooping time is limiting output.
  • Level 3 (capacity): move to a multi-needle commercial machine (SEWTECH) if orders exceed what one setup can run reliably without constant stopping.
  • Success check: you can pass the “walk away” test after underlay—foam stays tacked, no nesting sounds, and edges do not lift.
  • If it still fails: identify whether the failure is digitizing (foam coverage) or mechanical locking (seating/strap/station) before spending on upgrades.
