Hooping a Sherpa-Lined Winter Vest Without a Fight: Ricoma + 10x10 Magnetic Hoop Appliqué That Stays Put

Conquering the "Impossible" Vest: The Ultimate Guide to Embroidering Thick Sherpa-Lined Outerwear

You know the feeling. You’re holding a premium winter vest—heavy canvas on the outside, thick, spongey Sherpa fleece on the inside. It feels like three different garments stitched together. Your stomach drops because you know exactly what happens if you try to force this into a standard plastic hoop: the inner ring pops out, the outer ring leaves permanent "hoop burn" on the canvas, or worst of all, the layers shift mid-stitch, ruining an expensive garment.

I have spent twenty years on the production floor, and I can tell you: Thick, multi-layer outerwear is where "standard" habits go to die.

But it doesn’t have to be a nightmare. In fact, with the right physics-based approach and the proper tools, these high-value items can become your most profitable niche. This guide transforms the workflow shown in the video into a production-grade Standard Operating Procedure (SOP). We will move beyond "hoping it works" to a system of predictable success, utilizing appliqué techniques and magnetic clamping to bypass the bulk.

1. The Physics of Failure: Why Canvas & Sherpa Fight Standard Hoops

Before we stitch, we must understand the enemy. The vest in this project presents a "Triad of Trouble" for standard embroidery hoops:

1. Compression Resistance: The Sherpa lining acts like a spring. To close a standard hoop, you have to crush this spring. The moment you release pressure, the fabric tries to push the hoop apart.
2. Friction vs. Clamping: Standard hoops rely on friction (sandwiching fabric between two rings). Thick canvas resists bending into the inner ring, creating "false tension"—it feels tight at the edges but remains loose in the center.
3. Hoop Burn: To get a secure hold, you have to over-tighten the screw. On canvas, this crushes the fibers, leaving a shiny ring (hoop burn) that often never steams out.

The Professional Solution: This is the scenario that drives users to upgrade. We stop using friction and start using vertical clamping force. This is the domain of the magnetic embroidery hoop. Unlike plastic rings, magnetic hoops snap down vertically. They don't require the fabric to bend, and they don't rely on crushing the fibers to hold the garment. If you are serious about outerwear, this tool isn't a luxury; it is a mechanical necessity.

2. The "Off-Garment" Prep: Strategic Efficiency

The biggest mistake beginners make is rushing the garment onto the machine. The video demonstrates a "Pro-Level" workflow: Prepare the appliqué shape before you touch the vest.

By creating your appliqué patch separately, you eliminate the risk of cutting the vest fabric during the trimming process. You also ensure your edges are perfect before they are permanently attached to the expensive item.

The "Hidden" Consumables List

You likely have thread and scissors, but for this specific "Heavy + Fluffy" combination, you need a specific loadout to ensure safety and quality:

• Needle Upgrade: Switch to a Size 90/14 Topstitch or Titanium Sharp. Standard 75/11 needles may deflect (bend) when hitting the canvas/Sherpa sandwich, causing needle breaks.
• Adhesive: 505 Temporary Spray Adhesive. Iron-on backing often fails here because the heat can melt synthetic Sherpa or flatten the canvas texture.
• Stabilizer: Heavy Cut-way (2.5 - 3.0 oz). Never use tear-away on outerwear. The stitch count of the satin border will perforate tear-away, causing the patch to fall off in the wash.
• Marking Tool: Tailor’s Chalk or a Wax Square. Ink pens often bleed into canvas; chalk sits on top and brushes off.


3. Stitching the Template: The "Cookie Cutter" Method

The workflow begins by hooping the appliqué fabric (dark brown in the video) and the stabilizer in a 10x10 magnetic hoop.

Step-by-Step:

1. The Setup: Hoop your appliqué fabric floating on top of cut-away stabilizer.
2. The Run Line: Run the first step of your design—the simple running stitch outline of the logo (the "SD").
3. The Purpose: This creates a perfect cutting guide.

Why this matters for production: If you are running a business, you can prep 50 of these badges in an hour while your machine is doing something else. If you are using a SEWTECH Multi-Needle Machine, you can run these templates on one head while setting up jackets on another.

Note on compatibility: Many users searching for efficient workflows look for terms like mighty hoop for ricoma because they want this exact "snap-and-go" capability. Whether you use a Ricoma, a Brother, or a SEWTECH machine, the principle helps keep your production fluid.

4. The Art of the Cut: Sensory Cues for Clean Edges

Once the template is stitched, you remove it from the hoop to cut it out. This is where manual dexterity makes or breaks the design.

The host uses Gingher scissors, which are heavy, double-plated shears. The Technique:

• Visual: Do not cut on the thread. Cut 1mm to 2mm outside the stitch line.
• Tactile: You should feel the scissors gliding. If you have to "gnaw" at the fabric, your scissors are dull.
• The Angle: Tilt your scissor blades slightly away from the center of the design. This creates a beveled edge that the satin stitch can easily climb over.

Warning: Physical Safety
When cutting appliqué shapes, keep your fingers clear of the shear tips. Appliqué scissors possess razor-sharp points for detail work. A slip here ruins the patch—or your finger. Take your time. "Slow is smooth, and smooth is fast."

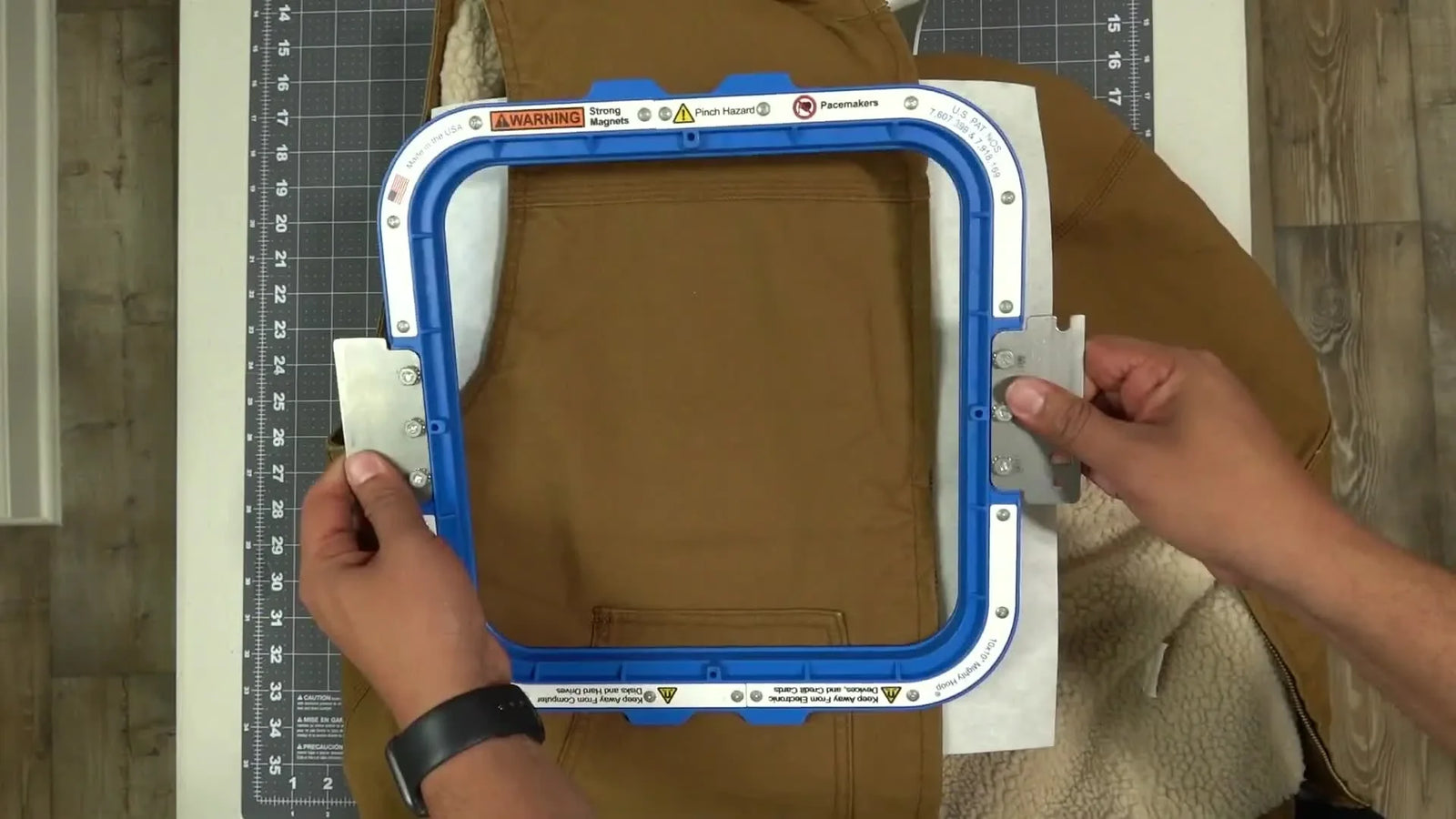

5. The Moment of Truth: Masterful Hooping on the Station

Now, we address the vest. This is the step where 90% of failures happen. The goal is to inhibit the "springy" nature of the Sherpa lining.

The Hooping Station Protocol

A hooping station is essential here to keep the garment square while you apply the magnetic frame.

1. Marking: Mark your center chest location on the vest using chalk.
2. Loading: Unzip the vest fully. Slide it onto the station board.
3. Smoothing: Run your hands from the center outward to push out air pockets between the Sherpa and the Canvas.
4. The Snap: Place the top magnetic frame.

Sensory Check:

• Listen: You want to hear a solid, resonant CLACK. If the sound is muffled or weak, the magnet hasn’t seated fully against the bottom ring due to the thickness.
• Touch: Run your finger around the perimeter. Is the gap even? If the frame is tilted, the magnet isn't engaged, and the hoop will fly off the machine mid-stitch.

This stability is why professionals invest in a magnetic hooping station. It guarantees that the heavy magnet snaps into the exact right spot every single time, saving your wrists from strain and your garments from misalignment.

Pre-Flight Checklist (Do NOT skip)

• Zipper Clearance: Is the metal zipper pull completely out of the hoop area? (A needle hitting a zipper looks like a firework show and ends your day).
• Pocket Check: Did you accidentally hoop the pocket lining shut? Slide your hand into the vest pocket to confirm it's free.
• Magnet Security: Pull firmly on the canvas. It should not slip. If it slips, the garment is too thick for your current hoop settings.
• Needle Clearance: Manually lower the needle bar (with machine off) to ensure it centers over your mark.

6. Machine Loading: Managing "Garment Drag"

The host loads the vest onto the Ricoma machine. Crucial Tip: A heavy canvas vest behaves like a gentle anchor. If the rest of the vest hangs off the machine arm without support, its weight will pull the hoop down, causing the design to distort (oval circles) or the registration to drift.

• The Fix: Use a table extension or simply stack empty cardboard boxes around your machine to support the weight of the vest.


7. The Placement & Tack-Down: The 505 Secret

The machine runs a placement stitch (outline) directly onto the canvas vest. Now, we must attach our pre-cut "SD" patch.

Why Spray beats Heat here: The host uses 505 Temporary Spray Adhesive.

• Spray: Creates a flexible, tacky bond that holds the rough canvas texture.
• Iron-on: Requires heat that might melt the synthetic Sherpa fibers on the back, or flatten the adventurous texture of the canvas.

The Application: Spray the back of the patch, not the vest. Place the patch inside the stitched outline. The "Drum Skin" Press: Use your fingers or a brayer roller to press the patch down firmly. You need the adhesive to grab the canvas fibers through the "fuzz."

Warning: Magnet Safety
magnetic hoops for embroidery use industrial-strength neodymium magnets. They are strong enough to pinch skin severely or damage mechanical watches. Keep them away from pacemakers. When handling them, always grip the designated handles, not the magnetic rim.

8. The Satin Finish: Parameter Sweet Spots

The host runs the final gold satin stitch. This stitch has two jobs: anchor the patch forever and hide the raw cut edge.

Expert Parameter Advice (The Sweet Spots): If you are digitizing this yourself or adjusting settings, generic settings will fail on canvas. Use these "Experience-Derived" values:

• Stitch Width: 4.5mm to 5.0mm. (Standard is usually 3.5mm—too narrow!). You need the extra width to span the "hills and valleys" of the canvas texture.
• Density: 0.40mm to 0.45mm spacing. Do not go tighter (e.g., 0.30mm). Too much needle penetration will perforate the dry canvas, effectively cutting the patch out like a stamp.
• Underlay: Edge Run + ZigZag. You need a foundation to lift the satin strands up out of the canvas texture.




Operation Checklist (During the Stitch)

• Listen to the Rhythm: A healthy machine goes thump-thump-thump. A sharp snap or clunk means the needle is deflecting. Stop immediately.
• Watch the Edges: Is the satin stitch effectively covering the raw edge of the brown fabric? If you see "whiskers" poking out, your alignment was off, or your stitch is too narrow.
• Hoop Watch: Is the hoop vibrating excessively? Canvas + Sherpa is heavy. Slow your machine down to 600 SPM (Stitches Per Minute). Speed is the enemy of quality on thick goods.

9. Troubleshooting: When Things Go Wrong

Even with the best tools, variables shift. Here is a rapid diagnostic tree for the most common issues with thick vests.

If you are seeing issues with specific machine fits, like searching for a mighty hoop 10 x 10 for brother pr series, remember that the physics remain the same: clamp security is the priority regardless of the machine brand.

10. The Decision Tree: Tooling Up for Success

You finished the vest. It looks clean, rugged, and professional. But can you do 50 of them?

Embroidery is a journey from "Making it Work" to "Making it Profitable."

Phase 1: The Skill Builder (You are here) You use manual tracing, careful cutting, and your single-needle machine.

• Bottleneck: Re-hooping takes 5 minutes per vest. Wrists hurt.
• Solution: Upgrade to SEWTECH Magnetic Hoops. They fit your current machine but reduce hooping time to 30 seconds and eliminate hoop burn.

Phase 2: The Production Shop You have an order for 100 Carhartt vests for a construction company.

• Bottleneck: Single-needle color changes are too slow. The machine struggles with the weight.
• Solution: This is the trigger to upgrade to a Multi-Needle Machine. Machines like the SEWTECH 15-needle series are built with heavier gantries designed to swing heavy canvas jackets without losing registration.

A dedicated hooping station for embroidery machine also becomes mandatory here to ensure the logo is in the exact same spot on all 100 vests.

Final Thoughts: Confidence Through Physics

Embroidering Sherpa-lined canvas isn't about luck. It's about respecting the bulk. By moving the appliqué prep off the garment, using specific needles for the density, and trusting the vertical clamping power of magnetic hoops, you turn a high-risk job into a high-reward reliable product.

Don't let the thickness scare you. Clamp it, support it, and stitch it.

FAQ

• Q: Which needle should be used for embroidering thick canvas + Sherpa-lined vests on a Ricoma embroidery machine to reduce needle breaks?
  A: Switch to a Size 90/14 Topstitch needle or a Size 90/14 Titanium Sharp and slow the machine down before pushing the design.
  • Install: Replace the standard 75/11 needle with a 90/14 Topstitch (larger eye) or Titanium Sharp (stiffer).
  • Reduce: Run thick outerwear at about 600 SPM (and drop further if you hear snapping).
  • Confirm: Check zipper pull and other metal hardware are completely outside the stitch field.
  • Success check: The stitch sound stays a steady “thump-thump” with no sharp snap/clunk and no needle deflection.
  • If it still fails… Stop and re-check hoop security and garment drag support, because shifting bulk can force the needle off-axis.
• Q: How can a 10x10 magnetic embroidery hoop prevent hoop burn on thick canvas outerwear compared with a plastic embroidery hoop?
  A: Use a magnetic hoop to clamp vertically instead of over-tightening a plastic hoop screw that crushes canvas fibers.
  • Clamp: Snap the magnetic top frame straight down onto the bottom ring without forcing the fabric to bend into an inner ring.
  • Avoid: Do not “crank” hoop screws on plastic hoops to fight Sherpa spring-back.
  • Stabilize: Smooth from center outward to remove air pockets between canvas and Sherpa before clamping.
  • Success check: The canvas shows no shiny ring after hooping and the hoop grip feels firm without excessive screw pressure.
  • If it still fails… The garment may be too thick for the current hoop setup—re-seat the frame and verify the magnet is fully engaged all around.
• Q: What is the correct “success standard” for seating a magnetic hoop on a hooping station when hooping a Sherpa-lined vest for embroidery?
  A: Use a hooping station and only proceed when the magnetic frame seats evenly with a solid snap and no tilt.
  • Mark: Chalk the chest center first, then load the unzipped vest onto the station board squarely.
  • Smooth: Push trapped air out from the center outward to reduce Sherpa “spring.”
  • Seat: Place the top magnetic frame and check the perimeter immediately.
  • Success check: You hear a solid, resonant “CLACK,” and the gap around the hoop perimeter is even with no rocking/tilt.
  • If it still fails… Remove and re-seat the frame; a muffled snap or uneven gap means the magnet is not fully engaged and the hoop can pop off mid-stitch.
• Q: Should 505 temporary spray adhesive be used instead of iron-on backing when attaching an appliqué patch onto a canvas vest with a Sherpa lining?
  A: Use 505 temporary spray adhesive on the back of the patch for a flexible hold without risking heat damage or texture flattening.
  • Spray: Apply 505 to the patch backing (not the vest) to control overspray and placement.
  • Place: Align the patch inside the placement stitch outline on the vest.
  • Press: Use a firm “drum skin” press with fingers or a brayer roller so adhesive grabs through the canvas texture.
  • Success check: The patch does not lift or slide when you lightly rub the edge before the tack-down stitch starts.
  • If it still fails… Re-press the patch firmly and verify the placement stitch outline is clean and the hoop is not allowing fabric bounce.
• Q: What satin stitch settings are a safe starting point for appliqué borders on heavy canvas outerwear to avoid whiskers and edge exposure?
  A: Use a wider satin with moderate density and proper underlay so the stitch can climb over canvas texture and cover the cut edge.
  • Set width: Use 4.5 mm to 5.0 mm satin width (narrower settings often won’t cover texture).
  • Set density: Use 0.40 mm to 0.45 mm spacing and avoid overly tight values that can perforate canvas.
  • Add underlay: Use Edge Run + ZigZag underlay to lift the satin above the fabric “hills and valleys.”
  • Success check: The satin stitch fully covers the raw appliqué edge with no visible “whiskers” along the border.
  • If it still fails… Re-check appliqué cutting (leave 1–2 mm outside the stitch line) and confirm patch alignment inside the placement outline.
• Q: How can garment drag cause registration loss when embroidering a heavy canvas vest on a Ricoma embroidery machine, and how can it be prevented?
  A: Support the weight of the vest so it does not pull down on the hoop and distort circles or shift outlines.
  • Support: Add a table extension or stack boxes to hold the vest so it is not hanging from the machine arm.
  • Arrange: Keep excess garment bundled and supported, not dangling and tugging.
  • Monitor: Watch early stitches for drift before committing to the full design.
  • Success check: Circles stay round and outlines meet cleanly without a growing gap as stitching progresses.
  • If it still fails… Re-check hoop grip and seating; a secure clamp is required before troubleshooting digitizing or stitch parameters.
• Q: What safety precautions are required when using magnetic hoops for embroidery and when trimming appliqué shapes with sharp scissors?
  A: Treat magnets and appliqué scissors as industrial tools—handle magnets by the grips and cut slowly with fingers clear of the tips.
  • Handle magnets: Grip only the designated handles and keep magnets away from pacemakers and mechanical watches.
  • Prevent pinches: Keep skin away from the magnetic rim when seating the top frame.
  • Cut safely: Keep fingers clear of scissor tips and avoid rushing detail cuts around the stitch line.
  • Success check: The magnetic frame seats without pinching, and the trimmed patch edge is clean without accidental snips into the fabric or fingers.
  • If it still fails… Stop immediately, reset the work area with more space and better lighting, and re-seat the hoop on the station before continuing.
