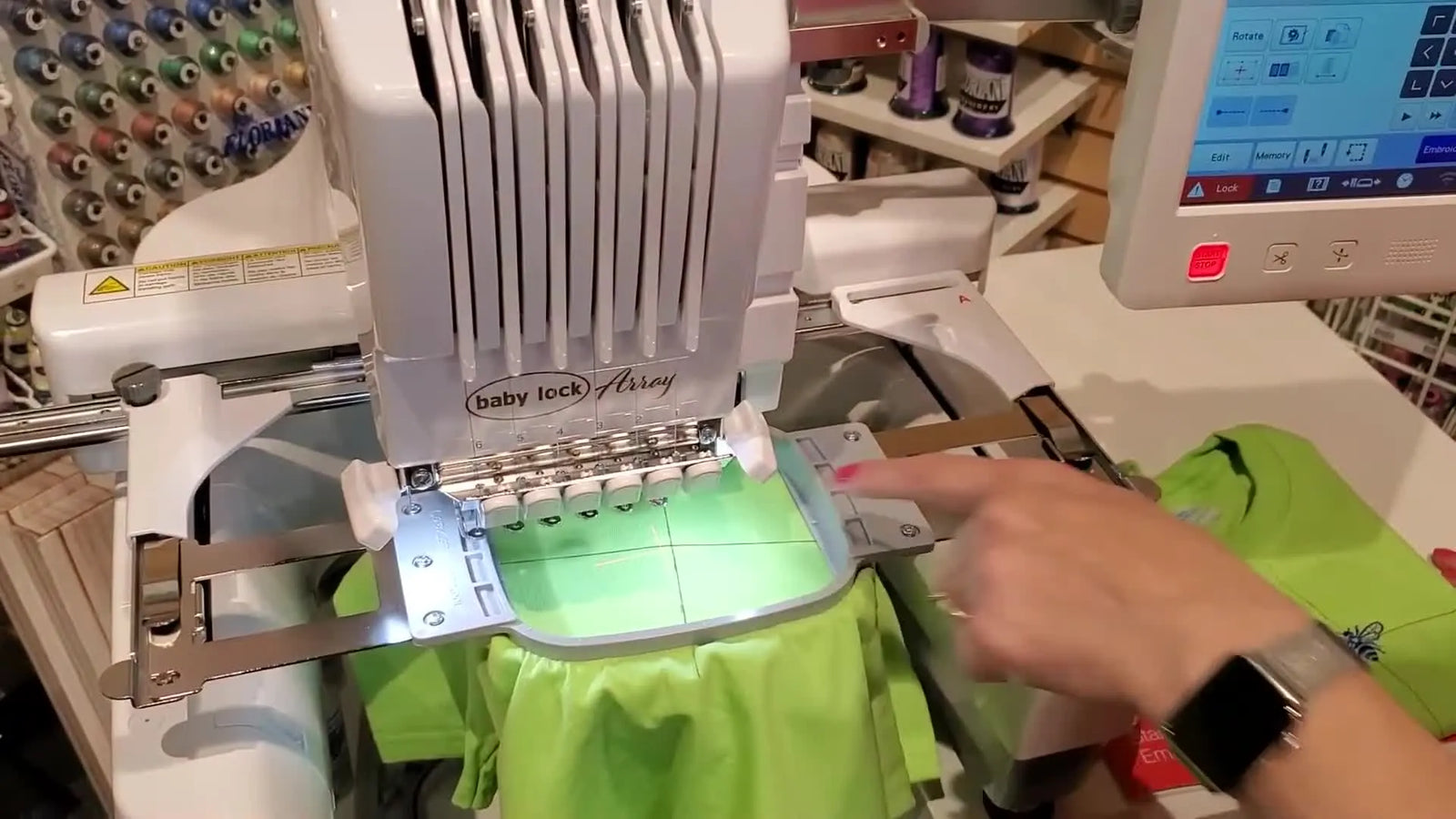

Hooped It Crooked on a Baby Lock Array? Use the Red Crosshair Tool to Stitch Perfectly Straight (Without Re-hooping)

If you have ever stared at a hooped polo shirt, felt your stomach drop, and thought, "Great, that placket is crooked," you are part of a very large club. In my 20 years of managing embroidery production floors and teaching novices, I have seen tears shed over crooked logos.

Here is the industry secret: Even the masters cannot hoop perfectly straight 100% of the time.

Fabric is fluid; it shifts, stretches, and fights back. When effective production meets bulky seams, zippers, or button plackets, achieving a geometrically perfect physical hoop job is sometimes impossible. The good news? You do not have to fight physics. You just need to outsmart it.

In this master class, we are analyzing a workflow demonstrated by Reva from Quality Sewing & Vacuum. We will decode how to use the "Red Crosshair" positioning feature on machines like the Baby Lock Array (or similar multi-needle equivalents like the SEWTECH series) to attain perfection without re-hooping.

Neutral Fabric Tension in a Tubular Hoop: Stop Puckers Before the First Stitch

Reva begins with the single most common failure point in machine embroidery: Fabric Tension.

Novices often treat an embroidery hoop like a drum, tightening the screw until their knuckles turn white and pulling the fabric until it screams. Stop doing this immediately. This is the primary cause of "puckering"—the phenomenon where the fabric ripples around the design once it is removed from the hoop.

Your goal is Neutral Tension.

The "Goldilocks" Zone: Sensory Anchors

How do output professionals judge tension without a tension gauge? We use our senses:

• The Tactile Test: Run your fingertips lightly across the hooped fabric. It should feel flat and support the weight of your hand, but it should not feel like a trampoline. If you press down, it should have a tiny bit of give.
• The Grainline Check: Look closely at the knit ribs or woven threads. Are they bowing or curving? If the vertical lines of a t-shirt look like parentheses ( ), you have over-stretched the fabric.

When performing hooping for embroidery machine tasks on stretchy knits, you are fighting elastic memory. If you stretch the fabric 10% to get it into the hoop, you stitch a design onto that stretched surface. When you un-hoop, the fabric snaps back that 10%, but the non-elastic thread does not. The result? A crumpled mess.

The Solution:

1. Use the correct backing (Stabilizer).
2. Tighten the hoop screw before fully pushing the inner ring down.
3. Pro Tip: If you struggle with "Hoop Burn" (shiny ring marks) or hand fatigue from tightening screws, this is the first logical trigger to upgrade your tools. Many professionals switch to Magnetic Hoops. They use vertical magnetic force rather than friction, holding fabric securely without the need to violently stretch it.

Warning: Mechanical Safety. Keep long hair tied back and fingers clear of the needle bar area. When a multi-needle machine changes colors or jumps to a start position, the head moves faster than your reflexes. Never put your hands inside the hoop area while the machine is live.

The “why” behind puckers (so you can prevent them)

Puckering is rarely a machine fault; it is a physics fault. Thread adds mass and tension to the fabric. If the fabric is not stabilized, the thread pulls the fabric inward.

Imagine stabilizer as the "foundation" of a house. You cannot build a brick output (heavy embroidery) on sand (unstabilized jersey knit). Reva’s troubleshooting relies on a simple truth: Don't force the hoop. If you act like a bully to the fabric, the fabric will take revenge later.

Prep Checklist (Pre-Flight Safety Check)

• Stabilizer Selection: Is the stabilizer heavy enough for the stitch count? (Rule of thumb: 1 layer of Cutaway for every 10,000 stitches on knits).
• Fabric State: Is the grainline straight and undistorted in the hoop?
• Hoop Security: Is the inner ring slightly recessed below the outer ring? (This prevents the hoop from popping out mid-stitch).
• Marking Safe-Zone: Is your marking pen truly removable? Test on a scrap piece of the same fabric with heat/water first.
• Hidden Consumable Check: Do you have temporary spray adhesive (like 505) or double-sided basting tape? These allow you to float fabric if standard hooping is too difficult.

The Free-Arm Shirt Loading Trick on a Baby Lock Array: Stop Sewing Shirts Shut

We have all done it. You finish a beautiful logo, pull the shirt off the machine, and realize you have sewn the front of the shirt to the back. It is a rite of passage, but it is also expensive.

Reva demonstrates the Free-Arm Workflow. This is a massive advantage of multi-needle machines (Baby Lock, Brother, or SEWTECH) over standard domestic flatbed machines.

The "Sleeve-Dive" Technique

1. Insert Arm: Put your actual arm up through the bottom of the garment.
2. Grab the Hoop: Hold the hooped area from the inside.
3. Slide and Check: Slide the garment onto the cantilevered arm of the machine. Because your arm is inside the shirt, you can physically feel that the path is clear.


This method reduces friction in your workflow. In a commercial setting, every second counts. If you are unbuttoning every single polo shirt to lay it flat, you are losing 45 seconds per shirt. On an order of 100 shirts, you just lost over an hour of production time unbuttoning.

If you are setting up a hooping station for embroidery, integrate this free-arm loading step into your muscle memory. It ensures that the bulk of the fabric hangs down naturally, using gravity to keep it away from the needle plate.

Setup Checklist (Machine Approach)

• Clearance: Check under the hoop arm—is the extra fabric clipped or folded away?
• Bobbin Status: Check your bobbin now. Do you have enough thread for the full design? (Running out mid-logo on a precision job is a nightmare).
• Needle Clearance: Ensure no loose threads or sleeves are resting near the needle bars.
• Visual Confirmation: Crouch down and look at eye-level with the needle plate. Confirm only one layer of fabric is under the needle.

Crooked Hooping on Polos and Plackets: Mark the Fabric Center, Not the Hoop Grid

Here is where the cognitive shift happens. Reva intentionally hoops the shirt crooked. Why? Because sometimes the thick seam of a zipper or the bulk of a pocket prevents the hoop from sitting square.

If you try to force a plastic hoop over a thick zipper seam to make it "straight," two things happen:

1. The hoop pops off because it cannot grip the uneven thickness.
2. You distort the fabric near the zipper.

The Strategy: Decouple the Hoop from the Reality. Do not treat the hoop frame as your map. Treat the fabric as the map.

• Step 1: Use a ruler and your removable pen to draw a Crosshair on the garment.
• Step 2: The vertical line must be parallel to the placket or center front.
• Step 3: The horizontal line marks exactly where the design center sits.


Warning: Never use air-erase pens if you live in a humid climate or plan to iron instantly; the marks might disappear too fast or set permanently with heat. Water-soluble blue pens or tailored chalk are the gold standards for safety.

This concept is crucial for scalability. If you are considering upgrading to magnetic embroidery hoops, this marking principle remains identical. The magnet holds the fabric without "hoop burn," but your drawn lines are still the ultimate guide for the machine. Even with the best tools in the world, your eye and your ruler are the final authority.

Baby Lock Array Red Crosshair Positioning: The Two-Point Rotation That Saves the Shirt

This is the technical heart of the lesson. We are going to use the machine's computer to calculate the angle of error and correct it.

Reva selects a bumblebee design. She enters the Set and Edit screen.

Visually, you can see the disconnect: The on-screen grid is straight up and down. The physical hoop on the machine is tilted. If you pressed "Start" now, your bee would be flying sideways.

1) Engage the Precision Tool

She taps the Red Crosshair icon. This is the "Sensor Function" or "Positioning" mode. Note: On SEWTECH or other industrial controllers, this might be labeled as "Design Rotation" or "Angle Correction."

2) Select the Pivot Point

The machine offers a choice: rotate based on the center, or a corner? Reva selects the Center Dot.

• Why? Because marked crosshairs are universally centered. It is the most intuitive anchor point for the human brain.

3) Define the Axis

She selects Horizontal.

• Why? The bumblebee is wider than it is tall. It is easier to visualize the "horizon" line of the wings than the vertical axis.


4) Point One: The Anchor

The machine asks: "Where is the center of your drawing?" Using the arrow keys, she moves the laser/needle until it is hovering directly over the intersection of her chalk lines.

• Sensory Check: Do not just look at the screen. Look at the needle tip. It should be hovering exactly over the ink mark where lines cross.


5) Point Two: The Angle Calculation

The machine now locks Point One. It asks: "Show me the direction of the horizontal line." Reva moves the needle to another point on her drawn horizontal line (perhaps 2 inches to the right).

• The Magic: The machine now knows two points. It calculates the slope between them.


6) Execution

She taps Set. The machine rotates the entire digital design to match that slope perfectly.

Why this matters for business (The ROI of Geometry)

In a professional shop, we calculate profit based on "Machine Uptime."

• Scenario A (Re-hooping): You hoop, see it's crooked, un-hoop, steam out marks, re-hoop. Cost: 10 minutes of downtime + frustration.
• Scenario B (Digital Rotate): You hoop crooked, mark straight, rotate screen. Cost: 30 seconds.

This workflow turns a potential scrap garment into a sellable unit. If you are looking to scale, consistency is key. Integrating standard marking procedures and potentially upgrading to magnetic hoops for babylock embroidery machines (or compatible multi-needle machines) allows you to execute this marking/rotation workflow even faster, as magnetic hoops allow you to adjust the fabric slightly while it is in the frame before locking the magnets down.

When the Hoop Is Crooked but the Stitch-Out Is Straight: What’s Really Happening

The result is visually counter-intuitive but geometrically perfect. The hoop looks messy and tilted, but the needle paints the bumblebee in perfect alignment with the shirt's texture and seams.

This confirms the First Law of Modern Embroidery: The Machine obeys the Math, not the Plastic.

Stabilizer and Fabric Pairing Decision Tree: Pick Support Based on Fabric Behavior

Reva touches on stabilizer, but let’s deepen this. Choosing the wrong backing is the #1 reason for production failures. You cannot guess here.

Use this decision tree for every project:

Decision Tree (Fabric → Stabilizer Strategy)

1. Is the fabric a Knit (Stretchy)? (T-shirt, Polo, Hoodie)
   • YES: You MUST use Cutaway stabilizer.
     • Reason: Knits stretch. Tearaway stabilizer eventually tears, leaving the embroidery unsupported. The design will distort over time.
     • Action: Use 2.5oz or 3.0oz Cutaway.
   • NO: Go to step 2.
2. Is the fabric a Woven (Stable)? (Denim, Canvas, Dress Shirt)
   • YES: You can use Tearaway.
     • Reason: The fabric supports itself. The stabilizer is just there for temporary rigidity.
   • NO: Go to Step 3.
3. Is it a High-Pile fabric? (Towel, Fleece, Velvet)
   • YES: You need a Topping (Water Soluble Film) on top AND stabilizer on the bottom.
     • Reason: The topping prevents stitches from sinking into the fluff.

If you are setting up a professional hooping station for machine embroidery, adhere to this tree. Do not try to save money by using Tearaway on a stretchy polo; you will ruin the shirt, and the cost of the shirt is 10x the cost of the stabilizer.

Common Problems Reva Mentions—Plus the Fixes I’d Use in a Real Shop

Here is a structured troubleshooting guide for when things go wrong.

The Upgrade Path: Faster Hooping, Less Fatigue, and More Consistent Profit

Reva's tutorial is excellent for mastering the machine you currently have. However, as you move from "Hobbyist" to "Small Business Owner," you will hit a pain ceiling. Your wrists will hurt from hooping, and your single-needle machine will feel agonizingly slow.

Here is the natural progression of a professional embroiderer:

1. Skill Level Up: Mastering the positioning/rotation techniques described above.
2. Accessory Level Up: reducing hoop burn and strain.
   • If you are doing production runs of 20+ items, the screw-tightening motion becomes a health hazard (Repetitive Strain Injury). baby lock magnetic hoops (and generic equivalents for other brands) solve this. They snap shut. It is faster, safer for the fabric, and pain-free.
   • > Warning: Magnetic Safety. These magnets are industrial strength. They can pinch fingers severely (blood blister risk). Do not place them near credit cards or pacemakers.
3. Machine Level Up:
   • If you find yourself waiting 10 minutes for a color change, or struggling with hooping tubular items like bags, this is the trigger effectively to move to a Multi-Needle system (like the SEWTECH 15-needle commercial machines). These machines are built natively for the free-arm workflow and precise positioning Reva demonstrated.

Operation Checklist (The Final "Go/No-Go" Sequence)

• Design Orientation: Have you visually confirmed on screen that the design is rotated to match your chalk lines?
• Trace Check: Have you run a "Trace" or "Border Key" function? Watch the needle move around the area to ensure it doesn't hit the hoop frame.
• Presser Foot Height: Is the foot height set correctly for the fabric thickness? (Too high = skipped stitches; Too low = dragging fabric).
• Speed Setting: Throttle down. For high-precision registration or delicate knits, drop your speed to 600-800 SPM (Stitches Per Minute). Speed kills quality on difficult fabrics.
• GO: Press Start. Watch the first 100 stitches. (Never walk away during the first color layer).

By combining Reva's software smarts with proper physical preparation and the right tools, you move from "hoping it works" to "knowing it works." Happy stitching.

FAQ

• Q: How do I hoop a knit polo shirt on a Baby Lock Array (or similar multi-needle machine) without puckering from over-tight hooping tension?
  A: Use “neutral tension” (flat and supported, not stretched) and let stabilizer do the work, not force from the hoop.
  • Use cutaway stabilizer on knits, and choose weight based on stitch count (a common shop rule is 1 layer of cutaway per 10,000 stitches on knits).
  • Tighten the hoop screw before fully pushing the inner ring down, then seat the ring so it is slightly recessed below the outer ring.
  • Avoid pulling the knit like a drum; keep grainlines straight and undistorted while hooping.
  • Success check: The fabric feels smooth with slight give when pressed, and knit ribs/threads are not bowing like parentheses.
  • If it still fails: Float the fabric with temporary spray adhesive (like 505) or double-sided basting tape, or move to a magnetic hoop to reduce the “tug of war.”
• Q: How can I stop sewing a shirt front to the back when loading a tubular garment on a Baby Lock Array free-arm embroidery machine?
  A: Load the garment using the free-arm “sleeve-dive” method so you can physically confirm only one layer is under the needle.
  • Insert your arm through the bottom of the shirt and hold the hooped area from the inside.
  • Slide the garment onto the machine’s free-arm while feeling the fabric path is clear.
  • Crouch to eye-level with the needle plate and visually confirm only one fabric layer is in the stitch zone.
  • Success check: You can see daylight/space between front and back layers and no extra fabric is trapped under the hoop area.
  • If it still fails: Clip/fold excess fabric away under the hoop arm before starting, then re-check clearance and run a trace/border check if available.
• Q: What is the correct way to correct crooked hooping on a polo placket using the Baby Lock Array Red Crosshair positioning feature without re-hooping?
  A: Mark a fabric crosshair, then use the Red Crosshair two-point method to rotate the design digitally to match the marked line.
  • Draw a crosshair on the garment with a ruler: vertical line parallel to the placket/center front, horizontal line at the intended design center.
  • Enter the Set/Edit positioning mode and select the center dot as the pivot, then choose the horizontal axis.
  • Set Point One at the exact crosshair intersection, then set Point Two on the same drawn horizontal line a short distance away.
  • Success check: After pressing Set, the on-screen design orientation matches the drawn crosshair direction, even if the physical hoop looks tilted.
  • If it still fails: Re-check that Point One is exactly on the intersection (watch the needle tip, not only the screen) and confirm the pen line is truly straight and removable.
• Q: Which marking pen is safest for drawing alignment crosshairs on garments for Baby Lock Array (or other multi-needle) embroidery positioning?
  A: Use markings that are proven removable on the exact fabric, and avoid air-erase pens when humidity or heat could ruin the result.
  • Test the pen on a scrap of the same fabric first and remove it using the same heat/water method you will use after embroidery.
  • Prefer water-soluble blue pens or tailored chalk for predictable removal.
  • Avoid air-erase pens if the environment is humid or if the garment will be ironed immediately.
  • Success check: The test mark fully disappears without leaving a shadow after the planned removal method.
  • If it still fails: Switch to tailored chalk and use lighter marks, or reduce marking area to only the minimum crosshair needed.
• Q: What pre-flight checklist should I run before starting a multi-needle embroidery job on a Baby Lock Array to avoid mis-stitches and mid-run stoppages?
  A: Do a quick “go/no-go” check for bobbin, clearance, and trace before pressing Start—this prevents the most expensive avoidable mistakes.
  • Check bobbin thread now and confirm it will last the full design (especially on precision logos).
  • Verify no loose threads, sleeves, or extra garment layers are near the needle bars or needle plate.
  • Run a trace/border check to ensure the needle path will not strike the hoop frame.
  • Success check: The traced path clears the hoop and only the intended fabric layer is under the needle at eye-level inspection.
  • If it still fails: Slow the machine down for delicate knits and re-check presser foot height per the machine manual.
• Q: What machine safety rules should I follow around the needle bar area on a Baby Lock Array or SEWTECH multi-needle embroidery machine during color changes and positioning moves?
  A: Keep hands, fingers, and hair out of the hoop/needle-bar zone whenever the machine is live, because head movement can be faster than human reflexes.
  • Tie back long hair and keep sleeves/cords away from moving parts.
  • Never place hands inside the hoop area while the machine is powered and ready to move.
  • Pause/stop the machine before making any clearance adjustments near needles or the hoop.
  • Success check: Both hands are outside the moving head area before any jump, trace, or color change begins.
  • If it still fails: Treat unexpected motion as normal behavior, not a “glitch”—step back, stop the machine, then restart the positioning sequence calmly.
• Q: What are the safety risks of using magnetic embroidery hoops (magnetic frames) for production hooping, and how can I avoid finger injuries?
  A: Handle magnetic hoops like industrial clamps—magnets can pinch hard enough to cause blood blisters, so close them deliberately and keep fingers out of the pinch zone.
  • Place the fabric and stabilizer flat first, then lower the magnetic ring straight down rather than sliding it.
  • Keep fingertips on the outer edges, not between mating surfaces where magnets snap together.
  • Store magnets away from sensitive items and follow any medical device precautions.
  • Success check: The hoop closes without a sudden “snap onto fingers,” and fabric is held securely without aggressive stretching.
  • If it still fails: Slow down the closing motion and reposition fabric before engaging the magnets, rather than trying to “pull fabric tight” after the hoop is locked.
