Hoop Thick Cable-Knit Beanies Without the Headache: The Inside-Out Magnetic Hoop Method That Stays Straight

The Definitive Guide to Embroidery on Thick Cable-Knit Beanies: From Frustration to Production Standards

Thick, fluffy beanies are the deceptive "final boss" of apparel embroidery. They look cozy and inviting, but they possess a physical structure designed to humble even experienced operators. The ribbed cuff acts like a spring, the heavy cable knit creates valleys that swallow stitches, and the sheer bulk fights to push your hoop apart. One crooked hooping, and a $15 premium blank becomes a shop rag.

If you have ever felt the panic of watching a beanie shift mid-stitch, or the defeat of seeing your beautiful satin lettering sink into the fabric like quicksand, this guide is your reboot.

In this walkthrough, we are deconstructing a proven industrial production method using a Richardson cable-knit beanie with a pom-pom. We will move beyond "guessing" and implement a system: strictly stabilizing, marking the true center, utilizing the "inside-out" inversion technique, and executing a rigid station alignment.

1. The Physics of Grip: Why Standard Hoops Fail on Cable Knits

To master beanies, you must understand the enemy: Elastic Recovery.

When you jam a thick, ribbed knit into a standard two-ring screw hoop, you verify the tension by pulling the fabric tight. It looks smooth. However, while you are stitching, the knit naturally wants to retract to its resting state. This causes the infamous "pucker" or design distortion. Furthermore, to hold that bulk, you often have to tighten the screw so hard that you crush the acrylic fibers, leaving permanent "hoop burn"—a shiny, flattened ring that ruins the perceived value of the product.

The Magnetic Solution: Uniform Pressure

This is where magnetic frames change the physics of the job. A magnetic hoop creates clamping force that is distributed vertically and evenly around the entire perimeter, rather than relying on friction and horizontal stretching.

On thick cuffs, this achieves two critical things:

1. Preservation of the "Grid": The vertical ribs of the beanie act as a natural grid. Magnetic clamping holds them straight without distorting the lines, making visual alignment much easier.
2. Zero "Walking": The beanie is locked between the magnet and the metal bottom ring, preventing the "creep" that occurs with vibration.

This brings us to a crucial upgrade point. If you are currently fighting thick knits with a standard plastic hoop and losing the battle against hoop burn, professionals consider magnetic embroidery hoops as a mandatory workflow upgrade—especially when your goal is speed and consistent placement without fiber damage. Whether you use a home single-needle or an industrial multi-needle machine, the magnetic mechanism is the safest way to clamp bulky knits.

2. The "Hidden" Prep: Stabilizer Science & The Center Mark

Before you even touch the machine, we need to establish our foundation. 90% of failures happen here, in the prep phase.

Hidden Consumables List

Do not start without these specific items:

• Masking Tape: Low tack, high visibility.
• Ruler: A dedicated centering ruler is best.
• Stabilizer: 3.0 oz Cutaway (Non-negotiable for knits).
• Adhesive Spray (Optional but recommended): A light mist of KK100 or generic repositionable spray can help keep the backing attached during the hooping process.

The Stabilizer Decision

The video utilizes a 3.0 oz cutaway stabilizer (specifically AllStitch C030), cut to an 8" x 8" square.

• Why Cutaway? Knits stretch. Tearaway stabilizer eventually tears, leaving your embroidery with zero support during the life of the garment. Cutaway holds the stitches forever.
• Why 3.0 oz? Standard 2.5 oz may buckle under the density required for textured knits. The 3.0 oz provides the stiffness of cardstock, ensuring the "MAMA" text doesn't warp.




Finding "True Front" vs. "Visual Front"

A beanie is a cylinder, but it has a seam.

1. Locate the Seam/Tag: This is your anchor. It goes in the back.
2. Flatten the Cylinder: Lay the beanie flat with the seam centered in the back. The fold facing you is now the true front.


Marking the Center Rib (The Anti-Drift Anchor)

Your eyes will lie to you, but math won't.

1. Place a strip of masking tape on the cuff.
2. Write "F" for front (this prevents the "I embroidered the back" disaster).
3. The Sensory Check: Run your finger along the cuff to find the exact center rib. Do not place a dot between ribs; place it on a rib. This is your vertical axis.
4. Verify with the ruler: The beanie should be roughly 8 inches wide, placing your center dot at 4 inches.




Warning: Pinch Hazard. When working with magnetic hoops, treat them like loaded mousetraps. Keep fingers clear of the "snap zone" when aligning around fixtures. The force required to clamp a thick knit is significant (often 10+ lbs of force), and getting skin caught between the magnets is painful.

Prep Phase Checklist: The "Go/No-Go" Standard

• Stabilizer: Cutaway, minimum 2.5 oz (3.0 oz preferred), cut to 8" x 8".
• Center: Back seam identifed; Front marked with tape.
• Axis: Center dot is placed ON a rib, verified with a ruler (Approx 4" from edge).
• Tools: Scissors for backing cleanup are set aside (do NOT use your fine embroidery snips for thick stabilizer).

3. The Inside-Out Maneuver: Taming the Bulk

The mistake beginners make is trying to stuff the entire beanie through the hoop or letting the body of the hat hang off the back, dragging the hoop down with its weight.

The Pro Move: Flip the beanie inside out, but—and this is critical—do not disturb the cuff fold.

Why this works (The Physics):

1. Weight Distribution: The heavy body of the beanie is now tucked up and away. It won't drag against the machine bed or get caught on the needle bar.
2. Surface Isolation: The cuff is exposed clearly. The "wrong side" of the knitting is facing out on the body, but the cuff remains the "right side" for embroidery.

In the video, the operator inverts the beanie while protecting the tape mark so they never lose the orientation of the "front."

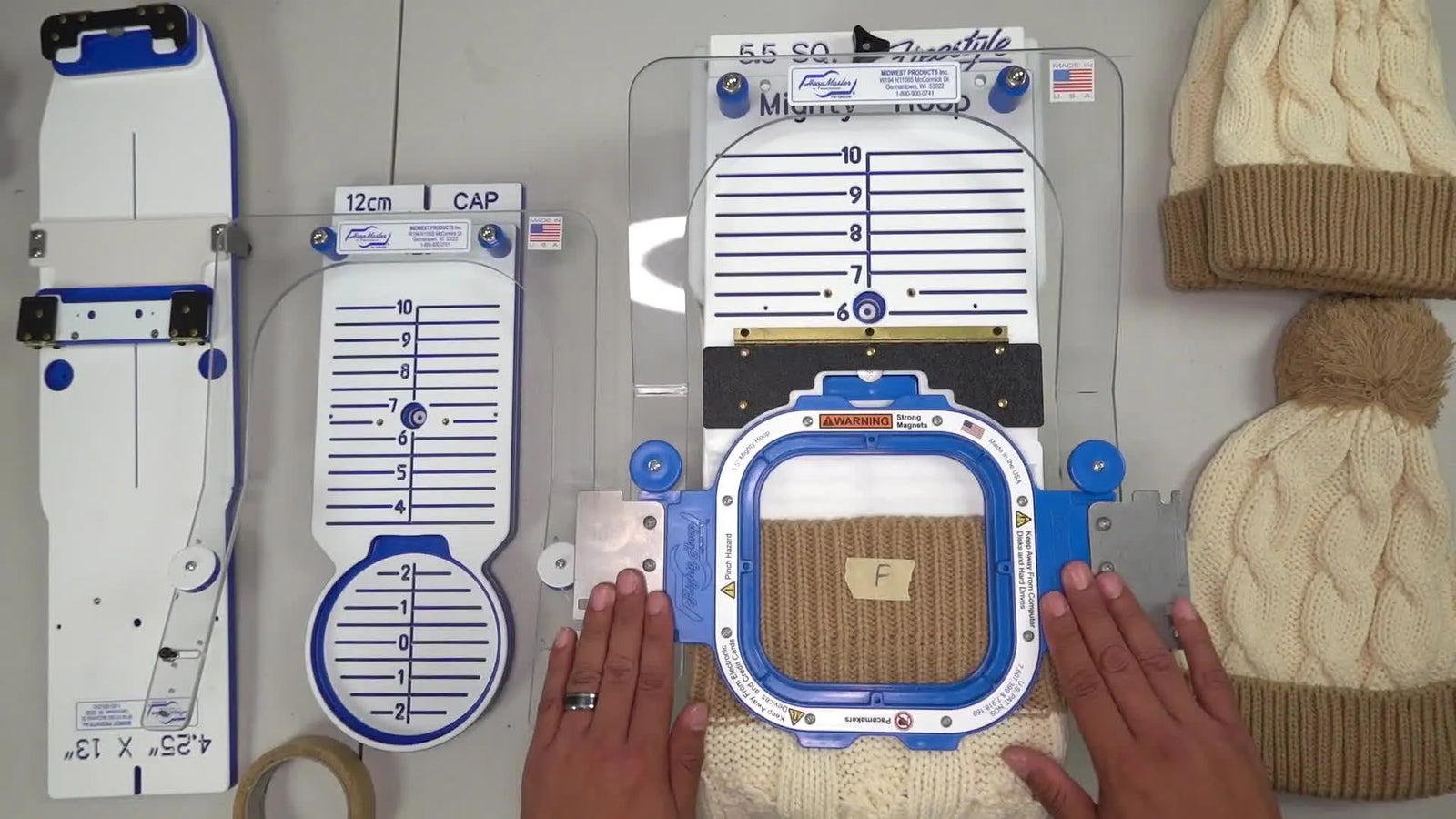

4. Precision Hooping: The Station Method

Consistency requires a jig. You cannot "eyeball" fifty beanies and get them all straight. This is where a hooping station becomes your best employee.

The Alignment Sequence

1. Base Setup: Place the 8" x 8" cutaway directly on the bottom ring of the station.
2. Mounting: Slide the inside-out beanie over the station arm.
3. The Sensory Lock: Using a clear plastic guide or ruler, press the folded edge of the cuff firmly against the station markings. You should feel it hit the "stop."
4. Visual Confirmation: Align your black marker dot (on the tape) exactly with the laser line or center notch of the station.
5. Clamping: Press the top magnetic ring down firmly. Listen for the solid "thud" of the magnets engaging.




The "Rib Check" Inspection

Lift the hooped beanie and hold it vertical. Look at the vertical ribs of the knit relative to the vertical sides of the hoop. They must be parallel.

• Vertical Lines: If the ribs look like leaning towers ( / / / ), you are crooked. Re-hoop.
• Horizontal Lines: If the cuff edge bows like a smile or a frown, you pulled too hard. Re-hoop.


A Note on Equipment Scaling: The video demonstrates a 5.5" fixture. If you are building a repeatable workflow, the station matters as much as the hoop. A dedicated hoopmaster station reduces "operator interpretation," which is exactly what you need for scaling production. If you rely on hand-hooping for bulk orders, wrist fatigue will lead to crooked logos by 2:00 PM.

Warning: Maintain Safe Distance. Magnetic frames utilize powerful Neodymium magnets. Keep them at least 6 inches away from pacemakers, insulin pumps, and other implanted medical devices. Also, prevent magnets from snapping together near credit cards or phone screens.

Decision Tree: Fabric vs. Strategy

Use this logic flow to determine your setup for any beanie order.

• IF Beanie is Chunky Cable Knit / Fluffy (Like the video):
  • Stabilizer: 3.0 oz Cutaway.
  • Hoop: Magnetic (High profile).
  • Underlay: Heavy (Double Zigzag).
• IF Beanie is Thin / Tight Knit (Fashion/Skull cap):
  • Stabilizer: 2.0-2.5 oz Cutaway (or 2 layers of tearaway if design is light).
  • Hoop: Standard or Magnetic.
  • Underlay: Medium (Center run + Zigzag).
• IF Quantity is > 10 units:
  • Workflow: Must use a Hooping Station to maintain height consistency.

Setup Checklist: The "Station" Standard

• Stability: Station causes no wobbling on the table.
• Layering: Backing is smooth on the bottom ring.
• Alignment: Cuff is pressed flush against the guide; Center dot aligns with Station Zero.
• Inspection: Ribs run parallel to the hoop side arms.

5. Machine Operation: Safety First, Stitch Second

With the beanie hooped, we move to the machine (a Ricoma multi-needle is shown in the example, but this applies to any machine, including SEWTECH multi-needle units).

The Trace (The Crash Prevention System)

Never press "Start" blindly on a beanie. The cuff is thick. The clearance is low.

1. Load Design: Ensure orientation is correct (usually rotated 180 degrees for cap drivers, or standard for flat hoops—check your machine's "Top of Hoop" setting).
2. Run Trace: Watch the needle bar number 1 (or your active needle) as it travels the perimeter.
3. Visual Clearance: Ensure the presser foot does not graze the plastic/metal wall of the hoop. A collision here will knock your timing out or break the reciprocating shaft.


Consumables: The Bobbin

The video recommends Fil-Tec Magna-Glide Classics (Size L).

• Why? These magnetic-core bobbins provide consistent tension release, which is critical when the top thread is fighting through thick acrylic yarn.


6. Digitizing Intel: Combating the "Sinking" Effect

A viewer asked, "How is this done without a water-soluble topper?" The answer lies in the Underlay and Density.

If you use standard settings, your stitches will sink into the valleys of the cable knit, looking ragged and thin.

The Formula shown in the video:

• Underlay: Edge Run + Double Zigzag.
  • The Why: This creates a "net" or a "raft" of thread on top of the knit. The satin stitches sit on this raft, not on the yarn.
• Density: 0.35 mm.
  • The Why: Standard density is usually 0.40mm - 0.45mm. By tightening it to 0.35mm, you pack more thread in, ensuring solid coverage over the high-contrast texture.

Expert Note: Do not just increase density without underlay. That creates a "bulletproof" stiff patch that will break needles. The combination is key. The video creator confirmed the file is available, implying repeatability is the goal.

7. Finishing: The "Clean Cut"

Remove the hoop. Un-hoop the beanie. Now, remove the stabilizer.

Blade Discipline: Do not use your $30 curved embroidery snips to cut through 3.0 oz cutaway backing. It will dull them instantly. Use standard shop scissors (like the Wiss brand shown) or dedicated applique scissors.

Trim roughly 1/8" to 1/4" away from the design. Round off the corners so the wearer doesn't feel sharp points against their forehead.

Operation Checklist: The Production Run

• Trace: Completed; needle path clears the hoop walls by at least 2mm.
• Speed: Beginner Sweet Spot: 600-700 SPM. (Don't run at 1000 SPM until you trust your hooping).
• Underlay: File setup includes Edge Run + Double Zigzag.
• Density: Adjusted to 0.35 mm.
• Tooling: Cutaway trimmed with "junk" scissors, not "good" scissors.

8. Troubleshooting: The "Quick Fix" Matrix

When things go wrong, use this table to diagnose the issue immediately.

Conclusion: Tools that Pay for Themselves

If you are embroidering one beanie for a nephew, you can struggle through with a standard hoop and patience. But if you are quoting an order for 50 company beanies, time is your profit margin.

Here is the graduation path for your equipment:

1. Level 1 (Technique): Use the "Inside-Out" method and 3.0 oz cutaway. This costs nothing but saves sanity.
2. Level 2 (Workflow): Incorporate a magnetic hooping station workflow. Whether it's the premium industrial setups or SEWTECH's magnetic frames for home machines, the magnetic clamp drastically reduces wrist strain and rework rates.
3. Level 3 (Scale): When you need to run beanies all day, dedicated multi-needle machines (lik the Ricoma shown or SEWTECH's commercial line) allow you to leave your station set up permanently, turning a chore into a highly profitable manufacturing process.

When you see professionals searching for specific gear like the mighty hoop 5.5, it isn't because they love spending money—it's because that specific size is the "GLODILOCKS" zone for beanies: big enough for the logo, small enough to fit inside the knit without stretching it to death.

Similarly, ensuring your shop has a standardized setup—often referred to as a ricoma mighty hoop starter kit or generic equivalent bundle—means you have the station, the brackets, and the hoops all matching perfectly. This eliminates the "does this fit?" variable from your day.

Embroidery is a game of variables. Control the stabilization, control the grip, and you control the result. Now, go hoop that beanie straight.

FAQ

• Q: Which stabilizer should be used for embroidering thick cable-knit beanies on a Ricoma multi-needle machine to prevent puckering and distortion?
  A: Use a 3.0 oz cutaway stabilizer cut to an 8" x 8" square as the default foundation for thick, textured knits.
  • Cut: Prepare an 8" x 8" piece of 3.0 oz cutaway before hooping.
  • Secure: Lightly mist repositionable adhesive spray to keep the backing from shifting during hooping (optional, but helpful).
  • Avoid: Do not rely on tearaway for stretchy knits when longevity and shape matter.
  • Success check: The hooped backing should feel stiff (cardstock-like) and stay flat without rippling when you lift the hoop.
  • If it still fails: Re-check hooping alignment and consider adjusting underlay (Edge Run + Double Zigzag) instead of adding more stitch density alone.
• Q: How do I find the true front and mark the center correctly on a Richardson cable-knit beanie so the embroidery does not end up on the back?
  A: Use the back seam/tag as the anchor, then mark the front and place the center mark on a rib (not between ribs).
  • Locate: Find the seam/tag and treat it as the back reference point.
  • Flatten: Lay the beanie flat with the seam centered on the back; the fold facing you becomes the true front.
  • Mark: Put masking tape on the cuff and write “F” on the tape.
  • Place: Run a finger to find the exact center rib and put the center dot directly on that rib; verify width is about 8" and center is about 4" from the edge.
  • Success check: The dot sits on top of a rib line, and the beanie orientation is unambiguous because “F” is visible.
  • If it still fails: Re-mark using the “sensory check” (finger on rib) and re-align using a hooping station center line/notch.
• Q: How do I hoop a thick cable-knit beanie with a magnetic embroidery hoop and a hooping station so the design does not stitch tilted?
  A: Use the station method and use the knit ribs as a visual grid before you clamp the magnetic ring.
  • Place: Lay the 8" x 8" cutaway smoothly on the bottom ring of the station.
  • Mount: Flip the beanie inside-out without disturbing the cuff fold, then slide it over the station arm.
  • Align: Press the cuff fold firmly against the station guide/stop and line up the center dot with the station’s center reference.
  • Clamp: Press the top magnetic ring down and seat it fully.
  • Success check: When you hold the hooped beanie vertically, the ribs run parallel to the hoop side arms (no leaning “/ / /” ribs) and the cuff edge does not bow.
  • If it still fails: Re-hoop and reduce any pulling that creates a “smile/frown” cuff edge.
• Q: How do I prevent hoop strikes and needle crashes when running the trace on a thick beanie in a flat hoop on a Ricoma multi-needle embroidery machine?
  A: Always run a trace and confirm presser-foot clearance from the hoop wall before pressing Start.
  • Load: Confirm the design orientation matches the machine’s “top of hoop” expectation for the current hooping method.
  • Trace: Run the trace and watch the active needle path around the perimeter.
  • Check: Verify the presser foot does not graze the hoop wall (plastic or metal) during the trace.
  • Success check: The trace completes with visible clearance—no tapping, scraping, or near-misses at the hoop edge.
  • If it still fails: Re-hoop for better centering and slow down; do not run production until the trace clears reliably.
• Q: What should I change in digitizing settings to stop satin letters from sinking into a fluffy cable-knit beanie without using a water-soluble topper?
  A: Use stronger underlay (Edge Run + Double Zigzag) and tighten density to 0.35 mm as shown for textured cable knits.
  • Set: Apply Edge Run underlay plus Double Zigzag underlay under satin areas.
  • Adjust: Set satin density to 0.35 mm for better coverage over deep knit texture.
  • Avoid: Do not increase density without the underlay foundation because the result can become overly stiff and needle-unfriendly.
  • Success check: Satin columns sit “on top” of the knit texture with clean edges instead of disappearing into valleys.
  • If it still fails: Add a water-soluble topper as a quick assist, then revisit underlay coverage rather than pushing density even tighter.
• Q: Why is white bobbin thread showing on top when embroidering thick beanies on a Ricoma multi-needle machine, and what is the fastest fix order?
  A: Treat it as a tension/cleanliness issue first: clean the bobbin area, then slightly reduce top tension, then check for thread catching on the thick surface.
  • Clean: Open and clean the bobbin case/race area to remove lint and debris.
  • Adjust: Loosen top tension slightly and test again.
  • Inspect: Watch for top thread snagging as it drags across the bulky beanie surface.
  • Success check: Satin and fills show solid top thread color with no consistent white “railroad” lines on the surface.
  • If it still fails: Re-check threading path and re-test after a trace to ensure the hooping height/clearance is not adding drag.
• Q: What safety rules should be followed when using powerful magnetic embroidery hoops and frames on thick beanies during hooping and alignment?
  A: Treat magnetic hoops like a loaded trap—control the snap zone and keep magnets away from medical implants and sensitive items.
  • Protect: Keep fingers out of the clamp path when seating the top ring; bring magnets together in a controlled, flat motion.
  • Space: Keep magnetic frames at least 6 inches away from pacemakers, insulin pumps, and other implanted devices.
  • Prevent: Do not let magnets snap together near credit cards or phone screens.
  • Success check: The ring seats with a controlled “thud” without pinching skin, and the hooping process remains repeatable without near-miss snaps.
  • If it still fails: Switch to a station-assisted clamping routine and slow down the handling—most pinch injuries happen when rushing alignment.
• Q: When should a shop upgrade from standard plastic screw hoops to magnetic embroidery hoops, and when does it make sense to move up to a SEWTECH multi-needle embroidery machine for beanie production?
  A: Use a tiered approach: fix technique first, then upgrade grip (magnetic), then upgrade capacity (multi-needle) when volume demands consistency.
  • Level 1 (Technique): Use the inside-out method, 3.0 oz cutaway, and a repeatable center-marking process to stop shifting and distortion.
  • Level 2 (Tooling): Move to magnetic hoops/frames when hoop burn, walking/creep, or crooked placement keeps happening on thick cuffs.
  • Level 3 (Production): Consider a SEWTECH multi-needle machine when beanies become an all-day product and setup consistency + throughput become the bottleneck.
  • Success check: Rework rates drop (fewer re-hoops, fewer tilted logos) and operators can maintain straight placement over a full run without fatigue-driven drift.
  • If it still fails: Standardize a hooping station workflow so alignment is mechanical, not “eyeballed,” especially for orders over 10 units.
