Hoop Master + Mighty Hoop Setup That Actually Feels Easy: Fast, Repeatable Hooping for Shirts and Tote Bags

Mastering the Magnetic Hooping Workflow: A 2025 Industry Standard Guide

If you have ever fought a traditional embroidery hoop—pressing with all your weight, re-pressing because the inner ring slipped, chasing stabilizer that creeps, and still ending up with a logo that’s a hair too high—you are experiencing the "friction" that separates hobbyists from production shops.

Traditional plastic hoops rely on friction and muscle. They work, but they often leave "hoop burn" (permanent pressure rings) on delicate fabrics and cause significant wrist strain over time. This guide deconstructs the setup and usage of the Hoop Master station paired with the Mighty Hoop magnetic system. We are moving beyond simple unboxing; we are building a production-ready workflow that guarantees placement consistency.

Whether you are running a single-needle home machine or scaling up to a SEWTECH multi-needle embroidery machine, the physics of holding fabric remains the same: stability equals quality.

Unboxing the Ecosystem: The "Hidden Consumables" Reveal

The first few minutes of setup are critical. Most beginners open the box, see a confusing array of boards, fixtures, and screws, and feel a wave of "I’m going to mess this up." You won’t—if you treat the manual as your map and build the base first.

However, before you tighten a single screw, you need to gather the "Hidden Consumables" that aren't in the box but are essential for a frustration-free start.

The "Must-Have" Side Kit

• Temporary Spray Adhesive (e.g., 505 Spray): Magnetic hoops hold tight, but a light mist prevents stabilizer from shifting before the magnets snap.
• Water-Soluble Marking Pen: For marking center points on your first test run.
• Metric Tape Measure: The station uses a grid, but verifying your specific garment specs is key.
• 75/11 Ballpoint Needles: If you are stitching T-shirts (knits), standard sharp needles will cut the fabric fibers.
• Silicon Lubricant or Machine Oil: Just a drop for the fixture arms if they stick during adjustment.




What’s in the Box (The Hardware)

• Hoop Master Portable Base: The foundation (Base plate + White side legs).
• Station Board: The main grid interface (The "Map").
• Standard Station Fixture: The "Arms" that hold the hoop for shirts.
• Freestyle Arm Base & Fixture: The specialized tool for bags and sleeves.
• T-Square Ruler Guide: Essential for vertical alignment on bags.
• Mighty Hoop 5.5" Square: Top magnetic frame + Bottom magnetic ring.
• 5.5" Fixture Arms: The specific adapters for the 5.5" hoop.


Phase 1: Building the Portable Base (Structural Integrity)

This is the step that determines whether your station feels "solid" or "wobbly" three months from now. If this base twists (racks) even slightly, every shirt you hoop will have a subtle bias.

Step-by-Step Assembly

1. Position the Logs: Place the white side legs on your table with the bends facing inward.
2. Align the Plate: Set the mounting base plate on top of the legs. The holes are precision-drilled; if you have to force a screw, check your alignment.
3. Insert Hardware: Drop the screws/bolts from the top.
4. The "Finger-Tight" Phase: Thread the nuts on the underside by hand until they touch the metal. Do not tighten them with a driver yet.
5. The Cross-Torque Finish: Finish tightening from the top with a Phillips head screwdriver.
   • Crucial Technique: Tighten in a “cross pattern” (Top-Left, Bottom-Right, Top-Right, Bottom-Left). This is how mechanics tighten car wheels. It ensures the metal plate sits perfectly flat and doesn't warp.

Sensory Check:

• Visual: The base should stand perfectly upright.
• Tactile: Press down on one corner. If the opposite corner lifts (like a wobbly restaurant table), loosen and re-torque.

Warning: Physical Safety
Keep fingers clear of the gap between the legs and the plate when tightening. Pinch points are real. Also, ensure your screwdriver bit is the correct size (#2 Phillips usually) to avoid stripping the screw heads or slipping and stabbing your hand.

Phase 2: Ergonomics and Angle (The Wrist Saver)

You have three angle options on the station. This isn't just about comfort; it's about fabric gravity.

Why Angle Matters (Physics in Plain English)

When you hoop a heavy hoodie or a large XL shirt on a flat surface, the excess fabric hangs off the table, creating "drag." This drag pulls the fabric microscopically downward as you clamp. The result? A logo that looks centered when hooped, but sags or looks stretched when worn.

Setting the Angle

1. Loosen the wing nuts on the side legs.
2. Remove the thumb screws.
3. For T-Shirts/Hoodies: Tilt the station board towards you (Angled Position). This recruits gravity to help the shirt drape naturally over the body of the station, neutralizing the drag.
4. For Towels/Blankets: keeps the board flat.
5. Reinsert thumb screws and tighten wing nuts until firm (do not overtighten; plastic threads can strip).

Phase 3: The Grid System (Eliminating the Guesswork)

The "Magic" of the station is the grid. It turns "eyeballing it" into a coordinate system.

The Coordinate System

The manual provides suggested starting points. For a standard Left Chest logo:

• Ladies Small/Medium: C-11 to C-12
• Men’s Large/XL: C-14 to C-16
• Youth: C-9 to C-10

Note: These are industry starting points. Always test one shirt before running a batch of 50.

Installing the Shirt Fixture

1. Locate Position 11: Find the number 11 on the vertical scale of the main board.
2. Orientation: Ensure the fixture arms are facing UP (towards the top of the board).
3. The "Shimmy" Lock: Insert the metal tabs into the slots at position 11. You might need to wiggle it slightly.
4. The Lock-Down: Press firmly until it sits flush.


Sensory Check:

• Tactile: Run your finger over the joint where the fixture meets the board. It should be flush. If it's raised, your hoop will float, and you will get "shadowing" (blurry outlines) in your embroidery.

Prep Checklist (Do This Before Fabric Touches Board)

• Base Integrity: Bolts are tight; no wobble.
• Correct Angle: Angled for shirts, flat for flat goods.
• Fixture Locked: Fixture is flush against the board at the chosen number (e.g., 11).
• Clean Surface: Wipe the board with a microfiber cloth. Dust creates bumps under knits.
• Stabilizer Pre-Cut: Cut your backing 1 inch larger than the hoop on all sides.

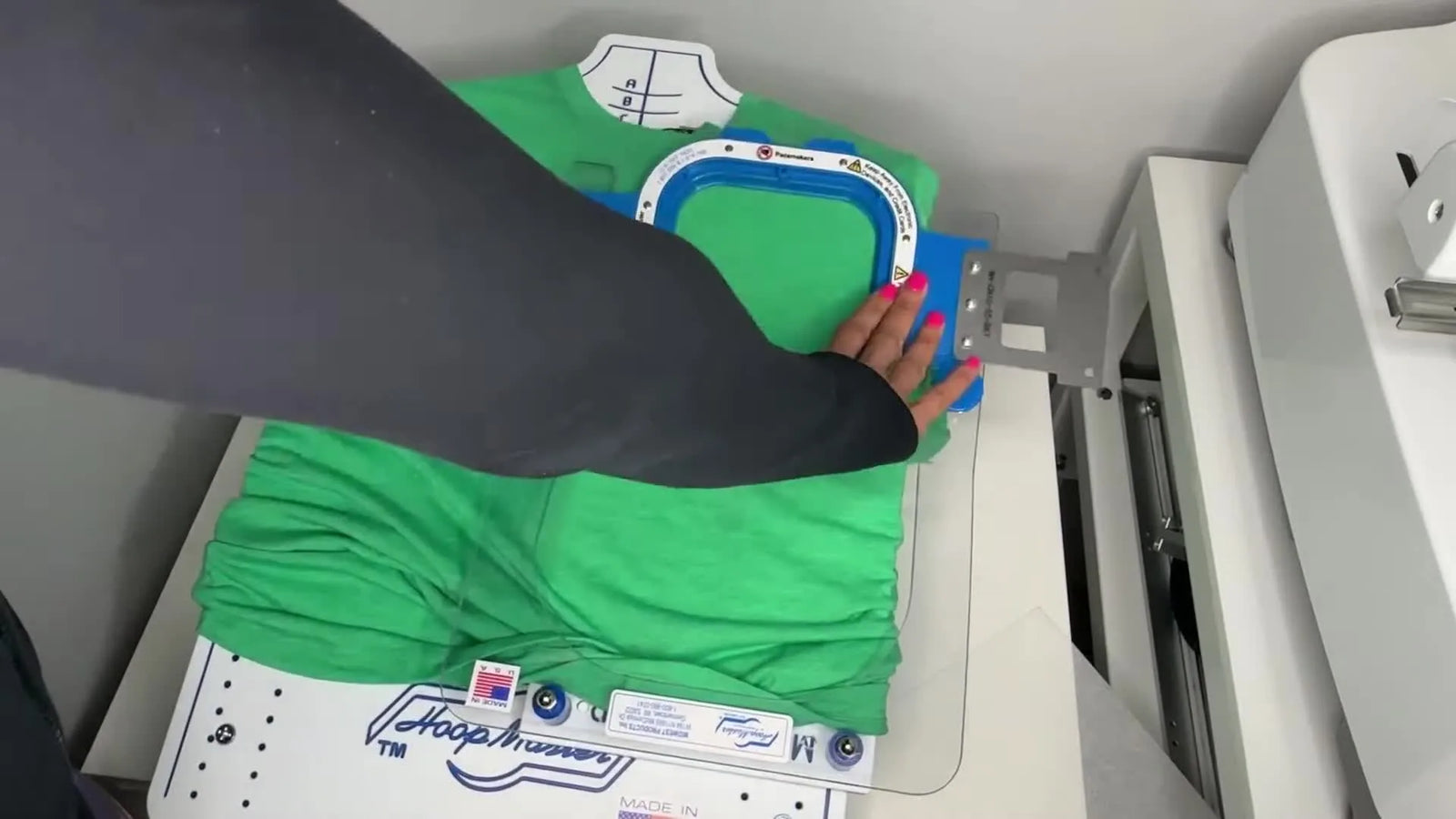

Phase 4: The T-Shirt Hooping Sequence (The 5.5" Mighty Hoop)

This is the core skill. The goal is to capture the fabric in its "relaxed state." If you stretch the fabric to make it flat, it will snap back after stitching, causing puckering.

Step 1: Loading the Magnetic Trap

1. Lift the magnetic flaps on the main board (usually the bottom and two sides).
2. Place the Bottom Ring into the fixture notch.
   • Critical: The BLUE side must face UP. The white side faces down. The magnets have polarity; if you get this wrong, the top hoop will repel the bottom ring, potentially pinching you or flying off.
3. Lay your Cut-Away Stabilizer over the bottom ring. Tuck the edges under the magnetic flaps to hold it taut.


Step 2: Draping the Garment

1. Slide the T-shirt over the board like putting a pillowcase on a pillow.
2. The "C" Alignment: Look at the neck of the shirt. Align the shoulder seams or the neck tag with the letter "C" on the board's horizontal scale.
3. Smoothing (The Golden Rule): Smooth the fabric with the palms of your hands, moving from the center outward. Do not pull. You want the fabric to lay flat, not tight.


Step 3: The "Snap"

1. Take the Top Hoop (The Frame).
2. Align the side ears of the hoop with the U-shaped tabs on the fixture. This is "Mechanical Registration."
3. The Drop: Once aligned, lower the front of the hoop. Let the magnets limit the speed.
4. The Sound: You should hear a sharp, solid "THWACK".

Why this is superior: A hooping station for embroidery like this applies vertical pressure instantly. Traditional hoops require a twisting/pushing motion that drags fabric. The magnetic snap captures the fabric fibers exactly where they lay, preventing "Hoop Burn" (shine marks) and distortion.

Warning: Magnetic Force Hazard
Mighty Hoops contain rare-earth magnets. They are extremely powerful.
1. Pinch Hazard: Never put your fingers between the hoops. The snap can break skin or blood vessels.
2. Medical Danger: Keep at least 6 inches away from pacemakers and insulin pumps.
3. Electronics: Do not place phones or credit cards directly on the magnets.

Setup Checklist (Ready to Stitch?)

• Blue Side Up: Confirmed bottom ring orientation.
• Stabilizer Secured: Held by flaps, no wrinkles.
• Neckline Centered: Aligned to "C" (or your custom coordinate).
• Fabric Relaxed: No tension ripples in the hoop area.
• Tactile Test: Gently tug the fabric edges. It should feel firm, like a drum skin, but the fabric grain should look straight, not curved.

Phase 5: The "Impossible" Items – Tote Bags & Integration

Tote bags are the nemesis of traditional hooping. The thick canvas seams fight the inner ring, and the handles get in the way.

The Freestyle Arm Solution

For bags, we strip the station down.

1. Remove the main board.
2. Install the Freestyle Arm Base.
3. Click on the correct fixture for your hoop size.
   • Note: Freestyle fixture arms usually point DOWN or outwards to allow the bag to slide over them.




The T-Square Technique for Perfect Centers

1. Attach the T-square ruler to the fixture.
2. Measurement: Measure the distance between your bag handles. Set the T-square guides to that width (e.g., set guides to hit the handles so the center is at 6 inches).
3. Slide and Lock: Slide the bag onto the arm. The handles should just touch the ruler guides. This guarantees the bag is centered horizontally.
4. Snap: Apply the top hoop.




Commercial Logic: When to Upgrade?

If you are struggling with thick canvas bags on a single-needle home machine, you are likely hitting the limits of "presser foot clearance."

• The Problem: The bag bounces, needle breaks, thread shreds.
• The Fix (Level 1): Use a Sharp #90/14 needle and slow down.
• The Fix (Level 2): Use Magnetic Hoops to hold the thick fabric without "crushing" it.
• The Fix (Level 3 - Production): If you are doing 50+ bags, this is the trigger to upgrade to a SEWTECH Multi-Needle Machine. These machines have higher presser foot clearance and tubular arms specifically designed to slide into bags, eliminating the struggle entirely.

Phase 6: Material Science & Stabilizer Decision Tree

Every successful stitch begins with the correct "sandwich."

Decision Tree: Fabric vs. Stabilizer

1. Is the fabric Stretchy? (e.g., T-Shirt, Polo, Performance Wear)
   • YES: Use Cut-Away Stabilizer (2.5oz - 3.0oz).
     • Why: Knits stretch. Cut-away provides a permanent skeleton. If you use Tear-Away, the design will distort after the first wash.
   • Tip: If the knit is very slippery, use a temporary spray adhesive.
2. Is the fabric Stable? (e.g., Canvas Tote, Denim Jacket, Towel)
   • YES: Use Tear-Away Stabilizer.
     • Why: The fabric supports itself. The stabilizer just ensures crisp edges.
   • Exception: If the design has a very high stitch count (>15,000 stitches), use Cut-Away even on stable fabrics to prevent "bulletproof patch" syndrome.

Phase 7: Troubleshooting and Machine Integration

Even with the best tools, things go wrong. Here is your "Emergency Room" triage list, ordered from Cheapest to Most Expensive fixes.

The "Trace" is Mandatory

Since magnetic hoops are often third-party accessories, your machine (whether a Brother, Babylock, or a commercial Ricoma/SEWTECH) might not "know" the hoop is there. ALWAYS run a "Trace" (Outline Check) before stitching.

• Visual: Watch the presser foot travel the perimeter.
• Safety: Ensure it has at least 5mm clearance from the magnetic frame. If the needle hits the magnet, it will shatter the needle and possibly damage the timing.

Conclusions and Your Upgrade Path

The Hoop Master Station combined with Mighty Hoops changes embroidery from a "guessing game" into a "manufacturing process." It eliminates the variables of hand pressure and visual estimation.

However, recognize where you are in your journey:

1. The Stabilizer Upgrade: If your designs are puckering, verify your stabilizer choice using the Decision Tree above.
2. The Tool Upgrade: If you are fighting hoop burn or wrist pain, investing in a mighty hoop kit or generic magnetic frames is the logical next step.
3. The Machine Upgrade: If you find that "setup" is fast (thanks to the station) but "color changes" and "trimming" are slowing you down, explore SEWTECH’s range of multi-needle machines. The jump from specific hobby constraints to multi-needle freedom is often the key to turning a hobby into a profitable business.

Operation Checklist (The Final Fly-over)

• Trace Complete: You have visually verified the needle clears the hoop.
• Bobbin Check: You have enough bobbin thread to finish the design.
• Fabric Tail Management: Excess shirt fabric is tucked away and not under the needle.
• Speed Limit: Start tricky items at 600 SPM (Stitches Per Minute), not the maximum.
• Enjoy the Snap: Trust the magnet. Don't over-tighten or obsess.

Happy Stitching. Keep it tight, keep it straight.

FAQ

• Q: What “hidden consumables” should be prepared before assembling a Hoop Master station with a Mighty Hoop magnetic embroidery hoop?
  A: Prepare a small side kit first so the first hooping test run is smooth and repeatable.
  • Gather: temporary spray adhesive (e.g., 505), water-soluble marking pen, metric tape measure, 75/11 ballpoint needles for T-shirts/knits, and a drop of silicone lubricant or machine oil for sticky fixture arms.
  • Cut: stabilizer at least 1 inch larger than the hoop on all sides before fabric touches the board.
  • Wipe: the station board with a microfiber cloth to remove dust bumps under knits.
  • Success check: the first hooping attempt needs no re-pressing or re-centering, and the stabilizer does not creep before snapping the hoop.
  • If it still fails: reduce stabilizer shifting by using a lighter mist of spray adhesive and re-check that the fixture is fully flush/locked to the board.
• Q: How can a Hoop Master station user stop a Mighty Hoop bottom ring from repelling the top hoop due to wrong polarity (“blue side up” problem)?
  A: Flip the Mighty Hoop bottom ring so the BLUE side faces UP before snapping the top hoop.
  • Remove: the top hoop and lift the magnetic flaps.
  • Verify: the bottom ring is seated in the fixture notch with the blue side up (white side down).
  • Re-load: stabilizer over the ring and secure it under the magnetic flaps, then snap the top hoop.
  • Success check: the hoop snaps with a solid “THWACK” and does not push away or “bounce” on contact.
  • If it still fails: re-seat the bottom ring fully into the notch and keep fingers completely away from the snap zone to avoid pinching.
• Q: What is the correct Hoop Master station method to hoop a T-shirt with a 5.5" Mighty Hoop without stretching the knit (to prevent puckering after stitching)?
  A: Hoop the T-shirt in a relaxed state—smooth flat with palms and never pull the knit tight.
  • Drape: the shirt over the board like a pillowcase and align the neckline/shoulder seams to the “C” mark on the grid.
  • Smooth: move hands from center outward to remove wrinkles without tugging the fabric grain.
  • Snap: align the hoop ears to the fixture tabs (mechanical registration) and lower the hoop straight down.
  • Success check: fabric feels firm like a drum skin, and the fabric grain looks straight (not curved or stretched) inside the hoop.
  • If it still fails: switch to cut-away stabilizer for knits and use a light mist of temporary spray adhesive for slippery fabric.
• Q: How can a Hoop Master station operator confirm the station fixture is installed correctly to avoid “floating hoop” blur/shadowing in embroidery outlines?
  A: Lock the shirt fixture fully flush to the station board before hooping.
  • Locate: the chosen number position (e.g., 11) on the vertical scale and insert the fixture tabs into the slots with arms facing UP.
  • Press: firmly until the fixture sits completely down (no gap).
  • Feel: run a finger across the joint to confirm the fixture meets the board flush.
  • Success check: the joint feels level (no raised edge), and the hoop sits stable without rocking.
  • If it still fails: remove and re-insert using a slight “shimmy” to seat the tabs, then re-check base wobble and bolt tightness.
• Q: What safety rules should be followed to prevent finger pinch injuries when snapping a Mighty Hoop magnetic embroidery hoop?
  A: Treat the snap as a pinch hazard and keep hands out of the closing gap at all times.
  • Hold: the top hoop by the outer frame only—never between the rings.
  • Align: the hoop ears to the fixture tabs first, then lower the hoop and let the magnets control the final snap.
  • Clear: all fingers from the hoop gap before the final drop.
  • Success check: the hoop closes in one controlled snap without any hand repositioning near the gap.
  • If it still fails: slow down and reset alignment; do not “fight” the magnets or try to catch the closing ring.
• Q: What safety precautions are required for Mighty Hoops rare-earth magnets around pacemakers, insulin pumps, phones, and credit cards?
  A: Keep Mighty Hoops magnets away from medical devices and sensitive electronics, and never store them against phones/cards.
  • Maintain: at least 6 inches clearance from pacemakers and insulin pumps.
  • Avoid: placing phones, credit cards, or similar items directly on the magnets.
  • Control: the work area so magnets are not left loose where they can snap onto tools unexpectedly.
  • Success check: magnets are handled only at the station, and no devices/cards are placed on the hoop frames during setup.
  • If it still fails: designate a “magnet-only” zone on the table and store hoops separately from electronics.
• Q: Why does a magnetic embroidery hoop pop off during stitching on heavy garments, and what is the step-by-step fix recommended for Mighty Hoops?
  A: Clean the magnets and reduce garment drag—both are common causes of a hoop popping off mid-run.
  • Clean: magnet surfaces with alcohol to remove spray adhesive buildup that can change grip behavior.
  • Support: heavy garments on a table so fabric weight is not pulling down on the hoop during stitching.
  • Re-hoop: using the angled station position for shirts/hoodies to let gravity drape the garment naturally.
  • Success check: the hoop stays seated through the full design without shifting, and the garment weight is not hanging off the edge pulling the hoop.
  • If it still fails: reduce adhesive use, confirm stabilizer is secured with no wrinkles, and consider stepping up from technique (Level 1) to magnetic hooping consistency (Level 2) before considering higher-capacity production equipment (Level 3).
