Hoop It Once, Stitch It Calm: Brother PR1050X + 5x7 Magnetic Flash Frame Setup for a Tiled Stocking (No Tangles, No Guesswork)

The Tiled Stocking Masterclass: Machine Setup, Hooping Science, and Workflow Hygiene

If you’ve ever stared at a multi-block "tiled" embroidery design and felt a knot in your stomach thinking, "One slip and the whole project is ruined," you are not alone. Tiled projects are the ultimate test of embroidery discipline. The stitching itself is the easy part; the success—or the heartbreak—is determined in the first 20 minutes of preparation.

In this comprehensive guide, we are breaking down the setup of a complex tiled Christmas stocking (OESD Cynthia Frenette collection) on a Brother Entrepreneur Pro X PR1050X. We will be using a 5x7 magnetic frame to solve the most common issue in tiling: fabric distortion.

Whether you are a hobbyist or running a small shop, this is your blueprint for turning a high-anxiety project into a repeatable, profitable workflow.

Don’t Panic: The Brother PR1050X Tiled Stocking Setup Is 80% Prep, 20% Stitching

A tiled scene feels intimidating because it looks "big." However, you must recalibrate your mindset: the machine does not see a "stocking"; it only sees one 5x7 rectangle at a time. Your sole job is to ensure that Rectangle A allows Rectangle B to align perfectly later.

The enemy of alignment is variability. If your hooping tension changes between tiles, or your stabilizer shifts by 2mm, your final design will have gaps.

Jeanie’s approach here is textbook "production mindset": she plans the entire architecture of the project—anticipating the larger 8x8 hoopings needed for the heel and toe—before the machine is even turned on.

Expert Insight: When tilings fail to line up, beginners blame the digitizing. Professionals blame the fabric grain. If you distort the grain while hooping, the fabric will relax back to its original shape after stitching, shrinking your tile and ruining the connection points.

The Hidden Prep That Makes Tiles Behave: Shape Flex + Ultra Clean and Tear

Selecting consumables is not about guessing; it is about physics. For a project like a stocking, which needs to hang correctly without sagging, we need a specific "sandwich" recipe.

Jeanie follows a strict protocol using Shape Flex (a fusible woven interfacing) and Ultra Clean and Tear.

The Mathematical Setup:

• Background Fabric: Cut exactly 12 inches wide (selvedge to selvedge).
• Shape Flex: Cut 10 inches wide and fused directly down the center of the fabric back.
• Ultra Clean and Tear: Cut 11 inches wide, folded in half to create two solid layers.

Why This Specific Recipe Works:

1. The "Spine" Principle: By fusing Shape Flex (woven) to the cotton, you are effectively turning a pliable fabric into a stable canvas. This prevents the "pucker" effect where dense stitches pull the fabric inward.
2. The Floating Margin: Cutting the stabilizer to 11 inches allows it to support the current 5x7 hoop while leaving enough material to be gripped by larger hoops (like an 8x8) later in the project.
3. Efficiency: Folding the stabilizer implies you handle one piece instead of two slipping sheets.

Hidden Consumable: Keep a can of temporary spray adhesive (like 505) or a fusible web nearby. While not explicitly shown in every step, a light mist between stabilizer layers prevents them from sliding against each other during the hooping process.

phase 1: PREP CHECKLIST

• Clean the Machine: Oil the hook and wipe the needle bar (tiled projects are long; start clean).
• Fabric Cut: Background fabric is 12" wide; Shape Flex is 10" and fused centered.
• Stabilizer Cut: Ultra Clean and Tear is 11" wide, folded to create 2 layers.
• Needle Check: Install fresh needles (Size 75/11 is the sweet spot for cotton/stabilizer combos).
• Bobbin Check: Full bobbin loaded (use pre-wound magnetic core bobbins for consistent tension).


Why a 5x7 Magnetic Hoop Saves Your Hands (and Your Project)

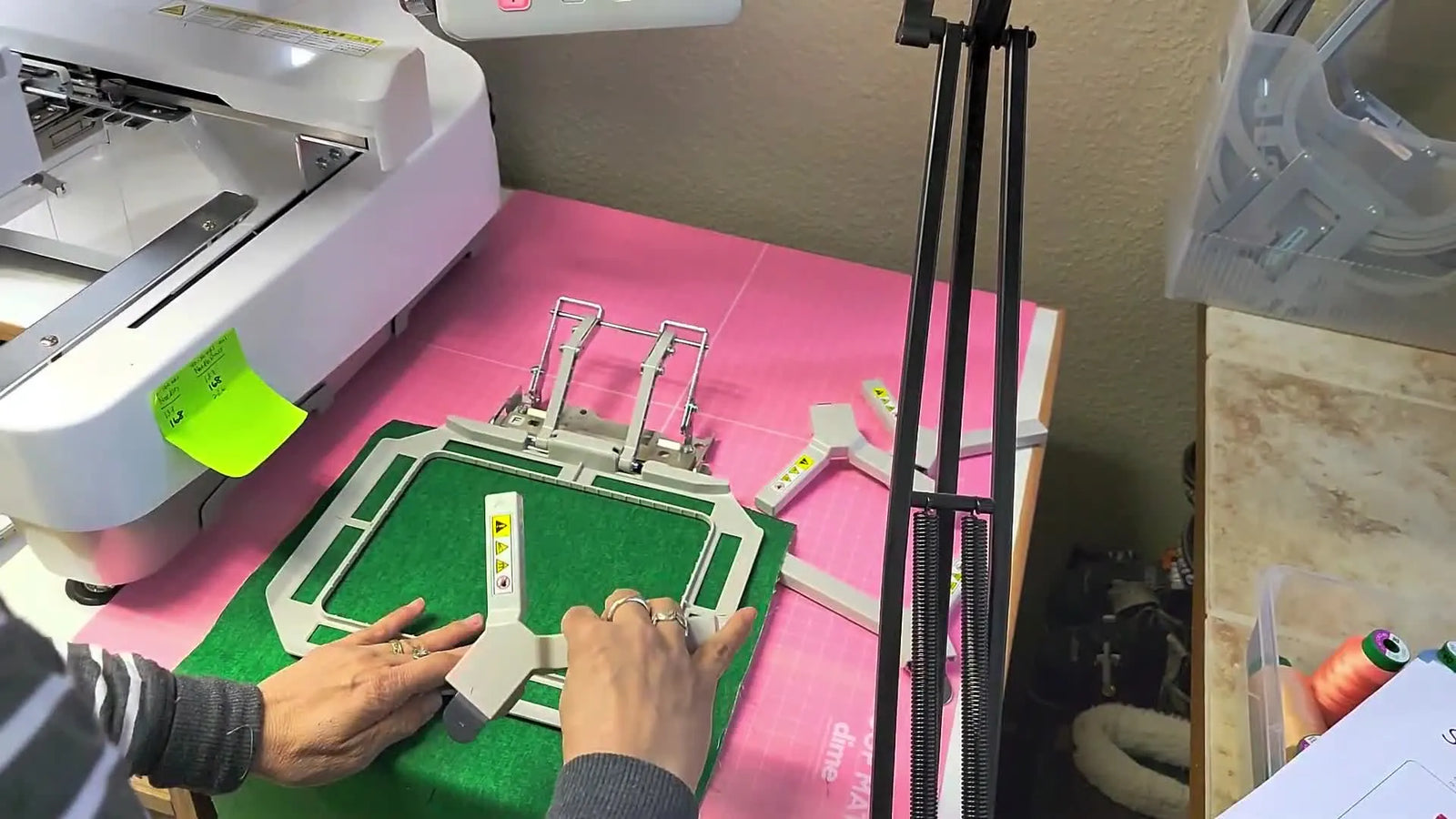

Jeanie uses a 5x7 magnetic frame (Flash Frame style) with a gripping hooping mat. In a professional context, we move to magnetic hoops not just for speed, but for tension control.

Traditional screw-tighten hoops rely on friction and brute force. To hold thick sandwiches (fabric + interfacing + 2 layers stabilizer), you have to torque the screw aggressively. This often creates "hoop burn" (permanent crushing of fibers) and makes it nearly impossible to get consistent tension five times in a row.

Magnetic hoops allow the fabric to sit flat. The magnets clamp down vertically, securing the sandwich without dragging or distorting it.

If you are setting up a magnetic hooping station, you are investing in the safety of your wrists and the quality of your output. Repetitive Strain Injury (RSI) is real in this industry; snapping a magnet is infinitely easier than cranking a screw 50 times a day.

Warning: Magnetic Safety
Magnetic hoops use rare-earth magnets with industrial crushing force.
* Do not place fingers between the rings. They snap shut instantly and can pinch blood blisters.
* Pacemakers: Keep these hoops away from individuals with pacemakers or sensitive medical devices.

The “Drum-Taut, Not Stretched” Rule: Hooping Without Distortion

This is the most critical manual skill in embroidery.

The Hooping Sequence:

1. Place the bottom metal frame on your gripping mat.
2. Lay the folded stabilizer (2 layers) centered.
3. Place the prepped fabric on top.
4. Align the top magnetic frame.
5. The Sensory Check: Allow the magnets to snap. Then, gently smooth the fabric toward the edges.

The "Drum Skin" Test: Tap the fabric with your finger. You should hear a dull thump, similar to tapping a ripe watermelon.

• Too Loose: The fabric ripples when tapped (Results in: gaps in outline).
• Too Tight: The fabric grain looks curved or bowed (Results in: puckering after un-hooping).

You want the fabric to be taut, not stretched. Imagine the tension of a fitted sheet on a mattress—smooth and firm, but you aren't trying to tear the elastic.

Warning: Do not cut fabric on your hooping mat. A sliced mat loses its grip, and a slipping mat leads to crooked hoops.

Mounting the Hoop: The "Click" of Security

After hooping, slide the frame onto the machine arm.

• Listen: You must hear/feel a distinct mechanical click or solid stop when the hoop engages the driver arm.
• Check: Verify that the "tails" of your stabilizer and fabric are tucked under or to the sides, not bunched up where they could get sewn to the back of the stocking.

If you find yourself fighting the machine to mount the hoop, stop. Check if the bottom fabric is caught. Forcing a magnetic hoop can knock the driver arm out of alignment.

The 3-Point Thread Labeling System: Cognitive Load Management

When creating tiled projects, you are managing 15-20 color changes. This is not the time to guess "Is this Blue 1034 or Blue 1134?"

Jeanie’s method—writing the color number on three separate spots (top sticker, rim, and bottom)—is a masterclass in error prevention.

Why this matters: On a multi-needle machine, spools rotate. If the number is only on one side, it will inevitably hide from you. By labeling 360 degrees, you can verify your thread path at a glance without pausing operation.

For those researching magnetic embroidery hoops for brother to improve efficiency, remember clarity is speed. You can have the fastest hoop in the world, but if you thread the wrong Green, you are stopping for 20 minutes to pick out stitches.

The Thread Gate Lock: The Silent Killer of Tension

Jeanie highlights a mechanical nuance often missed by beginners: the Thread Spool Gate.

On Brother PR models (and similar multi-needles), there is a locking gate above the spool.

• The Action: Push it down until it snaps.
• The Consequence: If this gate is open, the thread lifts upward, bypasses the tension discs, and feeds into the machine with zero tension.
• The Result: A massive "bird’s nest" of thread underneath your bobbin case within seconds.

Process Rule: Every time you change a cone, physically touch and verify the gate lock.

Threading Hygiene: Protect Your Hands and Your Needles

Jeanie uses the automatic threader tool, working specifically from one side to the other (e.g., Needle 10 to Needle 1).

Safety & Maintenance Tip: When threading manually or using the tool, always keep your hands clear of the active needle bar area if the machine is live. Modern machines are safe, but a foot pedal bump can be disastrous.

The "Dental Floss" Test: After threading, pull about 6 inches of thread through the needle eye. You should feel a smooth, consistent resistance, similar to pulling dental floss from the container.

• Jerky resistance? Thread is caught on a rough spool edge.
• No resistance? Thread missed the tension disc. Rethread immediately.


Digital Rotation: Reconciling Screen vs. Reality

Jeanie navigates the interface to rotate the design 90 degrees to the right.

• The Issue: Your hoop is 5x7 vertical (portrait), but the machine might load the design horizontal (landscape).
• The Fix: Always verify the "Top" of your design matches the "Top" of your physical hoop bracket.

If you struggle with alignment, search specifically for compatibility with brother pr1050x hoops to find templates that overlay your screen, helping you visualize the rotation before you commit.

The "Color 11" Pause strategy: Programming for Success

Here is the scenario: The stocking design has 15 colors. The machine has 10 needles. If you simply press "Start," the machine will finish Color 10 and then stop confusingly—or worse, try to sew Color 11 using the thread still loaded on Needle 1.

The Professional Solution:

1. Go to the Color Sequence / Edit screen.
2. Scroll to step 11.
3. Insert a Pause (Hand Icon/Stop Command).

This forces the machine to halt, giving you a safe window to swap out the threads on needles 1-5 for the remaining colors. This is crucial for brother 5x7 magnetic hoop workflows where you might be batching—you want the behavior to be predictable every time.

Hidden Step: Also add a pause at the very end if you plan to navigate the hoop to a specific position for un-hooping.

phase 2: SETUP CHECKLIST

• Orientation: Design rotated 90° (Top of design = Bracket side of hoop).
• Stop Command: "Hand" icon inserted at Color 11 (and at the end if needed).
• Hoop Check: Magnetic frame is clicked in solid; fabric is drum-taut.
• Clearance: Stabilizer tails are pinned/tucked away from the sewing arm.
• Gate Locks: All 10 thread gates are snapped shut.


Speed Kills (Quality): Calibrating SPM

The screen shows 1000 SPM (Stitches Per Minute).

• For Experts: 1000 SPM is fine on optimized designs.
• For Everyone Else: Slow Down.

The Beginner Sweet Spot: 600 - 700 SPM. Especially with tiled designs and metallic threads often used in Christmas stockings, high speed increases friction and thread breakage risks. Drop the speed to 600. You will lose 2 minutes of time, but you gain 100% safety against thread shredding.

The "Ghost Thread" Problem: Clearing the Path

Jeanie mentions pulling old threads "all the way through." This is vital maintenance. When you cut a thread to change colors, never pull it backwards out of the top of the machine. This drags lint into your tension discs. Correct Method: Clip the thread at the spool, then pull the excess out through the needle eye.

Also, clear the "rat's nest" of old threads behind the machine head. Loose threads here can get sucked into the cooling fan or the take-up levers. A clean machine is a happy machine.

If you are upgrading to a dime magnetic hoop for brother, pair that new hardware with this "clean plumbing" habit for best results.

First Stitches: The Moment of Truth

Press Start. Do not walk away. Watch the first 100 stitches.

• Listen: Is the sound a rhythmic thump-thump (Good) or a harsh clack-clack (Bad)?
• Look: Is the thread burying properly?
• Check: Verify the color chart one last time as the first leaf stitches out.

phase 3: OPERATION CHECKLIST

• Speed: Reduced to 600-700 SPM for the first layer (underlay).
• Sound Check: Machine leaves a rhythmic, smooth sound.
• Tension Check: Turn the hoop over after the first color. You should see about 1/3 bobbin thread (white) in the center of satin columns.
• Color Verification: The screen color matches the thread actually moving.

Decision Tree: Fabric & Stabilizer Selection

Don't guess. Use this logic path to determine your setup for future tiled blocks.

• Scenario A: Standard Quilting Cotton (Stable)
  • Action: 1 Layer Shape Flex (fused) + 2 Layers Tear Away.
  • Result: Firm, minimal distortion, easy to tear out.
• Scenario B: Stretchy/Loose Woven Fabric
  • Action: 1 Layer Fusible Mesh (No Show Mesh) + 1 Layer Tear Away.
  • Result: Mesh provides permanent support; Tear Away adds stiffness for satin stitches.
• Scenario C: High Pile Fabric (Velvet/Fleece)
  • Action: 1 Layer Cut Away (Floated) + Water Soluble Topping (Crucial!).
  • Result: Topping prevents stitches from sinking; Cut Away prevents the heavy fabric from shifting.

The Upgrade Path: Moving from Hobby to Production

If you successfuly stitch one stocking, you have a hobby. If you need to stitch 50 for a corporate order, you need a workflow upgrade.

1. Solve the "Hoop Burn" & Pain: If your wrists ache or you are getting ring marks on velvet, upgrading to Magnetic Hoops (like the SEWTECH Magnetic Series or others like the dime snap hoop) is the industry standard solution. They allow for faster, safer hooping of thick materials without physical strain.
2. Solve the Speed Bottleneck: If you are tired of babysitting thread changes, high-speed multi-needle machines (like the SEWTECH 15-needle series) offer a massive ROI by allowing you to queue up the next job while the current one is running.
3. Solve the Quality Consistency: Invest in Pre-Wound Bobbins and High-Tensile Polyester Thread. Cheap thread breaks. Professional thread runs at 1000 SPM without complaining.

Final Thought: Tiled embroidery is a game of millimeters. By rigorously controlling your prep—cutting correct stabilizer widths, fusing Shape Flex, and utilizing the even tension of magnetic hoops—you remove the variables that cause misalignment. Trust the process, slow down the machine, and let the physics work for you.

FAQ

• Q: How do I prevent tiled embroidery misalignment on a Brother Entrepreneur Pro X PR1050X when using a 5x7 hoop?
  A: Keep hooping tension and fabric grain consistent for every 5x7 tile—variability is what creates gaps.
  • Fuse Shape Flex centered on the fabric back before hooping to stabilize the grain.
  • Hoop “drum-taut, not stretched,” and repeat the same smoothing motion each time.
  • Keep stabilizer layers from sliding by using a light mist of temporary spray adhesive between layers (generally a safe starting point—follow product directions).
  • Success check: Outline connection points from Tile A to Tile B land without visible gaps after un-hooping.
  • If it still fails: Re-check for fabric grain distortion (bowed grain while hooping) and confirm the hoop tension feels identical between tiles.
• Q: What is the exact fabric, interfacing, and stabilizer cutting recipe used for a tiled Christmas stocking on a Brother PR1050X?
  A: Use the measured “12/10/11” width setup to control distortion and keep margins for later hoop sizes.
  • Cut background fabric exactly 12 inches wide (selvedge to selvedge).
  • Cut Shape Flex 10 inches wide and fuse it centered down the fabric back.
  • Cut Ultra Clean and Tear 11 inches wide and fold it in half to make two layers.
  • Success check: The hooped sandwich feels stable and flat, and the fabric does not draw inward or ripple during the first stitches.
  • If it still fails: Add a light adhesive layer between stabilizer folds to stop shifting, and verify the Shape Flex is fully fused with no loose spots.
• Q: How do I hoop “drum-taut, not stretched” with a 5x7 magnetic embroidery hoop to avoid puckering after un-hooping?
  A: Let the magnets clamp vertically, then smooth gently—do not pull the fabric grain out of shape.
  • Place the bottom metal frame on a gripping hooping mat, then center the folded stabilizer and prepped fabric.
  • Align the top magnetic frame and let it snap closed; do not force or “stretch-tighten” afterward.
  • Tap-test the fabric and adjust by smoothing toward edges rather than tugging.
  • Success check: Tapping produces a dull thump (not ripples), and the fabric grain looks straight (not curved or bowed).
  • If it still fails: Re-hoop and aim slightly looser—over-tight hooping commonly causes puckering once the fabric relaxes.
• Q: How do I prevent bird’s nests on a Brother PR1050X caused by the thread spool gate being left open?
  A: Lock the Brother PR thread spool gate down every time—an open gate can bypass tension discs and create instant nesting.
  • Push the thread spool gate down until it snaps into the locked position.
  • Rethread the affected needle path from the start after any nesting event.
  • Pull a short length of thread through the needle and confirm consistent resistance before restarting.
  • Success check: The first stitches form cleanly without a sudden thread pile under the bobbin area.
  • If it still fails: Stop immediately, remove the nest, and re-check that the thread is actually seated in the tension discs (rethread, don’t “half-fix”).
• Q: How do I verify proper tension on a Brother PR1050X during the first color of a dense tiled design?
  A: Inspect the underside early—correct tension shows a controlled bobbin presence rather than a messy pull-through.
  • Stitch the first color and pause quickly to flip the hoop and inspect the back.
  • Look specifically at satin columns and dense areas for balanced coverage.
  • Adjust only after confirming threading and gate locks are correct.
  • Success check: About 1/3 bobbin thread shows in the center of satin columns rather than dominating the edges.
  • If it still fails: Rethread the needle path and confirm the thread gate is locked; missed tension seating often mimics “bad settings.”
• Q: What is the safe and correct way to remove old thread on a Brother PR1050X to avoid lint in the tension discs (“ghost thread” issues)?
  A: Do not pull thread backward through the top path—clip at the spool and pull the tail out through the needle eye.
  • Clip the upper thread at the spool/cone first.
  • Pull the remaining thread forward and out through the needle eye.
  • Clear loose thread bundles behind the machine head so they cannot snag moving parts.
  • Success check: New threading pulls smoothly with steady resistance (not jerky, not slack).
  • If it still fails: Clean out trapped lint around the thread path areas and rethread carefully; lingering lint can keep tension inconsistent.
• Q: What are the key safety rules when using a 5x7 magnetic hoop on a Brother PR1050X for tiled embroidery?
  A: Treat magnetic hoops like industrial clamps—keep fingers clear and keep them away from pacemakers/sensitive medical devices.
  • Keep fingers out of the gap between rings before bringing the top frame down.
  • Let magnets snap shut without trying to “catch” the closing motion.
  • Keep magnetic hoops away from anyone with a pacemaker or similar device.
  • Success check: The hoop closes cleanly without pinching, and the fabric remains flat with no sudden shifts.
  • If it still fails: Slow the process down and re-align the frame before closing; rushing magnetic closure is a common cause of pinches and mis-hoops.
• Q: If tiled embroidery on a Brother PR1050X keeps causing hoop burn, wrist pain, or inconsistent tile alignment, what is the best upgrade path?
  A: Start with technique fixes, then consider magnetic hoops for tension control, and only then consider a production machine upgrade if volume demands it.
  • Level 1 (Technique): Standardize prep (Shape Flex + stable tear-away layers), slow to 600–700 SPM for safety, and repeat the same hooping tension each tile.
  • Level 2 (Tool): Switch from screw hoops to magnetic hoops to reduce hoop burn and improve repeatable tension without over-torquing.
  • Level 3 (Capacity): Move to a higher-needle-count multi-needle machine when frequent thread changes and batch work become the bottleneck.
  • Success check: Hooping is repeatable without ring marks, and tiles connect consistently across multiple runs.
  • If it still fails: Audit workflow hygiene (thread gate locks, rethreading method, and early underside tension checks) before changing materials again.
