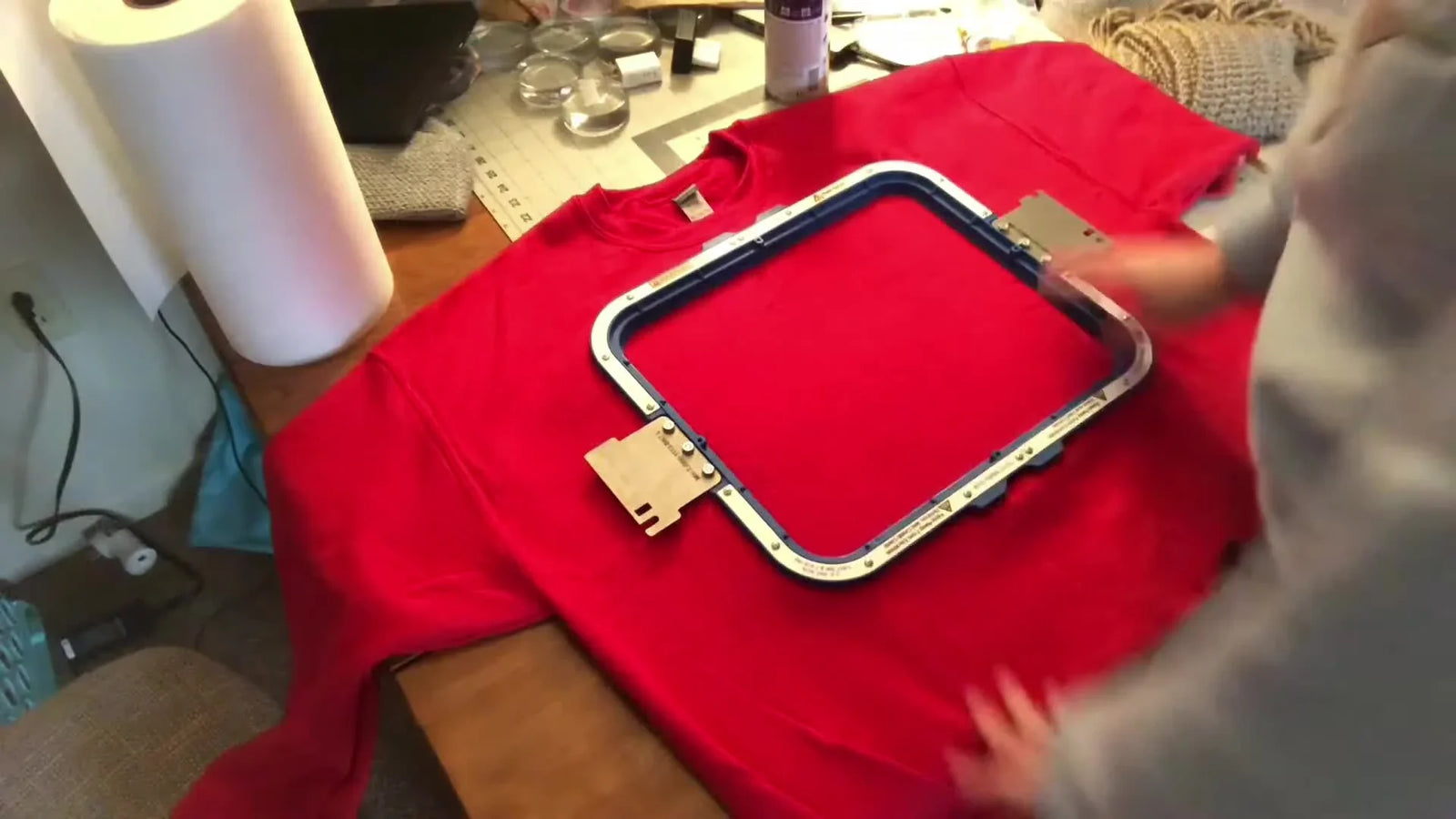

Hoop a Sweatshirt Like a Pro: Mighty Hoop 11x13 on the Ricoma MT-1501 (No Hoop Burn, No Guesswork)

If you’ve ever tried hooping a thick crewneck and ended up with hoop burn, shifting fabric, or that sinking feeling that the design might slam into the frame—take a breath. Sweatshirt embroidery is absolutely repeatable once you lock down three things: stabilizer coverage, magnetic hoop orientation, and a proper physical trace check before the first stitch.

In this project, we’re stitching a large “Sleigh All Day” style chest design on a heavy cotton crewneck using a Ricoma MT-1501 and an 11x13 magnetic hoop. The workflow below is written so you can run it once as a hobbyist—or scale it into a small-batch production routine without re-learning the hard way.

The Calm-Down Primer: Why a Magnetic Hoop on a Sweatshirt Isn’t “Cheating”—It’s Control

A thick cotton sweatshirt fights you in two places: hooping pressure and fabric drag. Traditional screw-tightened hoops can leave marks ("hoop burn") and still fail to clamp evenly when seams, ribbing, or bulk get in the way. A magnetic hoop clamps with consistent force across the entire ring.

When correctly hooped, the surface should feel "tight like a drum skin." When you tap it, it should make a dull, rhythmic thud—not a hollow rattle.

If you’re working with magnetic embroidery hoops, the goal isn’t to crank the fabric tighter and tighter—it’s to clamp evenly so the fabric and stabilizer behave as one solid unit while the needle penetrates.

What you’re aiming for (expected outcome):

• The hooped area is flat.
• The stabilizer is fully captured top-to-bottom.
• The hoop brackets are oriented correctly so the machine arms accept the frame safely.

Warning: Pinch Hazard. Keep fingers clear of the edge when the top ring snaps down. Magnetic hoops close with up to 20 lbs of force instantly. Do not let children handle these frames.

The “Hidden” Prep That Saves Sweatshirts: Cutaway Stabilizer + Temporary Spray Done Right

This project uses Cutaway Stabilizer (2.5 - 3.0 oz recommended) from a roll and a temporary adhesive spray (like Odif 505) to float the stabilizer onto the inside of the sweatshirt before hooping.

The Physics of Why: A sweatshirt is a knit fabric; it stretches. If you use tearaway, the stitches will break the stabilizer, and the shirt will distort. You must use cutaway to provide permanent structural support.

Prep workflow (Sensory & Action)

1. Separate the hoop: Pull the top and bottom rings apart.
2. Measure the backing: Verify your cutaway stabilizer sheet covers the entire hoop area, plus 1 inch on all sides.
3. Apply “Sticky” Factor: Shake your temporary adhesive spray. Hold the can 10 inches away from the stabilizer (not the shirt) and spray a light, even mist. It should feel tacky to the touch, not wet or gummy.
4. Invert the shirt: Turn the sweatshirt inside out.
5. Placement: Smooth the sprayed stabilizer onto the inside front panel. A good rule of thumb is to start 1-2 inches below the collar seam.

Hidden Consumables Checklist: Do you have temporary spray adhesive? Do you have sharp scissors for cutaway? Do you have a new 75/11 ballpoint needle (ideal for knits)?

If you’re searching for the best cutaway stabilizer for sweatshirts, remember this principle: cutaway resists stretch and distortion after stitching, which matters on heavier garments that get worn, washed, and tugged.

Prep Checklist (end-of-prep)

• Hoop is separated into top and bottom rings.
• Cutaway stabilizer sheet is cut wide enough to cover the hoop area + margin.
• Stabilizer felt "tacky" (not wet) after spraying.
• Stabilizer is adhered to the inside of the shirt, centered, about 1-2 inches below the collar.
• Garment is turned right-side out again (if preferred method) or left inside out for easier internal hooping.


The Magnetic Hooping Method on a Crewneck: Brackets Up, Center Dot Aligned, “Drum Tight” Feel

This is the part that makes or breaks your day.

Hooping steps (with checkpoints)

1. Insert Bottom Ring: Slide the bottom ring inside the sweatshirt. It should sit between the back of the shirt and the stabilizer/front panel sandwich.
2. The Critical Orientation: Ensure the brackets (the metal arms) are pointing toward the collar (neck) of the shirt.
   • Reality Check: If the brackets point toward the waist, the hoop will crash into the machine body.
3. Align: Use the hoop’s center alignment dot to match the sweatshirt’s natural center crease.
4. Smooth: Run your hands over the fabric. You want zero wrinkles.
5. The Snap: Place the top ring (warning label up) over the bottom ring. Let it snap efficiently.
6. The Tug Test: Gently pull the fabric edges. It should barely move. Tap the center—listen for that "drum" sound.

If you’re following a mighty hoop 11x13 or similar magnetic workflow, the center dot is your best friend for repeatable placement—especially when you don’t want to mark garments with chalk.

Warning: Orientation is Critical. If the brackets are placed at the bottom instead of the top (collar side), you can damage the machine's pantograph drive system when loading. Always double-check "Brackets to Neck."

Why the “brackets at the top” rule matters (expert insight)

On multi-needle machines, the hoop brackets interface with the pantograph arms. When the bracket orientation is wrong, the hoop can sit incorrectly, reducing clearance and increasing the chance of collision. Even if it “fits,” it may not move safely through the full design boundary.

Setup Checklist (end-of-setup)

• Bottom ring is inside the garment, behind stabilizer.
• CRITICAL: Brackets are oriented toward the collar/top.
• Center dot is aligned to the garment’s center crease.
• Top ring is installed with warning label facing up.
• Hooped area is taut; tapping it produces a drum-like sound.


Loading the Hoop into the Ricoma MT Arms: The Snap-In Moment You Don’t Rush

With the sweatshirt hooped, slide the hoop brackets into the machine arms and snap them into place using the arm clasps.

This is where experienced operators slow down for five seconds. Listen for a sharp "Click" on both the left and right sides. If it feels "mushy," you aren't locked in.

If you’re building a repeatable workflow, using a mighty hoop for ricoma or a generic magnetic frame requires you to treat “fully seated in the arms” as a non-negotiable checkpoint before you touch the screen.

Ricoma MT-1501 Control Panel: Lock the Design, Then Trace Like You Mean It

On the machine screen (Ricoma MT series shown):

1. Lock Screen: Tap the lock icon to enter "Embroidery Status."
2. Visual Anchor: Select Needle 1.
3. The Physical Trace: Press the Trace button (usually the icon with a dashed square).

The Expert Move: While the machine traces the square, visually inspect the distance between the needle bar and the plastic hoop edge. Push Needle 1 down manually (carefully!) at the corners of the trace to prove to yourself it won't hit the frame.

If you’re running a ricoma mt 1501 embroidery machine, this trace habit is the cheapest form of insurance you’ll ever buy.

Expected outcomes during tracing

• The hoop travels the perimeter without obstruction.
• You can visually confirm at least 5mm clearance at the top edge and corners.
• No "grinding" sounds from the motors.


The “No Color Names” Problem: Programming Color Steps on the Ricoma Screen Without Guessing

Commercial machines often show "Step 1, Step 2" rather than "Red, Green."

The "read-aloud" ritual

1. Look at your printed run sheet or software (e.g., Embrilliance).
2. Voice it: "Step 1 is the Sleigh (Red). Needle 4 is Red." -> Program the screen.
3. "Step 2 is the Text (Green). Needle 5 is Green." -> Program the screen.

If you’re new to how to use mighty hoop setups on a multi-needle machine, remember: the hooping is only half the battle—wrong needle assignment can ruin the clean look just as fast as bad stabilization.

Stitching the Sweatshirt at 650 RPM: When to Let It Run, When to Hover

The video suggests running at 650 RPM (Stitches Per Minute). This is a "Beginner Sweet Spot."

• < 500 RPM: Too slow, might cause tension issues.
• 600-700 RPM: Perfect for heavy sweatshirts. It allows time for the thread to recover tension between penetrations.
• > 850 RPM: Risk of thread breaks on thick seams.

Sensory Check: The machine should sound rhythmic ("Chug-chug-chug"). If you hear high-pitched slapping or grinding, hit STOP immediately.

Metallic Thread Moments (Silver/Gold): Keep Expectations Realistic and Clean

The design features metallic silver/gold elements. Metallic thread is flat and rough; it creates friction.

Expert Tips for Metallics:

1. Slow Down: Drop speed to 500 RPM for metallic sections.
2. Needle Up: Use a larger eye needle (Size 90/14 or a specialized "Metallic" needle) to reduce friction.
3. Watch the Flow: If you see the thread shredding (fuzzy bits), check if the spool is unwinding smoothly.


Finishing Like a Seller, Not a Hobbyist: Trim Jump Threads, Then Cut Backing with a Margin

After stitching:

1. Remove the garment.
2. Unhoop.
3. Front: Snip the "jump threads" (lines connecting letters) close to the fabric.
4. Back: Turn inside out. Use sharp scissors or Duckbill scissors to trim the cutaway stabilizer.
5. The Rule: Leave about 1/2 inch (1 cm) of stabilizer around the design.

The video notes that hoop marks will fade with steam or a wash.

Why leaving a margin matters (expert insight)

Do not act as a surgeon and cut the stabilizer flush with the stitches! The stabilizer is the "foundation" of your house. If you cut it away completely, the heavy stitches will pull on the soft sweatshirt fabric, causing puckering after the first wash. That 1/2 inch margin keeps the design flat forever.

Placement That Looks Right on Real Bodies: The “Print It Out” Habit for Chest Designs

Before you even hoop, print a 1:1 paper copy of your design. Tape it to the sweatshirt and verify the height.

• Standard Rule: Top of design is usually 3-4 inches down from the collar seam for adult sizes.
• Reality: Designs often look different when worn. The paper test prevents the "Belly Badge" error (placing a chest logo too low).

Watch out: If you’re unsure how to set up a different hoop size, don’t guess on the machine—confirm the hoop selection matches the physical frame you are holding.

Decision Tree: Sweatshirt Stabilizer Choice (Cutaway vs Tearaway vs No-Show Poly Mesh)

Use this logic to prevent "Bulletproof Vest" syndrome (stiff embroidery) or "Swiss Cheese" syndrome (holes in shirt).

Troubleshooting the Two Scariest Failures: Hoop Orientation + Design Clearance

Here are the exact problems called out in the tutorial, translated into a shop-floor diagnostic format.

The Upgrade Path When You’re Hooping All Day: Faster Clamping, Cleaner Results, Less Wrist Pain

If you’re doing one sweatshirt for a gift, standard hoops are fine. If you’re doing ten for a team, the bottleneck is your hands.

Here is the Commercial Reality Check:

1. The Pain Point: Hooping thick sweatshirts manually requires force. Wrist fatigue sets in after 5 shirts. Hoop burn ruins 1 in 20 shirts.
2. The Upgrade (Level 1): Switch to Magnetic Hoops (compatible with your specific machine). They self-adjust to fabric thickness, eliminating the need to loosen/tighten screws.
3. The Upgrade (Level 2): If you are consistently running orders of 20+ pieces, the SEWTECH Multi-Needle Machines combined with industrial magnetic frames shift you from "crafting" to "manufacturing." The ability to prep the next hoop while the machine stitches is where profit is made.

If you’re comparing options like mighty hoops for ricoma or building out a ricoma mighty hoop starter kit, prioritize compatibility (bracket style and arm fit). A generic Sewtech magnetic hoop often offers the same magnetic clamping efficiency at a price point that makes sense for growing shops.

Warning: Pacemaker Safety. Magnetic hoops generally contain strong Neodymium magnets. Individuals with pacemakers or ICDs should maintain a safe distance (usually 6-12 inches) from these devices. Consult your medical device manual.

Operation Checklist (end-of-operation)

• Hoop seated with a "Click" (Left & Right).
• Design traced; needle bar checked for clearance.
• Speed set to "Sweet Spot" (600-700 SPM).
• Color sequence verified verbally.
• Jump threads trimed; Backing trimmed with 1/2" margin.
• Final check: Is the design straight when worn?

FAQ

• Q: How do I prevent hoop burn when embroidering a thick cotton crewneck sweatshirt with a magnetic hoop?
  A: Prevent hoop burn by clamping evenly (not over-tightening) and hooping on a flat, wrinkle-free area. This is common—most marks relax after steam or a wash.
  • Use a magnetic hoop to apply consistent pressure across the ring instead of cranking a screw hoop tight.
  • Smooth the fabric before snapping the top ring on, and avoid trapping bulky seams/ribbing under the ring edge.
  • Steam the ring mark after stitching to relax the fibers.
  • Success check: The hooped area looks flat and feels “drum tight” without a crushed/shiny ring before stitching.
  • If it still fails: Re-hoop with the stabilizer fully captured and reduce bulk under the hoop edge (move slightly away from seams).
• Q: What stabilizer should be used for heavy cotton crewneck sweatshirt embroidery to stop stretching and puckering?
  A: Use 2.5–3.0 oz cutaway stabilizer for heavy cotton crewnecks to permanently control knit stretch.
  • Cut the stabilizer to cover the entire hoop area plus about 1 inch on all sides.
  • Spray a light mist of temporary adhesive onto the stabilizer (not the sweatshirt) and press it inside the sweatshirt before hooping.
  • Use a new 75/11 ballpoint needle as a safe starting point for knits (confirm with the machine manual if unsure).
  • Success check: After hooping, the fabric + stabilizer behave like one unit (no shifting when you do a gentle tug test).
  • If it still fails: Verify the stabilizer is truly cutaway (not tearaway) and that coverage extends beyond the full stitch field.
• Q: How do I orient multi-needle magnetic hoop brackets on a Ricoma MT-1501 so the hoop does not crash or jam in the arms?
  A: On a Ricoma MT-1501, always load the magnetic hoop with the brackets/metal arms pointing toward the collar (top) of the sweatshirt.
  • Insert the bottom ring inside the sweatshirt, behind the stabilizer/front panel sandwich.
  • Rotate the hoop so the brackets point to the neck/collar before snapping the top ring on.
  • Snap the brackets into the MT arms and slow down for the “click” on both left and right.
  • Success check: Both sides seat with a sharp “click,” and the hoop moves freely by hand during positioning without binding.
  • If it still fails: Remove the hoop and rotate 180°—incorrect bracket orientation is the most common cause of jamming/collision risk.
• Q: How do I use the Ricoma MT-1501 Trace function to confirm design clearance so the needle will not hit an 11x13 magnetic hoop?
  A: Trace the design boundary and physically verify clearance at corners before the first stitch—this is the cheapest insurance.
  • On the MT screen, enter Embroidery Status, select Needle 1, then press Trace (dashed square icon).
  • Watch the perimeter travel and inspect the distance between the needle bar path and the hoop edge.
  • Carefully push Needle 1 down manually at the trace corners to confirm it cannot strike the plastic frame.
  • Success check: The hoop traces cleanly with no obstruction and you can visually confirm at least ~5 mm clearance at edges/corners.
  • If it still fails: Re-center the design on the screen and confirm the selected hoop size on the machine matches the physical hoop in the arms.
• Q: How do I seat a magnetic hoop correctly in Ricoma MT series arms if the hoop feels “mushy” and does not lock in?
  A: Treat a positive lock-in as non-negotiable—if the hoop does not “click,” do not start stitching.
  • Slide the hoop brackets fully into the machine arms before closing the arm clasps.
  • Press until you hear/feel a sharp “click” on both the left and right sides.
  • Stop and re-seat immediately if one side locks and the other side feels soft or half-engaged.
  • Success check: Both sides produce a crisp “click,” and the hoop cannot be pulled out without releasing the clasps.
  • If it still fails: Check bracket orientation (must face the collar) and inspect for fabric/stabilizer trapped in the bracket interface.
• Q: What is a safe embroidery speed on a Ricoma MT-1501 for thick sweatshirt embroidery, and when should the speed be reduced?
  A: A safe starting point for thick sweatshirts is 600–700 SPM (the blog example uses 650 RPM), and metallic sections often need slower speed.
  • Run 600–700 SPM for most sweatshirt stitching to reduce stress and improve control.
  • Drop to around 500 SPM for metallic silver/gold elements to reduce friction and shredding.
  • Listen and stop immediately if the machine sound changes to slapping/grinding instead of a steady “chug-chug.”
  • Success check: Stitching sounds rhythmic and stable, with no sudden pitch spikes or harsh impacts.
  • If it still fails: Pause and check thread path/spool unwind, then confirm needle choice (often a larger-eye needle helps metallic thread).
• Q: What safety precautions should be followed when using strong magnetic embroidery hoops on thick garments?
  A: Keep fingers clear during closure and keep strong magnets away from pacemakers/ICDs—magnetic hoops can snap shut instantly with high force.
  • Keep hands off the ring edge when placing the top ring; let it snap down cleanly.
  • Do not allow children to handle magnetic hoops during hooping/unhooping.
  • Maintain a safe distance (commonly 6–12 inches) from pacemakers/ICDs and follow the medical device guidance.
  • Success check: The top ring closes without pinching incidents and the hoop is handled in a controlled, deliberate motion.
  • If it still fails: Switch to a slower, two-hand placement method and reposition the garment so you can see the ring edges clearly before release.
• Q: When should an embroidery shop upgrade from standard screw hoops to magnetic hoops or a SEWTECH multi-needle machine for sweatshirt orders?
  A: Upgrade when hooping becomes the bottleneck (wrist fatigue, inconsistent clamping, or frequent hoop burn) and order volume is rising.
  • Level 1 (Technique): Standardize hooping—cutaway coverage + spray tack + bracket-to-collar orientation + mandatory trace check.
  • Level 2 (Tool): Move to magnetic hoops to clamp thick sweatshirts faster with more consistent pressure and less hand strain.
  • Level 3 (Capacity): Consider a SEWTECH multi-needle setup when running 20+ pieces regularly and you need to prep the next hoop while the machine stitches.
  • Success check: Hooping time per garment drops and re-hoops/hoop marks decrease noticeably across a batch.
  • If it still fails: Audit the workflow checkpoints (seat “click,” trace clearance, stabilizer size) before assuming the machine is the limiting factor.
