Hoop a Foam Trucker Hat on the Brother PR680W Without the Headache: The Taut-Sides Method That Stops Shifting

If you’ve ever tried to hoop a foam trucker hat and felt your stomach drop the moment the hat twists off-center, you’re not alone. Hats are unforgiving: curved surfaces, springy foam, slippery mesh, and a cap frame that will happily magnify tiny alignment errors into a crooked logo.

This post rebuilds the exact workflow shown in the video on a Brother PR680W cap setup—then adds the “old shop” details that keep you out of trouble when you’re doing this for paying customers.

Calm First: The Brother PR680W Cap Frame Isn’t Hard—It’s Just Unforgiving

The video uses a Brother PR680W (the host says “PWR 680”) with a standard hat station (cap jig), cap frame, and cap driver. The goal is simple: get the foam front panel flat and locked so the design stitches where you think it will.

If you’re new to hats, here’s the mindset that saves projects: you’re not “hooping fabric,” you’re building a stable platform. Every step is about controlling three things—centerline, tension, and clearance.

One quick note for searchers: if you’re running a brother multi needle embroidery machine, the principles below still apply even if your station looks a little different. The physics of foam and tension remains the same.

The “Hidden Prep” Before You Touch the Hat Station (Cap Jig)

The video jumps right into mounting the frame, but in production, I always do a 60-second prep. It prevents 80% of the re-hoops.

What you need (exactly as shown):

• Hat station (cap jig)
• Cap frame (mechanical/screw-type)
• Consumable: Medium tearaway stabilizer (Pre-cut is best)
• Consumable: Temporary adhesive spray (Optional, but helps beginners)
• Foam trucker hat (foam front + mesh sides)
• Household binder clips (pink/white in the video)
• Consumable: High-contrast embroidery thread

Why this prep matters (expert insight): Foam and mesh behave differently under tension. Foam “springs back,” mesh “creeps.” If you don’t control the sweatband and side tension early, the hat can look centered on the station but drift once the driver starts moving.

Warning: Keep fingers clear of clamps, brackets, and spring-loaded driver latches. Cap frames can snap shut fast with significant force, and a pinch at the cross bracket or driver brackets can cause injury.

Prep Checklist (do this before mounting anything)

• Mechanical Check: Confirm the cap frame hardware moves smoothly (no sticking clamps).
• Stabilizer Prep: Tear a stabilizer piece larger than the design area. Pro Tip: A light mist of adhesive spray helps it stick to the frame teeth.
• Hat Prep: Open the back snaps completely so you can flip the sweatband fully out of the stitch zone.
• Tool Stage: Keep binder clips within reach—once you start tensioning the sides, you don’t want to let go to hunt for tools.


Lock the Cap Hoop Into the Hooping Station for Brother Embroidery Machine—Listen for the “Pop”

In the video, the host mounts the cap frame onto the hat station by aligning the side clamps of the frame with the receiving clamps on the station, then pushing down until it audibly pops into place.

That “pop” is your first checkpoint.

Checkpoint: Auditory: You hear a sharp click or pop. Tactile: The frame is rigid and does not rock.

Expected outcome: The frame is seated and won’t rock or lift when you start pulling the hat.

If you’re specifically working with a hooping station for brother embroidery machine, this is the moment to slow down—most crooked hats start with a frame that wasn’t fully seated.

Medium Tearaway Stabilizer on Cap Frame Teeth: Don’t Panic When It Slips

The host places medium tearaway stabilizer over the curved surface of the hoop and presses it into the small teeth on the hoop to grip it temporarily. She also calls out the reality: sometimes it sticks, sometimes it doesn’t.

Checkpoint: Stabilizer is positioned to cover the front embroidery area completely.

Expected outcome: Even if it falls, you can keep it in place securely while sliding the hat on.

Expert “why” (material behavior): Tearaway is stiff enough to support stitching on foam, but it doesn’t always “bite” into cap-frame teeth because the curve fights you. In practice, you’re using the teeth as a third hand—not as a permanent clamp. If it keeps falling, use a tiny piece of masking tape on the very bottom edge (outside the stitch zone).

Flip the Sweatband Out Like You Mean It (So You Don’t Stitch It Shut)

In the video, the host undoes the back snaps and flips the inner sweatband completely outward, pulling it back out of the way.

This is one of those steps that looks minor—until you forget it once.

Checkpoint: Visual: The sweatband is fully outside the hat structure. Look inside the hat to verify.

Expected outcome: No chance of stitching through the sweatband during the run (which ruins the hat instantly).

Pro tip from the comment vibe: Several viewers mentioned it was their first time doing foam hats. If that’s you, treat sweatband control as non-negotiable—new hat embroiderers most often “learn the hard way” right here.

The Cross Bracket Clamp: Secure the Brim and Don’t Let the Hat Walk

The host slides the hat onto the frame, then slides the bill under the metal cross bracket (strap). She pulls the bracket tight and hooks the latch onto the bottom hook of the station, clamping it down firmly.

She also says to hold it secure at all times.

Checkpoint: Auditory: You hear the latch click. Tactile: The brim feels immovable under the bracket.

Expected outcome: The brim acts as an anchor and cannot lift while you tension the sides.

Expert “why” (physics of hooping & tension): When you pull the mesh sides down, you’re applying torque to the hat. If the brim isn’t locked, the hat rotates on the frame and your center seam drifts. Locking the brim first creates the necessary leverage point.

Warning: Never run a trace or stitchout if the cap frame hardware is loose. A shifting cap frame can cause a violent collision with the needle bar area or metal frame, potentially breaking the machine.

Center the Foam Seam to the Red Line on the Hat Station—This Is the Money Step

In the video, the host physically tugs and rotates the hat until the central vertical seam aligns with the red centerline marker on the metal bill plate of the jig.

Checkpoint: Visual: The hat seam and the station's red line form one continuous straight line.

Expected outcome: Your design center will land where you expect once you use the laser on the machine.

If you’re using a brother pr 680w, this seam-to-red-line alignment is the fastest way to get “close enough” (mechanical zero) before you ever touch the laser.

The Binder-Clip Trick: Pull the Mesh Sides Down Until There’s Zero “Play”

This is the signature technique in the video: the host pulls the mesh sides firmly downward to remove slack, then uses household binder clips on the bottom edge of the frame to hold the fabric taut. She works left to right and keeps re-checking that the center alignment didn’t shift.

Checkpoint: Tactile: After clipping, the hat front feels tight like a drum skin—no visible slack, no “play” when you poke the foam.

Expected outcome: A flatter foam front panel and less chance of the design shifting mid-run (registration errors).

Watch out (common beginner mistake): People pull one side hard, clip it, then discover the seam moved. The host explicitly warns to make sure alignment doesn’t shift while tugging.

Setup Checklist (end this section with a final “center + tension” audit)

• Brim Lock: Brim is locked under the cross bracket; latch is fully seated.
• Alignment: Foam seam is still strictly aligned to the station’s red center mark.
• Tension: Mesh sides are pulled down evenly; front panel is taught.
• Security: Binder clips are secure and not distorting/crushing the foam front.
• Backing: Stabilizer is smooth and covering the entire design area behind the front panel.


Remove the Cap Frame From the Station Without Losing Tension

The host removes the hooped hat from the station by pushing the station clamps out and lifting the frame off. She shows the result: a “perfectly hooped hat with no play,” flat and tight.

Checkpoint: When you lift it, nothing relaxes or shifts.

Expected outcome: The hat stays locked in the same position you set on the station.

Efficiency note (commercial scalability): If you’re doing hats for customers (and several comments hint at that—people asking for hats done), consistency matters more than speed at first. Once you can repeat this hoop reliably, then you start timing yourself and batching.

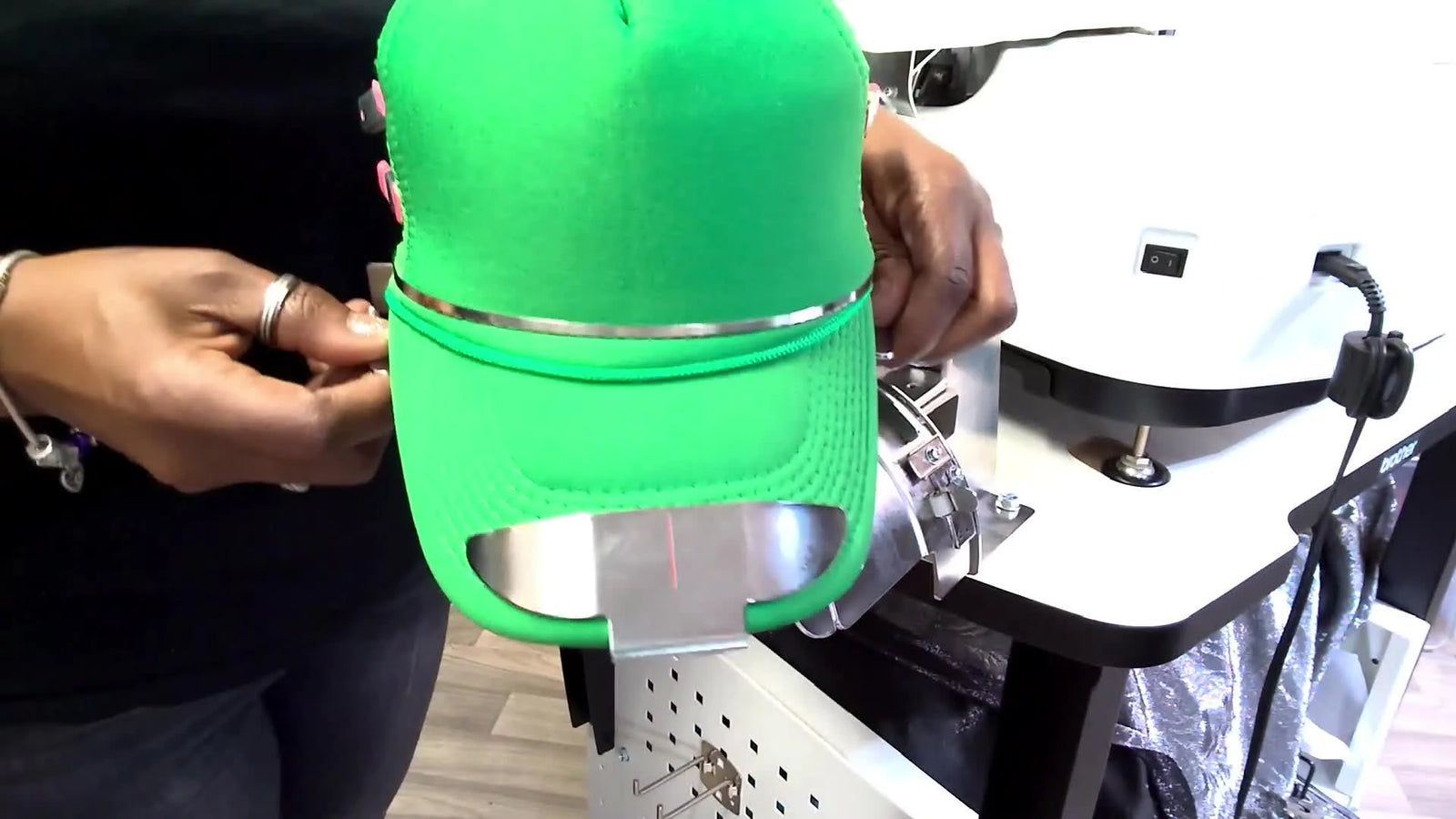

Load the Hat Onto the Brother PR680W Cap Driver: The 90° Rotate That Prevents Snags

In the video, the host rotates the hat 90 degrees to slide the brim under the needle plate area first, then rotates back to align the frame’s connecting bar with the driver. She snaps it into the spring-loaded brackets.

She also mentions she doesn’t use the front guide and prefers pushing it back and down (personal preference).

Checkpoint: Auditory/Tactile: The frame clicks into the driver brackets and the driver arm sits strictly horizontal, not angled.

Expected outcome: The hat clears the needle plates and the driver can move freely on the X/Y axis.

If you’re shopping or comparing brother pr680w 6 needle embroidery machine workflows, this loading motion is the critical skill to practice—awkward loading is how perfectly hooped hats get bumped off-center.

Laser Crosshair Centering on the Hat Seam: Confirm What You Think You Did

The host uses the machine’s red laser crosshair to verify center alignment with the hat seam.

Checkpoint: Visual: Laser center crosshair aligns perfectly with the seam line on the foam front.

Expected outcome: Your design center is truly centered on the hat (Visual Center), verifying your mechanical centering.

Expert “why” (repeatability): Stations get you mechanically centered; lasers get you visually centered. When you’re doing logos that customers will stare at, you want both.

Run a Design Trace on the Cap Frame—Your Best Collision Insurance

The video shows tracing the design boundaries to ensure the needle bar won’t hit the metal hoop or the back machine arm.

The host notes the hat may make a clacking sound hitting the back, and she pushes the back guide down instead of clamping it; she says slight clacking is acceptable if it doesn’t affect the design.

Checkpoint: Trace completes without the presser foot hitting the metal frame or the hat binding hard against the machine arm.

Expected outcome: You can stitch with confidence that the design stays within the safe field.

Troubleshooting tie-in: If you hear clacking, don’t ignore it—verify it’s not changing the hat position. If the noise is rhythmic and loud, stop immediately.

Stitch the Multi-Color Logo, Then Remove the Hat Safely From the Driver

The host starts embroidery, selects the colors needed on the machine, and stitches the design. After completion, she removes the hat by pressing the two prongs in the back of the hat hoop, pulling it off, rotating to clear the needle plate, and gently removing it.

Speed Tip (Sweet Spot): For foam hats on these machines, start between 600-700 SPM. Going full speed (1000 SPM) on foam increases the risk of thread breaks and needle deflection.

Checkpoint: Removal is smooth—no yanking.

Expected outcome: The hat comes off without bending the frame or stressing the brim.

If you’re using standard brother pr680w hoops, treat removal like loading: slow is smooth, smooth is fast.

Finishing: Release the Cross Bracket, Remove Clips, Tear Away Stabilizer, Clean Loose Threads

The host unhooks the clamp, releases the bracket from the brim, removes the binder clips on both sides, releases the hat from the hoop, then tears out the medium tearaway stabilizer from inside the hat. She also recommends cleaning up any loose stitches inside.

Checkpoint: Stabilizer tears away cleanly and the inside is tidy.

Expected outcome: A wearable hat with a clean interior and a crisp front logo.

Operation Checklist (the “done right” sign-off)

• Safety: Design stitched without frame contact or needle-plate interference.
• Unloading: Hat removed from driver by releasing prongs and rotating out gently.
• De-hooping: Cross bracket released and binder clips removed without pulling the foam.
• Clean up: Tearaway stabilizer removed from inside; loose threads trimmed.
• Quality Control: Logo is centered on seam, and font panel remains flat (no puckering).

Decision Tree: Choose Stabilizer and Clamping Strategy for Foam Trucker Hats

Use this quick decision tree to avoid the two most common hat failures: shifting and puckering.

1) Is the hat a foam-front trucker with mesh sides (like the video)?

• Yes → Start with medium tearaway stabilizer (provides structure but tears clean) and plan to tension the mesh sides.
• No (Unstructured Daddy Hat/Cotton) → You may need Cutaway stabilizer for stability.

2) Does the stabilizer stay on the cap-frame teeth while you mount the hat?

• Yes → Great—proceed.
• No → Use a light mist of temporary embroidery spray adhesive or hold it manually (the video’s “don’t panic” fix).

3) After centering to the red line, does the hat still have “play” when you touch the front panel?

• Yes → MANDATORY: Use binder clips to pull mesh sides down and lock tension (video method).
• No → Proceed, but still re-check center after any tugging.

4) During trace, does the hat clack the back of the machine?

• Yes → Confirm it’s not shifting the design position. If severe, re-hoop to pull the hat lower/tipping the hat back.
• No → Stitch out.

Two Panic Moments, Two Fixes (Straight From the Video)

1) Stabilizer falling off the hoop teeth

• Symptom: Stabilizer won’t stay put on the cap frame teeth.
• Likely cause: Teeth are dull or not gripping the paper well on the curve.
• Fix shown: Don’t panic—keep it positioned so it covers the design area and let the hat hold it once mounted. Long term fix: Use spray adhesive or masking tape.

2) Hat hitting the back of the machine during trace

• Symptom: Rhythmic clacking sound during trace.
• Likely cause: Deep hat profile or the hat guide approach.
• Fix shown: The host pushes the back guide down instead of clamping it; slight clacking can be acceptable if it doesn’t affect the design alignment.

The Upgrade Path: When Binder Clips Aren’t Enough (Speed, Consistency, and Less Hand Strain)

Binder clips are a clever, low-cost way to add side tension—especially when you’re learning. But if you’re doing hats weekly (or you’re the person in the comments saying “I need some hats done”), your bottleneck becomes repeatability and fatigue.

Here’s the practical “tool upgrade” logic I recommend in real shops:

• Scenario trigger: You’re hooping 20+ hats at a time, your wrists are aching from clamping, or you’re getting "hoop burn" marks on sensitive hat brims.
• Judgment standard: If you spend more time fighting the clamp than the machine spends stitching, you are losing profit.
• Optional upgrades (choose what fits your setup):
  • Level 1 (Tools): Magnetic hoops/frames (compatible with your machine) eliminate the need for binder clips and fighting with screws. They clamp instantly and reduce hoop burn.
  • Level 2 (Consumables): Pairing the right embroidery thread (polyester for durability) and dedicated cap stabilizer/backing helps reduce thread breaks.
  • Level 3 (Machine): If you are scaling beyond hobby volume, upgrading to a dedicated SEWTECH multi-needle embroidery machine setup can drastically increase throughput.

Warning: If you upgrade to magnetic hoops/frames, treat them with respect. The magnets are industrial strength. Pacemaker Safety: Keep magnets away from medical implants. Pinch Hazard: Avoid getting fingers caught between the magnetic ring and the frame.

One Last “Old Pro” Habit: Photograph Your Centering Before You Stitch

This isn’t in the video, but it’s a shop habit that saves arguments: once the laser is centered on the seam and the trace is clean, take a quick photo. If a customer later says the logo is “off,” you have a record of alignment before the needle dropped.

When you can hoop a foam trucker hat so it’s flat, centered, and trace-safe every time, you’ve crossed the line from “trying hats” to “selling hats.” And that’s exactly what this workflow is built for.

FAQ

• Q: How do I properly seat a Brother PR680W cap frame into the hat station (cap jig) so the frame does not rock and the hat does not stitch crooked?
  A: Fully lock the Brother PR680W cap frame into the hat station until an audible “pop/click” confirms it is seated.
  • Align the cap frame side clamps with the receiving clamps on the hat station.
  • Push down firmly until the frame drops in and locks.
  • Wiggle-test the frame before touching the hat.
  • Success check: A sharp pop/click is heard and the cap frame feels rigid with zero rocking.
  • If it still fails… remove the frame and re-seat it; do not continue if the hardware feels sticky or uneven.
• Q: What supplies should be staged before hooping a foam trucker hat on a Brother PR680W cap frame to reduce re-hooping?
  A: Stage stabilizer, clips, and visibility thread before mounting anything, because foam/mesh tension changes fast once hooping starts.
  • Prepare medium tearaway stabilizer larger than the design area (pre-cut often helps).
  • Keep binder clips within reach so side tension can be locked immediately.
  • Use high-contrast embroidery thread for clearer placement and checks.
  • Success check: Everything needed is within arm’s reach and the sweatband/back snaps can be opened fully without fighting the setup.
  • If it still fails… add a light mist of temporary adhesive spray to help stabilizer handling during mounting (follow product directions).
• Q: How do I stop medium tearaway stabilizer from slipping off Brother PR680W cap frame teeth during foam trucker hat hooping?
  A: Do not panic—position the tearaway to cover the design area and let the hat mounting hold it; the teeth are not always a permanent grip on curves.
  • Press the stabilizer into the cap frame teeth to “park” it temporarily.
  • Keep the stabilizer covering the full front embroidery zone while sliding the hat on.
  • Use a tiny piece of masking tape only on the very bottom edge outside the stitch zone if it keeps falling.
  • Success check: Stabilizer fully covers the intended stitch area and stays in place once the hat is mounted.
  • If it still fails… use a light mist of temporary adhesive spray to tack the stabilizer (avoid overspray near the stitch field).
• Q: How do I prevent stitching the sweatband shut when embroidering a foam trucker hat on a Brother PR680W cap frame?
  A: Flip the sweatband completely outward before stitching so it stays outside the stitch zone.
  • Open the back snaps fully to allow the sweatband to move freely.
  • Pull and flip the sweatband all the way out of the hat structure.
  • Look inside the hat before loading onto the driver.
  • Success check: Visual confirmation inside the hat shows the sweatband is fully outside the embroidery area.
  • If it still fails… stop and re-hoop; stitching through the sweatband is an instant hat loss for most jobs.
• Q: How do I keep a foam trucker hat centered on the Brother PR680W cap station red line when using the binder-clip method on mesh sides?
  A: Lock the brim first, then tension both sides evenly and re-check centerline after every pull.
  • Clamp the brim under the cross bracket and latch it so the bill cannot lift.
  • Align the hat’s center seam exactly to the station red centerline before clipping.
  • Pull mesh sides down evenly left-to-right and secure with binder clips on the bottom edge.
  • Success check: The seam and the red line form one straight continuous line, and the front panel feels tight with no “play.”
  • If it still fails… remove clips and reset tension—pulling one side too hard commonly drifts the seam off-center.
• Q: What is the safest way to load a hooped foam trucker hat onto the Brother PR680W cap driver to avoid snagging and shifting the design?
  A: Use the 90° rotate loading motion and confirm the cap frame clicks into the driver brackets with the driver arm level.
  • Rotate the hat 90° to slide the brim under the needle plate area first.
  • Rotate back to align the frame connecting bar with the cap driver.
  • Snap the frame into the spring-loaded brackets without forcing.
  • Success check: A clear click is felt/heard and the driver arm sits strictly horizontal (not angled).
  • If it still fails… unload and reload slowly—bumping during loading is a common way a perfectly hooped hat gets shifted.
• Q: What should I do if a Brother PR680W cap setup makes a rhythmic clacking sound during design trace on a foam trucker hat?
  A: Stop and confirm the trace is not causing contact that shifts the hat; slight contact may happen, but hard binding is not acceptable.
  • Run a design trace before stitching every time to check boundaries and clearance.
  • Listen and watch during trace for presser-foot/frame contact or hard binding at the back arm.
  • Adjust the hat position (often re-hooping to pull the hat lower or tip it back) if clacking is severe.
  • Success check: Trace completes without the presser foot hitting the metal frame and without hard binding that changes hat position.
  • If it still fails… do not stitch; re-hoop and re-trace until the motion is clear and stable.
• Q: When should foam trucker hat hooping on a Brother PR680W move from binder clips to magnetic hoops or a multi-needle upgrade for speed and consistency?
  A: Upgrade when repeatability and operator fatigue become the bottleneck—use a simple level-up path instead of forcing more clamp tension.
  • Level 1 (Technique): Standardize brim lock + seam-to-red-line alignment + even side tension checks before every run.
  • Level 2 (Tool): Switch to magnetic hoops/frames to reduce fighting screws/clamps and improve consistency (handle magnets carefully).
  • Level 3 (Capacity): Consider a SEWTECH multi-needle embroidery machine setup when volume demands higher throughput.
  • Success check: Time spent hooping is predictable and hats stitch centered with fewer re-hoops across a batch.
  • If it still fails… audit the process step-by-step (seating “pop,” brim lock, seam alignment, laser verify, trace) before spending on upgrades.
