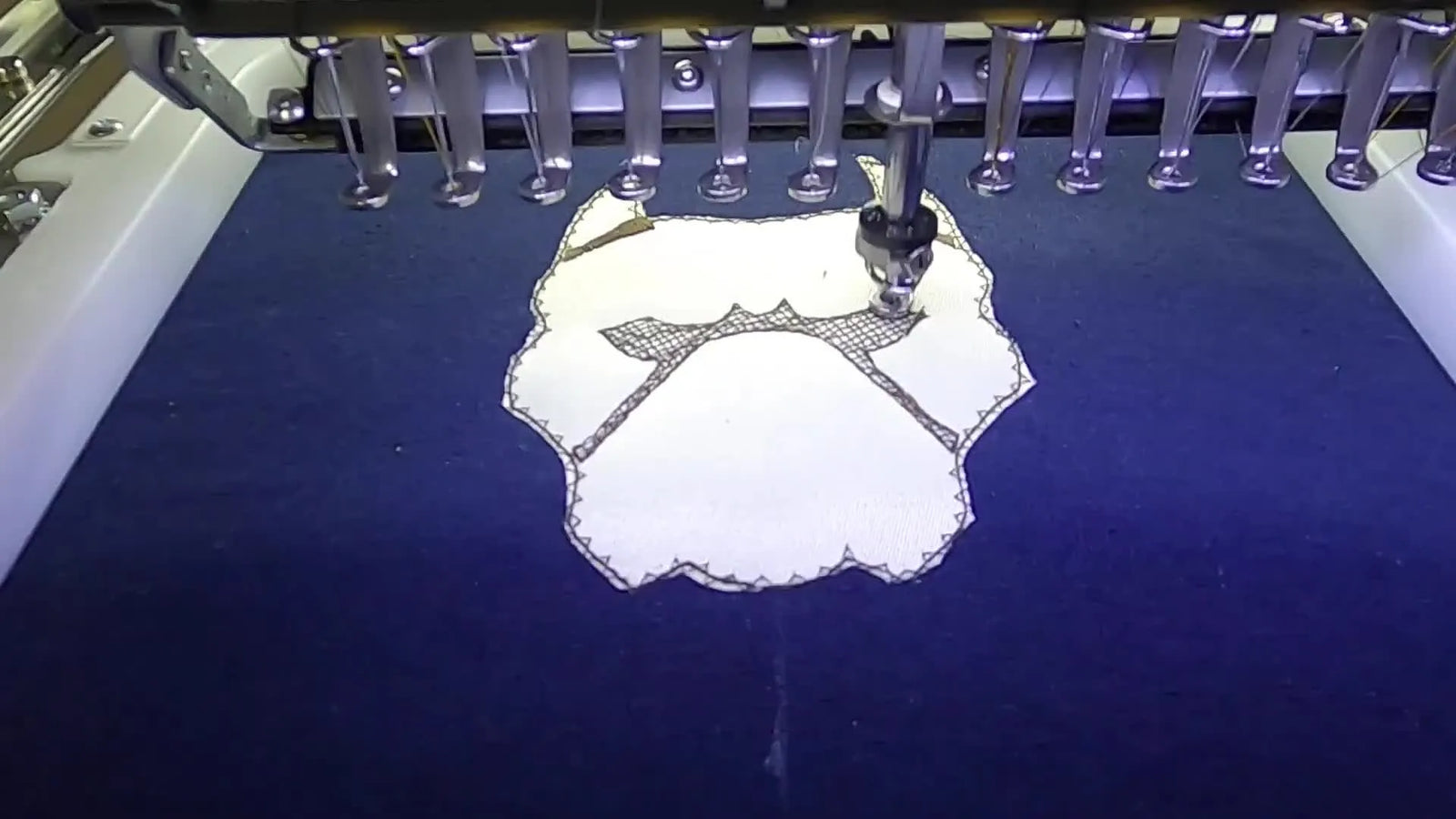

Hoodie Appliqué on a Ricoma Multi-Needle: The Magnetic Hoop Workflow That Saves Time (and Presser Feet)

Mastering Hoodie Appliqué: The Zero-Fail Guide for Production Success

Hoodie appliqué is widely considered a "high-stakes" stitch-out in the embroidery world. You are dealing with thick seams, stretchy knit fabric, bulky layers, and a relatively expensive garment. One wrong move with the scissors or a hoop slip doesn't just waste thread—it ruins a piece of inventory that costs $20 to $50.

If you feel a spike of anxiety before clicking "Start" on a hoodie project, that is a rational response. However, we are going to replace that anxiety with a rigid, empirically tested workflow.

The good news is that appliqué is built around a controlled rhythm—stitch, stop, intervene, stitch again. By mastering the mechanical variables (hooping pressure and stitch density) and the human variables (trimming and prep), you eliminate the guesswork.

The 5-Stop Appliqué Rhythm: A Mental Map for Success

Successful appliqué isn't just about pressing a button; it is a collaboration between you and the machine. The video demonstrates a specific sequence on a Ricoma multi-needle machine, but the physics apply whether you are running a single-needle home unit or a 15-needle commercial beast.

Here is the "Production Rhythm" you need to internalize:

1. Placement Stitch: A low-density outline that maps exactly where the fabric goes.
2. Cut Stitch (The Anchor): A tight run stitch (digitized at a 1.00 mm stitch length) that locks the fabric fibers down.
3. The Trim (The Human Element): The machine stops. You remove the hoop (carefully) and cut the excess.
4. Tack Down (The Stabilizer): A zigzag or loose column that bonds the raw edge to the hoodie.
5. Final Satin (The Finish): The dense 4.00 mm column that hides the edge and creates the 3D look.

That "Stop-at-Color-Change" function is your safety net. Every stop is a checkpoint. If the fabric bubbles at Step 2, you fix it before Step 5 makes it permanent.

Why a Magnetic Hoop on a Hoodie Feels Like Cheating (The Physics of Stability)

A hoodie is mechanically difficult to hoop. It is thick, springy (fleece), and wants to shift under the needle. Traditional plastic tubular hoops rely on friction and screw tension. To hold a heavy hoodie, you have to tighten that screw until your fingers hurt, and you often still end up with "hoop burn"—permanent rings crushed into the fabric nap.

In the demonstration, the hoodie is held in a Mighty Hoop 5.5 x 5.5 magnetic hoop. The advantage here is not just speed; it is consistent vertical clamping pressure.

When you drop the top ring of a magnetic hoop, it snaps down with uniform force across the entire square. There is no pulling or stretching the knit fabric to force it into an inner ring.

The Sensory Check: When hooping with magnets, listen for the sharp snap. Once engaged, try to pull the excess hoodie fabric gently away from the center. It should feel solid, like a drum skin, but the fabric grain should look relaxed, not distorted.

If you are building a workflow around a magnetic embroidery hoop, treat it as a consistency tool first and a speed tool second. The magnet ensures that valid operational tension is applied without crushing the fibers of the fleece. For those using SEWTECH magnetic frames on industrial machines, the principle is identical: we want grip without distortion.

Warning: Mechanical Clearance Risk
Magnetic hoops are often thicker (taller) than standard plastic hoops. The metal brackets or the magnet ring itself can sit high.
The Risk: When the machine travels from needle 1 to needle 15, the presser foot bar or the needle case can strike the edge of the hoop. This causes catastrophic damage (bent needle bars, broken reciprocating mechanisms).
The Fix: Always do a "Trace" or "Contour Check" with the needle down (manually or via interface) to ensure your presser foot clears the magnetic ring by at least 2-3mm.

The "Hidden" Prep Pros Do Before They Ever Hit Start

Amateurs load the design and hope for the best. Professionals prep to remove variables. This project uses a dark blue hoodie and a cream appliqué fabric with a pressure-sensitive adhesive (PSA) backing. The instructor identifies this as TACKLE TWILL — 16.5″ PSA PERMANENT SPORTS TWILL.

However, you likely need a few "Hidden Consumables" that aren't always mentioned but are vital for your survival kit:

1. Temporary Spray Adhesive (e.g., KK100 or 505): If your fabric doesn't have a sticky back, you must use this.
2. Fresh Ballpoint Needles (75/11): Sharp needles cut knit fibers; ballpoints slide between them.
3. Curved Embroidery Scissors: Essential for the trim step to prevent gouging the hoodie.


Prep Checklist (The "Pre-Flight" Inspection)

• Fabric Check: Appliqué material is ironed flat; if using PSA twill, peel back a corner to ensure the adhesive hasn't dried out.
• Needle Integrity: Run your fingernail down the installed needle. If you feel a "click" or catch near the tip, the needle has a burr. Replace it immediately to prevent fabric snagging.
• Bobbin Check: Use a magnetic core bobbin if possible for consistent tension. ensure you have at least 50% thread remaining (hoodies eat thread).
• Hoop Clearance: Perform a trace to verify the presser foot clears the magnetic ring.
• Tools Staged: Curved scissors and rotary cutter are placed on the table, not in a drawer.

When you are mastering hooping for embroidery machine techniques on bulky garments, repeatability is your goal. Doing these checks every single time prevents the "mystery logic" of why one shirt looked great and the next one failed.

Placement Stitch: Make the Outline Do the Thinking

The Placement Stitch is your map. It is a single running stitch.

The Visibility Issue: In the video, the instructor notes that dark thread on a dark hoodie is hard to see. This is a common real-world frustration. The Fix: If you are running a production batch, change the color of the placement stitch in your software to something high-contrast (like yellow or neon pink). It will be covered by the appliqué fabric anyway, so make it visible!

Operational Sequence:

1. Run the placement stitch.
2. Stop.
3. Peel the backing off the PSA twill.
4. Sensory Action: Lay the fabric down and press with your palm. Use significant body weight. You want to generate heat and friction to activate that adhesive bond.


Pro Tip: Detailed in the video, taking the hoop off the machine to press the fabric down is safer than pressing on the machine arm, which can damage the pantograph (the X-Y movement system).

The 1.00 mm Cut Stitch: The "Insurance Policy"

This is the technical secret sauce of the video. The standard running stitch length is often 2.5mm or 3.0mm. However, for the Cut Stitch (the run right before you trim), the digitizer tightened the length to 1.00 mm.

Why this matters: This is your firewall. When you trim, you will be cutting mere millimeters from this line. If the stitches are long (e.g., 3mm), cutting one thread creates a huge gap and the fabric unravels. With a 1.00 mm length, the needle penetrations are packed tight. It acts like a perforated tear-line. Even if you nick a thread, the fabric stays held by the hundreds of other stitches nearby.

If you are doing your own appliqué digitizing, manually adjust this specific run. Think of it as a "sacrificial fence"—it keeps the fabric integrity safe from your scissors.

Trimming Without Panic: The "Pivot and Bite" Technique

The machine stops. You remove the hoop. Now you have a pair of sharp scissors inches away from a $40 hoodie.

The Technique:

1. Tools: Use double-curved embroidery scissors. The curve lifts the blades away from the hoodie fabric.
2. The Grip: Don't just snip. Place the blades flat against the stabilizer/fabric.
3. The Motion: Rotate the hoop with your left hand; keep your right hand (scissors) relatively stationary. This ensures the blade angle never changes.
4. The "Safety Zone": You do not need to cut perfectly flush against the thread. Leave 1mm to 2mm of fabric. The 4.00mm satin stitch has enough width to swallow this margin.


Common Mistake: Beginners try to cut too close and end up snipping the Cut Stitch loops. If you see the Cut Stitch unravelling, dap a tiny dot of seam sealant or anti-fray liquid on it before proceeding.

Warning: Magnetic Pinch Hazard
If you are upgrading to magnetic hoops (Mighty Hoop or Sew Simple), be aware: these magnets are industrial strength.
Safety Rule: Never place your fingers between the top and bottom ring. Hold the top ring by the handles or outer edges. If they snap together on your skin, it will cause a severe blood blister or pinch injury. Keep these away from pacemakers.

Tack Down & Satin Stitch: The Structural Finish

After trimming, the Tack Down (Zigzag) stitch runs. This is crucial for hoodies.

• Physics: A flat run stitch doesn't hold much surface area. A zigzag grabs a wider bite of the appliqué fabric and effectively "ramps down" the thickness, preparing the edge for the final satin.


The Final Satin (4.00 mm): Establish a safe speed limit. While your machine might do 1000 stitches per minute (SPM), running a wide, dense satin on a thick hoodie at max speed creates friction and heat, which can break thread.

• Beginner Sweet Spot: 600 - 700 SPM.
• Pro Speed: 800 - 900 SPM (only if tension is dialed in perfectly).


Operation Checklist (During the Stitch-out)

• Listen: A rhythmic "hum" is good. A sharp "thud-thud" suggests the needle is struggling to penetrate the layers (change to a sharp titanium needle or slow down).
• Watch the Feed: Ensure the heavy hoodie hood isn't dragging on the table, pulling the hoop back. Support the garment weight.
• Thread Path: Lint from hoodies accumulates quickly. Check the thread path for "fuzz balls" before the final dense satin run.

Stability Strategy: The Decision Tree

The most common question in forums is: "How many layers of stabilizer?" The video uses one, but blindly copying that causes failures. You must adapt to your material.

Use this Stabilizer Decision Tree to make the right call for Hoodies:

1. Is the Hoodie 100% Cotton or Heavy Blend (stiff)?
   • Yes: 1 Layer of Medium Weight Cutaway (2.5 - 3.0 oz).
2. Is the Hoodie "Performance Fleece" or 50/50 Poly Blend (stretchy/spongy)?
   • Yes: 2 Layers of Cutaway (floated or hooped).
   • Why: Spongy fabrics compress under satin stitches, causing "tunneling" (where the fabric puckers between the columns). Use No-Show Mesh as the second layer to keep bulk down.
3. Does the design have huge filled areas (10,000+ stitches)?
   • Yes: 2 Layers Cutaway + Solvy Topper (water soluble) on top to prevent stitches sinking.

Never use Tearaway stabilizer for hoodie appliqué. It provides zero structural support against the stretch of the knit.

If you are looking for a hooping station for embroidery machine, ensure it is compatible with your stabilizer size. Pre-cutting your stabilizer sheets to fit your magnetic frames speeds up this workflow significantly.

The Upgrade Path: Trigger, Standard, and Solution

Once you master the technique, the bottleneck shifts from "quality" to "efficiency." If you are looking to turn this hobby into a business, here is how to identify when you need to upgrade your tools.

We use a Trigger/Solution model to help you decide:

• Trigger: You have "Hoop Burn" (permanent rings) on delicate performance hoodies, or you are rejecting 10% of garments due to stain/marks.
  • The Upgrade: Magnetic Hoops. Whether it's the Mighty Hoop shown or SEWTECH's magnetic frames, eliminating the mechanical screw-tightening ring saves the fabric grain and eliminates hoop burn immediately.
• Trigger: Your wrists ache after hooping 20 shirts, or you dread the "hooping" part of the job.
  • The Upgrade: Hooping Station + Magnetic Frames. Ergonomics is ensuring longevity. A station allows you to use body mechanics efficiently rather than grip strength.
• Trigger: You are turning down orders of 50+ pieces because you can't stitch them fast enough.
  • The Upgrade: Multi-Needle Machines. Moving to a system like the ricoma embroidery machines (or similar multi-needle equivalents) allows you to stage the next hoop while the first one stitches. Combined with magnetic frames, this creates a continuous production loops.


Quick Recap: The Two Numbers That Prevent Disaster

If you take nothing else from this guide, memorize these two settings for your digitizer (or yourself):

1. Cut Stitch Length: 1.00 mm. (The Safety Fence).
2. Satin Width: 4.00 mm. (The Forgiveness Zone).

Setup Checklist (The Final 60 Seconds)

• Stop Commands: Verify the file actually has "Stops" programmed (not just color changes, if your machine doesn't auto-stop).
• Hoop Seating: The magnetic hoop is snapped firmly; no fabric is bunching underneath.
• Clearance: You have visually confirmed the presser foot will not hit the hoop frame.
• Scissors Ready: You have your curved scissors in hand for the trim stop.

Run the first piece at 600 SPM. Watch it like a hawk. Once you verify the rhythm, you can trust the process for the rest of the batch.

FAQ

• Q: How do I prevent hoodie hoop burn when using a traditional screw-tightened tubular hoop on a thick fleece hoodie appliqué job?
  A: Reduce crushing pressure and switch to consistent clamping whenever possible; hoodie hoop burn is usually caused by overtightening to stop shifting.
  • Loosen: Tighten the screw only to the point the hoodie stops creeping—do not “finger-hurt” tighten.
  • Stabilize: Add proper cutaway support (never tearaway for hoodie appliqué) so the hoop does less “work.”
  • Upgrade: Use a magnetic hoop to get even vertical clamping pressure without distorting the fleece nap.
  • Success check: The hooped area feels firm like a drum skin, but the fabric grain looks relaxed (not stretched or shiny-crushed in a ring).
  • If it still fails: Recheck garment weight dragging off the table and support the hoodie so it doesn’t pull the hoop during stitching.
• Q: What is the safest way to prevent presser foot or needle case crashes when running a magnetic embroidery hoop on a multi-needle embroidery machine for hoodie appliqué?
  A: Always run a manual Trace/Contour Check first because magnetic hoops are often taller and can collide during needle changes.
  • Trace: Perform a full trace/contour with the needle down (manual or via the machine interface) before starting the design.
  • Verify: Confirm the presser foot clears the magnetic ring by at least 2–3 mm around the entire sew field.
  • Reposition: If clearance is tight, reposition the design/hoop or change to a hoop/frame with more clearance before stitching.
  • Success check: The head travels needle-to-needle and around the design path with zero “tap,” rub, or near-miss at the hoop edge.
  • If it still fails: Stop immediately and do not “try one run”—a single strike can cause catastrophic mechanical damage.
• Q: How do I avoid finger pinch injuries when installing a Mighty Hoop–style magnetic embroidery hoop for hoodie appliqué?
  A: Treat the magnet as an industrial clamp and keep fingers completely out of the closing gap.
  • Hold: Grip the top ring by handles or outer edges only—never between the top and bottom rings.
  • Lower: Drop the top ring straight down under control; do not let it “jump” onto the bottom ring near your hand.
  • Separate: Remove the hoop using the proper lift points; do not pry with fingertips at the seam.
  • Success check: The top ring closes with a clean snap while hands stay outside the ring perimeter the entire time.
  • If it still fails: Pause and re-train the motion slowly—rushing magnetic hooping is the main cause of blood-blister pinches; keep magnetic hoops away from pacemakers.
• Q: Which “hidden consumables” should be staged before starting hoodie appliqué on a multi-needle embroidery machine to reduce trimming mistakes and knit damage?
  A: Stage adhesive, correct needles, and the right scissors before pressing Start—this prevents most hoodie appliqué failures.
  • Use: Temporary spray adhesive (e.g., KK100 or 505) when the appliqué fabric does not have PSA backing.
  • Install: Fresh 75/11 ballpoint needles to avoid cutting knit fibers (sharp needles can snag knits).
  • Prepare: Double-curved embroidery scissors for trimming so the blade angle stays off the hoodie body.
  • Success check: Placement fabric bonds firmly after pressing with your palm, and trimming can be done without the scissor tips diving into the hoodie.
  • If it still fails: Inspect the installed needle for a burr (a “click” on a fingernail test) and replace immediately.
• Q: What stitch length should the Cut Stitch (pre-trim run stitch) use in appliqué digitizing to prevent the fabric edge from unraveling during trimming on a hoodie?
  A: Set the appliqué Cut Stitch to 1.00 mm stitch length because tighter penetrations act like an insurance fence when you trim close.
  • Digitize: Change only the pre-trim run (the anchor line) to 1.00 mm; keep the placement stitch as a simple outline.
  • Trim: Cut with a small margin (leave 1–2 mm of fabric) instead of trying to cut perfectly flush to the stitch line.
  • Seal: If you nick the cut line and see it starting to open, apply a tiny dot of seam sealant/anti-fray before continuing.
  • Success check: After trimming, the fabric edge stays locked down with no gaps opening along the cut line.
  • If it still fails: Slow down and switch to curved scissors technique (pivot the hoop, keep the scissors hand steady) to stop accidental stitch snips.
• Q: How can I make a placement stitch visible on a dark hoodie when the placement thread color blends into the fabric during hoodie appliqué setup?
  A: Change the placement stitch thread color to a high-contrast color in software because it will be covered by the appliqué fabric anyway.
  • Edit: Re-color the placement stitch to neon/high-contrast (e.g., yellow or bright pink) before exporting the file.
  • Run: Stitch the placement outline, stop, then apply the appliqué fabric directly to that visible map.
  • Press: Press the appliqué fabric down firmly with your palm to activate adhesion (especially with PSA).
  • Success check: The placement outline is easy to see at arm’s length and the fabric is positioned confidently without guesswork.
  • If it still fails: Improve lighting and avoid “dark-on-dark” for any temporary guide stitching in production batches.
• Q: How many layers of cutaway stabilizer should be used for hoodie appliqué on stretchy performance fleece vs stiff cotton hoodies to prevent tunneling and puckering?
  A: Match stabilizer to hoodie stretch: 1 layer of medium cutaway for stiff cotton/heavy blend, and 2 layers for spongy/stretch performance fleece to reduce tunneling.
  • Choose: Use 1 layer medium weight cutaway (2.5–3.0 oz) for stiff cotton/heavy blend hoodies.
  • Add: Use 2 layers cutaway for performance fleece or 50/50 poly blends; use no-show mesh as a second layer to reduce bulk when needed.
  • Top: If the design has huge filled areas (10,000+ stitches), add a water-soluble topper to prevent stitches sinking.
  • Success check: Satin columns sit flat with minimal “valley/tunnel” between edges, and the hoodie surface does not pucker after the hoop is removed.
  • If it still fails: Slow the final satin down (wide dense satin on thick hoodies generates heat/friction) and verify the hoodie is supported so garment weight is not pulling the hoop.
