Holiday Mug Rug Appliqué on the Ricoma EM-1010: The In-the-Hoop Method That Stays Flat, Stitches Clean, and Finishes Fast

The Zero-Frustration Guide to ITH Mug Rugs: Perfect Appliqué, No Ripples, No Fear

Mug rugs on camera look deceivingly simple—"cute and quick" content that hides the reality of puckered fabric, shifted appliqué, and the heart-sinking realization that you just sewed your background layers inside out.

As an embroidery educator, I see students fail at this project not because they lack talent, but because they lack a system. This project is absolutely achievable (and giftable) with scraps, but the success relies entirely on the sequence: fusing with purpose, cutting clean geometry, hooping with "drum-skin" tension, and pressing the appliqué down before the tackdown stitches ever touch it.

Below is the complete, rebuilt workflow. We are moving from "hoping it works" to "knowing it works." We will cover the specific sensory cues (what it should feel and sound like), the safety boundaries for your machine, and the exact checkpoints where a beginner should pause.

The "Don't Panic" Primer: Why In-The-Hoop (ITH) Works

The project demonstrated is intentionally "scrappy"—utilizing snowman prints and stash leftovers (Tula Pink, Grinch fabric). This is smart economics: practice your placement and hoop control on scraps before you touch expensive yardage.

The technical secret here is the In-The-Hoop (ITH) Sequence on a multi-needle machine. Instead of sewing fabric pieces together on a sewing machine and then hoping they fit the hoop, the embroidery machine creates a "Placement Line" (a map), allowing you to position the fabric perfectly.

If you are operating a multi-needle rig like the ricoma em 1010 embroidery machine, this type of small, flat project allows you to verify your machine's health. You will instantly hear if your tension is off, and you will see if your hooping technique is consistent without wasting a garment.

Phase 1: Material Prep (The "Hidden" Step That Stops Frustration)

In the video, the appliqué fabric is prepared by fusing Heat n Bond Lite to the back of a scrap, then cutting the shape. Do not skip this.

Why this is non-negotiable:

1. Bonding: It creates a paper-backed stiffener that prevents the fabric from fraying when the needle hits the edge.
2. Stability: It stops the appliqué from bubbling up in the center during the satin stitch.

The Sensory Check:

• Touch: After pressing (using a tool like the Cricut EasyPress Mini), the fabric should feel slightly stiff and cool to the touch before you attempt to peel or cut.
• Sight: The bond should be uniform. If you see air bubbles between the fabric and the paper liner, re-press.


Prep Checklist (Pass/Fail)

• Adhesive Coverage: Heat n Bond Lite is cut slightly smaller than your scrap fabric to avoid gumming up your iron.
• Surface Check: Pressing mat is flat and firm (a soft towel causes uneven pressure).
• Peel Test: Pick at one corner; the adhesive should stay on the fabric, not the paper.
• Wrinkle Check: Your scrap fabric is ironed smooth before applying the adhesive.
• Tool Safety: You have specific fabric scissors (or a rotary cutter) ready for the rough cut.

Warning: Thermal Hazard
Mini irons look like toys, but they reach 400°F (200°C) instantly. Keep your non-dominant hand at least 3 inches away from the press path. Never "chase" a curling corner while the tool is holding heat.

Phase 2: Precision Cutting (AccuQuilt vs. Scissors)

The workflow uses an AccuQuilt GO! Me cutter with the Coffee & Tea Medley die and a 6x12 cutting mat.

The Workflow:

1. Place the die blade-side up.
2. Position the fused fabric piece (paper side down ideally, or as directed by die instructions).
3. Sandwich with the cutting mat.
4. Roll through the cutter.

The "Why" regarding Quality: When you use a die cutter, every curve is mathematically perfect. This means when your embroidery machine lays down a satin stitch border, it will cover the raw edge completely. Hand-cutting is possible, but often leads to "pokies"—little threads sticking out from the satin stitch.

Note: If hand cutting, use serrated scissors (like Kai or Havel’s) to grip the fabric and prevent slipping.

Phase 3: Hooping Strategy (The #1 Cause of Failure)

The video demonstrates using a standard tubular hoop (Size C), hooping tearaway stabilizer first, then floating layers or hooping the background fabric directly.

The Beginner's Trap: Most beginners over-tighten the screw after the fabric is in, creating "hoop burn" (permanent white rings on the fabric) or distorting the weave.

The Sensory Calibration:

• Sound: Tap the hooped stabilizer lightly. It should sound like a tight drum ("thump-thump").
• Touch: The fabric should be taut but not stretched. If you pull the fabric and the grid lines of the weave curve like a smile, you have pulled too hard. loosen and redo.

The Professional Upgrade Path: If you find yourself fighting with the hoop screw or getting uneven tension, this is where professionals switch tools rather than fighting physics. The term hooping for embroidery machine often leads frustrated users to Magnetic Hoops (such as those by SEWTECH). Magnetic hoops clamp instantly without tugging, virtually eliminating hoop burn and wrist strain.

• Logic: If you are making 50 gifts, a magnetic hoop turns a 3-minute struggle into a 10-second "click."


Phase 4: Machine Setup & Pre-Flight

On the touchscreen (Ricoma EM-1010 shown), the operator performs three critical actions.

1. Select Hoop C: This sets the electronic boundaries so the needle doesn't slam into the plastic frame.
2. Rotate 90°: Visually confirm the design orientation matches your hoop.
3. Speed Regulation: For appliqué, do not run at max speed.
   • Safe Zone: Set your machine to 600-700 SPM (Stitches Per Minute). This gives you reaction time if fabric shifts.

Checkpoint: Trace the design (Trace button). Watch the presser foot travel the perimeter. Does it stay at least 1cm away from the plastic hoop edge?

Setup Checklist (Do Not Press Start Until Checked)

• Hoop Match: Physical hoop matches the screen selection (Hoop C).
• Orientation: Top of design creates the top of the mug rug.
• Needle Clearance: Trace function performed; foot does not hit the frame.
• Bobbin Check: Full bobbin inserted? (Standard L or M style depending on machine).
• Speed Limit: Machine capped at 700 SPM for safety.


Phase 5: The Placement Stitch (Your Map)

The machine stitches a running outline (shown in Red) on the background fabric.

The Friction Point: Reviewers note the thread often blends into busy fabric prints.

• Expert Tip: Do not rely on your eyes alone. Run your fingernail gently over the fabric. You will feel the "ridge" of the placement line stitches even if you cannot clearly see perfectly against a Tula Pink print.

If you struggle to see this, swap Needle 1 to a High Contrast Color (like Neon Yellow or Black) specifically for placement steps.

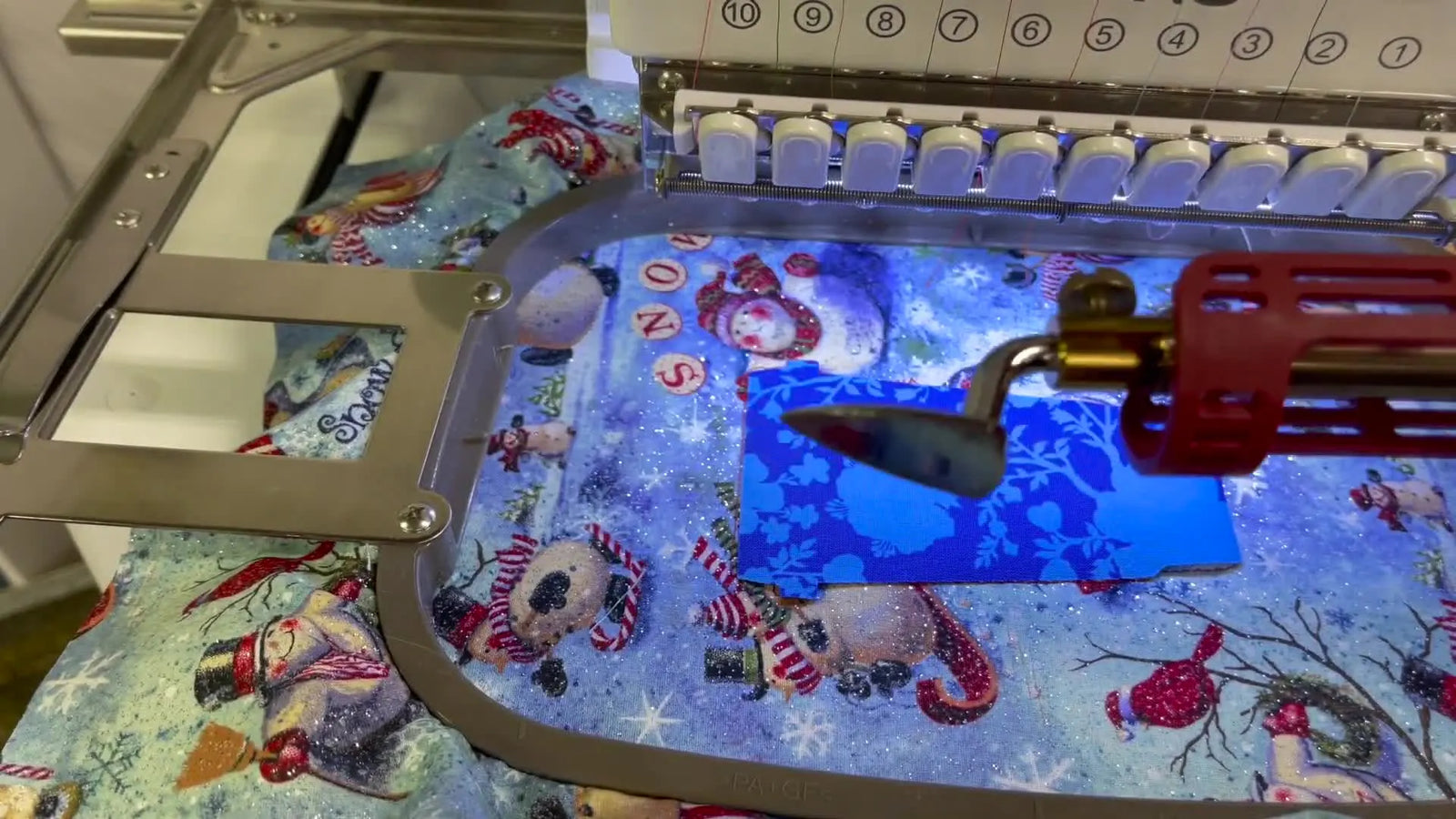

Phase 6: The "In-The-Hoop" Fuse

This is the signature move:

1. Peel the paper backing off your appliqué shape.
2. Place the shape inside the stitched outline.
3. Fuse it immediately using a mini iron wand while the hoop is still on the machine.

Why fuse in the hoop? It prevents the fabric from lifting or flipping over when the embroidery foot travels fast during the tackdown stitch.

Expected Outcome: The edges of the appliqué are stuck down firmly. If you flick the edge with your finger, it should not lift.

Warning: Mechanical & Magnetic Safety
1. Machine Safety: Ensure the machine is STOPPED (Emergency Stop engaged if possible) before putting your hands in the needle zone. A foot pedal tap could result in severe injury.
2. Magnet Safety: If you upgraded to magnetic embroidery hoops, keep the magnets away from the iron's heat plate and keep fingers clear of the snap zone. The clamping force is strong enough to pinch severely.

Phase 7: Tearaway Removal & Cleanup

Once the embroidery is finished, unhoop the project. Tear away the stabilizer gently.

The "Good Enough" Standard: The video creator skips trimming tiny jump threads on the back because "nobody sees them."

• My Verdict: Acceptable for personal gifts. However, if you are selling, trim any long tails (longer than 1/4 inch). Dark thread tails can sometimes "shadow" through light batting or backing fabric, looking like a stain.


Phase 8: Trimming for Squareness

Trim the block to 6x7 inches.

• Tool: Rotary cutter + clear acrylic quilting ruler.
• Technique: Center your ruler over the embroidery design, not the fabric edge. Ensure there is equal distance from the design center to the left and right cut lines.


Phase 9: Assembly (The Layering Trap)

The video captures a classic error: incorrect layering.

The Correct Stack:

1. Bottom: Batting.
2. Middle: Backing fabric (Right Side UP).
3. Top: Embroidered front (Right Side DOWN).

• Result: The two "pretty" sides of the fabric are kissing (Right Sides Together).

Pin the perimeter. Sew around the edge using a sewing machine (standard stitch length 2.5mm), leaving a 3-inch gap at the bottom for turning.

Phase 10: Turning & Closing

Turn the project inside out through the gap. Use a "point turner" or a chopstick to gently poke the corners out to make them square.

Expert Tip: Before closing the gap, press the entire rug flat with steam. This sets the embroidery and makes hand-sewing the gap (ladder stitch) much easier.

Commercial Reality: Scaling from 1 to 50

If you plan to sell these, your bottleneck will be hooping time.

• Detailed appliqué takes time.
• Hooping a standard tubular hoop takes 2-3 minutes per unit to get perfect.
• Solution Level 1: Buy a second standard hoop so you can hoop the next one while the first one stitches.
• Solution Level 2: Switch to magnetic embroidery hoops. They reduce hooping to ~15 seconds.
• Solution Level 3: If you are consistently maxing out your single-head, this is the trigger point to look at a multi-head workspace or a dedicated production machine.

Many users searching for 10 needle embroidery machine or generic terms like ricoma embroidery machine are actually looking for throughput. Combining a fast machine with SEWTECH magnetic hoops is often the most cost-effective way to double your daily output without buying a second machine immediately.

Decision Tree: Which Stabilizer to Use?

The video uses Tearaway, but is that always right?

Troubleshooting Matrix

Symptom -> Likely Cause -> The Fix

• Symptom: White bobbin thread pulling up to the top.
  • Cause: Top tension too tight OR bobbin not seated in the tension spring.
  • Fix: Re-thread the bobbin case. Listen for the "click." Check that the bobbin spins clockwise (or counter-clockwise per manual).
• Symptom: Appliqué edges are fraying/rough.
  • Cause: Fabric wasn't fused well or cutting die was dull.
  • Fix: Increase satin stitch width by 10% in software OR use a "Fray Check" liquid sealant on edges.
• Symptom: "Hoop Burn" (shiny ring on fabric).
  • Cause: Hoop screw over-tightened on standard hoops.
  • Fix: Steam the mark to release fibers. Upgrade to ricoma embroidery hoops compatible magnetic frames to eliminate friction clamping.
• Symptom: Needle breaks on the appliqué edge.
  • Cause: Build-up of adhesive on the needle.
  • Fix: Use a Titanium-coated needle (resistant to glue) or wipe the needle with alcohol every 1,000 stitches.

Failure Is Not an Option: Your Final Quality Check

To move from "homemade" to "handmade professional," your finish needs to be crisp.

• Flatness: No bubbles.
• Squareness: The rug sits at 90° angles.
• Tactile: No hard knots of thread inside the layers.

Using a machine like the ricoma em 1010 embroidery machine gives you the power to create these efficiently, but your process discipline—fusing, verifying tension, and safe operation—is what makes them beautiful.

Operation Checklist (The Final 60 Seconds)

• Fuse Check: Appliqué is fully fused at corners (no lifting).
• Tearaway: Stabilizer removed cleanly without distorting stitches.
• Trim: Block is 6x7 inches, perfectly centered.
• Stack: Right Sides Together verified before sewing.
• Turn: Corners poked out gently; gap hand-stitched closed.
• Press: Final steam press performed (using a pressing cloth over embroidery).

Master this workflow, and you won't just make a mug rug; you'll master the fundamentals of professional appliqué.

FAQ

• Q: How do I hoop tearaway stabilizer and quilting cotton for an ITH mug rug on a Ricoma EM-1010 without getting hoop burn?
  A: Hoop the stabilizer first and aim for “taut, not stretched” tension—hoop burn usually comes from over-tightening the screw after the fabric is already in.
  • Tighten: Set the hoop screw to a firm baseline before inserting fabric, then make only small adjustments.
  • Calibrate: Tap the hooped stabilizer and listen for a tight “drum” thump; do not crank the screw to force tightness.
  • Re-hoop: If the fabric weave curves like a smile when lightly pulled, loosen and re-hoop (the fabric is stretched).
  • Success check: The fabric feels smooth and taut with no distortion, and no shiny ring appears after unhooping.
  • If it still fails… Switch to a magnetic embroidery hoop to clamp evenly and reduce friction-related hoop marks.
• Q: What is the safest appliqué speed setting for a Ricoma EM-1010 when stitching ITH mug rugs with satin borders?
  A: Cap the machine at 600–700 SPM for appliqué so fabric shifts are manageable and you have reaction time.
  • Set: Limit speed to the 600–700 SPM safe zone before starting the placement/tackdown steps.
  • Trace: Use the Trace function and confirm the presser foot stays at least 1 cm away from the hoop edge.
  • Confirm: Select the correct hoop size on-screen (such as Hoop C if that is the physical hoop installed) to keep boundaries accurate.
  • Success check: The trace path clears the hoop consistently, and the appliqué fabric does not creep during tackdown.
  • If it still fails… Re-check hoop selection vs. physical hoop and re-hoop for even tension before changing speed again.
• Q: How can I see the placement stitch line on busy quilting cotton prints when doing ITH appliqué on a Ricoma EM-1010?
  A: Use touch and contrast—feel the ridge of the placement line and stitch placement steps in a high-contrast thread color.
  • Feel: Run a fingernail lightly over the stitched outline to locate the raised “ridge” even when the thread blends in.
  • Swap: Thread Needle 1 with a high-contrast color (neon yellow or black) for placement steps, then switch back for the design.
  • Pause: Stop after the placement line and confirm the appliqué shape fits inside the stitched map before proceeding.
  • Success check: The appliqué piece sits fully inside the outline with even margin all around before tackdown starts.
  • If it still fails… Slow down and re-run the placement step with contrast thread; do not guess on alignment.
• Q: How do I stop an appliqué shape from lifting or flipping during tackdown stitches on an ITH mug rug made on a Ricoma EM-1010?
  A: Fuse the appliqué inside the hoop immediately after placement—before the tackdown stitches run.
  • Peel: Remove the paper backing from the fusible (such as Heat n Bond Lite) only when ready to place.
  • Place: Align the shape inside the stitched placement outline.
  • Fuse: Use a mini iron wand while the hoop is still mounted to tack the appliqué down firmly.
  • Success check: Flick the appliqué edge with a fingertip—edges should not lift before tackdown begins.
  • If it still fails… Re-press for uniform bonding and confirm the fusible was properly adhered during prep (no bubbles or loose corners).
• Q: What causes white bobbin thread to pull up on top during ITH mug rug embroidery on a Ricoma EM-1010, and how do I fix it?
  A: Re-seat and re-thread the bobbin first—top tension being too tight or a bobbin not seated in the tension spring is the common cause.
  • Re-thread: Remove and reinsert the bobbin case and ensure it seats into the tension spring (listen/feel for a secure “click”).
  • Verify: Confirm the bobbin spins in the direction your manual specifies (the blog notes clockwise or counter-clockwise depending on the machine).
  • Reduce: If bobbin seating is correct, ease top tension slightly and test again on a scrap.
  • Success check: The top stitches look balanced with minimal bobbin white showing on the front surface.
  • If it still fails… Inspect threading path for a missed guide and confirm the bobbin is properly filled and inserted.
• Q: Why do embroidery needles break on the appliqué edge when using Heat n Bond Lite for ITH mug rugs on a Ricoma EM-1010?
  A: Needle breaks at the appliqué edge are often caused by adhesive buildup—switch to a titanium-coated needle and clean the needle periodically.
  • Switch: Install a titanium-coated needle (often more resistant to glue buildup).
  • Clean: Wipe the needle with alcohol about every 1,000 stitches when working with fusibles.
  • Slow: Keep appliqué stitching in the 600–700 SPM range to reduce shock at dense edge stitching.
  • Success check: The needle penetrates the satin border smoothly without repeated “tick” sounds or sudden snaps at the edge.
  • If it still fails… Stop and check that the appliqué is fully fused flat (no raised ridges) and that the design is tracing clear of the hoop.
• Q: What safety steps should be followed when fusing appliqué in-the-hoop on a Ricoma EM-1010, especially when using magnetic embroidery hoops?
  A: Stop the machine completely before putting hands in the needle zone, and treat magnets as pinch hazards around the hoop and heat tool.
  • Stop: Ensure the machine is fully stopped (use Emergency Stop if available) before placing hands near the needle/presser foot area.
  • Distance: Keep your non-dominant hand at least 3 inches away from the mini iron’s press path; mini irons can reach ~400°F (200°C).
  • Protect: Keep fingers out of the magnetic hoop snap zone; clamp force can pinch severely.
  • Success check: Hands never enter the needle area while the machine can move, and the appliqué is fused without scorched spots or pinched fingers.
  • If it still fails… Remove the hoop from the machine to fuse on a safe surface, then re-mount and re-trace before stitching.
