Holiauma Tension That Actually Holds: Set Bobbin + Top Thread the H-Test Way (Without Breaking a Hoop)

If you’ve ever stared at looping top thread or bobbin “peek-through” and thought, “My machine is possessed,” you’re not alone. Tension problems feel random—until you test them the same way every time.

This post rebuilds the exact workflow from the video: set bobbin tension first, run an H-test across needles, read the back of the satin stitches using the one-third rule, then adjust only what needs adjusting. I’ll also add the shop-floor habits that keep your results consistent (and keep you from doing the one thing that can turn a simple tension check into a repair bill).

Start Where Pros Start: Bobbin Case Setup (The Foundation)

The video begins with a point many owners skip: if the bobbin tension isn’t right, every top-tension tweak becomes guesswork—especially on holiauma heads or similar multi-needle machines where each needle can behave slightly differently.

Magnetic bobbins: remove the anti-backlash spring

There is a specific physical rule for the bobbin case depending on what type of bobbin you buy:

• Magnetic Bobbins: You MUST remove the small inner spring (the anti-backlash spring) from the bobbin case. The magnet provides the braking force; the spring creates too much friction.
• Standard Sided/Cardboard Bobbins: The spring STAYS IN.

Expert Tip: Treat that spring like a “mode switch,” not trash. Bag it and label it “Anti-Backlash Springs” so you can revert to regular bobbins later.

The hidden enemy: lint under the tension leaf

The video uses a business card to clean under the bobbin case tension spring/leaf. That’s not a hack—it’s a necessity.

The Physics: Lint creates a gap between the metal leaf and the bobbin case wall. This gap reduces friction to zero, causing the bobbin thread to vomit out loosely. A quick slide with the corner of a paper business card clears this debris.

Warning: Physical Safety
Keep fingers clear of needles and moving parts when you’re testing, tracing, or jogging the frame. A hoop strike can snap a needle, and broken needle fragments are a severe eye hazard. Always use safety glasses when running tests at high speeds.

Prep checklist (Do this BEFORE touching the gauge)

• Bobbin case removed and inspected for damage/drops.
• Anti-backlash spring removed only if using magnetic bobbins (set aside safely).
• Tension leaf cleaned with the corner of a business card.
• Bobbin area blown/cleared with compressed air so lint doesn’t re-seat immediately.
• Hidden Consumable Check: Ensure you are using high-quality bobbin thread (usually 60wt); cheap thread varies in thickness and ruins tension.

The “240–245” Reality Check: Using a Towa Gauge Correctly

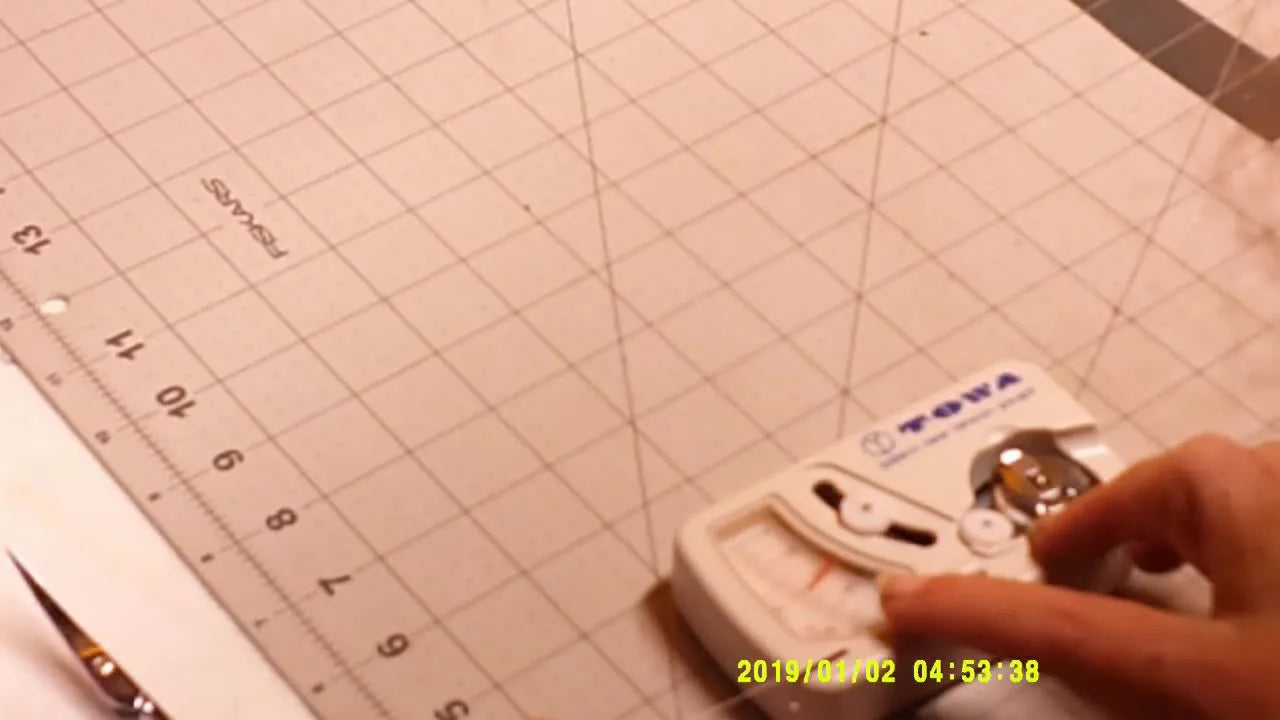

The video sets bobbin tension using a Towa gauge and calls out the most important technique detail: pull slowly and consistently—don’t yank.

Target range: The "Producer's Sweet Spot"

The presenter aims for about 240–245 mN (milliNewtons) on the gauge.

• Note: This is a firm tension often used for fast production or caps. If you are a hobbyist using standard 60wt thread, you might find 180–220 is also acceptable. The key isn’t hitting exactly 240—it is getting every bobbin case to read the exact same number.

Sensory Anchor: The "Smooth Pull"

When you pull the thread through the gauge, imagine you are pulling dental floss.

• Wrong: A fast yank. The needle spikes and drops.
• Right: A slow, steady drag (approx. 2 inches per second). The needle should hover steadily.
• Repeat twice. If the readings don’t agree, clean the case again.

When to re-check

Bobbin tension is your baseline. If you change thread brands or bobbin types, you must re-gauge. If the baseline shifts, every needle’s top tension will look “wrong” even if it’s fine.

Make the Dahao Screen Work for You: Programming the H-Test

On a 15 needle embroidery machine, the fastest way to stop chasing your tail is to test systematically. The video uses an H-test design (columns of satin stitches) and assigns needles on the Dahao control panel so multiple needles can be evaluated in one run.

Step-by-Step Dahao Setup

1. Load Design: Select the "H" test pattern.
2. Needle Assignment: Go to the needle/color assignment grid. Assign needles sequentially (e.g., Needle 1 for the first H, Needle 2 for the second).
3. Insert Stops: Use a stop command if you need to pause and check.
4. Confirm: You cannot have “Embroidery Confirmed/Ready” active while editing the needle sequence; unlock the machine, edit, then re-confirm.

Production Efficiency Tip

After your first full run, don’t re-test all needles. The video demonstrates narrowing down to only the needles that still need adjustment. This prevents a 10-minute fix from becoming a 2-hour ordeal.

Hooping for the H-Test: Stability is Science

The video is blunt here: never run a design without tracing, and use the right stabilizer.

Stabilizer: The "Cutaway" Rule

For tension testing, you must remove variables.

• Use Cutaway Stabilizer: It does not stretch.
• Avoid Tearaway: It gives too much, allowing satin stitches to distort, which makes the tension look loose when it’s actually just the fabric buckling.

Trace or Regret It

The video warns that if the needle hits the hoop, you can break the reciprocator (a painful repair).

Warning: Magnetic Safety
If you upgrade to magnetic embroidery hoops, keep the magnets away from pacemakers and implanted medical devices. These are industrial-strength magnets; watch for "pinch points" that can bruise fingers if the brackets snap together unexpectedly.

Setup checklist (Lock in repeatability)

• Fabric is hooped with two layers of cutaway stabilizer (tight like a drum skin).
• Scrap cloth is plain cotton or twill (no texture to hide the stitches).
• Frame is centered on the screen.
• Trace is run successfully (needle bar does not approach the plastic hoop edge).

Reading the Back Like a Technician: The One-Third Rule

This is the heart of the method. Do not judge tension from the pretty front side. Flip the hoop over and inspect the back of the H columns.

The 1/3 Rule (Visual Success Metric)

Look at the backside of the satin column. You should see three distinct vertical stripes:

1. 1/3 Top Thread (Color)
2. 1/3 Bobbin Thread (White) in the center
3. 1/3 Top Thread (Color)

Troubleshooting Logic

• Top thread looping on front? → Top tension is too loose.
• Bobbin thread (white) only a thin line on back? → Top tension is too loose (not pulling bobbin up enough).
• Bobbin thread (white) visible on the FRONT? → Top tension is too tight (pulling bobbin up too hard).


The Only Knobs You Should Touch: Main Top Tension

The video repeats a rule I wish every new operator followed: ignore the top pre-tension knobs (the small ones). Focus on the main tension knobs (the big ones with the springs).

The Quarter-Turn Discipline

• Righty Tighty: Turn clockwise to tighten (pull the thread harder).
• Lefty Loosey: Turn counter-clockwise to loosen (let the thread flow).
• The Amount: Make small changes. A quarter turn (90 degrees) to a half turn is usually enough. Never spin the knob wildly.


Decision Tree: Fabric, Stabilizer, and Tools

Use this quick decision tree to ensure your setup isn't lying to you before you blame the machine.

Step 1: What is the mission?

• Calibration (H-Test) → Go to Step 2.
• Production (Garments) → Go to Step 3.

Step 2: Calibration Setup

• Stabilizer: Must use Cutaway (2 layers recommended).
• Fabric: Non-stretch hidden cotton/woven scrap.
• Goal: Perfect 1/3 balance on the back.

Step 3: Production Reality

• Fabric: Stretchy (Polos/Knits)? → Use Cutaway.
• Fabric: Stable (Caps/Jackets)? → Tearaway is acceptable.
• Problem: Is hooping leaving "shiny rings" (hoop burn) on the fabric?
  • Solution A: Steam the garment later (Time consuming).
  • Solution B: Switch to magnetic hoops for embroidery machines. These hold fabric firmly without the friction burn of plastic rings, reducing operator strain and reject rates.

Troubleshooting Map: Symptom → Cause → Fix

Don't guess. Follow the map.

The Upgrade Path: Moving from Fiddling to Producing

Once your tension is dialed in, the number one killer of profit is turnaround time. If you are running batches of 50+ shirts, manual hooping becomes a bottleneck.

• For Consistency: Many shops invest in a hooping station for machine embroidery to ensure every logo lands in the exact same spot on every shirt size.
• For Speed: Using magnetic frames allows you to hoop thick items (like Carhartt jackets) that plastic hoops can't grip, without fighting the screws.




Operation Checklist (Pilot's Summary)

• Bobbin: Cleaned, spring checked, and gauged to ~240mN (smooth pull).
• Program: H-test aimed at specific needles needing review.
• Hoop: Stable cutaway, centered, and Traced.
• Test: Run one H.
• Inspect: Flip over. Check for the 1/3 white column in the center.
• Adjust: Quarter-turns on the main knobs only.
• Repeat: Re-run test only on the needles that failed.

FAQ

• Q: On a Dahao 15-needle embroidery machine, how do operators set bobbin case tension with a Towa gauge to the 240–245 mN baseline?
  A: Set the bobbin case so the Towa gauge reads a consistent ~240–245 mN with a slow, steady pull.
  • Remove the bobbin case and clean under the tension leaf using the corner of a business card.
  • Pull the thread through the Towa gauge slowly and evenly (do not yank) and take two readings.
  • Adjust only until the reading is stable and repeatable across checks.
  • Success check: the gauge needle hovers steadily around the same number on repeated slow pulls.
  • If it still fails: clean under the tension leaf again and confirm bobbin thread quality (cheap/uneven thread can make readings inconsistent).
• Q: On multi-needle embroidery machine bobbin cases, when should the anti-backlash spring be removed for magnetic bobbins versus kept for standard sided/cardboard bobbins?
  A: Remove the anti-backlash spring only when using magnetic bobbins; keep the spring installed for standard sided/cardboard bobbins.
  • Identify the bobbin type before changing anything in the bobbin case.
  • Remove and bag/label the anti-backlash spring so it can be reinstalled when switching back to regular bobbins.
  • Re-check bobbin tension after changing bobbin type because the baseline can shift.
  • Success check: bobbin thread feeds smoothly without “vomiting out” loose slack from the case during testing.
  • If it still fails: inspect for lint under the tension leaf and re-gauge with the same slow-pull technique.
• Q: On a Dahao control panel, how do operators program and run an H-test design to compare multiple needles without wasting time retesting every needle?
  A: Assign H columns to specific needles in the needle/color grid, run one test, then retest only the needles that fail.
  • Load the H-test pattern and assign needles sequentially in the needle/color assignment grid.
  • Insert a stop command only if a pause-and-check is needed mid-run.
  • Unlock editing first (do not keep “Embroidery Confirmed/Ready” active while editing), then re-confirm before sewing.
  • Success check: the test run produces separate H columns that clearly correspond to the intended needles.
  • If it still fails: confirm the machine is out of “Ready/Confirmed” mode while editing, then reassign and run again.
• Q: For embroidery tension calibration on a multi-needle machine, what stabilizer and hooping setup prevents fabric distortion from making top tension look wrong?
  A: Use two layers of cutaway stabilizer with a tight, drum-skin hooping on plain woven scrap fabric to remove variables.
  • Hoop plain cotton or twill (no texture) with two layers of cutaway stabilizer.
  • Center the frame on the screen and keep the fabric tight and even.
  • Run a trace before stitching to confirm safe clearance.
  • Success check: the fabric stays flat (no buckling) while satin columns stitch, so tension can be judged reliably.
  • If it still fails: stop using tearaway for the calibration test and re-hoop tighter before changing any tension knobs.
• Q: For satin-column H-tests on multi-needle embroidery machines, how should operators use the one-third rule on the BACK of the stitches to judge correct top tension?
  A: Flip the hoop and tune tension until the backside shows 1/3 top thread, 1/3 bobbin thread centered, and 1/3 top thread.
  • Inspect the back of each satin column, not the front “pretty side.”
  • Compare the balance needle-to-needle using the same fabric and stabilizer setup.
  • Adjust only the needle(s) that fail the rule.
  • Success check: three clear vertical zones appear on the back with a centered bobbin stripe (not dominating, not disappearing).
  • If it still fails: confirm bobbin tension is consistent first; an unstable bobbin baseline makes every top tension look “wrong.”
• Q: On multi-needle embroidery machines, which top tension knobs should operators adjust (main tension vs pre-tension), and how much should each adjustment be?
  A: Adjust only the main top tension knobs (the large spring-loaded ones) in quarter-turn steps; leave pre-tension knobs alone.
  • Turn clockwise to tighten and counter-clockwise to loosen.
  • Change only 1/4 turn to 1/2 turn at a time, then re-run the H-test on that needle.
  • Keep notes per needle so changes don’t stack unknowingly.
  • Success check: after a small adjustment, the backside moves toward the one-third rule without creating new issues on the front.
  • If it still fails: stop “spinning knobs,” re-check bobbin tension and cleaning under the bobbin tension leaf before further top adjustments.
• Q: On multi-needle embroidery machines, what safety steps prevent needle breakage and reciprocator damage during tracing and test runs, and what magnetic hoop safety rules apply?
  A: Trace every time and keep hands clear during motion; treat magnetic hoop magnets as pinch and medical-device hazards.
  • Run trace before stitching so the needle path cannot strike the hoop or frame.
  • Keep fingers away from needles and moving parts while jogging/tracing/testing; wear safety glasses for high-speed tests.
  • Keep magnetic hoops away from pacemakers and implanted medical devices, and watch pinch points when brackets snap together.
  • Success check: the trace completes with safe clearance and the test runs without hoop strikes or sudden needle snaps.
  • If it still fails: stop immediately, re-center/re-hoop, and replace any burred/bent needle before running again.
