Holiauma 15-Needle Demo at Applique Getaway: Magnetic Hoop Setup, Trace Checks, and the Vendor Finds That Actually Matter

You’ve been there. You load a $40 hoodie, press start, and hold your breath. The machine revs up, and for the next 20 minutes, you’re paralyzed by the fear of a thread nest, a broken needle, or a design that’s slightly crooked.

Expert embroidery isn't about hope; it's about protocol.

The trade show floor—like the Applique Getaway in Irving, Texas—is the ultimate testing ground. Here, operators run expensive blanks on commercial machines like Holiauma while chatting with customers. They don't have time for mistakes. How do they do it? They rely on a rigid set of physical checks and the right hardware.

This guide reconstructs that professional workflow. We will strip away the "magic" and give you the raw data, the sensory cues, and the safety protocols you need to run your shop—whether it’s a single-needle home unit or a multi-head production beast—with zero anxiety.

Calm the Panic First: A Holiauma Booth Demo Is Still Real Production (Just With More People Watching)

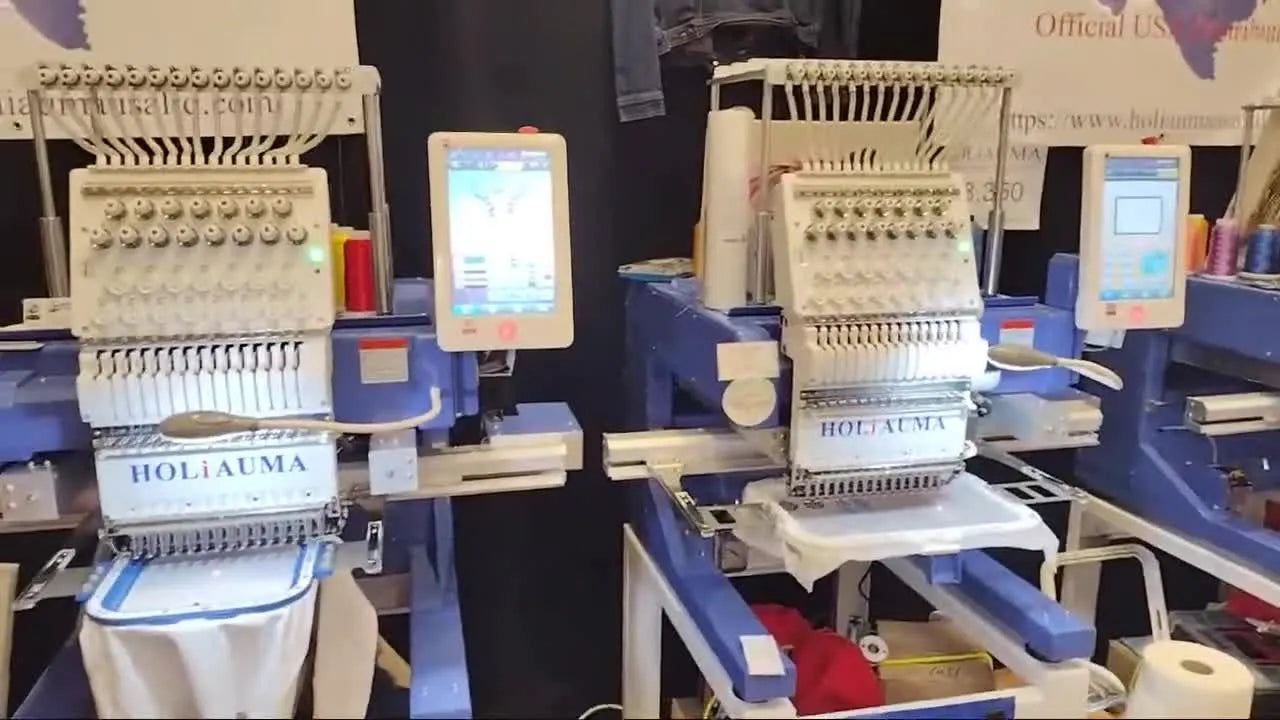

When you see a machine like a holiauma running at a show, it’s easy to assume the operator is doing something “special.” They aren't. They are simply trusting their pre-flight sequence.

Embroidery is physics. If the variables (hooping, tension, digitization) are controlled, the result is mathematically inevitable. The pros focus on three non-negotiable checks:

1. Metric Verification: confirm the design fits the hoop area via a trace.
2. Supply Logic: confirm the bobbin acts as a stable anchor.
3. Intervention Planning: confirm the machine stops exactly where a human decision is needed.

That’s the backbone. Everything else—thread brand, blanks, fancy hardware—only works if those three checks are solid.

Warning: Mechanical Hazard. Keep hands, loose sleeves, lanyards, and trimming scissors at least 6 inches away from the needle bar area while the machine is running. Multi-needle heads move at 800-1000 stitches per minute (SPM). A momentary lapse can result in a pierced finger or a shattered needle flying toward your eyes.

The “Hidden Prep” Before You Press Start: Stabilizer, Hoop Contact, and a Trace Mindset

In the demo, the operator uses a magnetic hoop clamped over wash-away stabilizer. This looks effortless, but let's break down the tactile reality of why this works.

The number one cause of "shifting" (where outlines don't line up with the fill) is poor hooping. Veteran embroiderers know that magnetic hoops are forgiving on hands but require discipline on fabric.

The Physics of the Grip

If the fabric or stabilizer isn’t sitting flat, the hoop will still close—but the fabric will be "floating."

• The Drum Test: Tap the hooped stabilizer. It shouldn't sound like a loose trash bag; it should have a taut, rhythmic resonance (though not stretched to the breaking point).
• The Friction Factor: Magnets provide vertical pressure. If you are embroidering slippery performance wear, you may need a layer of temporary adhesive spray (a hidden consumable essential for floating methods) to prevent micro-movements.

A few prep principles that generally apply across brands and models:

• Even capture beats “tight as possible.” Over-tightening traditional screw hoops creates "hoop burn"—permanent crushing of garment fibers. Magnetic systems eliminate this by applying flat, distributed pressure.
• Stabilizer must be structural. If the stabilizer feels flimsy, double it or switch weights.
• Trace is not optional. Trace is your last cheap mistake before the machine makes an expensive one.

If you’re building a workflow around magnetic embroidery hoops, treat the hoop like a precision clamp: consistent pressure, consistent placement, consistent results.

Prep Checklist (Do this before the garment goes anywhere near the needle)

• Consumable Check: Ensure you have temporary spray adhesive and the correct needle size (75/11 is the universal starter, but use 70/10 for fine knits).
• Stabilizer Selection: Confirm the stabilizer covers the entire hoop area with at least 1-inch overlap on all sides.
• Surface Inspection: Inspect the magnetic hoop faces for lint, adhesive residue, or nicks. Even a tiny piece of dried thread can reduce magnetic grip force by 30%.
• Lay Flat Protocol: Lay stabilizer flat with no folds; if it’s wash-away, keep it smooth and supported.
• Obstruction Check: Position the garment so seams, thick collars, or bulky hems aren’t trapped under the magnetic ring.
• The Tug Test: Gently tug the fabric edges. It should not slide. If it does, re-hoop.

The Trace Button Saves Jobs: Checking Hoop Boundaries With the Laser Pointer

The operator presses trace on the screen and visually confirms the red laser pointer stays inside the magnetic hoop boundaries.

This creates a "Safe Zone" visual. Most machine crashes happen because the presser foot strikes the plastic or metal hoop frame.

How to execute a "Pro Trace":

1. Low Speed: Run the trace at low speed if your machine allows.
2. Corner Watch: Don't watch the center. Watch the corners and the highest/lowest points.
3. The "Pinky Rule": If the laser comes within a pinky-width of the hoop edge, you are too close. Re-hoop or resize.

If you’re running a large production field, like those found when searching for an 8x13 mighty hoop (a common size for jacket backs), your margin for error shrinks. Paradoxically, larger fields tempt people to place designs too close to the edge.

Don’t Skip the Bobbin Check: The Fastest Way to Avoid a Slow, Ugly Stitch-Out

Right after tracing, the operator opens the bobbin area and confirms the correct bobbin style is inserted.

This checks for the "Silent Killer" of embroidery quality: Bobbin Tension.

The Sensory Check for Bobbin Tension

In production, you don't just look; you feel.

• Visual: Look at the bobbin case. Is there lint buildup? (Blow it out).
• Tactile: When pulling the bobbin thread through the tension spring, it should feel like pulling dental floss—smooth resistance, but not a struggle. If it falls out, it's too loose. If it snaps, it's too tight.

What you’re really checking:

• Correct bobbin type: Pre-wound bobbins (usually magnetic core or cardboard side) generally feed smoother than self-wound metal bobbins.
• Seating: Ensure the bobbin spins clockwise (or counter-clockwise depending on your manual) and the thread is firmly in the tension slot.
• Supply: If the bobbin looks less than 1/4 full, change it for a large job. Don't risk running out in the middle of a dense fill.

Planned Stops at Color 2: How Applique and Variegated Thread Stay “Intentional,” Not Random

Later in the demo, the operator checks progress and confirms the machine stopped at “color 2” for a planned thread change or applique step.

Software controls hardware. A "Stop" command is a powerful tool for quality control.

The Strategy of the Stop

• Applique: The machine must stop after the placement stitch and the tack-down stitch. If you miss this, you sew over the fabric you were supposed to trim.
• Variegated Thread Control: When using multicolor thread, professionals often use stops to "reset" or check the color gradient, ensuring the visual rhythm isn't chaotic.

If you’re shopping for magnetic systems like mighty hoops, remember: the hardware speeds up loading, but the digitizing logic (stops, trims, sequencing) is what keeps the output professional.

Vendor Walkthrough With a Shop Owner’s Eyes: Blanks, Thread Cones, and the Stuff That Makes You Money

Trade shows are full of temptation. The smart move is to translate “cool” to “profitable.”

Blanks: Love That Cotton and the “Feel Test” That Predicts Customer Complaints

The video highlights a "Love That Cotton" shirt being embroidered. Why? Because density matters.

The Empirical Feel Test: Before buying bulk blanks, pinch the fabric.

1. Rub it: Does it pill easily?
2. Stretch it: Pull it 2 inches and let go. Does it snap back immediately? Poor recovery = puckering embroidery.
3. Density: Hold it to the light. If you see through it easily, your stabilizer will show through, and high-stitch-count designs will tear holes in it.

Thread: 8000m Cones and Why “Big Cones” Aren’t Automatically Better

The walkthrough shows large variegated thread cones and calls out 8000 meters.

The Economics of Thread:

• Small Spools (1000m): Good for hobbyists, high friction per meter. Costly.
• King Cones (5000m+): The standard for SEWTECH multi-needle machines. The thread feeds off the top with less drag, resulting in more consistent tension.

Troubleshooting Note: If using King Cones on a home machine, you must use a thread stand. If the heavy cone sits on the horizontal pin, it won't spin, and your needle will break.

Hardware and Add-Ons: Zippers, Pulls, and Tools That Expand Your Product Line

The video tours zipper pulls/hardware and zipper forks for assembly.

A practical rule for ROI (Return on Investment): Does this tool reduce active labor time?

• If a jig helps you attach a zipper in 30 seconds instead of 3 minutes, buy it.
• If it just looks cool, skip it.

A Stabilizer Decision Tree You Can Use Tomorrow (Especially for Towels, Shirts, and FSL)

The video shows wash-away stabilizer being used. However, blindly copying this can be dangerous. Wash-away offers zero long-term support. Once washed, the stitches rely entirely on the fabric.

Use this decision tree to choose the safe path for your projects:

Decision Tree: Fabric/Project → Stabilizer Starting Point

1. Is the item FSL (Free-Standing Lace)?
   • Goal: Structure disappears completely.
   • Action: Use heavy-weight Wish-Away (fibrous) or Badge Master (film). Do not use Tearaway.
2. Is the item a Knit / Stretchy (T-shirt, Hoodie, Beanie)?
   • Goal: Permanent stability to prevent distortion.
   • Action: Cutaway Stabilizer. No exceptions. If you use tearaway, the stitches will break when the shirt stretches.
   • Pro Tip: Use fusible Cutaway (iron-on) to lock the fabric fibers before hooping.
3. Is the item a Stable Woven (Denim, Canvas, Twill)?
   • Goal: Crisp definition.
   • Action: Tearaway is usually fine.
   • Check: If the design is over 10,000 stitches, switch to Cutaway for safety.
4. Is the surface high-pile (Towel, Minky, Fleece)?
   • Goal: Prevent stitches sinking into the "fur."
   • Action: Use a Water Soluble Topper (Solvy) on top, and Tearaway/Cutaway on the bottom.

Note: Magnetic hoops are excellent for holding thick combinations (Towel + Stabilizer + Topper) without popping open.

The “Why” Behind Magnetic Hoops: Less Hoop Burn, Faster Loading, and More Consistent Tension

The demo shows a magnetic hoop holding a shirt. Why is this superior to the plastic rings that came with your machine?

The Mechanics of Hoop Burn: Plastic hoops work by friction. You must force the inner ring into the outer ring, crushing the fabric fibers. On delicate velour or performance wear, this leaves a permanent "ghost ring."

Kinetically, a magnetic embroidery frame works differently. It clamps vertically.

• Result: Zero fabric drag.
• Ergonomics: No twisting your wrists (saving you from Carpal Tunnel).
• Speed: Hooping takes 5 seconds instead of 60 seconds.

Tool upgrade path:

• Level 1: If you are a hobbyist doing one shirt a week, standard hoops are fine.
• Level 2: If you are doing a run of 20 shirts using a SEWTECH Magnetic Hoop, you save approx. 15 minutes of labor just on hooping, and you save $200 in ruined shirts (no hoop burn).

Warning: Magnetic Safety. These are industrial Neodymium magnets. They snap together with enough force to pinch skin severely (blood blisters).
* Keep away from children.
* Do not use if you have a pacemaker or ICD (Implantable Cardioverter Defibrillator), as the magnetic field interferes with medical devices.
* Keep away from credit cards and phone screens.

Education Booths and Software Talk: Why Training Pays Back Faster Than Another “Cool Design Pack”

The walkthrough highlights education resources. Software like Hatch or Embrilliance Essentials allows you to merge designs and fix density issues.

The One Habit: Keep a logbook. Every time you run a job, write down:

• Speed (e.g., 600 SPM)
• Needle (e.g., 75/11 Ballpoint)
• Stabilizer Combo
• Result (Pass/Fail)

When a customer returns 6 months later, you rely on data, not memory.

Finished Results Don’t Lie: What to Check on the Shirt Before You Call It “Sellable”

Near the end, the video checks the finished shirt.

The Quality Control (QC) Pass: Don't just look at the front. Flip it inside out.

• The 1/3 Rule: On the back, you should see about 1/3 bobbin thread (white) in the center of satin columns, with top thread wrapping around the sides. If you see only top thread, your tension is too loose.
• Nesting: Run your finger over the back. Is it rough? Bird's nests (clumps of thread) mean you need to clean your tension discs.
• Trimming: Use curved distinct scissors to snip jump stitches flush to the fabric.

The Upgrade That Actually Moves the Needle: From “One-Off Show Demo” to Real Production Speed

If you’re doing occasional projects, manual hooping is fine. If you dream of turning this into a business, "friction" is your enemy.

Here is the practical scaling mindset:

• Hobby Mode: Single-needle machine + Standard Hoops. (High labor, low output).
• Prosumer Mode: Single-needle + Magnetic Hoops. (Low labor, moderate output, better quality).
• Production Mode: commercial embroidery machines (Multi-needle) + Magnetic Hoops. (Low labor, high volume, maximum profit).

If you are hitting a ceiling where you turn down orders because you "don't have time," consider upgrading your toolset. Start with high-quality consumables and magnetic frames to maximize your current machine. When you consistently embroider more than 10 items a week, a multi-needle machine like the SEWTECH series becomes a logical investment, not a luxury.

Setup Checklist (Before you run the first stitch of the day)

• Hoop Check: Verify the hoop size in the machine settings matches the physical hoop attached.
• Trace: Run the trace and watch the "Pinky Rule" clearance.
• Bobbin: Check for the "Dental Floss" tension feel.
• Needle: Is the needle straight? (Roll it on a flat table to check). Is it the right type (Ballpoint for knits, Sharp for wovens)?
• Thread Path: Ensure thread is not caught on the spool pin or twisted.

Operation Checklist (What to watch while it’s stitching)

• Auditory Check: Listen for the rhythmic "thump-thump." A sharp "click-click" often means the needle is hitting the hoop or plate -> STOP immediately.
• Visual Drift: Watch the garment edge during the first 100 stitches. If it moves even 1mm, stop and re-hoop.
• Color Stops: Confirm the machine stops at the intended applied steps relative to your software plan.
• Finish: Do not yank the hoop off. Remove gently to avoid distorting the final warm stitches.


FAQ

• Q: What is the safest pre-flight checklist for a single-needle embroidery machine before stitching a $40 hoodie to prevent thread nests and crooked designs?
  A: Run the same “trace–bobbin–needle–thread path” sequence every time to remove the biggest unknowns before the first stitch.
  • Verify hoop size setting matches the physical hoop installed, then run a trace at low speed.
  • Check bobbin area for lint and confirm bobbin thread is seated in the tension slot before starting a dense job.
  • Confirm correct needle size/type is installed (75/11 is a safe starting point; use 70/10 for fine knits) and replace any questionable needle.
  • Success check: the trace stays inside hoop boundaries with a “pinky-width” margin and the machine starts without fabric drift in the first 100 stitches.
  • If it still fails: stop immediately and re-check hoop contact and stabilizer choice before touching tension settings.
• Q: How can a magnetic embroidery hoop cause design shifting on slippery performance fabric even when the magnetic ring is closed?
  A: A magnetic hoop can close while the fabric is still “floating,” so prevent micro-movement with flat lay-in and controlled friction.
  • Lay stabilizer perfectly flat (no folds) and ensure full coverage with at least 1-inch overlap beyond the hoop area.
  • Clean hoop faces (remove lint/adhesive residue) so magnetic grip is not reduced by debris.
  • Add temporary spray adhesive when floating slippery fabric so the fabric and stabilizer move as one.
  • Success check: pass the drum test (taut resonance) and the tug test (fabric edges do not slide).
  • If it still fails: re-hoop to avoid seams/collars under the ring, or switch to a more structural stabilizer weight.
• Q: How do I use the embroidery machine trace function and laser pointer to prevent the presser foot from striking a magnetic hoop frame?
  A: Trace is the last cheap mistake—use it to confirm a safe zone before stitching at speed.
  • Run trace at low speed if available, and watch corners/highest/lowest points instead of the center.
  • Apply the “pinky rule”: if the laser path comes within a pinky-width of the hoop edge, re-hoop or resize the design.
  • Confirm the garment is not pulled into the hoop path by bulky seams, collars, or hems.
  • Success check: the full trace path stays comfortably inside the hoop boundary with consistent clearance.
  • If it still fails: choose a larger hoop field or reduce/rotate the design rather than “risking the edge.”
• Q: What is the “dental floss” bobbin tension check for a commercial embroidery bobbin case, and what does it prevent?
  A: Bobbin thread should pull with smooth resistance like dental floss to prevent slow, ugly stitch-outs caused by bad bobbin tension and lint.
  • Open the bobbin area and remove lint buildup before evaluating tension feel.
  • Pull bobbin thread through the tension spring: too loose if it falls out, too tight if it snaps or feels jerky.
  • Replace the bobbin before large dense fills if it is under about 1/4 full to avoid running out mid-design.
  • Success check: steady, smooth pull and clean underside tension showing balanced stitch formation during the first minutes of sewing.
  • If it still fails: re-seat the bobbin in the correct direction per the machine manual and re-check the tension slot engagement.
• Q: What is the “1/3 rule” for embroidery tension on the back of a finished shirt, and what does it tell me to adjust first?
  A: Use the underside as the truth—about 1/3 bobbin thread in the center of satin columns indicates balanced tension.
  • Flip the shirt inside out and inspect satin columns: look for bobbin thread centered, with top thread wrapping the sides.
  • Feel for rough clumps on the back that indicate nesting, then clean tension discs and remove lint before changing settings.
  • Trim jump stitches flush with curved scissors to avoid snagging and distortion.
  • Success check: clean backside with centered bobbin showing in satin areas and no rough “bird’s nest” texture.
  • If it still fails: redo bobbin seating and needle condition checks before making major top tension changes.
• Q: What mechanical safety rules should operators follow around the needle bar area on a multi-needle commercial embroidery machine running 800–1000 SPM?
  A: Treat the needle bar zone as a hazard area and keep hands and tools at least 6 inches away while stitching.
  • Keep loose sleeves, lanyards, and trimming scissors away from the moving head and needle bar area.
  • Stop the machine before reaching in to trim, adjust fabric, or check thread paths.
  • Listen for abnormal “click-click” sounds that may signal the needle hitting the hoop or plate, then STOP immediately.
  • Success check: no hands enter the danger zone while the machine is running and the stitch sound remains rhythmic “thump-thump.”
  • If it still fails: slow down operations and repeat the setup checklist (trace, hoop clearance, needle straightness) before restarting.
• Q: What magnetic safety precautions are required when using industrial neodymium magnetic embroidery hoops near operators and customers?
  A: Handle magnetic hoops like pinch hazards and keep them away from medical implants and sensitive items.
  • Keep fingers clear when magnets snap together; close the hoop slowly and deliberately to avoid skin pinches.
  • Do not use magnetic hoops if the operator has a pacemaker or ICD; follow medical device guidance.
  • Keep magnets away from children, credit cards, and phone screens.
  • Success check: the hoop closes under control without sudden snapping and no one handles magnets casually near their body or electronics.
  • If it still fails: switch the station to traditional hoops for that operator/environment and re-train handling procedures.
• Q: If manual hooping keeps causing hoop burn and re-hooping delays on shirt runs, what is the practical upgrade path from technique fixes to magnetic hoops to a multi-needle commercial embroidery machine?
  A: Start by tightening the process, then upgrade the clamp (magnetic hoop), and only then scale the machine when volume proves the need.
  • Level 1 (Technique): improve hooping discipline (drum test, tug test), correct stabilizer selection for knits (cutaway), and never skip trace.
  • Level 2 (Tool): move to a magnetic hoop to reduce hoop burn and cut hooping time, especially on multi-layer stacks.
  • Level 3 (Production): move to a multi-needle commercial embroidery machine when orders exceed what single-needle throughput can handle consistently.
  • Success check: fewer ruined garments (no “ghost rings”), faster loading, and stable alignment in the first 100 stitches across repeated runs.
  • If it still fails: log speed/needle/stabilizer results per job to identify whether the bottleneck is hooping, digitizing stops, or bobbin/needle maintenance.
