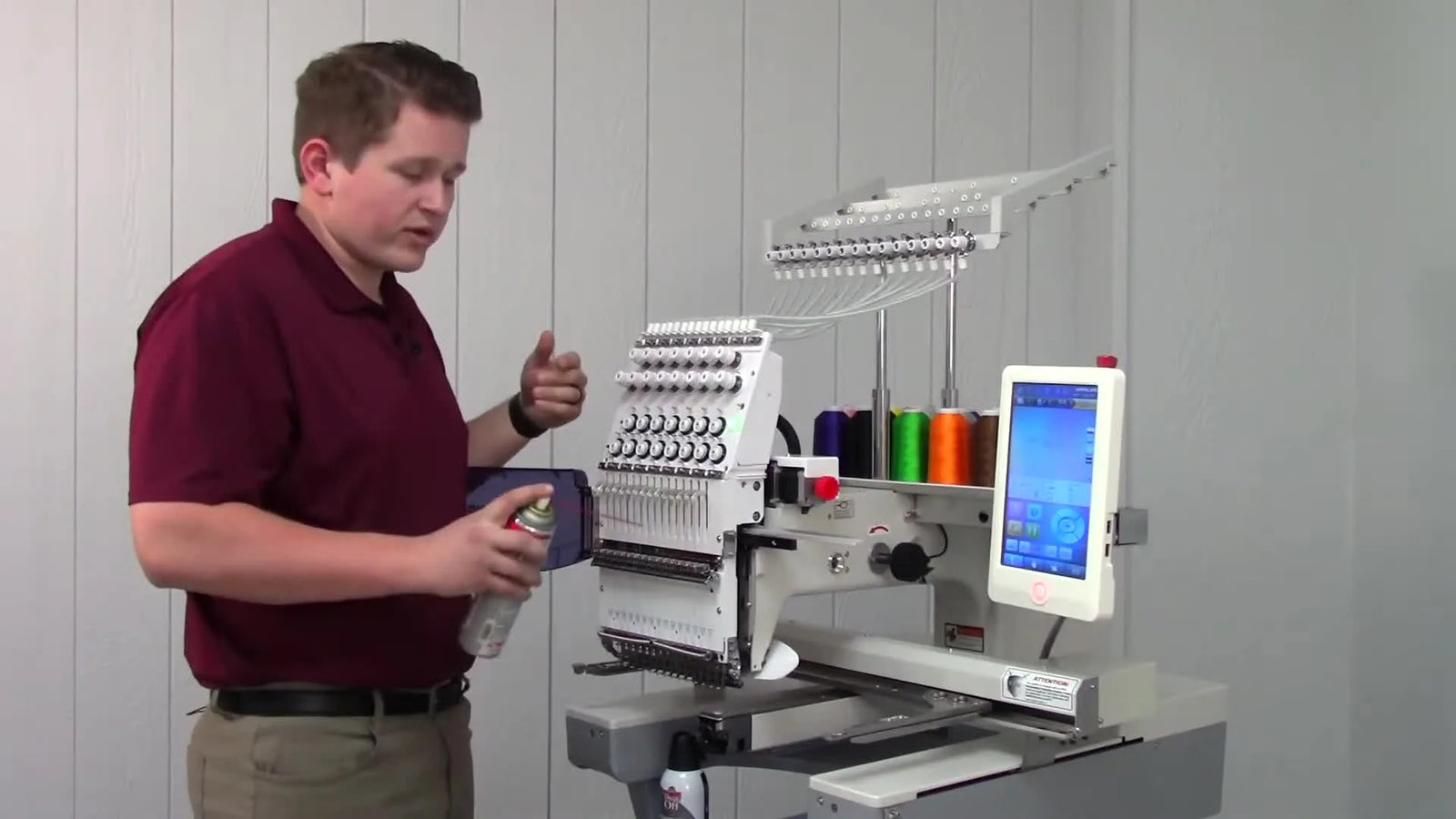

Highland E-Series Oiling That Actually Prevents Thread Breaks: A Daily/Weekly Routine You Can Trust in Production

If you run a Highland E-Series long enough, you learn a hard truth: most “mystery” thread breaks and ugly stitch-outs aren’t mysteries at all—they’re maintenance debt showing up at the worst possible time.

Embroidery is a game of friction management. When a commercial head starts sounding dry, runs hot, or snaps thread on just one needle, it is rarely a catastrophic failure. It is usually the machine asking for lubrication and a lint clean-out.

This guide transforms a standard video tutorial into a production-grade Standard Operating Procedure (SOP). We have added sensory checks (what to look for), safety boundaries, and the "why" behind the oiling points, so you can run your highland embroidery machine with the confidence of a master technician.

Don’t Panic—A Noisy Highland E-Series Head Usually Just Wants Oil (Not a Repair Call)

The goal of maintenance isn't just to "make it shiny." It is to stabilize the physics of the machine. Consistent lubrication keeps thermal expansion down and timing precise.

If you are new to this platform, treat the following routine as a ritual. Do it in the same order, at the same time, every shift. This consistency builds "muscle memory" for both you and the machine.

The “Hidden Prep” Pros Do First: Tools, Access, and a Clean Work Zone Around the Needle Plate

Before you unscrew anything, you need to establish a safe, clean environment. Dropping a screw into the rotary hook area can turn a 5-minute cleaning job into a 2-hour nightmare.

The Toolkit (Physical & Chemical)

• Spray Lubricant (Metered): For linkages and shafts. Tip: Attach the straw firmly; you need precision, not a cloud.
• Oiling Pen: For precise drops into red ports and felt pads.
• Flathead Offset Screwdriver: Essential for torque leverage on needle plate screws without stripping heads.
• Compressed Air: For blasting lint out of the trimmer knife area.
• Magnetic Parts Dish: Crucial addition. Never place screws on the table; they will roll away.

Warning: Mechanical Safety. Ensure the machine is in the "Stop" state. Keep fingers clear of the needle case and trimmer knives. A stray signal or accidental button press can cycle the cutter, causing severe injury.

Prep Checklist (Do this before uncapping the oil)

• Clear the Deck: Remove any hoops, garments, or loose thread cones from the bed.
• Verify State: Machine is powered on but E-Stop is accessible, or powered off (depending on comfort level, though manual rotation often requires power off for safety).
• Clean Before Opening: Wipe visible lint from the bobbin area before using air, so you don't blow surface dust deep into the gears.
• Locate Screws: Identify the three needle plate screws and ensure your screwdriver fits the slot perfectly to avoid stripping.

The Daily Oiling Loop on a Highland E-Series: Main Shaft + Bed Arm + Side Linkage (Needle 1)

Daily oiling targets the high-friction zones that drive the X/Y movement and the main shaft. Neglecting this leads to "binding" noises and registration errors.

1) Main shaft oil port (right side red hole): 2–3 drops, once per day

Go to the right side of the head. Look for the distinct red oil port.

• Action: Insert the pen tip and dispense 2–3 drops.
• Sensory Check: You want the oil to go in, not run down the side of the machine.
• Frequency: Every start of shift.


2) Shaft and linkage at Needle 1 (right side silver plate): 1 metered spray in each hole, once per day

At the Needle 1 position, locate the silver plate secured by two Phillips screws. It has two access holes.

• Action (Top Hole - Connecting Link): Insert straw, apply 1 short, metered spray.
• Action (Bottom Hole - Silver Shaft): Insert straw, apply 1 short, metered spray.
• Sensory Check: Listen for the "hiss" of the spray. You want a burst, not a continuous stream.
• Frequency: Once daily.


3) Bed arm oil port (behind the needle plate): 2–3 drops, once per day

Locate the small port on the cylinder arm, sitting just behind the needle plate.

• Action: Dispense 2–3 drops.
• Expert Why: This lubricates the picker and trimmer drive mechanisms.
• Refinement: Wipe any excess immediately. Oil here can migrate to the garment if overfilled.

The Weekly “Top-End” Routine: Needle Bars + Felt Pads (This Is Where Consistency Comes From)

If you have ever had a machine that stitches perfectly on Needle 1 but shreds thread on Needle 7, the culprit is often uneven top-end lubrication. This weekly routine equalizes the friction.

4) Needle bars (behind the Highland front cover): 1 spray per needle bar, once per week

Open the front faceplate (with the Highland logo). You will see the array of needle bars.

• Action: Apply one controlled spray to the upper section of each needle bar.
• Technique: Move down the line rhythmically—psst, psst, psst—ensuring coverage on all 15 bars.
• Precaution: Avoid spraying the tension disks or thread paths directly.


5) Felt pads (white cover below tensioners): 1 drop per hole (5 holes), once per week

Find the white cover positioned below the tension knobs. It has five small access holes leading to a felt reservoir.

• Action: Place exactly 1 drop in each of the 5 holes.
• Sensory Check: The felt should absorb the oil. If it pools on top, wait for it to soak in. Don't overfill, or it will drip onto your fabric.

Setup Checklist (Weekly Routine)

• Visual Check: Confirm full access to all needle bars (no hidden bars at the ends).
• Spray: Lubricate all needle bars (Upper section).
• Felt: Saturate the 5 felt pad points (1 drop only).
• Clean Up: Wipe any overspray from the machine casing to prevent garment staining.
• Log It: Mark the "Weekly Maintenance" log. If you don't write it down, it didn't happen.

The Rotary Hook Rule That Saves Bobbin Cases: Oil Every 3–4 Hours of Use

The rotary hook spins at high RPMs and generates significant heat. If it runs dry, metal-on-metal friction will scar the raceway, leading to noise and snapped thread.

6) Rotary hook lubrication: remove bobbin case, 1 spray on hook point/raceway, every 3–4 hours

Remove the bobbin case. Look into the rotary assembly.

• Target: The raceway (the track where the inner basket rides) and the hook point area.
• Action: Apply 1 quick spray (or 1-2 drops if using a pen).
• Frequency: Every 3–4 hours of actual run time.
• Sensory Check: The hook should look "glistening" but not dripping. If you hear a dry, metallic "chatter" or "clicking" sound, you are already overdue.


Pro Tip: Always run a "test swatch" on scrap fabric for 30 seconds after oiling the hook. Centrifugal force will spin out excess oil; you want that oil on your scrap, not your client's expensive jacket.

The Left-Side Motion Point People Forget: Reciprocator Shaft at Needle 15 (Daily)

Symmetry matters. Most operators oil the right side but ignore the left, causing torque imbalances over time.

7) Reciprocator shaft (left side at Needle 15): 1 spray, once per day

Go to the Needle 15 side. Locate the silver plate housing the reciprocator shaft.

• Action: Apply one spray onto the shaft mechanism.
• Frequency: Daily.
• Why: If you are running a highland 15 needle embroidery machine, neglecting the far left needle creates uneven wear on the drive system.

The Needle Plate Clean-Out on a Highland E-Series: Where Lint Turns Into Trimmer Trouble

Lubrication handles friction; cleaning handles obstruction. A buildup of "lint cement" (oil + dust) under the plate is the #1 cause of trimmer failures (birdnesting).

8) Remove the needle plate and blow out lint: 3 screws, compressed air, reinstall tight

Use your offset screwdriver to remove the three screws. Set them in your magnetic dish.

• Action (Clean): Lift the plate. Use short bursts of compressed air to blast lint away from the trimmer knives.
• Direction: Blow outward, away from the central bearings.
• Action (Reinstall): Place the plate back. Tighten all 3 screws.
• Sensory Check: The screws must be tight. A loose plate vibrates, causing needle deflection and breaks.


Warning: Eye Protection. Compressed air turns needle shards and hardened lint into projectiles. Shield your eyes.

Operation Checklist (End-of-Routine Verification)

• Daily: Main Shaft (Right), Linkage (N1), Bed Arm, Reciprocator (Left).
• Weekly: Needle Bars, Felt Pads.
• Intra-Day: Rotary Hook (Every 3-4 hours).
• Cleaning: Needle plate removed, lint cleared, screws tightened.
• Final Test: Machine sounds smooth (a rhythmic hum, no harsh clatter).

Consumables That Quietly Control Quality: Needles and Bobbin Cases (Replace Before They Cost You Jobs)

You cannot "maintenance" your way out of worn-out consumables. They have a lifespan.

Bobbin case: replace every 3–6 months (or immediately if dropped)

• The Rule: If you drop a bobbin case on concrete, throw it away.
• The Physics: Even a microscopic dent bends the metal, changing the tension curve. This causes "random" looping that wastes hours of troubleshooting.
• Schedule: Swap every 3–6 months for high-production shops.

Needles: replace every 25–40 hours (or when one needle breaks thread repeatedly)

• The symptom: "Burrs" on the needle eye shred thread.
• The Fix: Don't argue with it. Change it.
• Commercial Context: When running client orders on predictable schedules using highland embroidery gear, a fresh needle costs $0.20 but saves a $20 garment.

A Simple Decision Tree: If You’re Seeing Thread Breaks, Decide What to Fix First (Needle vs. Lint vs. Oil)

Stop guessing. Follow this "Low Cost to High Cost" logic path.

The “Why” Behind the Video’s Schedule: Friction, Heat, and Consistency (So Problems Don’t Come Back)

The video's schedule isn't arbitrary; it is engineering.

• Daily Points: Protect the "Skeleton" (Shafts/Arms). Heat here destroys timing.
• Weekly Points: Protect the "Muscles" (Needle Bars). Uneven lubrication here leads to wobbly stitching.
• Rotary Hook: Protects the "Heart." This is the highest speed component. It fails first.

Sticking to this routine moves you from "Firefighting Mode" to "Production Mode."

Troubleshooting the Two Most Common Shop Complaints (Pulled Straight From the Video)

Symptom: Frequent thread breaks on one particular needle

• Diagnosis: Almost always a burr on the needle tip or eye, or a slightly bent shaft.
• Solution: Replace the needle immediately. Do not try to polish it.

Symptom: Lint and thread buildup under the needle plate

• Diagnosis: Accumulation of stabilizer dust and thread fibers blocking the movable knife.
• Solution: Clean it out. Establish a rule: "Clean plate every time you switch bobbin cases" or at shift change.

Storage Reality Check: “Can I Keep My Highland E-Series in a Shed Under an Insulated Tarp?”

A viewer asked about shed storage. Here is the expert consensus: Electronics hate moisture; mechanics hate rust.

If you must store a machine in a non-climate-controlled shed:

1. Oil heavily: Metal parts need a barrier against humidity.
2. Control Humidity: Use desiccants or a dehumidifier.
3. Cover correctly: Don't trap moisture. Breathable covers are better than sealed tarps if condensation is a risk.
4. Warm Up: Never run a cold machine fast. Let it warm up at low RPMs (400 SPM) to let the grease soften.

The Upgrade Path That Actually Pays Off: Reduce Downtime by Fixing the Workflow Around the Machine

You have optimized the machine maintenance. Now, look at the operator.

If your machine is running perfectly but your production is still slow or quality is inconsistent (crooked logos, puckering), the bottleneck is likely the hooping process.

1. The Trigger (Pain Point): Are you experiencing "Hoop Burn" (permanent ring marks on delicate polos)? Are your operators complaining of wrist fatigue? Is it taking longer to hoop a shirt than to stitch it?

2. The Judgment (Criteria): If you are doing production runs of 50+ items, traditional screw-tightened hoops are a liability. They are slow and physically demanding.

3. The Solution (Options):

• Level 1 (Technique): Use a hooping station for embroidery machine. This standardizes placement so every logo is in the exact same spot, regardless of which operator hooped it.
• Level 2 (Tool Upgrade): Switch to magnetic embroidery hoops. The SEWTECH magnetic line (compatible with various commercial machines) clamps fabric instantly without forcing inner/outer rings together. This eliminates hoop burn and drastically speeds up the reload time.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch fingers severely. Slide them apart; don't pry them. Keep them away from pacemakers and sensitive electronics.

By stabilizing your machine with the oiling guide above, and stabilizing your workflow with a good magnetic hooping station, you create a commercial loop that prints money: Machine stays running + Operator hoops faster + Quality stays consistent.

FAQ

• Q: How do I oil the Highland E-Series main shaft red oil port without making a mess on the machine head?
  A: Use an oiling pen and apply only 2–3 drops into the right-side red oil port once per day.
  • Insert the pen tip directly into the red port and dispense 2–3 drops (do not “flood” the area).
  • Watch the oil: it should disappear into the port, not run down the casting.
  • Wipe any oil that lands on the exterior immediately to prevent migration later.
  • Success check: the oil goes in cleanly and the head runs with a smooth, rhythmic hum (no dry clatter).
  • If it still fails… and the head still sounds dry or hot, complete the rest of the daily oil points (Needle 1 linkage, bed arm port, Needle 15 reciprocator) before changing tensions.
• Q: What is the correct daily lubrication routine for the Highland E-Series needle drive linkage at Needle 1 (silver plate with two holes)?
  A: Apply 1 short, metered spray into each access hole on the Needle 1 silver plate once per day.
  • Remove nothing: use the straw and aim into the top hole (connecting link) for 1 quick spray.
  • Aim into the bottom hole (silver shaft) for 1 quick spray.
  • Avoid continuous spraying; controlled bursts reduce overspray into thread paths.
  • Success check: you hear a brief “hiss” (not a long stream) and the mechanism sounds smoother on the next run.
  • If it still fails… and thread still breaks on multiple needles, oil the Highland E-Series rotary hook (every 3–4 hours of run time) and test again.
• Q: How often should the Highland E-Series rotary hook be lubricated to prevent noisy running and multi-needle thread breaks?
  A: Oil the Highland E-Series rotary hook every 3–4 hours of actual use with 1 quick spray (or 1–2 drops).
  • Remove the bobbin case and target the hook raceway and hook point area (not random parts of the bed).
  • Apply 1 quick spray (or 1–2 drops) so the hook looks lightly “glistening,” not dripping.
  • Run a 30-second test swatch on scrap after oiling to fling off excess oil safely.
  • Success check: the metallic chatter/clicking disappears and the hook area looks shiny but not wet.
  • If it still fails… remove the needle plate and blow out lint near the trimmer knives, because oil cannot fix a blockage.
• Q: How do I safely remove and reinstall the Highland E-Series needle plate to fix birdnesting and messy trims caused by lint buildup?
  A: Remove the Highland E-Series needle plate (3 screws), blow out lint with compressed air, and reinstall the plate with all screws tight.
  • Stop the machine and keep fingers clear of the needle case and trimmer knives before starting.
  • Remove the 3 needle plate screws and store them in a magnetic parts dish so nothing drops into the hook area.
  • Blow lint outward (away from central bearings) using short bursts of compressed air around the trimmer knife area.
  • Tighten all 3 screws firmly when reinstalling to prevent vibration and needle deflection.
  • Success check: the plate does not rattle, and stitch-outs stop birdnesting during trims.
  • If it still fails… oil the rotary hook and verify bobbin case condition/tension, because a damaged case can mimic trimming issues.
• Q: What should I fix first when the Highland E-Series breaks thread on only one needle during production?
  A: Replace the needle on the problem position first; do not touch tension as the first move.
  • Swap in a fresh needle immediately on the single failing needle position.
  • Resume stitching and observe that position before changing any upper tension settings.
  • Log the needle change if the shop tracks maintenance so repeat failures are obvious.
  • Success check: thread breaks stop on that one needle while other needles remain stable.
  • If it still fails… inspect for a bent/damaged needle and then move on to cleaning under the needle plate and oiling the hook (especially if problems spread to multiple needles).
• Q: What are the Highland E-Series mechanical safety steps before cleaning, oiling, or using compressed air near the trimmer knives?
  A: Treat the trimmer/needle zone as a pinch-and-cut hazard: stop the machine, keep hands clear, and protect eyes when using air.
  • Confirm the machine is in a Stop state and keep the E-Stop accessible (or power off if manually rotating for safety).
  • Keep fingers away from the needle case and trimmer knives because an accidental signal can cycle the cutter.
  • Wear eye protection before using compressed air; lint and needle shards can become projectiles.
  • Success check: maintenance is completed with no unexpected movement and no loose screws or parts left in the bed area.
  • If it still fails… and the machine behaves unpredictably, stop and escalate to qualified service instead of continuing to run.
• Q: When should an embroidery shop upgrade from screw-tightened hoops to magnetic embroidery hoops or a hooping station to reduce hoop burn and operator fatigue?
  A: If production runs are 50+ items and hooping is slower than stitching or leaves hoop burn, start with a hooping station, then consider magnetic embroidery hoops.
  • Identify the trigger: hoop burn on delicate polos, wrist fatigue, or slow reload time between garments.
  • Apply Level 1: standardize placement with a hooping station to reduce crooked logos and re-hoops.
  • Apply Level 2: switch to magnetic embroidery hoops to clamp fabric quickly without forcing rings together (often reduces hoop burn and speeds loading).
  • Success check: hooping time drops and placement becomes consistent across operators with fewer visible ring marks.
  • If it still fails… and throughput is still limited even with fast hooping and stable maintenance, consider a production-capacity upgrade to a multi-needle commercial machine.
