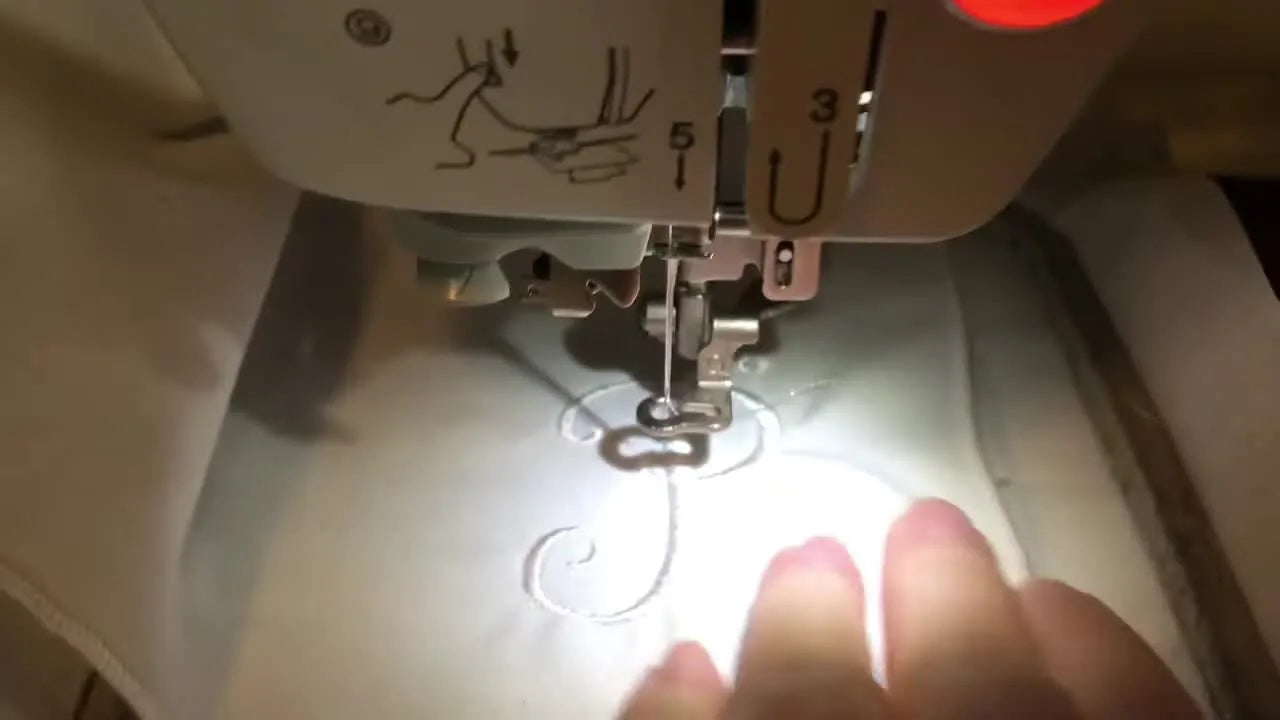

Heirloom Napkin Monograms on a Brother HE1: The Floating Trick That Saves Your Fabric (and Your Nerves)

White-on-white monogramming looks “simple” until you’re staring at an heirloom napkin thinking: If I mess this up, I can’t replace it.

I’ve spent twenty years in embroidery production, and I can tell you the truth: this anxiety is valid. Heirloom linens are unforgiving. There is no "undo" button once the needle pierces the fabric. However, this is exactly the kind of project where slow, methodical setup beats raw talent every time.

In this tutorial, we will stitch a 2.5-inch monogram on a white heirloom napkin using a Brother HE1 (a classic reliable workhorse) and a standard 4x4 hoop. We will use the floating method—hooping the stabilizer while floating the fabric on top. This guide is calibrated to keep you in the "safe zone," preventing the four horsemen of embroidery disasters: crooked placement, fabric puckering, gummy needles, and the dreaded bird's nest.

Calm First: Brother HE1 Monogramming on Heirloom Napkins Is Totally Doable (If You Measure Like You Mean It)

If you’re new to the Brother HE1, it is normal to doubt the machine—or doubt yourself. This machine is a tank, but it requires precise instruction. It interacts with physics, not magic.

Here is the good news: the project in the video is intentionally designed for a "quick win." It involves one letter, one color, and a stabilizer that tears away cleanly. If you can keep your placement marks aligned and prevent the napkin from shifting, the actual stitching is just a victory lap.

Material Note: The napkin used here is cotton. Cotton is the "Training Wheels" of heirloom embroidery because it is stable, presses flat, and grabs the stabilizer well. If you were doing silk, we would be having a very different conversation about needles and tension.

The Materials That Actually Matter: Brother HE1 + Tearaway Stabilizer + Spray Adhesive (Used the Right Way)

The video uses a simple supply list, but I’m going to upgrade it with the "Hidden Consumables"—the things beginners forget until it's 10 PM and the stores are closed.

The Visible List:

• Machine: Brother HE1 embroidery machine (or similar single-needle home machine).
• Hoop: Standard 4x4 hoop.
• Stabilizer: Medium-weight Tearaway (one sheet).
• Adhesive: Sullivan’s Quilt Basting Spray (or Odif 505).
• Thread: 40wt White Embroidery Thread + White Bobbin Thread (60wt or 90wt).
• Substrate: White heirloom napkin (Cotton).
• Tools: Pencil/Water Soluble Pen, Plastic Grid, Ruler, Tweezers, Small Sharp Scissors (Curved tip preferred).
• Tech: USB drive.

The "Hidden" Consumables (Do not start without these):

• New Needle: Size 75/11 Embroidery Needle. Never risk an heirloom item on an old needle. If you can hear the needle "thud" through the fabric, change it.
• Masking Tape/Painter's Tape: For securing loose napkin corners.
• Simthread/SewTech Magnetic Hoop (Optional): If you hate sticky residue (more on this later).




The “Hidden” prep most people skip: choose stabilizer based on the *backside standard*

The creator chooses tearaway because she doesn’t want stabilizer left behind. This is the Heirloom Standard: the back should look almost as clean as the front.

However, blind allegiance to tearaway causes problems. Use this decision tree to confirm you are making the safe choice:

Decision Tree: Fabric + Usage → Stabilizer Choice

1. Is the fabric stretchy (Knits/Jersey)?
   • Yes: STOP. You must use Cutaway stabilizer. Tearaway will cause the design to gap and distort.
   • No (Woven Cotton/Linen): Proceed to Step 2.
2. Is the item "Heirloom" (Backside aesthetics matter)?
   • Yes: Use Tearaway.
   • No (Workwear/Towels): Cutaway is stronger and preferred for longevity.
3. is the design extremely dense (High stitch count)?
   • Yes: Use two layers of Tearaway, or switch to Cutaway.
   • No (Simple Monogram < 5000 stitches): One layer of Tearaway is the "Sweet Spot."

The Prep That Prevents Crooked Monograms: Hooping Only the Stabilizer in a Brother 4x4 Embroidery Hoop

The video’s core method is simple: hoop the stabilizer, not the napkin. This prevents "Hoop Burn"—the crush marks that hoops leave on delicate fabrics, which sometimes never wash out.

Step-by-Step Hooping:

1. Loosen: Unscrew the hoop until the rings separate easily.
2. Layer: Place one clean sheet of tearaway stabilizer over the outer ring.
3. Insert: Press the inner ring strictly downward.
4. Sensory Check (The Drum Test): Tighten the screw. Tap the stabilizer with your fingernail. It should sound like a drum skin (thump-thump). If it sounds like paper rustling, it is too loose. Tighten loop, pull gently on edges, tighten screw again.
5. Do NOT hoop the fabric.

This tightness is non-negotiable. It is the foundation of brother 4x4 embroidery hoop success. If the stabilizer is loose, the napkin will flag, and your registration will drift.

Prep Checklist (Do this BEFORE spraying glue)

• Hoop Tension: Hand-tighten the screw. Can you push the stabilizer out with light thumb pressure? If yes, it's too loose.
• Hoop Orientation: Note where the attachment bracket is. Ensure you hoop the stabilizer right-side up relative to the machine arm.
• Needle Check: Run your fingernail down the needle tip. Feel a burr? Replace it.
• Bobbin Check: Is the bobbin at least 50% full? Running out mid-monogram on white-on-white is a nightmare to fix invisibly.

Placement That Looks Professional: Marking the Stabilizer Center + Napkin Center (1 Inch Up From the Bottom)

Placement is where amateurs guess and professionals measure.

The Math:

• Napkin Corner: We are placing the design on the corner, on the diagonal.
• Vertical Center: 1 inch up from the corner point (or hem edge).
• Design Height: 2.5 inches.

The Method:

1. Mark the Stabilizer: Use the plastic grid template supplied with your hoop. Mark the absolute center of the hooped stabilizer with a crosshair (+).
2. Mark the Napkin: Fold the napkin corner in half to find the centerline. Mark a crosshair 1 inch up from the bottom edge.
3. Marking Tool: The video uses pencil. Expert Advice: Use a water-soluble blue pen or air-erase purple pen. Lead pencil can smear on white thread and is hard to remove.


Pro Tip: If you are nervous, print the design on paper at 100% scale (using software like SewWhat-Pro or Embrilliance), cut it out, and tape it to the napkin to visually confirm the size and location before marking.

The Floating Embroidery Hoop Method: Use Spray Adhesive on the Perimeter, Not the Stitch Zone

This is the "Secret Sauce." We adhere the napkin to the stabilizer using temporary spray adhesive.

The Protocol:

1. Shake: Shake the can for 30 seconds.
2. The Box Trick: Place your hoop inside a cardboard box to catch overspray.
3. Perimeter Spraying: Spray only the outer edges of the stabilizer, creating a "frame" of glue. Avoid the center.
4. Align: Match the crosshair on your napkin to the crosshair on the stabilizer.
5. Press: Smooth from the center outward.

This is the heart of floating embroidery hoop technique: you rely on the stabilizer tension for structure and the adhesive for grip.

Warning: Mechanical Safety
Never spray adhesive near your embroidery machine. The airborne mist will settle on your gears, belts, and screen, creating a sticky layer that attracts dust and causes mechanical seizure over time. Always spray in a separate room or outside.

Why floating often feels easier than hooping fabric (The Physics)

When you hoop a napkin, you force a square weave into a round distortion. When you float, the napkin lies in its relaxed, natural state. This eliminates the "pucker" that often appears after you unhoop a standard project.

However, spray adhesive has a shelf life. Sensory Check: Touch the sprayed surface. It should feel tacky like a Post-it note, not wet like paint. If it's not tacky, re-spray.

SewWhat-Pro on a Mac + Brother HE1 File Transfer: Keep It Simple, Don’t Over-Edit

The creator uses SewWhat-Pro to view the file. Whether you use Wilcom, Embrilliance, or simple viewer software, the goal here is confirmation, not creation.

1. Transfer: Save the .pes file (Brother format) to your USB.
2. Load: Insert USB into the HE1.
3. Verify: Check the dimensions on the screen. It should say roughly 2.50 inches (approx 63mm).




Expert Insight: Do not resize designs more than 10-15% directly on the machine handle. The machine does not calculate density compensation well. If you scale a 2.5" design up to 4", the stitches will be too sparse. If you scale down, they will be too dense and bullet-proof.

The “Green Button Moment”: Attaching the Hoop, Controlling Loose Fabric, and Starting Clean

The scariest moment is pressing start. Let's de-risk it.

Action Sequence:

1. Click: Attach the hoop to the embroidery arm. Listen for the Snap. Wiggle it to ensure it is locked.
2. Clearance: Check the "bulk" of the napkin. Roll up the excess fabric and clip it or tape it so it doesn't fall under the needle plate.
3. Thread Path: Ensure the upper thread isn't caught on the spool pin.

This is where brother embroidery machine users often panic. Take a breath. Lower the foot. The light turns green.

Warning: Physical Safety
Pinch Hazard. When the machine starts, the embroidery arm will move rapidly to the start position. Keep your hands, coffee, and scissors outside the range of motion. Do not try to smooth the fabric while the needle is moving.

Setup Checklist (The "Pre-Flight" Check)

• Hoop Security: Is the hoop clicked in firmly? (Wiggle test).
• Obstruction: Is the excess napkin fabric cleared away from the back of the needle bar?
• Needle: Is the needle screw tight?
• Presser Foot: Is the foot down? (The machine will beep if not, but check anyway).

The Tension Reality Check: Pause After a Few Stitches and Adjust the Brother HE1 Dial to ~3.25

Do not walk away. The first 100 stitches are critical.

Watch the first few letters form.

• Visual Check: Are there loops on top? (Top tension too loose). is the bobbin thread showing on top? (Top tension too tight).
• The Adjustment: The video recommends an upper tension setting of 3.25 (Standard is often 4.0).
• Why? Monograms are dense satin stitches. Reducing tension slightly allows the thread to lay flatter and wider, giving a glossy, professional finish.

The "Floss Test": Before threading the needle, pull the thread through the tension disks. It should feel like pulling dental floss through teeth—resistance, but smooth. If it jerks, clean the disks.

Finishing Like a Pro: Pop the Inner Ring, Tear Away Stabilizer, Use Tweezers for Tight Loops, Clip Jump Threads Carefully

The stitch-out is done. Now, the "reveal."

1. Un-hoop: Remove from machine. Remove inner ring.
2. Tear: Support the stitches with your thumb (press down on the embroidery) and gently tear the stabilizer away from the outside.
3. Tweeze: For the tiny bits inside letters (like the loop of a 'P' or 'B'), use fine-point tweezers. Do not yank; wiggle them out.
4. Trim: Cut the jump threads.




Operation Checklist (The Finish Line)

• Jump Threads: Clip them close to the surface (1mm).
• Stabilizer Residue: Is the back clean? (If fuzzy bits remain, that's okay for tearaway).
• Pressing: Iron the napkin face down on a fluffy towel. This prevents flattening the beautiful 3D texture of your satin stitches.

Troubleshooting the Two Most Common Floating Failures: Sticky Needles and Fabric Slip

Even experts fail. If you fail, diagnose it here:

When You’re Ready to Work Faster (or Sell These): Upgrade Your Hooping Workflow Instead of Fighting It

The spray-and-float method is great for one napkin. It is terrible for fifty.

If you start selling these sets, you will encounter the "Production Wall":

1. Sticky Mess: Spray adhesive builds up on hoops and surfaces.
2. Wrist Fatigue: Constantly unscrewing and tightening hoops hurts.
3. Hoop Burn: Even floating can leave marks if you aren't careful.

The Commercial Upgrade Path:

• Level 1: Stability Upgrade. If you struggle with sticky residue, consider a magnetic embroidery hoop. These clamp the stabilizer and fabric using strong magnets rather than friction and screws. They automatically adjust to fabric thickness, eliminating the need to adjust screws and reducing "hoop burn."
• Level 2: Speed Upgrade. Professionals searching for how to use magnetic embroidery hoop usually find that loading time drops from 2 minutes to 30 seconds. This is critical when doing a set of 12 napkins.
• Level 3: Capacity Upgrade. If you outgrow the 4x4 field or single-needle speed, you are looking at multi-needle machines (like the SEWTECH line). These hold larger industrial magnetic frames and don't require thread changes for multi-color designs.

Warning: Magnetic Safety
Pacemaker & Electronics Hazard: Magnetic hoops use dangerously strong Neodymium magnets. If you have a pacemaker, consult a doctor. Keep credit cards and phones away. Pinch Hazard: These magnets snap together with force—keep fingers clear of the mating surface to avoid blood blisters.

Also, think about your workspace. A dedicated hooping station for machine embroidery ensures every napkin is hooped in the exact same spot, guaranteeing that every monogram in a set of 8 aligns perfectly.

The Final Result: Clean White-on-White Monograms That Look Expensive (Because They’re Precise)

The finished napkins in the video look elegant because the fundamentals were respected. They are clean, centered, and the stitch quality is balanced.

Final mental anchor: Machine embroidery is 80% preparation and 20% execution. If you spend 5 minutes marking and hooping correctly, the machine will reward you. If you rush the prep, the machine will punish you.

Take your time. Measure twice. Float confidently. And remember to change that needle.

FAQ

• Q: Which stabilizer is safest for Brother HE1 white-on-white monogramming on a cotton heirloom napkin when the backside must look clean?
  A: Use one layer of medium-weight tearaway for a simple monogram, and only add a second layer if the design is very dense.
  • Confirm fabric type: Proceed only on woven cotton/linen; knits generally need cutaway instead of tearaway.
  • Match to project goal: Choose tearaway when a clean backside is the standard.
  • Add support if needed: Use two layers of tearaway (or consider cutaway) if the monogram is extremely dense.
  • Success check: The napkin stays flat during stitching and the back tears away cleanly without pulling the stitches.
  • If it still fails… Reduce design density/size changes and re-test on a scrap, or switch stabilizer strategy.
• Q: How tight should a Brother 4x4 embroidery hoop be when hooping only tearaway stabilizer for the floating method on a Brother HE1?
  A: The hooped stabilizer must be “drum tight” before floating the napkin—loose stabilizer is the fastest path to drift and nesting.
  • Loosen and re-seat rings: Press the inner ring straight down (no angled forcing).
  • Tighten in passes: Tighten the screw, gently pull stabilizer edges, then tighten again.
  • Do the drum test: Tap the stabilizer with a fingernail.
  • Success check: It sounds like a drum “thump-thump,” not a paper-rustle, and light thumb pressure cannot push the stabilizer out.
  • If it still fails… Re-hoop from scratch; do not “try to save” a loose hoop by adding more spray adhesive.
• Q: How can Brother HE1 users prevent gummy needles and thread shredding when using Sullivan’s Quilt Basting Spray or Odif 505 for floating an heirloom napkin?
  A: Spray only the perimeter of the hooped stabilizer—never the stitch zone—so adhesive does not transfer to the needle.
  • Spray away from the machine: Apply spray in a separate room/outside using a cardboard box to catch overspray.
  • Create a glue “frame”: Mist only the outer edges of the stabilizer and keep the center clean.
  • Wait for tack: Touch the stabilizer; it should feel like a Post-it note, not wet paint.
  • Success check: The needle stays clean and the thread does not start fraying/shredding within the first stitches.
  • If it still fails… Wipe the needle with an alcohol swab, replace with a new 75/11 embroidery needle, and re-spray lighter.
• Q: What is a safe Brother HE1 upper tension setting for a dense satin-stitch monogram, and how should Brother HE1 users verify tension in the first 100 stitches?
  A: A safe starting point for this monogram setup is about 3.25, then adjust based on what appears on the fabric in the first few stitches.
  • Start and watch: Stay with the machine for the first 100 stitches.
  • Read the stitches: Loops on top usually mean upper tension is too loose; bobbin thread showing on top usually means upper tension is too tight.
  • Adjust gradually: Move the dial slightly, then observe again.
  • Success check: Satin stitches look glossy and flat with no top loops and no bobbin thread pulling to the surface.
  • If it still fails… Rethread the upper path and make sure the thread is seated correctly in the tension area before changing more settings.
• Q: How do Brother HE1 users fix a “bird’s nest” tangle under the needle plate during a floating-method monogram on an heirloom napkin?
  A: Rethread the Brother HE1 completely with the presser foot UP, because missing the tension area is a common cause of bird’s nests.
  • Stop immediately: Pause/stop the machine as soon as tangling starts.
  • Remove and reset: Cut away tangled threads, remove the hoop, and clear the underside threads carefully.
  • Rethread correctly: Raise the presser foot, then rethread the upper thread path from start to needle.
  • Success check: The next restart forms clean stitches on top with no rapid thread build-up underneath.
  • If it still fails… Recheck hoop “drum tight” tension and confirm the bobbin is not near empty before restarting.
• Q: What mechanical safety rule should Brother HE1 users follow when starting embroidery with the hoop attached to avoid pinch hazards and fabric snags?
  A: Keep hands and tools completely out of the embroidery arm’s motion range when the Brother HE1 moves to the start position, and secure excess napkin fabric before pressing start.
  • Clear the work area: Move scissors, tweezers, and loose items away from the hoop path.
  • Control excess fabric: Roll and clip/tape napkin bulk so it cannot fall under the needle plate.
  • Lock the hoop: Attach until it clicks, then do a gentle wiggle test.
  • Success check: The arm travels freely without hitting fabric piles, and nothing gets pulled under the needle plate in the first movements.
  • If it still fails… Stop the machine, re-clear fabric, and re-check hoop attachment before restarting.
• Q: When floating heirloom napkins becomes too slow or messy, what is a practical upgrade path from technique changes to magnetic embroidery hoops to multi-needle capacity?
  A: Start by optimizing the floating workflow, then consider a magnetic embroidery hoop to reduce residue and hooping time, and move to a multi-needle machine only when single-needle speed/field size becomes the true bottleneck.
  • Level 1 (Technique): Keep spray on the perimeter only, tape loose corners, and standardize marking so placement stops drifting.
  • Level 2 (Tool): Use a magnetic embroidery hoop to clamp fabric/stabilizer faster and reduce screw-tightening and hoop burn.
  • Level 3 (Capacity): Consider a multi-needle setup when frequent thread changes, small field size, or volume work makes single-needle production impractical.
  • Success check: Loading is consistent and repeatable (less re-hooping, less residue cleanup, fewer crooked monograms).
  • If it still fails… Add a dedicated hooping station so each napkin is aligned the same way every time.
