Hatch Reshape Tool: Fix “Wonky” Embroidery Objects Fast (Without Over-Digitizing Yourself Into a Corner)

If you’ve ever opened a design in Hatch, made one “tiny” tweak, and suddenly the shape looks… off—take a breath. The Reshape Tool is one of the fastest ways to customize an object without re-digitizing from scratch, but it demands a surgeon's touch, not a sledgehammer.

In this session, we’re treating the Hatch "Chef Master" design not just as a digital file, but as a blueprint for a physical machine. We will use the Reshape Tool to:

• Select and edit an object without accidentally grabbing the background.
• Rotate stitch direction (angles) to control push/pull compensation.
• Reshape outlines by moving nodes (the anchor points of embroidery).
• Toggle nodes between curve and corner (the "Spacebar Secret").
• Add new nodes correctly (Left vs. Right click logic).
• Undo mistakes and exit safely before the software freezes.


The “Don’t Panic” Primer: What the Hatch Reshape Tool Really Changes (and What It Doesn’t)

Reshape is for editing an existing object’s geometry—the outline and specific object controls—so you can fine-tune a design quickly.

Here is the "Experience Reality Check": When you reshape a digital object, you are changing how the machine moves. If you drag an outline 5mm to the right but don't adjust the stitch angle, you might create a "long stitch" that creates a loop or snaps a needle.

The Golden Rule: Reshape is like tailoring a suit. You are adjusting the fit, not weaving the fabric from scratch. If you fight the shape with too many nodes, you will lose the war against physics.

Hidden Consumables Alert: Before you start deep editing, ensure you have temporary spray adhesive (like 505) and a fine-point water-soluble pen. You will often need to mark your fabric to match your new digital shape.

The “Hidden” Prep Pros Do First: Set Up Hatch So Reshaping Doesn’t Turn Into Guesswork

Before you press 'H' (Reshape), you must isolate your target. In the video, current view is the Hatch workspace with the hat object.

Prep Checklist: The "Pre-Flight" Safety Check

• Visual Zoom: Press B and zoom in until individual stitches are visible (aim for 400-600% zoom).
• Layer Check: Open the "Resequence" docker to confirm which layer you are touching.
• Physical Correlation: Look at your actual hoop size. Is your reshape pushing the design into the "Keep Out" grey safety zone of the hoop?
• Undo Safety: Rest your left hand on Ctrl+Z. This is your safety net.
• Fabric Simulation: Toggle "TrueView" (T) to see if your reshape exposes gaps in the underlay.

If you are building designs for actual production—not just screen screenshots—your physical workflow dictates your software limits. If you reshape an object perfectly, but your hooping is crooked, the edit is wasted. This is why high-volume shops standardize their station. A professional hooping station for machine embroidery ensures that the geometry you set in Hatch is exactly where it lands on the shirt, eliminating the "variable drift" that confuses beginners.

Select the Object + Enter Reshape Mode in Hatch (H) Without Grabbing the Wrong Thing

The video’s workflow is standard, but let's add the sensory checks to ensure you are actually in control.

1. Click: Click the embroidery object (the hat).
2. Activate: Press H (Reshape).

Sensory & Visual Anchors:

• Visual: You should see a Pink Outline (the "Hull").
• Visual: Blue and square nodes appear along the perimeter.
• Tactile (Mental): The object is now "unlocked." A stray click will deform it.

Setup Checklist (System Status)

• Pink outline is clearly visible around the specific object only.
• Nodes are distinct (not clustered on top of each other).
• Angle lines (stitch direction) are visible with orange control handles.
• You are not in "Stitch Edit" mode (which edits single needle drops)—you want "Reshape" mode (editing the shape).

Warning: Mechanical Safety. Extreme reshaping can create stitches smaller than 1mm or larger than 12mm.
* Too Small: Causes "birdnesting" (thread jams) in the bobbin case.
* Too Large: The machine slows down, and toes/fingers can get caught in long loops. Always check "Small Stitch Filter" settings after a major reshape.

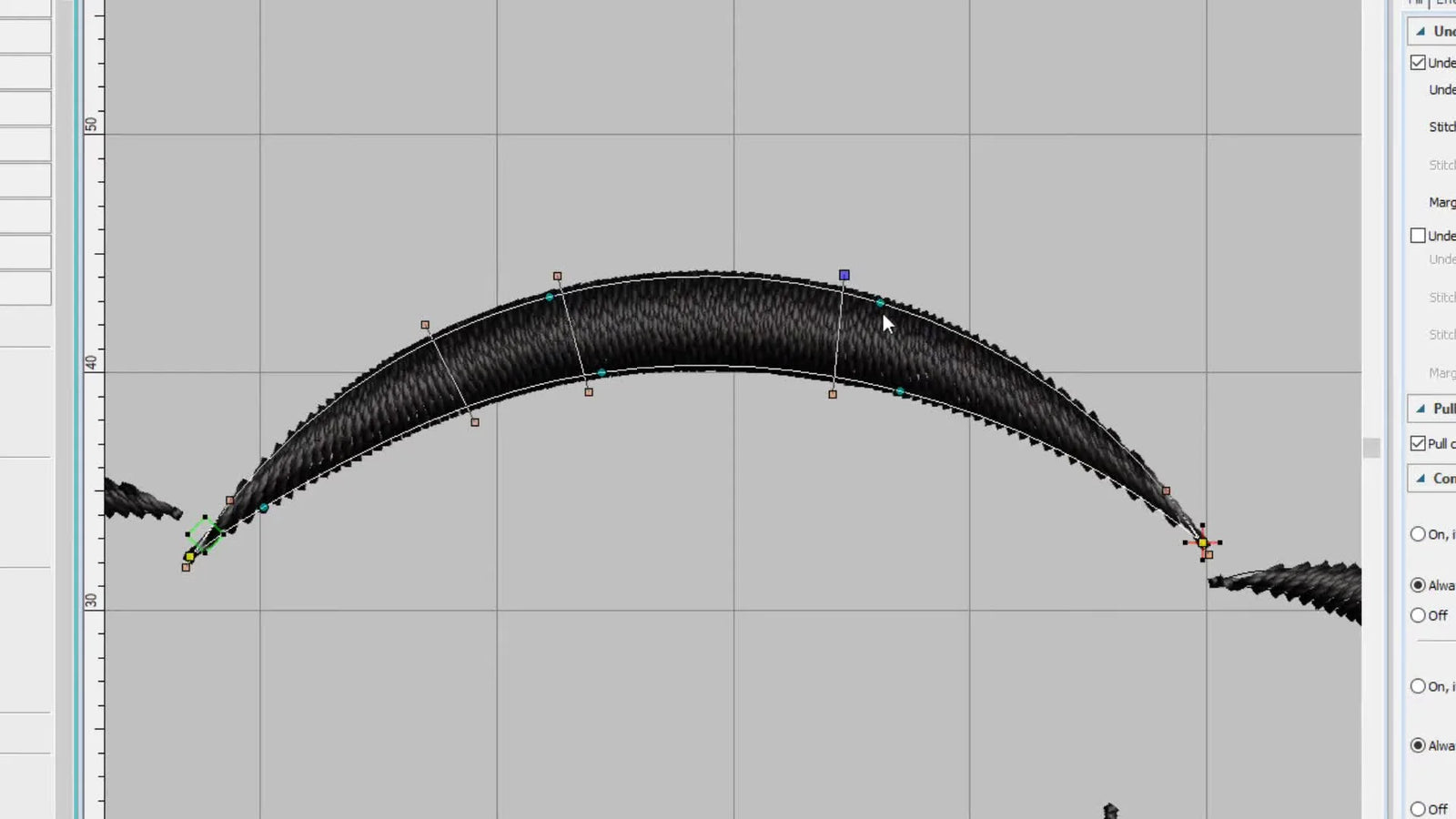

Rotate Satin Direction Like a Pro: Editing Hatch Stitch Angle Lines (98° → 117° → 75°)

In the video, Linda manipulates the lines with orange boxes. These are Stitch Angles. This is the most critical physics adjustment you can make.

The Physics of Stitch Angles: Embroidery threads pull the fabric in the direction the stitch runs.

• 98° (Vertical-ish): Pulls the fabric up and down.
• 180° (Horizontal): Pulls the fabric sides in (the "hourglass" effect).

Action:

1. Locate the orange square handle.
2. Draft it to rotate the line.
3. Sweet Spot: For stable knits, try to keep angles between 45° and 135°. Avoid running satin stitches perfectly parallel with the grain of stretchy fabric unless you have solid stabilizer.


Make the Angle Change “Stick” Visually: What to Watch While You Drag the Orange Square

When you drag that orange square, you aren't just changing a number; you are changing how light reflects off the thread.

The "Light Test":

• Stitches running vertically tend to look darker.
• Stitches running horizontally reflect more overhead light and look shinier.

Physical Implication: If you reshape a hat logo but create a stitch angle that fights the curve of the cap, the embroidery will pucker. On difficult items like caps or heavy bags, the fabric fights back. This is why professionals often pair careful angle editing with magnetic embroidery hoops. The magnetic force clamps the fabric evenly around the perimeter, neutralizing the "pull" caused by aggressive stitch angles and preventing the dreaded "pucker" distortion.

Read Hatch Nodes at a Glance: Turquoise Circles (Curves) vs. Yellow Squares (Corners)

Learn the language of the nodes to predict machine movement:

• Turquoise Circle (Curve): The machine will glide through this area. The pantograph moves smoothly.
• Yellow Square (Corner): The machine calculates a sharp turn. It may slow down or place a "hard point" to create a crisp edge.

Observation Guide: If your curved chef's hat looks "choppy" or "robotic," you likely have Yellow Squares where you should have Turquoise Circles.

Reshape the Object Outline by Moving Nodes—And Keep End Nodes Connected to Avoid Jumps/Trims

Reshaping is dangerous because you might accidentally create a Gap.

The Risk: If you pull the hat outline up but forget to pull the bottom nodes connected to the brim, you create a 1mm gap. The Consequence: The machine will finish the brim, trim the thread (takes 7 seconds), move 1mm, tie in (lock stitch), and start the hat. You just added potential manufacturing defects and wasted time.

The Fix:

1. Selection Box: Drag a box around the cluster of nodes where two objects meet.
2. Move Together: Move them as a unit to maintain the overlap (overlap should be minimum 1.5mm - 2mm for safety).


The Spacebar Trick That Saves Hours: Toggle a Node Between Curve and Corner in Hatch

This is the highest ROI (Return on Investment) keystroke in Hatch.

The Workflow:

1. Click a node that looks wrong (e.g., a pointy part of a round hat).
2. Tap Spacebar.
3. Visual Check: The Yellow Square becomes a Turquoise Circle (or vice versa).
4. Result: The outline softens instantly without you dragging anything.

Use this before you start moving nodes. 50% of reshaping issues are just wrong node types.

Add New Nodes the Right Way: Left-Click for Straight/Corners, Right-Click for Curves

When you need to change the geometry fundamentally (e.g., adding a dip in the hat), you need new anchor points.

The Muscle Memory:

• Left-Click on outline: Adds a Yellow Square (Hard Corner). Use for sharp details.
• Right-Click on outline: Adds a Turquoise Circle (Soft Curve). Use for organic shapes.

The "Less is More" Policy: Every node you add is a new calculation for the software. Only add a node if the shape absolutely demands it.

Contextual Tip: If you are editing specific names or logos that require constant resizing, your physical setup needs to be as adaptable as your software. Using hooping stations ensures that once you get the digital file right, you can replicate the placement on 10 or 100 shirts without re-measuring every chest pocket.

The #1 Beginner Trap: Over-Digitizing With Too Many Nodes (and Why It Makes Editing Worse)

Linda's warning is crucial: Node Bloat.

Symptoms of Node Bloat:

• The outline looks "wobbly" or "jittery."
• The machine sounds different (changing pitch rapidly) as it tries to sew micro-movements.
• You cannot get a smooth curve no matter how much you drag.

The Fix: Delete nodes. Click a node and hit Delete. Let the computer calculate the curve between two distant points—it is usually smoother than your hand.

Undo and Exit Cleanly: Ctrl+Z to Back Out, Esc to Finish Reshaping

The exit strategy is as important as the entry.

1. Review: Zoom out (Press 0 for Fit to Screen). Does the balance look right?
2. Check Connectors: Are start/end points valid?
3. Exit: Press Esc. The Pink Outline disappears. The object is "locked" again.
4. Save: File > Save As (Don't overwrite your original!).


Decision Tree: When to Fix It With Hatch Reshape vs. When to Rethink the Whole Workflow

Stop struggling. Use this logic flow to decide your next move.

Is there a gap between the outline and the fill?

• YES: Check Pull Compensation settings first. Do not use Reshape to fix standard pull issues (fabric shrinkage).
• NO: Proceed to next.

Is the shape geometrically wrong (e.g., square instead of round)?

• YES: Use Reshape Tool. Toggle nodes with Spacebar.
• NO: Proceed to next.

Is the embroidery interfering with a seam or pocket?

• YES: Use Reshape to move the contour away from the thick seam.
• NO: Proceed to next.

Are you seeing "Hoop Burn" (shiny ring marks) around the reshaped design?

• YES: This is not a software issue. This is a clamping issue. Stop editing. Consider upgrading to a hoop master embroidery hooping station system or using a magnetic frame to hold the fabric gently without friction burns.
• NO: You are good to stitch.


Troubleshooting “Wonky Shape” in Hatch Reshape: Symptom → Cause → Fix

When things go wrong, consult the "Emergency Room" chart:

The Production Upgrade Path: Clean Software Edits + Consistent Hooping = Repeatable Results

You have mastered the software edit. Now, how do you make money (or save sanity) with it?

The bottleneck shifts from design to execution.

1. Level 1: The Hobbyist Frustration.
   • Trigger: Hands hurt from tightening screws; hoop burn marks on delicate fabrics.
   • Solution: Magnetic Frames. They snap on instantly.
   • Safety: > Warning: Magnetic Hazard. High-end magnetic hoops use Neodymium magnets. They are incredibly strong. Pinch Hazard: Keep fingers clear of the snap zone. Medical: Keep away from pacemakers.
2. Level 2: The Side-Hustle Struggle.
   • Trigger: Design placement is crooked on 1 out of 5 shirts.
   • Solution: Hooping Stations. Mechanical alignment ensures your Hatch edit lands on the dead center of the chest, every time.
3. Level 3: The Production Leader.
   • Trigger: Your software is efficient, but you can't thread the machine fast enough for the colors.
   • Solution: SEWTECH Multi-Needle Machines. If your reshaped design has 4+ color changes, a single-needle machine adds 20 minutes of manual labor. A multi-needle machine automates this, letting you design the next job while the current one runs.


Operation Checklist: The “Clean Reshape” Routine You Can Repeat on Any Hatch Object

Print this out and tape it near your monitor.

• Identify: Select object. Confirm Pink Hull is active.
• Zoom: Press B. Get close.
• Physics Check: Check Stitch Angles (Orange squares). Do they fight the fabric grain?
• Clean Up: Click "trash" nodes and hit Delete.
• Conversion: Click sharp nodes -> Spacebar -> Soften curves.
• Overlap: Ensure start/end nodes overlap adjacent objects by 2mm.
• Underlay Check: Press T (TrueView) off. Does the underlay still support the new shape?
• Safety Exit: Press Esc.
• Test Drive: Run the "Stitch Player" (Shift+R) to watch the virtual sew-out for jumps.

By following this protocol, you turn "guessing" into "engineering," ensuring your final stitch-out is as clean as your digital vision.

FAQ

• Q: In Wilcom Hatch Embroidery Software, what supplies should be ready before deep editing with the Reshape Tool (H)?
  A: Prep temporary spray adhesive (like 505) and a fine-point water-soluble pen before reshaping so the physical fabric can match the new digital geometry.
  • Spray: Apply light, even tack to stabilize fabric-to-stabilizer before test stitching.
  • Mark: Draw reference marks on fabric to match the reshaped outline/placement.
  • Success check: The fabric stays flat and aligned during a test run, without drifting when you touch or reposition it.
  • If it still fails: Stop reshaping and verify hoop size/keep-out limits and stabilizer choice before changing the design again.
• Q: In Wilcom Hatch Embroidery Software, how do you confirm the correct object is selected before entering Reshape mode (H) so the background is not edited?
  A: Use the visual “Pink Outline (Hull)” and node display as the pass/fail test before moving anything—this is common, don’t worry.
  • Click: Select the target object, then press H.
  • Verify: Confirm the pink outline wraps only the intended object and blue/square nodes appear on that perimeter.
  • Check: Open the Resequence docker and confirm the active layer is the one being edited.
  • Success check: Only the intended object highlights with the pink hull; no surrounding/background shapes gain nodes.
  • If it still fails: Undo with Ctrl+Z, reselect from the correct layer, and zoom in until individual stitches are visible.
• Q: In Wilcom Hatch Embroidery Software, how do you rotate satin stitch direction using orange stitch angle handles (for example 98° → 117° → 75°) without causing distortion?
  A: Rotate the orange square stitch-angle handle and keep stitch angles in a stable range (often 45°–135°) to reduce push/pull problems.
  • Drag: Grab the orange square handle and rotate the angle line deliberately (small changes first).
  • Observe: Use the “light test”—angle changes will alter shine/darkness, which helps you spot unintended direction shifts.
  • Avoid: Don’t leave long satin runs perfectly fighting stretchy fabric grain unless stabilizer support is solid.
  • Success check: In TrueView, the satin looks even (no sudden shine flips) and the object does not look “twisted.”
  • If it still fails: Align angles more consistently across adjacent satin areas instead of mixing wildly different directions.
• Q: In Wilcom Hatch Embroidery Software, how can a user prevent long stitches or tiny stitches after Reshape Tool (H) edits that can cause birdnesting or unsafe loops?
  A: After extreme reshaping, re-check stitch length risks because very small stitches can jam and very long stitches can form loops—treat this as a mechanical safety issue.
  • Inspect: Look for areas where reshaping stretched geometry without updating angles or controls.
  • Limit: Avoid creating stitches under 1 mm or over 12 mm during edits (those ranges are high-risk).
  • Review: Recheck Small Stitch Filter settings after major reshape changes.
  • Success check: Stitch simulation shows smooth motion without long loop spans or dense “micro-jitter” sections.
  • If it still fails: Undo back to the last stable step and reshape in smaller increments, adjusting angles as you go.
• Q: In Wilcom Hatch Embroidery Software, how do you stop unwanted trims and jumps caused by gaps when reshaping outlines, especially where two objects meet?
  A: Move connected node clusters together and maintain overlap (about 1.5–2.0 mm) so the machine does not trim, jump 1 mm, and tie in again.
  • Box-select: Drag a selection box around the cluster of nodes at the connection point (not just one node).
  • Move: Shift the cluster as a unit to keep endpoints aligned and overlapping.
  • Confirm: Zoom in and visually verify there is no tiny separation between adjoining outlines/fills.
  • Success check: Stitch Player shows a continuous sew path with no extra trim/tie-in sequence at that junction.
  • If it still fails: Undo, reselect the correct node group, and increase overlap rather than adding extra nodes.
• Q: In Wilcom Hatch Embroidery Software, how do you fix a “wonky” or choppy curve where corner nodes (yellow squares) make a round shape look robotic?
  A: Use the Spacebar to toggle the node type before dragging—often the wrong node type is the real problem.
  • Identify: Click the problem node (yellow square corner on a curve, or a turquoise curve where a corner is needed).
  • Toggle: Tap Spacebar to switch between corner and curve.
  • Clean: Delete unnecessary nodes to reduce “node bloat” if the outline stays wobbly.
  • Success check: The outline becomes smooth with fewer points, and the curve no longer looks faceted when zoomed out.
  • If it still fails: Delete more “trash” nodes and let the software calculate a cleaner curve between fewer anchors.
• Q: In Wilcom Hatch Embroidery production workflow, when should a user stop redesigning in the Reshape Tool (H) and instead improve hooping with magnetic hoops, hooping stations, or upgrade to a SEWTECH multi-needle embroidery machine?
  A: Use a tiered decision: fix geometry in Hatch first, but switch to hooping/tooling upgrades when the symptom is physical (hoop burn, crooked placement) or when color changes are killing throughput.
  • Level 1 (Technique): Use Reshape for true geometry problems (wrong contour, seam avoidance) and use pull compensation for pull-related gaps instead of “dragging it into place.”
  • Level 2 (Tooling): If hoop burn/shiny rings appear, treat it as clamping friction—not a software issue—consider magnetic hoops or a hooping station for consistent, gentle holding.
  • Level 3 (Capacity): If designs have 4+ color changes and a single-needle workflow adds large manual time, consider a SEWTECH multi-needle machine to reduce rethreading labor.
  • Success check: After the chosen upgrade step, repeat jobs land consistently in the same location and the sew-out quality stays stable without repeated file edits.
  • If it still fails: Re-audit the workflow in order—file geometry → stitch angles/overlap → hooping consistency—before making further changes.
• Q: What magnetic hoop safety rules should embroidery operators follow when using high-strength neodymium magnetic embroidery hoops/frames during production?
  A: Treat magnetic hoops as a pinch and medical hazard—keep fingers out of the snap zone and keep magnets away from pacemakers.
  • Keep clear: Hold the frame by safe edges and never place fingertips between mating parts during closure.
  • Control: Let the hoop close in a controlled motion; do not “drop” it onto the ring.
  • Separate: Keep magnetic components away from pacemakers and sensitive medical devices.
  • Success check: The hoop closes without finger contact in the clamp zone and fabric is held evenly with no sudden “slam.”
  • If it still fails: Slow down the loading routine and reposition hands—safety technique is the fix, not more force.
