Hatch Reshape Tool, Demystified: Fix Outlines, Stitch Angles, and Start/End Points Without Re-Digitizing

If you’ve ever digitized a shape, stitched a test, and thought, “It’s almost right… but not worth re-digitizing from scratch,” you’re exactly who the Hatch Reshape tool was built for.

As someone who has spent two decades on the production floor, I can tell you that perfection in embroidery isn't created in the first draft; it is created in the edit. In my shop, I treat Reshape as the "surgical" stage: it lets you correct outlines to account for push/pull compensation, refine texture direction for better light reflection, and control where the machine starts and stops—all without rebuilding the object from zero.

The calm-before-the-click: what the Hatch Embroidery Software Reshape tool really changes (and what it doesn’t)

Embroidery is a physical medium. Unlike pixels, thread has thickness, tension, and grain. Use the Reshape tool to modify three physical behaviors of an existing object:

1. The shape outline (Compensating for the fabric pulling inward).
2. The stitch angle (Controlling how light hits the thread and how the fabric pushes).
3. The start and end sewing points (Reducing travel runs and "bird's nests").

That’s powerful—but it’s also where beginners get nervous. The fear of "breaking" a design is real. The good news: you’re not permanently damaging the file. You make a small move, release the mouse, and Hatch recalculates the math.

The practical mindset I want you to adopt is this: Reshape is for controlled edits, not for rescuing a fundamentally wrong object. If you chose the wrong stitch type (e.g., putting a dense Tatami fill on a thin t-shirt without stabilizer), Reshape won't save you. But if the structure is sound, Reshape is how you polish a "B" grade design into an "A+" production-ready file.

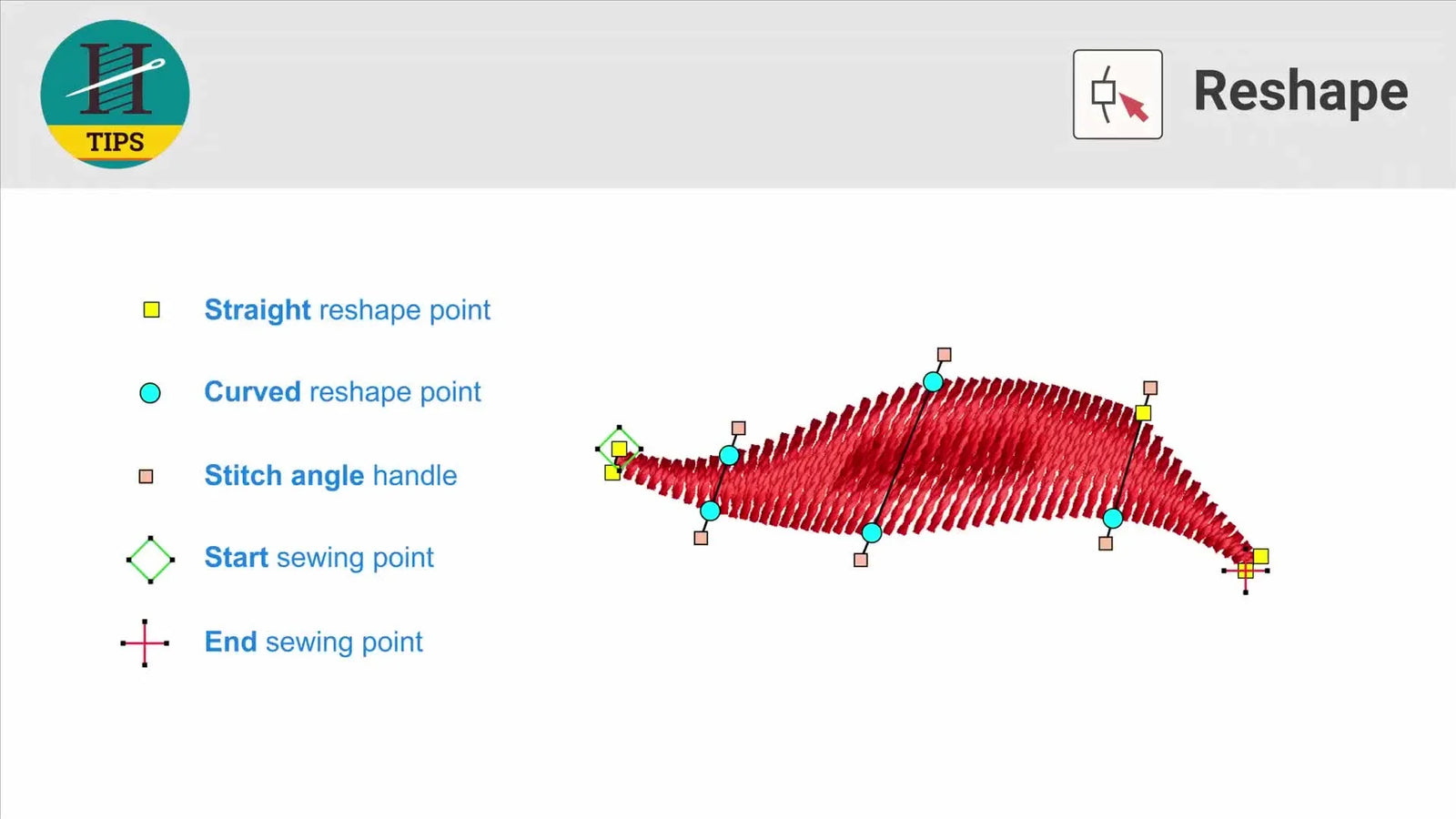

Stop guessing: the 5 Reshape node types (yellow square, blue circle, pink square, green diamond, red cross)

When you enter Reshape, Hatch displays a map of color-coded points. Think of these like traffic signals for your stitches. Memorize this legend, and you will reduce your editing time by 70%:

• Yellow Square (Corner/Straight): These create sharp, hard turns. Use these for geometric shapes or crisp lettering serifs.
• Blue Circle (Curve): These create organic flow. Use these for floral elements or circles. Visual Anchor: If your curve looks "jagged" or like an old video game polygon, you successfully used a Square node where a Circle node was needed.
• Small Pink Square (Angle Handle): Controls the grain of the thread.
• Green Diamond: The "Entry Door." Where the needle takes the first plunge.
• Red Cross: The "Exit Door." Where the needle leaves to trim or jump.

This legend is more than “UI trivia.” It’s your safety system. If you can instantly recognize what you’re grabbing, you’ll avoid the classic mistake: trying to fix an outline but accidentally rotating stitch direction—which can drastically change how the fabric puckers.

The “hidden” prep pros do before Reshape: pick the right view, then decide what you’re optimizing

Before you touch a node, stop and diagnose the problem. Are you fixing a visual issue or a mechanical one?

• Cleaner edges? You’ll focus on outline nodes (Yellow/Blue).
• Better texture / sheen? You’ll focus on stitch angle (Pink).
• Fewer trims / messy undersides? You’ll focus on start/end (Green/Red).

Key Action: Switch your view to "TrueView" (3D simulation) to see the texture, but switch back to "Wireframe" for the actual surgery. This ensures you grab the node, not the stitch.

If you’re digitizing for production, think about the machine's physics. A file might look good on screen, but if the nodes are too close together, it forces the machine to slow down, creating a "thump-thump-thump" sound as the pantograph struggles to move micro-distances.

Prep checklist (do this before you reshape anything)

• Check your consummables: Do you have your temporary adhesive spray (like 505) and correct stabilizer ready for the test sew? Software fixes cannot solve poor stabilization.
• Select the correct object: Ensure you aren't accidentally editing a layer underneath.
• Identify the goal: Are you fixing a gap (Outline), a weird reflection (Angle), or a long jump stitch (Start/End)?
• Micro-Test: Make one change, then press "T" (TrueView) to maximize your visual check. Does the light hit the thread correctly?


Enter Reshape mode fast: toolbar icon vs the “H” key shortcut (and why selection order matters)

Efficiency is muscle memory. There are two ways to access the operating table:

1. Click the Reshape icon in the toolbar, then select the object you want to reshape.
2. The Pro Method: Select your object first, then press “H” on your keyboard.

Why selection order matters: If you press "H" with nothing selected, the software waits for you. It breaks your flow. Get in the habit of: Click Object -> Press H -> Surgery.

Fix the silhouette without re-digitizing: drag nodes to reshape the object outline (with a clean checkpoint)

To change the shape of an object to account for fabric distortion:

1. Grab the Node: Select a reshape point on the perimeter (Yellow Square or Blue Circle).
2. Move Deliberately: Click and drag the node to a new location.
3. Release and Reviews: Hatch regenerates the stitches.

Checkpoint: Watch the wireframe update in real-time.

Pro tip from production digitizing: When correcting for Push/Pull Compensation (the tendency for stitches to pull fabric in), you need to be bold.

• Observation: If your circle is sewing out like an oval, use Reshape to extend the outline outward in the direction of the stitch penetration.
• Tactile check: The screen doesn't show tension. On the machine, satin stitches pull tight like a drum skin. Widen your outline perpendicular to the pull to compensate.


Straight vs curved nodes: use the Spacebar toggle to control corners and smooth bends

This is one of the most useful micro-skills in Hatch for creating fluid designs.

1. Click a node (it turns dark blue/magenta to show selection).
2. Press the Spacebar.

Visual result: A Yellow square instantly morphs into a Blue circle, and vice versa.

• When to use Straight (Yellow): Inside corners of letters (like the V in a serif font).
• When to use Curved (Blue): Turning fills, petals, and organic shapes.

Why this prevents ugly stitching: A curve built from "Straight" nodes looks faceted and choppy. The machine will make sudden, jerky movements at each node. A curve built from "Curved" nodes allows the pantograph to flow smoothly, resulting in a quieter machine and cleaner edge.

Add control points the right way: left-click for straight nodes, right-click for curved nodes

Sometimes you need more nuance than the auto-digitizer gave you. To add anchor points:

1. Hover over the object outline wireframe.
2. Left-click to add a straight/sharp point.
3. Right-click to add a curved/smooth point.

Expert Rule of Thumb: Use the minimum number of nodes necessary. Beginners tend to "pepper" the outline with nodes every millimeter. This is dangerous. Too many nodes can confuse the software's stitch generation, leading to erratic density. Aim for one node every 10-15mm on gentle curves.

Setup checklist (so your edits stay controllable, not chaotic)

• Node Economy: Count your nodes. Can you define that curve with 3 points instead of 10?
• Click Discipline: Use Left-click for corners, Right-click for curves.
• Verification: After adding a node, toggle TrueView to ensure you haven't created a "crossover" loop in the outline.
• Simplify: If the outline looks lumpy, press Delete on the excess nodes.

Delete nodes safely: the “Delete” key is your cleanup tool (and your escape hatch)

A clean file sews a clean product. To remove complexity:

1. Select the unwanted node.
2. Press Delete on your keyboard.

Use this to fix "jittery" scanning results where the software created 50 nodes for a straight line.

Warning: Physical Safety Zone
When you are testing these changes on your machine, do not multitask. A common injury occurs when an operator is staring at the laptop screen verifying a reshape edit while their other hand is near the machine's needle bar during a frame travel.
* Rule: When the machine is live, eyes are on the machine.
* Rule: Always keep scissors and nippers flat on the table, not in your hand, when moving between computer and machine.

Control texture like a digitizer, not a hobbyist: drag the pink stitch angle handle (and watch the fill regenerate)

Stitch direction (Angle) is the secret to professional "shimmer." Thread reflects light directionally.

1. Locate the pink stitch angle handle (a line crossing through the object).
2. Drag the handles to rotate the angle.
3. Observe the regeneration.

Why this matters physically:

• Push/Pull: Stitches pull the fabric in the direction the thread runs. If you reshape an angle to run perfectly vertical on a stretchy knit shirt, you risk puckering the fabric into a "waistband" effect. A 45-degree angle is often safer for stability.
• Aesthetics: If you are stitching a leaf, the angle should follow the vein of the leaf. This creates a 3D effect without adding foam.


Why stitch angle changes can fix real-world sewing problems

• The "Gap" Fix: If gaps appear between a fill and a border, changing the fill angle (Reshape) so it runs into the border (rather than parallel to it) can mechanically close that gap.
• The "Sheen" Fix: If a segment looks "dark" compared to the rest, the light might be hitting the thread grain sideways. Rotate the angle 90 degrees to catch the light.

Remove manual stitch angles when they backfire: select the angle handle and press Delete

Sometimes, Auto-Fabric settings know best. If your custom angles are creating weird dense pockets or holes:

1. Select the pink angle handle.
2. Press Delete.

This forces Hatch to recalculate the optimal stitch angle based on the shape's geometry, essentially "resetting" the physics of that block.

Make the file sew cleaner: move the green diamond start point and red cross end point to control travel

This is the difference between a 10-minute run time and an 8-minute run time.

• Green Diamond: Start Point (Entry).
• Red Cross: End Point (Exit).

The Strategy:

1. Enable Reshape.
2. Drag the Red Cross of Object A to be as close as possible to the Green Diamond of Object B (the next object in sequence).
3. Result: Short travel path. No trim command needed.


What you should expect after moving start/end

The software will redraw the "connector" stitches. In the simulation, watch for the dotted travel line. If you move points effectively, long travel lines disappear, replaced by tiny, invisible jumps.

The “why” that saves you trims: start/end points are a production decision, not a cosmetic one

In a commercial workflow, every "Trim" command takes about 6-10 seconds (slow down -> cut -> lock -> speed up). If your design has 50 unnecessary trims because start/end points are far apart, you are adding 8+ minutes to your production time.

The Golden Rule: Start where you can hide the knot (under a later layer), and end where the next object begins.

Common Reshape headaches (and the fixes I use in real shops)

Even with the best tools, things go wrong. Here is your structured troubleshooting guide to keeping your sanity.

Symptom: "The outline looks jagged or pixelated."

• Likely Cause: You used only "Straight" (Yellow) nodes on a curved shape.
• Quick Fix: Select nodes and press Spacebar to toggle to Curves.

Symptom: "The object isn't filling in completely; there are white gaps."

• Likely Cause: The Stitch Angle is parallel to the longest side of the shape, or the machine speed is too high for the Pull Compensation.
• Quick Fix: Use Reshape to rotate the Stitch Angle 45 degrees.
• Prevention: Check Tension. Pull your bobbin thread; it should have slight resistance, like pulling a spiderweb. If it's loose, software fixes won't help.

Symptom: "My fill direction changed but the design still puckers."

• Likely Cause: The fabric is moving in the hoop. No amount of Reshape will fix a loose hoop.
• Fix: Re-hoop tight like a drum skin.

Symptom: "I want this in Wilcom too—does the concept transfer?"

Yes. Hatch is powered by the Wilcom engine. The logic of "Input A/B/C" and Reshape nodes is the industry standard.

Decision tree: when to fix it in Hatch vs when to change your hooping and production setup

Reshape is powerful, but it is not magic. Use this logic flow to decide your next move:

1. Is the shape wrong on the screen?
   • Yes: Use Reshape Tool. Fix nodes.
   • No: Proceed to step 2.
2. Does the simulation look good, but the sew-out is distorted?
   • Yes: This is a Stabilization or Hooping issue.
   • Action: Increase Pull Compensation in software settings OR switch to a Cutaway stabilizer for better support.
3. Are you fighting hoop burn or misalignment on repeat orders?
   • Yes: This is a Tooling issue. Software cannot fix hoop burn.
   • Action: Consider upgrading to magnetic embroidery hoops. Unlike traditional screw frames that force you to pull fabric (distorting the grain), magnetic frames slap down vertically, keeping the fabric grain perfectly straight and eliminating the "tug of war."

If you are moving from hobby to business, consistency is key. Terms like hooping stations often come up in professional circles because they solve the human error factor. A station ensures the logo is in the exact same spot on every shirt, regardless of who is operating the machine.

The upgrade path that actually makes sense: software skill first, then tools that buy back your time

Once you master the Reshape tool, your bottleneck will shift. You will have perfect files, but you will be slowed down by the physical limitations of hooping and machine speed.

• The Problem: Traditional hooping is slow and causes wrist strain.
• The Level 1 Solution: Optimized files (using Reshape to reduce trims).
• The Level 2 Solution: magnetic embroidery hoop. These allow you to hoop thick items (like Carhartt jackets or towels) without the "pop-out" frustration of standard prompts.
• The Level 3 Solution: If you are producing 50+ items a day, a single needle setup isn't enough. A SEWTECH Multi-needle Machine allows you to stage the next garment while one is sewing, doubling your throughput.

Warning: Magnetic Force Hazard
If you decide to upgrade to magnetic embroidery hoops, treat them with respect. These use industrial-grade neodymium magnets.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap together with enough force to cause blood blisters.
* Medical Safety: Keep frames away from anyone with a pacemaker, as strong magnetic fields can interfere with medical devices.

The “operator’s finish”: verify the stitch path, then document what you changed

Professionalism is documentation. After reshaping:

1. Run the Player: Watch the virtual stitch-out. Listen for the rhythm in your head—smooth runs, few trims.
2. Save as Revision: Never overwrite the original. Save as Design_v2_Reshaped.EMB.

If you are using a hoopmaster system or a comparable magnetic hooping station, note the fixture placement on your production sheet. This ensures the perfect file you just edited lands on the shirt correctly every time.

Operation checklist (the “don’t ship a bad file” routine)

• Outline Check: Are curves smooth (Blue nodes) and corners sharp (Yellow nodes)?
• Angle Check: Does the stitch direction support the shape rather than fight it?
• Pathing Check: Did you move Green/Red points to eliminate long jump stitches?
• Safety Check: Is the hoop path clear on the machine?
• Test Sew: Run a scrap test. If it puckers, check stabilizer before editing nodes again.

A final note on speed: shortcuts and habits that compound over time

Speed comes from confidence. The video highlights the shortcuts that I use 100 times a day:

• H Key: Instant surgical access (Reshape).
• Spacebar: The "Smooth/Sharp" toggle switch.
• Delete: The clutter remover.

Master these, and you stop "fighting" the software. You start "playing" the embroidery machine like an instrument. And when your files are clean, tools like hoopmaster station or hoopmaster compatible fixtures can finally do their job of speeding up your physical workflow, rather than just compensating for bad digitizing.

FAQ

• Q: In Hatch Embroidery Software Reshape tool, how can Hatch Reshape fix push/pull distortion when a satin circle stitches out like an oval?
  A: Use Hatch Reshape to push the outline outward in the direction that is pulling, then re-check the wireframe regeneration.
  • Switch to Wireframe, select the satin object, then press H to enter Reshape.
  • Drag perimeter nodes (Yellow Square/Blue Circle) outward where the sew-out is “pulling in.”
  • Make one small change at a time, then press T for TrueView to visually confirm the new silhouette.
  • Success check: the wireframe updates cleanly and the circle preview looks more balanced instead of “pinched.”
  • If it still fails: treat it as a stabilization/hooping issue and re-hoop tighter “like a drum skin” before reshaping again.
• Q: In Hatch Embroidery Software Reshape tool, how do you fix a jagged or pixelated curve caused by using straight nodes on a curved outline?
  A: Toggle the problem nodes from Straight (Yellow Square) to Curved (Blue Circle) using the Spacebar.
  • Press H to enter Reshape and click the jagged perimeter nodes so they highlight.
  • Press Spacebar to toggle the selected nodes between straight and curved behavior.
  • Delete excess nodes that are “peppering” the curve to simplify the outline.
  • Success check: the curve looks smooth in Wireframe and the machine motion would be less “jerky” at the corners.
  • If it still fails: add fewer, better-placed nodes (not more) and re-check in TrueView for any odd loops.
• Q: In Hatch Embroidery Software Reshape tool, how do you add control points correctly (left-click vs right-click) without making stitch generation unstable?
  A: Add the minimum number of nodes: left-click for sharp points, right-click for smooth points, and avoid over-noding.
  • Hover over the outline wireframe and left-click to add a straight/corner point.
  • Right-click to add a curved/smooth point on organic bends.
  • Keep node count low; on gentle curves, use widely spaced points rather than adding one every millimeter.
  • Success check: the outline stays clean (not lumpy) and the regenerated stitches do not show erratic density shifts.
  • If it still fails: select extra nodes and press Delete to simplify, then verify again in TrueView.
• Q: In Hatch Embroidery Software Reshape tool, how can changing the pink stitch angle handle reduce white gaps and uneven sheen in a fill stitch?
  A: Rotate the stitch angle (often about 45°) so the fill runs into the border and regenerates with better coverage.
  • Locate the pink stitch angle handle and drag to rotate the angle, then let Hatch regenerate.
  • Use TrueView to compare sheen; rotate further if a segment looks “dark” due to light hitting the grain sideways.
  • If a custom angle creates weird dense pockets or holes, select the angle handle and press Delete to reset.
  • Success check: gaps visually reduce between fill and border in the simulation, and the fill surface looks more even.
  • If it still fails: check thread tension (bobbin should have slight resistance like pulling a spiderweb) because software cannot compensate for loose tension.
• Q: In Hatch Embroidery Software Reshape tool, how do you move the green diamond start point and red cross end point to reduce trims and long jump stitches in production?
  A: Drag the red end point of one object close to the green start point of the next object to shorten travel and avoid unnecessary trims.
  • Enter Reshape (H), then locate the Green Diamond (start) and Red Cross (end) on the object.
  • Drag the Red Cross to finish near where the next object begins (near its Green Diamond).
  • Run the Player/virtual stitch-out to review the connector path before exporting.
  • Success check: dotted travel lines become shorter or disappear, replaced by small, hidden jumps instead of long runs.
  • If it still fails: re-check object sequence/layer selection so the correct object is being reshaped.
• Q: When testing Hatch Reshape edits on an industrial embroidery machine needle area, what operator safety rule prevents hand injuries during frame travel?
  A: Do not multitask—when the machine is live, eyes stay on the machine and hands stay clear of the needle bar and hoop travel path.
  • Stop reaching near the needle bar while watching the laptop to verify a reshape change.
  • Keep scissors and nippers flat on the table (not in hand) when moving between computer and machine.
  • Run a controlled test sew and watch the hoop path for clearance.
  • Success check: no hands enter the frame travel zone while the machine is moving, and trimming tools are never carried near the needle area.
  • If it still fails: pause the machine before adjusting anything physical, then resume only after the area is clear.
• Q: If repeated hoop burn and misalignment keep happening after Hatch Reshape edits look perfect, when should an operator upgrade from standard hoops to magnetic embroidery hoops or a SEWTECH multi-needle machine?
  A: Use a layered decision: Reshape fixes screen-level geometry, but repeated hoop burn/misalignment is a tooling issue—consider magnetic hoops for consistency, and a multi-needle machine when volume demands it.
  • Diagnose: confirm the design looks correct on-screen; if yes but sew-out distorts, treat it as stabilization/hooping first.
  • Upgrade Level 2: use magnetic embroidery hoops when standard screw hoops force fabric pulling and cause repeat hoop burn or grain distortion.
  • Upgrade Level 3: move to a SEWTECH multi-needle machine when single-needle workflow limits throughput and you need staging while sewing.
  • Success check: hooping becomes repeatable with less fabric “tug of war,” and production time drops by reducing trims and rehoops.
  • If it still fails: revisit stabilizer choice and hooping tightness before assuming software changes are needed again.
