Don’t Panic: Hatch Lettering Underlay Settings Are Usually Right—Until Your Fabric Proves Otherwise

Wilcom Hatch is an incredibly intelligent piece of software. For standard cotton twill or flat fabrics, the default settings are often 90% correect. The video’s core message is reassuring: You often don’t have to change anything.

However, experienced digitizers know the "Safety Zone." Hatch operates on logic; embroidery operates on friction and tension. The software doesn't know if you are stitching on a flimsy t-shirt, a spongy hoodie, or a rigid cap. The goal is not to arrogantly override the software every time; the goal is to develop the judgment to know when the software’s "math" will lose to the fabric’s "physics."

The Mental Model for Underlay:

• Small Lettering issues are usually "Bulk" problems: Too much underlay + too much density = needle deflection and thread breaks.
• Large Lettering issues are usually "Structure" problems: Long satin stitches are like suspension bridges; without a foundation (underlay), they sag into the fabric, making the edges look ragged.

The "Sweet Spot" Reality Check: If you are building production files for clients, consistency is your currency. A verified underlay recipe prevents you from having to test-stitch the same logo three times.

The Hidden Prep Pros Do First: Set Yourself Up to See Underlay Problems Before You Stitch

Before you touch a single underlay toggle, you must perform "Visibility Prep." Underlay decisions made while zoomed out at 100% are practically guesses. You cannot see the structural integrity of a 4mm letter from a "bird's eye view."

What to prep inside Hatch (The Forensic View)

1. Zoom in to 600% or higher. You need to see the individual needle penetrations.
2. Toggle "TrueView" (press T). This simulates the thread thickness.
3. Inspect the "Center Line." In small text, look for a single running stitch traveling through the center of the satin column.

Physical Prep: The "Thumb Test" Before believing the screen, touch your fabric.

• Is it spongy (Fleece/Terry)? You will need more underlay (structure) to prevent the stitches from sinking.
• Is it thin/stretchy (Performance Knit)? You need stable underlay (Cutaway stabilizer) but lighter density to avoid cutting holes in the fabric.

If you’re running a workflow that includes hooping for embroidery machine setups, remember: The cleanest digitizing settings will fail if the fabric is hooped loosely. The fabric must be "drum tight" (you should be able to flick it and hear a thump, not a thud).

Prep Checklist (Do this BEFORE changing parameters)

• Selection Check: Confirm lettering is selected as a single object (ensure you haven't accidentally broken the text into raw blocks).
• Zoom Check: Zoom in until a single letter (like a lower-case "e") fills your screen.
• Density Check: Toggle TrueView. Does the center of the "e" look like a solid blob of color? If yes, you are about to break a needle.
• Use-Case Definition: Clearly categorize the job: Name Tag (Small), Left Chest (Medium), or Jacket Back (Large).
• Material Match: If the garment has seams (like a Carhartt jacket center back), plan for heavy underlay to bridge the uneven surface.


The Small-Lettering Trap: When Underlay Makes Tiny Text Look Worse (and How to Spot It)

Sue calls out the single most common lettering failure in the industry: messy, bulletproof small lettering. This happens when the user tries to make small text "stand out" by adding structure, but actually creates a knot.

In the video, she focuses on a small letter and notes that a single center line is "more than enough."

The Physics of the Failure: Embroidery thread has mass. It takes up physical space. When you have a satin column that is only 1.5mm wide (typical in small text), there isn't room for:

1. Center run underlay
2. Zig-zag underlay
3. Top stitching
4. Bobbin thread

If you force all these layers into a tiny space, the machine will jam, or the needle will deflect, causing a "bird nest."

The Actionable Fix:

• If text is under 5mm: Turn off almost all underlay. Rely on the fabric stability (and good backing) instead.
• The "One-Third" Rule: In TrueView, look at the white space inside loops (like 'a', 'e', 'o'). The thread should not occupy more than 2/3 of the open space. If the hole is closed on screen, it will be a knot on the shirt.

Warning: Tiny lettering is where novices attempt to "fix" readability by increasing density (lowering the spacing to 0.30mm or less). Do not do this. It creates a "cardboard" effect that snaps needles and shreds thread. Keep density standard (0.40mm - 0.45mm) and trust your needles.

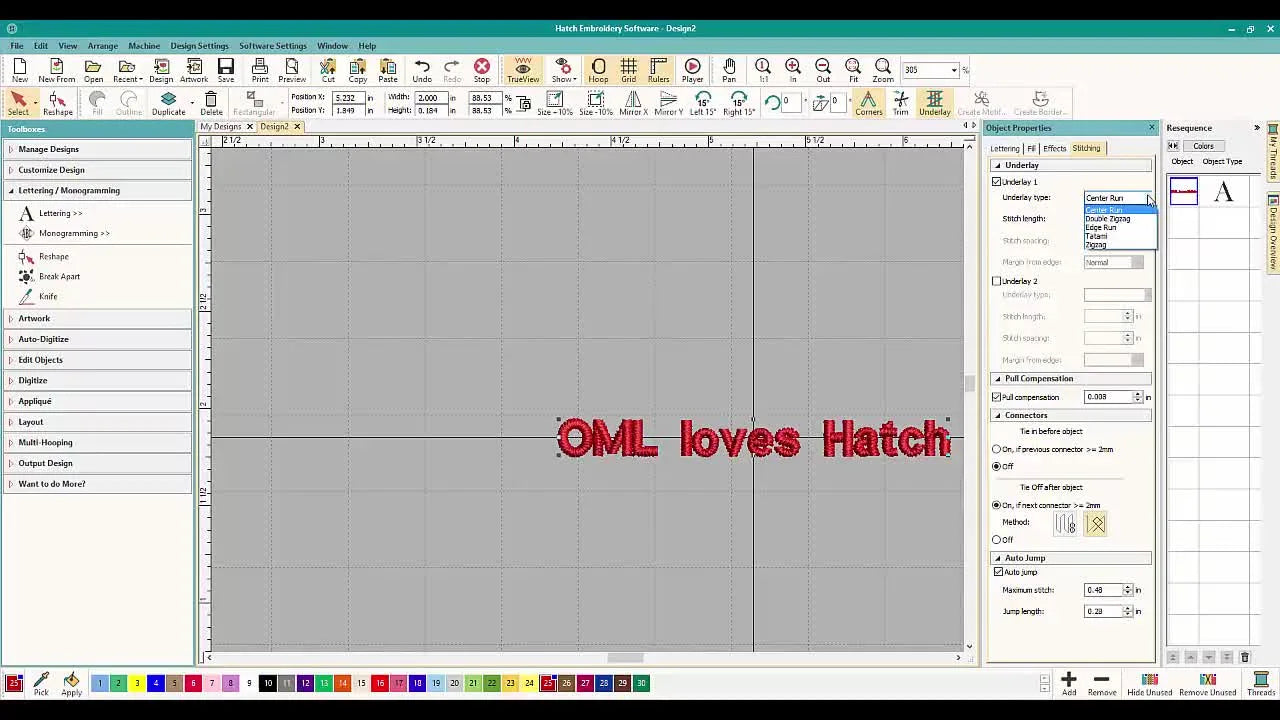

The Control Room: Changing Underlay in Hatch Object Properties (Without Breaking the Design)

Navigating to the controls is simple, but interacting with them requires discipline.

1. Select your lettering object.
2. Open Object Properties (Double click or dock panel).
3. Select the Stitching tab.
4. Locate the Underlay section.

The "One Variable" Rule: When you make changes here—switching from Center Run to Edge Run, or adjusting stitch length—do it one at a time. The software will recalculate instantly.

• Check: Look at the screen. Did the underlay lines cross closer to the edge?
• Verify: Toggle TrueView off (to see the skeleton) and on (to see the coverage).

Expert Tip: For high-speed production (800+ stitches per minute), ensure your Stick Length in underlay isn't too short (below 2mm). Tiny underlay stitches at high speeds cause thread trimmer errors.

Margin-from-Edge in Hatch Edge Run Underlay: The “Crisp Edge” Dial Most People Ignore

Sue demonstrates a critical, often overlooked setting: Margin from Edge. When using Edge Run (a running stitch that travels the perimeter of the letter), you can tell Hatch how close to the edge that run should be.

The Settings Decoded:

• Normal: The default. Sits comfortably inside the column. good for cotton/polos.
• Medium: Moves slightly inward.
• Wide: Pulls the run deep toward the center.

Why change this? (The "Railroad Track" Problem) If you are stitching on thin fabric (like a dress shirt or performance tee) and your Edge Run is set to "Normal" (too close to the edge), you might see a visible ridge or "track" poking through the satin stitches. This looks cheap.

• The Fix: Change Margin from Edge to Medium or Wide. This hides the structural support under the "fluffier" center of the satin stitch, giving you structure without the ugly ridge.
• The Counter-Scenario: If stitching on puffy fleece, keep it Normal. You need that edge run as close to the perimeter as possible to tamp down the fleece so the satin edge stays sharp.


The 6–10mm Rule in Hatch Lettering: Center Run Underlay for “Normal” Text That Stitches Predictably

Sue provides a clear, empirical guideline:

• For 6mm to 10mm lettering (Left Chest standard): Use Center Run.

Why this is the "Sweet Spot": Letters in this size range have satin columns roughly 1.5mm to 3mm wide.

1. Coverage: The column is wide enough to easily hide a single line of underlay running down the middle.
2. Lift: The center run acts like a tent pole, lifting the center of the satin stitch slightly to give it a rounded, 3D look.
3. Efficiency: It is low stitch count.

Production Reality: If you are digitizing names for a corporate order (e.g., "John," "Sarah," "Manager"), Center Run is your "set it and forget it" standard. It stitches reliably at 800+ SPM without thread breaks. Assuming your stabilization (backing) is correct, this setting is 99% safe.

When Lettering Hits 10mm+: Edge Run Underlay for Sharper Outlines (and Fewer Fuzzy Borders)

As letters get bigger (10mm to 25mm), the physics change. The satin stitches are longer and looser.

• The Recommendation: Switch to Edge Run.

The Logic: Long satin stitches are prone to "Pull." As the needle tightens the thread, the fabric pulls inward, making the column narrower than you designed.

• Edge Run acts as an anchor. It stitches the outline first, tacking the fabric down to the stabilizer exactly where the edge should be.
• Result: Crisp, sharp edges that define the font correctly.

The "Hoop Burn" Variable: If you see fuzzy borders even with Edge Run, your hooping might be the culprit. If the fabric is slipping in the hoop, no amount of underlay will fix it. If you are building a professional workflow around magnetic embroidery hoops, edge clarity often improves instantly. Why? Because magnetic hoops hold consistent tension across the entire surface without the "tug-of-war" distortion of thumbscrew hoops, allowing the Edge Run underlay to do its job perfectly.

Jacket-Back Lettering in Hatch: Double Zigzag + Edge Run Underlay to Make Big Satin “Stand Up”

Sue scales the text up dramatically for a Jacket Back scenario (letters 2 inches/50mm or taller). Her recommendation is the Gold Standard for commercial embroidery:

1. Layer 1: Double Zigzag.
2. Layer 2: Edge Run.

The "Construction Site" Analogy:

• Double Zigzag: This is the rebar in the concrete. It covers the entire area with a mesh lattice. It mats down the nap of the jacket (corduroy, wool, denim) and creates a smooth, stable floor.
• Edge Run: This is the framing. It defines the crisp outer wall.
• Satin Top Stitch: This is the cosmetic finish.

Why you need BOTH: If you stitch a large letter on a Carhartt jacket without the Zigzag, the stitches will sink into the grain of the canvas. The color will look faded because the fabric texture shows through. The Zigzag lifts the embroidery up, making the color pop.

The Two-Layer Underlay Switch: How to Add Underlay Layer 2 Without Overbuilding

In Hatch, enabling the second layer is a simple checkbox. Sue explicitly turns on "Layer 2" and selects Edge Run.

The Risk of Overbuilding: While jacket backs need support, you must monitor total stitch count.

• Check Point: After adding Double Zigzag + Edge Run, look at your stitch count. Did it skyrocket?
• The Stiffness Test: A dense underlay + dense top stitch = a stiff patch. On a denim jacket, this is fine. On a thin windbreaker, it will hang like a heavy shield.
• Adjustment: If stitching on thinner material, increase the Stitch Spacing of the Zigzag (e.g., from 2.0mm to 3.0mm). You still get the support, but with less bulk and stiffness.


Setup That Prevents Rework: Match Underlay Choices to Fabric + Stabilizer (Checklist)

The video focuses on settings, but stitch quality is a trinity: Fabric + Stabilizer + Underlay. Even the perfect underlay will fail if you use tear-away stabilizer on a stretchy pique polo.

Strategic Decision Tree:

1. Is the lettering very small (Under 6mm)?
   • Underlay: Center Run (or None).
   • Stabilizer: Cutaway (2.5oz).
   • Risk: Bunching/Bird-nesting.
2. Is the lettering Standard (6–10mm)?
   • Underlay: Center Run.
   • Stabilizer: Check fabric (Tear-away for woven, Cutaway for knit).
   • Risk: Standard production; usually safe.
3. Is the lettering Large (10mm - 25mm)?
   • Underlay: Edge Run.
   • Adjustment: Check "Margin from Edge" to avoid ridges.
   • Risk: Rough edges due to fabric pull.
4. Is it Jacket Back Scale (25mm+)?
   • Underlay: Double Zigzag + Edge Run.
   • Stabilizer: Heavy Cutaway or multiple layers.
   • Risk: Gapping or sinking into fabric.

The Upgrade Path: If you are doing jacket backs regularly, the physical struggle of hooping thick seams can ruin the underlay registration. This is where professional magnetic hoop systems become a massive asset. They clamp over seams without distorting the fabric grain, ensuring that your carefully planned Double Zigzag underlay lays flat and square every time.

The “Why It Works” Layer: Underlay Is a Foundation, Not a Decoration

Understanding the why frees you from memorizing random numbers. Underlay has three distinct jobs:

1. Attach: It binds the fabric to the stabilizer before the heavy stitching starts.
2. Loft: It physically lifts the thread up to catch the light (essential for that premium sheen).
3. Cover: It hides the fabric color so it doesn't bleed through the thread.

Speed & Tension: When running complex underlay on large lettering, listen to your machine. A rhythmic "thump-thump-thump" is good. A harsh, metallic slapping sound means your tension is too tight or you are flagging (fabric bouncing). Slow the machine down (from 1000 SPM to 700 SPM) until the sound smooths out.

Troubleshooting Hatch Lettering Underlay: Symptom → Likely Cause → Fix You Can Try Today

Even with the best theory, things go wrong. Here is your quick-reference repair guide.

1) Symptom: Small lettering looks like a knot / Needle breaks

• Likely Cause: "Bulletproof" Density. Too much underlay for the space.
• The Fix: Turn off underlay. Increase character spacing by 10%. Use a thinner needle (70/10 vs 75/11).

2) Symptom: Large lettering edges look "saw-toothed" or ragged

• Likely Cause: Lack of Edge Run; Fabric pulling away from stitches.
• The Fix: Enable Edge Run. Check your hoop tension—it must be tight.

3) Symptom: Center of the letter feels rough/hard, like cardboard

• Likely Cause: Over-stabilized + Double Zigzag Underlay too dense.
• The Fix: Increase the spacing of the Zigzag underlay (make the grid wider).

4) Symptom: "Railroad Tracks" visible under the satin

• Likely Cause: Edge run underlay is set to "Normal" on thin fabric.
• The Fix: Change Margin from Edge to "Medium" or "Wide."

Warning: Mechanical Safety. When test-stitching large jacket backs, ensure the hoop travel path is clear. Big designs move the pantograph arm extensively. Do not rest huge piles of heavy fabric where they can snag the moving arm—this causes layer shifts that ruin the design instantly.

The Upgrade Path for Jacket-Back Work: Faster Hooping, Less Distortion, More Consistent Lettering

Sue’s jacket example highlights a hidden bottleneck. Once you master the software for large text, your restriction shifts to the physical hardware. Hooping a thick Carhartt jacket or a multi-layer heavy hoodie in a standard plastic hoop is physically exhausting and prone to "Hoop pop"—where the hoop flies apart mid-stitch.

Diagnostic: Are you ready to upgrade?

• Trigger: You dread large lettering jobs because hooping takes 5+ minutes per garment.
• Criteria: If you are rejecting orders because you can't hoop the items securely, or your wrists hurt after a production run.
• The Solution Path:
  • Level 1: Stabilizer Upgrade. Switch to high-quality fusible cutaway to stop shifting.
  • Level 2: Tool Upgrade. Professionals move to magnetic embroidery hoops. These use industrial magnets to clamp thick material instantly without "unscrewing and forcing." They reduce "Hoop Burn" (the ring left on fabric) and prevent alignment errors.
  • Level 3: Capacity Upgrade. If you are doing volume, a SEWTECH Multi-Needle Machine allows for larger hoop sizes and faster processing of these complex underlay files compared to single-needle home machines.

Warning: Magnet Safety. If you upgrade to industrial magnetic frames, treat them with respect. They are incredibly powerful. Keep fingers clear of the snapping zone to avoid pinching. Keep them away from pacemakers and sensitive electronics.

Operation Checklist: A Repeatable Hatch Lettering Underlay Routine You Can Use on Every File

Stop guessing. Print this out and use it for every lettering job.

Pre-Flight Operations Checklist

• Select & Zoom: Select text object. Zoom to 600% on a "loop" letter (e, a, o).
• Size Triage:
  • < 5mm: Underlay OFF or Center Run only (Check density!).
  • 6-10mm: Center Run ON.
  • 10-25mm: Edge Run ON (Check Margin from Edge).
  • 25mm+: Double Zigzag + Edge Run ON.
• TrueView Audit: Toggle TrueView. Do lines look clean? Are gaps visible?
• Hoop Check: Is the fabric drum-tight? (If using plastic hoops, tighten the screw with a screwdriver, not just fingers).
• Path Scan: Walk the design (Time bar) to ensure underlay stitches before the satin cover.
• Consumables: Fresh Needle? Correct Stabilizer? Bobbin Full?

Whether you are using a basic setup or have invested in hoopmaster station-style systems or easy-frame alternatives, consistent software settings are the other half of the battle.

The Bottom Line: Trust Hatch First, Then Use These Size Rules When Reality Pushes Back

Sue’s guidelines are powerful because they are simple, repeatable shortcuts based on physics:

• Tiny Text: Less is more. Avoid bulk.
• Standard Text: Center Run for reliability.
• Large Text: Edge Run for definition.
• Huge Text: Double Zigzag for structure.

Embroidery is not magic; it is engineering with thread. When you combine these verified underlay settings with proper hooping (tight and straight) and the right stabilizer, you transform "fingers-crossed" hope into professional predictability.

FAQ

• Q: In Wilcom Hatch Embroidery, what “visibility prep” steps should be done before changing lettering underlay settings?
  A: Do the visibility prep first so underlay decisions are based on what the stitches are actually doing, not a zoomed-out guess.
  • Zoom to 600%+ and make one problem letter (like “e”) fill the screen.
  • Toggle TrueView (press T) to see realistic thread coverage.
  • Inspect the center line travel through satin columns, especially on small text.
  • Success check: In skeleton view (TrueView off), underlay and stitch paths are clearly readable and you can see needle penetrations—no “blob” guesswork.
  • If it still fails… Re-check that the text is selected as a single object (not accidentally broken into blocks) before editing Object Properties.
• Q: In Wilcom Hatch Embroidery, how should lettering underlay be set when text is under 5mm and stitches turn into a “bulletproof knot” with needle breaks?
  A: For lettering under 5mm, reduce bulk—turn off most underlay and avoid density increases that create jams.
  • Turn Underlay OFF or use Center Run only (keep it minimal).
  • Keep density standard (0.40–0.45mm) instead of tightening to 0.30mm or less.
  • Increase character spacing by about 10% if letters are crowding.
  • Success check: In TrueView, loops (a/e/o) still show open space—thread does not fill more than about 2/3 of the hole.
  • If it still fails… Switch to a thinner needle (70/10 vs 75/11) and confirm fabric is stabilized correctly (cutaway is often needed on knits).
• Q: In Wilcom Hatch Embroidery, what underlay type should be used for 6–10mm left-chest lettering to stitch reliably at production speeds?
  A: Use Center Run underlay for 6–10mm lettering as a reliable, low-stitch-count standard.
  • Select the lettering object and open Object Properties → Stitching → Underlay.
  • Enable Center Run and avoid stacking extra underlay layers unless fabric demands it.
  • Run the design time bar to confirm underlay stitches before the satin cover.
  • Success check: The stitched letters look rounded and readable without thread breaks, even around 800+ SPM runs.
  • If it still fails… Verify hooping tension is truly drum-tight and stabilizer matches fabric type (tear-away for stable wovens, cutaway for knits).
• Q: In Wilcom Hatch Embroidery, how do you fix “railroad tracks” showing under satin lettering when using Edge Run underlay on thin fabrics?
  A: Move the Edge Run inward by changing Margin from Edge to hide the underlay ridge under the satin.
  • In Object Properties → Underlay, keep Edge Run enabled.
  • Change Margin from Edge from Normal to Medium or Wide on thin shirts/performance tees.
  • Toggle TrueView on/off to compare the skeleton vs coverage.
  • Success check: The satin face looks smooth with no visible raised lines tracing the letter edges.
  • If it still fails… Re-check hoop tension (fabric slipping makes edge issues look worse) and consider tightening hooping consistency before changing more parameters.
• Q: In Wilcom Hatch Embroidery, what underlay combination prevents big 25mm+ jacket-back satin letters from sinking and looking faded?
  A: For jacket-back scale (25mm+), use Double Zigzag (Layer 1) + Edge Run (Layer 2) to build structure and crisp outlines.
  • Enable Layer 1: Double Zigzag to mat down texture and create a stable base.
  • Enable Layer 2: Edge Run to lock the outline so satin edges stay sharp.
  • Watch stitch count and adjust Zigzag stitch spacing wider (e.g., 2.0mm → 3.0mm) if the result becomes too stiff on thinner garments.
  • Success check: Satin sits on top of the fabric grain (not sinking), color looks solid, and edges stay defined across long stitches.
  • If it still fails… Slow the machine (for example 1000 SPM → 700 SPM) if you hear harsh slapping sounds that indicate flagging or tension stress.
• Q: In Wilcom Hatch Embroidery production, what is the correct hooping success standard before blaming underlay for ragged lettering edges?
  A: Confirm hooping is correct first—ragged edges often come from fabric slip, not the underlay recipe.
  • Hoop fabric drum-tight (you should be able to flick it and hear a “thump,” not a dull “thud”).
  • If using plastic hoops, tighten the screw firmly (often more than finger-tight).
  • Check that thick seams (like center-back workwear jackets) are not distorting the fabric grain in the hoop.
  • Success check: After stitching, outlines stay aligned with no shift and the fabric shows consistent tension marks (not uneven looseness).
  • If it still fails… Upgrade the holding method: improve stabilizer first (fusible cutaway can help), then consider magnetic embroidery hoops for more even clamping on thick items.
• Q: What mechanical safety checks should be done when test-stitching large jacket-back lettering designs to prevent hoop travel snags and instant design shifts?
  A: Keep the hoop travel path completely clear—large lettering moves the pantograph widely and can snag heavy fabric.
  • Clear excess garment bulk away from the moving arm before starting the run.
  • Run a slow trace/check movement if available, especially on oversized hoops/designs.
  • Listen during stitching: a smooth rhythmic sound is normal; harsh metallic slapping suggests flagging or tension stress—slow down.
  • Success check: The hoop completes full travel without catching fabric, and the design stays registered with no sudden layer shifts.
  • If it still fails… Stop immediately, reposition and secure the garment weight, then re-test at a slower speed before changing digitizing settings.
• Q: What magnetic embroidery hoop safety rules should be followed when using industrial-strength magnetic frames on thick garments?
  A: Treat magnetic hoops as pinch hazards—handle slowly, keep fingers clear, and protect people and devices.
  • Keep fingers out of the “snap zone” when magnets clamp down.
  • Keep magnetic frames away from pacemakers and sensitive electronics.
  • Stage the garment so magnets meet flat and controlled, not at an angle.
  • Success check: The frame closes without finger pinches, and the fabric is held evenly without distortion or sudden shifting.
  • If it still fails… Do not force-mate magnets; separate carefully and re-align the fabric and stabilizer stack before reclamping.
