Hatch Knife Tool for Satin Borders: Cut a Clean Gap Without Bulky Overstitching

If you’ve ever painstakingly built a perfect satin border in Hatch Embroidery Software, only to realize you need a small opening for an applique placement, a name drop, or a layered element, you know the sinking feeling. You don’t want that border stitching underneath your top layer.

Why? Because in the world of machine embroidery, density stacks. Stitching a satin column on top of another satin column isn’t just "thick"—it creates a hard, bulletproof ridge that deflects needles, breaks threads, and ruins the drape of your fabric.

This is a classic "digitizer problem." On your computer screen, it looks like a harmless overlap. On the fabric, it’s a disaster waiting to happen.

In this masterclass tutorial, we will bypass the theory and go straight to the solution. You will recreate the exact workflow to digitize a rectangle, convert it into a satin outline using Create Outlines and Offsets, and then use the Knife Tool to surgically remove a segment—leaving a clean, professional gap.

Don’t Panic—A Satin Border Gap in Hatch Is a Normal Pro Move (Not a Mistake)

First, a psychological reset: A gap in a satin border isn’t “breaking” your design—it is a hallmark of professional digitizing. It’s how you prevent bulk. The video example uses a simple rectangle, but the physics apply to badges, military patches, frames, and any border that interacts with another object.

The goal is Object-Level Control. We aren't just "erasing pixels"; we are splitting a stitch object into two separate entities so you can manage them individually in the Resequence list. This prevents "ghost stitches" (weird partial stitches that machines try to sew) and ensures your machine doesn't try to force a needle through 2mm of thread buildup.

The Hidden Prep That Saves You 20 Minutes: Selection Discipline + Layer Awareness in Hatch

Before you even touch the Knife Tool, we need to set up your workspace to minimize errors. Most beginners fail here because they treat embroidery software like a paint program. It isn't. It's an engineering tool.

Two habits separate the hobbyist from the pro:

1. Selection Discipline: The moment you finish drawing a shape, you must exit the digitizing mode. In the video, Sue emphasizes hitting Backspace to undo rogue nodes and immediately hitting Esc or clicking the Select key (the white arrow).
   • Sensory Check: Watch your cursor. Is it a crosshair (Digitizing Mode) or a white arrow (Select Mode)? If it’s a crosshair, stop clicking!
2. Layer Awareness: You must keep the Resequence Docker open. The Knife Tool’s action is visually subtle—sometimes invisible on the canvas. The object list is the only place that tells the truth.

Prep Checklist (Pre-Flight Checks):

• Visual: Is the workspace grid visible? (Zoom in until grid squares are clear; don't design "blind").
• Logic: Define why the gap exists. (Is it for a name tape? An intersection? A fold line?).
• Safety: Ensure Resequence is docked and visible on the right side of your screen.
• Consumables: Have your notepad ready. Note down the exact width of the gap you need (e.g., "Gap needs to fit 20mm lettering").
• Hand Position: Keep one hand on Esc (Exit Tool) and Backspace (Correction).


Build the Base Rectangle in Hatch Digitize Toolbox (So the Outline Stays Perfect)

We start with a clean vector shape. In the video, the base is created with Digitize Rectangle/Square.

What you do:

1. Go to the Digitize toolbox on the left.
2. Select Digitize Rectangle/Square.
3. Left-click once to anchor the top-left corner.
4. Drag diagonal to size it.
5. Left-click again to finalize the shape.

Success Metric: You will see a blue tatami fill rectangle appear on the grid. It should look solid.

Watch out: the “Why am I drawing again?” mistake

This is the most common frustration point. You finish the rectangle, try to click it to move it, and—oops—you just drew a tiny square on top of it.

The Fix:

• Action: Press Backspace immediately to delete that accidental node.
• Action: Press Esc firmly to drop the tool.

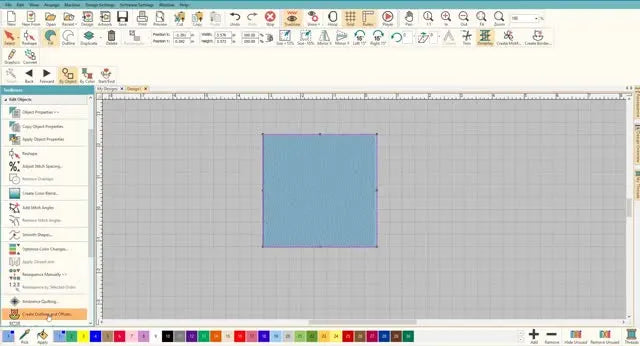

Turn That Shape Into a Satin Border Using “Create Outlines and Offsets” (Without Unwanted Offset)

Here is where we save time. Instead of drawing a border manually (which is often shaky), we let Hatch generate a mathematically perfect one.

Step-by-Step Procedure:

1. Switch to the Select tool (Shortcut: O or click the arrow).
2. Click the blue rectangle.
   • Visual Check: Look for the hot pink outline (handles). This confirms selection.
3. Navigate to Edit Objects → Create Outlines and Offsets.
4. Critical Configuration:
   • Object type: Select Satin line.
   • Offset: UNCHECK this box.
   • Color: Choose a high-contrast color (the video uses Red).
5. Click OK.

Result: A pristine red satin stitch border hugs the edge of your blue rectangle.

Why “Offset unchecked” matters (The Physics of the Gap)

In many tutorials, you are told to add an offset (gap) to account for "push and pull" compensation. However, when creating a cut gap, we want the border to sit exactly on the edge of the fill initially.

If you check "Offset," the border floats away from the fill. When you later try to align your overlapping object (like a name bar) inside the gap, you’ll fight with alignment issues. Keep it tight now; adjust pull compensation later if needed.

Setup Checklist (Verification Audit):

• Selection: Is the base object highlighted with a specific color (e.g., Hot Pink)?
• Property: Is Object Type set to "Satin Line"? (Not Run Stitch, not Triple Run).
• Geometry: Is Offset strictly unchecked?
• Visibility: Did you pick a contrasting thread color (e.g., Red on Blue) to easily see your cuts?
• Layering: Check Resequence. Do you see the new Satin Object listed after the fill?


The “Two-Cut” Knife Tool Method: Split the Satin Column Cleanly, Then Delete Only What You Mean To

This is the core surgery. We are going to slice the digital object.

1) Make the design easy to see

Action: Zoom in. Use the mouse wheel or the Zoom Box tool.

• Rule of Thumb: If you can't distinguish individual needle penetration points, you are too far out.

2) Select the satin border (not the fill)

Action: Click the red satin border.

• Visual Anchor: Ensure the sizing handles surround the red line, not the blue block.

3) Use the Knife Tool to make the first cut

This tool works by drawing a "cut line" across your object.

• Go to Edit Objects and select Knife Tool.
• Cursor Check: Your cursor changes to a knife/blade icon.
• Action: Click on the outside left of the satin column.
• Action: Drag your mouse across the column to the outside right.
• Action: Click again to set the second point.
• Action: Press Enter. (Essential step! The cut doesn't happen until you confirm).




4) Repeat for the second cut (this defines the gap width)

Decide how wide your gap needs to be.

• Move your cursor down the line.
• Knife Tool → Click (Start) → Drag Across → Click (End) → Enter.


5) Verify the split in Resequence (even if nothing “looks” different)

Reality Check: On the canvas, it might look like nothing happened. The satin stitches might simply touch each other. Verification: Look at the Resequence list. You should now see the original "Border" object has split into three separate objects (Top part, Middle part, Bottom part).

6) Switch back to Select and delete the isolated segment

• Press Esc to drop the Knife Tool.
• Click the "Middle" segment (the piece between your two cuts).
• Press Delete on your keyboard.
• Visual: A clean white gap should appear.




About that tiny connecting stitch

Sue mentions a small running stitch might remain connecting the two cut ends.

• Beginner Advice: If the gap is being covered by another patch, leave it. It helps the machine travel without trimming.
• Pro Advice: If the gap is "open air" (visible fabric), delete the travel stitch to ensure a clean look.

Warning: HANDS OFF THE MACHINE. When testing designs with modified gaps and jumps, unexpected travel stitches can occur. Always keep your hands clear of the needle bar area during the first test stitch-out to avoid injury if the hoop makes a rapid jump movement.

The “Why” Behind This Trick: Controlling Bulk, Travel, and Stitch Order Like a Digitizer Who Sews

Why go through this trouble? Why not just stitch white thread over the red border?

Physics of Embroidery:

• Density Buildup: A standard satin stitch has a density of roughly 0.40mm. If you stitch a patch on top of it, you effectively double the density to 0.20mm. This is "needle break territory."
• Hoop Deflection: Thick ridges of thread act like speed bumps. When the foot hits them, it can knock the hoop slightly out of alignment—ruining the registration of your entire design.

The Knife Tool method is Preventative Engineering. By removing the bulk before it goes to the machine, you ensure a flat, smooth foundation for whatever comes next.

Hidden Consumable Note: When placing items in these gaps (like applique fabric), use a temporary adhesive like 505 Spray to keep the fabric flat. Without the border to hold it down, the fabric edge is vulnerable until stitched.

When the Knife Tool “Does Nothing”: The Two Most Common Causes (and the Fast Fix)

Troubleshooting logic: Start with the simplest user error.

Symptom A: You keep drawing new shapes instead of selecting

• Likely Cause: You forgot to exit the "Digitize" mode.
• The Fix: Press Esc repeatedly until the cursor becomes a white arrow.
• Prevention: Keep your left hand resting on the Esc key while working.


Symptom B: You cut, press Enter… and nothing changes on screen

• Likely Cause: Digital illusion. The cut happened, but the nodes are touching.
• The Fix: Trust the Data. Look at the Resequence docker. If you see multiple objects listed where there was one, the cut worked.
• Prevention: Zoom in closer.


Pro tip from the field: trust the object list, not your eyes

In Hatch Embroidery Software, your eyes can deceive you, but the Object List never lies. Always keep the list open to confirm that your "one border" has become "three segments."

Decision Tree: Do You Need a True Gap, or Just Less Bulk Under the Next Object?

Before you start slicing up your design, run this logic check:

Q1: Is another object going to stitch DIRECTLY on top of the border?

• NO: Keep the border continuous. Do not create a gap.
• YES: Go to Q2.

Q2: Will the top object FULLY cover the width of the border?

• YES: Create a Cut Gap. Delete the underlying stitches to prevent bulk.
• NO (Partial Overlap): Proceed with caution. You may need to create a gap only where the overlap is substantial.

Q3: Is the fabric thick (Denim/Canvas) or thin (T-shirt)?

• THIN FABRIC: Mandatory Gap. Stacking stitches on thin knits causes "bullet holes" (tears).
• THICK FABRIC: You might get away with overlap, but a gap is still best practice for needle safety.

Q4: Is this a one-off or a production run?

• PRODUCTION: Standardize. Spend the time to cut the gap now to save broken needles on unit #50.

The Upgrade Path After Digitizing: Your File Is Clean—Now Don’t Lose Time at the Hoop

You have just engineered a perfectly clean digital file. But a perfect file stitched in a crooked hoop is still a failed product.

If you find yourself spending 20 minutes digitizing a gap, only to have the embroidery machine misalign the final stitch by 3mm, the problem is likely hooping instability. This is common when using traditional screw-tightened hoops which can push fabric ("hoop drift") as you tighten them.

Commercial Context:

• Scenario: You need to stitch a name into that gap you just created on 50 polo shirts.
• The Pain: Hooping traditional frames causes "hoop burn" (shiny rings on fabric) and wrist fatigue. Worse, aligning the gap perfectly horizontal is difficult.
• The Solution Level 1 (Technique): Use a grid template and water-soluble pen to mark the axis on every shirt.
• The Solution Level 2 (Tool Upgrade): If you struggle with hooping for embroidery machine projects involving precise alignment, consider upgrading to a magnetic embroidery hoop.
  • Why? Magnetic hoops clamp straight down. They don't twist the fabric, ensuring that the gap you digitized lands exactly where you planned it.
• The Solution Level 3 (Production): For bulk orders, pros use a machine embroidery hooping station paired with magnetic frames to guarantee that every shirt is loaded in the exact same spot, reducing setup time by 40%.

Warning: MAGNET SAFETY. Magnetic hoops use high-powered industrial magnets. They can pinch fingers severely. Do not use if you have a pacemaker or ICD, as the magnetic field can interfere with medical devices.

Owners of a brother embroidery machine or similiar single-needle machines often find that magnetic hoops are the single most effective upgrade for reducing "hoop burn" on delicate items.

Operation Checklist (the exact sequence to get a clean gap every time)

Follow this order. Do not skip steps.

• Digitize: Create base shape with Digitize Rectangle/Square.
  • Correction Info: Backspace removes nodes; Esc exits tool.
• Verify Select: Ensure base shape has a hot pink outline (Selected).
• Convert: Go to Edit Objects → Create Outlines and Offsets.
• Configure: Set Object type = Satin line, Offset unchecked, Color = Contrast. Click OK.
• Review: Open Resequence docker. Identify the new Satin Object.
• Tool Up: Select Satin Border. Activate Knife Tool.
• Cut 1: Click Start → Drag Across → Click End → Press ENTER.
  • Sensory: Listen for the 'clack' of the Enter key.
• Cut 2: Click Start → Drag Across → Click End → Press ENTER.
• Audit: Check Resequence for the split objects.
• Clean Up: Switch to Select Tool. Click the middle segment. Press Delete.
• Final Test: Stitch a sample on scrap fabric using a slow speed (e.g., 600 SPM) to verify the tie-offs are secure.

Whether you use a specialized hooping station for machine embroidery or just a steady hand, a clean file is the foundation of quality. Master the Knife Tool, and you master the bulk.

FAQ

• Q: In Wilcom Hatch Embroidery Software, why does stitching a satin border on top of another satin border cause needle breaks and stiff “bulletproof” ridges?
  A: Avoid stacking satin-on-satin because density buildup creates a hard ridge that can deflect needles, break thread, and ruin fabric drape.
  • Action: Create a true gap in the underlying satin border where the top object will stitch.
  • Action: Split the satin border into separate objects (not “erase pixels”) so stitch order stays controllable in the Resequence list.
  • Success check: The design preview shows a clean open segment (no hidden border stitches under the overlap area).
  • If it still fails: Slow the first test stitch-out and watch for deflection or popping; re-check that the middle border segment was actually deleted (not just visually hidden).
• Q: In Wilcom Hatch Embroidery Software, why does the Knife Tool keep drawing/cutting but nothing seems to change on the canvas after pressing Enter?
  A: Don’t worry—this is common; the cut may have happened but looks invisible until verified in the Resequence docker.
  • Action: Zoom in closer before judging the result.
  • Action: After each cut line, press Enter to confirm (the cut does not apply until Enter is pressed).
  • Action: Open and check Resequence to confirm one border object became multiple segments.
  • Success check: The Resequence list shows the satin border split into separate objects (often three segments after two cuts).
  • If it still fails: Confirm the satin border object (not the fill) was selected before activating Knife Tool.
• Q: In Wilcom Hatch Embroidery Software, how do you stop the “Why am I drawing again?” mistake when trying to select a Digitize Rectangle/Square object?
  A: Exit Digitize Mode immediately after creating the rectangle so clicks select instead of creating new nodes/shapes.
  • Action: Press Backspace to remove the accidental node or tiny extra square as soon as it appears.
  • Action: Press Esc to drop the tool until the cursor becomes the white arrow (Select Mode).
  • Action: Re-click the rectangle only after the hot pink selection handles appear.
  • Success check: The cursor is a white arrow and the rectangle shows a hot pink outline/handles when clicked.
  • If it still fails: Watch the cursor shape (crosshair means you are still in Digitize Mode—stop clicking and press Esc again).
• Q: In Wilcom Hatch Embroidery Software, what exact settings should be used in “Create Outlines and Offsets” to generate a satin border that hugs the fill (no unwanted offset)?
  A: Use “Satin line” and keep “Offset” unchecked so the satin border sits tight to the fill edge for clean alignment before creating a gap.
  • Action: Select the base fill shape until hot pink handles show.
  • Action: Go to Edit Objects → Create Outlines and Offsets and set Object type = Satin line.
  • Action: Ensure Offset is unchecked and choose a contrasting color for visibility.
  • Success check: A new satin border appears tightly hugging the fill edge, and the new satin object appears after the fill in Resequence.
  • If it still fails: Re-open the settings and confirm the object type is Satin line (not run stitch/triple run) and the original object was truly selected.
• Q: In Wilcom Hatch Embroidery Software, what is the clean “two-cut” Knife Tool method to remove only a specific segment of a satin border (without ghost stitches)?
  A: Make two Knife Tool cuts across the selected satin border, confirm each with Enter, then delete only the isolated middle segment in Select Mode.
  • Action: Select the satin border (not the fill), then open Edit Objects → Knife Tool.
  • Action: Cut #1: Click outside-left → drag across the satin column → click outside-right → press Enter.
  • Action: Cut #2: Repeat at the second location to define the gap width → press Enter.
  • Action: Press Esc to return to Select, click the middle segment, press Delete.
  • Success check: Resequence shows multiple border segments and a visible clean white gap appears after deleting the middle piece.
  • If it still fails: Trust Resequence over the canvas—if it didn’t split into multiple objects, the wrong element was selected or Enter wasn’t pressed.
• Q: In Wilcom Hatch Embroidery Software, should the tiny connecting travel stitch between the two cut satin ends be removed when creating a gap in a satin border?
  A: Leave the tiny travel stitch if another element will cover the gap, but remove it if the gap will be visible “open air.”
  • Action: Decide whether the gap will be covered by an applique/patch/name element or left exposed.
  • Action: For covered gaps, keep the travel stitch to help the machine move without trimming.
  • Action: For visible gaps, delete the travel stitch for a cleaner look.
  • Success check: Covered-gap designs stitch smoothly without unexpected trims; open-air gaps show no stray connector stitch on the fabric.
  • If it still fails: Do a slow sample stitch-out and inspect the gap area closely for any remaining connector stitches.
• Q: During a first test stitch-out of a Wilcom Hatch design with newly created gaps and travel stitches, what needle/hoop safety rule should be followed at the embroidery machine?
  A: Keep hands completely away from the needle bar area because modified gaps and jumps can cause sudden rapid hoop movement.
  • Action: Run the first test stitch-out slowly and stay alert for unexpected travel stitches/jumps.
  • Action: Keep fingers clear of the hoop path and needle area throughout the run.
  • Action: Stop the machine immediately if movement looks abnormal, then re-check stitch order and travel stitches in software.
  • Success check: The test stitch-out completes with controlled hoop motion and no unexpected aggressive jumps near the gap.
  • If it still fails: Re-open the file and review Resequence for unintended connectors before running another test.
• Q: If Wilcom Hatch Embroidery Software alignment looks perfect but the stitched name or element misses the satin-border gap by 3 mm, what is the practical upgrade path to reduce hoop drift and hoop burn on production runs?
  A: Start with marking/templating, then consider magnetic hoops for straighter clamping, and move to a hooping station + magnetic frames for repeatability in bulk orders.
  • Action: Level 1 (Technique): Mark a consistent axis using a grid template and a water-soluble pen before hooping.
  • Action: Level 2 (Tool): Switch to magnetic hoops to clamp straight down and reduce fabric twist that causes drift and shiny hoop burn rings.
  • Action: Level 3 (Production): Use a hooping station paired with magnetic frames to load garments in the same position repeatedly and cut setup time.
  • Success check: The stitched element consistently lands centered in the digitized gap across multiple pieces.
  • If it still fails: Re-check that the garment is stabilized consistently and that the same hooping reference marks are used every time; follow the machine manual for hooping guidance and safety.
