Hatch Graphics Mode + CorelDRAW Essentials: Turn Simple Vector Shapes into Clean Stitch Files (Without the Usual Auto-Digitize Headaches)

The Digitizer's bridge: Mastering CorelDRAW Integration in Hatch for Flawless Patches

If you’ve ever stared at a blank digitizing screen thinking, “I just need a clean heart, a banner, and a speech bubble—why is this taking an hour?”, you are experiencing the classic "Digitizer's Block."

Drawing directly with stitch nodes is difficult because it requires your brain to calculate stitch angles and vector shapes simultaneously. Sue’s workflow demonstrates a superior, industry-standard approach: create clean geometry in CorelDRAW Essentials (inside Hatch’s Graphics Mode) and then convert that artwork into stitch objects with a single button.

It’s beginner-friendly, but don’t let the simplicity fool you. This is a "quietly powerful" technique used by high-volume shops to standardize their patch production. By the end of this white paper, you won't just know which buttons to click; you'll understand the physics of line weight, the sensory cues of a good conversion, and how to scale this workflow for profit.

The "Handshake" Protocol: Don't Panic When Hatch Throws the Admin Popup

When you first set up the Corel connection, you may see a Graphics Mode warning popup asking for administrative privileges. New users often freeze here, fearing they have "broken" the software.

Let's reframe this: This isn't an error; it's a security handshake.

Hatch is essentially asking, “Do I have permission to wake up the CorelDRAW engine sleeping on your hard drive?” In the video, Sue treats this as normal: click OK to grant permissions.

The "Silent" System Check

Before you draw a single line, you need to verify the link is stable. If you ignore this, you risk losing work later.

1. Launch Corel First: Sue’s hidden pro-tip is to load Corel independently first to ensure it initializes, then close it and return to Hatch.
2. The "Switch" Test: Click the Graphics button.
3. Visual Confirmation: You are looking for a complete interface change. The grey Hatch embroidery grid should be replaced by the stark white Corel canvas.

Expected Sensory Outcome: You shouldn't just see a new screen; you should experience a distinct change in tool availability. Vector tools (pens, nodes) replace stitch tools. If the transition feels laggy or throws a second error, stop. Do not try to "force" the software. Save your work and check your installation versions.

Warning: If you’re troubleshooting software connectivity, never reinstall your operating system or software suite mid-project. Save your current Design File (.EMB) to an external drive first. Software can be reinstalled; lost hours of creative work cannot.

The Hidden Prep Pros Do First: Close, Launch, Verify Before You Draw

A lot of frustration in the comments comes from people who have both programs installed but can’t get them to communicate. If you’re in that camp, treat this as a pre-flight check before you invest time drawing shapes.

What you must see: Hatch switches from its embroidery workspace to a Corel-style white canvas.

Phase 1 Checklist: The Software Handshake

• Verification: Click Graphics in Hatch. Does the workspace background turn white?
• Permission: If a popup appears, click OK immediately.
• Version Check: Ensure your Corel version is the specific one supported by your Hatch license (e.g., CorelDRAW Essentials vs. Full Suite).
• Save Hygiene: Save your file as ProjectName_V01 before drawing. Vector files are small, but a crash during conversion is possible on older RAM-limited machines.

The Vector Workspace: Letting CorelDRAW Essentials Do the Heavy Lifting

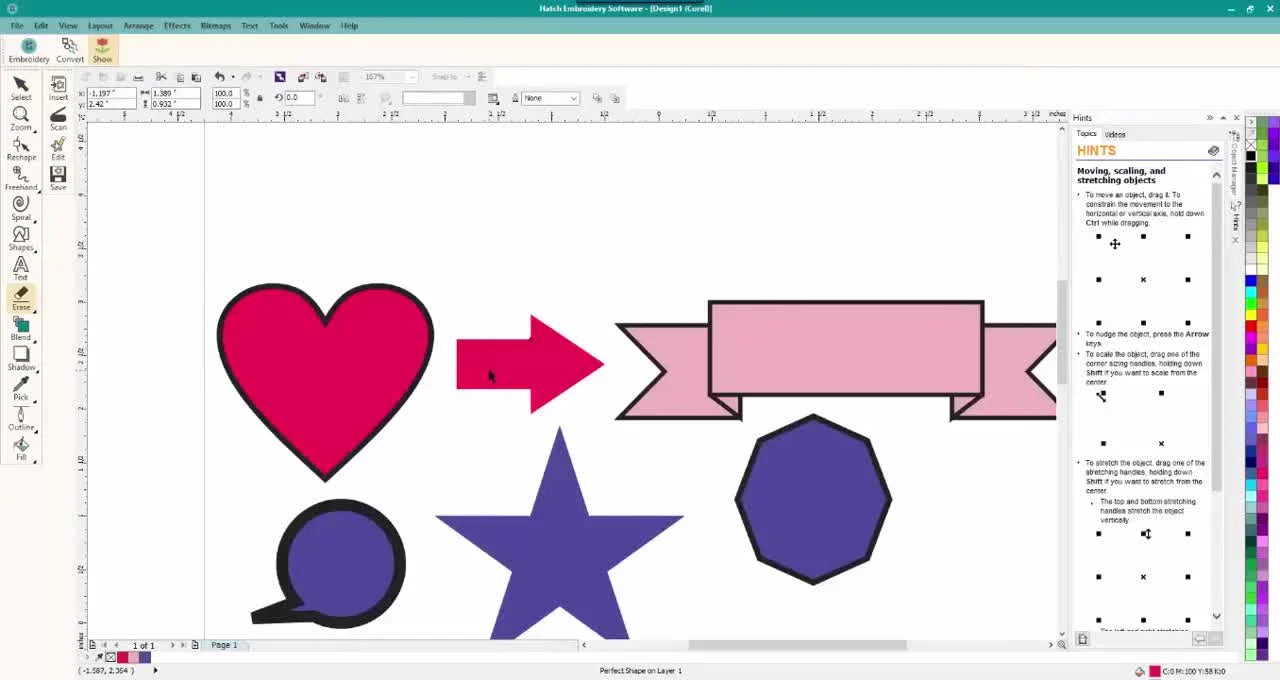

In the video, Sue clicks the Graphics button in the Hatch toolbar. That’s the gateway into the CorelDRAW Essentials interface.

The mental shift here is crucial. In Embroidery Mode, you are thinking about pull compensation (how much the fabric shrinks). In Graphics Mode, you are thinking about pure geometry. You are temporarily a graphic designer, not a digitizer.

Expected outcome: A Corel interface opens, giving you access to "Perfect Shape" tools: Basic Vector Shapes, arrows, banners, callouts, stars, and polygons.

Lesson 1: The Heart (Understanding Line Weight as Stitch Density)

Sue starts with Basic Vector Shapes and chooses the Heart. Here is where we learn the most important lesson in auto-digitizing: Line Width equals Stitch Count.

1. Select Basic Vector Shapes.
2. Choose the Heart icon.
3. Left-click and pull to draw.
4. Critical Step: Adjust the outline thickness using the dropdown on the top bar.

The Physics of "4.0 pt"

Sue tests 8 pt and rejects it, settling on 4.0 pt. Why?

• 8 pt (Too Thick): When converted, the software interprets this as a wide Satin Stitch or a Tatami fill. On a small icon, this creates a "bulletproof" patch—so stiff it cardboard-izes the fabric.
• 4.0 pt (The Sweet Spot): This converts to a standard satin column (approx 1.5mm - 2mm). It frames the heart without adding bulk.

Expert Calibration: If you are stitching on delicate wovens, stay between 2.0 pt and 4.0 pt. Any thicker, and you risk needle cuts.

The Anchor Point: Screen vs. Reality

This is your first reality check. A vector line looks perfect on screen, but fabric is fluid. If you are using standard wooden hoops, fabric distortion can make a thin outline miss its registration, leaving a gap between the pink fill and the black border.

If you struggle with registration (gaps appearing between the outline and the fill), the issue is rarely the software—it’s the physics of fabric movement. This is why many experienced digitizers upgrade their hardware. Using high-quality machine embroidery hoops that grip firmly without burning the fabric is often the only way to get the physical result to match the perfection of the Corel vector file.

Lesson 2: The Arrow (The Power of "None")

Next, Sue switches to Arrow Shapes.

1. Click and hold the shape menu to access Arrow Shapes.
2. Left-click and drag to draw.
3. The Pro Move: Remove the outline by setting width to None.

Expected outcome: A filled arrow appears next to your heart.

Why is "None" better? In embroidery, less is more.

• Friction: Every needle penetration weakens the fabric.
• Visual Logic: An arrow is a symbol. It doesn't need a border to be legible. A border adds 30% more machine time for zero visual gain.


Lesson 3: The Banner (Managing Corners and Overlaps)

Sue chooses Banner Shapes. This is a stress test for auto-conversion because banners have sharp internal corners.

1. Select Banner Shapes.
2. Choose the ribbon style.
3. Apply a thick black outline.
4. Correction: She notes that thick lines look "messy."

The Troubleshooting Rule: If the outline looks "cartoon thick" in vector mode (where corners are rounded or overlap awkwardly), the embroidery machine will try to replicate that mess with thread. It will place hundreds of stitches in one spot to turn that corner, resulting in a "bird's nest" (a tangle of thread under the throat plate).

The Fix: Reduce to 4 pt or lower. Give the conversion engine a clean path to follow.

Lesson 4: The Dynamic Callout (Standardizing Your Labels)

Sue selects Callout Shapes (speech bubbles).

1. Draw the bubble.
2. Sensory Trick: While the mouse button is held down, move the mouse around. Watch the "tail" of the speech bubble snap to different positions. Even after drawing, the red node allows you to redirect the tail.

This shape is the bread and butter of custom name tags.

Commercial Application: If you are running a shop, you shouldn't be redrawing this every time. Creating a "Master Template" file with these clean Corel shapes saves hours. Similarly, hardware efficiency matters. If you’re shopping for a hooping station for embroidery machine to ensure your logos are perfectly straight on every shirt, you should apply that same "template mindset" to your software files. Standardize the digital asset (the callout) so you only have to worry about the physical alignment.

Lesson 5: The Star & Polygon (Audit on the Fly)

Sue uses the Star and Polygon tools.

• The Shortcut: With a polygon selected, change the "Number of Sides" in the property bar (e.g., 5 to 6). It updates instantly.

This prevents the "Delete -> Redraw -> Delete" cycle. It keeps you in the creative flow.

Phase 3: The "Magic Button" Conversion Ritual

Now the payoff. Sue selects one object (the heart) and clicks Convert Artwork to Embroidery.

The Golden Rule: One at a Time. Do not select all 50 shapes and click convert. Why?

1. CPU Load: Complex vectors can crash the conversion engine.
2. Quality Control: Adjusting one failed conversion is easy. Adjusting fifty is a nightmare.


The Hooping Connection: This "One at a Time" philosophy applies to testing, too. When you have a new converted design, test it immediately on scrap fabric. This is where a magnetic embroidery hoop shines. Because you can hoop and unhoop in seconds without unscrewing brackets, you can run a rapid test stitch of the heart, verify the density, and jump back to the computer to tweak the Star. Fast physical testing is the secret to good digitizing.

Setup Checklist (The Pre-Conversion Flight Check)

• Selection: Is only one object selected? (Look for the bounding box).
• Line Weight: Is the outline set to 4.0 pt or less? (Unless you specifically want a heavy tatami border).
• Fill Status: Is the fill color distinct from the background?
• Hidden Consumable: Have your Color Chart handy. When converting, Hatch will map the RGB vector colors to your nearest thread chart. Be ready to swap colors if the software picks a strange match.

Phase 4: True View Diagnostics (Trust Your Eyes)

Sue switches to True View. This renders the stitches with texture simulation.

What to look for (The Diagnostic Scan):

1. Jagged Edges: If the satin border looks like a saw blade, the vector line was too thick.
2. Black Holes: Dark spots in corners indicate dangerous stitch density.
3. Gaps: White space between fill and border means you need to add Pull Compensation in the embroidery settings (usually 0.2mm - 0.4mm).


Comparing embroidery hooping station sizes to your design size in True View is also a good habit. Visualizing the final physical constraint helps you catch scale errors (e.g., designing a 12-inch banner for a 10-inch hoop) before you export the machine file.

When Software Fails: The "Manual Link" Workaround

If Hatch refuses to show the "Graphics Mode" button:

1. Verification: Does your license actually include Corel? (Some levels of Hatch do not).
2. The Workaround: Export your vector as an .EPS or .AI (Version 8 legacy often works best) from Illustrator or Inkscape. Then use Artwork > Insert Artwork in Hatch. It adds one step but yields the exact same stitch result.

Decision Tree: Calibrating Line Weight for Conversion

Use this logic flow to decide your Corel settings before clicking "Convert":

• Is the object smaller than a coin?
  • YES: Set Outline to None. (Borders on tiny objects create mess).
  • NO: Proceed.
• Is the object a "Patch" (intended to have a heavy edge)?
  • YES: Set Outline to 3.0 pt - 4.0 pt. (Creates a Satin Stitch).
  • NO: Set Outline to Hairline/0.5 pt. (This forces the software to create a Running Stitch border, not a satin column).

Troubleshooting: From Screen to Real Life

Problem 1: "Graphics Mode" warning popup

• Cause: Security permissions.
• Fix: Click OK.

Problem 2: Thick outline looks messy (Bird's nest)

• Cause: Vector line weight > 8 pt.
• Fix: Reduce to 4 pt or remove outline.

Problem 3: The "Hoop Burn" Ring

• Cause: You are using traditional hoops on delicate fabric to test your new files, and you are overtightening to prevent shifting.
• Fix: This is a hardware limit, not software. If you produce items for sale, the "ring" marks left by standard hoops can ruin a garment. Switching to magnetic embroidery frames solves this instantly. The magnets distribute force evenly, holding the fabric without crushing the fibers, allowing your converted Corel designs to sit perfectly flat.

Warning: Magnet Safety
Professional magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear when snapping hoops together.
* Device Safety: Keep away from pacemakers, insulin pumps, credit cards, and mechanical hard drives.

The Scaling Strategy: From One Heart to 100 Shirts

Sue’s workflow is the perfect entry point. But as you get faster at designing, your bottleneck will shift.

1. Level 1 (Software): You master the Corel-to-Hatch flow (this guide).
2. Level 2 (Stability): You stop fighting fabric drift by using proper stabilizers (Cutaway for knits, Tearaway for wovens).
3. Level 3 (Hardware): You upgrade your workflow.

For home users with high-end machines, the frustration of re-hooping for every single test stitch is real. Adapting a specific bernina magnetic embroidery hoop or a frame compatible with your specific model can turn a 5-minute setup into a 10-second snap.

For growing businesses, if you are running a janome embroidery machine or similar semi-pro unit and find yourself spending more time hooping than stitching, it’s time to look at magnetic framing solutions to maximize your machine's uptime.

Final Operation Checklist (Before you hit Start)

• True View Inspection: No "black holes" or jagged edges?
• Hoop Check: Is the fabric taut like a drum skin? (Listen for the thump-thump sound when tapped).
• Clearance: Is the hoop clear of the presser foot arm?
• Safety Zone: Keep hands away from the needle bar once the green button is pressed.

Mastering the Corel connection gives you the design freedom; mastering your hoops and machine gives you the production power. Use them both to turn "Digitizer's Block" into your most profitable day.

FAQ

• Q: In Hatch Embroidery, why does the CorelDRAW Essentials “Graphics Mode” administrative privileges popup appear, and what should users click?
  A: Click OK—the popup is a normal security handshake, not a software error.
  • Save the current design file before switching modes (e.g., a new version name) to protect work time.
  • Click Graphics again after approving permissions to confirm the link completes.
  • Success check: the grey Hatch embroidery grid switches to a stark white Corel-style canvas with vector tools (pen/nodes) instead of stitch tools.
  • If it still fails, stop forcing the switch, save the .EMB, and verify the installed Corel edition/version matches what the Hatch license supports.
• Q: In Hatch Embroidery, how can users verify CorelDRAW Essentials integration is stable before drawing vector shapes in Graphics Mode?
  A: Do a quick “pre-flight” switch test—do not start drawing until the interface fully changes.
  • Launch CorelDRAW independently first, let it initialize, then close Corel and return to Hatch.
  • Click the Graphics button and watch for the full workspace change.
  • Success check: the transition feels clean and responsive, and the toolset changes to Corel vector tools on a white canvas.
  • If it still fails, save the project and check installation versions/licensing rather than reinstalling mid-project.
• Q: In Hatch Embroidery auto-conversion, what CorelDRAW outline thickness should users choose for a small heart border to avoid a stiff, “bulletproof” patch?
  A: Use about 4.0 pt as the safe starting point for small satin-style borders; avoid very thick outlines like 8 pt.
  • Set the heart outline thickness from the top-bar dropdown before converting.
  • Keep outlines lighter (generally 2.0–4.0 pt) when stitching on delicate woven fabrics to reduce the risk of needle cuts.
  • Success check: after conversion, the border looks like a clean satin column and the patch feels flexible rather than cardboard-stiff.
  • If it still fails (dense corners or stiffness), reduce outline thickness further or remove the outline on very small icons.
• Q: In Hatch Embroidery, why can a thick CorelDRAW banner outline create “bird’s nest” thread tangles during conversion and stitching, and how can users fix it?
  A: Thick, messy vector corners force excessive stitches in one spot—reduce the outline to 4 pt or lower to give the conversion engine a clean path.
  • Inspect the banner corners in vector mode; if they look cartoon-thick or overlapping, the stitch result will magnify the problem.
  • Reduce outline thickness (or simplify the shape) before clicking Convert Artwork to Embroidery.
  • Success check: in True View, corners do not show dark “black hole” density spots and the stitch path looks smooth.
  • If it still fails, convert and troubleshoot one object at a time instead of converting many shapes together.
• Q: In Hatch Embroidery, what is the safest way to use “Convert Artwork to Embroidery” without crashing the conversion engine on complex CorelDRAW vectors?
  A: Convert one object at a time to control CPU load and make quality fixes manageable.
  • Select a single object and confirm only one bounding box is active before converting.
  • Convert, inspect, and adjust that object before moving to the next shape.
  • Success check: Hatch completes the conversion without lag/crash, and True View shows no jagged edges or dense corner artifacts.
  • If it still fails, reduce vector complexity and avoid selecting “all shapes” for a single conversion pass.
• Q: In Hatch Embroidery True View, what visual signs indicate conversion problems like jagged satin borders, density “black holes,” or gaps between fill and border?
  A: Use True View as the diagnostic screen: jagged edges, dark corner holes, and white gaps are actionable warning signs.
  • Scan borders for a saw-blade look (often linked to an overly thick vector line).
  • Check corners for dark, packed areas that indicate dangerous density.
  • Add pull compensation (often a small amount like 0.2–0.4 mm, machine/fabric dependent—follow the machine and software guidance) if fill-to-border gaps appear.
  • Success check: borders look smooth, corners are not overly dark, and fill meets the border without white separation.
  • If it still fails, test-stitch on scrap fabric immediately to confirm whether the issue is conversion settings or fabric movement/hooping.
• Q: When using magnetic embroidery hoops/frames, what magnet safety rules should embroidery operators follow to prevent injuries and device damage?
  A: Treat magnetic hoops as industrial tools—avoid pinch points and keep magnets away from sensitive medical devices and magnetic media.
  • Keep fingers clear when snapping the hoop/frame together to prevent pinch injuries.
  • Keep magnetic hoops away from pacemakers, insulin pumps, credit cards, and mechanical hard drives.
  • Success check: the hoop closes in a controlled snap without finger contact, and the work area remains clear of sensitive items.
  • If it still fails (unsafe handling risk), slow down the closing motion, reposition hands, and set a dedicated “magnet-safe” zone on the workstation.
