Hatch Embroidery Software Color Changes That Don’t Bite Back: The Active Color Trick, the My Threads Docker, and a Smarter Thread Workflow

Hatch Embroidery Color Changes: The Zero-Mistake Workflow for Beginners

If you’ve ever opened a design in Hatch, changed a color, and then thought, “Wait—why did everything just change?”, you’re not alone. I call this the "Digitizer’s Panic." Color edits feel harmless on-screen because pixels are free. But on the shop floor, a bad color swap can mean unnecessary thread changes, mismatched brand charts, or a customer-approved proof that no longer matches the physics of what you stitched.

As someone who has spent two decades moving between the digitizing software and the hum of a multi-needle machine, I know that software proficiency isn't just about clicking buttons—it's about predicting how those clicks translate to thread tension and production time.

This post rebuilds the fast workflow shown in Hatch Embroidery Software, but with a critical layer added: the "Shop-Floor Reality Check." We will cover not just how to change the color, but why you are doing it, and how to prevent the common disasters that happen after you hit "Save."

Calm the Panic: Understanding the "Active Color" Logic

Hatch makes color changes fast because it operates on a ruthless logic rule: whatever is “Active” is what you’re editing. There is no "undo" for a physical stitch, so we must master the digital preview first. The software interface has two critical areas you must train your eyes to scan—think of this like checking your side mirrors before changing lanes:

1. Design Palette (The Bottom Strip): This is the row of color squares currently assigned to objects in the design. Consider this your "Current Reality."
2. Active Color / Current Color (Large Swatch on the Left): This is the "Live Wire." Any color-related change you make will zap whatever is connected to this swatch.

In the Design Palette, you’ll also notice a small blue square indicator on specific colors.

• Visual Anchor: Look for the tiny blue tag.
• Meaning: This confirms the color is actually used in the stitches. If there is no blue tag, that color is just sitting in the palette effectively doing nothing—like a spool of thread left on the table but not threaded into the machine.




The Sensory Check: When you click a color in the Design Palette, your eyes should immediately dart to the large Active Color swatch on the left. It must update to match the color you just clicked.

• Pass: You click Red in the palette; the Big Swatch turns Red.
• Fail: You click Red, but the Big Swatch stays Blue.

If it fails, stop. Do not proceed. You are about to recolor the wrong section of your design.

Warning: The "Double-Click" Trap. Don’t "test-click" colors while your hand is on the mouse and your brain is on autopilot. In Hatch, a fast double-click in the thread list can instantly recolor every object assigned to the active color. It is perilously easy to overwrite a customer-approved palette before you realize what happened.

The “Hidden” Prep Pros Do First: Save, Map, and Decide

The tutorial highlights a habit I consider non-negotiable: re-save the design with a new version number (e.g., _v2) before you change a single pixel. That single step protects you from the most common workflow disaster—overwriting the "Golden Master" file.

But before we start clicking, we need to talk about Thread Mapping. Beginners often think the screen color is the thread color. It is not. The screen color is a suggestion; the thread code is the instruction.

Decision Tree: What is your Goal?

Before editing, identify why you are changing colors. This determines your workflow:

1. Visual Proofing? (Sending a JPG to a client) -> Focus on RGB values that look good on screens.
2. Production Efficiency? (Reducing stops) -> Focus on consolidating multiple "near-match" colors into one single thread code to save 5 minutes of operator time.
3. Brand Matching? (Restocking inventory) -> Focus on specific codes (e.g., Isacord 1912).

The Missing Consumable: Beginners often forget that digital colors require physical inventory. If you are standardizing your shop's output, ensure you have a consistent thread supply. We often recommend stocking a core set of high-sheen polyester embroidery threads (like the SEWTECH 40wt series) and mapping your software to that specific physical inventory. This prevents the "screen looks great, reality looks dull" mismatch.

Prep Checklist (Pre-Flight Protocol):

• File Safety: Re-save the design to a new filename (e.g., Project_Bird_v02.EMB).
• Visual Anchor: Identify the Design Palette (bottom) and Active Color swatch (left).
• Physical Match: Have your physical thread cones or color chart on the desk next to you.
• Zoom Check: Zoom in to 200% to see small underlay stitches or tie-ins that might become visible if you change contrast (e.g., swapping Black for Yellow).
• Sequence Plan: Decide the order of changes (Body -> Wings -> Eyes).


Open the My Threads Docker Without Hunting

To change colors efficiently, you need your library visible. You cannot play the piano if the keys are covered. Hatch offers two access points:

1. Click the My Threads tab on the right-hand sidebar.
2. Click the threads/spool icon in the lower right corner.

Either action expands the My Threads docker. This is a scrollable database of thread colors.

Expected Outcome: The panel opens smoothly. You should see Brand Names (e.g., Isacord, Madeira, Sulky) and Code Numbers.

• Tip: If you see "Hatch Default" colors, click the "Select Thread Charts" link in the docker to load the specific brand of thread you actually own.

The Fast Swap Technique: Click, Confirm, Double-Click

This is the core muscle memory you must build. It is a three-step waltz.

1. Select: Click the target color in the Design Palette (Bottom).
2. Verify: Glance left. Is the Active Swatch correct?
3. Execute: In My Threads (Right), scroll to the new color and Double-Click.

That double-click is the trigger. It tells the software: "Find everything that was Color A, and force it to be Color B."

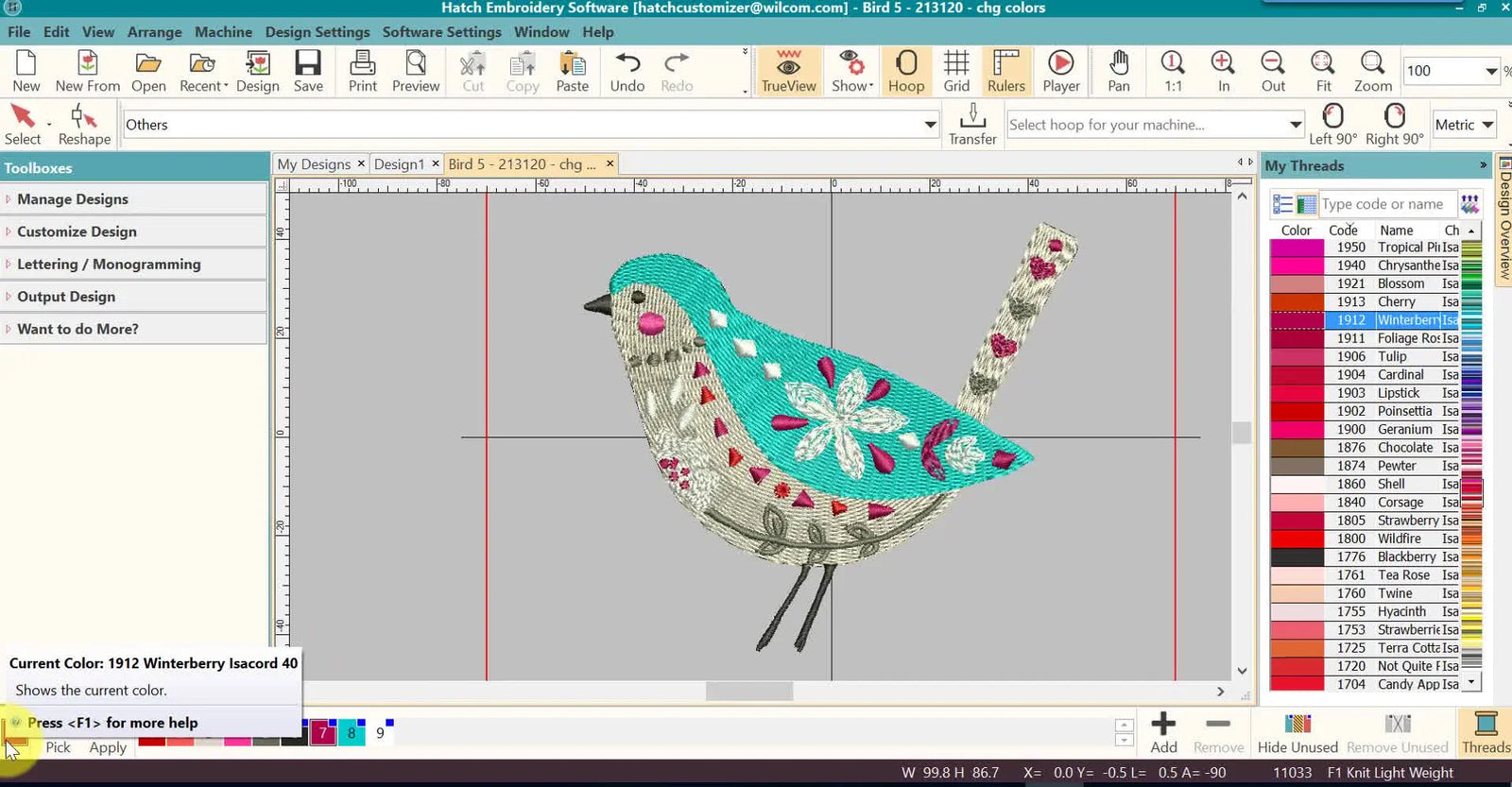

Example 1: Red → Isacord 1912 Winterberry

In the video, the red body color is active. The user finds 1912 Winterberry and double-clicks it.

The Sensory Feedback:

• Visual: The bird’s body instantly shifts from generic Red to the specific Winterberry shade.
• UI: The Active Color swatch (left) updates simultaneously.


If you are building speed, this rhythm—Palette Click → Eye Check → List Double-Click—prevents errors. When you are managing a 6-head machine setup or rushing to finish a custom order, this rhythm is what keeps you from mis-clicking.

Commercial Context: Time is money. Professionals use shortcuts like this software workflow to save minutes off the machine. But remember, saving 2 minutes in software is useless if you lose 10 minutes struggling to hoop a garment. If you find your bottleneck is physical hooping rather than digital coloring, this is where terms like magnetic embroidery hoops come into play. A magnetic system allows you to clamp fabric instantly without tightening screws, aligning the physical speed with the software speed you are learning here.

The “Active Color” Proof Test: The White Thread Scenario

The tutorial emphasizes a golden rule: To change a color, it must be in your Design Palette first.

In the example, the cursor clicks the small white square in the bottom Palette. The large Active Swatch turns white.

Why this matters: White is dangerous. In digitizing, white is often used for:

• Highlights (Attributes of the main design).
• Underlay (Hidden foundation stitches).
• Tie-offs (Tiny locking stitches).

If you blindly swap "White" to "Black," you might accidentally turn invisible underlay stitches into visible black messy outlines. Always check what the color is doing before you swap it.

Example 2: White → Isacord 1876 Chocolate

With white active, the user double-clicks 1876 Chocolate.

Expected Outcome: All white accents and dots turn dark brown.

The Contrast Warning: When you swap a light thread (White) for a dark thread (Chocolate), you drastically change the perceived density of the embroidery.

• Physics of Light: Light threads reflect light and look "fluffier" or wider. Dark threads absorb light and look thinner.
• The Trap: A design that looked full and covered well in White might show gaps (fabric showing through) when stitched in Dark Brown.
• Correction: If swapping Light to Dark, monitor your physical stitch-out. You may need to slightly increase density or ensure you are using a matching bobbin or a high-quality backing to prevent gaps.

Example 3: Green → Isacord 3641 Blue Bird (The Audit)

The final swap:

1. Click Green in the Palette.
2. Find 3641 Blue Bird.
3. Double-Click.




Expected Outcome: The wing details shift to blue.

The Final Audit: After the final swap, stop looking at the bird. Look at the Design Palette.

• Redundancy Check: Do you now have two different codes for "Navy Blue" (e.g., Isacord 3641 and Isacord 3640)?
• Efficiency Check: If they are visually almost identical, merge them.
• Why? Every unique color block represents a "Stop/Trim" command to the machine. On a single-needle machine, that is a manual thread change (2 minutes). Even on a multi-needle machine, it’s a needle assignment. Consolidating similar colors is the easiest way to increase profitability.

Production Tip: If you are scaling up and find that color changes are eating your profits, this is the trigger point to consider hardware upgrades. Shops moving from single-needle to SEWTECH multi-needle embroidery machines do so exactly for this reason: the ability to load 10+ colors at once and eliminate the "stop-start" downtime entirely.

"Changing" vs "Adding": Clearing the Confusion

A viewer comment in the tutorial raises a valid frustration: "This shows changing existing colors, but how do I add a NEW color?"

Here is the distinction in plain English:

• Re-Mapping (This Tutorial): You have a house painted blue. You paint it red. The house structure is the same.
• Digitizing/Adding: You want to build a new room on the house and paint it green.

This tutorial covers Re-Mapping. It replaces the thread definition of existing stitches. If you want to add a color that isn't there (e.g., adding a yellow sun to a design that has no yellow), you are no longer "Changing Colors"—you are "Digitizing" or "Editing Objects." You must create a new object or split an existing one to assign a new color tag to it.

Troubleshooting: When Good Clicks Go Bad

Even with a perfect process, things go wrong. Use this table to diagnose issues quickly.

The "Review Slide" Habit

Build this sequence into your brain so you can do it while listening to a podcast.

1. Anchor: Eyes on Design Palette (Bottom).
2. Select: Click the target color.
3. Cross-Check: Verify Active Swatch (Left).
4. Action: Open Thread Docker -> Double-Click New Thread.






The Physical Upgrade Path: Beyond the Software

Congratulation, you have mastered the digital side of color management. Your file is clean, mapped, and ready. But the digital file is only 50% of the battle. The other 50% is keeping that fabric flat and stable while the machine runs at 1000 stitches per minute (SPM).

When you are ready to move from "struggling hobbyist" to "efficient producer," consider upgrading your physical tools to match your software skills:

• Stabilizer Strategy: Software cannot fix buckling fabric. Ensure you have the right stabilizer (Cutaway for knits, Tearaway for wovens). We recommend having a roll of Fusible Polymesh for high-detail designs like the bird in this tutorial.
• Hooping Speed: If you have perfected the 10-second color swap in Hatch, but it takes you 5 minutes to hoop a shirt, your workflow is unbalanced. Many professionals search for how to use magnetic embroidery hoop videos because magnetic frames reduce "hoop burn" (the ring mark left on fabric) and cut hooping time in half.
• The Hooping Station: For consistent placement (ensuring the bird is exactly on the left chest every time), a hooping station for machine embroidery is the industry standard. Pairing a hoop master embroidery hooping station with magnetic fixtures effectively eliminates human error in placement.

Warning: Magnetic Safety.
If you upgrade to industrial-strength magnetic hoops (like the MaggieFrame or SEWTECH magnetic series), treat them with respect. These are not refrigerator magnets. They have crushing force.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Devices: Keep them away from pacemakers.
* Electronics: Keep them away from sensitive digital storage.

Operation Checklist (Post-Edit / Pre-Stitch):

• Scan: Check the design for tiny accents that changed unintentionally.
• Consolidate: Do you have 3 different "Blacks"? Make them one.
• Inventory: Do you actually have the spools you just selected on your shelf?
• Test: If the contract is high-value, stitch a swatch on scrap fabric first.
• Setup: Ensure you have the correct needle (75/11 Ballpoint for knits, Sharp for wovens) installed before hitting start.

By mastering the "Active Color" logic in Hatch and pairing it with smart physical tools, you stop guessing and start manufacturing. Happy stitching.

FAQ

• Q: In Hatch Embroidery, why did double-clicking a thread in the My Threads docker recolor the wrong part of the design?
  A: Undo immediately, because the wrong Active Color was selected when the double-click executed.
  • Press Ctrl+Z to revert the accidental recolor.
  • Click the correct color square in the Design Palette (bottom) first.
  • Verify the large Active Color swatch (left) updates to the same color, then double-click the new thread code in My Threads.
  • Success check: Clicking a palette color makes the big left swatch change instantly to that same color before any thread swap.
  • If it still fails: Stop “test-clicking” and avoid rapid double-clicks until the Active Swatch behavior is consistent.
• Q: In Hatch Embroidery, why did single-clicking a thread in the My Threads list do nothing when trying to change a design color?
  A: Use a deliberate double-click in the My Threads docker, because a single-click typically only selects the thread without applying a remap.
  • Click the target color in the Design Palette (bottom) to set the correct Active Color.
  • Glance at the left Active Color swatch to confirm it matches.
  • Double-click the desired thread code in My Threads to force the remap.
  • Success check: The design color updates immediately on screen at the moment of the second click (the “decisive” double-click rhythm).
  • If it still fails: Confirm you are changing a color that is actually used in stitches (look for the small blue indicator on the palette color).
• Q: In Hatch Embroidery, how can a beginner prevent overwriting the original “Golden Master” design file before changing thread colors?
  A: Re-save the design as a new version (for example, add _v2) before changing any colors.
  • Save a new filename first (example format: Project_Name_v02).
  • Keep the original file untouched as the rollback point.
  • Then start color remapping using the Design Palette → Active Swatch check → My Threads double-click method.
  • Success check: The file you are editing clearly shows a new version name in the filename before any color changes are made.
  • If it still fails: Make versioning a non-negotiable habit before every major color or thread-chart change.
• Q: In Hatch Embroidery, why do thread colors look correct on the computer screen but stitch out wrong on fabric?
  A: Don’t trust screen color for final decisions, because monitor RGB preview is not the same as reflective physical thread on cloth.
  • Place a physical thread chart or your actual thread cones next to the workstation before final mapping.
  • Select the correct brand chart in My Threads (avoid relying on “Hatch Default” if it’s not what you stock).
  • Stitch a small test swatch on similar fabric when the job is high-value or color-critical.
  • Success check: The stitched sample matches the physical thread chart under normal room lighting better than it matches the monitor.
  • If it still fails: Treat the screen as a proofing aid only and standardize your shop on one consistent thread inventory and chart mapping.
• Q: In Hatch Embroidery, what is the safest way to change White thread to a dark thread code (for example, Isacord 1876 Chocolate) without creating unexpected outlines or gaps?
  A: Audit what the white stitches are doing first, because white often hides underlay, tie-offs, or tiny highlights that can become visible when changed to dark.
  • Click White in the Design Palette and confirm the left Active Swatch turns white before any swap.
  • Zoom in (the blog’s workflow uses a close inspection level like 200%) and look for small accents/tie-ins that may turn into visible marks.
  • After remapping to a dark color, plan a physical stitch test because contrast can change perceived coverage and show gaps.
  • Success check: After the swap, no unexpected dark “dots/lines” appear where underlay or tie-offs were previously invisible.
  • If it still fails: Revert with Undo and separate/edit objects instead of remapping if the white stitches were serving a structural purpose.
• Q: In Hatch Embroidery, why does a design end up with 15 color stops for a 3-color look, and how can color-stop fragmentation be reduced?
  A: Consolidate near-identical thread codes, because every unique palette entry can create extra stop/trim events in production.
  • Inspect the Design Palette after edits and look for duplicate “almost the same” colors (for example, multiple navy blues with different codes).
  • Re-map fragments to one chosen thread code, or use Hatch’s “Optimize Color Changes” feature when appropriate.
  • Re-check your physical inventory to ensure the consolidated code is a thread you actually have on the shelf.
  • Success check: The Design Palette shows fewer distinct codes while the design still looks visually the same.
  • If it still fails: Treat it as a workflow issue—standardize your preferred thread brand/chart so new designs don’t import mismatched codes.
• Q: What are the key safety rules when using industrial-strength magnetic embroidery hoops (for example, MaggieFrame-style or SEWTECH magnetic series hoops) in a production shop?
  A: Handle magnetic hoops as a pinch-and-crush hazard and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear of the closing “snap zone” when bringing the ring halves together.
  • Keep magnetic hoops away from pacemakers and similar medical implants.
  • Store and use magnetic hoops away from sensitive digital storage and electronics.
  • Success check: The hoop closes securely without finger pinches, and the operator can clamp consistently without hesitating near the snap zone.
  • If it still fails: Pause use and revise handling technique and storage location before continuing production.
