Hatch Embroidery .EMB Files: Save, Save As, and the Output Design Toolbox (So You Don’t Lose Your Work)

The sound of a corrupted file isn't a noise—it's the silence of a production floor coming to a grinding halt.

If you have ever reopened a design file only to find your carefully tuned underlay settings gone, your density reset to default, or your fonts unreadable, you have experienced the specific heartbreak of the modern embroiderer. It feels like a talent failure, but I can tell you from 20 years of managing both single-head boutiques and massive multi-needle production lines: this is almost always a file management failure.

In the world of Hatch Embroidery (and professional digitizing in general), understanding the difference between your "Source" and your "Stitch File" is the difference between a hobbyist who struggles and a professional who scales.

The .EMB “Working File” Habit in Hatch Embroidery Software (the one that saves you from re-digitizing)

Hatch calls the .EMB format your "native working file," but I prefer to call it your "Master Negative."

Think of photography. You can print a photo a thousand times (that’s your stitch file), but if you lose the negative (the .EMB), you can never truly edit the image again without quality loss. The .EMB file holds the "DNA" of your design: the object outlines, the logic of the stitch angles, the specific font data, and the density calculations.

When you save as .EMB, Hatch retains the intelligence of the design. It remembers that "This shape is a circle with a Tatami fill," rather than "This is just 4,000 coordinate points." This distinction matters because once you export to a machine format (like .DST or .PES), that intelligence is stripped away. The machine only needs X/Y coordinates; it doesn't care about your artistic intent.

Here is the Golden Rule of embroidery file safety: Always edit the .EMB, never the stitch file.

If you open a .DST file to resize it by 20%, the software has to guess new stitch locations based on raw data. It often fails, resulting in gaps or bullet-proof density. If you open the .EMB and resize it by 20%, the software recalculates the geometry perfectly.

One practical mindset shift: Treat your .EMB file like a Photoshop PSD or an Illustrator AI file. Your exported stitch file is merely a disposable "deliverable." You can generate it infinite times, as long as the source remains pure.

The “Hidden” Prep Before You Click Save in Hatch (folders, naming, and the calm that prevents chaos)

The video tutorial focuses on the mechanics of clicking "Save" inside Hatch, but the real efficiency happens before your mouse ever moves to the menu bar.

In a high-pressure shop, you don't lose time digitizing; you lose time searching for "Final_Final_Dog_Design_v3_REAL.dst". A clean folder and naming system serves as your cognitive external hard drive. It keeps you from overwriting the wrong design or sending a client an unapproved prototype.

Here is the "Production Standard" folder structure I recommend. It works for beginners using a single machine and scales flawlessly when you upgrade to a fleet of SEWTECH multi-needle machines:

1. Client/Project Name (e.g., "Milers_Bakery_Uniforms")
   • 01_EMB_Masters (Only .EMB files go here)
   • 02_Production_Files (Only .DST/.PES files go here)
   • 03_Tech_Pack (PDF worksheets, thread charts, photos of test sew-outs)

And a naming pattern that makes versioning painless (Machine screens often have limited character displays, so keep key info at the front):

• Client_DesignName_Size_V01.emb
• Client_DesignName_Size_V02.emb

Do not use "New," "Final," or dates in your filenames. Dates change when you copy files; Version numbers (V01, V02) are eternal.

Prep Checklist (Do this *before* starting the project)

• Establish the Perimeter: Create the dedicated project folder with Master and Production subfolders.
• Define the Naming Convention: Decide your versioning style (V01 vs. RevA) and stick to it.
• Clean the Slate: Ensure you aren't working on a temp file. Save the blank canvas as [Name]_V01.emb immediately upon creation.
• Check Hidden Consumables: Do you have the physical stabilizer required for this file? (e.g., Cutaway for knits, Tearaway for woven). A file is useless without the matching supplies.
• Network Check: If you save to a cloud drive (Dropbox/Google Drive), ensure the sync is active to prevent file conflicts.

The Overwrite Trap: Using “Save Design” in the File Menu Without a Dialog

Hatch provides a "fast lane" for saving, but like many fast lanes, it has a blind spot that causes accidents.

• Go to File > Save Design, or
• Click the floppy disk Save icon in the toolbar.






Here is the part that bites people: This method overwrites the current file in the same location with the same name, instantly. Hatch does this without opening a confirmation dialog. There is no "Are you sure?" popup. There is no sound. Just a blink of the screen, and your previous version is gone forever.

This is dangerous during the "tuning" phase. Let's say you have a great design, but you want to test if a lighter density works better. You lower the density and hit the floppy disk icon. Snap. You have just destroyed the original dense version. If the new version looks thin and cheap on the fabric, you have to manually rebuild the old settings from memory.

Warning: "Save Design" is a destructive action. It erases history. If you are experimenting with critical variables like pull compensation, underlay, or density, clicking this icon can erase your "safe state" in a millisecond.

Sensory Check: When you click this, look for the quick "flash" of the cursor or progress bar at the bottom. Since there is no auditory cue, visual confirmation is key.

The Version-Control Move: “Save Design As” for Clean Iterations (dog1/dog2 is smarter than you think)

When you want safety, flexibility, and the ability to roll back time, you must ignore the icon and use the menu:

• File > Save Design As…


This opens the standard Windows "Save As" dialog. It allows you to rename the file—exactly like the instructor’s example of keeping multiple versions (dog 1, dog 2, dog 3). While "dog 1" is a bit informal, the habit is professional grade.

Why this matters in real production:

• A/B Testing: You can save Logo_V01_Satinstitch.emb and Logo_V02_TatamiFill.emb. You can then export both, stitch them out on your machine, and physically see which one catches the light better.
• The "Undo" Button for Life: If V03 causes a birdsnest or a needle break, you can instantly open V02 and resume production.
• Client Indecision: When a customer asks, "Can we go back to the version you showed me last Tuesday?", you look like a wizard because you still have it.

Setup Checklist (Before you hit “Save” in the dialog)

• Version Up: Change the end of the filename (e.g., V01 -> V02).
• Folder Verification: Glance at the address bar. Are you inadvertently saving in the "Downloads" folder? Route it back to 01_EMB_Masters.
• Format Check: Ensure .EMB is selected, not a machine format like .DST.
• Physical Match: Ask yourself, "Did I change the design scale?" If yes, will this new size still fit inside my hoop? (e.g., don't save a 110mm design if you only have a 100mm hoop).

When “Wilcom e3 (*.EMB)” Compatibility Actually Matters (and when it’s a waste of effort)

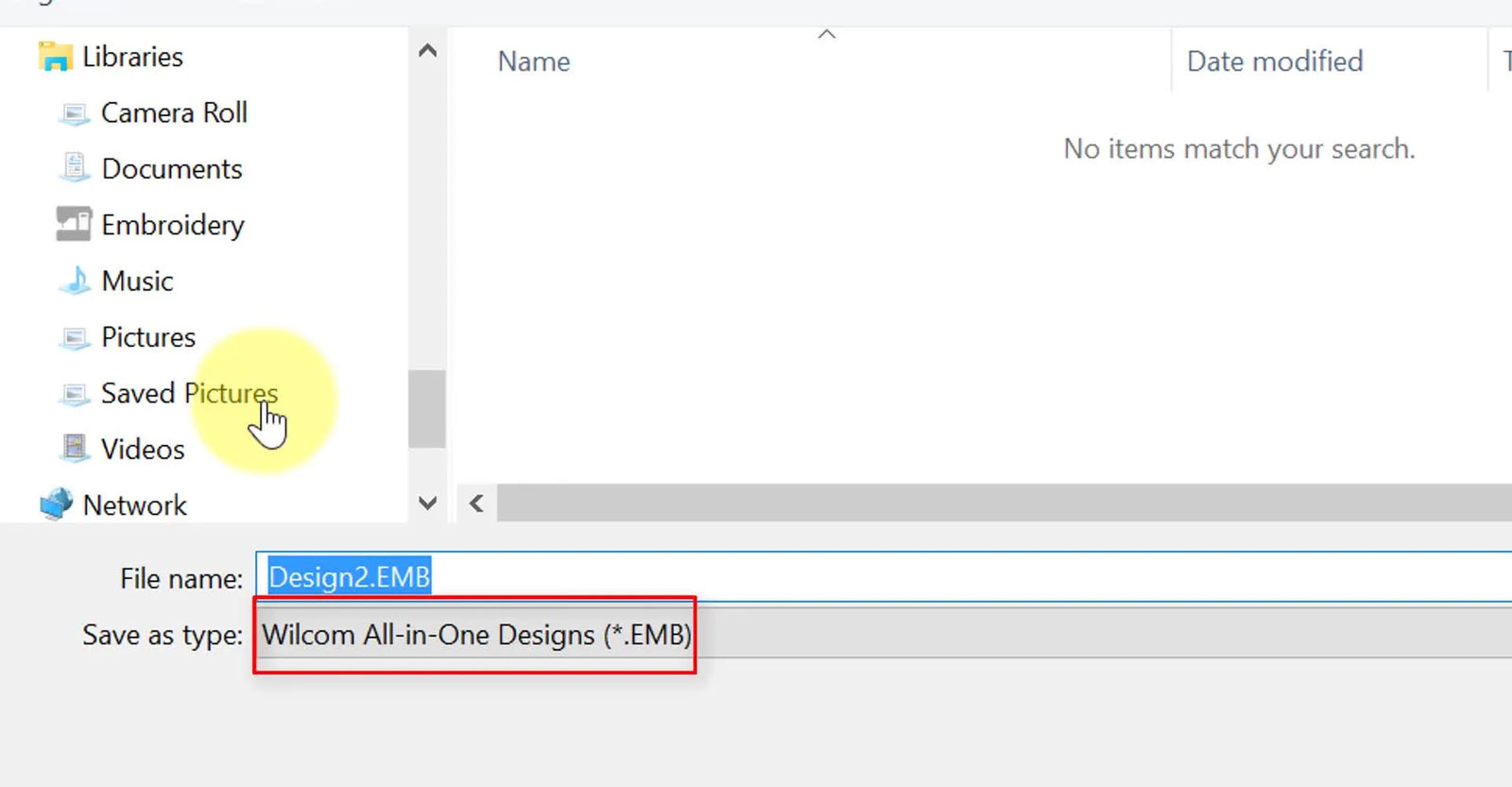

Inside the "Save As" dialog, Hatch lets you choose the file type/version from a dropdown menu.

The instructor notes that the default .EMB matches the current software version (Hatch 3, usually equivalent to Wilcom e4/e4.5). However, you have an option to save as:

• Wilcom All-in-One Designs e3 (*.EMB)

Use the e3 option only when compatibility is a hard requirement. This usually happens in two scenarios:

1. Outsourcing: You are sending the file to a contract digitizer or a different factory that hasn't updated their software since 2015.
2. Legacy Archives: You are archiving designs for a client who owns older proprietary systems.

Practical Shop Rule: If you are the only operator, or if your team all uses Hatch, always keep the latest .EMB format. Downgrading to e3 can strip away newer advanced features (like certain auto-digitizing logic or specialized fonts), turning editable objects into generic shapes.

The Fastest Daily Workflow: Output Design Toolbox “Save Design As” (save + export without bouncing around)

Efficiency is about reducing mouse travel. The video’s preferred method uses the Output Design toolbox on the left side of the screen:

1. Open Output Design.
2. Click Save Design As…




The genius of this workflow is spatial. Export Design (the button that creates the machine file) sits right below "Save Design As."

This allows for a fluid "Double-Tap" maneuver:

1. Click Save As: Update your .EMB version (Safety First).
2. Click Export: Create your .DST/.PES file (Production Ready).

You do this without moving your mouse to the top menu bar. In a busy shop running 50 custom names a day, these milliseconds add up to minutes, and minutes add up to extra profit margins.

The "Double-Tap" Muscle Memory: Train yourself to never Export without Saving As first. The export is the child; the save is the parent. Never leave the child an orphan.

The “Why” Behind This Workflow: Protecting Editability, Reducing Rework, and Scaling Like a Shop

Even though this tutorial focuses on software, the deeper principle is production velocity.

In commercial embroidery, the most expensive mistake isn't a broken needle—it's machine downtime due to bad data.

• If you have to stop the machine to re-digitize a file because you overwrote the only good copy, you are losing money every second the needles aren't moving.
• If you export the wrong version and stitch 50 shirts with a spelling error, that is a catastrophic loss.

Good .EMB habits operate as your insurance policy. But software is only half the battle. Once the file leaves the computer, physical bottlenecks appear.

If you find yourself perfectly organized in software but still struggling to get products out the door, look at your physical workflow. Are you spending 5 minutes struggling to hoop a thick hoodie? Are you getting "hoop burn" (shiny rings) on delicate performance wear?

This is where the right tools bridge the gap between digital perfection and physical reality. Many professionals search for a hooping station for machine embroidery to standardize the placement of designs—ensuring that the logo lands on the exact same spot on the chest, every single time. Similarly, replacing standard plastic hoops with magnetic embroidery hoops can transform a struggle into a simple "snap," drastically reducing wrist strain and allowing you to hoop localized areas without fighting stiff springs.

Warning: Magnet Safety
If you upgrade to magnetic hoops, be aware they use powerful industrial magnets. Keep them away from pacemakers, ICDs, and other implanted medical devices. Also, be mindful of pinch hazards—these magnets snap together with enough force to bruise fingers or pinch skin severely.

Troubleshooting the Most Common “I Lost My Work” Moments in Hatch (.EMB vs stitch file)

When panic sets in, it's usually because file management failed. Here is a diagnostic table to help you identify what went wrong and how to recover.

Symptom: “I reopened the design, but I can’t edit the text/font anymore.”

• Likely Cause: You opened the exported Stitch File (.DST/.PES) instead of the .EMB. Stitch files do not know what a "font" is; they only know shapes.
• Quick Fix: Search your 01_EMB_Masters folder for the original Working File.
• Prevention: Never use "Open Recent" if you aren't sure. Navigating to the specific folder is safer.

Symptom: “My changes are gone, and I don’t know when it happened.”

• Likely Cause: The "Overwrite Trap." You clicked the floppy disk icon after making a change you didn't mean to keep.
• Quick Fix: Check Windows File History or "Previous Versions" to see if a backup exists.
• Prevention: Unbind the "Save" shortcut if you are clumsy, or strictly use "Save As."

Symptom: “The machine won't read my file, or colors are weird.”

• Likely Cause: You exported the wrong version or the wrong machine format.
• Quick Fix: Re-export from the .EMB. Ensure you are selecting the correct file type (e.g., .JEF for Janome, .PES for Brother, .DST for Commercial).
• Prevention: Check your machine's manual. Does it have a file size limit or a stitch count limit?

Symptom: “I exported, stitched it, and the outline doesn't line up (Registration Error).”

• Likely Cause: This is a physical issue (fabric shifting), not a file save issue.
• Quick Fix: Increase "Pull Compensation" in the .EMB file and save as V02.
• Prevention: Use better stabilization (e.g., Cutaway) or a magnetic hooping station to ensure fabric is held taut but not stretched.

A Quick Decision Tree: Which Save Method Should You Use in Hatch Today?

Use this decision logic when you are mid-project to determine your next move:

1. THE INITIAL QUESTION: Do you need to keep the previous state of the design?
   • YES: Go to Step 2.
   • NO: Use File > Save Design. (Only do this for minor, safe tweaks).
2. THE VERSION QUESTION: Are you about to Export for the machine?
   • YES: Use Output Design > Save Design As (create V02), then immediately click Export Design.
   • NO: Use File > Save Design As and continue working.
3. THE COMPATIBILITY QUESTION: Is this file leaving your computer for an older shop?
   • YES: In the "Save As" type dropdown, select Wilcom e3 (*.EMB).
   • NO: Keep the default Hatch/Wilcom .EMB format.

The Upgrade Path (without the hard sell): When Software Workflow Meets Real Production Speed

Once your digital house is in order—your files are named, versioned, and safe—you will notice that the computer is no longer the bottleneck. The bottleneck moves to the physical world.

You will start asking: "Why does it take me 30 seconds to save a file, but 5 minutes to hoop a shirt?"

This is the natural evolution of an embroiderer. When you reach this stage, you look for tools that match your software's efficiency.

• Placement Precision: If you are still eyeing placement and getting crooked results, terms like hoop master embroidery hooping station will start appearing in your research. These stations act like the "Grid" in your software, but for the real world.
• Hooping Speed: If standard hoops are leaving "burn marks" or popping open on thick jackets, investing in magnetic embroidery hoops is the hardware equivalent of the "Save As" safety net—it reduces the risk of ruined garments.
• Throughput: Finally, if you are turning away orders because your single-needle machine can't keep up with your organized file output, it may be time to look at SEWTECH multi-needle embroidery machines. Moving from 1 needle to 10+ needles allows you to queue up colors just like you do in the software, eliminating the manual thread changes that kill your momentum.

The Last 60 Seconds Before You Export: A Simple Operation Routine That Prevents Expensive Mistakes

Before you export that final stitch file, execute this "Pre-Flight" routine. It takes 60 seconds, but it saves hours of picking out stitches with a seam ripper.

1. The Visual Check: Zoom in to 100%. Are there any tiny "travel stitches" that didn't get trimmed? Delete them in the .EMB.
2. The Start/End Check: Are your start and end points centered? (Crucial for caps and pocket hoops).
3. The "Double-Tap": Save the .EMB first. Then Export the Machine File.
4. The Physical Prep: While the file transfers to the machine, check your hidden consumables. Is your bobbin full? Is your needle sharp? (A dull needle sounds like a "thud-thud" rather than a crisp "tuktuk").

Warning: Physical Safety
When transitioning from computer to machine, shift your safety mindset. Keep hands clear of the needle bar and moving pantograph. Never try to snip a loose thread while the machine is running—a moving hoop has enough torque to break a finger or drive a needle through a nail.

Operation Checklist (Print this and tape it near your monitor)

• Master Saved: Is the .EMB saved with a unique version number (V02)?
• Export Folder: Is the stitch file going to the 02_Production_Files folder?
• Format Match: Is the machine file format correct for your specific hardware?
• Hoop Check: Does the design size fit inside the sewing field of your chosen hoop?
• Recoverable: If the power went out right now, could you restart from this exact point?




File management isn't the glamourous part of embroidery—it's not the colorful threads or the satisfying machine noise. But it is the foundation. If you build this habit now, you will feel the difference later: fewer lost hours, no "mystery changes," and a workflow that flows smoothly from the mouse click to the final stitch.

FAQ

• Q: In Hatch Embroidery software, why does saving only a .DST or .PES stitch file make text and fonts uneditable when reopening the design?
  A: Reopen and edit the original .EMB working file, because .DST/.PES stitch files do not retain font/object intelligence.
  • Search: Go to the project folder and look specifically in your “01_EMB_Masters” folder for the matching .EMB.
  • Rebuild: If only a stitch file exists, treat it as a deliverable and expect limited editability (often shapes only).
  • Prevent: Always export machine files from the .EMB, not the other way around.
  • Success check: When the correct .EMB is open, Hatch shows editable objects/text instead of only stitch points.
  • If it still fails: Stop using “Open Recent” for this job and navigate to the exact master folder to avoid opening the exported file by mistake.
• Q: In Hatch Embroidery, how does the “File > Save Design” floppy disk icon overwrite the wrong version without warning, and how can the overwrite trap be avoided?
  A: Avoid the floppy disk “Save Design” during testing, because it overwrites the same file instantly with no confirmation dialog.
  • Switch: Use “File > Save Design As…” whenever changing density, underlay, pull compensation, or other critical settings.
  • Version: Increment the filename (V01 → V02) so rollback is always possible.
  • Verify: Look at the save location in the dialog and keep masters in “01_EMB_Masters.”
  • Success check: After saving, the new filename clearly shows the updated version number (for example, V02) and the earlier version still exists.
  • If it still fails: Check Windows File History/Previous Versions to see whether an earlier copy can be recovered.
• Q: In Hatch Embroidery, what is the fastest daily workflow to save a safe .EMB version and then export a machine file (.DST/.PES) without bouncing through menus?
  A: Use Output Design toolbox “Save Design As…” first, then “Export Design” immediately after (the save-then-export double-tap).
  • Open: Expand the “Output Design” toolbox on the left side.
  • Save: Click “Save Design As…” and bump the version number (V01 → V02).
  • Export: Click “Export Design” right below it and choose the correct machine format.
  • Success check: Both files exist where they belong: the .EMB in the master folder and the exported stitch file in the production folder.
  • If it still fails: Re-check that you did not export first; go back to the .EMB, save as a new version, then export again.
• Q: In Hatch Embroidery “Save As,” when should “Wilcom e3 (*.EMB)” compatibility be used, and when should the latest Hatch/Wilcom .EMB be kept?
  A: Use Wilcom e3 (*.EMB) only when another shop must open the file in older software; otherwise keep the latest .EMB for full editability.
  • Choose e3: Select e3 when outsourcing to a digitizer/factory running older Wilcom-era systems or maintaining legacy archives.
  • Avoid e3: Keep the default current .EMB when the work stays inside Hatch, because downgrading may strip newer features.
  • Confirm: In the Save As type dropdown, verify the selected format before clicking Save.
  • Success check: The recipient can open and edit the file as expected, not just view stitches.
  • If it still fails: Send a small test .EMB version first and confirm their software version before converting your full project.
• Q: In a production folder system for Hatch Embroidery, what is a safe structure and naming convention to stop “Final_Final_v3_REAL.dst” chaos and prevent sending the wrong file to the machine?
  A: Separate masters from production files and use simple version numbers (V01, V02) instead of “Final,” “New,” or dates.
  • Build: Create one project folder with subfolders: “01_EMB_Masters,” “02_Production_Files,” and “03_Tech_Pack.”
  • Name: Use a consistent pattern like Client_DesignName_Size_V01.emb and increment versions as you iterate.
  • Route: Save all .EMB only to “01_EMB_Masters,” and export .DST/.PES only to “02_Production_Files.”
  • Success check: On the machine screen, the filename is readable and the version at the end clearly matches the intended revision.
  • If it still fails: Stop exporting from “Open Recent” items; open the correct .EMB from the master folder, then export fresh.
• Q: In Hatch Embroidery troubleshooting, what should be checked first when an embroidery machine will not read a file or the thread colors look wrong after export?
  A: Re-export from the correct .EMB and confirm the correct machine format was selected for that specific machine.
  • Reopen: Open the .EMB master (not the stitch file) and export again.
  • Select: Choose the correct output format (for example, .JEF for Janome, .PES for Brother, .DST for commercial workflows as applicable).
  • Verify: Check the machine manual for any file size or stitch count limits before re-exporting.
  • Success check: The machine loads the file normally and the color sequence displays consistently with expectations.
  • If it still fails: Export a different format supported by the machine and test with a known-good design file to isolate whether the issue is file-specific or machine/media-specific.
• Q: What safety rules should be followed around the needle bar and moving hoop when transitioning from Hatch Embroidery export to running the embroidery machine?
  A: Keep hands away from moving parts and never try to snip threads while the machine is running, because the moving hoop has enough torque to injure fingers.
  • Pause: Stop the machine fully before reaching near the needle bar or pantograph area.
  • Clear: Keep loose tools and fingers out of the sewing field during stitching.
  • Check: Do the quick pre-flight while the machine is idle (bobbin full, needle condition, start/end points confirmed).
  • Success check: No hands enter the sewing field until motion has stopped, and thread trims/adjustments happen only at a full stop.
  • If it still fails: Slow down the handoff routine—export, then step away from the computer only after confirming the machine is paused and safe to approach.
• Q: If perfect Hatch Embroidery file versioning still leaves production slow due to difficult hooping, hoop burn on performance wear, or thick hoodie handling, what is a practical upgrade path?
  A: Optimize technique first, then consider magnetic hoops for hooping speed and reduced hoop burn risk, and scale to a multi-needle machine only when throughput is the bottleneck.
  • Level 1 (Technique): Standardize placement and stabilization choices so fabric shifts less and results repeat.
  • Level 2 (Tooling): Use magnetic hoops when spring tension and manual hooping time are causing slowdowns or marks on delicate fabrics.
  • Level 3 (Capacity): Move to a multi-needle setup when single-needle thread changes and queue time limit daily output.
  • Success check: Hooping time drops and placement becomes repeatable without fabric distortion or shiny rings.
  • If it still fails: Add a hooping station for consistent placement and revisit stabilization to reduce shifting before changing machine capacity.
