Hatch Embroidery Basics That Actually Prevent Wasted Stitch-Outs: Library Setup, Auto Fabric Stabilizers, Safe Start Points, and Stitch Player Checks

If you have ever stood next to an embroidery machine, holding your breath as it makes a strange "thump-thump" sound, you know that machine embroidery is an experience of high anxiety. You watch a design look perfect on a crisp computer screen, but when you hit ‘Start,’ reality intervenes: fabric puckers, outlines drift, and needles snap with a terrifying crack.

Here is the hard truth I have learned after twenty years on the production floor: 90% of embroidery failures happen before you thread the needle.

This guide is built around the workflow demonstrated in Wilcom Hatch Embroidery Basics. However, we are going to go deeper than the software buttons. We will connect these digital tools to the physical reality of hoop tension, thread friction, and fabric physics. We will use two specific toolboxes—Manage Designs and Customize Design—to create a "pre-flight" safety system that saves you from wasted stabilizer, ruined garments, and the frustration of picking out stitches with tweezers.

Calm the Chaos: Use Hatch “Manage Designs” to Stop Losing Files (and Your Patience)

If you have "hundreds if not thousands" of embroidery files scattering your hard drive, you are bleeding time. The cognitive load of hunting for a file (“Was it in Downloads or My Documents?”) kills your creative flow.

In Hatch, the Manage Designs toolbox acts as your digital air traffic control. It gives you three critical data points instantly:

1. A Directory Tree: Maps your PC drives.
2. Visual Grid: Large thumbnails so you see the art, not just filenames.
3. Instant Specs: Stitch count and dimensions without opening the file.


Include a folder in the Embroidery Library (the shortcut that changes everything)

Beginners drag and drop files. Pros build pipelines. In the video, the key move is adding your working folder to the library:

1. In Manage Designs, locate your folder in the tree.
2. Right-click the folder name.
3. Choose Include in Library.
4. Check Embroidery.

This creates a persistent shortcut. Why does this matter for your bottom line? If you are running a small shop, file retrieval speed is part of your "turnaround time." Saving 3 minutes per job on 20 jobs is an hour of profit.

Use single-click preview like a pro (don’t open every file)

The video demonstrates a subtle habit that distinguishes veterans from novices:

• Action: Single left-click a design thumbnail.
• Visual Check: Look at the right-hand pane.
• Do Not: Double-click to open yet.

This allows you to verify the version. You need to verify if this is the "final_v2.EMB" or the "final_v2_SMALL.DST". Opening the wrong file size and resizing it inside the editor often degrades stitch quality. Preview first, open second.

Warning: Converting formats (e.g., .EMB to .PES) is powerful, but dangerous. Always test a newly converted format on a scrap piece of fabric. Conversions can sometimes strip out "Trim" commands, leaving you with jump stitches that you—or your customer—will have to cut by hand.

Prep Checklist (Manage Designs)

• Action: Link your design folder via Include in Library.
• Visual: Set thumbnail size to "Large" to spot detail errors.
• Check: Confirm file type (.EMB is editable; .DST is a machine file—know the difference).
• Inventory: Ensure you have the physical consumables (stabilizer, temporary spray adhesive, water-soluble pen) ready before opening the file.

The “Design Information” Habit: Check Stitch Count, Size, and Colors Before You Touch a Hoop

Once you open a design in Customize Design, the video demonstrates clicking the Design Information icon. This is your "Flight Plan."

You will see data like:

• Stitches: 26,013
• Dimensions: 4.89 in (W) × 4.88 in (H)
• Colors: 8

To a beginner, these are just numbers. To an expert, these are risk indicators.

How to interpret those numbers (so you don’t get surprised mid-run)

1. Stitch Count = Time & Heat: 26,000 stitches is a substantial dense patch. On a standard home machine running at a safe 600 SPM (Stitches Per Minute), that is roughly 45 minutes of run time.

• Sensory Check: High stitch counts generate heat. If using a sticky stabilizer, the needle gum up. Listen for a "slapping" sound—it means the needle is dragging.

2. Design Size vs. Hoop Reality: If your design is 4.89" wide and your hoop sewing field is 5.0", you only have 0.11" of clearance. This is the Danger Zone. Hooping must be mathematically perfect.

• Solution: If you are consistently maxing out your 5x7 hoop, you will eventually hit the frame. If you run production, upgrading to larger frames or a machine with a wider field (like a SEWTECH multi-needle) gives you the "margin of error" that keeps production smooth.

3. Colors = Stops: 8 colors means 7 thread changes. On a single-needle machine, that requires you to stop, cut, re-thread, and restart 7 times.

• Pain Point: If you are doing 50 shirts, that is 350 thread changes. Your wrists will hurt.
• Tool Upgrade: This is the specific threshold where a Multi-Needle Machine becomes a financial necessity, not a luxury. It turns 45 minutes of active labor into 45 minutes of passive supervision.

Make Hatch Do the Stabilizer Thinking: Auto Fabric Settings That Prevent Puckering on Cotton

The number one cause of "puckering"—where the fabric ripples around the embroidery like a topographical map—is a mismatch between fabric physics and stitch density. The video introduces Auto Fabric as the solution.

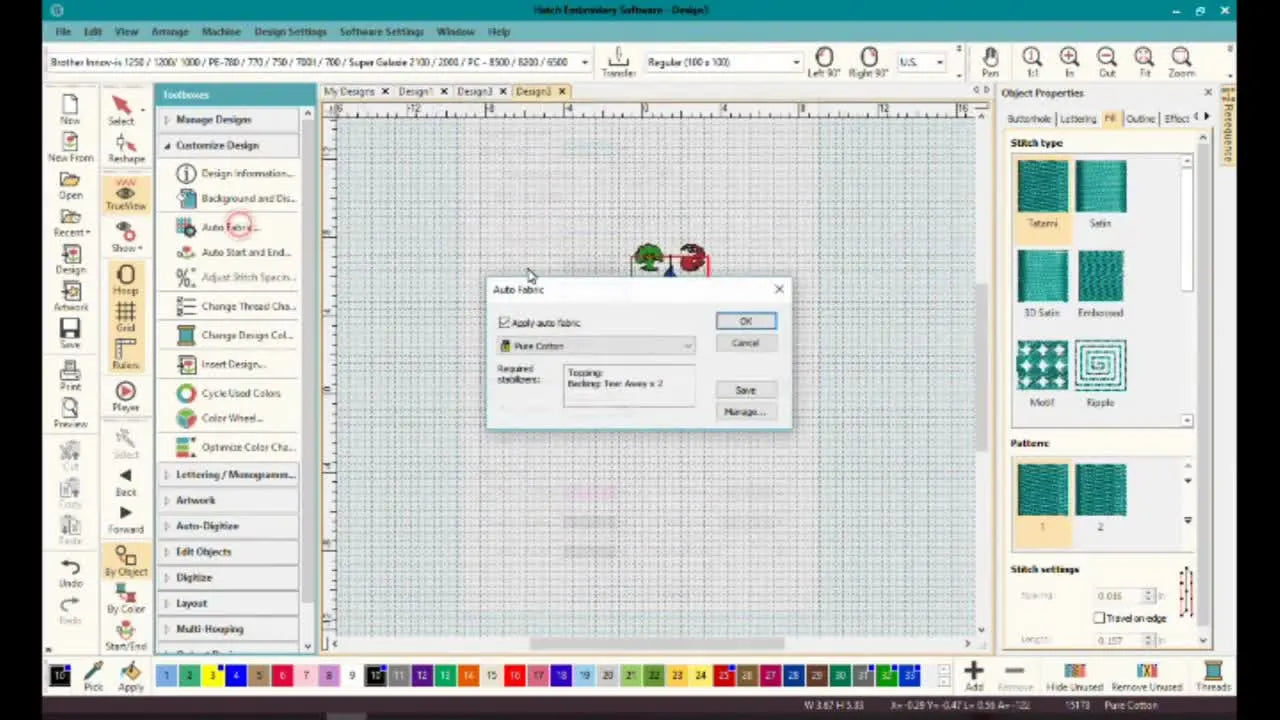

What the video does (and what you should copy)

• Click Auto Fabric.
• Select your material (e.g., Pure Cotton).
• Correctly note the recommendation: Backing: Tear Away x 2.




The Expert “Why”: Specific Gravity of Stitches

Think of embroidery stitches as a heavy, rigid plate. Think of your t-shirt as fluid water. Placing a heavy plate on water causes waves. Stabilizer transforms the "water" (fabric) into "ice" (rigid surface) temporarily.

Auto Fabric calculates the rigidity needed. It adjusts:

1. Pull Compensation: It purposely over-stitches the outline because the software knows the thread will shrink the fabric.
2. Underlay: The "foundation" stitches that lock the fabric to the stabilizer.

Beyond the Software: The Physical Hoop Factor Software can suggest settings, but it cannot fix a bad hoop job. If you stretch a knit shirt like a drum skin in a standard hoop, it will snap back and pucker when you un-hoop it. This is known as "Hoop Burn."

• Tool Upgrade: To solve this, many professionals use a magnetic embroidery hoop. Unlike friction hoops that distort the grain, magnetic hoops clamp straight down. This allows the stabilizer to do the work without over-stretching the garment.

Decision Tree: Fabric → Stabilizer Starting Point

Use this logic flow before every project:

1. Is the fabric stable? (Denim, Canvas, Twill)

• Yes: Use Tear Away (Start with 2 layers).
• Why: The fabric supports itself; the stabilizer just stops dragging.

2. Is the fabric stretchy? (T-Shirt, Jersey, Pique Knit)

• Yes: You MUST use Cut Away stabilizer.
• Rule: "If it stretches, cut it." Tear away will disintegrate during washing, leaving the stitches unsupported, leading to a saggy design.
• Helper: Use a temporary spray adhesive to bond the fabric to the stabilizer.

3. Is the fabric fluffy/textured? (Towel, Fleece, Velvet)

• Yes: Add a Water Soluble Topping (Solvy) on top.
• Why: Without topping, stitches sink into the pile and disappear.

Preview the Real Look: Background & Display Colors + Factory Article T-Shirt Mockups

A design that looks great on a white background might disappear entirely on a Navy Blue shirt. The video demonstrates using Background and Display Colors -> Factory Article to simulate the final product.

What experienced shops check here

• Contrast: Will black text vanish on a charcoal shirt?
• Placement: Is the logo too low? (Standard left chest is usually 7-9 inches down from the shoulder seam/HPS).
• Client Approval: Sending this screenshot to a client prevents the "I thought it would look bigger" argument later.

Protect Your Hoop (and Needle): Auto Start and End to Prevent Hoop Strikes

Few sounds are worse than the metal-on-metal CLANK of a needle bar smashing into a plastic hoop. This shatters needles, scars hoops, and throws off machine timing.

The video highlights:

• Issue: Needle hitting hoop frame.
• Fix: Auto Start and End.


How to use it in your workflow

1. Open Auto Start and End.
2. Set the start/end point to the Center of the design.
3. Ensure your machine is also set to start at center.

The Geometry of Equipment Software centers the design mathematically. However, physical hoops vary. Standard plastic hoops have thick inner rings. If you are exploring upgrades like machine embroidery hoops in magnetic styles, be aware that their lower profile often gives you slightly more clearance near the edges, reducing the "strike zone."

Warning: Eye Protection Required. If a needle hits the hoop frame while moving at 800 stitches per minute, it can shatter into shrapnel. Always treat the machine zone as a hazard area. Do not put your hands near the needle bar while it is moving.

Fix “Too Dense” Designs Without Guessing: Adjust Stitch Spacing Like the Video Shows

Have you ever embroidered a design that felt like a "bulletproof patch"? That is a density issue.

The video troubleshooting covers:

• Issue: Design is too dense.
• Fix: Adjust Stitch Spacing.


The Expert “Why”: The Law of Displacement

Every time a needle enters the fabric, it adds thread mass. If you put 1000 stitches in a 1-inch square, you are forcing mass into a space that doesn't have room for it. The fabric buckles (puckers) to make room.

Increasing stitch spacing (reducing density) by just 10-15% can transform a stiff board into a flexible, wearable design. This is critical for lightweight performance wear.

Color Changes Without Regret: Change Design Color + Color Wheel for Fast Mockups

The video shows Change Design Color and the Color Wheel.

Pro Tip: Use this to batch your thread purchasing. If you use the Color Wheel to harmonize all your designs to a specific brand (e.g., Madeira or Isacord), you can buy larger cones of fewer colors, saving money vs. buying small spools of 50 different shades.

Combine Elements Cleanly: Insert Multiple Designs (and Keep Your Layout Predictable)

The video demonstrates inserting multiple designs.

This introduces Layering Risk. If Design A is stitched on top of Design B, the combined density might break needles.

• Check: Ensure there is no heavy overlap.
• Tool: Use a specific embroidery sleeve hoop if your combined design is going onto a narrow area like a sleeve or pant leg, as standard hoops struggle to hold these tubes open without pinning.

The Final Reality Check: TrueView Off + Stitch Player Simulation Before You Export

Before you save to USB, you must verify the pathing using TrueView (off) and Stitch Player.

What to look for in Stitch Player (The "Save My Garment" Checklist)

• Jump Stitches: Do you see long dashed lines crossing the design? Unless your machine has automatic trimmers, you will be cutting these by hand.
• Stitch Order: Does it jump from left, to right, then back to left? This creates bad registration.
• Hidden Travel Runs: Are dark travel stitches running under light fill areas? (They will show through!).

Setup Checklist (Customize Design)

• Data Check: Is the design size at least 10% smaller than my hoop's max field?
• Physics Check: Did I run Auto Fabric for the correct material?
• Safety Check: Is Auto Start/End set to Center?
• Simulation: Did I watch the Stitch Player from start to finish?

Troubleshooting the Three Problems That Cost Beginners the Most Money

The video identifies three core issues. Here is how to diagnose them on the floor.

1) Fabric Puckering

• Symptom: Ripples, fabric eating itself.
• Likely Cause (Video): Density too high / Stabilizer too weak.
• Physical Fix: Switch to Cut Away stabilizer. Ensure you are not pulling the fabric while hooping.
• Tool Fix: If you cannot get even tension, this is where searching for a hooping station for machine embroidery pays off. These stations hold the hoop while you press, ensuring the grain remains straight and tension is even—consistent hooping eliminates 50% of puckering issues.

2) Needle Hitting the Hoop

• Symptom: "Tick" noises or broken needles.
• Likely Cause (Video): Start point not centered.
• Physical Fix: Re-calibrate your machine's center position. Check if your hoop screw is loose (allowing the hoop to drift).

3) Design is Too Dense

• Symptom: Thread breaks (shredding), stiff embroidery.
• Likely Cause (Video): Too many stitches.
• Software Fix: Increase stitch spacing (reduce density) by 0.4mm.
• Physical Fix: Use a larger needle (e.g., move from 75/11 to 90/14) to clear a larger path for the thread, reducing friction.

The Upgrade Path That Actually Makes Sense

Most hobbyists buy tools randomly. Professionals buy tools to solve specific bottlenecks.

Phase 1: The Stabilization Bottleneck

• Pain: Puckering, misalignment.
• Solution: Correct backing (Cut Away), Temporary Spray Adhesive.

Phase 2: The Hooping Bottleneck

• Pain: Hoop burn marks (shiny rings), sore wrists, crooked logos.
• Solution: Magnetic Hoops. They snap on instantly, protect the fabric, and hold thicker items (like carhartt jackets) that plastic hoops can't grip.
• Search Term: hooping for embroidery machine tutorials often demonstrate how magnets change the workflow speed.

Phase 3: The Production Bottleneck

• Pain: Changing 8 colors manually takes longer than the stitching. You are turning away orders because you are too slow.
• Solution: Multi-Needle Machine. When you need to scale, you stop being the "thread changer" and start being the "business owner."

Warning: Magnetic Safety. Commercial-grade magnetic hoops are incredibly powerful. They can pinch fingers severely (blood blister risk) and must be kept away from pacemakers and sensitive electronics/hard drives. Handle with respect.

Operation Checklist (Before You Press Start)

• Thread Path: Is the thread seated effectively in the tension disks? (Pull it—it should feel like flossing tight teeth).
• Bobbin: Is the bobbin full? (Running out mid-design is a nightmare).
• Clearance: Rotate the handwheel or do a "Trace/Contour" function on your machine to physically verify the needle won't hit the hoop.
• Speed: Beginner Sweet Spot: Set your machine to 400-600 SPM. Do not run at 1000 SPM until you trust the file.
• Scrap Test: Always run the design on a scrap piece of similar fabric first.

By following this "pre-flight" system, you move from "hoping it works" to "knowing it will work." Embroidery is a science of variables—control them, and the art will follow. embroidery hooping station setups and proper software management are your best tools for controlling those variables.

FAQ

• Q: Which physical consumables should be ready before opening a design in Wilcom Hatch “Manage Designs” for a test stitch-out?
  A: Prepare the stabilizer and marking/holding supplies first so the design can be tested immediately without shortcuts.
  • Gather: stabilizer, temporary spray adhesive, and a water-soluble pen before you start editing/exporting.
  • Confirm: the correct design file type is selected (.EMB for editing, machine format for stitching) so you don’t waste consumables on the wrong version.
  • Stage: scrap fabric similar to the final garment for a quick test run.
  • Success check: you can start a scrap test without pausing to hunt for backing, adhesive, or marking tools.
  • If it still fails: run through the pre-start operation checklist (thread path, bobbin fullness, clearance trace, and reduced speed).
• Q: How do embroidery file conversions in Wilcom Hatch (for example, .EMB to .PES) create unexpected jump stitches with missing Trim commands?
  A: Treat every newly converted file as unproven and test it on scrap fabric because Trim commands may not carry over.
  • Convert: export to the target machine format, then immediately inspect the stitch path using Stitch Player.
  • Watch: look for long travel/jump movements that would require manual cutting on the machine.
  • Test: stitch the converted file on scrap fabric before committing to a garment.
  • Success check: the stitched sample shows clean transitions without excessive long jumps that must be hand-cut.
  • If it still fails: re-check the exported format/version you selected and simulate again before re-exporting.
• Q: How can Wilcom Hatch “Design Information” (stitch count, dimensions, colors) prevent hoop strikes and mid-run surprises on a single-needle embroidery machine?
  A: Use Design Information as a pre-flight check to catch time, clearance, and stop-count risks before hooping.
  • Check: stitch count to estimate runtime and heat risk (high stitch counts run longer and can increase friction).
  • Compare: design dimensions to the real hoop sewing field and keep a safety margin (avoid designs that nearly max out the hoop).
  • Count: colors to understand how many thread changes you will physically do on a single-needle machine.
  • Success check: the design is comfortably smaller than the hoop field and the expected stops/time match what you can supervise.
  • If it still fails: choose a larger hoop/field if available, or simplify the design (reduce size, density, or color changes) before stitching.
• Q: How do I use Wilcom Hatch Auto Fabric settings to reduce puckering on cotton, and what stabilizer choice should match the fabric type?
  A: Run Auto Fabric for the actual material and follow the stabilizer direction as a safe starting point, then avoid over-stretching during hooping.
  • Select: Auto Fabric → choose the correct material (example shown: Pure Cotton) and note the recommended backing (example shown: Tear Away x 2).
  • Apply: use Cut Away for stretchy fabrics (rule: “If it stretches, cut it”) and add temporary spray adhesive to bond fabric to stabilizer.
  • Add: water-soluble topping on textured fabrics (towel/fleece/velvet) so stitches don’t sink.
  • Success check: after unhooping, the fabric lies flat without ripples around the embroidery.
  • If it still fails: reduce density (increase stitch spacing) and re-check hooping technique to avoid stretching knits like a drum.
• Q: How does Wilcom Hatch Auto Start and End set to Center help prevent the embroidery needle from hitting the hoop frame (hoop strike)?
  A: Set Auto Start and End to Center and match the machine’s start-at-center behavior to reduce the chance of stitching near the frame.
  • Set: Auto Start and End → choose Center for start/end points in the software.
  • Confirm: the embroidery machine is also configured to start at center so software and machine agree.
  • Verify: use the machine’s Trace/Contour function or rotate the handwheel to confirm physical clearance before pressing Start.
  • Success check: the needle path clears the hoop frame during trace/contour and you do not hear “tick/CLANK” contact sounds.
  • If it still fails: check for hoop drift (loose hoop screw) and re-calibrate the machine’s center position.
• Q: What is the safest response when an embroidery needle hits a hoop frame at speed, and why is eye protection required?
  A: Stop immediately and treat it as a safety incident because a needle can shatter and throw fragments.
  • Stop: hit stop/emergency stop and keep hands away from the needle area until all motion fully stops.
  • Inspect: replace the needle and check the hoop for damage before restarting.
  • Prevent: run a clearance trace/contour and start slower (a safe beginner range is 400–600 SPM) until the file is proven.
  • Success check: the machine runs the full design without any contact sounds, broken needles, or visible hoop damage.
  • If it still fails: re-check Auto Start/End center settings and confirm the design fits with margin inside the hoop sewing field.
• Q: When puckering and hoop burn keep happening, what is a step-by-step upgrade path from technique fixes to magnetic hoops to a multi-needle embroidery machine?
  A: Fix the fundamentals first, then upgrade the specific bottleneck: stabilization → hooping → production speed.
  • Level 1 (Technique): match stabilizer to fabric (Cut Away for stretch), avoid over-stretching in the hoop, and reduce density by increasing stitch spacing when designs feel “bulletproof.”
  • Level 2 (Tool): switch from friction hoops to magnetic hoops when hoop burn, crooked placement, sore wrists, or inconsistent tension keeps repeating.
  • Level 3 (Capacity): move to a multi-needle machine when frequent color changes (many stops) turn into the main time cost on real orders.
  • Success check: repeat jobs run with consistent registration and fewer restarts, and the operator spends less time re-hooping/rethreading.
  • If it still fails: add a hooping station to improve consistency and re-verify stitch path using Stitch Player before exporting.
