The "Zero-Headache" Hatch Embroidery 3 Setup Guide: From Frustration to First Stitch

Author: Chief Embroidery Education Officer Target Audience: Beginner to Intermediate Embroiderers & Small Business Owners

If your Hatch Embroidery 3 screen feels “off,” your hoop list spans three pages, or your imported stitch files suddenly look like a distorted mess—take a breath. You are not broken, and neither is the software. You are simply experiencing the friction of a "generic" factory calibration meeting a specific real-world workflow.

Embroidering is an experienced-based science. It combines the precision of software with the chaotic variables of thread tension (physical), fabric stretch (material), and hoop mechanics (hardware).

This guide rebuilds the initial configuration of Hatch 3, but with 20 years of production floor reality layered on top. We will calibrate your digital workspace to match your physical reality, ensuring that what you see on screen is exactly what your machine sews out.

1. The Psychology of Setup: Why Hatch "Feels Wrong" Out of the Box

When you first open Hatch, it is designed to be everything to everyone—from a home hobbyist with a 4x4 hoop to a commercial digitizer. This versatility is its strength, but for a new user, it creates Decision Fatigue.

The fastest way to eliminate this friction is to align the "Holy Trinity" of Embroidery Setup:

1. The Machine Definition: Telling the software exactly what hardware limits exist.
2. The Hoop Reality: hiding the 50 hoops you don't own so you can't accidentally select them.
3. The File Logic: Preventing the software from "thinking" too much about your imported files.


2. Lock in Your Machine Identity: The Foundation of Safety

The software cannot protect you from sewing outside the lines if it doesn't know where the lines are.

Action Steps:

1. locate the Machine Brand/Type dropdowns at the top of the screen.
2. Select your exact Brand (e.g., Brother, Janome).
3. Select your Machine Type.
   • Scenario A: You use a home machine (e.g., Brother PE800). Select Single Needle.
   • Scenario B: You use a commercial machine (e.g., SEWTECH, Ricoma, Tajima). Select Multi-Needle.

This selection dictates the color palette, the maximum sewing field, and the jump-stitch trim commands the software generates.

The "Clone" Strategy for Non-Listed Machines (BAi, SEWTECH, Tajima)

Not every brand is listed natively. If you are setting up a bai embroidery machine or a SEWTECH 15-needle machine and don't see it:

• Don't Panic. Select a "Generic" or "Tajima" profile (as most use the DST format commercial standard).
• The Critical Fix: You must manually limit your design size to your machine’s actual safe sewing field (check your manual).

Warning: Never rely solely on the software's visual limit if you are using a generic profile. Always do a "Trace" or "Frame Check" on your physical machine before pushing the start button to prevent the needle bar from slamming into the hoop frame.

3. The Hoop List Cleanup: Eliminating the "Fatal Click"

Hatch will display every hoop compatible with your brand. This is dangerous. If you accidentally select a 360mm hoop in the software, but physically attach a 200mm hoop to the machine, you risk a catastrophic needle collision.

In the video, the instructor performs a "Hoop Hygiene" cleanup. We will do the same.

Step-by-Step De-Cluttering:

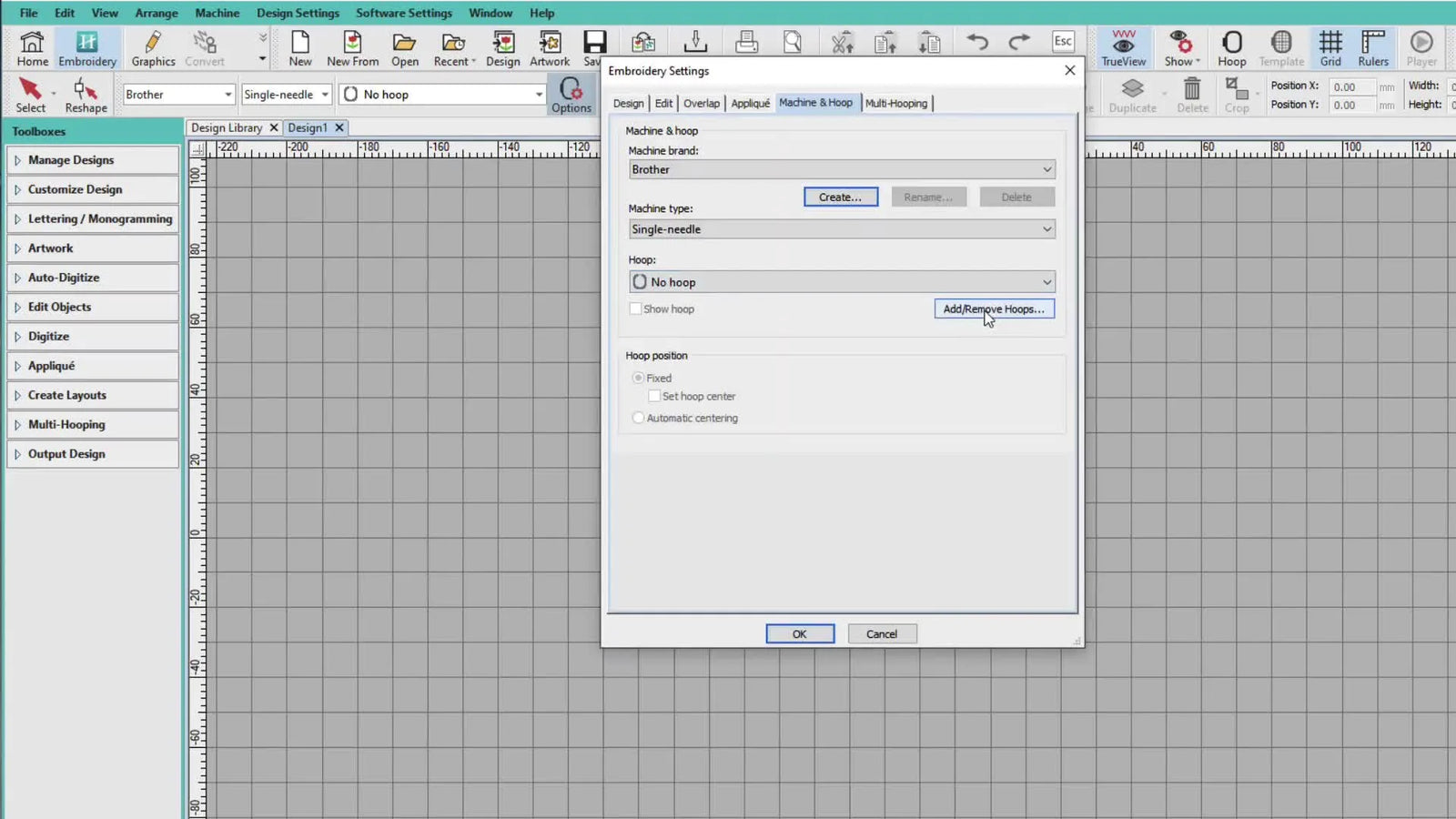

1. Click the Hoop icon/list.
2. Select Add/Remove Hoops.
3. The Audit: Look at the "My Hoops" column. Physically look at the hoops hanging on your wall.
4. The Purge: If you do not physically own it, move it to the "Available" column (remove it from view).
5. Click OK.


The "Hidden" Consumables Check

While you are auditing your hoops, check your physical inventory for these often-missed essentials:

• Temporary Adhesive Spray (for floating fabrics).
• Water Soluble Pen (for marking centers).
• Titanium Needles (sizes 75/11 for general, 90/14 for denim).


Pain Point Diagnosis: When Standard Hoops Hurt

If you find yourself dreading the hooping process because of hand strain, or if you consistently see "hoop burn" (white rings on dark fabric) caused by crushing the fabric fibers, the problem isn't the software—it's the tool.

Standard plastic hoops rely on friction and muscle power.

• The Upgrade: Many professionals switch to magnetic embroidery hoops.
• The Why: They use magnetic force to hold fabric without forcing it into a gap, eliminating hoop burn and reducing wrist strain.
• The Fit: Whether you need magnetic embroidery hoops for brother single-needle machines or robust frames for commercial multi-needles, matching the tool to the pain point increases production speed by 30%.

Warning: Magnetic Strength Safety
Magnetic hoops for commercial machines contain powerful Neodymium magnets.
* Pinch Hazard: They can snap together with enough force to break a finger. Handle with care.
* Medical Safety: Keep at least 6 inches away from pacemakers or insulin pumps.

4. Prep Checklist: The Physical/Digital Handshake

Before adjusting UI settings, complete this physical audit.

PREP CHECKLIST: Hardware Verification

• Manual Check: I have confirmed my machine's actual max sewing area (mm), not just the advertised hoop size.
• Hoop Match: My digital hoop list matches my physical rack exactly.
• Needle Check: My installed needle is fresh (change every 8-10 hours of running time).
• Bobbin Check: The bobbin case is free of lint (blow out or brush out).
• Upgrade Path: If using a brother 4x4 embroidery hoop, I have verified the design fits within the 100mm x 100mm safety zone.

5. UI Ergonomics: Reducing Cognitive Load

The video instructor adjusts the User Interface (UI) settings. These are not just aesthetic; they reduce eye fatigue and mouse-fighting.

Go to: Software Settings → User Interface Settings

1. The Crosshair Cursor (Visual Anchor)

• Action: Enable Crosshair cursor.
• Why: A standard mouse pointer is vague. A crosshair (spanning the whole screen) allows you to visually align a logo center with a pocket top instantly.

2. The Grid Trap (Expert Insight)

• Action: Turn Grid OFF (or toggle with 'G').
• Why: Beginners often mistakenly align designs to the software grid rather than the hoop center. Turning the grid off forces you to rely on the hoop center/crosshairs, which is the only coordinate your machine actually cares about.

[FIG-08] [FIG-09]

3. Scrolling Logic

• Action: Set Mouse Wheel to Vertical Scroll.
• Why: It matches every other program (Word, Chrome) you use, preserving your muscle memory.


6. File Handling: The "Leave It Alone" Rule

This is the most critical technical setting in the entire guide.

The Problem: When you open a purchased stitch file (PES, VP3, DST), Hatch tries to be "smart." It attempts to convert raw stitches back into editable objects. The Risk: In doing so, it often recalculates stitch density, changes angles, and destroys the specific "pull compensation" the original digitizer added. This leads to gaps and puckering.

The Fix:

1. Go to Software Settings → Embroidery Settings → Design Tab.
2. Look for "Recognize machine file".
3. Select: "Leave stitches as individual stitches" (or "Leave as stitches only").




This forces Hatch to treat the file like a read-only blueprint. It will display it, but it won't ruin the structural integrity of the design. This is vital when troubleshooting generic issues, such as verifying bai embroidery machine hoop sizes against a design file—you want to check the size, not alter the density.

7. Overlap and Applique: The 1.00mm Safety Net

Embroidery shrinks fabric. As the thread tightens, the fabric pulls inward. If you don't account for this, your outlines won't line up with your fill stitches.

Understanding Overlap (Pull Compensation)

The video confirms a default overlap of 1.00 mm.

• The Physics: This ensures that two adjacent colors overlap slightly. When the fabric inevitably shrinks under tension, they will pull apart to meet perfectly.
• Expert Adjustment: If you are sewing on unstable knits (T-shirts) without strong stabilizer, you may need to increase this overlap. 1.00mm is a safe starting point.


8. The Decision Tree: Fabric, Stabilizer, and Hoops

Software settings are useless if the physical setup fails. Use this logic flow to make the right physical choices before you digitize.

Decision Tree: The "Will It Pucker?" Test

• Step 1: Identify Fabric Elasticity
  • Is it Stretchy? (T-shirt, Polo, Performance Wear):
    • Stabilizer: Cutaway (Must use. Tearaway will lead to distorted designs).
    • Hoop: Magnetic Hoop preferred (avoids stretching fabric during hooping).
  • Is it Stable? (Denim, Canvas, Twill):
    • Stabilizer: Tearaway is acceptable.
    • Hoop: Standard or Magnetic.
• Step 2: Production Volume
  • One-off Gift:
    • Strategy: Standard hoop, take your time aiming.
  • 50+ Item Order:
    • Strategy: Use a machine embroidery hooping station for consistent placement. Upgrade to commercial multi-needle machine (like SEWTECH) to automate color changes.

9. Troubleshooting Guide: Structured Solutions

When things go wrong, do not guess. Follow this Low-Cost to High-Cost path.

10. The Upgrade Path: When to Scale Up

As your skills improve, your bottlenecks will shift from "learning the software" to "physical limitations."

Phase 1: The Stabilizer Upgrade Start by investing in high-quality Cutaway and Tearaway stabilizers. This is the cheapest way to improve quality.

Phase 2: The Tool Upgrade If you are struggling with hooping thick items (backpacks) or delicate items (silk), standard clamps fail.

• Solution: Magnetic Frames. They provide safety for the fabric and speed for the operator.

Phase 3: The Machine Upgrade If you are spending more time changing thread colors than sewing, or if you need to sew faster than 600 stitches per minute (SPM), you have outgrown a single-needle home machine.

• Solution: Multi-Needle Machines (e.g., SEWTECH, Brother PR, etc.). Moving to a 10-needle or 15-needle machine allows for "Set it and forget it" operation, drastically increasing your profit per hour.

11. Final Checklists: Go for Launch

SETUP CHECKLIST: Software Configuration

• Machine ID: Brand and Model (Single vs Multi) are selected.
• Hoop Hygiene: Only my owned hoops are visible in the dropdown.
• File Safety: "Recognize Machine File" is set to "Leave stitches only."
• Visuals: Grid is OFF (or optional), Crosshair is ON.
• Overlap: Default overlap verified at ~1.00mm.

OPERATION CHECKLIST: The "First Stitch" Test

• Test Run: I have selected a scrap piece of fabric similar to my final project.
• Hoop Check: My brother prs100 hoop sizes (or specific machine hoop) is selected in software AND attached to the machine.
• Trace: I have run the "Trace" function on the machine to confirm physical clearance.
• Listen: I am listening for a rhythmic "thump-thump" sound (good tension), not a slapping or grinding noise.


By following this guide, you haven't just "installed software." You have built a reliable manufacturing workflow. The software is now a transparent tool, allowing your creativity—and your machine—to do the heavy lifting.

FAQ

• Q: How do I set the correct Hatch Embroidery 3 Machine Type for a Brother PE800 single-needle machine versus a SEWTECH multi-needle machine?
  A: Select the exact machine brand, then choose Single Needle for home machines like Brother PE800 and Multi-Needle for commercial machines like SEWTECH to prevent wrong field limits and color/trim behavior.
  • Open the Machine Brand/Type dropdowns at the top of Hatch.
  • Choose the correct Brand (for example, Brother) and then select Single Needle or Multi-Needle based on the physical machine.
  • Re-check the selected hoop size after changing machine type (the list and limits can change).
  • Success check: the displayed sewing field matches the real hoop you can mount, and the design sits inside that boundary.
  • If it still fails: use the machine’s Trace/Frame Check before stitching to confirm physical clearance.
• Q: How do I safely set up Hatch Embroidery 3 for a SEWTECH 15-needle machine or BAi embroidery machine when the exact brand is not listed?
  A: Use a Generic or Tajima-style profile as a starting point, then manually keep every design within the machine’s real safe sewing field and always run a Trace/Frame Check to avoid hoop strikes.
  • Select a Generic or Tajima profile (common commercial DST workflow).
  • Confirm the machine’s actual maximum sewing area in millimeters using the machine manual.
  • Manually limit design size/placement to stay inside that confirmed safe area.
  • Success check: the machine completes a full Trace/Frame Check without the needle bar approaching or contacting the hoop/frame.
  • If it still fails: stop immediately and re-center the design to the hoop center before attempting another trace.
• Q: How do I clean up the Hatch Embroidery 3 hoop list to prevent selecting the wrong hoop size and crashing into the frame?
  A: Hide every hoop you do not physically own so the only selectable hoops in Hatch match the hoops on your rack.
  • Click the Hoop list/icon, then choose Add/Remove Hoops.
  • Audit “My Hoops” while physically looking at your real hoops; remove anything you do not own.
  • Confirm the selected hoop in software matches the hoop actually attached to the machine before stitching.
  • Success check: the hoop dropdown shows only your real hoops, and you cannot accidentally pick a larger hoop than the one mounted.
  • If it still fails: perform a machine Trace/Frame Check before pressing Start, especially after switching projects.
• Q: Why does a purchased PES/VP3/DST design look distorted or “shredded” after import in Hatch Embroidery 3, and how do I stop Hatch from changing the stitches?
  A: Turn on the setting that leaves the file as raw stitches so Hatch does not “recognize” and re-calculate the design.
  • Go to Software Settings → Embroidery Settings → Design tab.
  • Find Recognize machine file and select Leave stitches as individual stitches (leave as stitches only).
  • Re-import the design after changing the setting (undo/close and reopen if needed).
  • Success check: the re-imported design looks stable (no new gaps/shredded appearance compared to the original file preview).
  • If it still fails: treat the file as read-only for checking size/fit and avoid editing objects created by recognition.
• Q: What is the safest way to prevent a needle crash when a Hatch Embroidery 3 design is not centered to the physical hoop on an embroidery machine?
  A: Stop the machine, re-center the design to the hoop center in Hatch, then run Trace/Frame Check before stitching to confirm clearance.
  • Hit EMERGENCY STOP if the machine starts to hit or approach the frame.
  • Enable Hatch’s Crosshair cursor and align the design to the hoop center on screen.
  • Run the machine’s Trace/Frame Check every time you change hoop size or re-position a design.
  • Success check: the traced path stays fully inside the hoop opening with no contact and no “grinding”/impact sound.
  • If it still fails: verify the software hoop selection exactly matches the hoop mounted on the machine.
• Q: How do I reduce hoop burn (white rings) and hand strain caused by tight plastic embroidery hoops, and when should I switch to magnetic embroidery hoops?
  A: If plastic hoops are crushing fibers or hurting your hands, switch to magnetic hoops to hold fabric by magnetic force instead of excessive clamping pressure.
  • Steam the hoop ring lightly (do not iron) as a quick recovery step for hoop burn when it appears.
  • Reduce over-tight clamping habits and focus on stable stabilizer + correct hooping technique first.
  • Upgrade to magnetic hoops when hoop burn is repeatable or wrist/hand strain is slowing production.
  • Success check: the fabric surface shows fewer or no white rings after stitching, and hooping requires noticeably less force.
  • If it still fails: reassess fabric/stabilizer choice and avoid stretching fabric during hooping, especially on knits.
• Q: What magnetic hoop safety rules should embroidery operators follow when using strong magnetic frames on commercial multi-needle machines like SEWTECH?
  A: Treat commercial magnetic hoops as pinch-hazard tools and keep them away from medical devices because strong magnets can snap together forcefully.
  • Handle magnets one at a time and keep fingers clear of closing points to prevent pinching injuries.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Store magnets so they cannot jump together unexpectedly (separate and secure components).
  • Success check: operators can mount/unmount the magnetic frame without sudden snaps or finger-close calls.
  • If it still fails: pause production and retrain handling steps before allowing high-volume hooping.
