Hatch Embroidery 3 Knockdown Stitch for Minky: Clean Offsets, No Holes, and a Satin Border That Actually Finishes the Job

If you’ve ever stitched a name on Minky, thick towels, or any “fluffy” surface and watched the nap crawl right up through your lettering like weeds through a cracked sidewalk, you know the sinking feeling. On screen, the file looked pristine. In reality, the stitch-out looks fuzzy, uneven, and let’s be honest—cheap.

This guide takes a specific Hatch Embroidery 3 workflow and elevates it into a production-grade standard operating procedure (SOP). We aren’t just pressing buttons; we are engineering a structure. The goal: build a "Knockdown" (laydown) stitch that acts as a foundation, ensuring your lettering sits on top of the chaos rather than sinking into it.

The Calm-Down Moment: Why Hatch Embroidery 3 Knockdown Stitch Work Matters on Minky (and Why Holes Look Worse Than You Think)

Textured fabrics don’t “behave” like flat cotton. T-shirt cotton is a sidewalk; Minky is a swamp. When a needle penetrates pile fabric, three things happen physically:

1. Compression: The presser foot smashes the fluff down.
2. Rebound: As the foot lifts, the fluff springs back up, often trapping itself between threads.
3. Migration: Without a barrier, loop fibers push into any open space in your design.

In this workflow, we use Hatch Embroidery 3 to engineer a "containment field"—a laydown stitch. If you are building files for plush blankets, baby gifts, or high-pile towels, this logic is the difference between a "homemade craft" and a "professional product."

The Critical Reality: A perfect file can still fail if the fabric shifts or is crushed to death by the hoop. Your digitizing and your physical setup (hooping) must agree with each other.

The “Hidden” Prep Before You Type a Single Letter in Hatch Embroidery 3 Lettering: Hoop Reality, Font Thickness, and Fabric Behavior

Before you touch the Lettering tool, you must lock down your constraints. Professional digitizers don't guess; we calculate.

1. The Hard Limit (Hoop Size)

In the source technique, the text is resized to 7.75 inches. Why? Because a standard "8x8" or "8x12" hoop often has a safe sewing field slightly smaller than the physical frame.

• Safety Rule: Always leave at least 0.5 inches (12mm) of clearance from the plastic edge. Hitting a hoop at 800 stitches per minute is a violent, expensive mistake.

2. The Font Physics

Thick fonts win on textured fabric. Thin script fonts (like a wispy "handwritten" style) will get swallowed by Minky.

• Selection Criteria: In Hatch, look for block fonts or bold scripts like New Hopes (used here). The column width of the satin stitch needs to be wide enough to span across the texture without sinking.

3. The Continuous Floor

Your knockdown stitch must be a continuous barrier. Any "sneaky" gap is a window for the fabric color and texture to poke through. It looks like a mistake, not a design choice.

Prep Checklist (Pre-Flight):

• Hoop Check: Confirm target hoop size. Set hard Max Width to 7.75 in (for 8" hoops).
• Fabric Audit: Is it textured? (Minky/Terry Cloth = YES).
• Font Audit: Select a font with bold column width. Avoid "Redwork" or thin single-run fonts.
• Consumables Check: Do you have Water Soluble Topping? (Use it on top of the Minky even with a knockdown stitch for glass-smooth results).
• Layer Plan: Mentally map it: Knockdown (Base) → Lettering (Structure) → Satin Border (Frame).


Build the Name in Hatch Lettering & Monogramming Without the Weird Grouping Glitches

Open Hatch Embroidery 3. Select the Lettering & Monogramming toolbox. Click the screen and type the name (e.g., "ELYSE").

The "Ghost" Glitch: Sometimes, Hatch—like any complex software—hiccups. You might see the text group incorrectly, or letters "go missing" when generated.

• The Fix: Don't fight the math. If the object acts corrupt, delete it and re-type. It is faster to start fresh than to untangle corrupted node data.
• Sensory Check: Click the object. Does the bounding box (the black squares around the text) look tight and symmetrical? If the box is massive and the text is tiny, there is a stray node. Delete and restart.


Make the Lettering Fit the Hoop: Resizing to 7.75 Inches and Tightening Spacing So It Stitches Cleaner

Step 1: The Resize With the text selected, look at the Width field in the context bar. Type 7.75 and hit Enter. This forces the design into compliance with your hoop limits.

Step 2: The Kerning (Spacing) On Minky, "air" between letters is dangerous.

• The Action: Manually adjust the diamond handles between letters to bring them closer.
• The Logic: Tighter spacing creates a more cohesive "unit." When the knockdown stitch runs, it creates a depressed area. If letters are too far apart, you end up with "islands" of satin stitches connected by awkward bridges of knockdown.
• Rule of Thumb: Aim for a "visual lock." Letters shouldn't touch, but they should feel like they are holding hands, not shouting across the room.

Setup Checklist (Before Offsetting):

• Object Stability: Text allows normal selection (no glitches).
• Dimension: Width is exactly 7.75 inches (or your hoop's safe max).
• Visual Balance: Spacing is tightened but not overlapping.
• Font Lock: Final font (e.g., New Hopes) is chosen. Changing fonts after resizing can ruin your spacing.

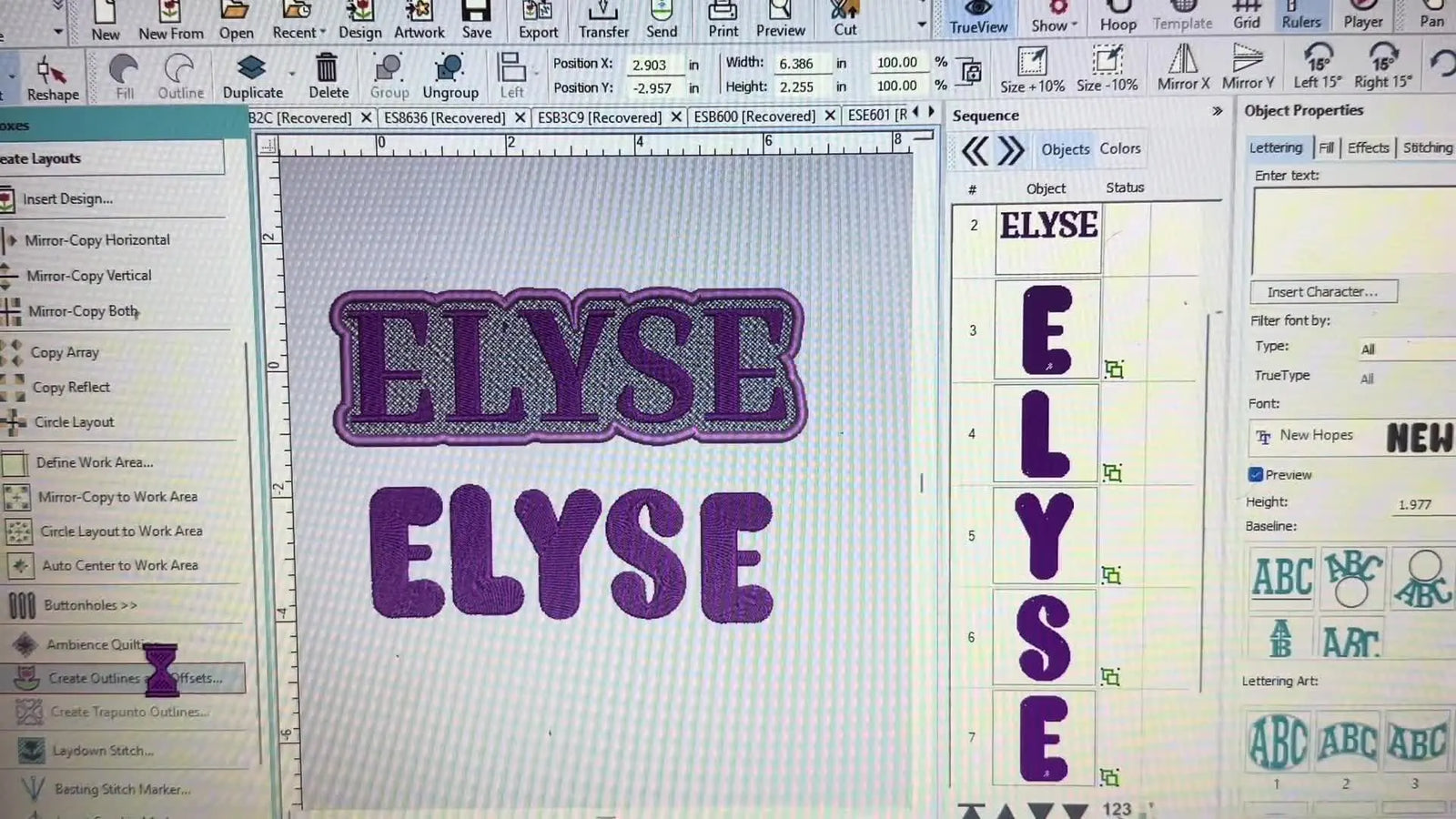

The Offset That Makes or Breaks Minky: Hatch “Create Offsets and Outlines” at 0.100 in (and Why “Include Holes” Matters)

This is the most critical step for structural integrity.

1. Highlight your lettering.
2. Navigate to Create Layouts → Create Offsets and Outlines.

The Experience-Based Settings:

• Offset: 0.100 in (2.5mm). This provides a sufficient "rim" of knockdown stitching around the letters without creating a massive, ugly patch.
• Type: Single Run. (Visual Check: You will see a thin line around your text).
• Include Holes: UNCHECKED.

Why Uncheck "Include Holes"? You want a solid raft, not specific cutouts for the inside of a "zero" or an "e." If you include holes, the bumpy fabric will poof up inside the letters, reducing readability. By unchecking this, you force the software to create a solid backing shape.

Commercial Insight: If you are planning a production run using hooping for embroidery machine protocols for bulk orders, simplicity is king. A solid offset is less likely to cause thread trims or registration errors than a complex shape with internal holes.

Turn the Offset into a Real Knockdown: Hatch Laydown Stitch Settings (0.059 Spacing, 0.157 Length, 45° Angle)

Currently, your offset is just a line. We need to turn it into a net that traps the fabric pile.

1. Select the new offset outline you just created.
2. Click Laydown Stitch (often found in the Edit Objects or specialized toolbar depending on your layout).

The Magic Numbers (Data Retention):

• Spacing: 0.059 in (~1.5mm). Note: This creates an open grid, NOT a solid fill. A standard Tatami fill is usually 0.015" (0.4mm). We want a net, not a board.
• Stitch Length: 0.157 in (4mm). Long stitches reduce needle penetrations, keeping the fabric soft.
• Angle: 45°. This diagonal angle generally cuts across the grain of most fabrics effectively.

The "Why": Laydown stitches function by compressing and trapping. The cross-hatch structure acts like a snowshoe—it distributes the force of the top stitches across a wider area, preventing them from sinking.

The Ugly Surprise: Finding a Hole in the Knockdown Fill (and Why You Must Fix It Before Stitching)

The Visual Inspection: Zoom in to 200% or more. Look at the area between the letters (like between the L and the Y).

• The Symptom: You might see a small, irregular gap where the offset calculation wasn't "smart" enough to merge the shapes.
• The Risk: On flat cotton, this is invisible. On Minky, this gap will manifest as a tuft of fabric exploding through your design. It will look like a pothole in a newly paved road.

Expert Rule: If you see white space (background) inside your knockdown shape on screen, you will see fuzz in the final product.

The Reshape Tool Fix: Dragging Nodes Until the Gap Disappears (and Knowing When You’re Making It Worse)

Don't panic. This is standard digitizing maintenance.

1. Select the green knockdown object.
2. Press H or click the Reshape tool icon. You will see blue squares (nodes) along the outline.
3. The Action: Click a node near the gap and drag it across the hole until it overlaps with the other side.
4. The Check: Release the mouse. The fill should regenerate and "heal" the hole.

Sensory Guide:

• Visual: Watch the stitch lines. They should turn into a continuous pattern.
• Tactile (Mental): Imagine you are pulling dough to close a hole in a pizza crust. Gentle movements prevent distortion.

Practical Tip: Work zoomed in to grab the node, but zoom out to ensure you didn't accidentally warp the outer edge of the shape. We want coverage, not perfect geometry.

Verify the Knockdown Is Truly Closed: What “Good Enough” Looks Like on Screen vs. in Thread

After reshaping, perform a final audit.

Expected Outcome: The knockdown area should create a unified, solid field of color behind the text. No "Swiss cheese" holes.

The "Good Enough" Trap: Beginners often think, "It's just a tiny hole."

• Expert Reality: Minky fibers are dynamic. They want to find freedom. Even a 1mm gap allow distinct fibers to poke through.
• Fix: Close it. It takes 10 seconds now to save a $15 blank later.


The Satin Border Upgrade: Duplicating the Layer and Converting It to an Outline That Makes the Name Pop

To take the design from "functional" to "finished," we add a frame.

1. Select your knockdown object (the green shape).
2. Duplicate it (Ctrl+D).
3. Change the color (e.g., Purple) so you can see it.
4. Convert the stitch type to Satin Line.

The Functions of the Border:

1. Edge sealing: It tamps down the raw edges of the knockdown stitch.
2. Visual "Pop": It separates the thread color from the fabric color, increasing readability.


When Layers Won’t Behave: Fixing Hatch Sequence Order by Dragging Objects Where They Belong

Hatch creates new objects at the end of the sequence. Your layer order is likely wrong now (e.g., the border might be stitching before the letters).

The Fix: Open the Sequence bar (usually on the right).

1. Find your Knockdown (Green Net). Position: FIRST.
2. Find your Lettering (Text). Position: MIDDLE.
3. Find your Satin Border (Purple). Position: LAST.

Action: Click and drag the layers in the Sequence bar until they match this order.

Why Order Matters: If the Satin Border stitches before the Knockdown, the knockdown stitches will over-sew the nice satin edge, making it look messy.

• Correct Sound: Rhythm. Base (fast fill) → Text (dense satin) → Border (finishing satin).


Decision Tree: Choosing Stabilizer + Hooping Strategy for Minky (So the Knockdown Can Do Its Job)

A digital file is only a blueprint. The physical execution is where battles are won.

The Case for Magnetic Hoops: Traditional hoops require you to jam an inner ring into an outer ring. On Minky, this crushes the pile, leaving a "Hoop Burn" scar that never washes out.

• Upgrade Path: To avoid crushing the pile completely, many experts switch to a magnetic embroidery hoop. The magnets clamp straight down, holding the fabric without friction-burning the fibers.

Warning: Magnetic Pinch Hazard. Magnetic hoops use industrial-grade magnets. They can snap together with immense force. Keep fingers clear of the edges and keep these hoops away from anyone with a pacemaker.

The “Why” Behind This Workflow: Thick Fonts + Closed Knockdown + Satin Border = Readable Stitch-Outs on Plush

Here is the system summary that you can apply to any software, not just Hatch:

1. Mass (Font): Use bold columns to fight compression.
2. Base (Laydown): Create a 1.5mm grid to smash the nap flat.
3. Containment (Reshape): Close all internal holes to prevent fiber migration.
4. Frame (Border): Use a satin edge to clean up the perimeter.

When these four elements combine, you aren't "hoping" it works; you know it will.

Comment-Driven Pro Tips: Color Contrast and On-Screen Visibility While You Digitize

A viewer noted the purple/green color scheme. This isn't just for style.

• Pro Tip: Use "High Contrast" colors while digitizing. Even if you plan to stitch in White on White, digitize in Neon Green and Hot Pink. This allows your eye to instantly spot gaps, overlaps, and sequencing errors that would vanish if you digitized in the final colors.

Troubleshooting Hatch Embroidery 3: Symptoms → Likely Cause → Fast Fix

Use this prioritized list to solve problems without wasting time.

Warning: Needle Safety. The machine doesn't know your finger is there. Never attempt to trim a jump stitch while the machine is running. Pause the machine, trim, then resume.

The Upgrade Path That Actually Makes Sense: From Struggle to Scale

If you are constantly fixing gaps, fighting distortion, or throwing away ruined towels, the bottleneck might not be your digitizing—it might be your tools.

Scenario: You have perfected the Hatch workflow above, but you still dread doing 20 towels because hooping takes forever and hurts your wrists.

• Level 1 Fix: Use Magnetic Hoops. Terms like hooping for embroidery machine often lead professionals to magnetic solutions because they reduce setup time by 50% and eliminate hoop burn.
• Level 2 Fix: If you are turning away orders because your single-needle machine is too slow, look at SEWTECH multi-needle machines. A dedicated 15-needle machine allows you to set up the next run while the current one is stitching, doubling your profit per hour.

Operation Checklist (Final Go/No-Go):

• Size: Design width fits hoop safety margin (7.75").
• Gaps: No white background showing through the Green Knockdown.
• Order: Green (Knockdown) → Text → Purple (Border).
• Topping: Water Soluble Topping is cut and ready to place on top of the fabric.
• Test: Run a sample on a scrap piece of similar fabric before committing to the final garment!

FAQ

• Q: In Hatch Embroidery 3 lettering on Minky, why does fuzz show through the centers of letters even after adding a knockdown stitch?
  A: Close every internal gap in the knockdown shape before stitching, because even tiny on-screen holes become visible fuzz on Minky.
  • Zoom in to 200%+ and inspect the knockdown area between and inside letters for any “white space.”
  • Press H (Reshape) on the knockdown object and drag nearby nodes to overlap until the hole disappears and the fill regenerates.
  • Re-check the outer edge after zooming out so the coverage improves without warping the overall outline.
  • Success check: The knockdown displays as one continuous field with no “Swiss cheese” gaps anywhere.
  • If it still fails… Add water soluble topping on top of the fabric and confirm “Include Holes” was not used when creating offsets.
• Q: In Hatch Embroidery 3 “Create Offsets and Outlines,” what settings prevent Minky from puffing through inside letters like “e” and “o”?
  A: Use a solid backing shape by setting Offset = 0.100 in, Type = Single Run, and Include Holes = unchecked.
  • Select the lettering object, then run Create Layouts → Create Offsets and Outlines.
  • Enter 0.100 in (2.5 mm) offset and choose Single Run so you get a clean outline to convert into laydown.
  • Uncheck Include Holes to avoid leaving open windows where pile fabric can pop up inside counters.
  • Success check: The offset creates one continuous outline around the word without interior cutouts for letter holes.
  • If it still fails… Inspect the knockdown after converting to laydown; reshape and overlap nodes anywhere Hatch didn’t merge shapes cleanly.
• Q: What Hatch Embroidery 3 laydown (knockdown) stitch settings are a safe starting point for Minky, and how do I know the laydown is working?
  A: Start with Spacing 0.059 in, Stitch Length 0.157 in, and Angle 45° to form an open net that traps the nap without making a stiff patch.
  • Select the offset outline object and convert it using Laydown Stitch.
  • Set Spacing = 0.059 in (~1.5 mm) to create a grid (not a dense fill).
  • Set Stitch Length = 0.157 in (4 mm) and Angle = 45° to reduce penetrations and compress pile evenly.
  • Success check: On screen, the laydown forms a consistent crosshatch under the lettering area with no empty windows.
  • If it still fails… Confirm the offset was created at 0.100 in and that any holes were reshaped closed before running the final stitch-out.
• Q: In Hatch Embroidery 3, how do I fix lettering that disappears or groups weirdly after using the Lettering & Monogramming tool?
  A: Delete the corrupted lettering object and re-type the text, because it’s usually faster than repairing bad object data.
  • Click the text object and check the bounding box; a huge box with tiny text often indicates a stray node or corruption.
  • Delete the object and type the name again using Lettering & Monogramming.
  • Re-apply sizing and spacing only after the new object behaves normally.
  • Success check: The bounding box looks tight and symmetrical around the letters, and selection/dragging works normally.
  • If it still fails… Restart the project file section for that object and avoid continuing edits on the “glitched” instance.
• Q: In Hatch Embroidery 3, what is the correct stitch sequence order for a Minky name design using knockdown + lettering + satin border?
  A: Set the stitch order to Knockdown first → Lettering second → Satin border last to keep the border clean and the text sitting on the foundation.
  • Open the Sequence panel and locate the three objects (knockdown, text, border).
  • Drag the knockdown layer to the top (first to sew), place the lettering in the middle, and move the satin border to the bottom (last to sew).
  • Run a quick preview to confirm the border is not getting over-sewn by the knockdown.
  • Success check: The stitch preview shows base (fast net) first, then dense text, then a final satin outline as the finishing pass.
  • If it still fails… Reconfirm the border object is actually set to Satin Line and not another fill type.
• Q: What stabilizer and hooping method works best for thick towels or Minky when using a Hatch Embroidery 3 knockdown stitch?
  A: Use cutaway (mesh) stabilizer on the bottom + water soluble topping on top, and consider floating or a magnetic hoop to reduce hoop burn.
  • Place cutaway (mesh) underneath to support the dense lettering structure.
  • Add water soluble topping on top of the Minky to prevent stitches from sinking into the pile.
  • Choose float method or a magnetic hoop when hoop burn marks are a recurring issue.
  • Success check: The pile stays flattened during stitching and the lettering edges look crisp instead of fuzzy.
  • If it still fails… Reduce fabric distortion by re-checking hoop pressure and test on a scrap piece of similar fabric before stitching the final item.
• Q: What safety precautions are required when using magnetic embroidery hoops for Minky projects to avoid injury and machine downtime?
  A: Treat magnetic hoops as pinch hazards and keep fingers and medical devices away from the closing path of the magnets.
  • Keep fingers clear of hoop edges when magnets snap together; clamp straight down, not at an angle.
  • Keep magnetic hoops away from anyone with a pacemaker per standard safety guidance for strong magnets.
  • Pause the embroidery machine before trimming jump stitches; never reach in while the needle is moving.
  • Success check: The hoop closes without finger contact and the fabric is secured without forced “ring jamming” or slipping.
  • If it still fails… Switch to a slower, more controlled hooping routine (or floating) and verify the hoop is fully seated and stable before starting the stitch cycle.
• Q: When Hatch Embroidery 3 digitizing is correct but towels still get hoop marks and production feels slow, what upgrade path makes sense without guessing?
  A: Follow a tiered approach: optimize settings first, then upgrade hooping tools, then upgrade machine capacity only if volume demands it.
  • Level 1 (Technique): Confirm the workflow basics—7.75" safe width for 8" hoops, closed knockdown coverage, correct sequence order, and water soluble topping ready.
  • Level 2 (Tooling): Move to magnetic hoops if hoop burn and hooping time are the main bottlenecks.
  • Level 3 (Capacity): Consider a multi-needle machine only when single-needle speed is limiting throughput for batch orders.
  • Success check: Setup time drops and rework/ruined blanks decrease on the same fabric type and design structure.
  • If it still fails… Run a controlled test stitch on scrap and isolate whether the failure is digitizing coverage, hooping distortion, or speed/needle issues before investing further.
