Hatch Embroidery 2 “Optimize Color Changes”: Cut Thread Swaps Without Inviting Registration Gaps

Optimization vs. Reality: The Master Class on Reducing Thread Changes Without Ruining Registration

If you have ever hit the "Optimize" button in your software, watched the thread change count drop from 20 to 5, felt a surge of triumph, and then watched in horror as your machine stitched the outline a full millimeter away from the fill... welcome to the club.

That sinking feeling in your stomach is caused by Registration Error.

Novices blame the machine. Intermediates blame the digitizer. Masters understand the truth: verify the physics. Software assumes your hoop is a welded steel plate and your fabric is rigid plastic. In the real world, fabric is a fluid medium; it stretches, pushes, pulls, and "flags" under the needle.

This guide takes Linda Goodall’s excellent Hatch Embroidery 2 workflow and elevates it into a production-grade Standard Operating Procedure (SOP). We will move beyond just "clicking buttons" to understanding the physical forces at play, ensuring your efficiency never comes at the cost of quality.

The "Why": Registration isn't Random, It's Cumulative

When we talk about "registration," we refer to the precise alignment of two elements (usually a fill and its outline).

Here is the physics lesson most tutorials skip: Every stitch is a tiny distortion event. A satin stitch pulls fabric in; a fill stitch pushes it out.

• The Software's Lie: It believes if coordinate X,Y is the "Fill" and coordinate X,Y is the "Outline," they will land on top of each other.
• The Physical Reality: By the time the machine returns to coordinate X,Y after stitching the rest of the design, the fabric has shifted, the stabilizer has relaxed, and the fibers have distorted.

In the video, the root cause of the error is Aggressive Color Sorting. If you tell the machine to stitch "All the Red" then "All the Blue" across a large hoop, you force the machine to travel long distances. The longer the time gap and distance between the fill and its outline, the higher the risk of a gap.

If you are operating a single head embroidery machine, the temptation to reduce thread changes is high—nobody likes re-threading 12 times. But you must balance Speed vs. stability.

The "Sweet Spot" Speed Rule

• Expert Consensus: While commercial machines can run at 1000+ SPM (Stitches Per Minute), high-registration designs (like cartoons with outlines or text) suffer at high speeds.
• Action: For precise registration on critical jobs, slow your machine down to the 600-750 SPM range. This reduces the "flagging" (bouncing) of the hoop and allows the thread tension to lay flatter.


Phase 1: The Pre-Flight Digital Audit

Before you optimize anything, you must read your design like a roadmap. In Hatch Embroidery 2 (and most pro software), there is a dangerous discrepancy between what you see and what the machine does.

• Design Colors (The Palette): This is the list of unique ink colors.
• Sequence Docker (The GPS Route): This is the actual path the needle takes.

Linda highlights a crucial nuance: A color might appear twice in the sequence. Do not assume this is a mistake. It might be "Instructional Layering"—stitching the background orange, then a detail on top, then an orange foreground element. If you force these two oranges to stitch together, you might bury the detail layer.

Checklist 1: The Digital Pre-Flight (Do this OR Fail)

1. Identify Repeats: Open your Sequence Docker. Are the repeated colors separated by a logical layer (e.g., text over background)?
2. The "50% Rule": If a design covers more than 50% of your hoop area, do not optimize the whole layout at once. The travel distance is too high.
3. The Stabilizer Match: If you plan to optimize heavily (more travel), you need stronger stabilization to resist the shift.
   • Stretchy/Knits: Must use Cutaway stabilizer. No exceptions.
   • Stable/Woven: Tearaway is acceptable, but two layers are safer for dense optimization.


Phase 2: The "Safety Net" Grouping Habit

Linda’s first operational move is the cornerstone of professional data integrity: Group Before You Move.

New users often drag a selection box around a design, miss a tiny jump stitch or a single period in a sentence, and copy the design. You won't realize you left a piece behind until the machine finishes the job and you see a missing eye on a character.

• Action: Press Ctrl+A (Select All) $\rightarrow$ Ctrl+G (Group).
• Sensory Check: When you click the design, does the selection box encompass the entire perimeter tightly? If you see stray dotted lines outside the main box, you may have grouped unwanted artifacts.


The Pro Workflow: Cloning with Muscle Memory

Efficiency isn't just about machine speed; it's about digitizing speed. Linda uses the "Right-Click Drag" method.

1. Select the grouped object.
2. Hold Right-Click and drag the object to the new location.
3. Release: A menu pops up. Select "Duplicate Here."

Why this matters: This prevents the "Paste-in-Place-and-Drag" error, where you paste a copy directly on top of the original, forget it's there, and accidentally stitch the same design twice in the same spot—a guaranteed way to break a needle and jam your machine.

Hidden Consumable Alert: Keep a pair of precision tweezers and curved scissors at your station. When laying out multiple designs, you will inevitable create jump stitches that need trimming before the next color stitches over them.

Understanding the "Change Count" Trap

After cloning your design to create a layout (e.g., 4 shells in one hoop), your software might show 20+ color changes.

Here is the mental shift required:

• Amateurs optimize to get the number of changes down to the number of thread colors (e.g., 5 changes for 5 threads).
• Professionals optimize to the limit of the hoop's stability.

You might have 5 colors, but it is often safer to accept 8 stops rather than 5. Why? Because stopping the machine allows the fabric to "rest" and allows you to verify alignment visually before the critical outlines go down.

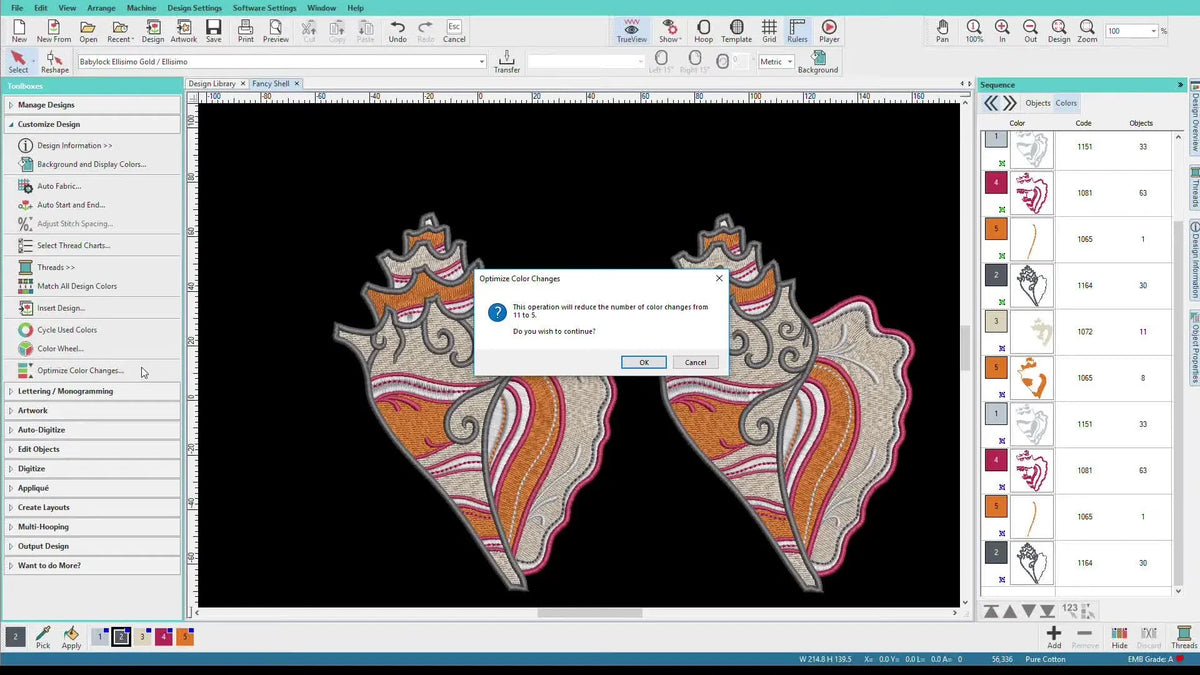

The Tool: "Optimize Color Changes" (Handle with Care)

In Hatch, the path is Customize Design $\rightarrow$ Optimize Color Changes.

The Danger Zone: This tool applies to the entire selection. If you have a 200mm x 300mm hoop filled with designs, and you optimize the whole thing, the machine will stitch Color 1 at the top left, then travel all the way to the bottom right to stitch Color 1 again.

The Result: That diagonal travel drags the fabric. By the time it comes back to the top left for the outline, the fabric has rippled.

The Strategy: The "Pair Optimization" Technique

Linda’s brilliance here is a lesson in limitation. She does not optimize all four shells at once. She optimizes them in Pairs.

She takes two shells that are physically close to each other and optimizes only that group.

• Result: The machine finishes Color 1 on Shell A and Shell B. Then finishes Color 2 on Shell A and B.
• Benefit: The machine never leaves the immediate vicinity of these two shells. The fabric distortion is localized and manageable.

The Physics of "Push and Pull"

• Fill Stitches: generally push fabric away from the start point.
• Column/Satin Stitches: pull fabric in (narrow the gap).
• If you stitch a huge area of fill (Push) and wait 10 minutes to resolve the outlines, the cumulative push will move the fabric 1mm-2mm. That is visible to the naked eye.
• Actionable Data: If your design features details smaller than 2mm, do not optimize across the whole hoop. Use the Pair Strategy.


The "Hooping" Factor: Where Software Meets Hardware

Linda states it clearly: "It's rarely a software bug."

If you are struggling with hooping for embroidery machine, no amount of software optimization will save you. You must secure the foundation first.

Sensory Hooping Check:

1. Sight: Is the grid on your hoop perfectly parallel with the grain of the fabric?
2. Touch: Run your finger across the hooped fabric. It should feel taut, like a drum skin, but not stretched to the point of distorting the weave.
3. Sound: Tap it. A dull "thud" means it's too loose. A crisp, light "thump" is the sweet spot.
4. The "Pinch Test": Try to pinch a wrinkle in the center. If you can easily pinch fabric up, you are too loose. Re-hoop.


Scaling Up: The Production Layout

Once the first pair is optimized safely, Linda clones that entire pair.

• Step 1: Optimize Shell 1 + Shell 2 (The Pair).
• Step 2: Group The Pair.
• Step 3: Clone The Pair to create Shell 3 + Shell 4.

Now, your machine will sew out the top half of the hoop (safe), then move and sew out the bottom half (safe). You only change threads twice as often as a "risky" full optimization, but you eliminate the risk of ruining four garments at once.

Decision Tree: How Aggressive Should You Be?

Use this logic flow to make the decision before you start stitching.

START: Assessment of Risk

1. Is the fabric unstable? (T-shirts, Pique knits, Fleece)
   • YES: Go to Step 2.
   • NO: (Denim, Twill, Felt) $\rightarrow$ You can risk broader optimization.
2. Does the design have critical registration? (Outlines, Eyes, Text)
   • YES: Use Pair Optimization Strategy. Do not optimize the full hoop.
   • NO: (Organic shapes, florals without outlines) $\rightarrow$ Full optimization is likely safe.
3. Are you using a Standard Hoop or a Magnetic Hoop?
   • Standard: Be conservative. Hoop burn and shifting are common.
   • Magnetic: You may have better retention, but check for "Flagging" (fabric bouncing).


Diagnosis & Troubleshooting: When It Still Goes Wrong

Even with good files, things happen. Use this table to diagnose the physical symptoms.

The Commercial Reality: When to Upgrade Your Tools

Linda ends with a profound truth: "This is a sewing problem, not a Hatch problem."

If you find yourself spending hours tweaking software to fix physical problems, or if your wrists are aching from fighting with traditional screw-hoops, it is time to look at your hardware solutions.

The Problem: Hoop Burn & Hooping Inconsistency

Traditional hoops rely on friction and brute force. To hold fabric tight, you must screw them down hard, which crushes the fibers (Hoop Burn) and distorts the grain.

• The Upgrade: magnetic embroidery hoops.
  • Why: They use vertical magnetic force rather than friction. This "sandwiches" the fabric without crushing/stretching it.
  • Result: Better registration because the grain line remains straight. Plus, zero hoop burn on sensitive fabrics like velvet or performance wear.

The Problem: Placement Nightmares

If you are doing a run of 50 left-chest logos, aligning them manually is slow and prone to human error.

• The Upgrade: A hooping station for machine embroidery.
  • Why: It creates a standardized jig. You set the placement once, and every shirt loads in the exact same spot.
  • Result: Consistent placement across sizes S-XXL.

Warning: Magnetic Safety
Magnetic embroidery hoops use powerful Neodymium magnets.
* Pinch Hazard: They can snap effective force quickly. Keep fingers clear of the mating surfaces.
* Medical Devices: Maintain a 6-inch safety distance from pacemakers or insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnets.

Final Checklist: The "Go/No-Go" Sequence

Before you press the green button on your machine, perform this 30-second audit:

1. Bobbin Check: Is the bobbin full? (Running out mid-fill is a registration nightmare).
2. Tension Check: Pull the top thread. Does it feel like flossing teeth (good), or like a loose hair (bad)?
3. Needle Check: Use your fingernail to check the tip of the needle. Any burr will snag fabric and cause shifting.
4. The "Trace" Key: Run the trace function on the machine. Does the needle stay strictly within the hoop limits?
5. Basting Stitch: (Highly Recommended) Run a basting box first. This stitches a temporary rectangle around the design, locking the fabric to the stabilizer before the dense stitching begins. This is the cheapest insurance you can buy.

By combining Linda’s software "Pairing Strategy" with these physical safeguards, you turn embroidery from a game of chance into a predictable science. Happy stitching!

FAQ

• Q: In Hatch Embroidery 2, why does “Optimize Color Changes” cause registration gaps between a fill and its outline on a large 200mm x 300mm hoop layout?
  A: Optimize Color Changes can create long travel paths that physically drag fabric, so the outline returns after the fabric has shifted.
  • Check the Sequence Docker route before optimizing, not just the color palette.
  • Avoid optimizing the full hoop when the layout covers more than 50% of the hoop area.
  • Use the Pair Optimization technique by optimizing only two nearby motifs at a time.
  • Success check: After stitching a fill, the matching outline lands cleanly on the edge with no visible shadow gap.
  • If it still fails: Slow machine speed to 600–750 SPM and add a basting box to lock fabric to stabilizer.
• Q: What is the safest machine speed (SPM) to reduce flagging and protect registration on outline-heavy cartoon and text designs on a single head embroidery machine?
  A: A safe production starting point for critical registration is 600–750 SPM, even if the machine can run much faster.
  • Reduce speed before stitching outlines, small text, eyes, and tight borders.
  • Watch for hoop bounce/flagging during fast direction changes and long satin runs.
  • Keep the job stable rather than chasing the lowest thread-change count.
  • Success check: The hoop looks steady (minimal bounce) and outlines do not “walk off” the fill.
  • If it still fails: Verify hooping tension with the tap test and consider adding a basting box.
• Q: When repeated colors appear twice in the Hatch Embroidery 2 Sequence Docker, when should repeated colors NOT be merged during color optimization?
  A: Do not merge repeated colors when a repeated color is separated by a logical layer (detail/text sandwiched between background and foreground).
  • Identify repeats in the Sequence Docker and look for “instructional layering” (background → detail → foreground).
  • Avoid forcing “all of one color” to stitch together if it would bury small details under later stitches.
  • Optimize in smaller groups (pairs) instead of the entire layout to preserve layering and alignment.
  • Success check: Small details remain visible and crisp after the surrounding background/foreground stitches complete.
  • If it still fails: Accept extra stops (for example, 8 instead of 5) so alignment can be checked before critical outlines.
• Q: What stabilizer should be used for stretchy knits when aggressive color sorting increases travel and distortion risk in machine embroidery?
  A: Use cutaway stabilizer on knits—no exceptions—especially when optimization increases travel and stitch time.
  • Choose cutaway for T-shirts, pique, fleece, and other unstable fabrics.
  • Use tearaway only on stable wovens; consider two layers if the design is dense or heavily optimized.
  • Add a basting box to tie fabric to stabilizer before dense stitching starts.
  • Success check: After the first dense section, the fabric stays flat with no shifting lines or creeping outlines.
  • If it still fails: Reduce optimization scope (pair strategy) and slow speed to the 600–750 SPM range.
• Q: How can hooping quality be judged before stitching to prevent hoop drift and one-sided gaps in machine embroidery registration?
  A: Use a quick sensory hooping check—tight like a drum skin, but not stretched to distort the weave.
  • Align the hoop grid parallel to the fabric grain before tightening.
  • Tap the hooped fabric: aim for a crisp, light “thump,” not a dull “thud.”
  • Do the pinch test in the center: if a wrinkle pinches up easily, re-hoop tighter.
  • Success check: The fabric surface feels uniformly taut and the design area cannot be easily pinched into a ridge.
  • If it still fails: Tighten the hoop screw and run a basting box to prevent drift during long travel.
• Q: What should be done when machine embroidery shows a gap only on one side of the outline (hoop drift symptom) after color optimization?
  A: Treat a one-sided gap as hoop drift first and secure the foundation before changing the file.
  • Tighten the hoop screw and re-check hoop tension using the tap and pinch tests.
  • Add a basting box around the design to lock fabric to stabilizer before the main stitching begins.
  • Reduce aggressive full-hoop optimization; stitch in pairs to keep travel localized.
  • Success check: The next sew-out shows the outline touching the fill evenly, without a single-side “open seam.”
  • If it still fails: Re-evaluate stabilizer choice (cutaway for knits) and slow speed to 600–750 SPM for critical outlines.
• Q: What are the key safety rules for using magnetic embroidery hoops with strong Neodymium magnets in a production environment?
  A: Magnetic embroidery hoops are safe when handled deliberately—keep fingers and sensitive devices away from the mating surfaces and magnets.
  • Keep fingers clear when closing the hoop to avoid pinch hazards from sudden snap force.
  • Keep at least a 6-inch distance from pacemakers or insulin pumps.
  • Avoid placing phones, credit cards, or sensitive electronics directly on the magnets.
  • Success check: The hoop closes without finger contact in the pinch zone and the fabric is clamped evenly with no crushing marks.
  • If it still fails: Switch to a slower, two-handed closing method and confirm the hoop is seated square before starting the machine.
