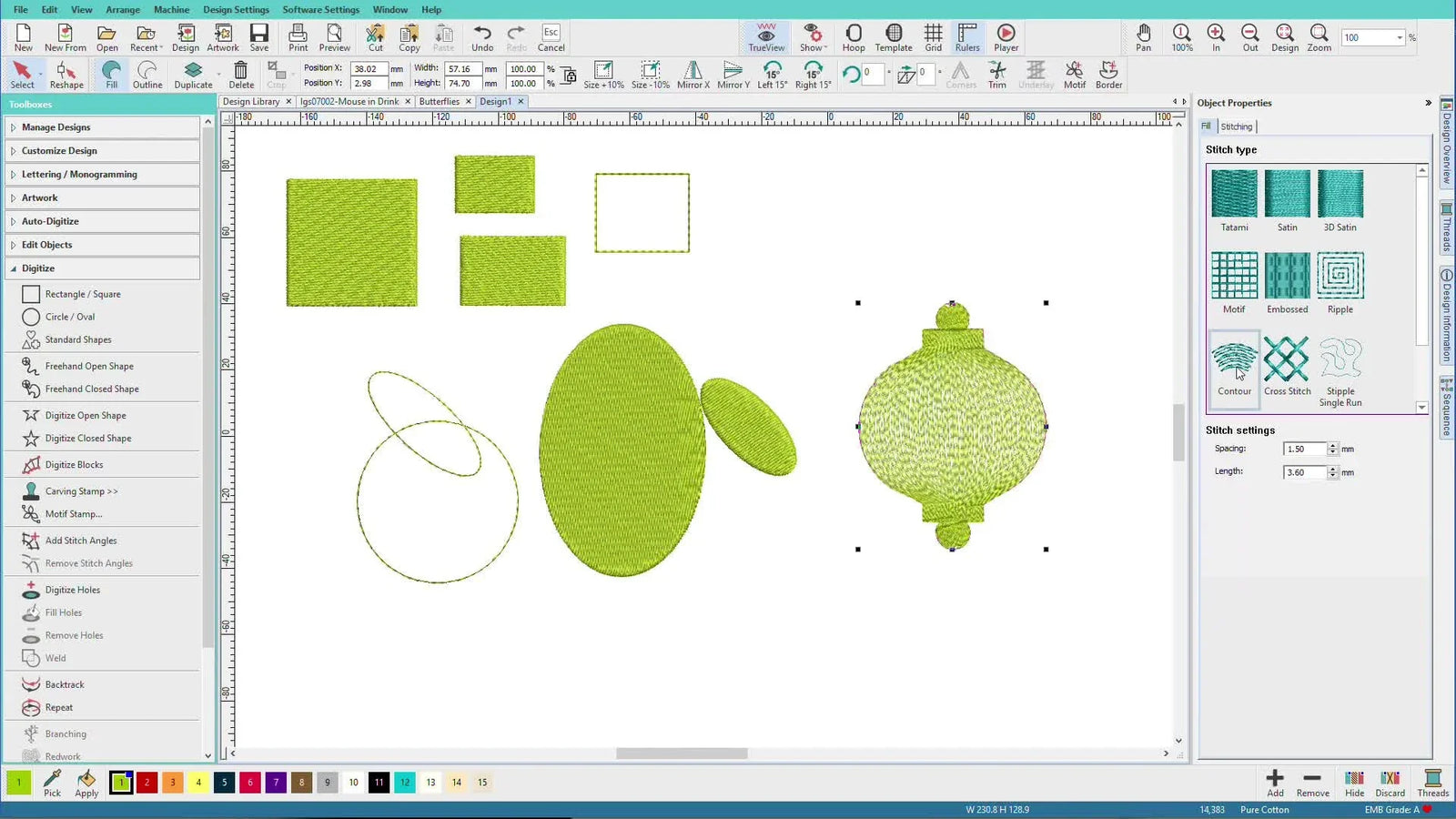

Hatch Embroidery 2 Manual Digitizing Basics: Draw Clean Shapes, Pick the Right Stitch, and Avoid the “Why Does This Sew Weird?” Trap

When you are new to embroidery digitizing, the software interface often feels like an airplane cockpit: there are buttons everywhere, cryptic icons, and the lingering fear that one wrong click will result in a stitch-out that looks nothing like your screen—or worse, breaks a needle.

This guide, based on Linda Goodall’s expert workflow in Hatch Embroidery 2, is your flight manual. But we are going to go deeper than just "where the buttons live." As a veteran embroiderer, I can tell you that successful digitizing isn't about memorizing menus; it's about anticipating how thread pulls fabric.

By the end of this white paper, you will master the two critical decisions—Fill or Outline? and Open or Closed?—and understand the physical reality behind them. We will also cover the "hidden" consumables and safety checks that turn a digital design into a sellable product.

Calm the Panic: The Hatch Embroidery 2 Digitizing Toolbox Is Simpler Than It Looks

The panic sets in when you look at the sheer volume of tools. Let's deconstruct the Digitizing Toolbox using a "construction site" metaphor that mirrors how embroidery objects are actually built on the machine:

• Graphics / Wireframe Tools: These build the foundation. They create the shapes or "containers" that hold your stitches.
• Texture Tools: These are the finishers. They decide if the floor is carpet (tatami fill) or tile (satin).
• Manipulation Tools: These are the inspectors. They let you reshape, resize, and refine.

The "Zero-Friction" Habit: When you feel lost, stop clicking. Hover your mouse over the icon. As the video reminds us, F1 opens Help.

• Pro Tip: Learn the hotkey H (Reshape) immediately. You will use this 80% of the time to fix nodes that don't look right.


The Two Questions That Decide Everything: Fill vs Outline, Open vs Closed (and Why You Can’t Undo That Choice)

Digitizing is a series of binary decisions. If you get these wrong, you will fight the software. If you get them right, the logic flows naturally.

1. Do I want a Fill or an Outline?

• Fill: Covers an area (like a circle filled with color). Physically, this involves thousands of needle penetrations to cover the fabric.
• Outline: Traces the edge (like a border). Physically, this is a run stitch or a thin satin column.

2. Do I want an Open or a Closed shape?

• Closed Shape: A continuous boundary where the start meets the end (circles, squares). The software knows where the inside is, so it can fill it.
• Open Shape: A line with two distinct ends (a string, a curve). The software cannot fill this because the "water" would leak out.

The "Gotcha" That Wastes Hours: Linda warns of a critical constraint: You generally cannot change an open shape into a closed one (or vice versa) after drawing it. Unlike vector illustration programs (like Illustrator) where you can join nodes later, embroidery logic implies stitch direction based on the object type. If you draw an Open Line but realize you wanted a Filled Blob, you usually have to delete it and redraw it.

The “Hidden” Prep Pros Do Before Drawing Anything (So the Stitch-Out Matches the Screen)

Before you draw your first rectangle, you must perform a "Pre-Flight Check." Beginners skip this and end up with the "Digitize → Stitch → Hate it → Blame the Machine" cycle.

Prep Checklist (Do this once per session)

• Document Check: Confirm you are in a New Blank Document (Ctrl+N). Old files may carry over weird settings.
• Panel Visibility: Open the Digitizing Toolbox so you can see your tools clearly.
• Mode Confirmation: Click a digitizing tool once. Look at the top toolbar: Did the Fill / Outline options light up? (This is your visual confirmation you are ready to draw).
• Consumable Check: Do you have enough bobbin thread? (Look for the white thread showing 1/3 in the center of a pre-wound bobbin).
• Status Bar Eye-Scan: Look at the bottom left of the screen. Hatch tells you exactly what to do next (e.g., "Enter start point").

Note: If you don't see a "Digitize" dropdown, don't panic. Interfaces vary by product level (digitizer vs. organizer). The Anchor is the Digitizing Toolbox panel.

Draw Rectangles in Hatch Embroidery 2 Without Regret: Pick Properties First, Then Drag

Linda demonstrates a workflow that separates the pros from the frustrated amateurs: Select Properties BEFORE you draw.

The Workflow:

1. Select the Rectangle Tool.
2. STOP. Look at the Object Properties or Toolbar.
3. Choose Fill (e.g., Tatami) or Outline (e.g., Satin Line) now.
4. Click to set the start corner.
5. Drag to the diagonal corner.
6. Press Esc to release the tool.

Why this matters physically: If you draw a shape as an outline and try to force it into a fill later, the underlying underlay (the foundation stitches) might not generate correctly. By selecting "Fill" first, Hatch calculates the necessary underlay to stop the fabric from puckering during the stitch-out.

Circles and Ovals: The Status Bar + ENTER Trick That Makes You Look Like a Power User

Circles behave differently than rectangles. The software needs to know if you want a perfect circle or an oval.

The "Click-Click-ENTER" Rhythm:

1. Select Circle/Oval Tool.
2. Click the Center point.
3. Drag outward to define the radius.
4. Click again to set the perimeter key point.
5. Press ENTER immediately.

Auditory Cue: If you hear yourself clicking multiple times trying to "close" the circle, you are doing it wrong. Click, Drag, Click, SMASH ENTER.

• Result: A perfect mathematical circle.
• Variation: If you drag again without pressing Enter, you create an oval. The direction of your drag defines the oval's angle.


Standard Shapes Library (Borders): Fast Decorative Bases You Can Customize in Seconds

Why hand-draw a shield or a badge outline when geometry exists? The Standard Shapes tool is your shortcut for commercial items like patches and name tags.

The Tactic:

• Linda opens Standard Shapes.
• Browses the Borders library.
• Selects a decorative plaque shape.
• Drags it onto the canvas.

Commercial Application: This is how shops make money. You define the shape, convert it to an Applique or a heavy fill background, and you have a finished badge base in 10 seconds. Spend your time on the logo inside the badge, not drawing the badge itself.

Make Flat Shapes Look Expensive: Contour, Motif, Embossed Fill, and Ripple Fill (with One Key Number)

This is the section where beginners "level up." Transforming a flat block of color into a textured masterpiece requires understanding density.

The Effects:

• Contour: Follows the shape of the outline, spiral-inwards.
• Motif: Replaces solid stitches with small patterns (stars, circles).
• Embossed: Stamps a pattern into the fill.
• Ripple: Like a stone thrown in a pond.

The Critical Data Point: Linda sets the Contour spacing to 8 (approx. 2mm or 0.08").

• The Trap: Standard density is usually ~0.40mm. If you leave a textured fill at 0.40mm, it will be bulletproof stiff and likely break needles.
• The Sweet Spot: For decorative background textures (Ripple/Contour), start with a spacing of 1.5mm to 3.0mm. This reduces stitch count and prevents the fabric from curling up like a potato chip.


Outline Stitch Types + 3D Satin: Use TrueView Off to Inspect What’s Really Happening

Linda cycles through outline types: Run → Backstitch → Zigzag → Satin → 3D Satin.

The "3D Satin" Illusion: Linda notes that 3D Satin simulates puffy foam without actually using foam.

• How it works: It layers multiple satin stitches on top of each other.
• The Risk: This creates a very thick ridge. On delicate fabrics (like t-shirts), this can be too heavy.

Visual Inspection (The X-Ray View): Always toggle TrueView OFF (usually the 'T' key) to see the wireframe.

• Look for: Dangerously dense clusters of needle points at tight corners.
• Fix: If the wireframe looks like a solid black blob at the corners, the physical needle will hammer that spot until the fabric tears. Reduce density or increase spacing.

Note: When dealing with these heavy outlines, your choice of hooping for embroidery machine becomes vital. If the hoop isn't tight (drum-skin tight), these heavy 3D stitches will pull the fabric inward, destroying the registration.

Freehand Open Shape Tool: The Fastest Way to Add Shading, Stippling, and Signatures

The Freehand Open Shape tool acts like a pencil. It creates lines that do not close.

Best Uses:

• Stippling (random wandering lines for quilting).
• Fur textures.
• Handwritten signatures.

Instructional Anchor: Click, hold the left mouse button, and draw. It requires a steady hand.

• Sensory Check: If your mouse movement is jerky, the stitch line will be jagged. Move your hand in smooth, sweeping arcs.
• Setup: Zoom in! Drawing freehand while zoomed out is like trying to sign a check from across the room.


Freehand Closed Shape Tool: How to Fill “Blob” Shapes Without Accidental Holes

The Freehand Closed Shape tool automatically connects your end point to your start point to create a fillable area.

The Troubleshooting Point (Symptom: Holes in the Fill): Linda warns: "If you backtrack over yourself, that region won't get filled."

• The Logic: The software interprets a self-intersecting path as a "void" or a hole (mathematically, an even-odd rule).
• The Fix: Draw roughly. Don't scribble. If you need a complex edge, draw the main blob first, then use the Reshape Tool to add the details later.


The Compatibility Question Everyone Asks: “Will This Work on My Brother / Singer Machine?”

Beginners often ask: "Does this lesson apply to my Brother SE1900 or Singer Quantum?"

The White Paper Answer: Hatch is the architect (creating the plan). Your machine is the builder.

• Yes, these designs work on any machine, provided you export to the correct format (PES for Brother, DST for commercial, etc.) and stay within your hoop limits.

Hardware Reality: You can digitize the most beautiful outline in Hatch, but if you are using a basic hoop on a slippery shirt, the outline won't line up. This is where brother se1900 hoops and aftermarket stabilizing frames become a workflow decision. Stability in the Software = Stability in the Hoop.

The “Missing Menu / Expensive Version” Confusion: What to Check Before You Assume You Bought the Wrong Hatch

If you don't see the tools Linda uses:

1. Check your Product Level: Hatch has different tiers (Digitizer, Organizer, Personalizer). Verify you have the "Digitizer" level features.
2. Check UI Layout: Panels can be hidden. Go to Window > Toolbars or Window > Dockers and ensure Digitizing Toolbox is checked.


The “Why” Behind Better Stitch-Outs: Digitizing Choices, Fabric Behavior, and Hooping Are One System

Software is only 33% of the equation. Success formula: Good Digitizing + Correct Stabilizer + Immovable Hooping = Perfect Embroidery.

Decision Tree: Stabilizer + Hooping Strategy

Use this logic flow to prevent ruined garments:

1. Is the Fabric Stretchy (T-shirt, Hoodie, Knit)?
   • YES: You must use Cutaway stabilizer. Tearaway will fail, and stitches will distort.
   • NO (Denim, Canvas): You can use Tearaway.
2. Is the Design Dense (Heavy Fills, 3D Satin)?
   • YES: You need "Absolute Stability."
   • The Pain Point: Traditional hoops often leave "hoop burn" (shiny rings) on delicate fabrics when tightened enough to hold heavy designs.
   • The Solution: Many professionals switch to magnetic embroidery hoops. They clamp fabric firmly without crushing the fibers as aggressively as friction hoops.
3. Are you doing production runs (50+ shirts)?
   • If you are fumbling with screw-tightening hoops for 50 shirts, you are losing money. Learning how to use magnetic embroidery hoop systems allows you to snap the fabric in place in seconds.

Warning: Needle Safety. When setting up your machine, treat the needle area as a "No Hand Zone" while the machine is powered. A digitizing error can cause a needle to strike the hoop and shatter, sending metal shards flying. Always wear eye protection.

Warning: Magnet Safety. Magnetic hoop for brother se1900 and commercial machines use powerful neodymium magnets. They can pinch skin severely and damage mechanical watches or pacemakers. Handle with respect.

Hidden Consumables List (What you forget to buy):

• Temporary Spray Adhesive (505 spray): Essential for floating fabric.
• Sharp Scissors/Snips: Dull scissors cause frayed thread ends.
• Needles (75/11 Ballpoint): For knits.
• Needles (75/11 Sharp): For wovens.


Troubleshooting the “Scary” Results: Symptom → Likely Cause → Fix

If your stitch-out fails, don't guess. Use this diagnostic table (sorted from Cheapest to Most Expensive fix).

The Upgrade That Actually Moves the Needle: Faster Hooping, Less Rework, More Sellable Results

Linda's video gives you the software skills to create beautiful designs. But if you are trying to turn this into a business, the bottleneck will quickly shift from "Designing" to "Manufacturing."

The Pain of Success: As you get more orders, you will find that hooping takes longer than stitching. Your wrists will hurt from tightening screws.

• Level 1 Upgrade: An embroidery hooping station ensures every logo is placed exactly 3 inches down from the collar, every time. No more crooked shirts.
• Level 2 Upgrade: Magnetic Frames. These reduce the strain on your hands and eliminate hoop burn.

The Ultimate Scale-Up: If you are consistently running orders on a single-needle machine and frustrated by the constant thread changes (stopping every 2 minutes to switch from Red to Blue), it is time to look at the math. A SEWTECH multi-needle machine allows you to set up 15 colors at once and walk away. It turns "babysitting the machine" into "passive production."

Operation Checklist (The "Go/No-Go" Final Check)

• Object Check: Did I close all shapes intended for Fills?
• Path Check: Did I start from the center and work out (to prevent fabric pushing)?
• Density Check: Did I increase spacing (e.g., 2.0mm+) for decorative Ripple fills?
• Simulation: Did I run the "Stitch Player" in Hatch to check for weird jumps?
• Physical Check: Is the fabric "drum-tight" in the hoop? (Tap it; it should sound like a drum).

Mastering the logic of Fill vs Outline is your first step. Mastering the physics of the hoop is your second. Do both, and you stop being a hobbyist and start being a professional.

FAQ

• Q: In Hatch Embroidery 2 Digitizer, why can’t Hatch convert an Open Shape line into a Closed Shape fill after drawing?
  A: This is common—Hatch Embroidery 2 typically locks the object logic at creation, so the practical fix is to delete and redraw with the correct Open/Closed choice.
  • Stop and decide first: choose whether the object must be fillable (Closed Shape) or just a line (Open Shape) before placing points.
  • Redraw the object using the correct tool (Open Shape tools for lines; Closed Shape tools for fill areas).
  • Use the Reshape hotkey H to refine nodes after the correct object type exists.
  • Success check: the shape shows a continuous boundary with start meeting end, and Hatch enables fill properties without errors.
  • If it still fails: start a New Blank Document (Ctrl+N) to avoid old-file settings and confirm the Digitizing Toolbox is visible.
• Q: In Hatch Embroidery 2, what is the correct “pre-flight check” before digitizing so the stitch-out matches the screen?
  A: Do a quick session reset and confirm both software mode and consumables before drawing anything.
  • Create a New Blank Document (Ctrl+N) and open/confirm the Digitizing Toolbox panel is visible.
  • Click one digitizing tool and verify the top toolbar lights the Fill/Outline options (mode confirmation).
  • Check bobbin supply before starting (look for white thread showing about 1/3 in the center of a pre-wound bobbin).
  • Read the status bar prompt (bottom-left) and follow it (example: “Enter start point”).
  • Success check: Hatch prompts the next required action and the first object draws without “why is nothing happening?” confusion.
  • If it still fails: verify the Hatch product level includes Digitizer features and that panels are not hidden in the UI layout.
• Q: In Hatch Embroidery 2, why should Hatch embroidery digitizers choose Fill or Outline properties BEFORE drawing rectangles?
  A: Pick Fill or Outline first because Hatch Embroidery 2 calculates the correct stitch foundation (including underlay) based on that choice.
  • Select the Rectangle Tool, then stop and choose Fill (e.g., Tatami) or Outline (e.g., Satin Line) before placing the first corner.
  • Draw the rectangle corner-to-corner, then press Esc to release the tool cleanly.
  • Avoid drawing as Outline and “forcing” it into a Fill later because underlay may not generate correctly.
  • Success check: the object previews as the intended fill/outline type immediately and stitches simulate without odd gaps or unstable coverage.
  • If it still fails: re-create the rectangle from scratch with the correct property selected first rather than trying to convert the old object.
• Q: In Hatch Embroidery 2, how do Hatch embroidery digitizers make Ripple/Contour textured fills without creating bulletproof stiff embroidery or needle breaks?
  A: Increase spacing for decorative textures—leaving texture fills at standard dense settings can make the embroidery overly stiff and risky.
  • Set decorative texture spacing as a safe starting point in the 1.5 mm to 3.0 mm range for Ripple/Contour-style backgrounds.
  • Use Linda’s reference point: Contour spacing set to 8 (about 2 mm / 0.08") for a lighter, more stable texture.
  • Toggle TrueView OFF (wireframe) to spot dense clusters at corners before stitching.
  • Success check: the fabric does not curl up “like a potato chip,” and the texture looks dimensional without feeling rigid.
  • If it still fails: reduce density further (increase spacing) and re-check wireframe for black, hammered corner blobs.
• Q: When embroidery outlines do not line up during stitching, what is the fastest troubleshooting path for loose hooping vs. Hatch pull compensation?
  A: Treat loose hooping as the most common cause first, then adjust software pull compensation if hooping is solid.
  • Re-hoop the garment tighter and aim for “drum-skin tight” hooping before changing software settings.
  • If available, use a hooping station to keep placement consistent and reduce shifting.
  • Then adjust pull compensation in software (example target shown: increase Pull Comp to 0.40 mm when outlines are mis-registering).
  • Success check: the fabric feels drum-tight when tapped and outlines land on top of fills without visible offset.
  • If it still fails: re-check design density and heavy outline choices (dense corners can pull fabric inward even with good hooping).
• Q: What causes holes in a Hatch Embroidery 2 Freehand Closed Shape fill, and how do Hatch digitizers fix accidental “holes” fast?
  A: Holes usually happen when the closed path backtracks or self-intersects, so redraw the blob cleanly and reshape afterward.
  • Draw the main blob smoothly without scribbling or crossing over the line you already drew.
  • If the edge must be complex, draw a simpler closed shape first, then refine using Reshape (H) instead of backtracking.
  • Re-run stitch simulation to confirm the fill covers the intended area.
  • Success check: the filled area is continuous with no unfilled voids where the line crossed itself.
  • If it still fails: also check physical stability—fabric shifting in the hoop can mimic “holes” even if the path is correct.
• Q: What needle safety rules should beginners follow when setting up an embroidery machine for dense designs like 3D Satin outlines?
  A: Keep hands out of the needle zone with power on, because digitizing mistakes can drive the needle into the hoop and shatter.
  • Power on only when hands are clear and treat the needle area as a strict “No Hand Zone.”
  • Run stitch simulation first to catch weird jumps that could send the needle toward the hoop.
  • Inspect wireframe (TrueView OFF) to spot dangerously dense corners that can cause hammering and deflection.
  • Success check: the machine clears the hoop during movement and there is no contact risk during the first slow run.
  • If it still fails: stop immediately, power down, re-check hoop size limits, and reduce dense corner buildup before attempting again.
• Q: What magnet safety precautions are required when using magnetic embroidery hoops on home or commercial embroidery machines?
  A: Magnetic embroidery hoops use powerful neodymium magnets—handle them slowly and deliberately to avoid pinches and device damage.
  • Keep fingers clear of clamp points when letting magnets close; magnets can pinch skin severely.
  • Keep magnetic hoops away from mechanical watches and anyone with pacemakers or similar medical devices.
  • Set the hoop down flat and control the closing action instead of “snapping” it shut.
  • Success check: the hoop closes without finger pinches and fabric is clamped evenly without crushing marks.
  • If it still fails: slow down the handling sequence and confirm the fabric/stabilizer stack is not too bulky for safe closure.
