Hatch Embroidery 2 Interface Tour: Find Toolboxes, Tabs, Dockers, and Object Properties Without the Panic-Clicking

Master the Hatch Embroidery 2 Interface: A Field Guide for the Frustrated Beginner

If you’ve ever opened Hatch Embroidery 2, stared at the interface, and felt your brain go blank—surrounded by too many icons, too many panels, and a sinking feeling that you don’t know where the “real” tools are—you are not alone. In my 20 years of teaching machine embroidery, I’ve watched thousands of newcomers panic. They click randomly, accidentally close a critical panel, and then blame themselves for being "bad with technology."

Here is the truth: Embroidery software is just a digital map of a physical process.

Hatch is actually laid out logically. It mimics the workflow of a professional shop: You organize, you customize, you digitize, and you output. Once you understand the "territory," you stop panic-clicking. You start working with the calm precision of a master craftsman.

This guide isn’t just a tour; it’s a restructuring of how you see the screen, designed to move you from confusion to production.

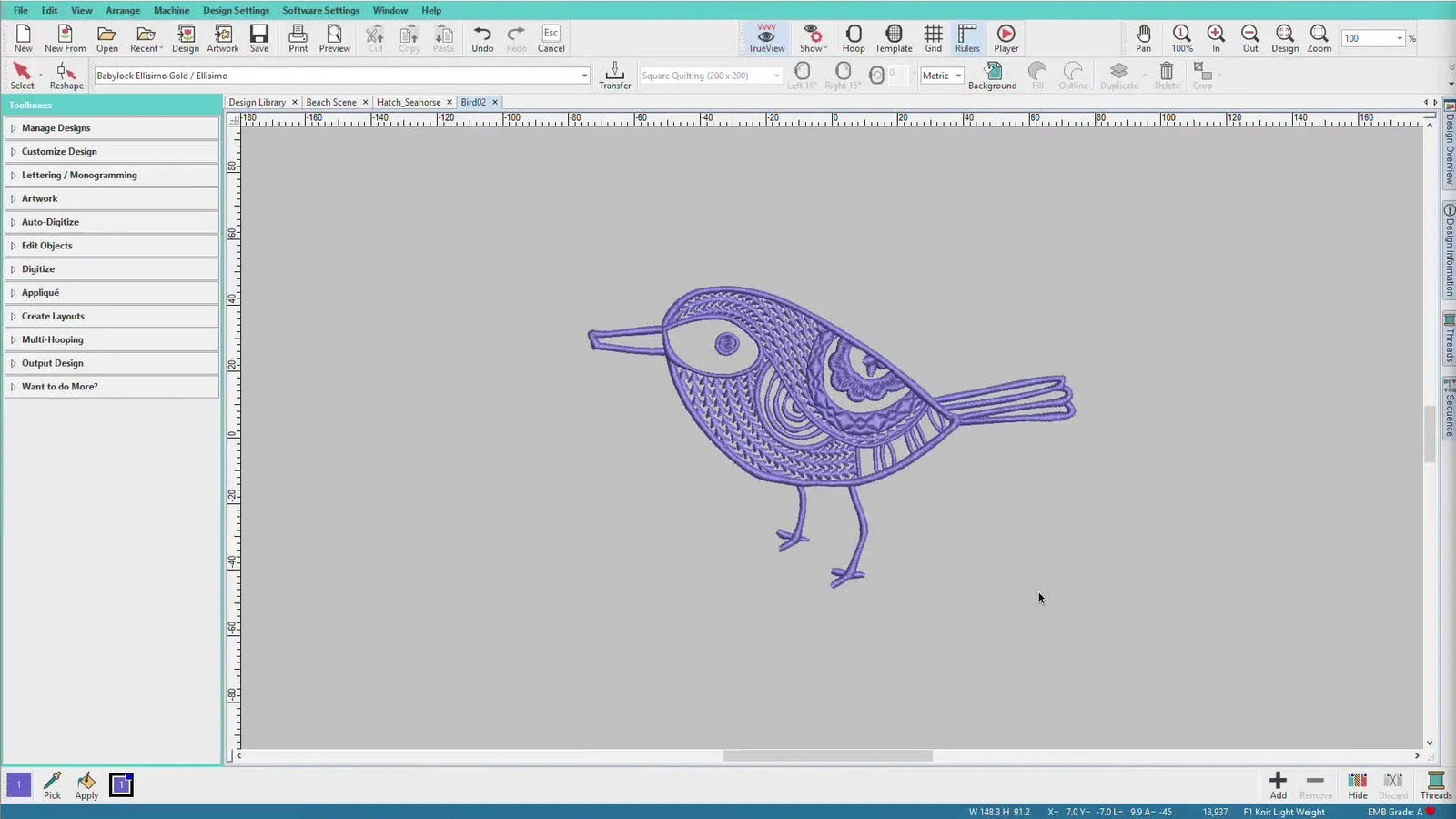

The Hatch Embroidery 2 Screen Layout: Learn the Map Once, Stop Getting Lost Forever

Hatch uses a consistent workspace layout across all software levels—Organizer, Personalizer, Composer, and Digitizer. This is intentional. Whether you are a hobbyist doing one tote bag or a shop owner scaling up to SEWTECH multi-needle embroidery machines, the logic of "where things live" remains the same.

At a high level, your screen is divided into specific functional zones:

• Top Menus: The classic File/Edit/View commands.
• Context Toolbars: Icons that change based on what you touch (more on this later).
• The Canvas: Your central design window.
• Left Toolboxes: The "To-Do List" of tasks.
• Bottom Bars: Your critical data dashboard (Colors + Status).
• Right Dockers: Your deep-dive controls (Sequence + Properties).

Expert Insight: Speed in embroidery isn't just about stitches per minute (SPM). It's about decision speed. If you have to hunt for the "Resize" button for 30 seconds every time, you break your creative flow. Learning this map is the first step to reducing that friction.

The Top Menu Bar + Context Toolbars: Why Tools "Disappear" (And How to Bring Them Back)

Across the very top, you have the standard menus. But directly underneath are two rows of tools that cause the most anxiety for beginners: the Context-Sensitive Toolbars.

Beginners often say, "My tool vanished!" In reality, Hatch is just decluttering. It only shows you tools relevant to your current action.

The Logic Check: If you cannot find a tool, pause and look at your hands—digitally speaking:

1. What Mode are you in? (Are you in 'Select' mode or 'Reshape' mode?)
2. What Object is selected? (Lettering has different tools than a Tatami fill).

If you select a text object, the text tools appear. If you deselect everything, they hide. It’s not a glitch; it’s the software handing you the right wrench for the bolt you’re holding.

Design Tabs: The "Batch Processing" Secret

The large area in the middle is your Design Window. If you have multiple designs open, they appear as Tabs at the top, allowing you to switch between a "Bird," a "Seahorse," and a "Sunset" instantly.

Why this matters for production: In a real workshop, we rarely work on one file in isolation. You might have the "Test Stitch" file open in Tab A and the "Final Production" file in Tab B.

• Visual Check: Tabs allow you to overlay designs mentally without merging them physically.
• Efficiency: If you are digitizing names for a team jersey order, keep the master template open in one tab and the current name in another.

Warning: The "Tab Trap."
Before you hit "Export" or "Send to Machine," physically point to the active tab name. It is painfully common to edit the "Seahorse," get distracted, click the "Bird" tab, and accidentally send the Bird file to the machine. Always confirm the active tab matches your intended output.

Toolboxes on the Left: Your Navigation Compass

On the left side, you find the Toolboxes. This is your workflow compass.

Instead of scattering tools everywhere, Hatch groups them by stage of creation:

1. Manage Designs: (Opening, finding)
2. Customize Design: (Resizing, changing colors)
3. Lettering: (Adding names)
4. Edit Objects: (Deep changes)
5. Output Design: (Saving, exporting)

The "Collapse" Feature: In the video, clicking a small triangle opens a toolbox and collapses the others. This is a cognitive aid. It forces you to focus on one phase at a time.

Pro Tip: Treat these toolboxes as a pilot's checklist. Do not jump to "Output" until you have finished "Customize."

The Bottom Bars: Status Bar & Design Colors (Your "Reality Check" Dashboard)

This strip at the bottom of the screen is the most important, yet most ignored, tool for safety. It connects the digital world to the physical world.

The Status Bar displays:

• Prompt (Far Left): Tells you exactly what the software is waiting for you to do.
• Size (Width/Height): The physical dimensions.
• Stitch Count: The density load.
• Fabric Setting: The physics engine settings.

The Sensory Anchor: Do not just read "12,527 stitches." Feel that number.

• 12,000 stitches on a denim jacket? No problem.
• 12,000 stitches on a thin t-shirt pocket? That is a bulletproof patch that will pucker and distort.

The Hidden Consumable Check: Seeing the size here (e.g., 102mm width) is your cue to check your physical inventory. Do you have the right size hoop? Do you have enough stabilizer (backing)? Do you have temporary spray adhesive or a water-soluble topping pen? The Status Bar is your inventory warning light.

Dockers on the Right: The Engine Room

On the right, you have Dockers like "Sequence" and "Object Properties." In the video, these are popped open as needed.

The "Double-Click" Shortcut: The video shows the ultimate power move: Double-click any stitch object on your canvas.

• Boom. Object Properties opens automatically.

This is where you change the DNA of your design: switching a Satin stitch (smooth, shiny column) to a Tatami fill (flat, textured field).

The "Hidden" Prep: Before You Click a Single Button

Before you start editing, you must perform a "Pre-Flight Check." Software allows you to do impossible things; physics does not.

Phase 1: Prep Checklist (The "Don't Break a Needle" List)

• Identify your Level: Are you in Organizer or Digitizer? (Don't hunt for tools you don't own).
• Check the Tab: Close old designs to prevent "Tab Trap" errors.
• Reality Check the Status Bar: Read the Width/Height.
• Physical Hoop Match: Does the digital size fit inside your actual physical hoop's safe sewing area? (Leave 10-15mm buffer).
• Stitch Count Baseline: Note the starting stitch count. If a resize doubles this number, you are in danger of bulletproofing.

Fabric Setting + Real Fabric: The Decision Tree

Hatch asks you to select a fabric (e.g., "PT Knit Light Bright"). This adjusts underlay and pull compensation automatically. However, software cannot hold the fabric for you. You must pair this setting with the right physical stabilizer.

Use this decision tree to match your screen settings to reality:

Decision Tree: Fabric → Stabilizer Strategy

1. Is the fabric a Stable Woven (Denim, Canvas, Twill)?
   • Software: Select "Woven" profile.
   • Physical: Use Tear-away (light) or Cut-away (dense designs).
   • Hooping: Hoop tight, like a drum skin. Tap it—you should hear a distinct thump.
2. Is the fabric Stretchy (T-shirt, Polo, Performance Wear)?
   • Software: Select "Knit" profile (Crucial: adds stretch compensation).
   • Physical: Cut-away stabilizer is non-negotiable. Tear-away will result in a distorted mess after the first wash.
   • Hooping: Do not stretch the shirt while hooping!
3. Is the fabric Textured/Lofty (Fleece, Towel, Velvet)?
   • Software: Select "Terry/Fleece" profile (Adds underlay to lift stitches).
   • Physical: Use Tear-away/Cut-away on the back AND a Water Soluble Topping on top to keep stitches from sinking into the pile.
4. Is the item "Impossible" to Hoop (Bag pockets, Thick jackets, Caps)?
   • The Pain: Struggling to force a thick bag into a standard plastic hoop causes "hoop burn" (permanent rings) or pops the hoop open mid-stitch.
   • The Upgrade: This is where professionals search for a magnetic embroidery hoop. These clamp fabric magnetically without force-fitting rings, preventing burn marks and saving your wrists.

Setup Habits: Organizing Your Digital Workbench

Once your prep is done, configure Hatch for the specific job.

Phase 2: Setup Checklist

• Clear the Decks: Close unrelated Dockers. Keep Sequence and Object Properties handy.
• Select the Right Toolbox: If you are adding a name, open "Lettering." If resizing, open "Customize."
• Save a "V1": Before making major edits, File > Save As "Design_Name_V1". Never edit your only copy of a source file.

Operation: Editing Without Ruining the Design

The video demonstrates changing stitch types via Object Properties. This is powerful but dangerous.

The Concept:

• Satin Stitches: Long, floating threads (like on a letter 'I'). Great for borders. Bad for wide areas (snag hazard).
• Tatami Fills: interlocking rows of stitches. Good for filling large shapes.

The Trap: If you convert a large Tatami fill into a Satin stitch, you might create "jumps" that are 12mm or longer. Your machine may trim these, or worse, leave loose loops that snag and break.

Troubleshooting Thread Breaks (The Logical Flow): When users see thread breaks, they blame the machine tension. 90% of the time, it's:

1. The Needle: Is it old? Bent? (Check this first—lowest cost).
2. The Path: Is the thread caught on the spool pin?
3. The Design: Did you edit a stitch type to be too long or too dense?

Warning: Physical Safety Alert
When testing your new design, keep hands well clear of the moving pantograph. Never reach in to trim a thread while the machine is running (even slowly). A needle moving at 800 stitches per minute is invisible to the eye and will puncture bone. Always hit STOP before touching the fabric.

Phase 3: Operation Checklist (Pre-Export)

• Stitch Type Audit: Did you accidentally make a tiny letler a 'Tatami'? (It will look like a blob). Did you make a huge circle a 'Satin'? (Snag hazard).
• Density Check: Look at the stitch count again. Did it jump unexpectedly?
• Route Check: Use the "Player" button in Hatch to watch a virtual stitch-out. Watch for weird jumps or color changes.
• Export: File > Export Machine File (Note: Save as .EMB for editing, .DST/.PES for the machine).

When to Upgrade Your Workflow (Beyond Software)

Even with perfect software skills, you will eventually hit physical limits. The user interface of embroidery isn't just the screen—it's the hoop and the machine.

Scenario A: The "Hoop Burn" Struggle If you spend more time fighting to hoop thick garments than actually sewing, or if you ruin expensive polos with ring marks, your bottleneck is the hoop. Many shops upgrade to a magnetic embroidery hoop system (like the MaggieFrame).

• Why? The magnetic force holds fabric flat without the "crush" of inner/outer rings.
• Result: Faster production, zero burn marks.

Warning: Magnetic Safety
Professional magnetic hoops are incredibly powerful. They can pinch fingers severely if handled carelessly. Never place them near pacemakers or sensitive electronics.

Scenario B: The "One-Needle" Bottleneck You are getting orders for 20 hats or 50 polos. Your single-needle machine requires you to stop and change thread for every color. You are babysitting the machine instead of running your business.

• The Fix: This is the trigger point to look at SEWTECH multi-needle embroidery machines.
• Why? A 15-needle machine holds all your colors. You hit "Start," walk away, and come back to a finished shirt. The software skills you learned in Hatch (color sequencing, sorting) transfer directly to these production workhorses.

Final Thoughts: The Map is Yours

Hatch Embroidery 2 is not a monster; it is a workshop.

• Toolboxes are your shelves.
• Tabs are your workbenches.
• Dockers are your precision instruments.

By following the checklists above, you move from "guessing and hoping" to "planning and executing." The confidence you build in the software will flow directly into your fingertips when you stand in front of the machine.

FAQ

• Q: In Hatch Embroidery 2, why do the context-sensitive toolbars disappear when editing a design?
  A: Hatch Embroidery 2 is showing tools based on the current mode and the currently selected object, so the tool is usually not gone—it is just not relevant yet.
  • Check: Switch between Select mode and Reshape mode and watch the toolbar change.
  • Action: Click the specific object type you want to edit (for example, lettering vs. a Tatami fill) to reveal its tools.
  • Action: Deselect everything, then re-select the target object to “refresh” what Hatch thinks you are doing.
  • Success check: The toolbar updates immediately when a different object is selected.
  • If it still fails: Re-open the needed panel/toolbars from the View menu and confirm the correct Hatch product level is being used (Organizer vs. Digitizer).
• Q: In Hatch Embroidery 2, how can the “Tab Trap” cause the wrong design file to be exported or sent to an embroidery machine?
  A: The active Hatch Embroidery 2 tab is the file that exports, so exporting from the wrong tab sends the wrong design to the machine.
  • Action: Point to (or read) the active tab name before clicking Export or Send to Machine.
  • Action: Close unrelated design tabs so there is only the current job and a test file open.
  • Action: Save a versioned copy (for example, “Design_Name_V1”) before final output to avoid overwriting the correct file.
  • Success check: The exported filename/design preview matches the tab you intended to run.
  • If it still fails: Use Hatch’s Player to preview the stitch-out path for the active tab before exporting.
• Q: In Hatch Embroidery 2, how do the Status Bar size and stitch count help prevent puckering and “bulletproof” embroidery on thin knit garments?
  A: Use the Hatch Embroidery 2 Status Bar as a reality check—size and stitch count must match the fabric’s physical limits, especially on thin knits.
  • Action: Read Width/Height and stitch count before and after resizing or converting stitch types.
  • Action: Compare the design size to the physical hoop’s safe sewing area and leave a 10–15 mm buffer.
  • Action: For stretchy knit garments, pair the Knit fabric setting with cut-away stabilizer and avoid stretching fabric while hooping.
  • Success check: The fabric stays flat with minimal distortion, and the design does not feel overly stiff after stitching.
  • If it still fails: Undo the last edit that spiked stitch count and re-check fabric selection plus stabilizer choice before re-exporting.
• Q: In Hatch Embroidery 2, what stabilizer strategy should be used when the fabric setting is Knit for T-shirts and polos?
  A: When Hatch Embroidery 2 is set to a Knit fabric profile, cut-away stabilizer is the required physical match to prevent distortion after stitching and washing.
  • Action: Select a Knit fabric profile in Hatch so pull compensation and underlay assumptions fit stretch fabric.
  • Action: Use cut-away stabilizer on the back and avoid stretching the garment while hooping.
  • Action: Confirm design size in the Status Bar so the hoop choice and stabilizer coverage are sufficient.
  • Success check: The stitched area lies flat without ripples, and the garment returns to shape after unhooping.
  • If it still fails: Reduce aggressive edits that increase density/stitch count, and test-stitch the design before running production.
• Q: When editing in Hatch Embroidery 2, why can converting a large Tatami fill to a Satin stitch cause thread breaks or loose loops on an embroidery machine?
  A: Converting large areas to Satin stitches can create long floating stitches and long jumps, which often leads to loops, trims, snags, and thread breaks during stitching.
  • Action: Double-click the object to open Object Properties, then confirm the stitch type fits the shape size.
  • Action: Audit the design for long jumps after conversions and preview the route using Player before exporting.
  • Action: Keep Satin for narrower columns/borders and keep Tatami for larger filled areas.
  • Success check: The Player preview shows a clean path without unusual long jumps or risky floating stitches.
  • If it still fails: Revert the stitch-type change and re-check stitch count and density behavior in the Status Bar.
• Q: On an embroidery machine, what is the correct troubleshooting order for repeated upper thread breaks after making edits in Hatch Embroidery 2?
  A: Follow the lowest-cost, most common causes first: needle condition, thread path snags, then design edits that created excessive length/density.
  • Action: Replace or inspect the needle for age or bending before changing tension.
  • Action: Re-thread and check the full thread path for catches (for example, snagging at the spool pin).
  • Action: Review recent Hatch edits (stitch type conversions, resizing) that may have increased density or created long stitches.
  • Success check: The machine sews several minutes of the test area without breaking thread under normal speed.
  • If it still fails: Run Hatch Player to locate where the break happens and revise that specific object rather than adjusting everything globally.
• Q: What safety rule should be followed when test-stitching a new Hatch Embroidery 2 design on an embroidery machine with a moving pantograph?
  A: Keep hands completely clear and press STOP before touching fabric or trimming threads—never reach into the running sewing field.
  • Action: Watch the first run-out at a safe distance to confirm routing, trims, and jumps behave as expected.
  • Action: Hit STOP before any manual trimming, adjustment, or repositioning.
  • Action: Treat even “slow speed” stitching as hazardous because needle motion is too fast to react to.
  • Success check: All interventions (trimming, repositioning) happen only when the machine is fully stopped.
  • If it still fails: Stop the job, re-check design routing in Hatch Player, and restart only after confirming safe sequencing.
