Hatch Auto-Digitizing Toolbox: Instant vs Auto-Digitize Embroidery (and the Manual Fixes That Save Trims, Thread, and Headaches)

The dream of "One-Click Digitizing" usually ends the moment you hit the Start button. You expect magic, but instead, you hear your machine stuttering through 55 jump-stitch trims, you see gaps opening up between outlines, and you feel the frustration of a wasted garment.

I have spent 20 years on the production floor, and I can tell you: Hatch’s Auto-Digitizing Toolbox is a powerful starter motor, but it is not an autopilot. If you use it blindly, it produces files that are expensive in terms of time, thread breaks, and sanity. If you use it as a structural foundation, however, it can save you hours of manual plotting.

In this guide, we will rebuild the workflow from the Hatch Academy lesson using the koi fish example. We will move beyond the buttons to understand the physics of the stitch—comparing Instant V.S. Custom Auto-Digitizing, and applying the "shop-floor" logic that prevents needle breaks and fabric puckering.

The Hook: When It Looks Perfect on Screen, but Fails on Fabric

A design on a computer screen is static. A design on fabric is a living, moving thing continuously distorted by tension. The video highlights a critical disconnect: Auto-digitizing works by what the software sees (pixels and colors), not by what the fabric needs (compensation and structure).

The panic usually sets in when you see the "white bobbin thread" showing on top, or when your outlines don't line up with the fill. This lesson teaches you to think like a digitizer: building from the background up, center-out, to counteract the physical forces of embroidery.

The "Hidden" Prep: Image Hygiene Saves Hours of Cleanup

Before you even open Hatch, look at your artwork. Auto-digitizing relies on high-contrast edges. If your image is a muddy JPEG or a photo with gradients, the software will generate thousands of "confetti stitches" (tiny, useless stitches) that jam your machine.

The Rule: Use clip-art style PNGs with crisp, solid color areas.

If you are moving from "hobby mode" to "production mode" (where you plan to sell the item), preparation is non-negotiable. You are not just making a picture; you are creating a machine instruction path.

📋 Prep Checklist: The "No-Regret" Start

• Source Quality: Is the artwork distinct, solid blocks of color? (No photos/blurs).
• Goal Definition: Is this a quick test or a customer product? (Customer products require manual underlay reduction).
• Consumable Check: Do you have the right needle? (75/11 is standard; use Ballpoint for knits, Sharp for wovens).
• The "Finger Test": If you plan to stitch on stretchy fabric (like a t-shirt), ensure you have Cutaway stabilizer. Tearaway will result in gaps with dense auto-digitized files.


Instant Embroidery: The Fastest Way to Get 55 Trims (And Why That's Bad)

The video demonstrates the "Instant" workflow:

1. Insert Artwork (Koi Fish PNG).
2. Select Artwork -> Click Auto-Digitize Instant Embroidery.

Hatch generates the design instantly. On screen, it looks fine. But open the Design Information Docker and look at the data:

• Stitches: 44,523
• Trims: 55
• Stops: 10

Why 55 Trims is a Disaster: Every trim requires the machine to slow down, lock the stitch, cut the thread, move, tie in, and ramp speed back up. A high trim count doesn't just waste time; it increases the risk of "birdnesting" (thread tangling under the throat plate). If you hear a rhythmic thump-thump followed by a grinding noise, it's often a birdnest caused by excessive short trims.

Warning: Mechanical Safety
Before stitching a raw auto-digitized file, run a slow simulation on screen. Watch for "Jump Stitches" (long threads connecting objects). If your machine doesn't have an auto-trimmer, the foot can catch these loops and snap the needle. Always keep your hands clear of the needle bar during the first sew-out.

Auto-Digitize Embroidery: Acting Like a Digitizer Before the Stitches Exist

The "Smarter" workflow is Auto-Digitize Embroidery (not Instant). This opens a preparation dialog before stitch generation, allowing you to filter the image data.

The Color Reduction Step: The lesson shows reducing original colors from 11 down to 10.

• Start with: 256-bit color depth (messy).
• Process into: 10 solid blocks.

Expert Tip on Merging: Use the Locate button to see what a specific color block does. If you see three shades of orange that are almost identical, merge them here. Reducing color stops reduces thread changes, which is the #1 way to speed up your production run without upgrading your machine.

The Sequencing "Ritual": Dragging Color Blocks for Physics

Once you click OK, you aren't done. The software shows an advanced settings screen. This is where you fix the layering.

The Golden Rule of Layering:

• Background First: Anchors the stabilizer to the fabric.
• Details Second: Adds texture.
• Outlines Last: Cleans up the edges.

In the video, the instructor drags the Fish Outline to the bottom of the list. If you don't do this, the fill stitches will sew over the outline, burying it and making the design look muddy.

📋 Setup Checklist: The "Digital Dry Run"

• Locate Check: Did you verify which color block is the actual outline?
• Sequence Check: Are outlines at the bottom (sewing last)?
• Scale Check: Is the design size appropriate for your hoop? (Leave at least 15mm buffer from the edge of the sewing field).
• Type Decision: Use the dropdowns to set wide areas to Fill and thin lines to Detail.

Stitch Types: When "Satin" Becomes a Liability

The instructor changes the black and gold scale outlines from "Fill" to Detail and sets the style to Centerline.

Why this matters: If you let Hatch auto-generate a Satin stitch on a very thin line (under 1mm), you create a "bulletproof" ridge of thread. It is stiff, scratches the skin, and creates potential needle deflection.

• Satin Range: 1.5mm to 7mm.
• Run/Centerline: < 1.5mm.
• Tatami/Fill: > 7mm.

By manually selecting Centerline, you create a light, crisp detail that flows with the fabric rather than fighting it.

The Results:

• Stitches: 42,418 (Lower)
• Trims: 22 (vs. 55 in Instant)

22 trims is a manageable number for a single-needle machine and efficient for a multi-needle.

The Gap Problem: Why Fabric "Shrinks" Under Stitches

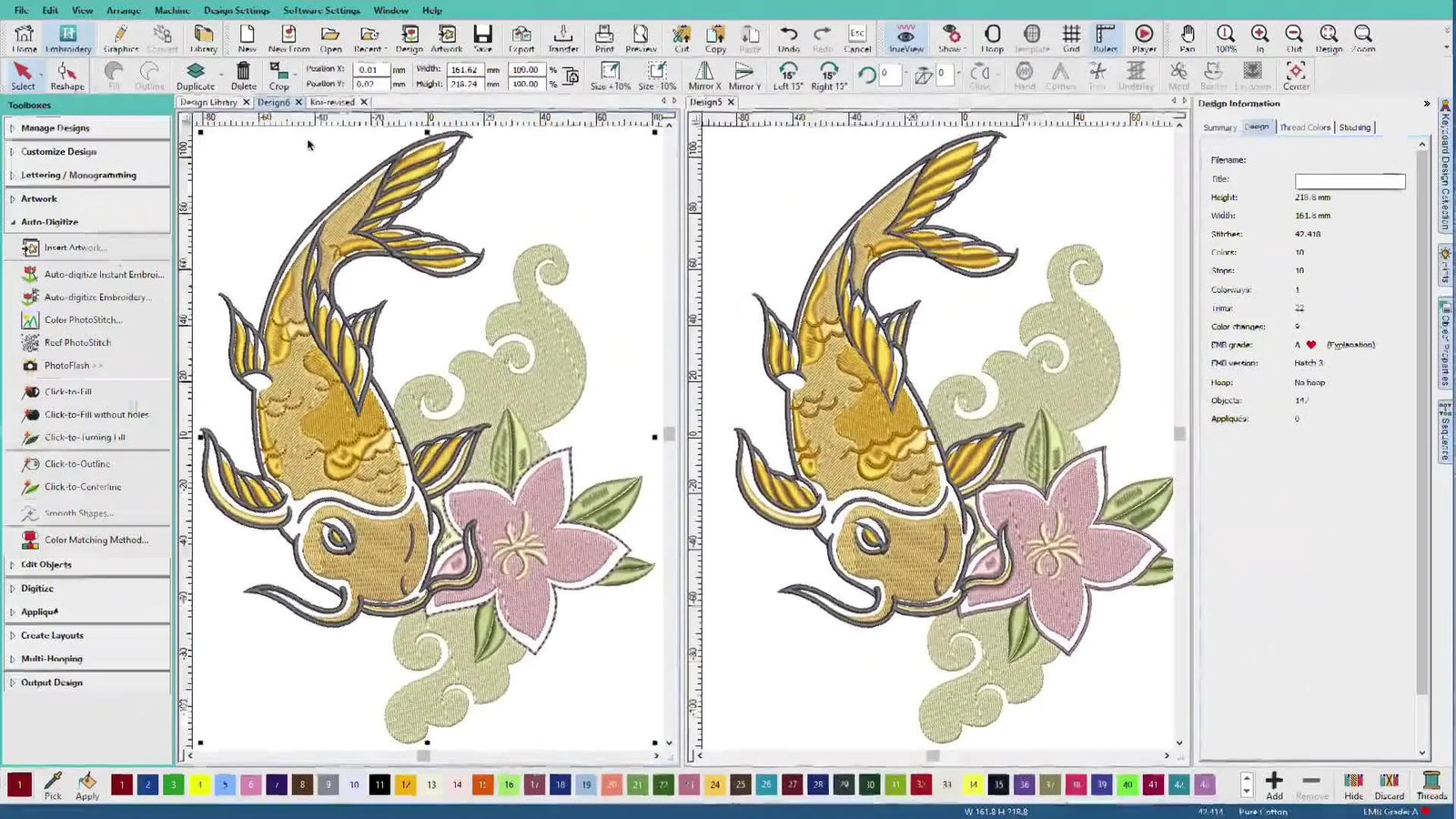

The instructor uses Stitch Player to compare the versions. She notes a gap in the Instant version where the background peeks through.

The Physics of Push/Pull: Embroidery stitches pull the fabric inward (shortening the object) and push fabric outward (widening the object).

• Auto-digitizing sees pixels. It stops exactly where the color stops.
• Reality means the fabric pulls in, leaving a gap.

The Solution: You must manually create Overlap. You need the background fill to extend under the foreground object by at least 0.5mm to 1.0mm.

🌳 Decision Tree: Troubleshooting Gaps & Holes

Symptom: You see white gaps between the fill and the outline.

• Is the gap consistent all the way around?
  • Yes: Incorrect Resizing. → Increase Pull Compensation in the software (Start at 0.40mm).
• Is the gap only on one side?
  • Yes: Hooping Issue. → The fabric slipped. Check hoop tension (see "Hooping" below).
• Is the gap between two colored fills?
  • Yes: Lack of Overlap. → Select one object and use Reshape to drag its edge slightly under the adjacent object.


Why Manual Edits Separate Pros from Amateurs

The software can place the stitches, but only you can add the "Art."

Upgrade 1: Gradient Fill (FIG-12/13) The instructor removes the underlay on the water and applies a Gradient Fill.

• Why? Standard Tatami is flat. Gradients add depth without adding stitch count.
• Note: When removing underlay, ensure your fabric is well-stabilized, or the water will distort.

Upgrade 2: Stitch Angles (FIG-14) She uses Add Stitch Angles on the flower petals.

• Visual: Light reflects off thread. Changing angles makes petals look distinct rather than one big blob.
• Physical: Opposing angles counteract the pull of the fabric, keeping the flower round rather than oval.

Upgrade 3: The Knife Tool (FIG-15/16) She cuts the "feeler" off the fish face to convert it to Satin. This is surgical editing. You can't apply different settings to one object, so you slice it into two.

The Production Bottleneck: Software vs. Hardware

You have optimized the file—reduced trims from 55 to 22. But if you are doing a production run of 20 shirts, the bottleneck moves from the computer to the hoop table.

The "Hoop Burn" & Slippage Reality: Standard plastic hoops require you to unscrew, insert inner ring, pull fabric (distorting it), and tighten.

• Pain Point: Hand fatigue (Carpal Tunnel risk) and "Hoop Burn" (shiny ring marks on delicate fabric).
• Failure Mode: If you don't tighten enough, the fabric slips, causing the Gaps we discussed earlier.

This is where the industry methodology shifts. Whether you are using a home machine or a commercial beast, stability is king.

The Solution Hierarchy:

1. Level 1 (Technique): Use spray adhesive (temporary) to bond fabric to stabilizer.
2. Level 2 (Tooling): Switch to high-tension magnetic embroidery hoops. These use powerful magnets to clamp fabric instantly without the "screw-tighten-pull" struggle.
3. Level 3 (System): For repeatable placement (logos in the exact same spot), use a machine embroidery hooping station. This guarantees that "Chest Left" is actually on the left chest, not the armpit.

Warning: Magnetic Safety
Magnetic frames are industrial tools. They have incredibly strong pinch force.
* Do not place fingers between the magnets.
* Do not use if you have a pacemaker (consult your doctor).
* Keep away from credit cards and phone screens.
A brother pe800 magnetic hoop or similar upgrade can revolutionize your workflow, but treat it with respect.

Conclusion: The "Sweet Spot" Workflow

Auto-digitizing is not a crime; it is a tool. The secret is to use Auto-Digitize Embroidery to generate the shapes, and then apply your "Human Logic" to sequence, overlap, and assign stitch types.

Finally, remember that the perfect file cannot save a bad hooping job. If you find yourself constantly fighting gaps despite perfect software overlapping, look at your physical tools. Often, upgrading to a hooping station for embroidery machine or better clamping system is the missing link between "almost good" and "professional."

🚀 Operation Checklist: Go/No-Go for Launch

• Hoop Tension: Tap the hooped fabric. Does it sound like a drum? (Thump = Loose / Ping = Good).
• Bobbin: Is there enough bobbin thread for the full design? (Running out mid-design creates weak spots).
• Needle Start: Is the needle fresh? (Change every 8 hours of stitching time).
• Simulation: Did you run the Stitch Player one last time to check for gaps?
• Safety: Are scissors/snips clear of the hoop path?

Now, load that file and hit start with confidence.

FAQ

• Q: In Hatch Embroidery 3, why does "Auto-Digitize Instant Embroidery" create 55 trims and too many stops for a koi fish PNG?
  A: Use "Auto-Digitize Embroidery" (not Instant) so Hatch filters colors and lets you control sequencing before stitches are generated.
  • Switch workflow: Select artwork → choose Auto-Digitize Embroidery → reduce/merge similar colors in the color-reduction step.
  • Merge duplicates: Use Locate to find near-identical shades (often multiple oranges) and merge them to cut thread changes.
  • Re-sequence: Put outlines last (drag outline color blocks to the bottom) to avoid burying outlines and creating extra travel.
  • Success check: In Design Information, trims drop to a manageable range (the lesson example goes from 55 trims down to 22).
  • If it still fails: Re-check the artwork quality—muddy JPEG edges often generate “confetti stitches” and extra trims.
• Q: In Hatch Embroidery 3 Auto-Digitizing, what artwork format prevents “confetti stitches” that can jam an embroidery machine?
  A: Start with clip-art style PNG artwork with crisp, solid color blocks—avoid photos, gradients, and blurry JPEG edges.
  • Replace source: Choose a high-contrast PNG with clean edges and flat colors.
  • Simplify colors: In the Auto-Digitize Embroidery dialog, reduce colors into solid blocks before generating stitches.
  • Define goal: Treat anything for sale as “production mode” and expect manual cleanup (especially underlay/overlap decisions).
  • Success check: Preview shows clean regions instead of speckled micro-objects; stitch count and trims don’t spike unexpectedly.
  • If it still fails: Use Locate to identify tiny unwanted color blocks and merge/remove them before stitch generation.
• Q: For auto-digitized dense designs in Hatch Embroidery 3, which stabilizer should be used for stretchy knit T-shirts to prevent gaps?
  A: Use cutaway stabilizer for stretchy knits, because tearaway often leads to gaps when dense auto-digitized stitches pull the fabric.
  • Match fabric: Choose cutaway when fabric stretches (T-shirts, knits).
  • Add bonding: Use temporary spray adhesive to bond fabric to stabilizer (helps prevent shifting during sewing).
  • Plan needles: Use a ballpoint needle for knits (a safe starting point) and keep it fresh.
  • Success check: After stitch-out, outlines stay aligned and the fill does not open up into visible gaps when the garment relaxes.
  • If it still fails: Treat it as a hooping/slippage issue—check hoop tension and clamping method.
• Q: In Hatch Embroidery 3, how do you fix white gaps between fill and outline caused by push/pull distortion in auto-digitizing?
  A: Add overlap and compensation—extend the background under the foreground by 0.5–1.0 mm, and use Pull Compensation (start at 0.40 mm as shown).
  • Diagnose pattern: Confirm whether the gap is consistent all around (compensation) or only on one side (hooping slip).
  • Add overlap: Use Reshape to drag one object edge slightly under the adjacent object (aim for 0.5–1.0 mm).
  • Adjust pull: Increase Pull Compensation (safe starting point: 0.40 mm) when gaps are uniform.
  • Success check: In Stitch Player and on fabric, the background no longer peeks through between fill and outline.
  • If it still fails: Re-check hoop tension—one-sided gaps often mean the fabric shifted during sewing.
• Q: In Hatch Embroidery 3 auto-digitizing, when should thin lines be set to Centerline (Detail) instead of Satin stitch?
  A: Use Centerline/Run (Detail) for lines under 1.5 mm to avoid stiff, bulky satin ridges and needle deflection risk.
  • Measure intent: Keep Satin roughly in the 1.5–7 mm range; use Fill/Tatami for areas over 7 mm.
  • Change type: Set thin outlines (like scales/accents) from Fill/Satin to Detail → Centerline where appropriate.
  • Review feel: Thin satin can become “bulletproof” and scratchy on wearables—centerline usually drapes better.
  • Success check: Stitched line looks crisp and light, and the needle runs smoothly without excessive punching or stiffness.
  • If it still fails: Reduce density/complexity by simplifying the artwork blocks and re-check sequencing so outlines sew last.
• Q: On a single-needle embroidery machine, what should be checked before sewing a raw auto-digitized Hatch Embroidery 3 file to prevent needle snaps from jump stitches?
  A: Run a slow on-screen simulation first and watch for jump stitches and risky travel paths before the first sew-out.
  • Simulate: Use stitch playback/simulation and look for long “Jump Stitches” connecting objects.
  • Start slow: Do the first test run cautiously and keep hands clear of the needle bar area.
  • Listen early: Excess trims and short moves can trigger a rhythmic thump followed by grinding (often birdnesting).
  • Success check: The design runs without the presser foot catching loops and without sudden needle strikes or abrupt thread yanks.
  • If it still fails: Reduce trims by switching from Instant to Auto-Digitize Embroidery and merging similar colors.
• Q: What safety rules should be followed when using magnetic embroidery hoops to reduce hoop burn and fabric slippage during production runs?
  A: Treat magnetic hoops as industrial tools—use them to clamp fabric quickly, but keep fingers clear and follow magnetic safety limits.
  • Keep fingers out: Never place fingers between magnets; clamp deliberately and slowly.
  • Avoid medical risk: Do not use around pacemakers (consult a doctor) and keep magnets away from cards/phones/screens.
  • Use for stability: Choose magnetic clamping to reduce screw-tighten pulling, hoop burn marks, and slippage-related gaps.
  • Success check: Fabric is clamped evenly with no shiny hoop ring marks, and stitch-out alignment stays consistent across repeats.
  • If it still fails: Step up the system—use a hooping station for repeatable placement when consistency matters (e.g., left-chest logos).
