If you’ve ever auto-digitized a “simple” hat graphic and then zoomed in to find missing whites, weird outlines, and stitches that refuse to follow a curve—take a breath. Nothing is wrong with you, and your software isn’t “broken.” What you’re seeing is exactly how auto-digitizers behave when the artwork has white-on-white elements and curved shapes that need directional control.

Embroidery is an unforgiving medium. Unlike printing, where ink simply sits on top of fabric, stitches pull, push, and distort the material. When an auto-digitizer fails, it’s usually because it lacks the "human intuition" to understand structure.

In this walkthrough, we’ll rebuild the exact workflow shown in Hatch Embroidery Software, but we are going to layer in **production-grade safety checks**. We will auto-digitize instantly, delete a temporary outline, restore missing white sections with Click-to-Fill, convert the brim to Satin for dimension, add three stitch-angle guides, and resequence colors.

Whether you are using a single-needle home machine or a commercial multi-needle workhorse, this logic applies universally.

[FIG-01]

[FIG-02]

## The Calm-Down Moment: Why Hatch Auto-Digitize “Loses” White on White (and why it’s fixable)
Auto-digitizing is fast, but it’s not psychic. It reads pixels, not shapes. When your artwork includes white stripes or white panels sitting on a white background, the software often sees those connected white pixels as "canvas" or "transparency"—so it simply doesn’t generate stitches there.

That’s why the instructor in our reference workflow deliberately pre-edited the source image with a temporary black line around the top of the hat. They didn't do this because they wanted a black outline stitched; they did it to force the software to see a boundary. That line forces the auto-digitizer to recognize separate regions instead of merging them into one giant “background” void.

If you’re building designs for hats, this matters even more. Hats are high-visibility items. A missing white stripe isn’t a tiny flaw—it’s a returns-generating defect.

**The Mindset Shift:** Treat auto-digitize as your rough draft, not your final product. Your job is to act as the "Quality Control Engineer" who cleans up the draft to ensure it sews like a professional file.

[FIG-03]

## The “Hidden” Prep Pros Do Before Clicking Auto-Digitize Instant Embroidery
Before you even touch the "Auto-Digitize" button, you need to set up your digital environment. A few minutes of prep here saves hours of picking out bad stitches later.

**Artwork prep that matches the video’s method**
- Use a simple graphic (the example is a patriotic hat element inside a larger owl design).
- Add a temporary black separation line (approx. 2-3 pixels thick) in the artwork where white elements touch a white background.
- Know your target size: The design shown is **1.97 in wide x 1.84 in high**.

**Expert Reality Check: The Formula for Sharpness**
On a computer screen, a 1mm line looks crisp. On a hat, a 1mm line can disappear into the fabric grain. When prepping artwork for auto-digitizing, bold is always better.
- **Minimum Column Width:** Ensure your narrowest satin lines are at least 1.5mm wide for hats.
- **Expansion:** If digitizing for a structured cap, the fabric doesn't give much, but for knit beanies, stitches sink.

> **Warning:** Don’t test a brand-new digitized file on your best cap or expensive blank first. Needles can deflect on seams (center seams on 6-panel caps are notorious), scissors can slip during trimming, and a bad first run can permanently mark the item. Always use a scrap piece of similar fabric or a "sacrificial" blank.

### Prep Checklist (do this before you digitize)
- [ ] **Size Verification:** Confirm final design fits your intended hoop’s safe area (Example: 1.97" x 1.84").
- [ ] **Contrast Check:** Did you add a temporary black outline anywhere white touches white?
- [ ] **Texture Plan:** Decide mentally which areas must look raised (brim = Satin) versus flat (background = Tatami).
- [ ] **Sequence Goal:** Plan your stitch order now. (We want White > Red > Blue).
- [ ] **Backup:** Save a copy of the original PNG so you can re-edit if the auto result is messy.

[FIG-04]

## From PNG to Stitches Fast: Insert Artwork + Auto-Digitize Instant Embroidery
In Hatch, the instructor uses the quickest conversion path. This is the "Engine Start" moment.

1. Click **Insert Artwork**.
2. Select the hat PNG and click **Open**.
3. Choose **Auto-Digitize Instant Embroidery** (this bypasses the longer wizard flow).

**What to look for (Sensory Check):**
You’ll immediately see stitches generated in the workspace. At this stage, zoom in to 200% and inspect the hat top. You should see the "ugly" temporary black outline stitches.
- **Visual:** If you see the black outline, you succeeded.
- **Visual:** If the top of the hat is empty (no stitches), the software ignored the white area completely.

[FIG-05]

## The Clean Delete: Removing the Temporary Black Outline in the Resequence Docker (without breaking the design)
Now you need to remove the “scaffolding” you built. The black line has served its purpose (separation), and now it must go.

What the video does:
1. Open the **Resequence** docker on the right side of the screen.
2. Scroll to find the color block representing the **black** stitches.
3. Select that black block and press **Delete**.

**Why this feels scary (but isn't):**
Novices often worry that deleting the outline will cause the white fill to merge back into the background. It won't. Once stitches are generated, they are independent objects. The white fill object now exists on its own, separated by the boundary you provided.

**Unexpected Consequence Check:**
Sometimes deleting an outline leaves small "jump stitches" or travel runs visible. Check the **Connectors** tab to ensure trims are set correctly so your machine cuts the thread between the remaining objects.

[FIG-06]

## The “Where Did My White Go?” Test: Hide the Background Image and Look for Empty Stitch Gaps
The instructor performs a diagnostic step that I recommend every digitizer adopt as a standard operating procedure (SOP).
- Turn the picture off (in the video, they press the letter **G**).

**The "X-Ray" Vision:**
When the colorful background image is hidden, you are looking at the raw truth of the embroidery file. Any missing stitch areas become aggressively obvious voids.
- **Visual Check:** In this case, the white stripes and top sections have **no stitches**.
- **The realization:** Hatch didn't make a mistake; it simply didn't stitch the background.

This is the exact moment where many people panic, delete the file, and try to re-auto-digitize with different sensitivity settings. **Stop.** You don't need to obscure the artwork; you just need to fill the voids. You have the structure; now you need the paint.

[FIG-07]

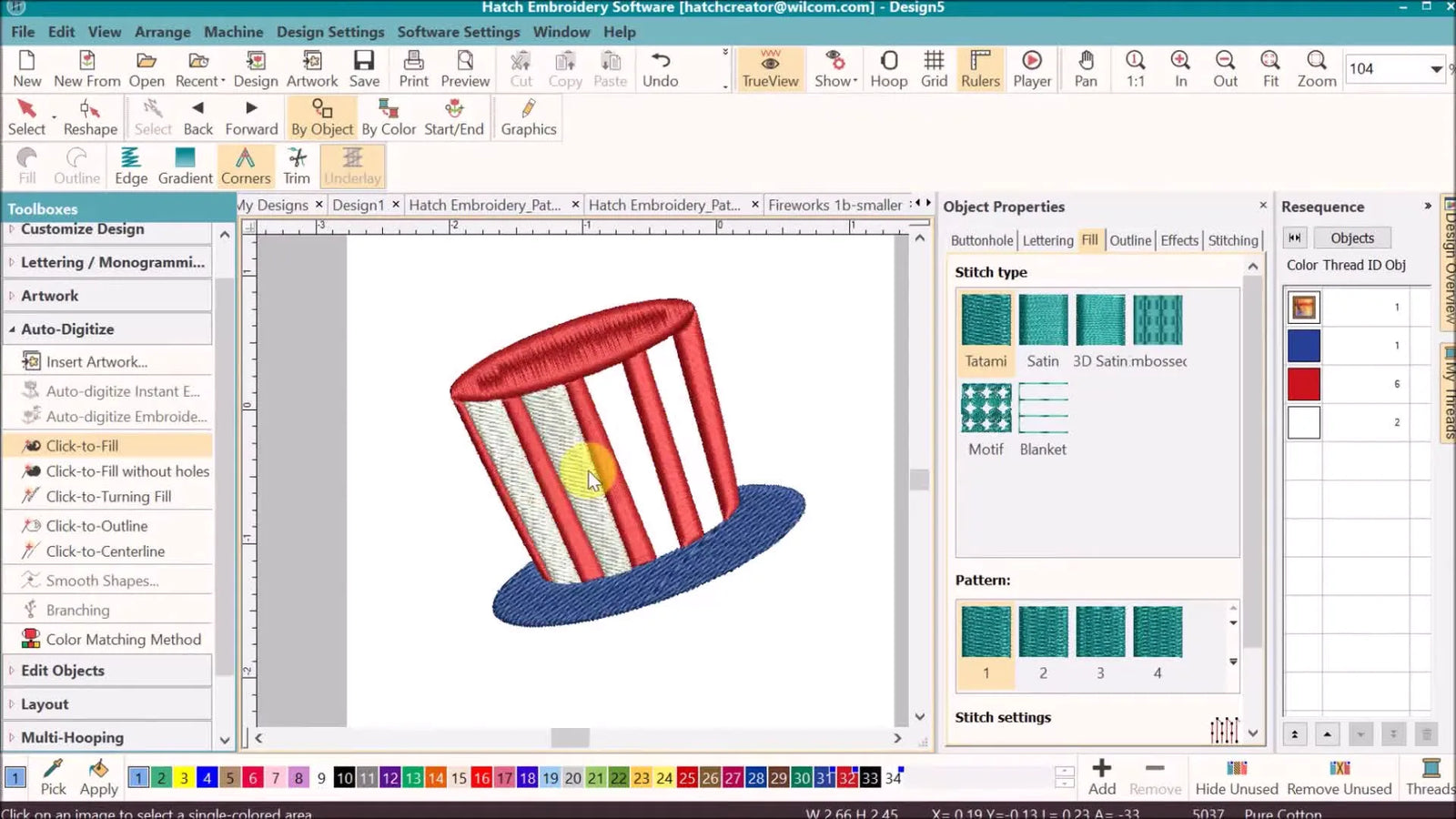

## Click-to-Fill Done Right: Set the Correct Color Count (4) and Rebuild the White Stripes
Now you’ll use **Click-to-Fill** to generate stitches only where they’re missing. This tool is like a "magic wand" for embroidery, but it requires specific inputs.

**The Workflow:**
1. Select the **Click-to-Fill** tool.
2. Click on the image to open **Prepare Artwork for Embroidery**.
3. **CRITICAL STEP:** Set the **color count to 4** (Black, White, Red, Blue).
   - *Note:* The instructor briefly mentions “3 colors,” then corrects it to **4** because black still exists in the source artwork, even if we deleted the stitches earlier. If you select 3, it might merge the black and blue, ruining your segmentation.
4. Press **Tab** to preview the reduction.
5. Watch the preview: **whatever shows the grid is what will fill**.
6. Click specifically on each white area (white stripes and the top of the hat) to generate stitches.
7. Click **Escape** to exit the tool.

**Expected Outcome:**
You should hear the satisfying *click* of the mouse, and immediately see a textured fill appear in the white zones. The hat should now look solid.

**Professional Context:**
Click-to-Fill relies on the stability of your artwork. But in the real world, the quality of these fills relies on your *hooping*. If you’re building a workflow for repeatable results, this is where a solid understanding of hooping for embroidery machine becomes the real-world partner to your digitizing. A file can be digitally perfect, but if the fabric isn't tensioned correctly in the hoop (drum-tight, no wrinkles), those new white fills will pull away from the red borders, leaving gaps known as "registration errors."

[FIG-08]

[FIG-09]

## Make the Hat Brim Look Like a Hat: Convert the Blue Brim from Tatami to Satin for Dimension
At this point, the hat is filled, but the brim is likely a generic **Tatami** fill—a flat, carpet-like texture with grains running in one direction. It looks 2D. To make the hat pop, we need to change the physics of the thread to reflect light differently.

**The Conversion:**
1. Use the **Select** tool.
2. Click the **blue brim** object.
3. In the toolbar, change the stitch type from **Tatami** to **Satin**.

**The Sensory Difference:**
- **Tatami:** Looks like a woven basket. It absorbs light. Good for large areas.
- **Satin:** Looks like silk strands. It reflects light. Good for narrow columns and borders.

**Physical Constraints:**
Satin stitches are long, floating threads. If the brim is wider than **7mm to 9mm**, you enter a danger zone where stitches might snag or loop. If your brim object is very large, Hatch may automatically split the satin (Auto-Split). This is normal. For this small hat icon ($< 2$ inches), Satin is perfect.

[FIG-10]

[FIG-11]

## The Curve Secret: Add 3 Stitch Angles So Satin Stitches Turn with the Brim (and stop looking “stuck”)
This is the difference between "Amateur" and "Pro." Auto-digitizers usually assign a single, flat stitch angle (e.g., 45 degrees) to an entire shape. On a curved brim, this creates a visual conflict—the stitches fight the geometry of the curve.

**The Manual Override:**
1. Select the brim object.
2. Go to **Edit Objects > Add Stitch Angles**.
3. **The "Rule of Three":** Click three distinct points across the brim:
   - One on the far left (angled inward).
   - One in the center (straight).
   - One on the far right (angled inward).
4. Press **Enter** to apply.

**Visual Confirmation:**
You will see orange guide lines appear. The threads should now fan out, turning smoothly around the bend of the brim. This mimics how a real fabric brim is constructed.

**The Hooping Connection:**
Curves are sensitive to distortion. If your fabric is stretched unevenly during hooping, these precise angles will warp. Using specialized holding tools like hooping stations can help ensure your fabric grain is perfectly straight before you clamp it. The more consistent your hooping, the more accurately those stitch angles will land on the curve you designed—especially when you’re running multiple hats in a row.

[FIG-12]

[FIG-13]

[FIG-14]

## The Layering That Makes It Pop: Resequence White > Red > Blue so the Brim Stitches Last
Embroidery has a Z-axis (height). The last thing you stitch sits on top of everything else. If you stitch the brim first, and then the white background, the white stitches might push against the brim, burying the edges.

**The Correct Sequence:**
1. Open the **Resequence** docker.
2. Drag the **White** color block to the top. (Base layer).
3. Ensure **Red** is second. (Detail layer).
4. Ensure **Blue** (Brim) is last. (Top layer).

**Why this matters for tension:**
Stitching the large white areas first stabilizes the fabric. It "nails down" the material to the backing. By the time the needle gets to the detailed blue brim, the fabric is secure, reducing the chance of the brim looking crooked.

[FIG-15]

[FIG-16]

### Setup Checklist (before you export or test sew)
- [ ] **Object Check:** Are the temporary black outline objects definitely deleted?
- [ ] **Void Check:** With the background hidden (G key), are there any holes?
- [ ] **Stitch Type:** Is the brim Satin? Is the background Tatami?
- [ ] **Angle Check:** Do the brim stitches fan out (3 angles) or run straight (1 angle)?
- [ ] **Sequence:** Is the order White -> Red -> Blue?
- [ ] **Tie-ins/Tie-offs:** Did you ensure tie-ins (start) and tie-offs (end) are enabled to prevent unraveling?

## A Decision Tree You’ll Actually Use: Choosing Stabilizer + Hooping Strategy for Hat-Style Designs
Your digital file is now perfect. But embroidery success is 50% digitizing and 50% physical execution. Use this logic tree to choose your tools.

**1) Are you stitching on a structured cap or stiff hat blank?**
- **Yes:** Use a **Cap Driver** or specialized cap frame. Use **Tear-away** backing (2.5oz).
- **No:** Go to step 2.

**2) Are you stitching on a flimsy beanie or knit cap?**
- **Yes:** You need stability. Use **Cut-away** backing (don't trust tear-away here; the stretching will distort the design). Use a **Water Soluble Topping** film to prevent stitches from sinking into the knit.
- **No:** Go to step 3.

**3) Is the item a flat piece of fabric or a patch?**
- **Yes:** Use standard hoops.
- **Problem:** If you struggle with "hoop burn" (circular shine marks) or find it hard to hoop thick items, consider upgrades.

**The Tool Upgrade Path (Production Logic):**
- **Level 1 (Hobby):** Standard plastic hoops. *Pain point:* Hard to snap shut on thick fabric, leaves marks.
- **Level 2 (Ease of Use):** Many efficient workspaces upgrade to magnetic embroidery hoops. These use strong magnets to hold fabric without forcing inner/outer rings together. They virtually eliminate hoop burn and are much faster to load.
- **Level 3 (Scaling Up):** If you are running batches of 50+ hats, manually hooping becomes a bottleneck. A dedicated embroidery hooping station ensures every logo is placed in the exact same spot on every shirt or cap panel.

> **Warning:** Magnetic frames contain powerful neodymium magnets. **Pinch Hazard!** They can snap together with crushing force—watch your fingers. Also, keep them away from pacemakers and implanted medical devices.

## Troubleshooting the Two Scariest Auto-Digitize Failures (and the fastest fixes)

| Symptom | Sense Check | Likely Cause | The Fix |
| :--- | :--- | :--- | :--- |
| **Missing Whites** | You see the background fabric through the design. | The Auto-Digitizer saw white pixels as "transparent background." | **Fast:** Use Click-to-Fill with Color Count = 4.<br>**Prevent:** Add a black outline in the source art before importing. |
| **Flat/Ugly Brim** | The brim looks dull and grainy, not shiny. | Stitch type is Tatami (default) instead of Satin. | Select object -> Toggle "Satin" in toolbar. |
| **Gaping Edges** | You see a gap between the white fill and red border. | Fabric managed to shift during stitching (Push/Pull effect). | **Physical:** Use better Cut-away stabilizer.<br>**Digital:** Add "Pull Compensation" in Hatch (Set to 0.3mm or 0.4mm). |
| **Thread Breaks** | You hear the machine shredding thread; messy back. | Speed is too high or path is too dense. | **Act:** Slow machine down (e.g., from 800 SPM to 600 SPM).<br>**Act:** Check if "underlay" stitches are too dense. |

## The Production Upgrade: Turning a Nice Hatch File into Repeatable Hat Output (time, consistency, and ROI)
Once your file is cleaned up, the next bottleneck is almost never “digitizing speed.” It’s operations.

If you find yourself spending more time fighting with hoops than stitching, or if you want to move from "hobbyist" to "small business," look at your hardware infrastructure:

1.  **Placement Consistency:** A hooping station for machine embroidery isn't just a luxury; it's a grid system that removes the "eyeballing" error.
2.  **Hooping Speed:** Moving to a magnetic hoop for brother (or your specific machine brand) can reduce hooping time by 30-40% per unit because you aren't fighting thumbscrews.
3.  **Machine Capacity:** If you are restricted by single-needle color changes (stopping to switch thread 4 times for this hat), investigate SEWTECH’s range of multi-needle machines. The ability to load all 4 colors (White, Red, Blue, Black) and walk away is the definition of scaling up.

### Operation Checklist (your first test sew should be boring)
- [ ] **Needle Check:** Use a sharp 75/11 needle for woven caps, or a Ballpoint 75/11 for knit beanies.
- [ ] **Bobbin Check:** Is the bobbin full? (Running out mid-cap is a nightmare).
- [ ] **Speed Limit:** Set machine to a safe "sweet spot" (500-700 SPM) for the first run.
- [ ] **Observation:** Watch the Satin brim. Does it turn smoothly?
- [ ] **Consumables:** Have your small curved scissors and fabric glue/spray adhesive ready near the machine.
- [ ] **Final Inspect:** Check the back of the embroidery. You should see about 1/3 white bobbin thread down the center of the column.

By combining the software logic of manual stitch angles with the physical stability of proper hooping and stabilization, you move from "hoping it works" to "knowing it works." That is the essence of professional embroidery.

FAQ

• Q: Why does Hatch Embroidery Software Auto-Digitize Instant Embroidery miss white-on-white sections in a hat graphic?
  A: This is common—Hatch often interprets white pixels on a white background as “background/transparency,” so no stitches get generated there.
  • Add a temporary black separation line (about 2–3 pixels thick) anywhere white touches white before importing the PNG.
  • Run Auto-Digitize Instant Embroidery, then delete the black color block in the Resequence docker after stitches are created.
  • Use Click-to-Fill to rebuild the missing white areas instead of re-auto-digitizing everything.
  • Success check: after hiding the background image, the white areas show stitch texture (no empty gaps).
  • If it still fails: redo Click-to-Fill and confirm the artwork reduction is separating regions cleanly (not merging whites into the background).
• Q: In Hatch Click-to-Fill, why does setting Color Count = 4 (Black, White, Red, Blue) matter for this hat design workflow?
  A: Set Color Count to 4 so Hatch segments the artwork correctly; choosing 3 colors can merge or mis-group areas and ruin the fill selection.
  • Open Click-to-Fill and enter Prepare Artwork for Embroidery.
  • Set the color count to 4 even if the black outline stitches will be deleted later.
  • Press Tab to preview and only click the specific missing white regions to generate stitches.
  • Success check: the preview clearly separates black/white/red/blue regions, and clicking white areas instantly creates fill stitches.
  • If it still fails: adjust the temporary outline in the source PNG and re-import so the boundaries are more obvious.
• Q: How do you delete the temporary black outline stitches in Hatch Resequence docker without breaking the rest of the auto-digitized hat design?
  A: Delete only the black color block in the Resequence docker; once objects are generated, removing the outline does not erase the white fill objects.
  • Open the Resequence docker and locate the black stitch color block.
  • Select the black block and press Delete.
  • Check for leftover travel/jump stitches and review connectors/trims so the machine cuts between remaining objects.
  • Success check: the black outline is gone, and the remaining white/red/blue areas still display as independent stitched objects.
  • If it still fails: undo, confirm you selected only the black color block (not multiple grouped objects), then delete again.
• Q: How do you use the Hatch “G” key hide-background test to find missing stitches after auto-digitizing a hat graphic?
  A: Hide the background image to see the “raw stitch truth” and spot empty voids immediately.
  • Press G to turn off the background picture.
  • Scan the design for blank holes where fabric would show through (commonly white stripes/top panels).
  • Fill those voids with Click-to-Fill instead of restarting Auto-Digitize.
  • Success check: with the background hidden, there are no empty stitch gaps anywhere in the hat shape.
  • If it still fails: re-check that Click-to-Fill is targeting the correct regions and that the color reduction preview is not merging areas.
• Q: Why does the hat brim look flat after Hatch Auto-Digitize, and how do you fix the brim using Tatami-to-Satin conversion?
  A: The brim looks dull because it’s usually Tatami by default; converting the brim object to Satin adds shine and dimension.
  • Select the blue brim object with the Select tool.
  • Change stitch type from Tatami to Satin in the toolbar.
  • Keep an eye on very wide satin areas; Hatch may auto-split satin, which is normal.
  • Success check: the brim reflects light visually and reads as a raised, clean satin surface rather than a grainy fill.
  • If it still fails: confirm you selected the brim object (not the whole design) and that the brim is still assigned to the blue color block.
• Q: How do you make Hatch Satin stitches follow a curved hat brim using Add Stitch Angles (3 points)?
  A: Add three stitch-angle guides so the satin “fans” with the curve instead of fighting it.
  • Select the brim object.
  • Go to Edit Objects > Add Stitch Angles.
  • Click three points across the brim (left angled, center straight, right angled), then press Enter.
  • Success check: orange guide lines appear and the stitch direction visibly turns smoothly along the brim curve.
  • If it still fails: delete/reapply stitch angles and confirm the brim is still Satin (angle control is most noticeable on Satin).
• Q: What is the safest way to test-sew this Hatch hat design to avoid damaging a good cap, and what is the success standard for bobbin appearance?
  A: Don’t test on an expensive blank first—run a controlled first sew at a safe speed and inspect both the front and back before committing to real hats.
  • Use a scrap or “sacrificial” blank of similar fabric before sewing your best cap.
  • Install the right needle: sharp 75/11 for woven caps, or ballpoint 75/11 for knit beanies (a safe starting point—follow the machine manual if it differs).
  • Set a safe first-run speed (500–700 SPM) and watch the satin brim behavior during stitching.
  • Success check: the back of satin columns shows about 1/3 white bobbin thread down the center, and the brim stitches turn smoothly without shredding.
  • If it still fails: slow down further and check whether underlay/density is excessive or if stabilization/hooping is allowing fabric shift.
• Q: When repeated hoop burn or slow loading becomes a bottleneck, what is the step-up path from standard hoops to magnetic embroidery hoops and then to SEWTECH multi-needle machines?
  A: Use a tiered fix: optimize technique first, then upgrade holding tools, then upgrade production capacity if volume demands it.
  • Level 1 (technique): improve hooping tension and stabilizer choice so fabric stays drum-tight and consistent.
  • Level 2 (tooling): switch to magnetic embroidery hoops to reduce hoop burn and speed up loading when thick or delicate items are hard to clamp.
  • Level 3 (capacity): move to a multi-needle machine (such as SEWTECH) when frequent color changes and manual handling limit output on batches.
  • Success check: hooping time drops and placement becomes repeatable while stitch registration stays tight (no new gaps opening during the run).
  • If it still fails: re-evaluate stabilizer choice (tear-away vs cut-away for the fabric type) and consider a hooping station for repeatable alignment.
  • Safety check: magnetic frames use strong neodymium magnets—pinch hazard; keep away from pacemakers and implanted medical devices.
