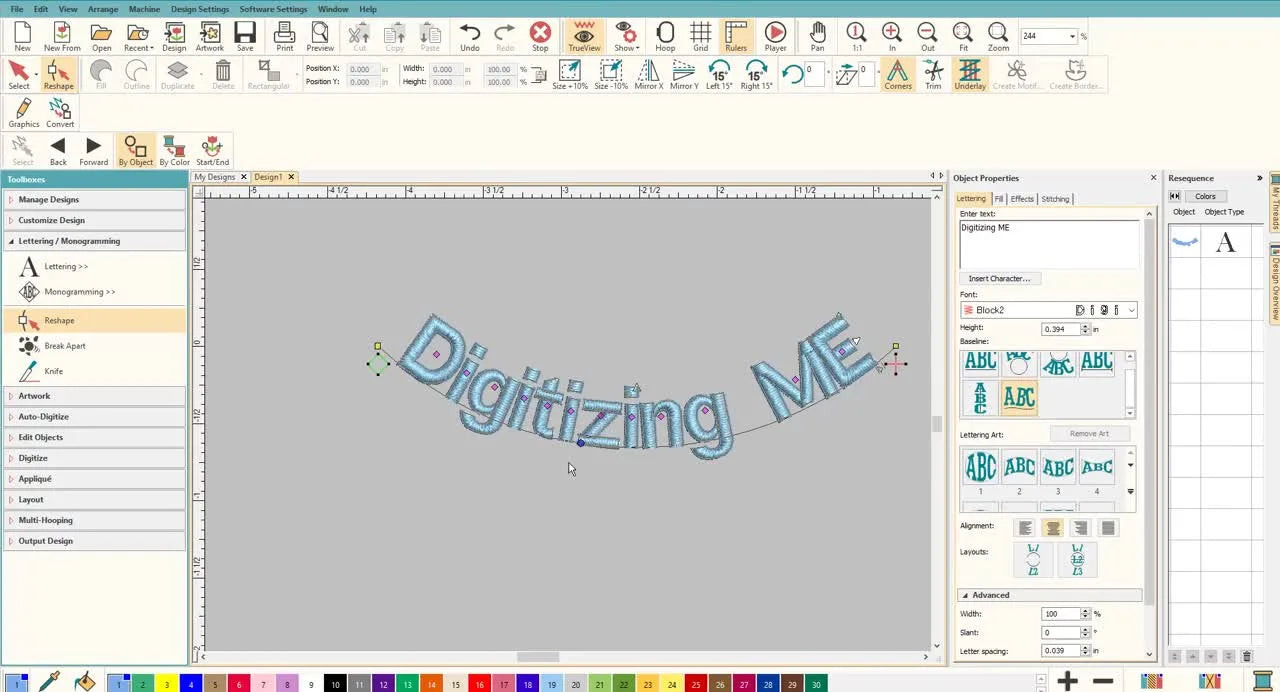

# Master the Arc: The Definitive Guide to “Any Shape” Lettering in Hatch (And Why It Often Fails for Beginners)
Curved lettering is the bread and butter of the embroidery business. It sells on caps, it defines left-chest logos, and it is the standard for team bags. But the first time you attempt this in Hatch Embroidery software, you will likely hit a wall of silence: you click **Any Shape**, and absolutely nothing happens on your screen.
If you are in that moment of frustration, stop. The software isn't broken, and you aren't doing it wrong. You are simply stuck in a "mode error"—a concept in cognitive psychology where the user intends one action but the system is waiting for a different trigger.
In this guide, we are going to move beyond the basic buttons. We will dismantle the **Any Shape** tool, explain the physics of why curved text fails during the actual stitch-out, and provide you with a production-grade workflow that ensures your arched text looks as good on a sweatshirt as it does on your monitor.
[FIG-01]
## The "Broken" Tool Fallacy: Why Any Shape Seems Dead on Arrival
Sue’s demonstration highlights the exact friction point for new digitizers: selecting **Any Shape** in the Object Properties panel does not change the visual appearance of your design. This is counter-intuitive if you are used to graphic design software where effects apply instantly.
Here is the mental model you need to adopt to master professional embroidery software:
1. **Any Shape** is a *Designation*. You are telling the software, "I want this object to follow a rule."
2. **Reshape** is the *Action*. This is the "control room" where you apply the rule.
If you are merely clicking "Any Shape" without entering the "Reshape" tool, it is like buying a high-end **hooping station for machine embroidery** but leaving it in the box. The tool has the *potential* to organize your workflow, but it requires physical engagement and setup to function. Digital tools require the same "setup" phase.
[FIG-02]
## The "Hidden" Prep: Setup Protocol Before You Touch a Single Node
Before we manipulate curves, we must stabilize the foundation. Sue keeps her sample text short ("Digitizing ME") because she knows a fundamental truth of embroidery physics: **The longer the word, the harder the curve.**
Long words on tight arcs cause the letters at the bottom to "fan out" (creating gaps) and the letters at the top to "pinch" (causing needle collisions).
### Pre-Digitizing Checklist (The "Clean Slate" Protocol)
* **Context Check:** Are you actually in the **Lettering Toolbox**? (Ensure you haven't accidentally selected a vector object).
* **Font Selection:** Start with a "safe" font like a bold Sans Serif. Serifs and script fonts behave unpredictably on steep curves until you master manual kerning.
* **Environment Scan:** Zoom out. Where will this text sit? Above a patch? On a hat? This determines your arc radius.
* **Consumable Check:** Do you have your **reference grid** turned on in Hatch? (Press 'G'). Never eyeball a curve; measure it against the grid.
[FIG-03]
## The Activation Sequence: Any Shape + Reshape
This is the mechanical sequence that trips up 90% of beginners. It must be performed in this exact order to unlock the control handles.
**The Protocol:**
1. **Select** your lettering object with the Select Tool (Black Arrow).
2. **Designate** the baseline type in Object Properties: Click the icon for **Any Shape**.
3. **Activate** the control room: Click the **Reshape** icon (or press 'H' on your keyboard).
**Sensory Check (Visual):**
When you click Reshape, the screen appearance *must* change. You should see a single blue line running through the center of your text, and—crucially—small nodes (squares or diamonds) will appear. If you don't see the blue line, you are not in the driver's seat yet.
[FIG-04]
## The Spacebar Trick: Converting Geometry Instantly
This is the "Aha!" moment in Sue's workflow. The baseline defaults to a straight line behavior even after you select "Any Shape." To force it to behave like a curve, we use a toggle command.
**The Action:**
1. While in Reshape mode, **Left-Click** directly on the baseline wire (the line itself, not the nodes).
2. **Sensory Check:** The line should turn from a light blue to a **Dark Blue**. This indicates the wire is selected.
3. Press the **Spacebar**.
**Success Metric:**
The straight line will instantly snap into a curved arc. If nothing happens, you likely missed clicking the line itself. The Spacebar in Hatch acts as a toggle switch between "Corner Points" (straight) and "Curve Points" (rounded).
[FIG-05]
[FIG-06]
> **Warning: Mechanical & Safety Hazard**
>
> When curving text, avoid creating **ultra-tight radii** (sharp bends). A tight visual curve creates "crowding" at the stitch level on the inner diameter.
>
> **The Risk:** Stitch densities can overlap, creating a hard "bulletproof" spot. When your needle hits this at 800 stitches per minute (SPM), it can deflect, strike the throat plate, and shatter.
> **The Fix:** Always maintain a minimum spacing (kerning) of 1mm-2mm between characters on the *closest* points of the curve.
## Manual Kerning: The "Pink Diamond" Standard for Professionalism
Once a baseline is curved, the software's mathematical distribution of letters will fail. Rectangular letters (like 'H') and angled letters (like 'A') handle curves differently. The default result often looks "bunched" at the top of the arc or "gappy" at the bottom.
To fix this, we do not trust the "Auto" settings. We use **Manual Kerning**.
**The Process:**
1. Look for the **Pink Diamond** handle located at the bottom center of each individual letter.
2. Click and drag this diamond.
3. Move the letter along the baseline until the visual weight resembles the spacing of straight text.
**Pro-Tip:** Trust your eye, not the math. In typography, this is called "optical kerning." If it *looks* right, it *is* right, even if the measurement says the distance is uneven. This separates "homemade" embroidery from commercial goods.
[FIG-07]
[FIG-08]
### Setup Checklist (Post-Curve Validation)
* **[ ] Baseline Status:** The line is Dark Blue and clearly arched.
* **[ ] Collision Check:** Zoom in to 400%. Are any letters overlapping? (Pay attention to serifs).
* **[ ] Readability Scan:** Zoom out to 100%. Can you read the word instantly? If your brain pauses, the curve is too aggressive.
* **[ ] Centering:** Is the text visually centered on the arc relative to the design below it?
## Advanced Reshaping: Adding Nodes for Complex Flows
Sue demonstrates that "Any Shape" literally means *any* shape. You are not limited to a simple arc. By adding nodes, you can create waves, S-curves, or irregular paths that follow graphic elements.
**The Action:**
* **Add Node:** Left-Click anywhere on the blue baseline wire. A new yellow square appears.
* **Curved Node:** Press Spacebar on the new node to turn it round (curve).
* **Straight Node:** Press Spacebar again to turn it sharp (corner).
**Expert Insight:**
While "wavy" text is fun, it introduces unstable bias stretch on the fabric. If your text waves up and down, the fabric grain is being pulled in multiple directions. For these designs, you **must** use a heavier stabilizer (like a 3.0 oz Cutaway) to prevent the fabric from puckering between the waves.
[FIG-09]
## Scaling the Path: Using the Volume Knob (End Handles)
There are small handles at the very ends of your baseline. Sue uses these to stretch the trajectory of the path without distorting the font size.
**The Physics of the Stretch:**
* **pulling Out:** Increases the space *between* letters (Tracking).
* **Pushing In:** Decreases space, bunching letters together.
Sue warns that going too far makes the text "wonky." This is because the software tries to keep the letters perpendicular to the baseline. On a complex curve, this angles the letters aggressively.
**Correction Strategy:** If the letters start leaning like they are falling over, use the **Pink Diamond** handle to rotate individual letters back to vertical, fighting the automatic angle of the baseline.
[FIG-10]
## Resizing text on the Fly
You can resize the font height using the black object handles even while the text is on a curve.
**Implicit Risk:**
Changing font height alters the "aspect ratio" of the curve. If you make letters taller, they get closer together at the top of an arch.
* **Rule of Thumb:** If you change size by more than 20%, you must re-do your Manual Kerning (Pink Diamond) pass.
[FIG-11]
[FIG-12]
## The Font Swap: Non-Destructive Editing
One of Hatch's strongest features is that the "Any Shape" baseline is a container. You can swap the contents (the font) without breaking the container (the curve).
However, different fonts have different "x-heights" and width metrics.
* **Scenario:** You switch from "Block 2" (narrow) to "Serif 1" (wide).
* **Result:** The text will explode off the ends of your curve.
* **Fix:** You will need to re-adjust the baseline length or font size immediately after switching.
[FIG-13]
## The "Smooth It Out" Pass: Iterative Refinement
Sue clicks off the object and then goes back into Reshape. This is a vital habit. It resets the view and allows you to catch "kinks" in the line.
**The "less is More" Principle:**
Beginners use 10 nodes to make a curve. Pros use 3.
* Start point.
* Midpoint (curve control).
* End point.
The fewer nodes you have, the smoother your satin stitches will flow.
[FIG-14]
[FIG-15]
## Troubleshooting: The "Why is this not working?" Diagnostic Table
When you are stuck, consult this logic table. Start at the top (lowest cost fix) and work down.
| Symptom | Likely Cause | The "Quick Fix" |
| :--- | :--- | :--- |
| **Nothing happens when I click "Any Shape"** | You are not in Reshape Mode. | Press 'H' or click the Reshape Icon. |
| **The line is straight, not curved** | Baseline is set to "Corner" mode. | Select the blue line and hit **Spacebar**. |
| **Letters are mashed together** | Radius is too tight. | Use **Pink Diamonds** to manually space them apart. |
| **I can't grab the Blue Line** | You are selecting the text block, not the line. | Zoom in. Hover until cursor changes. Click precisely. |
| **Text looks jagged/pixelated** | View settings. | Press 'M' (TrueView) to see the simulation, not the wireframe. |
## The Stitch-Out Reality: Decision Tree for Production
Software perfection means nothing if the physical production fails. Curved text is notoriously difficult to hoop straight. A straight hoop with a crooked shirt results in a crooked logo.
Use this decision tree to match your physical workflow to your digital design.
### Material & Stabilizer Decision Tree
1. **Is the Fabric Stable? (Denim, Canvas, Twill)**
* **Stabilizer:** Tearaway (2 layers) or medium Cutaway.
* **Risk:** Low. The curve will hold its shape.
2. **Is the Fabric Stretchy? (Performance Pique, T-Shirts, Knits)**
* **Stabilizer:** **MUST** use Fusible Cutaway (Mesh) or heavy Cutaway.
* **Hooping:** Do not stretch the fabric in the hoop.
* **Hidden Consumable:** Use **Temporary Spray Adhesive (505)** to bond the fabric to the stabilizer. This prevents the "wave" distortion inside the text curve.
3. **Is the Location Difficult? (Caps, Bags, Sleeves)**
* **The Issue:** Physical distortion. Compressing a 3D cap onto a flat needle plate distorts the curve.
* **The Solution:** Digitizing for caps requires "Center Out" sequencing (which Hatch handles well) to push the fabric wave away from the center.
## Operation Checklist: The Final "Go/No-Go"
Before you press start on the machine:
* **[ ] Visual Check:** Is the needle path clear of the hoop? (Run a "Trace" on your machine).
* **[ ] Bobbin Check:** Is the bobbin full? (Running out mid-letter on small text often ruins the clarity).
* **[ ] Needle Check:** Are you using a fresh 75/11 Sharp (for wovens) or Ballpoint (for knits)?
* **[ ] Thread Path:** Is the thread fully seated in the tension disks? (Do the "floss check" – pull the thread, you should feel resistance).
[FIG-16]
## The Upgrade Path: Triggering Commercial Growth
Once you master the *digital* curve, your bottleneck will shift to the *physical* realm. You will find that digitizing the file takes 5 minutes, but hooping the shirt straight takes 10 minutes. This is where hobbyists struggle and professionals scale.
We see three distinct phases of growth in embroidery shops, and each requires a different toolset:
### Phase 1: The Struggle (Manual Hooping)
You are using standard plastic hoops. You struggle to get the curved text perfectly centered on the chest.
* **The Tool:** **Water Soluble Pens**. Mark your center lines heavily.
* **The Upgrade:** If you are fighting alignment on every shirt, search for a **hoopmaster station** or similar jig. These allow you to set the placement once and repeat it for 20 shirts.
### Phase 2: The Efficiency Gap (Hoop Burn & Speed)
You are getting orders for 50 shirts, but standard hoops are leaving "hoop burn" (shiny rings) on delicate fabrics, or you are getting carpal tunnel from tightening screws.
* **The Pain:** Slow hooping and fabric damage.
* **The Upgrade:** This is the trigger for **magnetic embroidery hoops**. These frames snap onto the garment instantly without screwing/unscrewing. They reduce hand strain and, crucially, hold fabric firmly without the friction that causes burn. For thick items like Carhartt jackets or bags, **embroidery magnetic hoops** are often the *only* way to secure the item safely.
### Phase 3: The Production Leader (Scale)
You are turning away work because your single-needle machine cannot keep up with the color changes in your complex curved logos.
* **The Pain:** Time. You are babysitting the machine for thread changes.
* **The Upgrade:** Moving to a multi-needle machine, like the **SEWTECH** commercial lineup (or compatible accessories for brands like Brother/Ricoma). A multi-needle machine allows you to preset 10+ colors and run at higher speeds (1000+ SPM) while you hoop the next garment on your **magnetic hooping station**.
> **Warning: Magnet Safety**
>
> If you upgrade to **magnetic embroidery hoops**, treat them with extreme respect. These designs use industrial-grade neodymium magnets.
> * **Pinch Hazard:** They snap together with immense force (up to 35lbs of pressure). Keep fingers clear of the mating surfaces.
> * **Medical Devices:** Maintain a safe distance (6 inches+) from pacemakers or insulin pumps.
> * **Electronics:** Keep them away from credit cards and phone screens.
---
**Final Thought:**
Sue’s tutorial teaches you the "how" of the software, but your hands control the "how" of the final product. Remember: **Any Shape** creates the path, **Reshape** gives you control, and **Stability** (both stabilizer and hooping method) ensures the result. Stop fighting the software and start managing your physics. Happy stitching.

FAQ
-
Q: In Hatch Embroidery, why does selecting Object Properties → Any Shape on a lettering object show no change on screen?
A: This is common—Any Shape only designates the rule; the change appears only after entering Reshape.
- Select the lettering with the black Select arrow.
- Click Any Shape in Object Properties.
- Click Reshape (or press H) to activate the baseline controls.
- Success check: a blue baseline wire and nodes appear through the text; if no blue line appears, Reshape is not active.
- If it still fails: confirm the object is created in the Lettering Toolbox (not a vector/object type that won’t show a lettering baseline).
-
Q: In Hatch Embroidery Reshape mode, why does the baseline stay straight after choosing Any Shape, and how do you force curved text?
A: Click the baseline wire and press Spacebar to toggle it from corner (straight) to curve.
- Enter Reshape (press H).
- Left-click directly on the baseline wire (not the nodes) until it turns Dark Blue.
- Press Spacebar to convert geometry to a curved arc.
- Success check: the baseline changes from straight to a visible arched curve immediately.
- If it still fails: zoom in and click the line more precisely—many users are selecting the text block instead of the wire.
-
Q: In Hatch Embroidery, how do you fix curved lettering where characters look mashed together or start pinching on a tight arc?
A: Reduce crowding by loosening the curve and manually spacing letters with the Pink Diamond kerning handles.
- Avoid ultra-tight radii; keep spacing roughly 1–2 mm between the closest points of neighboring letters on the inside of the curve.
- Drag each letter’s Pink Diamond to slide letters along the baseline until spacing looks visually even.
- Zoom to 400% and check for overlaps, especially on serifs.
- Success check: no letters overlap at high zoom, and the word reads instantly at 100% zoom.
- If it still fails: lengthen the baseline using the end handles (tracking) and then repeat the Pink Diamond kerning pass.
-
Q: In Hatch Embroidery, why can’t you grab the blue baseline wire for Any Shape lettering, and what is the quickest way to select it?
A: You are usually selecting the text object instead of the baseline wire—zoom in and click the line itself until it turns Dark Blue.
- Enter Reshape (press H) so the baseline is available.
- Zoom in and hover near the line until the cursor behavior changes, then click precisely on the wire.
- Confirm the wire turns Dark Blue before pressing Spacebar or adding nodes.
- Success check: the baseline highlights Dark Blue and nodes/handles respond to clicks.
- If it still fails: switch the view to simulation with TrueView (M) to reduce confusion from wireframe clutter.
-
Q: When curving lettering in Hatch Embroidery, how do you prevent needle deflection or needle break risk caused by ultra-tight curved text?
A: Do not digitize ultra-tight radii—tight curves can stack density into a “bulletproof” spot that the needle can strike at speed.
- Open the curve (increase radius) so stitches don’t overlap on the inner diameter.
- Maintain 1–2 mm minimum spacing at the closest points between characters on the curve.
- Use Manual Kerning (Pink Diamonds) to prevent collisions where letters pinch together.
- Success check: at 400% zoom, there are no overlapping stitch areas where letters meet on the inside of the arc.
- If it still fails: shorten the wording (long words are harder to curve) or choose a bold sans serif font as a safer starting point.
-
Q: For curved lettering stitch-outs on stretchy knits (T-shirts, performance pique), what stabilizer and prep steps reduce wave distortion and puckering?
A: Use fusible cutaway (mesh) or heavy cutaway, avoid stretching fabric in the hoop, and bond fabric to stabilizer with temporary spray adhesive.
- Choose Fusible Cutaway (Mesh) or heavy Cutaway for stretchy fabrics.
- Hoop without stretching the garment; let the stabilizer do the work.
- Apply temporary spray adhesive (505) to bond fabric to stabilizer before hooping to prevent the curve from “waving.”
- Success check: during stitching, the fabric stays flat inside the curved text and does not ripple between up/down sections.
- If it still fails: reduce baseline waviness (fewer nodes, smoother path) and consider a heavier stabilizer as a safer starting point.
-
Q: When should an embroidery shop upgrade from standard screw hoops to magnetic embroidery hoops or a multi-needle machine for curved logos (pain point: slow hooping, hoop burn, and thread-change time)?
A: Upgrade based on the bottleneck: optimize technique first, then upgrade hooping for speed/less damage, then upgrade machines for production scale.
- Level 1 (technique): Mark center lines with water soluble pens and standardize placement; run a machine Trace before stitching.
- Level 2 (tool): If hooping is slow, causes hoop burn, or strains hands, switch to magnetic embroidery hoops for faster, consistent holding on garments and thicker items.
- Level 3 (capacity): If thread changes are the limiting factor on complex curved multi-color logos, move to a multi-needle setup to preset colors and run higher speeds while prepping the next garment.
- Success check: hooping time per garment drops and curved text alignment becomes repeatable across a batch.
- If it still fails: verify the issue is alignment/handling (hooping) vs. stitch quality (stabilizer/kerning) before investing.
-
Q: What are the essential safety rules when using magnetic embroidery hoops with neodymium magnets in a production environment?
A: Treat magnetic hoops as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
- Keep fingers clear of mating surfaces—magnets can snap together with high force.
- Maintain safe distance (at least 6 inches+) from pacemakers or insulin pumps.
- Keep magnets away from credit cards and phone screens.
- Success check: operators can mount frames without finger pinches and magnets are stored away from electronics/medical-device zones.
- If it still fails: implement a handling routine (two-hand placement, slow approach) and designate a dedicated storage area for magnetic frames.
