Hatch 3D Warp + Motif Fill: The Fast Way to Build a “Globe” Effect (and the Circle-Tool Bug That Trips Everyone)

If you’ve ever watched a flat, boring fill stitch suddenly “pop” into a believable, spherical globe in Wilcom Hatch, you know the feeling. It’s equal parts wow and wait, exactly how did that happen?

But for many beginners, that excitement is quickly replaced by the frustration of the "Greyed Out Button." You follow the steps, you click the object, but the 3D Warp option sits there, inactive, mocking you.

The good news is that this effect is repeatable, predictable, and safe to stitch—once you understand the physics behind the software. 3D Warp needs specific geometry. It requires a closed shape object and a specific stitch type. Without this combination, Hatch refuses to apply the math.

As an educator with two decades on the shop floor, I’m going to walk you through rebuilding Sue’s workflow from OML Embroidery. But I’m going to take it a step further: I will teach you the sensory cues of a good setup, the safe zones for machine speed, and the commercial tools that turn this cool screen trick into a profitable, sellable patch without destroying your garments.

The “Don’t Panic” Primer: 3D Warp in Wilcom Hatch Is Simple—Until It’s Greyed Out

A lot of digitizers hit the same wall: you draw a perfect circle, go to the Effects tab, and 3D Warp is disabled. That moment feels like the software is broken, or like you’ve forgotten a secret handshake.

It’s not you. It’s the object type.

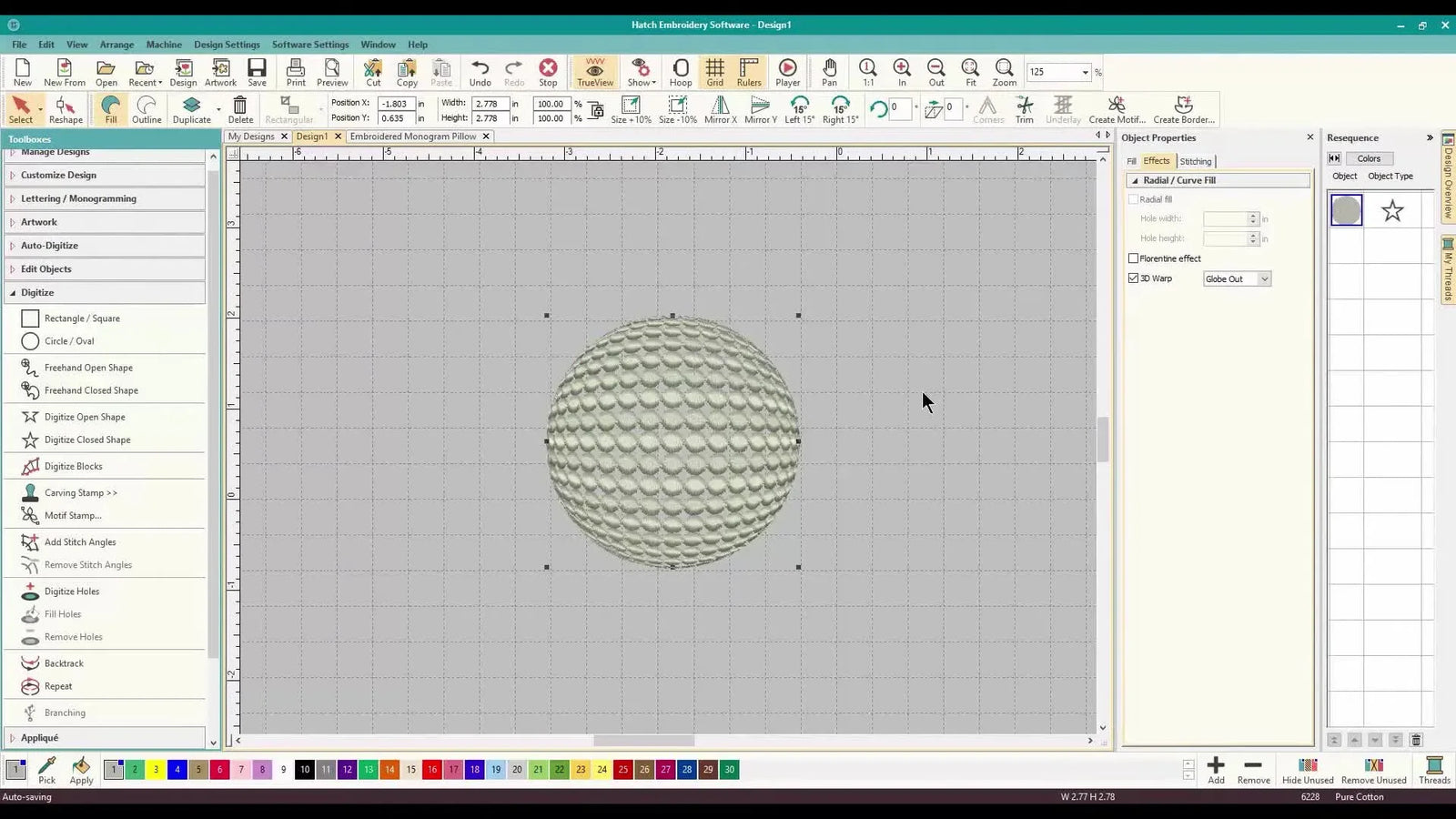

In this tutorial, the 3D look comes from a very specific “recipe” of three ingredients. If you are missing one, the soufflé won't rise:

1. A Closed Shape Object: Created with specific tools (we will cover two methods).
2. Motif Fill: This is the stitch type. Tatami or Satin will not work effectively here.
3. 3D Warp Enabled: The mathematical effect found under Object Properties.

When those pieces line up, the software physically scales the motif elements—making them larger in the "center" and compressing them at the "edges"—tricking the human eye into seeing a sphere.

The “Hidden” Prep Pros Do First: Set Up Hatch So You Can See Problems Before You Stitch

Before you digitize a single node, you must set yourself up to judge the illusion clearly. Intermediate digitizers save hours of testing by optimizing their workspace first.

• Turn on the Grid: You need to see symmetry. If your globe is lopsided, the 3D effect collapses.
• High Contrast Colors: Pick a thread color that screams against the background (e.g., Hot Pink on White). You need to see if the motif overlaps.
• The "Production Mindset": A strong on-screen illusion allows for creating high-impact designs, but remember: the screen lies. A screen doesn't account for gravity or thread tension.

This workflow is about repeatability. If you are building samples for customers (logos, patches, teamwear), you cannot rely on luck. You need a workflow that guarantees the needle lands in the exact same spot, every time.

This brings us to the physical reality of the job. If your workflow includes exact placement on 50+ shirts, manual hooping is often where the errors happen. For volume work, a dedicated machine embroidery hooping station can reduce "human drift" between samples. It ensures that the perfect 3D globe you design actually lands in the center of the chest, not 2 inches to the left.

Prep Checklist (Do this effectively before you draw)

• Workspace: Grid is ON (Press 'G') and background color is neutral.
• Access: 'Object Properties' docker is pinned open on the right.
• Tool Readiness: You have located the Motif icon on the bottom stitch toolbar.
• Visuals: Thread color is set to high contrast (Red/Blue) for easy diagnosis.
• Physical Prep: You have your test fabric and cutaway stabilizer ready (don't trust tears for 3D fills).


Method 1 (Most Reliable): Digitize Closed Shape Circle That Always Plays Nice with 3D Warp

Sue’s first method is the one I recommend for beginners. It produces a native shape that Hatch “understands” immediately, reducing the chance of bugs.

The Action Steps

1. On the left toolbar, select the Digitize Closed Shape tool.
2. Right-click three points on your grid in a triangular formation (roughly equidistant).
3. Press Enter immediately.

The Sensory Check

• Why Right-Click? In Wilcom, Left-click = Straight line / Right-click = Curve. By right-clicking, you tell the software “I want a round arc.”
• The "Snap": When you press Enter, the shape should instantly snap into a perfect (or near-perfect) reddish circle. If it looks like a triangle, you used Left-clicks. Undo and try again.

This creates a clean object with minimal nodes, which is exactly what the warping algorithm prefers.

Lock in the Look: Change Tatami to Motif Fill (This Effect Lives or Dies Here)

By default, Hatch usually fills shapes with Tatami (a flat, carpet-like fill). Tatami resists warping because it is designed to be flat. We need to change the engine.

1. Ensure your circle is selected (it will have magenta selection boxes around it).
2. Look at the bottom toolbar for the stitch types.
3. Click the Motif icon.

What just happened? Visually, your solid circle transformed into a pattern of repeating shapes (circles, squares, crosses). These "units" are what the software will stretch and squash to create the 3D illusion. Without these distinct units, your eye has nothing to measure depth against.

The Moment It Pops: Enable 3D Warp in Object Properties → Effects

Now comes the magic trick. This is where we tell the software to apply the 3D math.

1. With your Motif-filled object selected, look at the Object Properties panel on the right.
2. Click the Effects tab (it might look like a star or magic wand icon depending on your version).
3. Find the 3D Warp checkbox and tick it.

Success Metric: At this exact moment, your flat pattern should distort. The patterns in the center should balloon outward, and the patterns near the edge should curve away. If nothing happened, check that the box is actually ticked and you are still in Motif stitch mode.

Globe Out vs Globe In: Pick the Warp Mode That Matches Your Design Goal

Once 3D Warp is active, you usually have two primary options in the dropdown menu:

• Globe Out (Convex): This fools the eye into thinking the center is closer to you. It looks like a ball sitting on the fabric. Use this for sports balls, planets, or bubbles.
• Globe In (Concave): This compresses the center. It looks like a bowl or a tunnel. Use this for flowers or abstract depth effects.

Pro-Tip: If you are documenting your settings for repeat clients, screenshot this setting. A customer asking for "the same logo as last year" will notice if the globe suddenly looks concave instead of convex.

Method 2 (Fast, But Tricky): Standard Circle/Oval Tool Can Break 3D Warp—Here’s the Fix

Now, let’s talk about the trap 90% of users fall into. You see the Standard Circle/Oval tool on the left. It seems logical to use it for a circle, right?

The Steps

1. Select the Standard Circle/Oval tool.
2. Click center, drag out, click again.
3. Press Enter.

You get a mathematically perfect circle in record time. But when you go to apply the 3D effect, you often hit a brick wall.

The “Greyed Out 3D Warp” Bug: The Outline → Fill Reset That Reactivates the Effect

If you used Method 2, you might see that 3D Warp is disabled (greyed out) in the Effects tab. This is because the "Standard Circle" tool creates a specific type of complex object that restricts certain mathematical deformations.

Sue’s workaround is the "Secret Handshake" of Hatch users. You need to "break" the object properties and reset them.

The Fix

1. With the stubborn circle selected, click Outline on the top toolbar. (The shape turns into a wireframe ring).
2. Immediately click Fill on the top toolbar. (The shape returns to a solid fill).

Why this works: This toggle strips away the "Standard Circle" code and re-classifies the object as a generic "Closed Shape"—making it identical to what we created in Method 1. The 3D Warp box will now be clickable.

Setup That Prevents Ugly Stitch-Outs: What to Check in Preview Before You Waste Fabric

The video shows you the software success, but as a production manager, I must warn you about the specific risks of stitching 3D Motifs.

Motif fills are essentially hundreds of tiny individual jumps and runs. When you add 3D Warp, you are creating simple areas (center) and dense, cramped areas (edges).

The Risk: In the compressed "edge" zones, stitches can pile up on top of each other. This creates a "bulletproof" patch of thread that can break needles or shred lightweight fabrics.

This is where your choice of embroidery digitizing software capability matters—Hatch is powerful, but you must use your eyes. Zoom in closely on the edges of your globe. Do the stitches look like a solid wall of color? If so, you may need to reduce density or enlarge the detailed motif size.

Setup Checklist (Pre-Flight for Stitching)

• Visual Check: No "black holes" of density at the edges of the circle.
• Stitch Type: Confirmed as Motif (not Tatami).
• Effect: 3D Warp is Checked.
• Settings: "Globe Out" is selected for a ball effect.
• Safety: If the design is large (>4 inches), ensure your machine speed is lowered (try 600 SPM) to handle the long jumps.


Motif Library Playtime (With a Purpose): Choose Patterns That Read as 3D, Not Just “Busy”

Sue opens the motif library and picks a heart shape. This isn't just a design choice; it's a readability choice.

For the 3D effect to work, the human brain needs to identify the shape before it gets warped.

• Good choices: Hearts, Stars, Polka Dots, Diamonds, Squares.
• Bad choices: Complex organic textures, scribble lines, or tiny intricate florals.

If the shape is too complex, warping it just makes it look like a mistake. If the shape is simple, warping it looks like dimension.

Hidden Consumable: Keep a notebook or a digital file of "Motifs that Work." You don't want to re-test the entire library every time you need a cool effect.

When the Effect Looks “Meh”: Shape Complexity and Why Simple Circles Win

3D Warp is essentially a mathematical lens. It works best on symmetrical shapes (Circles, Squares, Ovals).

If you try to apply 3D Warp to a complex shape—like the silhouette of a horse or a jagged star—the math gets messy. The software struggles to decide where the "center" of the globe is. You will get strange distortions that don't look 3D; they just look warped.

Master Class Rule: Stick to primitives (circles/squares) for the container shape. If you need a "3D Horse," put the horse inside a 3D Warp circle; don't try to warp the horse outline itself.

Troubleshooting Like a Pro: Symptom → Cause → Fix (So You Don’t Lose an Hour)

When things go wrong, don't guess. Use this diagnostic table to save your sanity.

Warning: Mechanical Safety. When testing new, dense distinct fills like this, keep your hands away from the needle bar area. If a needle breaks due to density impact, shards can fly. Always wear safety glasses when testing new digitized files.

The Stitch-Out Reality Check: A Simple Decision Tree for Fabric + Stabilizer (So the 3D Illusion Survives)

The video covers the software, but the fabric is the canvas. A perfect digital file will look like a wrinkled mess if you choose the wrong foundation. 3D Motifs are heavy; they pull the fabric inward.

Use this decision tree to ensure your globe stays round:

Decision Tree: Stabilizer Selection for 3D Motifs

1. Is your fabric stretchy (T-shirt, Polo, Performance Wear)?
   • YES: You MUST use Cutaway Stabilizer (2.5oz or 3.0oz). Tearaway will blow out, and your circle will become an oval.
   • NO (Denim, Canvas, Twill): You can use Tearaway, but a layer of Cutaway is still safer for maintaining strict geometry.
2. Is the fabric textured (Fleece, Towel)?
   • YES: You need a Water Soluble Topping (Solvy) on top. Without it, your motif stitches will sink into the fuzz, and the 3D effect will vanish.

The Hooping Factor: Even with the right stabilizer, "Hoop Burn" (shiny rings left on fabric) is a major pain point when you have to hoop tightly for dense designs. This is where modern tools change the game. Professionals often switch to magnetic embroidery hoops. These clamps hold the fabric firmly without the friction-burn of traditional inner/outer rings, allowing you to secure delicate performance wear without damaging it.

Warning: Magnetic Hazard. Magnetic frames use powerful neodymium magnets. They can pinch fingers severely. Do not place them near pacemakers or magnetic storage media.

Turning a Cool Effect into a Sellable Sample: Speed, Consistency, and Tool Upgrade Paths

Creating one cool design is a hobby; creating 50 identical ones is a business. The comments on Sue's video ("Awesome," "Thank you") show the desire for this effect, but to monetize it, you need to solve the production bottlenecks.

The Evolution of an Embroiderer

1. Level 1: The Learner. You are struggling with hooping straight. Your wrists hurt from tightening screws.
   • Solution: Focus on technique. Use a printed template to mark your center points.
2. Level 2: The Prosumer. You are taking small orders. You realize that manual hooping is slow and inaccurate.
   • Solution: Invest in a Hooping Station (hooping station for embroidery). This fixture holds your hoop and garment in a fixed position, guaranteeing the logo (and your 3D globe) lands in the same spot on every shirt.
   • Upgrade: Switch to Magnetic Hoops (magnetic hoops). They are faster to load and gentler on fabrics, reducing your reject rate.
3. Level 3: The Business Owner. You have orders for 100 jerseys. Your single-needle machine takes 20 minutes per globe because of the color changes and trims.
   • Solution: It is time to look at multi-needle machines, like those from SEWTECH. A multi-needle machine handles the complex trims and color swaps of motif designs without pausing, and the larger workspace accommodates the magnetic frames effortlessly.

Stop fighting your tools. If you are doing production runs, high-quality stabilizer (Madeira or equivalent), proper needles (75/11 Ballpoint for knits), and efficient hooping systems are not expenses—they are profit protectors.

Operation: A Repeatable Mini-Workflow You Can Use Every Time You Build a 3D Motif Globe

Let’s recap the entire process into a cheat sheet you can tape to your monitor.

1. Digitize: Create a Circle using Digitize Closed Shape (Right-click 3 points).
2. Convert: Change stitch type from Tatami to Motif.
3. Activate: Go to Effects → Check 3D Warp.
4. Refine: Choose Globe Out (Convex). Select a distinct Motif (e.g., Heart or Circle).
5. Color: Set a high-contrast thread color.
6. Fix (If needed): If Warp is greyed out, do the Outline → Fill toggle trick.

Operation Checklist (The Final "Go" Signal)

• Density Check: I have zoomed in on the edges; stitches are not dangerously piled up.
• Visuals: The 3D effect is visible on screen (scaling is happening).
• Stabilizer: I have selected Cutaway for knits or heavy Tearaway for wovens.
• Needle: I have a fresh needle installed (a burred needle will destroy a motif fill).
• Test: I am running a scrap fabric test before touching the final garment.

Sue’s advice is timeless: play with it. But my advice is: play safely. Understand your tools, respect the physics of density, and when the volume gets high, upgrade your gear to match your ambition. Now, go create something that pops.

FAQ

• Q: Why is Wilcom Hatch 3D Warp greyed out when using the Standard Circle/Oval tool?
  A: The Standard Circle/Oval tool can create an object type that blocks 3D Warp; reset the object by toggling Outline → Fill.
  • Select the circle object.
  • Click Outline (wireframe ring appears), then click Fill (solid fill returns).
  • Re-open Object Properties → Effects and tick 3D Warp.
  • Success check: the 3D Warp checkbox becomes clickable and the motif visibly “balloons” in the center.
  • If it still fails: confirm the object is a closed shape and the stitch type is set to Motif (not Tatami/Satin).
• Q: How do you create a closed shape circle in Wilcom Hatch that reliably works with Motif Fill + 3D Warp?
  A: Use Digitize Closed Shape with curved nodes so Hatch recognizes a simple closed object for the warp math.
  • Choose Digitize Closed Shape on the left toolbar.
  • Right-click three points in a rough triangle, then press Enter immediately.
  • Switch the stitch type to Motif, then enable 3D Warp in Object Properties → Effects.
  • Success check: after pressing Enter, the shape “snaps” into a near-perfect round circle (not a triangle).
  • If it still fails: undo and repeat using right-clicks (left-clicks create straight segments that keep the shape angular).
• Q: Why does Wilcom Hatch 3D Warp not work (or look wrong) when the object stitch type is Tatami instead of Motif Fill?
  A: 3D Warp needs Motif Fill units to stretch and compress; Tatami is designed to stay flat and won’t produce the same readable 3D illusion.
  • Select the closed shape so magenta selection boxes appear.
  • Click the Motif icon on the bottom stitch toolbar.
  • Then go to Object Properties → Effects and check 3D Warp.
  • Success check: the solid fill changes into repeating motif “units,” and enabling 3D Warp distorts those units larger in the center and tighter at the edges.
  • If it still fails: verify the object is a single closed shape (not an outline-only object) and 3D Warp is actually checked.
• Q: How can you prevent “bulletproof” dense edges when stitching a Wilcom Hatch Motif Fill with 3D Warp?
  A: Treat the edge zone as a density danger area and adjust before stitching by inspecting the preview and simplifying the motif.
  • Zoom in on the globe edge and look for areas that read like a solid wall of stitches.
  • Increase the motif pattern size (X/Y size) or switch to a simpler motif shape (hearts, stars, dots, squares).
  • Slow the embroidery machine down for larger designs (a safe starting point from the workflow is 600 SPM when the design is >4 inches).
  • Success check: the edge stitches look separated and readable, not stacked into a “black hole” of thread.
  • If it still fails: run a test on scrap fabric with cutaway stabilizer and re-evaluate motif choice and overall design size.
• Q: What stabilizer setup keeps a Wilcom Hatch 3D Warp motif globe round on stretchy T-shirts/performance fabric?
  A: Use cutaway stabilizer (not tearaway) for knits, and add water-soluble topping on textured fabrics so the motif doesn’t sink.
  • Use Cutaway stabilizer (2.5oz or 3.0oz) for stretchy fabrics to resist distortion.
  • Add water-soluble topping for fleece/towels to keep motif stitches on top of the pile.
  • Hoop firmly enough to control the fabric, then always test-stitch on scrap before the final garment.
  • Success check: the stitched circle stays circular (not oval) and the motif details remain visible instead of disappearing into fuzz.
  • If it still fails: reassess hooping pressure (too loose causes shifting) and consider tooling that reduces hoop burn while still holding firmly.
• Q: What are the safety precautions for test-stitching dense Motif Fill + 3D Warp designs on an embroidery machine?
  A: Dense edge zones can break needles; keep hands away from the needle area and wear eye protection during first tests.
  • Keep fingers and hands away from the needle bar area while running dense, unproven files.
  • Wear safety glasses during first stitch-outs in case a needle snaps and shards fly.
  • Run a scrap test first, and reduce speed if the design is large or the machine sounds strained.
  • Success check: the stitch-out runs smoothly without repeated needle impacts, thread shredding, or sudden “punching” sounds at the edge.
  • If it still fails: stop immediately, inspect for density pile-up at edges, and only resume after adjusting the design and installing a fresh needle.
• Q: How do magnetic embroidery hoops help reduce hoop burn when stitching dense 3D motif designs, and what magnet safety rules should be followed?
  A: Magnetic hoops clamp fabric firmly with less friction than inner/outer rings, often reducing hoop burn—but the magnets can pinch and must be handled carefully.
  • Use magnetic hoops when tight hooping is causing shiny rings or fabric marking during dense designs.
  • Load garments with controlled hand placement to avoid finger pinch between magnet blocks and frame.
  • Keep magnetic hoops away from pacemakers and magnetic storage media.
  • Success check: fabric is held securely with fewer visible hoop rings while the design stitches without shifting.
  • If it still fails: add a hooping station for more consistent placement and re-check stabilizer choice for the fabric type.
• Q: What is a practical upgrade path when Wilcom Hatch 3D Warp motif globes are consistent on screen but production runs still have placement drift and slow throughput?
  A: Fix technique first, then upgrade the holding system (hooping station/magnetic hoops), then upgrade capacity (multi-needle) when volume demands it.
  • Level 1: Improve manual technique using a printed template and consistent center marking before hooping.
  • Level 2: Add a hooping station to reduce placement drift across 50+ garments, then consider magnetic hoops to load faster and reduce hoop burn rejects.
  • Level 3: If frequent trims/color swaps and volume orders are slowing output, consider a SEWTECH multi-needle embroidery machine for higher throughput.
  • Success check: repeated garments land in the same location with fewer rejects, and cycle time per item becomes predictable.
  • If it still fails: slow the machine for dense motifs and re-check preview density at edges before scaling the job.
