Hatch 3 Knife + Weld Heart Bookmark: A Clean Pocket Design That Stitches Right the First Time

Here is the comprehensive, expert-calibrated guide for creating a felt bookmark, optimized for both Hatch 3 users and embroidery machine operators.

If you’ve ever digitized something that looked perfect on-screen—only to stitch it out with a crooked pocket, wobbly edges, or lettering that feels “sunk”—you’re not alone. A felt bookmark seems deceivingly simple, but it is exactly the kind of project that exposes weak geometry, sloppy node joins, and bad stitch order faster than complex designs.

This guide rebuilds the popular Hatch 3 heart bookmark project with a "shop-floor" mentality. We will follow the video's core geometry workflow but add the critical stabilization and operational details that prevent wasted felt, thread nests, and frustration.

Calm the Panic: Why Hatch 3 Geometry Matters More Than Fancy Stitches

A pocket bookmark is essentially two jobs in one file:

1. A clean outer heart outline that acts as the structural foundation.
2. A bottom “closing” seam that stitches last to trap the backing felt, creating the pocket.

The approach of using a Diamond + Heart + Knife + Weld works because it forces you to build the pocket edge from true geometry, rather than "eyeballed" freehand curves.

One quick reality check before you start: Felt is unforgiving of geometry errors. Unlike fluffy towels that hide small mistakes, felt is smooth and dense. If your nodes don’t meet cleanly, or if your start/stop points are messy, the high-contrast outline stitch (usually a Triple Run) will highlight every single wobble.

The “Hidden” Prep: Physics, Friction, and Material Science

The video shows a finished felt sample and lists standard supplies: felt, tear-away stabilizer, thread, and adhesive. However, experienced embroiderers know that setup is 80% of success.

Felt has a specific behavior profile:

• Creep: Under the pressure of a presser foot, felt can micro-shift if not secured, turning a circle into an oval.
• Thickness: The pocket adds a second layer. If your hoop tension isn't right, the needle can struggle to penetrate the double-layer without deflecting.

If you are planning to stitch this on a machine like the Brother PE800 (5x7 field), you must account for "Hoop Burn"—the ring marks left by standard plastic hoops on delicate felt.

Prep Checklist (The "Pre-Flight" Inspection)

• Consumable: Tear-away stabilizer (Medium weight, approx. 1.5 - 2.0 oz).
• Consumable: Sharp embroidery scissors (specifically curved snips for jump stitches).
• Consumable: 505 Temporary Adhesive Spray OR strong double-sided tape (essential for the pocket backing).
• Consumable: Size 75/11 Embroidery Needle (Sharp or Ballpoint depends on felt density; start with 75/11 Sharp for crisp outlines).
• Hardware: Ensure your hoop is clean of old adhesive residue.

Many makers eventually upgrade to a dedicated hooping station for embroidery when they realize that "perfectly straight" alignment is difficult to repeat by hand, especially when trying to save fabric by hooping multiple items at once.

Turn On the Hatch 3 Grid: Stop Guessing

In Hatch 3, start by turning on the grid: click Show Grid in the upper toolbar near the ruler/template area.

This isn’t cosmetic. The grid is your safety net. It allows you to:

• Align points to a mathematical reference (X=0, Y=0).
• Keep your pocket seam level horizonally.
• Catch accidental rotation (even 1° of tilt is visible on a bookmark).


Step-by-Step Geometry: The "Diamond Foundation"

We don't draw the pocket freehand; we derive it from a square.

1. Create a Perfect Square

• Select the Rectangle/Square tool.
• Action: Hold the Control Key while dragging. This locks the aspect ratio to 1:1.
• Sensory Check: Release the mouse before you release the Control key to ensure it doesn't snap back to a rectangle.

2. Rotate to 45°

• Select the square.
• Rotate it visually until it is a Diamond. While the video mentions specific angles, your goal is a true 45° rotation so the points are vertically aligned.

3. Size and Align

• Set the square base size to 4 inches (approx. 100mm).
• Critical Move: Move the diamond so the bottom point sits exactly on a grid line intersection. This provides the anchor point for the next step.

Why be so picky? If the diamond acts as the pocket, and it’s slightly skewed, your bookmark will look "twisted" when sitting on a page.

Overlay the Standard Heart: The "Seam Allowance" Logic

Now we add the upper portion.

• Choose the Heart tool from Standard Shapes.
• Action: Hold Control to keep it symmetrical.
• Resize it to roughly match the diamond.
• The Overlap: Drag the heart so its bottom point overlaps the bottom point of the diamond.

Why Overlap? You cannot just touch the tips. You need an intersection area to slice through. This overlap eventually determines the "depth" of your pocket edge.

The Knife Tool Cut: Precision Surgery

This is where 50% of beginners create a defect. We need to slice the diamond to create the "V" shape pocket.

1. Select Both Objects: Drag a selection box over the Heart and the Diamond.
2. Zoom In: Scroll until the intersection fills your screen. "Good enough" is not good enough here.
3. The Cut: Select the Knife Tool.
   • Click just below where the heart and diamond intersect.
   • Action: Hold Control to force a perfectly straight horizontal line.
   • Click across to the other side. Press Enter.

The Logic: If you cut too high, the pocket seam cuts into the heart's visual curve. If you cut too low, the pocket becomes shallow. Aim for the "sweet spot" just below the V intersection.

Reshape Mode (H): Merging the Geometry

After cutting, delete the scrap pieces (top of the diamond, bottom tip of the heart). You now have two shapes that need to look like one.

1. Press H to enter Reshape Mode.
2. Zoom into the left and right join points.
3. Drag the nodes of the Heart to snap to the nodes of the Diamond.

Master Tip: Don't just make them touch. Look at the angle of the curve. You want a continuous flow. If the join creates a sharp "corner," your embroidery machine will slow down there and deposit extra thread, creating a visible "knot" or lump in the outline.

The "Pocket Backing Trick": Duplicate Before You Weld

This is the single most important step for functionality.

1. Select only the bottom "V" shape (the diamond remnant).
2. Press Control + D to Duplicate.
3. Action: Change this new duplicate to a contrasting color (e.g., Orange).
4. Action: In the Sequence Docker, move this orange object to the very end of the stitching order.

This Orange layer is your Pocket Closing Stitch. It will run last, after you have manually placed the backing felt on the back of the hoop.

Weld & Stitch Types: Structural Engineering

Now we define how the machine will move.

1. Weld the Foundation

Select the Top Heart and the original Bottom V. Use the Weld tool.

• Result: They fuse into one single Heart object. This is your "Placement/Decor" layer.

2. Reinforce the Closing Seam

Select that Orange duplicate V shape you made earlier.

• Setting: Go to Object Properties > Outline.
• Value: Change from Single Run to Triple Run (also called Bean Stitch).

Why Triple Run? Felt is a non-woven fabric. A standard single run can pull through the fibers if the bookmark is tugged. A Triple Run (forward-back-forward) provides the structural integrity needed for a functional pocket seam without perforating the felt so much that it tears (which a Satin stitch might do).

Lettering: Defeating Optical Illusions

Adding "XOXO" or a name seems easy, but the software's math is often wrong for human eyes.

• Tool: Lettering.
• Issue: If you use "Align Centers," the software finds the mathematical center of the heart. However, because a heart is top-heavy, the text will look like it's falling down.
• The Fix: Manually nudge the text UP until it looks visually balanced in the upper lobes of the heart, just above your imagined pocket line.

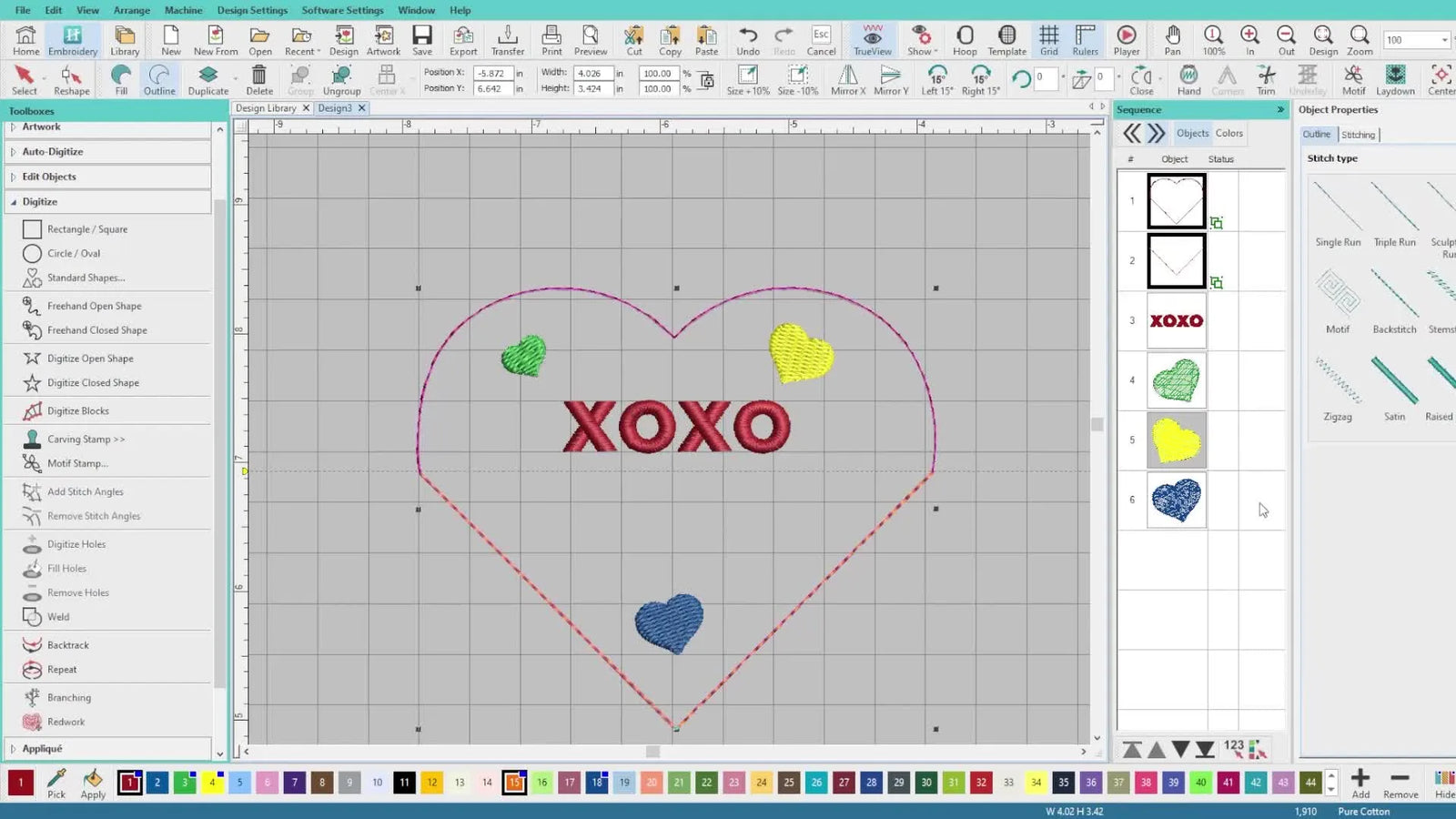

Sequencing: The Logic of Production

Embroidery is a linear process. We need to tell the machine the correct order to avoid disaster.

Correct Sequence Structure:

1. Placement Line (Optional but Recommended): A single run of the full heart shape. (Tells you where to put the fabric if floating, or secures the felt).
2. Inner Decor: The Lettering and the small decorative hearts. (Stitch these while the fabric is flat).
3. The "Stop" Command: Most machines need a color change here to force a stop.
4. Closing Seam: The Orange Triple Run V-shape.

Why this order? You must finish all internal decoration before you attach the backing felt. If you stitch the backing on too early, you'll sew the pocket shut!

Setup Checklist (Digital to Physical Handoff)

• Design is centered (X=0, Y=0) for the hoop.
• Main heart outline is Welded.
• Closing Seam (V-shape) is separated, set to Triple Run, and is the last object.
• Color Stop: Ensure the Closing Seam is a different color in the software so the machine pauses, allowing you to place the backing.

Hooping the Felt: The Physical Battle

We are likely using a standard 5x7 hoop (like on the Brother PE800). This is where felt can be tricky. Standard hoops require you to tighten a screw and jam an inner ring into an outer ring.

The Risk: Felt is thick. "Hoop Burn" occurs when the friction of the hoop creates a permanent crushed ring on the fabric. Furthermore, tightening the screw too much can cause the felt to "pop" out during stitching.

Decision Tree: Choosing Your Method

Use this logic to determine how to secure your felt.

1. Is this a one-off gift?
   • Method: Float it. Hoop only the Tear-away stabilizer (tight as a drum skin). Spray the back of the felt with embroidery adhesive (like 505) and stick it to the center of the stabilizer.
   • Pros: No hoop burn.
   • Cons: Adhesion must be strong, or the outline will misalign.
2. Are you doing a production run (10+ items)?
   • Method: Full Hoop or Magnetic. You need speed and consistency. Floating takes too long to prep per piece.
   • Tool: This is where efficient embroiderers use methods described in guidebooks on hooping for embroidery machine to standardize placement.

The Backing Layer (The Critical Pocket Step)

When the machine stops before the final Orange step:

1. Remove the hoop from the machine (DO NOT un-hoop the fabric).
2. Flip the hoop over.
3. Place your pre-cut backing felt over the bottom half of the heart on the underside.
4. Secure it with tape (painter's tape or embroidery tape) at the edges so it doesn't fold over.
5. Re-attach hoop and stitch the final seam.

Warning: Safety First! When trimming jump stitches or placing the backing, keep your fingers well clear of the needle bar area. Never put your hands inside the hoop frame while the machine is active.

The Upgrade Path: Speed, ROI, and Wrist Health

If you find yourself making these bookmarks for craft fairs or an Etsy shop, the standard "screw-and-push" hoop will eventually become your bottleneck (and a source of wrist pain).

For machines like the Brother PE800, the industry solution for holding thick materials like felt without damage is the magnetic hoop.

• Professionals dealing with "Hoop crunch" often switch to a magnetic hoop for brother pe800. The magnets clamp straight down, eliminating the friction that causes burn marks.
• For this specific bookmark project, a brother 5x7 magnetic hoop offers the perfect field size while allowing you to slide felt in and out essentially instantly.
• When searching for machine embroidery hoops, prioritize those that are rated for the thickness of material you use. Standard magnets are great for shirts; heavy-duty is needed for thick felt or leather.
• However, always research compatibility. Not all magnetic embroidery hoops fit every machine arm. Check your machine model's specific connector type.

magnet-warning: Magnetic Safety Warning: Magnetic hoops use extremely powerful Neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, ICDs, and magnetic storage media.

The Final Check: Geometric Integrity

Before you save that file:

1. Select All.
2. Group.
3. Rotate the entire design until vertical/horizontal lines align perfectly with the XY grid.
4. Visually scan the perimeter.

Troubleshooting: Quick Fixes for Common Defects

Operation Checklist (The "Live" Run)

• Hooping: Stabilizer is drum-tight; Felt is secured (Hooped or Floated).
• Bobbin: Check that you have enough bobbin thread for the whole run (running out mid-pocket is a nightmare).
• Run Step 1 & 2: Stitch outline and decor.
• STOP: Machine pauses for color change.
• Action: Remove hoop, tape backing felt to the underside.
• Run Step 3: Stitch the Triple Run closing seam.
• Un-hoop: Tear away stabilizer gently. Support the stitches with your thumb while tearing to prevent distorting the felt.

By following this "geometry-first, physics-second" approach, your bookmark won't just look good on the screen—it will come off the machine flat, functional, and clean.

FAQ

• Q: What supplies are required to stitch a felt heart pocket bookmark on a Brother PE800 without thread nests and wasted felt?
  A: Use medium tear-away stabilizer, strong temporary hold, and a clean hoop setup—most failures on felt start from prep, not digitizing.
  • Action: Hoop medium tear-away stabilizer drum-tight, then secure felt with 505 temporary adhesive spray or strong double-sided tape (especially for the backing step).
  • Action: Install a size 75/11 embroidery needle (often a safe starting point is 75/11 Sharp for crisp outlines; match needle style to felt density and machine manual).
  • Action: Clean hoop surfaces and remove old adhesive residue before hooping.
  • Success check: Felt stays flat with no creep when you press/rub the surface lightly; stabilizer feels “drum tight” with a clear, taut sound when tapped.
  • If it still fails: Switch from full hooping felt to floating felt on hooped stabilizer to avoid shifting and hoop burn.
• Q: How can Hatch 3 users prevent a crooked pocket seam when digitizing the diamond + heart felt bookmark geometry?
  A: Turn on the Hatch 3 grid and anchor the diamond point to a grid intersection before cutting—this keeps the pocket seam level.
  • Action: Enable Show Grid and align the design to X=0, Y=0 as the reference.
  • Action: Create a perfect square with Control, rotate it to a true 45° diamond, then place the bottom point exactly on a grid intersection.
  • Action: When using the Knife Tool, hold Control to force a perfectly straight horizontal cut line.
  • Success check: The pocket “V” looks symmetrical left-to-right, and the seam line appears perfectly horizontal against the grid.
  • If it still fails: Group and rotate the full design until vertical/horizontal edges visually align with the XY grid before saving.
• Q: What is the correct stitch sequence in Hatch 3 for a felt pocket bookmark so the closing seam does not sew the pocket shut?
  A: Stitch the inside decoration first, force a stop, then stitch the pocket closing seam last as a separate color.
  • Action: Keep the closing seam as a separate duplicated “V” object and move it to the very end of the Sequence Docker.
  • Action: Set the closing seam to Triple Run (Bean Stitch) and assign it a different color to trigger a machine stop/color change.
  • Action: Stitch placement/outline and lettering first; only add the backing felt after the machine stops, then run the final seam.
  • Success check: The machine pauses before the final seam, giving time to place backing felt, and the final seam stitches only the pocket area.
  • If it still fails: Re-check that the orange “V” seam is not welded into the main heart outline and is truly the last object.
• Q: How do I stop hoop burn ring marks on felt when using a Brother PE800 5x7 plastic hoop?
  A: Avoid clamping felt directly when possible—float the felt on hooped tear-away stabilizer to eliminate hoop burn.
  • Action: Hoop only the tear-away stabilizer drum-tight, then spray the back of the felt with temporary adhesive and press it onto the stabilizer center.
  • Action: Reduce over-tightening—felt is thick and can crush or distort under high hoop friction.
  • Action: For repeated runs where speed matters, consider switching to a magnetic hoop method for thick materials to clamp straight down instead of rubbing.
  • Success check: No visible crushed ring appears after un-hooping, and the heart outline stitches without distortion or skew.
  • If it still fails: Increase holding power (more tape/adhesive at edges) because floating failures are usually adhesion-related slip.
• Q: Why does the felt bookmark closing seam not catch the backing felt during the final Triple Run seam?
  A: The backing felt is usually placed too low or shifts—secure it firmly on the underside and, if needed, slightly widen the “V” seam in software.
  • Action: At the stop/color change, remove the hoop from the machine without un-hooping, flip the hoop over, and position backing felt covering the bottom half from the underside.
  • Action: Tape the backing felt edges down (painter’s tape or embroidery tape) so it cannot fold or creep during the final seam.
  • Action: If the placement is consistently missed, widen the “V” seam path slightly in the digitizing file.
  • Success check: After stitching, the pocket edge fully traps the backing felt with no open gaps along the seam line.
  • If it still fails: Mark a visual placement guide on the underside (using the stitched outline as reference) and add more tape coverage before restarting.
• Q: What causes a wobbly or distorted heart outline when stitching a felt bookmark on a Brother PE800, and what is the fastest fix?
  A: Felt shift (creep) during stitching is the most common cause—upgrade the hold before changing the design.
  • Action: Increase stabilization grip by floating felt with stronger adhesive coverage or switching from weak tape to reliable temporary spray.
  • Action: Avoid handling or tugging the hoop during stitching; felt can micro-shift under presser foot pressure.
  • Action: If producing many bookmarks, use a more consistent clamping method (often a magnetic hoop is the next step) to reduce repeat drift.
  • Success check: The triple-run outline lays smooth with no side-to-side “wave,” and corners/joins do not show sudden bulges.
  • If it still fails: Zoom in on join nodes in Reshape Mode and smooth sharp corners—machines slow at corners and can drop extra thread.
• Q: What safety steps should embroidery machine operators follow when trimming jump stitches and placing felt backing during a pocket bookmark run?
  A: Keep hands out of the needle bar area and only handle the hoop when the machine is stopped—this is common where beginners get pinched or poked.
  • Action: Wait for a full stop (color change pause) before removing the hoop from the machine arm.
  • Action: Keep fingers well clear of the needle bar area when trimming jump stitches or taping the backing felt.
  • Action: Never place hands inside the hoop/frame area while the machine is active.
  • Success check: All trimming and backing placement is done with the machine fully paused, and the hoop re-attaches without bumping the needle area.
  • If it still fails: Slow down the workflow—prepare pre-cut backing felt pieces and tape strips ahead of time to reduce rushed hand positioning.
• Q: When should embroidery business users upgrade from floating felt to magnetic hoops or to SEWTECH multi-needle embroidery machines for felt bookmark production?
  A: Start with technique fixes, then upgrade tools when consistency and speed become the bottleneck, and only consider machine upgrades when volume demands it.
  • Action: Level 1 (Technique): Float felt on hooped tear-away, use strong adhesive/tape, and enforce correct stitch sequencing with a forced stop.
  • Action: Level 2 (Tool): If hoop burn, slow hooping, or wrist pain becomes recurring—switch to magnetic hoops for faster loading and less fabric crush.
  • Action: Level 3 (Capacity): If production runs (10+ items repeatedly) are limited by constant re-hooping and color-stop management—consider moving to a multi-needle workflow like SEWTECH machines.
  • Success check: You can complete repeated bookmarks with consistent pocket alignment, minimal rework, and predictable cycle time per piece.
  • If it still fails: Audit the true bottleneck—if defects come from shifting/holding, fix hooping first before changing machines.
