Hatch 2.0 Color PhotoStitch That Actually Stitches Well: Pick the Right JPEG, Control Colors, and Avoid the 61,000-Stitch Trap

Master Class: The Science of Photo Stitching & Production Efficiency

Author: Chief Embroidery Education Officer Reading Time: 12 Minutes Level: Intermediate to Advanced

Photo stitch is the "dark art" of machine embroidery. It promises magic—turning a snapshot of a pet or loved one into thread—but often delivers frustration. The reality hits when your "cute puppy" turns into a 61,000-stitch marathon, your single-needle machine demands 20 thread changes, and the final result looks like a muddy, bulletproof vest rather than soft fur.

We see this cycle constantly: Digitizers hit "Auto," trust the screen, and only discover the physical cost (time, thread breaks, and machine wear) when the needle is already moving.

This guide reconstructs the Hatch Embroidery 2.0 workflow into a high-safety, production-grade protocol. We will move beyond "hoping it works" to a system based on physics, material science, and proper tooling.

1. The Setup: Eliminating the "Ghost File" Panic

Before you can stitch, you must locate your assets. Hatch contains a robust library of practice files, textures, and vectors. However, 90% of new users hit a wall immediately: they navigate to the correct folder, but the pane is empty.

This is a software filter issue, not a missing file issue.

The Fix Protocol:

1. Navigate: Go to Design Library > Embroidery > Artwork.
2. Locate Filter: Look for the "Showing" dropdown menu (usually defaulted to embroidery formats like .EMB or .PES).
3. Action: Switch this to All Artwork Files.

Sensory Check: You should visually see the pane populate instantly with JPEGs and BMPs. If the screen remains blank, check your file path.

Phase 1 Checklist: Pre-Import Sanitization

• Directory Check: Are you in Embroidery > Artwork?
• Filter Check: Is Showing set to All Artwork Files?
• Hardware Check: Do you have the specific threads required? Photo stitch is unforgiving of substitutions.
• Variable Control: For your first attempt, use a built-in Hatch image. This isolates "user error" from "bad file error."




2. Source Material: The "Small but Sharp" Rule

The quality of your output is mathematically limited by your input. Sue selects a King Charles Spaniel JPEG (436 x 395 pixels). To a graphic designer, this is tiny. To an embroiderer, it is sufficient—if the pixels are clean.

The interpolation Trap: Software cannot invent detail; it can only interpret contrast.

• Bad Input: A large image that is blurry or a thumbnail that is pixelated. The software interprets the "blur" as shading, creating messy, erratic stitches.
• Good Input: A small image with crisp, high-contrast edges.

The Zoom Test (Visual Anchor): Before importing, zoom in on the JPEG until it fills your screen. Look at the eyes.

• Fail: If the eye looks like a stack of chunky, square blocks (pixels).
• Pass: If the curve of the pupil remains relatively defined.




Warning: Physical Machine Safety
Photo stitch designs are exceptionally dense. A 4x4” design can exceed 40,000 stitches.
* Heat: High friction heats the needle. Run your machine at 500-600 SPM (Stitches Per Minute), not max speed.
Integrity: Check your bobbin case for lint before* you start. Accumulation can cause bird-nesting on long runs.
* Breakage: Use a fresh Topstitch 75/11 or 90/14 needle. The larger eye reduces friction on the thread.

3. The Digitizing Engine: Balancing Realism vs. Production Reality

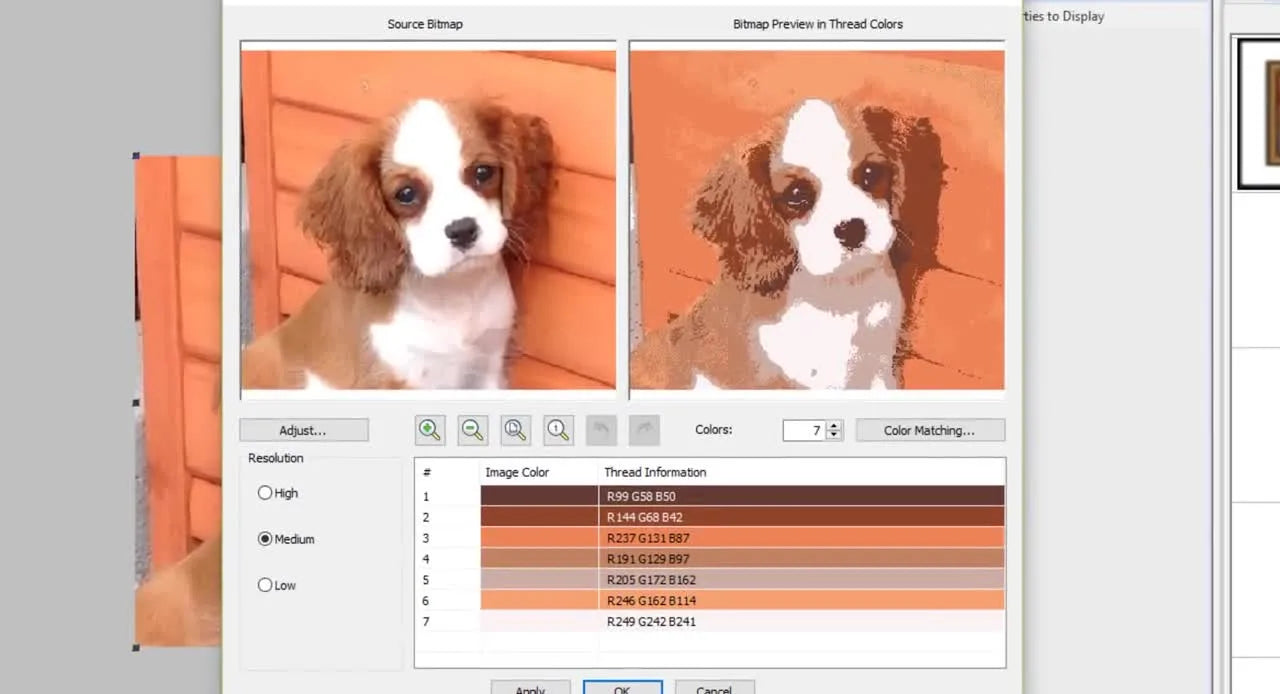

Once the JPEG is loaded, we enter Auto-Digitize > Color PhotoStitch.

This is where the amateur is separated from the professional. The software offers two critical sliders: Resolution and Colors.

The "Colors" Trap

Sue demonstrates clarity by testing 7, 10, 15, and 20 colors. Visually, 20 colors look smoother. However, in production, 20 colors = 20 manual interventions (on a single-needle machine).

The Commercial Calculation:

• Time Cost: If a thread change takes you 2 minutes, 20 changes add 40 minutes of downtime to the job—before stitching time.
• Material Risk: Every trim and jump is a potential thread break or unthreading event.

The Solution: Sue settles on 10 colors. This is the "Sweet Spot." It provides enough tonal range for realism but keeps the job manageable.

Tooling Upgrade Logic: If your business model relies on photo-realistic designs (pet portraits, landscapes), the thread-change bottleneck is your primary enemy.

• Level 1: Optimize software to <10 colors.
• Level 2: Organize threads on a rack for rapid access.
• Level 3: Upgrade to a multi-needle machine. A SEWTECH or similar multi-needle system allows you to stage 6–10 colors at once, converting downtime into billable runtime.




4. The Pixelation Reality Check

Action: Before hitting "Finish," zoom in on the preview pane.

Sensory Check (Visual): Look at the transition between the pupil and the iris.

• Good: Defined blocks of color.
• Bad: A "confetti" look where random single stitches are scattered.

If you see pixelation here, the machine will attempt to stitch that noise. The result will be a design that sounds like a jackhammer (rapid short movements) and feels like sandpaper (bulletproof density).

Protocol: If the preview is noisy, do not proceed. Return to the source image, upscale or clean it in photo editing software, and re-import.

5. Production Planning: The 61,000 Stitch Reality

Sue clicks OK. The design generates. Now we must look at the data panel.

The Data:

• Stitch Count: 61,000
• Size: 6 x 5 inches

The Physics of High Stitch Counts: A 60k design puts immense stress on fabric. This is not a logo; it is a slab of thread.

• The Pull Effect: Thousands of stitches pulls the fabric toward the center.
• The Push Effect: The fabric builds up and pushes out.
• The Result: If your hooping is weak, the outline will not match the fill (registration error), or the fabric will pucker permanently.




The "Hoop Burn" & Stability Crisis

How do you hold fabric perfectly still for 60,000 stitches without crushing it?

Standard plastic hoops require you to tighten a screw. To fight the pull of a photo stitch, users often over-tighten, leaving permanent "hoop burn" rings on delicate garments. Alternatively, if the screw is too loose, the fabric slips 1mm, ruining the eyes of the portrait.

The Upgrade Path: Magnetic Frames For high-density work, professionals shift to magnetic embroidery hoops.

• Why: They clamp the fabric with continuous vertical force rather than radial friction. This prevents "creep" during long stitch runs without crushing the fabric fibers.
• Application: When stitching on thick items (like towels for photo stitch) or slippery performance wear, magnetic hoops provide the rigorous stability required for 60k+ designs.

Decision Tree: Fabric & Stabilizer Selection

Select the correct combination to prevent distortion.

1. Is the fabric STRETCHY (T-shirt, Jersey)?
   • Stabilizer: Cutaway (2.5oz or 3.0oz). You need permanent structural support.
   • Hooping: Do not stretch the fabric. Lay it neutral. Consider a magnetic hooping station to ensure neutral tension.
   • Topping: Water-soluble topping prevents stitches sinking.
2. Is the fabric STABLE (Denim, Canvas, heavy Cotton)?
   • Stabilizer: Heavy Tearaway (two layers cross-laid) or medium Cutaway.
   • Hooping: "Drum tight." Tap the fabric; it should sound like a drum thud.
3. Is the fabric WITH PILE (Towel, Fleece)?
   • Stabilizer: Cutaway (bottom) + Water Soluble (top).
   • Hooping: magnetic embroidery hoop is essential here to accommodate the thickness without popping the hoop.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength neodymium magnets.
* Pinch Hazard: They snap together instantly with high force. Keep fingers clear of the edge.
* Medical Safety: Do not use if you or anyone in your immediate workspace has a pacemaker or designated medical device affected by magnetic fields.

6. The Size Dilemma: 6x5 vs. 5x7 Hoops

Sue notes the design is 6x5 inches.

• It fits a 6x10 hoop comfortably.
• It fits a 5x7 hoop tightly.

Scaling Risk: Do not simply shrink a photo stitch design to fit a brother 4x4 embroidery hoop. Photo stitch relies on small, distinct stitches. Reducing size by 20% increases density by ~40% (inverse square law).

• Result: Thread breaks, needle jamming, and a stiff, cardboard-like patch.
• Rule: If you must shrink, lower the Stitch Count or Resolution inside Hatch first; do not just scale the finished file.

If you regularly stitch designs larger than 5x7, upgrading your machine's physical hoop limits (e.g., to an embroidery machine 6x10 hoop) is often safer than trying to split a design or shrink it excessively.

7. The Final Pre-Flight: Thread & Time

Sue emphasizes two non-negotiables:

1. Do you have the thread? (Don't substitute a "close enough" grey for a shadow; it will look like a stain).
2. Do you have the time? (61,000 stitches @ 600 SPM = ~102 minutes roughly, plus thread changes).

Hidden Consumables Checklist:

• Spray Adhesive (Temporary): Essential for floating stabilizer or holding backing to fabric.
• Tweezers: For picking tiny jump stitches typical in photo stitch.
• Fresh Needles: Have a backup pack of 75/11s.

Digitizing Level Check: A user asked about Hatch versions. Sue confirms this is the Digitizer level. While lower levels can resize, full PhotoStitch capability requires the higher tiers.

Setup Checklist (Software Phase)

• Image loaded and verified clear (No pixelation).
• Colors reduced to manageable number (Target: 10-12).
• Resolution adjusted for clarity.
• Zoom check passed on critical details (eyes/mouth).

Operation Checklist (Physical Phase)

• Hoop Check: Fabric is taut (drum sound) but not stretched. If using magnetic hooping station, verify alignment.
• Needle Check: Brand new needle installed.
• Bobbin Check: Full bobbin loaded (Photo stitch eats bobbin thread).
• Speed Check: Machine speed limited to 600 SPM.
• Environment: Thread path is clear; no fans blowing on thread cones.

8. Troubleshooting Guide

• Diagnose issues before destroying a garment.*

9. Conclusion: The Upgrade Path

Photo stitch is the ultimate test of your embroidery setup. It exposes every weakness in your hooping technique, your stabilizer choices, and your patience.

• If your struggle is Result Quality (puckering/shifting): Focus on Hooping. Learn how to use magnetic embroidery hoop systems to secure your fabric without distortion.
• If your struggle is Production Speed (constant thread changes): Focus on Machinery. If you are doing volume work, a multi-needle machine like the brother pr680w (or similar commercial units) changes the game from "babysitting the machine" to "set it and forget it."

Start with a clean photo, keep your colors low, and respect the physics of the machine. The result will be worth the preparation.

FAQ

• Q: Why is the Hatch Embroidery 2.0 Design Library empty when the JPEG photo is in “Embroidery > Artwork”?
  A: This is usually a file-type filter setting, not missing files—switch the “Showing” dropdown to “All Artwork Files.”
  • Navigate: Open Design Library > Embroidery > Artwork.
  • Change: Click Showing and select All Artwork Files (not EMB/PES-only formats).
  • Recheck: Confirm the folder path is correct if the pane still looks empty.
  • Success check: The library pane populates immediately with JPG/BMP thumbnails.
  • If it still fails… Verify the image is truly inside the Artwork folder (not a similarly named folder) and re-browse to the exact path.
• Q: How can Hatch Embroidery 2.0 PhotoStitch prevent a grainy “confetti” preview before stitching a pet portrait?
  A: Do not stitch a noisy preview—go back and use a cleaner, sharper source image (small is fine, but it must be crisp).
  • Zoom-test: Zoom into the JPEG and inspect critical details (especially the eyes).
  • Reject: Avoid blurred images or pixelated thumbnails; the software will digitize the blur as random stitches.
  • Replace: Use the original camera file or clean/upscale the image in photo editing software, then re-import.
  • Success check: The preview shows controlled color blocks and smooth transitions, not scattered single stitches.
  • If it still fails… Lower PhotoStitch complexity by reducing settings like resolution and re-run the conversion.
• Q: What is a safe Hatch Embroidery 2.0 PhotoStitch “Colors” setting to reduce thread changes on a single-needle embroidery machine?
  A: A safe production starting point is often about 10 colors to balance realism with manageable manual thread changes.
  • Test: Generate versions at different color counts and compare realism vs. handling time.
  • Choose: Aim for a “sweet spot” that avoids excessive trims/jumps and constant rethreading.
  • Plan: Stage the exact thread shades before starting (PhotoStitch is unforgiving with substitutions).
  • Success check: The stitched result keeps facial/eye detail while the job remains practical to run without nonstop interventions.
  • If it still fails… If the business need requires higher realism (more colors) and you are losing time to thread changes, consider moving from workflow optimization to a multi-needle embroidery machine.
• Q: How do I prevent hoop burn and fabric shifting on a 60,000-stitch PhotoStitch design using a standard screw embroidery hoop?
  A: Avoid over-tightening to “fight” the design—use stronger stabilization and consider a magnetic embroidery hoop to hold fabric without crushing fibers.
  • Stabilize: Match fabric to stabilizer (stretch fabric: cutaway; stable fabric: heavy tearaway or cutaway; pile fabric: cutaway + water-soluble topping).
  • Hoop: Keep fabric taut but not stretched; long, dense runs amplify even tiny movement.
  • Upgrade: Use a magnetic hoop for continuous vertical clamping to reduce creep during long stitch cycles.
  • Success check: No permanent hoop ring on the garment and the design stays registered (details like eyes do not drift).
  • If it still fails… Stop and reassess: dense designs may require switching stabilizer type/weight and improving hooping consistency (a hooping station can help keep neutral tension).
• Q: What safety steps should be followed when running high-density PhotoStitch embroidery to avoid needle heat, thread breaks, and bird-nesting?
  A: Slow the machine and start clean—high-density PhotoStitch runs create heat and lint buildup that can trigger breaks and nests.
  • Limit speed: Run around 500–600 SPM instead of maximum speed to reduce friction heat.
  • Replace needle: Install a fresh Topstitch 75/11 or 90/14 needle to reduce thread drag (larger eye helps).
  • Clean first: Check and clean lint around the bobbin area before starting long runs.
  • Success check: The machine sound stays steady (no “jackhammer” chattering) and stitches form smoothly without repeated breaks.
  • If it still fails… Recheck top threading and tension discs for contamination; PhotoStitch tension drag can expose marginal threading issues.
• Q: What safety precautions are required when using industrial-strength magnetic embroidery hoops for towels, fleece, or thick items?
  A: Treat magnetic hoops as pinch-hazard tooling—keep fingers clear and do not use them around pacemakers or magnet-sensitive medical devices.
  • Handle: Separate and join the hoop halves slowly and deliberately; keep fingertips away from the snap zone.
  • Control: Place the hoop on a stable surface before closing to avoid sudden shifts.
  • Restrict: Do not use magnetic hoops if anyone nearby has a pacemaker or a medical device affected by magnetic fields.
  • Success check: The hoop closes cleanly without finger pinches and the fabric is clamped evenly across the entire frame.
  • If it still fails… If the hoop is hard to control on thick goods, reset the fabric and close from one edge at a time to maintain alignment and reduce sudden snapping.
• Q: Why does shrinking a Hatch Embroidery 2.0 PhotoStitch design to fit a Brother 4x4 embroidery hoop cause thread breaks and cardboard-stiff embroidery?
  A: Simple scaling down increases density sharply—reduce stitch count/resolution in the PhotoStitch settings before generating the final file instead of only resizing the finished design.
  • Avoid: Do not “just shrink” a completed PhotoStitch file to force it into a small hoop.
  • Regenerate: Adjust PhotoStitch parameters (like resolution/stitching complexity) and re-create the design at the target size.
  • Plan: If the design is naturally larger (e.g., around 6x5), use an appropriately sized hoop rather than forcing extreme reduction.
  • Success check: Stitching runs without repeated breaks and the finished piece stays flexible rather than feeling like a stiff patch.
  • If it still fails… Consider changing the project plan (use a larger hoop size or redesign the artwork) because some photo-realistic details do not translate safely at very small stitch areas.
