Happy Japan HCD3/HCD-1501 Presser Foot Replacement: The Calm, No-Lost-Parts Way to Get Back Stitching

If you have ever heard a generic metallic "tick" turn into a catastrophic bird’s nest, or stared at the front of a multi-needle head while thinking, “If I drop this washer, it belongs to the floor gods forever,” you are in the right place.

This is not just a summary of a video. This is a battlefield-tested reconstruction of the mechanical procedure for removing and replacing a presser foot on a Happy Japan HCD3 or HCD-1501 style head. We are going to layer on the "shop floor reality" that user manuals ignore—the sensory cues, the safety margins, and the preventative steps that keep you from having to do this job twice.

A critical note before we touch a screwdriver: The presser foot assembly looks deceptively simple. However, it is unforgiving. If you lose the washer, guess the height setting incorrectly, or forget the tiny plastic grommet (bushing), you will introduce "flagging" (fabric bouncing), which leads to thread breaks and off-registration.

Tools That Keep a Happy Japan HCD3 Presser Foot Swap From Turning Into a Parts Hunt

The video demonstrates using a standard red-handled screwdriver and manual dexterity. That works if you have done it a hundred times. For the rest of us, we need to minimize risk.

The Essential Kit (As Shown):

• #2 Phillips Screwdriver: Preferably with a magnetic tip to hold screws during extraction.
• Standard Flathead Screwdriver: For the needle screw (if applicable).
• Your Fingers: You will need tactile sensitivity to manage spring pressure.

The "Chief Education Officer" Additions (Hidden Consumables):

• Magnetic Parts Tray: Do not skip this. The screws on these heads are small, dark, and love to bounce into the machine chassis.
• Light-Colored Towel: Place this directly over the throat plate/needle plate area. If a screw drops, it hits the towel and stops, rather than falling into the bobbin area or onto a dark floor.
• Smartphone Flashlight/Camera: For documenting the pre-existing height setting.
• Fresh Needle (DBxK5 or similar): Never reinstall a used needle after a repair. Start fresh.

If you are maintaining a 15 needle embroidery machine in a high-volume production environment, organization is the difference between a 15-minute fix and a 2-hour nightmare.

Prep Checklist (Pre-Flight Safety):

• Power Down: Turn the machine off completely at the main switch. A stray signal or accidental bump of the start button while your fingers are near the needle bar is a risk you never take.
• Drop Zone Protection: Lay your towel over the needle plate and bobbin cover.
• Current State Capture: Take a close-up photo of where the upper set screw sits in the oval slot. This is your "Factory Reset" point.
• Inventory Check: Ensure you have the replacement presser foot and a spare grommet before taking the old one off.


Face Plate Removal on the Happy Japan HCD-1501: The 20-Second Move That Gives You Real Access

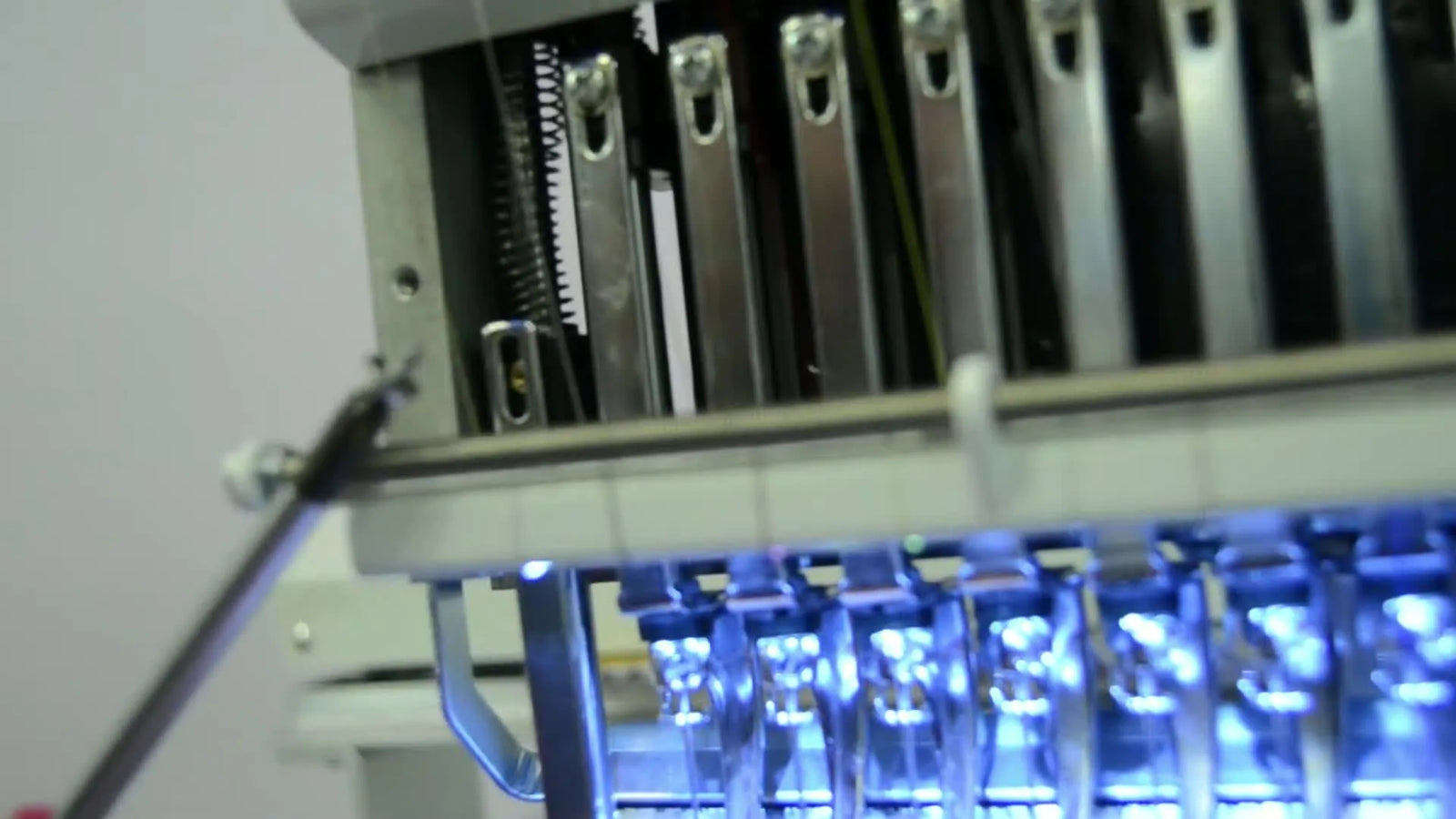

The technician begins by removing the white face plate. This is not just for visibility; you physically cannot reach the upper retaining screw of the presser foot without this step.

1. Locate the Screws: Identify the two screws securing the white face plate shielding the needle bar assembly.
2. Unscrew: Remove them using your screwdriver. Place them immediately in your magnetic tray.
3. The Slide Action: Gently slide the face plate off to the left. It should move without forcing. This exposes the reciprocating mechanism and the needle bar driver.

Sensory Check: You should feel the plate release tension once the screws are out. If it sticks, do not pry it; check for a hidden third screw or a tab that needs depressed, though usually on the HCD3, it’s a simple slide.

Warning: Mechanical Hazard. The internal components of an embroidery head are sharp and often coated in oil. Avoid touching the exposed reciprocator assembly unnecessary. Furthermore, keep track of your needles—a dropped needle on a production floor is a hidden puncture hazard for anyone wearing soft-soled shoes.

Needle Removal From the Needle Holding Block: Don’t Over-Loosen What You Don’t Need To

Before the block comes off, the needle must vacate the premises. This is a standard operation, but precision usage saves time.

1. Identify the clamp screw: Locate the small screw on the needle holding block.
2. Tactile Turn: Loosen it just enough to break the friction holding the needle. You do not need to take this screw all the way out.
3. Extraction: Pull the needle (silver) downward and out.
4. Discard or Store: If the needle has hours on it, bin it.


Pro tip from real shops: If you are servicing a heavy-duty happy japan embroidery machine that runs 8 hours a day, assume the needle is compromised. Inspect the tip by dragging it gently across your fingernail. If it scratches your nail, it has a burr—throw it away.

The Needle Holding Block Spring Pressure on a Happy Japan Machine: Catch the Block, Save the Washer

This is the "Step of Death" for beginners. The needle holding block is not passive; it is under compression from the presser foot spring.

1. The Main Screw: Find the main screw that attaches the needle holding block to the needle bar rod itself.
2. The Loosening Phase: Begin to loosen the screw. As you turn, use your thumb and index finger to support the block.
3. The "Pop" Moment: As the threads disengage, the spring will try to launch the block and washer downwards. Catch the needle holding block and the washer instantly.
4. Orientation Memory: Note the angle of the block. It usually keys onto the needle bar in a specific way.


The Sensory Anchor: You will feel a distinct downward push (like a retractable pen spring, but stronger) on the block as the screw loosens. Fight this pressure gently to control the release.

Removing the Presser Foot via the Upper Set Screw (Oval Slot): Preserve Height or You’ll Chase Problems Later

With the block gone, the presser foot is technically free from the bottom but held by the top adjustment screw. This screw controls the "Presser Foot Height"—a critical variable for embroidery quality.

1. Locate the Oval Slot: Look at the exposed needle bar. You will see an upper set screw sitting inside an oval adjustment hole.
2. Verify Position: Look at the photo you took in the Prep phase. Is the screw at the top, middle, or bottom of the oval? This determines how high the foot sits off the fabric.
3. Release: Loosen the upper set screw. Caution: There is often a washer behind this screw too. Do not lose the washer.
4. The Drop: As tension releases, the presser foot will slide down and out of the machine.


Comment-driven question: “When do I actually need to change the presser foot?” The channel reply suggests replacing it when it’s broken or bent beyond repair. In my experience, look for these signs:

• Deep Scratches: If the bottom of the foot is rough, it will snag delicate knits.
• Bent Halo: If the circle where the needle passes through is not perfectly round or is bent upwards/downwards, it causes thread shredding.
• Cracked Mount: Stress fractures near the screw hole.

The Plastic Grommet (Bushing) Inside the Presser Foot: The Tiny Part That Prevents Big Wear

This is the secret sauce. Before you even think about reassembling, you must check the white plastic grommet (also called a bushing or cushion).

• The Check: Look inside the top collar of the presser foot. Is there a white plastic insert?
• The Function: It acts as a sleeve/bushing between the metal presser foot and the metal needle bar.
• The Risk: Without this, you get metal-on-metal grinding. This creates noise, vibration, and eventually wears down the needle bar itself—a much more expensive repair.


If the grommet is missing from your replacement foot, harvest it from the old one (if intact) or buy a new one. Do not install a "naked" metal foot onto the bar.

Reassembly Stack Order on a Happy Embroidery Machine: Foot First, Then Washer, Then Needle Holding Block

Reassembly is a dexterity test. You are fighting gravity and spring tension simultaneously. Visualize the stack before you start.

1. The Foot: Slide the presser foot up onto the needle bar. It needs to go high enough to clear the needle holding block area.
2. The Washer: Slide the black washer up the needle bar, sitting under the presser foot.
3. The Block: Slide the needle holding block up.
4. The Compression: Push the entire stack upward against the spring pressure.
5. The Catch: While holding the stack up with one hand, use your other hand to re-insert the main screw into the needle holding block.
6. The Align: Angle the block so the screw enters the needle bar hole cleanly. Engage several threads only—loose enough so the presser foot can still slide up and down for adjustment, but tight enough that it won't fly off.






Setup Checklist (The "Mid-Air" Check):

• Is the plastic grommet still inside the presser foot?
• Is the black washer sandwiched between the foot and the block?
• Is the main screw threaded enough to hold the weight?
• Is the needle block facing the correct direction (screw hole forward)?

Setting Presser Foot Height With the Upper Set Screw on Happy Embroidery Machines: Match the Slot Position, Then Tighten Like You Mean It

This is where you calibrate the machine. The "Height" dictates how much the fabric is compressed.

1. Positioning: Pull the presser foot down until the screw hole aligns with the oval slot on the needle bar.
2. Reference: Adjust the height (slide up/down in the oval) to match your original photo.
   • Rule of Thumb: Generally, when the needle is at its lowest point (Bottom Dead Center), the presser foot should lightly kiss the needle plate or hover barely above it (approx 0.1mm to 0.5mm depending on fabric thickness). For now, match the factory setting.
3. The Hardware: Insert the upper set screw with its metal washer.
4. The Torque: Tighten it as tight as you reasonably can by hand. This screw endures thousands of reciprocating cycles per minute. If it is loose, the foot will drop mid-design.








Troubleshooting Logic: If you see the foot hitting the needle plate with a loud "clack-clack-clack," you set it too low. If the fabric is bouncing up and down (flagging) while sewing, you set it too high.

Reinstalling the Needle (Scarf to the Back): The One Orientation Mistake That Can Ruin Your Day

A perfect mechanical install means nothing if the needle is backwards.

1. Insertion: Drop the needle down through the eye of the presser foot.
2. Orientation: The scarf (the indented groove above the eye) must face the back of the machine (away from you). The long groove faces you.
3. Seating: Push the needle all the way up into the holding block until it hits the stop. You should feel a solid mechanical stop.
4. Locking: Tighten the small screw on the needle holding block.


Sensory Verification: Run your fingernail down the front of the needle; you should feel the long groove. Run it down the back; you should feel the scarp indentation.

Reinstalling the Face Plate: Slide Under the Lip, Then Don’t Over-Torque the Short Screws

Finish the job cleanly.

1. The Lip: Slide the face plate in from the left. Ensure the top edge goes under the lip of the upper head cover. It should sit flush.
2. The Screws: Reinsert the two screws.
3. Torque Warning: Tighten them until snug + 1/8th turn. These go into plastic or light metal casting; do not crank them down like lug nuts, or you will strip the housing.


The “Why It Works” Behind Presser Foot Height and Fabric Control (So You Don’t Repeat the Repair)

Why does this assembly matter? The presser foot on a commercial head is the "hands" of the machine. It holds the fabric still for the millisecond that the needle penetrates and the hook catches the loop.

• Flagging Prevention: If the height is too high or the spring is weak, the fabric lifts up with the needle. This prevents the loop from forming properly, causing skipped stitches.
• The Oval Slot: This exists because different applications (like puffy foam or thick leather) require higher clearance. The adjustability is a feature, not a bug—but it requires you to be aware of it.
• Plastic Grommet: This component isolates vibration. If replaced with a generic part missing the grommet, your happy machine embroidery experience will turn into a noisy, rattling headache.

If you are running customer orders, the goal isn't just "it's attached." The goal is "it performs identically to the other 14 needles."

Quick Troubleshooting After a Presser Foot Replacement on a Happy Japan Machine

Don't guess. Use this matrix to diagnose issues immediately after reassembly.

Decision Tree: Fabric Type → Stabilizer Choice (The Fast Way to Prevent Movement While You Test the Repair)

After a mechanical repair, you need to test. But if you test on unstable fabric, you won't know if the error is the Machine or the Material. Use this logic to reduce variables.

Start Here: What is your Test Material?

1. Stable Woven (Twill, Canvas, Denim):
   • Risk: Low.
   • Stabilizer: Medium Tear-away.
   • Test Speed: 600 SPM.
2. Stretch Knit (Polo Shirts, T-Shirts):
   • Risk: High (Flagging).
   • Stabilizer: Cut-away (2.5oz or 3.0oz) + Spray Adhesive (Temporary).
   • Test Speed: 500 SPM. Make sure the foot height isn't dragging firmly on the fabric.
3. High Pile (Towels, Fleece):
   • Risk: Loops getting snagged.
   • Stabilizer: Tear-away (Bottom) + Water Soluble Topping (Top).
   • Test Speed: 500 SPM.

General Rule: For the first test run after a repair, always use a Stable Woven fabric with Cut-away backing. Eliminate stretch as a variable so you can judge the mechanism only.

Production Reality: Downtime Costs More Than Parts (And Where Smart Upgrades Actually Help)

A presser foot replacement is maintenance. But if you are doing this constantly, or if the results are still inconsistent, the problem might not be your screwdriver skills—it might be your workflow tools.

Here represents the "Tool Upgrade Path" that turns a struggle into a system:

1. The Pain: "My wrists hurt and I leave hoop marks (burns) on delicate items."
   • Trigger: You spend more time hooping than sewing, or you ruin a profit margin by crushing velvet/performance wear with standard plastic rings.
   • Judgment: If hooping is your bottleneck.
   • Solution Level 2: Magnetic Hoops (MaggieFrame / Sewtech). These clamp automatically using magnetic force. They are faster, hold thicker garments (jackets) easily without forcing screws, and significantly reduce hoop burn.
2. The Pain: "I have too many orders for my single-head machine."
   • Trigger: You are turning away bulk orders (50+ shirts) because you can't hit the deadline.
   • Judgment: When your "Active Sewing Time" is maxed out 8 hours/day.
   • Solution Level 3: SEWTECH Multi-Needle Machines. Moving to a dedicated multi-needle rig allows you to queue colors, run faster (1000+ SPM), and handle caps/tubular items that home machines struggle with.
3. The Pain: "Thread breaks happened right after I fixed the foot."
   • Trigger: Mechanical fix is good, but reliability dropped.
   • Judgment: Check your variables.
   • Solution Level 1: Ensure you are using high-tensile Polyester Embroidery Thread and the correct Stabilizer/Backing. Old thread dries out and snaps; cheap backing allows too much movement.

If you are operating happy embroidery machine heads daily, investing in magnetic hoops is often the highest ROI upgrade you can make to extend the life of your wrists and your machine's reciprocators (less force needed to hoop).

Warning: Magnetic Safety. If you upgrade to Magnetic Hoops, be aware they generate powerful fields. Keep them away from pacemakers, insulin pumps, and credit cards. Watch your fingers—these magnets can snap together with enough force to pinch blood blisters instantly.

Comment Q&A, Cleaned Up for the Shop Floor

Q: “What is the part number for the presser foot, or where can I find it?”

• Answer: The video doesn't specify because HCD models vary by year. Check your specific HCD-1501 Parts Manual (usually found in the "Needle Bar Case" section). Always look for "Presser Foot Complete" which usually includes the bushing.

Q: “Under what circumstances is it necessary to change the presser foot?”

• Answer: Replace when broken, cracked, or bent. Also, inspect it if you have had a severe needle strike (needle hit the hoop). A slight bend in the foot can throw off the alignment with the needle plate hole, causing needle deflection and broken needles.

Operation Checklist (Your "First Sew" Protocol)

Perform this checks strictly before hitting "Start" on a customer garment.

• Face Plate Check: Is it seated under the lip? Are screws snug?
• Set Screw Check: Is the upper set screw tight? Did you remember the washer?
• Needle Check: Is the scarf facing back? Is it fully up in the stop?
• Manual Rotation: Turn the handwheel (or main shaft knob) manually through one full rotation (0 to 360 degrees). Ensure the needle drops into the plate center without hitting the foot.
• Orphan Test: Run a test sew on scrap fabric. Use a standard block font. Watch specifically for "looping" on the top (tension loose) or pulling (tension tight).

If you are maintaining happy embroidery machines in a real production schedule, this checklist is your insurance policy. It turns a risky repair into a routine success. Go slow, control the spring, and happy stitching.

FAQ

• Q: What tools and “hidden consumables” should be prepared before removing a presser foot on a Happy Japan HCD3 / HCD-1501 embroidery head?
  A: Prepare drop-control and documentation tools first, because losing a washer or mis-setting height causes repeat failures.
  • Power down the Happy Japan HCD3 / HCD-1501 at the main switch and cover the needle plate area with a light-colored towel.
  • Use a magnetic parts tray and a magnetic-tip #2 Phillips screwdriver to prevent screws from falling into the chassis.
  • Take a close-up photo of the upper set screw position in the oval slot before loosening anything.
  • Install a fresh DBxK5 (or similar) needle after the repair instead of reusing the old needle.
  • Success check: All screws/washer(s) are accounted for in the tray and the “before” photo clearly shows the oval-slot screw position.
  • If it still fails… stop and confirm a replacement presser foot and a spare plastic grommet/bushing are available before disassembly.
• Q: Why must the white face plate be removed before replacing the presser foot on a Happy Japan HCD-1501 / HCD3 head?
  A: The upper retaining/adjustment screw for the presser foot cannot be accessed safely without removing the white face plate.
  • Remove the two face plate screws and place them immediately in a magnetic tray.
  • Slide the face plate to the left gently; do not pry or force it.
  • Avoid touching sharp/oily internal components once the plate is off.
  • Success check: The upper set screw in the oval slot is fully visible and reachable with a screwdriver.
  • If it still fails… re-check for a stuck tab or missed fastener instead of forcing the plastic plate.
• Q: How can the needle holding block “pop” during removal on a Happy Japan HCD3 presser foot change, and how can the washer be saved?
  A: Control spring pressure with your fingers while loosening the main screw, or the block and washer can launch downward.
  • Support the needle holding block with thumb and index finger before backing out the main screw.
  • Loosen slowly and be ready for the spring “pop” as threads disengage.
  • Catch the needle holding block and washer immediately and note the block orientation for reassembly.
  • Success check: The block comes off under control and the washer is captured (not dropped into the machine or onto the floor).
  • If it still fails… repeat with the towel covering the drop zone and keep a hand directly under the block the entire time.
• Q: How should presser foot height be set using the oval slot upper set screw on a Happy Japan HCD-1501 / HCD3 after reassembly?
  A: Match the original oval-slot screw position from the pre-repair photo first, then tighten firmly so the foot cannot drift during sewing.
  • Slide the presser foot until the screw hole aligns with the oval slot and set the height to the same location seen in the reference photo.
  • Insert the upper set screw with its metal washer and tighten as tight as reasonably possible by hand.
  • Use the noise/motion cues: loud “clack” against the needle plate usually means too low; fabric bouncing (flagging) often means too high.
  • Success check: During a slow manual rotation, the needle drops cleanly into the plate center without a loud clack and the fabric does not bounce during a test sew.
  • If it still fails… loosen the upper set screw, re-align to the reference photo again, and retighten with the washer installed.
• Q: What is the plastic grommet (bushing) inside a Happy Japan presser foot, and what happens if the presser foot is installed without the grommet?
  A: The plastic grommet is a sleeve that prevents metal-on-metal wear; missing it can cause grinding noise, vibration, and long-term needle bar wear.
  • Inspect inside the top collar of the presser foot for the white plastic insert before installation.
  • Transfer the grommet from the old presser foot if the replacement presser foot does not include one (if the old grommet is intact).
  • Stop immediately if grinding/rubbing noise appears after reassembly and re-check for the missing grommet.
  • Success check: The presser foot moves smoothly with no grinding/rubbing sound during manual rotation.
  • If it still fails… disassemble and confirm the grommet is seated correctly rather than continuing to run the head.
• Q: How can thread shredding start immediately after a Happy Japan HCD3 / HCD-1501 presser foot replacement, and what is the fastest check?
  A: The fastest check is needle orientation and condition—needle installed backwards or reused after service commonly causes immediate shredding.
  • Reinstall the needle with the scarf facing the back of the Happy Japan head and push it fully up to the hard stop before tightening.
  • Replace the needle with a fresh one (do not reinstall a used needle after repair work).
  • Inspect the presser foot eye area for deep scratches or a bent opening that can abrade thread.
  • Success check: The machine sews a short test on stable woven fabric without instant thread fuzzing or snapping at the needle area.
  • If it still fails… confirm the presser foot is not bent and re-check the presser foot height setting in the oval slot.
• Q: What is a safe first test-sew method after servicing a Happy Japan HCD-1501 / HCD3 presser foot to separate mechanical problems from fabric instability?
  A: Use stable woven fabric with backing at a moderate speed first, because stretch fabric can mask or mimic mechanical issues.
  • Run the first post-repair test on a stable woven (twill/canvas/denim) instead of knits or towels.
  • Use a stabilizer choice that reduces variables (the blog’s general rule favors using a stable woven with cut-away backing for the first test).
  • Sew at a controlled speed (the blog examples use 600 SPM for stable woven; slower if you need to observe movement).
  • Success check: Stitching forms cleanly without flagging, loud clacking, or immediate looping/birdnesting on the first simple test design.
  • If it still fails… return to presser foot height, washer/grommet presence, and needle seating checks before changing tensions.
• Q: When should embroidery production move from technique adjustments to Magnetic Hoops or a SEWTECH multi-needle embroidery machine in a real shop workflow?
  A: Escalate upgrades based on the bottleneck: fix setup variables first, use Magnetic Hoops when hooping/hoop burn is the problem, and consider SEWTECH multi-needle capacity when sewing time is maxed out.
  • Level 1 (technique): Standardize thread and stabilizer choices and confirm presser foot height/needle orientation after service if breaks increased.
  • Level 2 (tool): Choose magnetic hoops when hoop marks (hoop burn) or hooping speed is the limiting factor on delicate or thick garments.
  • Level 3 (capacity): Move to a SEWTECH multi-needle machine when single-head production is capped (for example, sustained full-day sewing with deadlines you can’t meet).
  • Success check: The identified bottleneck improves measurably (less hoop burn/faster hooping with magnetic hoops, or higher output with multi-needle production).
  • If it still fails… re-verify safety: keep magnetic hoops away from pacemakers/insulin pumps/credit cards and protect fingers from pinch injuries.
