Grouped vs Single Felties on a Brother Embroidery Machine: The Fastest Way to Stitch 4 at Once (Without Wasting Felt)

If you have ever stitched a single feltie, un-hooped it, trimmed it, and re-hooped for the next one, you have felt the friction of inefficiency. You might have thought, "There has to be a faster way."

You are correct. The solution isn't just a machine setting—it is a shift in production logic.

Grouped (often called "sorted") feltie files change your single-needle machine from a hobby tool into a miniature assembly line. Instead of finishing one item completely, the machine stitches Step 1 on four items, then Step 2 on four items. In the video, Drea demonstrates running four Sally faces in a single hoop.

This guide will deconstruct the physics, the workflow, and the safety protocols needed to master batch production without breaking needles or wasting materials.

Don’t Panic: “Grouped Felties” Aren’t a New Technique—They’re a Smarter File Architecture

When beginners panic because "My machine only makes one at a time," the issue is file selection, not machine capability.

• A Single file executes the sequence: Placement → Detail → Outline (Item Complete).
• A Grouped file executes the sequence: Placement (x4) → Detail (x4) → Outline (x4).

This architecture acts as a force multiplier. In Drea’s example, the grouped file exploits the full area of a 5x7 hoop to produce 4 felties per cycle.

The File Selection Protocol: Avoid Manual Sorting

Efficiency starts before you touch the machine. In your file library, designers typically label files as (Single) or (Grouped).

If you accidentally load the single file for a batch run, you face two bad options:

1. Linear Stitching: Doing one at a time (inefficient).
2. Manual Resequencing: Attempting to color-sort on the machine screen (high risk of layering errors).

This distinction is critical when using floating embroidery hoop techniques—where you float material over the hoop rather than clamping it in. Grouped files minimize the number of times you must align layers, reducing the "drift" that ruins projects.

Expert Insight on Orientation: If you purchase a grouped file, check the orientation on your screen. If the felties are rotated in different directions (0°, 90°, 180°, 270°) to save space, be careful with directional fabrics (like patterned vinyl). You may need to edit the file or choose a non-directional base material to avoid upside-down prints.

The “Hidden” Prep: Pre-Flight Safety Checks

Drea focuses on the stitching, but as a technician, I know that 90% of failures happen during prep. Felt is dense; it generates lint and resists needle penetration.

Prep Checklist: The 60-Second "Pre-Flight"

• File Verification: Confirm you loaded the 5x7 Grouped version.
• Needle Integrity: Felt dulls needles rapidly. If you can't remember the last time you changed it, install a fresh 75/11 Sharp or Titanium needle now.
• Bobbin Status: Ensure you have enough bobbin thread for a remarkably long, continuous run.
• Stabilizer Selection: Use medium-weight Tearaway (cleanest edge).
• Material Sizing: Your felt sheet must extend at least 1 inch beyond the stitching area on all sides.
• Hidden Consumables: Have Appliqué Scissors (duckbill) and temporary spray adhesive or tape ready.

Warning (Physical Safety): During operation, never place your fingers inside the hoop area to "hold the felt down." A machine moving at 600 stitches per minute (SPM) has enough torque to drive a needle through bone. If material needs holding, use a pencil eraser or a long styling tool—never your hand.

Hooping Strategy: The Foundation of Stability

Drea hoops a single layer of tearaway stabilizer in a standard plastic hoop. This is the "drum skin" principle: the stabilizer must be taut enough that tapping it produces a light thumping sound.

The Physics of "Hoop Burn" and Fatigue

Standard plastic hoops rely on friction and screw tension. To get them tight enough for dense felt, you often have to over-tighten, which strains your wrists.

• Trigger: If you feel wrist pain after hooping 10 batches, or if you notice "hoop burn" (crushed texture rings) on your fabric.
• Solution: This is the specific scenario where professionals switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction, relieving wrist strain and preventing hoop burn entirely.

Warning (Magnet Safety): If you upgrade to magnetic hoops, be aware they generate powerful magnetic fields. Do not use them if you have a pacemaker. Keep fingers clear of the clamping zone to avoid pinching.

The Placement Stitch: Validating Alignment

Drea initiates the cycle by stitching the placement lines directly onto the bare stabilizer.

Do not skip this visual check. This is your only chance to verify that the design fits the hoop and is centered properly.

Visual Confirmation (The "Pass" Criteria)

• Four distinct outlines are visible on the stabilizer.
• The lines are equidistant from the hoop edges.
• Sensory Check: The stabilizer remains flat; no "trampoline" bouncing effect while the needle moves.

Note on Hardware: If you are searching for a brother 4x4 embroidery hoop grouped file, understand your physical limits. You cannot conceptually squeeze a 5x7 grouped layout into a 4x4 physical space. You must use files specifically digitized for the 4x4 field (usually 2 items max).

Floating the Felt: The "Float" Technique

Drea places a sheet of teal felt over the hoop, covering all four placement boxes. She uses pins to secure the corners.

Why Float? Hooping thick felt causes distortion. Floating allows the felt to sit naturally flat. The Risk: Until the tack-down stitch fires, the felt can shift.

Setup Checklist: Before Hitting Start

• Coverage Check: Can you feel the placement stitches under the felt? Ensure the felt covers the lines by a safe margin (1cm+).
• Clearance: If using pins, are they placed horizontally and far outside the stitch path?
• Flatness: Smooth the felt with your hand. Is there trapped air?

The Upgrade Path (Solving the "Shift"): If you find pinning tedious or dangerous, this is a prime use case for a magnetic hoop for brother pe800 (or your machine's equivalent). A magnetic frame allows you to clamp the felt and stabilizer together instantly without forcing the inner ring, eliminating the need for pins and drift risk.

The Production Rhythm: Color Sorting Logic

Drea explains the workflow efficiency: Step A on all units, then Step B on all units.

The Speed "Sweet Spot": While your machine might rate itself at 800+ SPM, dense felt performs best at lower speeds.

• Recommended Speed: 500 - 650 SPM.
• Why: High speeds on felt can cause needle deflection (bending), which leads to broken needles or loud "clunking" sounds. Slow and steady yields cleaner satin stitches.

This method reduces not just stitch time, but operator interaction time. Every time the machine stops for you to change a thread, your "Cost Per Item" goes up.

Thread Management: Minimizing Changeover

A viewer asked: "Do you change the bobbin too?"

The Industry Standard: No. For felties (which are usually backed with another piece of felt later), use a neutral bobbin thread (white or black) and leave it. Only change the Top Thread.

Technician's Note: If the back of your feltie looks messy, check your tension.

• Sensory Anchor: When pulling thread through the needle, it should feel like pulling dental floss through teeth—slight, consistent resistance.
• Visual Anchor: Look at the back. You should see specifically 1/3 bobbin thread in the center of satin columns.

Scaling Up (Business Logic): If you are running batches of 50+ items and the single-needle thread changes are killing your profit margin, this is the trigger point to consider a multi-needle machine (like the SEWTECH architecture). A multi-needle machine eliminates the manual thread change entirely, allowing you to walk away while it produces.

The Result: Consistency is King

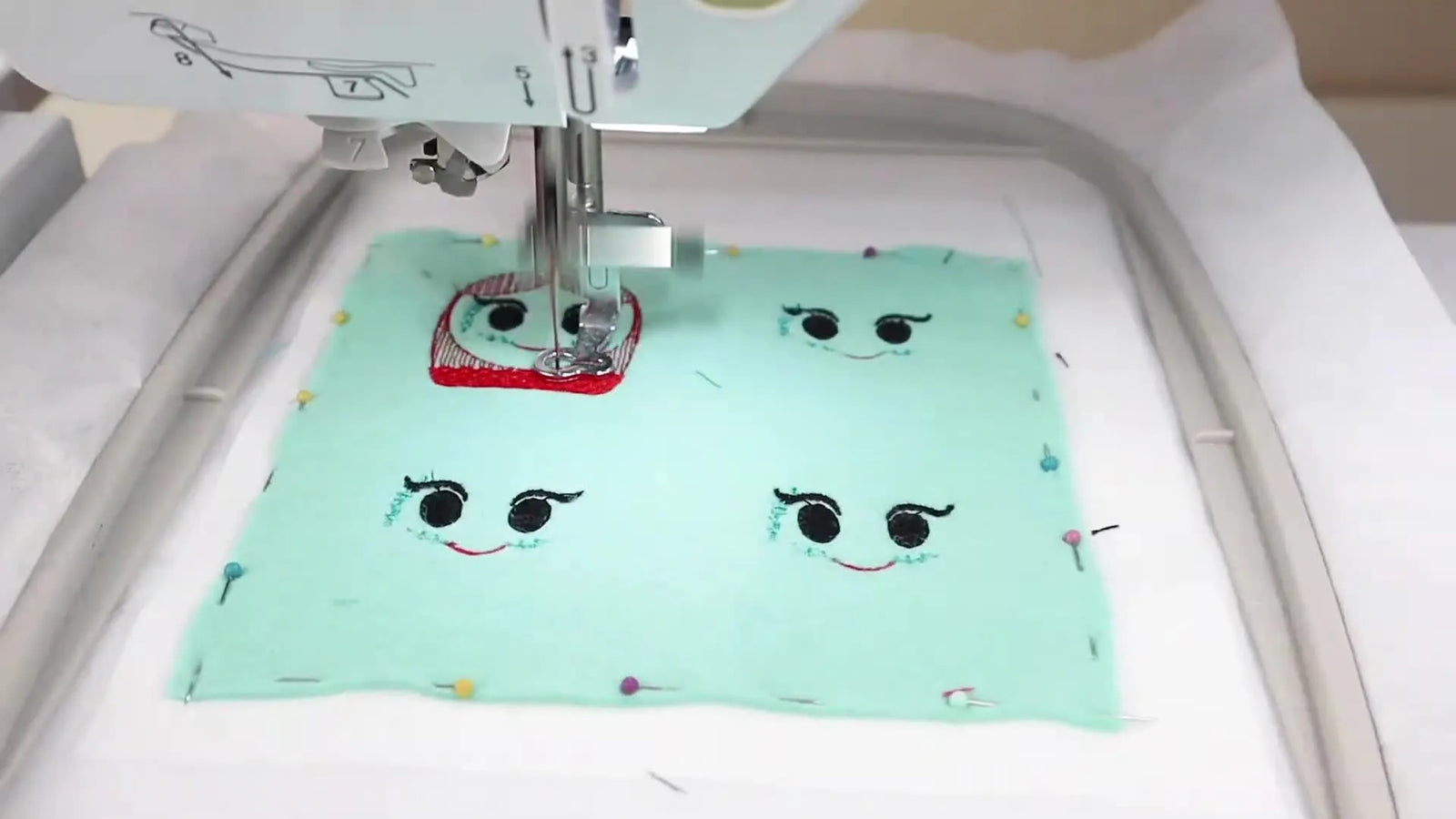

Drea shows the final sheet: four identical faces.

If you are using brother 5x7 magnetic hoop systems, you will notice that your consistency improves because the material tension doesn't vary from "how hard you tightened the screw" today vs. yesterday.

Finishing: The Cut Defines the Quality

Stitching is only half the battle. Drea cleans up the sheet and cuts the individual pieces.

Tools Matter:

• Curved Appliqué Scissors: Essential for getting close to the satin stitch without snipping the threads.
• Rotary Cutter: Best for straight edges.

Quality Standard: A professional feltie has a smooth, continuous felt margin (usually 2-3mm). Ragged, choppy scissor cuts scream "amateur."

Handling the 4x4 Limitation

Can you do this on a small machine?

• Yes: If you find 4x4 specific grouped files (usually 2-up).
• No: Do not try to shrink a 5x7 file. The density will increase, and you will break needles.

If you are considering a magnetic hoop for brother se1900 or similar 5x7+ machine, treat the larger field as a productivity tool—it allows you to double or quadruple your output per hour compared to a 4x4.

Decision Tree: The "Feltie Production" Matrix

Use this logic to determine your setup.

Variable 1: Volume

• Hobby (1-10 items): Float felt on tearaway + Standard Hoop.
• Side Hustle (10-50 items): hoop master embroidery hooping station aids or Magnetic Hoops to reduce wrist fatigue.
• Business (50+ items): Multi-needle machine required for profitability.

Variable 2: Material Stability

• Stiff Felt: Tearaway stabilizer is sufficient.
• Soft/Floppy Felt: Use Cutaway stabilizer to prevent the shape from distorting into an oval during stitching.

Troubleshooting: The "Sound" of Failure

Machines talk to you. Learn their language.

The Upgrade Path: Solving Bottlenecks

Grouped files solve the software bottleneck. But physical bottlenecks remain.

1. Hooping is slow: Switch from Screw Hoops to Magnetic Hoops.
2. Thread changes are slow: Switch from Single-Needle to Multi-Needle Machines.
3. Alignment varies: Use templates or projection.

Operation Checklist: Final Quality Control

• Stitch Completeness: No gaps in the satin borders.
• Registration: The internal details (eyes/mouth) are centered within the outline.
• Backside Hygiene: No massive loops or nests (trim these before gluing the backing).
• Edge Quality: Cuts are smooth curves, not polygons.

Mastering grouped files is your first step toward thinking like a manufacturer. It’s the same machine, but a smarter process.

FAQ

• Q: How can a Brother PE800 single-needle embroidery machine stitch 4 felties in one hoop instead of finishing one feltie at a time?
  A: Use a 5x7 grouped (sorted) feltie file so the Brother PE800 stitches each step across all items before moving to the next step.
  • Load the file version labeled “5x7 Grouped” (not “Single”) in the design library.
  • Confirm the stitch order on-screen shows Placement x4, then Details x4, then Outline x4.
  • Run the placement stitch first on bare stabilizer to verify layout before adding felt.
  • Success check: four placement boxes appear evenly spaced and comfortably inside the hoop edges.
  • If it still fails: stop and re-check that the grouped file matches the physical hoop size (do not force a 5x7 layout into a 4x4 hoop).
• Q: What is the fastest pre-flight checklist to prevent needle breaks and bobbin run-outs when batch-stitching dense felt on a Brother PE800 embroidery machine?
  A: Do a 60-second pre-flight: verify the grouped file, install a fresh sharp needle, confirm bobbin capacity, and stage the correct stabilizer and tools.
  • Verify the exact file name/version is the “5x7 Grouped” file before pressing start.
  • Replace the needle with a fresh 75/11 Sharp or Titanium needle if the current needle’s age is unknown.
  • Check bobbin thread level for a long continuous run and top off if uncertain.
  • Success check: the machine runs the full placement + tackdown phases without skipped punches, snapping sounds, or early bobbin emptying.
  • If it still fails: lower stitching speed and inspect for lint/adhesive buildup that can increase resistance.
• Q: How tight should the stabilizer be in a standard plastic embroidery hoop to avoid bouncing and registration drift during grouped feltie runs?
  A: Hoop the tearaway stabilizer “drum tight” so it stays flat and doesn’t trampoline while stitching.
  • Hoop one layer of medium-weight tearaway stabilizer and tighten until tapping produces a light “thump.”
  • Stitch the placement lines directly onto the bare stabilizer before floating felt.
  • Watch the stabilizer during the first stitches and stop if the surface visibly flexes up/down.
  • Success check: the stabilizer remains flat with no trampoline effect as the needle moves.
  • If it still fails: re-hoop tighter or switch to a hooping method that holds tension more consistently (often a magnetic hoop).
• Q: How can a Brother PE800 user float felt safely for grouped felties without shifting the felt before tack-down stitches?
  A: Float the felt over the hooped stabilizer with full coverage and secure the edges safely away from the stitch path.
  • Cover all placement outlines with felt, leaving a safe margin beyond the lines (at least 1 cm+).
  • Place pins horizontally and well outside the stitch area, or use temporary spray adhesive/tape instead of risky pin placement.
  • Smooth the felt flat to remove trapped air before starting.
  • Success check: after the tack-down/first securing stitches, the felt stays locked and the placement outlines remain centered under the felt.
  • If it still fails: clamp felt + stabilizer together using a magnetic hoop to reduce drift and eliminate pinning.
• Q: What should the top and bobbin tension look like on felties stitched on a Brother PE800 so the back doesn’t look messy?
  A: Keep a neutral bobbin thread and tune top tension so satin columns show about one-third bobbin thread on the back.
  • Leave bobbin thread neutral (white or black) and change only the top thread for feltie runs.
  • Rethread the top path with the presser foot UP if loops or nests appear.
  • Use the “dental floss” feel test: thread should pull with slight, consistent resistance.
  • Success check: the back of satin stitches shows a clean center of bobbin thread (about 1/3), not big loops.
  • If it still fails: stop and check for incorrect threading or tension loss causing birdnesting.
• Q: How do I fix birdnests (“thump-thump-thump” sound) during dense felt embroidery on a Brother PE800?
  A: Don’t worry—birdnests usually mean top thread tension was lost; rethread the Brother PE800 top thread with the presser foot UP.
  • Stop immediately and remove the nest/loops from the underside before continuing.
  • Rethread the top path completely with the presser foot UP to ensure the thread seats in the tension disks.
  • Restart at a controlled speed appropriate for felt (avoid pushing maximum SPM on dense felt).
  • Success check: the “thump-thump-thump” sound disappears and stitches form cleanly without underside looping.
  • If it still fails: replace the needle (felt dulls needles fast) and confirm the stabilizer is hooped drum-tight.
• Q: What safety rules should Brother PE800 users follow to avoid needle injury when floating felt or adjusting material during a run?
  A: Never put fingers inside the hoop area while the Brother PE800 is running; use a tool to guide material if needed.
  • Keep hands out of the needle travel zone at all times, especially during high-speed stitching.
  • Use a pencil eraser or a long styling tool if something needs gentle holding or smoothing near the hoop.
  • Pause/stop the machine before repositioning felt, pins, or tape.
  • Success check: adjustments are made only when the machine is stopped, with zero hand contact near the needle path.
  • If it still fails: change the workflow (pin placement farther out or use a magnetic hoop) so “holding it down” is never required.
• Q: When does it make sense to upgrade from a standard screw hoop to a magnetic hoop, or from a Brother PE800 single-needle to a multi-needle machine for feltie batch production?
  A: Upgrade based on the bottleneck: wrist fatigue/hoop burn points to a magnetic hoop, while thread-change time at 50+ items points to a multi-needle machine.
  • Choose a magnetic hoop if screw-hooping causes wrist pain after repeated batches or leaves hoop burn rings on fabric.
  • Choose a multi-needle machine if manual top thread changes are the main profit/time killer for large batches.
  • Keep speeds in a felt-friendly range (often 500–650 SPM) to reduce needle deflection and breakage during production runs.
  • Success check: setup time drops (less hooping effort or fewer thread stops) while stitch consistency improves across batches.
  • If it still fails: simplify variables first (fresh needle, correct stabilizer, grouped file verification) before investing in new equipment.
