Group vs Combine in Creative DRAWings: Stop the “Why Did My Colors Change?” Panic (and Start Making Clean Cutouts)

If you have ever merged a few shapes in Creative DRAWings, only to watch your carefully chosen colors or stitch styles suddenly “flip” to something else, you are not alone. And more importantly, you are not doing anything “wrong.” You are simply asking the software to make a decision, and it is following a logic you haven't been taught yet.

In this industry, software frustration often leads to physical production errors—broken needles, bird-nesting, and wasted garments. As someone who has spent two decades moving files from the computer screen to the production floor, I see software not just as a design tool, but as the blueprint for your machine’s behavior.

In this lesson, we are going to make Group and Combine feel predictable. Not “software magic,” and definitely not trial-and-error—but reliable, industrial-grade logic. I will walk you through the exact clicks shown in the visual guide, but I will also layer in the shop-floor reasoning: how to avoid rework, how to keep designs editable for client changes, and how to build cutouts that stitch cleanly without destroying your fabric.

Calm the Panic: What Group and Combine *Really* Change in Creative DRAWings (and what they don’t)

To the novice, Group and Combine sound like synonyms. To the machine, they are opposing instructions. Understanding the difference is your first step toward professional digitizing.

Think of it this way:

• Group is a "Packaging" Contract: You are putting items in a box to move them. They are still separate items. If you box up a red apple and a green pear, they remain red and green. You are just moving them together.
• Combine is a "Melting" Contract: You are fusing objects into a single new entity. The machine no longer sees a circle and a square; it sees one complex path. Crucially, when objects merge, they cannot keep two different identities. The resulting object inherits the attributes (stitch type, color, density) of the last object you selected.

That last sentence is the one that saves hours of frustration.

A quick note for anyone coming from a physical embroidery workflow: Software decisions determine whether your machine hums rhythmically or sounds like a jackhammer. If you are digitizing for production, treat file logic as part of your machine setup—just like your needle choice or stabilizer selection.

The “Hidden” Prep Before You Click Anything: Set yourself up to edit fast later

Before you start grouping or combining, do what experienced digitizers do: The Visual Audit.

When you are rushing, it is tempting to just grab shapes and click buttons. But in a commercial shop, efficient editing is where the profit margin lives. If a client asks to "move the logo slightly left" or "change the star to gold," a messy file structure will force you to rebuild from scratch.

The Pro Strategy:

1. Stage your clean-up: Put objects near each other so you can see overlaps clearly. Zoom in until you see the grid lines.
2. Define the Goal: Ask yourself, "Am I moving things (Group) or cutting a hole to prevent bulletproof stitching (Combine)?"
3. Mental Labeling: Identify which object is the "Keeper" (the style you want) and which is the "Cutter" (the shape defining the geometry).

Prep Checklist (Pre-Flight Audit):

• Visual Separation: Can you identify each object (star, circle, rectangle) as a separate piece in the object manager?
• Safety Save: Have you saved a "Version 1" before doing destructive edits? (Combine is hard to reverse after 20 more steps).
• Overlap Check: If Combining, do the shapes actually overlap? (A 1mm gap can cause the machine to create an unwanted jump stitch or trim).
• Consumable Check: Do you have your temporary adhesive spray and the correct stabilizer ready? Complex combinations often increase pull compensation needs; a stable backing is required to prevent registration issues later.


Lock a Layout Without Losing Editability: Grouping objects the way the video shows

In the video, the instructor starts with three separate objects and wants to move them together while keeping their relative spacing. This corresponds to the most common real-world task: aligning a multi-part logo before centering it in the hoop.

Here is the exact method shown, calibrated for precision:

1. Left-click one object.
2. Hold the Control key (this tells the software "I am adding to the list").
3. Click the remaining objects you want to move together.
4. Right-click to open the context menu.
5. Choose Group.

Checkpoint (Sensory Verification):

• Visual: When you click the grouped set, you should see one single bounding box (the black handles) surrounding all objects, rather than individual boxes.
• Action: Click and drag anywhere on the group. You should see all elements move in perfect synchronization, like soldiers marching in step.

This is the cleanest way to reposition a mini-layout (like a badge cluster or a multi-element motif) without accidentally nudging one piece out of alignment, which can ruin the symmetry of a finished patch.

Pro tip from production digitizing: Group is your “layout handle,” not your “edit mode”

Grouping is fantastic for placement. It allows you to center a complex design on a chest pocket without losing the internal relationships. However, you must remember the state of your objects. If you forget you are grouped and start changing properties, you trigger a "Global Edit."

The Sneaky Trap: Why changing one fill inside a Group changes them all

The video demonstrates a behavior that often causes panic in beginners:

• The Scenario: You have a Red Circle and a Blue Star grouped together. You decide the Star needs a different stitch pattern (e.g., Tatami instead of Satin).
• The Mistake: You select the Star (which selects the Group) and change the pattern.

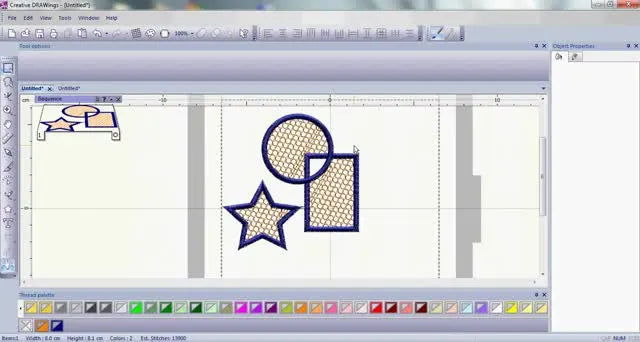

• The Consequence: Creative DRAWings applies that pattern to the entire group. Suddenly, your Red Circle is also changed.

Checkpoint (What you should see):

• Changing the fill pattern updates the circle, star, and rectangle simultaneously.

The Fix: If you only need to tweak one object, you must break the contract first.

1. Right-click the grouped objects.
2. Choose Ungroup.
3. Make your edit.
4. Re-group if necessary.




Warning: The "Quick Edit" Danger. Do not "power-edit" while you are rushing to get a design to the machine. A grouped global change can quietly rewrite stitch angles or densities on objects you didn't mean to touch. You might not notice this on screen, but on the machine, an incorrect stitch angle on a stretchy fabric can cause puckering or gaps. Slow down for 10 seconds here—these 10 seconds can save a 30-minute re-digitize.

Combine in Creative DRAWings: The one rule that controls color and stitch type

Combine is where most “Why did it turn green?” moments happen. This function is vital for creating "negative space"—holes in your design where the fabric shows through. This is essential for reducing stitch count and preventing the dread "bulletproof patch" (embroidery so thick it stands up like a board).

The video shows the correct combine workflow:

1. Click the first object.
2. Hold Control.
3. Click the second object.
4. Still holding Control, click the third (last) object.
5. Right-click and choose Combine.

The Iron Rule of Combination: After clicking Combine, the merged object takes the attributes of the last object selected.

Checkpoint (What you should see):

• Three distinct colored objects become one object geometry.
• The entire new shape snaps to one color and one stitch style, matching exactly to the object you clicked last.






Expert insight: Combine is “destructive” in the way production people mean it

In digitizing, “destructive” does not mean bad—it means committed.

• Group keeps your options open (Non-destructive).
• Combine commits geometry and attributes (Destructive).

In a commercial workflow, I often advise students to keep a "Master File" (grouped, uncombined) and a "Production File" (combined, optimized). If you are building a library of designs to sell or stitch repeatedly, that separation prevents you from having to rebuild the geometry just because a customer wants the door of the house to be blue instead of red.

The Cutout Trick: Using Combine on overlapping shapes to create a hole (negative space)

Now for the most powerful application: Creating apertures.

If you stack two shapes and stitch them, you get double density. On a machine like a standard single-needle or even a prosumer multi-needle, stitching a satin column on top of a tatami fill is fine. But stitching a heavy fill on top of another heavy fill is a recipe for broken needles and thread shreds.

The solution is the Cutout (Combine).

The video demonstrates:

• Place one shape over another so they overlap.
• Select both and Combine.
• The shape that was on top acts as a "cookie cutter," creating a hole in the shape below.

Checkpoint (What you should see):

• The overlapping circle disappears as a solid object.
• It becomes a transparent hole inside the rectangle.
• You should see the grid background through the hole.




Critical Distinction:

• Overlap exists: Combine = Cutout.
• No Overlap: Combine = Bridge. The software will create a connection (jump stitch or run stitch) between them.

Warning: The "False Gap" Hazard. If you intend to make a hole, zoom in and verify the shapes truly overlap. If they are just close but not touching, Combine will create a long, ugly travel stitch to connect them. On the machine, this looks like a random thread running across your fabric that you have to trim by hand.

The Star Cutout Exercise: How to keep the circle purple while cutting a star-shaped hole

This is the practical example in the video, and it is the technique you will use constantly for monograms, badge borders, and negative-space logos.

The Scenario:

• You have a Star (Yellow).
• You have a Circle (Purple).
• Goal: A purple circle with a star-shaped transparent hole in the middle.

The Common Mistake (The "Color Flip")

If you naturally click top-to-bottom (Circle first, Star last) and Combine:

• The "Last Click" is the Star.
• The result is a Yellow shape with a hole.
• You wanted Purple.


The Correct Selection Order (The "Keeper" Method)

To keep the Circle’s purple attributes while using the Star as the cutter:

1. Select the Star first (The "Cutter").
2. Hold Control.
3. Select the Purple Circle last (The "Keeper").
4. Right-click → Combine.

Expected Outcome:

• The object remains purple (inheriting from the last-clicked Circle).
• The star shape is removed from the center.




If you only memorize one thing from this entire post, make it this: In Combine, the last click is the “Style Winner.”

Setup habits that prevent rework: A simple decision tree for Group vs Combine

When you are working fast, or when you have 50 shirts to get out the door by Friday, you cannot afford to second-guess your clicks. Use this decision logic.

Decision Tree: Group or Combine?

START HERE:

1. Do you need to move multiple objects together, but keep them editable and different colors?
   • YES --> Use GROUP.
   • NO --> Go to Step 2.
2. Do you need to fuse shapes into one object (one color, one stitch direction) or cut a hole?
   • YES --> Use COMBINE.
   • NO --> Leave objects separate.
3. If using COMBINE: Which object has the color/stitch style you want to keep?
   • ACTION: Select that object LAST.
4. If using COMBINE for a hole: Do the shapes overlap clearly?
   • YES --> Proceed.
   • NO --> Reposition. Zoom in (300%+) to confirm.

To keep your workflow consistent across projects, it helps to build a repeatable workstation routine. Just as many professional shops standardize their physical workflow with hooping stations so every operator loads the garment the exact same way, you should apply the same rigorous mindset to your software: same checks, same order, every time. This discipline reduces "unforced errors."

Setup Checklist (Before you click Combine):

• Overlap Verification: Is the overlap definitive?
• Keeper ID: Have you identified which object holds the master style?
• Selection Order: Did you click Cutter first, Keeper last?
• Result Audit: Did the tool produce a clean hole, or a strange jump stitch? Use the "Slow Redraw" or "Simulation" preview in your software to verify.

Troubleshooting the two most common “scary” outcomes (and the fast fix)

These issues are pulled straight from the video demonstration, but I have added the "Fast Fix" for when you are in the middle of a project.

Symptom A: “My objects changed color or stitch type unexpectedly.”

• Likely Cause: You used Combine, and the last selected object’s attributes overwrote the others.
• Fast Fix:
  1. Cmd+Z / Ctrl+Z (Undo) immediately.
  2. Deselect everything.
  3. Re-select, ensuring the object with the desired color is clicked last.
  4. Combine again.
• Production Note: If you are building a design that will later be stitched on challenging materials (like seeking hooping for embroidery machine advice for velvet or performance wear), remember that stitch attributes are functional, not just cosmetic. If you accidentally switch a high-density satin to a low-density running stitch via a bad Combine, the design will fail on the fabric.

Symptom B: “I changed one fill, and everything changed.”

• Likely Cause: The objects were still Grouped.
• Fast Fix: right-click → Ungroup. Make the edit to the single object. Re-group only if needed for movement.

Symptom C: “My cutout didn’t cut—now I see a connector line.”

• Likely Cause: The shapes were technically not touching.
• Fast Fix: Undo. Nudge the "Cutter" shape so it deeply overlaps the "Keeper." Combine again.

The “Why” behind the behavior: Selection order is a logic chain, not a preference

Creative DRAWings is doing something very consistent:

• Group keeps objects separate but links selection and movement coordinates.
• Combine merges objects into a single mathematical path. A single path cannot satisfy two contradictory instructions (it cannot be both "Red Satin" and "Blue Tatami"). Therefore, the software defaults to the most recent instruction it received—the attributes of the last object you touched.

This is why I teach beginners to narrate their clicks out loud in the beginning:

• "I am clicking the Star (Cutter)."
• "I am clicking the Circle (Keeper)."
• "Combine."

It feels silly to talk to your computer, but it forces your brain to acknowledge the sequence.

Turning this into stitch-ready thinking: What to watch before you ever send to the machine

The video focuses on the software interface, but your paycheck depends on the stitch out. Here are the practical checks I recommend before exporting a file for production.

1. Minimize "Surprise" Jumps: Accidental non-overlaps create travel paths. Inspect your Combined shapes for thin connecting lines that shouldn't be there.
2. Editability Preservation: Don’t Combine too early. If the customer hasn't signed off on the proof, keep the design in "Grouped" status so you can easily swap colors.
3. Production Readiness: Software perfection doesn't guarantee sewing perfection. If you are struggling with registration (shapes not lining up) despite perfect software combining, the issue is often physical.

If you’re running a small shop, this is where workflow choices become money. A clean file reduces machine babysitting. But even the best file fails if the hooping is poor. Many operators start with standard hoops and struggle with "hoop burn" (marring the fabric) or wrist fatigue. As volume grows, professionals often search for embroidery machine hoops that offer better ergonomics, eventually upgrading to magnetic systems.

Warning: Magnetic Hoops Safety.
While embroidery hoops magnetic are powerful efficiency tools, they use strong industrial magnets.
* Pinch Hazard: They creates a high-force snap. Keeps fingers clear of the contact zone.
* Health Hazard: Keep them at least 12 inches away from pacemakers or insulin pumps.
* Safety: Always slide the magnets apart; do not try to pry them open.

The upgrade path (without the hard sell): When software skill meets production efficiency

Once you control Group vs Combine confidently, you will notice a shift: your time is no longer lost in “fixing surprises,” it is spent on output.

Here is a practical way to assess your "Upgrade Readiness" based on your pain points:

• Bottleneck: "I spend all day fixing file errors."
  • Solution: Focus on software logic. Master the Cutout (Combine) to reduce density and the Group for layout.
• Bottleneck: "I spend 10 minutes hooping every shirt."
  • Solution: Consolidate your physical process. Look into a machine embroidery hooping station to ensure every garment is placed identically, matching the precision of your "Grouped" file layout.
• Bottleneck: "My wrists hurt and I have hoop marks on delicate items."
  • Solution: This is the classic trigger for magnetic frames. They float the fabric rather than crushing it.
• Bottleneck: "I can't keep up with orders."
  • Solution: If your files run clean and your hooping is fast, but you still lack capacity, it is time to look at multi-needle hardware (like SEWTECH’s high-value multi-needle machines). Scaling requires both software discipline and production velocity.

Quick answers to a common comment request: “Will you show FSL (Freestanding Lace)?”

A viewer asked about FSL regarding this video. It is a great next step once you are comfortable with object logic.

While this lesson doesn't cover FSL specific digitization, the Group vs Combine concepts are critical in lace because:

• Grouping keeps fragile lace components aligned while you test variations.
• Combining is mandatory to create the "interconnectedness" required for lace to hold together without fabric.

Operation Checklist (The "Press Start" Validation):

• Group Check: Are grouped items only grouped for movement? (Did you accidentally leave them grouped and apply a density change to all?)
• Attribute Check: Do your Combined items have the correct final attributes? (Does the hole look right?)
• Machine Prep: Is the machine threaded with the color that matches your "Keeper" object?
• Support Materials: Do you have the right backing? (e.g., Cutaway for knits, Tearaway for woven). No software setting can fix a lack of stabilizer.
• Final Save: Save the production file (DST/PES) separately from your working file (Drawings format) so you can always go back and edit later.

If you adopt these habits, Group and Combine stop being confusing buttons and become two reliable tools you can use on purpose—every time. Happy stitching.

FAQ

• Q: In Creative DRAWings, why does the Combine command change all objects to one color or stitch type after merging shapes?
  A: This is normal—Creative DRAWings applies the attributes of the last object selected when using Combine.
  • Undo immediately (Ctrl+Z / Cmd+Z) if the result is wrong.
  • Re-select the objects and click the object with the desired color/stitch style LAST.
  • Right-click and choose Combine again.
  • Success check: the merged geometry becomes one object and matches exactly the last-clicked object’s color and stitch style.
  • If it still fails: deselect everything and repeat the selection order slowly to avoid accidentally clicking the wrong “style winner.”
• Q: In Creative DRAWings, why does changing the fill or stitch pattern on one object inside a Group change every object in the Group?
  A: This is common—editing while objects are Grouped can apply a global change to the entire Group.
  • Right-click the grouped set and choose Ungroup.
  • Select only the single object you want to change and apply the new fill/stitch settings.
  • Re-Group only if you need the objects to move together again.
  • Success check: only the targeted object updates, and the other objects keep their original stitch types/angles/densities.
  • If it still fails: confirm you are not selecting the group bounding box—Ungroup first, then click the object directly.
• Q: In Creative DRAWings, why does Combine create a connector line (bridge/jump stitch) instead of a cutout hole when making negative space?
  A: Combine only creates a hole when the shapes truly overlap; if they do not overlap, Creative DRAWings links them with a bridge.
  • Undo (Ctrl+Z / Cmd+Z).
  • Zoom in (300%+) and reposition the cutter shape so it clearly overlaps the keeper shape.
  • Combine again after confirming overlap.
  • Success check: the cutter becomes a transparent hole and the grid/background is visible through the opening.
  • If it still fails: check for a tiny gap (even about 1 mm) and nudge the cutter deeper into the keeper before combining.
• Q: In Creative DRAWings, how do I combine a Yellow Star and a Purple Circle to keep the circle purple while cutting a star-shaped hole?
  A: Use the “Keeper last” rule—select the Star first (cutter) and the Purple Circle last (keeper), then Combine.
  • Click the Yellow Star first.
  • Hold Control and click the Purple Circle last.
  • Right-click and choose Combine.
  • Success check: the resulting object stays purple, and the star area becomes a clean transparent hole.
  • If it still fails: Undo and repeat the selection order; the last click must be the object whose attributes you want to keep.
• Q: In Creative DRAWings, what is the fastest way to verify a Group operation succeeded before moving a multi-part logo layout?
  A: After Group, confirm the software shows one bounding box and the objects move together without drifting out of alignment.
  • Select multiple objects with Control-click, then right-click and choose Group.
  • Click once on the set and look for a single bounding box surrounding all objects.
  • Drag the group slightly to confirm synchronized movement.
  • Success check: one bounding box appears (not separate boxes), and all elements move together like one unit.
  • If it still fails: undo and repeat the selection using Control to ensure every required object is included before grouping.
• Q: Before using Creative DRAWings Combine for complex overlaps, what prep steps help prevent production problems like bird-nesting, broken needles, and rework?
  A: Do a quick “pre-flight” audit—Combine decisions can increase density and pull, so prep the file and consumables first.
  • Save a safety “Version 1” before destructive Combine steps.
  • Zoom in and stage objects to clearly see overlaps and selection order (identify cutter vs keeper).
  • Confirm stabilizer is ready and use temporary adhesive spray if needed to control shifting.
  • Success check: after Combine, the geometry is clean (no surprise travel/connector lines) and the design remains stable in preview/simulation.
  • If it still fails: postpone combining and keep a master (grouped) file separate from a production (combined) file so edits do not force a rebuild.
• Q: What magnetic embroidery hoop safety rules should operators follow when upgrading workflow after Creative DRAWings files are clean and stitch-ready?
  A: Magnetic hoops are efficient but powerful—prevent pinch injuries and follow medical-device distance rules.
  • Keep fingers out of the contact zone; magnets can snap together with high force (pinch hazard).
  • Keep magnetic hoops at least 12 inches away from pacemakers or insulin pumps.
  • Slide magnets apart to separate them; do not pry them open.
  • Success check: operators can load/unload fabric without finger pinch events and without fighting the magnets.
  • If it still fails: pause use and retrain handling technique before running production volume.
