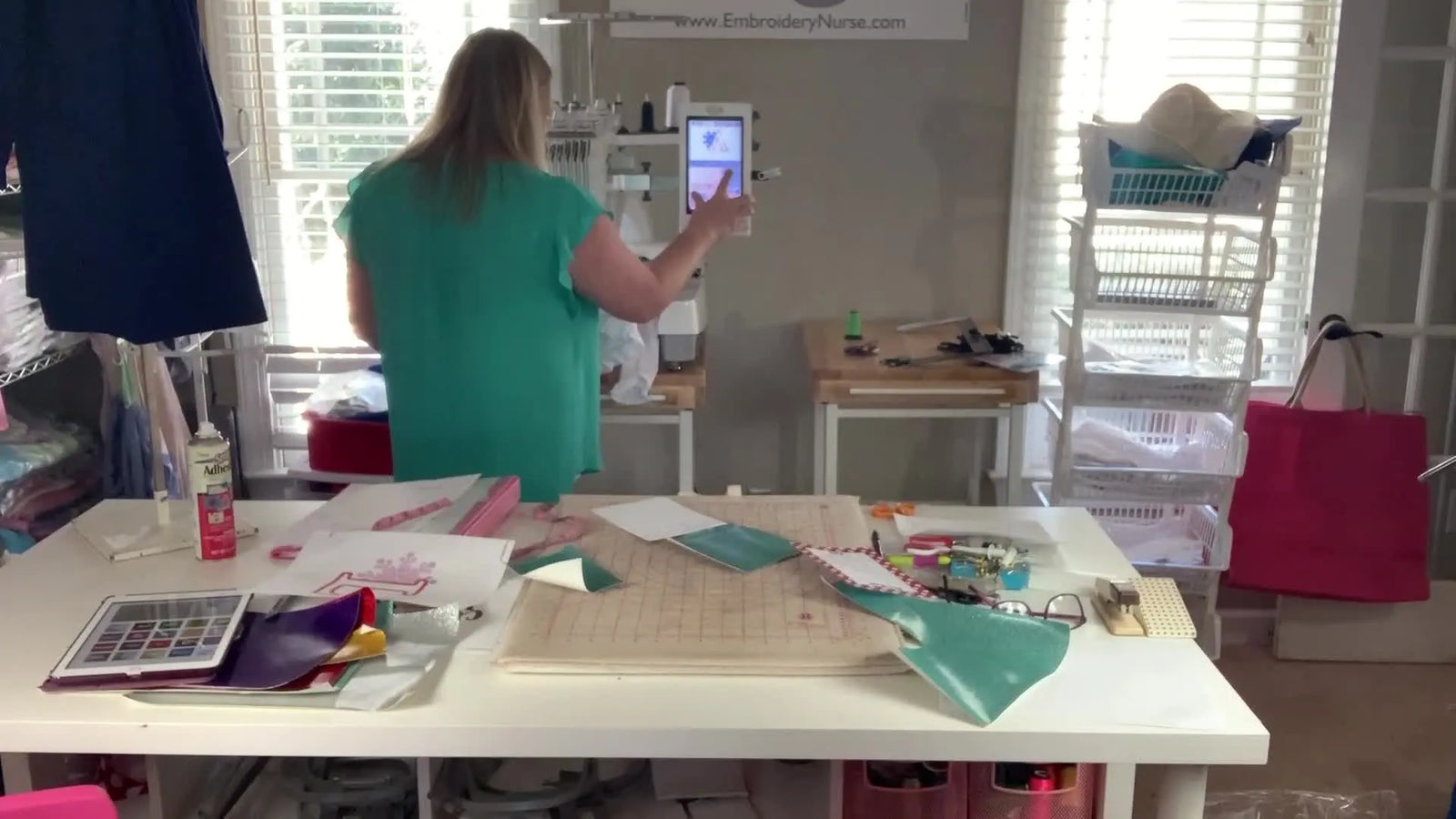

Glitter Vinyl Appliqué That Actually Stays Put: Hooping a Ruffle Shirt in a Durkee 9x9 Frame (and Getting a Clean Satin Edge)

Glitter vinyl appliqué is one of those techniques that sits right on the edge of "too pretty to be practical." It looks stunning, but running it as a repeatable production process often feels like walking a tightrope.

If you’ve ever hooped a tiny size 5T shirt, fought with ruffles, stitched a gorgeous satin border, and then noticed—to your horror—gaps, lifting, or puckering as soon as the shirt flexes, you are not alone. Machine embroidery is an empirical science; it relies on physics, not luck. The good news is that the workflow shown in the video is solid. With a few "veteran-level" checkpoints and sensory adjustments, we can transform this anxiety-inducing project into a consistent profit center.

Glitter Mirror Canvas Vinyl (0.6 mm) — the “No Heat, No Fray” Appliqué Material That Saves You Bulk

Kelly is using Glitter Mirror Canvas Vinyl (Ice Blue). From a materials engineering perspective, she highlights two critical properties: it is not heat-applied (no adhesive backing) and it is remarkably thin (0.6 mm).

Why does 0.6 mm matter? In embroidery, "drape" is king. Standard glitter vinyls can be stiff, creating a "cardboard armor" effect on a child's chest. This specific gauge is the sweet spot—thick enough to hold stitches without tearing, but thin enough to move with a knit shirt.

A common point of confusion—and panic—for beginners is distinguishing this from Heat Transfer Vinyl (HTV) or Craft Vinyl. In this workflow, the vinyl is treated strictly as fabric. It follows the appliqué triad: Placement, Tackdown, Trim, and Cover.

Sensory Check: The "Peel Test" Pro tip from the comments: Before you start, scratch the corner of your material. With true embroidery vinyl like this, there is nothing to peel off—no clear carrier sheet like you find on HTV. It should feel like a single, fused layer. If you feel a plastic film separating, you have the wrong material for this specific technique.

One practical note on sourcing: The original supplier (Mikri World LLC) mentioned is no longer active. Kelly now recommends Glitterbug Fairy. Regardless of the vendor, use these Material Performance Criteria when sourcing:

1. Seal Test: Does the glitter flake off when you rub it? (It shouldn't).
2. Shear Test: Does it cut cleanly without cracking?
3. Variable Friction: Does the surface cause needle drag? (Sticky surfaces require titanium needles).
4. Wash Durability: Does it survive a wash cycle without edge lift?

The “Hidden” Prep Before You Hoop a Knit Shirt: Template, Vinyl Cut, Thread Choices, and Needle Size

Success in embroidery is 90% preparation and 10% stitching. Kelly is working on a 5T cotton long-sleeve ruffle shirt with a snowflake alphabet "A." She uses a printed template from Embrilliance Essentials—a non-negotiable step for precise alignment.

Materials & The "Hidden" Consumables

• Vinyl: Glitter Mirror Canvas (Ice Blue).
• Stabilizer: Mesh Cutaway (Sulky). Expert Note: For knits, always use Cutaway or Poly Mesh. Tearaway will fail to support the stitches over time, leading to gaps.
• Adhesive: Spray adhesive (e.g., KK100 or 505).
• Hoop: Durkee 9x9 tubular frame.
• Needle: 80/12 Sharp/Topstitch. Expert Note: Avoid Ballpoint needles for vinyl; they struggle to pierce the tough synthetic layer.
• Scissors: Double-curved Appliqué Scissors (Duckbill style recommend).

Needle and Bobbin Strategy

Kelly specifies an 80/12 needle. This is crucial physics: a needle that is too thin (75/11) might deflect when hitting the vinyl, causing needle breakage or misaligned stitches. A needle that is too thick (90/14) will punch large holes, potentially destroying the vinyl integrity.

Prep Checklist (The "Pre-Flight" Safety Check):

• Design Audit: Verify the file has the 3-part sequence (Placement → Tackdown → Finish). A standard fill stitch file will not work.
• Template Print: Print at 100% scale with crosshairs enabled.
• Stabilizer Prep: Cut your Cutaway stabilizer 1 inch larger than the hoop on all sides.
• Vinyl Sizing: Pre-cut the vinyl rectangle 20% larger than the object size to allow for easy handling (don't act cheap here; grip space is safety).
• Machine Check: Blow out the bobbin case area; vinyl dust can accumulate quickly.

Template Placement on a Ruffle Shirt: Why “Eyeballing” Beats Neckline Math (Most of the Time)

Kelly finds the center chest (approx. 6.5 inches across) and uses visual intuition—"eyeballing"—to pin the template.

New embroiderers often obsess over "rule of thumb" measurements (e.g., "3 inches down from the collar"). However, ruffles, seams, and manufacturing variances in blanks create optical illusions. A mathematically centered design can look crooked because the Ruffles draw the eye differently.

The "Wearer's Perspective" Rule: Trust your eyes. Hold the shirt up. If it looks balanced to you, it will look balanced on the child. Take a photo of the pinned template—this is your "insurance policy" if a client claims placement was off.

Stabilizer + Spray Adhesive: The Clean Way to Control Knit Stretch Before the First Stitch

Here is the Golden Rule of Knits: Stabilizer dictates the stability, not the fabric. Kelly turns the shirt inside out, sprays the Cutaway stabilizer, and presses it to the back of the shirt front.

The Physics of the Bond: You aren't just sticking them together; you are creating a "temporary laminate." Knit fabric wants to flow like water; stabilizer is the dam. If there are air pockets between them, the fabric will ripple under the presser foot.

Sensory Action: After pressing the stabilizer, rub it down aggressively with your palm. You should feel the heat of friction. This friction helps heat-activate the temporary adhesive and ensures that the knit fabric's grain is locked to the stabilizer's non-stretch fibers.

Warning: Mechanical Hazard
Spray adhesive is "airborne glue." Never spray near your machine! The mist settles on your rotary hook and needle bar, turning into a gummy paste that attracts lint and causes thread breaks. Spray in a box or a different room.

Hooping a Shirt in a Durkee 9x9 Tubular Frame: The Tautness Test That Prevents Puckers and Satin Gaps

Kelly places the inner ring inside the shirt, aligns the notches to her marks, presses the outer ring down, and tightens the thumbscrew.

This is the "Point of No Return." 80% of embroidery failures happen here.

The Problem: Hoop Burn & Distortion

Traditional tubular hoops rely on friction and pressure. To hold a thick seam or a slippery knit, you have to crank that screw tight. This often leads to "Hoop Burn" (permanent crushing of fibers) or, worse, stretching the knit fabric. When you unhoop a stretched shirt, it snaps back, and your appliqué bubbles up.

The "Tautness" Sensory Calibration

How tight is right?

• Tactile: Tap the fabric. It should feel like a drum skin, firm but with a slight bounce.
• Visual: Look at the knit ribs (vertical lines). They should be straight, not bowing outward like parentheses ( ).
• Auditory: A dull "thud" is too loose. A high-pitched "ping" means you've overstretched the knit. You want a resonant "thump."

Solving the Upgrade Path: Comfort & Consistency

If you are doing production runs (e.g., 20 team shirts), manually tightening screws causes significant wrist strain and inconsistent tension between shirts. This is the "Trigger Moment" for professional shops to upgrade.

Many professionals switch to magnetic hoops for embroidery machines at this stage. Why?

1. Speed: No screws to tighten. Just snap and go.
2. Safety: Magnets hold thick seams and zippers without forcing/crushing the fabric (Zero Hoop Burn).
3. Consistency: The magnetic force is constant; your wrist strength is not.

Warning: Magnetic Safety
If you upgrade to Sewtech or similar magnetic frames, respect the physics. These are high-power neodymium magnets. Keep fingers clear of the "snap zone" (serious pinch hazard) and keep frames away from pacemakers/ICDs and sensitive electronics.

Baby Lock Endurance Setup: Aligning the Needle to the Template Grid and Assigning Needle Colors

Kelly aligns Needle 1 to the crosshair on her paper template. She assigns specific needles: Needle 4 (Blue Frost) and Needle 3 (Grey).

Data Reality Check: The screen shows 1000 SPM (Stitches Per Minute).

• Beginner Sweet Spot: For vinyl appliqué, slow down. High speeds generate needle heat, which can melt the vinyl adhesive or cause the thread to shred against the glitter texture. I recommend limiting your speed to 600-800 SPM for the finishing satin stitch to ensure crisp edges.

If you are operating a baby lock 6 needle embroidery machine or similar multi-needle unit, remember: Machine time (23 mins) is fixed, but Setup time is variable. Your profit margin lives in how fast you can prep the next shirt while this one runs.

Setup Checklist (The "Run" Sequence):

• Hoop Validation: Does the screen show "9x9"? (Prevent needle-hitting-hoop collisions).
• Origin Check: Drop the needle manually to ensure it hits the exact center of your crosshair.
• Template Removal: CRITICAL. Remove the paper and pins now.
• Trace Function: Run a "Trace" or "Border Check" to ensure the presser foot won't hit the plastic hoop edges.
• Clearance: Ensure the back of the shirt and sleeves are tucked away and won't get sewn to the front.

The 3-Stop Appliqué Sequence (Placement → Tackdown → Finish): Where the Vinyl Actually Goes

Confusion often arises here because videos are edited for time. Let's break down the Cognitive Chunking of the actual stitch process.

1. Placement Stitch (The Map): The machine sews a running stitch outline on the empty shirt. This tells you exactly where to put the vinyl.
2. STOP & ACTION: Spray the back of your vinyl scrap lightly, or use tape. Place it over the outline. Smooth it out.
3. Tackdown Stitch (The Anchor): The machine sews a second outline (usually a double run or zigzag) to lock the vinyl to the shirt.
4. STOP & ACTION: Remove hoop (optional but recommended) to Trim.
5. Finishing Stitch (The Beauty): The machine sews the dense satin column to cover the raw edges.

Pro Workflow: If you are batching, prep all your vinyl squares beforehand. Label them if doing multi-color vinyls to avoid the "wrong color, right shirt" disaster.

Trimming Glitter Vinyl Like a Pro: Clean Edges, Inside Cutouts, and Why Cheap Scissors Are Fine

After the Tackdown, Kelly trims the excess. She emphasizes that you don't need $80 scissors, just sharp ones.

Technique: The "Lift and Snip" Use your non-dominant hand to gently lift the excess vinyl up and away from the stitches. Slide the blade of your appliqué scissors flat against the fabric. You want to cut as close to the stitching as possible—within 1-2 mm—without cutting the thread.

The "Inside" Job: For the triangle inside the "A":

1. Pinch the center of the vinyl to separate it from the shirt.
2. Make a small horizontal snip to simple create a hole.
3. Insert your scissor tip and cut outward toward the stitches.

Warning: Physical Safety
Always perform trimming on a flat, stable surface (like a table), not floating in mid-air. One slip with scissors can ruin the garment or puncture your hand. If your machine allows, remove the hoop from the pantograph for trimming to save your back and improve precision.

Operation Checklist (Active Stitching):

• Placement: Vinyl covers the layout line completely?
• Tackdown: Did the vinyl shift? (If yes, rip it out now; don't pray it gets better).
• Trim: Trimmed within 2mm? Any long "tails" will poke through the satin stitch.
• Restart: Hoop re-attached securely? Sleeves clear?

Why Satin Stitch Gaps Happen on Vinyl (and How to Fix Them Without Guessing)

"Gaps" (where the satin stitch misses the vinyl edge) are the #1 complaint with this technique. This is rarely a machine error; it is a physics error.

The Pull Compensation Factor

Satin stitches effectively pull fabric inward. If your design software doesn't have enough Pull Compensation (or "Pull Comp") added, the stitches will narrow as they sew, exposing the raw edge. Increase Pull Comp to 0.4mm or higher for knits.

If you face consistent gaps despite good prep, look at your hooping for embroidery machine technique. Are you physically distorting the fabric while screwing the hoop tight? This is where mechanical clamping systems (Magnetic Hoops) prove their ROI by eliminating the "human variable" of screw tension.

Wash & Dry Reality Check: Keeping Vinyl from Bunching, Lifting, or Losing Sparkle

Longevity builds your reputation. Kelly’s advice is pragmatic:

• Wash: Inside out, cold water, gentle cycle.
• Dry: Air dry flat or hang dry. Heat is the enemy of vinyl longevity (it causes the PVC to curl).

The Shrinkage Paradox: Glitter vinyl is synthetic—it will not shrink. Cotton shirts will shrink. If the shirt shrinks 5% in the dryer and the vinyl shrinks 0%, the appliqué will ripple (the "bacon effect").

• Solution: Pre-wash your blanks instructions permit, OR stick to high-quality blanks that are preshrunk.

Decision Tree: Choosing Stabilizer and Hooping Method for Knit Shirts vs. Production Runs

Use this logic flow to determine your setup.

START: What is your Volume?

1. Low Volume (1-5 Special Gifts):
   • Method: Standard Tubular Hoop.
   • Tactics: Use extra pins. Take time to "float" if hoop burn is a fear.
   • Stabilizer: Mesh Cutaway + Spray.
2. High Volume (20+ Team Orders):
   • Bottleneck: Hooping time and wrist fatigue.
   • Solution: Upgrade to magnetic embroidery hoop.
   • Why: Reduces hooping time by 40%. Ensures identical tension on every shirt.

START: What is the Fabric Risk?

1. High Risk (Delicate Performance Wear / Thin Knits):
   • Risk: Hoop burn (shiny crush marks) is permanent.
   • Solution: babylock magnetic hoops (or generic Magnetics). The flat magnetic force holds without crushing fibers against an inner ring.
2. Low Risk (Heavy Canvas / Denim):
   • Method: Standard hoops work fine. Use strong tearaway or cutaway.

The “Upgrade” Mindset: Turning This Appliqué into a Repeatable Product You Can Sell

Kelly uses this snowflake alphabet for winter birthdays—a smart way to offer a "Frozen-inspired" vibe without infringing on Disney copyrights.

When you transition from hobby to business, your enemies are Time and Inconsistency.

• If you spend 5 minutes fighting a screw on a standard hoop, that is 5 minutes of lost production.
• If you ruin 1 out of 10 shirts due to hoop slippage, your profit margin vanishes.

The Tool Chain Upgrade Path:

• Level 1 (Skill): Master the Cutaway + Spray technique.
• Level 2 (Efficiency): Replace standard frames with magnetic options. Search for magnetic embroidery hoop compatible with your machine. Establish a seamless hooping station.
• Level 3 (Scale): If you are constantly swapping older frames like durkee fast frames or generic durkee ez frames, consider if the clamping mechanism gives you the stability you need for dense appliqué compared to modern magnetic systems.
• Level 4 (Capacity): Move to multi-needle stitching to allow you to hoop the next shirt while the current one sews.


Final Quality Check: What a “Sellable” Glitter Vinyl Appliqué Should Look Like

Kelly’s finished result is the benchmark.

The 10-Second QC Audit:

1. The Edge Test: Can you see raw vinyl protruding? (BAD). Can you see the shirt fabric between the vinyl and satin? (BAD).
2. The Flex Test: Gently stretch the shirt. Does the appliqué pop off? (Adhesion/Tension issue).
3. The Flatness Test: Lay it on the table. Does it lie flat, or does it curl like a potato chip? (Stabilizer/Hooping issue).

Clean corners, sealed edges, and zero puckering. If you hit these metrics, you haven't just made a shirt—you've manufactured a premium product.

FAQ

• Q: What needle type and size should be used for Glitter Mirror Canvas Vinyl (0.6 mm) appliqué on a knit kids shirt with a Baby Lock Endurance multi-needle embroidery machine?
  A: Use an 80/12 sharp or topstitch needle as the safe baseline for piercing 0.6 mm embroidery vinyl cleanly without deflection.
  • Install: Fit an 80/12 Sharp/Topstitch needle before starting the placement stitch.
  • Avoid: Skip ballpoint needles for vinyl because they often struggle to pierce synthetic layers cleanly.
  • Match: Keep the design as a true appliqué file (Placement → Tackdown → Finish), not a standard fill file.
  • Success check: The needle penetrates the vinyl smoothly with no repeated “popping,” deflection, or skipped satin coverage at the edge.
  • If it still fails: Slow the finishing speed (see the 600–800 SPM guideline) and re-check hoop tautness to reduce shifting.
• Q: How can spray adhesive be used safely when bonding mesh cutaway stabilizer to a knit shirt for vinyl appliqué embroidery without causing thread breaks in a multi-needle embroidery machine?
  A: Spray adhesive must be applied away from the embroidery machine to prevent airborne glue from contaminating the hook area and causing gummy buildup and thread breaks.
  • Spray: Apply adhesive to the stabilizer in a box or a different room—never near the machine.
  • Press: Bond the stabilizer to the shirt and rub aggressively with your palm to lock the knit grain to the stabilizer.
  • Prep: Cut stabilizer at least 1 inch larger than the hoop on all sides for better control.
  • Success check: The shirt front feels like a temporary “laminate” with no air pockets or ripples under your hand.
  • If it still fails: Clean out the bobbin/hook area and re-bond the stabilizer to eliminate bubbles before hooping.
• Q: What is the correct hoop tautness test when hooping a knit ruffle shirt in a Durkee 9x9 tubular embroidery frame to prevent puckers and satin stitch gaps on vinyl appliqué?
  A: Hoop the knit fabric “drum-skin taut” without overstretching, because distortion at hooping is the most common cause of puckers and satin gaps later.
  • Tap: Check tactile tension—firm with a slight bounce (not floppy, not rigid).
  • Inspect: Look at knit ribs/vertical lines; keep them straight, not bowed outward like parentheses.
  • Listen: Use the sound test—avoid a dull “thud” (too loose) and a high “ping” (overstretched); aim for a resonant “thump.”
  • Success check: After unhooping, the shirt does not snap back dramatically or cause the appliqué area to bubble.
  • If it still fails: Switch to a cutaway (or poly mesh) stabilizer and reduce screw-tightening force; consider magnetic clamping to remove the “wrist-strength variable.”
• Q: Why do satin stitch edge gaps happen on glitter vinyl appliqué on knit shirts, and what are the fastest fixes before re-stitching the finishing border?
  A: Satin stitch gaps are usually caused by fabric shift, over/under-trimming, or stitches sinking into rough/thick vinyl—not a random machine fault.
  • Stabilize: Use mesh cutaway (or poly mesh) on knits; tearaway often fails long-term support and can lead to gaps.
  • Trim: Leave about a 1–2 mm margin when trimming after tackdown; trimming too close can cause lifting and exposed edges.
  • Support: Add a water-soluble topper if stitches are sinking into the vinyl texture and looking sparse.
  • Success check: The satin stitch fully covers the raw vinyl edge with no shirt fabric peeking between the vinyl and satin border.
  • If it still fails: Increase pull compensation in the design (a common starting point mentioned is 0.4 mm or higher for knits) and re-check hooping distortion.
• Q: What is the correct stop-and-action sequence for appliqué placement with non-HTV embroidery vinyl so the vinyl does not shift during tackdown on a multi-needle embroidery machine?
  A: Follow the three-stop appliqué workflow exactly—Placement stitch, then apply vinyl, then Tackdown, then trim, then Finish—because skipping the stop actions causes shifting and messy borders.
  • Stitch: Run the placement outline on the bare shirt first to create the “map.”
  • Apply: Lightly spray the back of the vinyl scrap (or use tape), place over the outline, and smooth it before restarting.
  • Trim: After tackdown, trim close (about 1–2 mm) and clear all “tails” before the satin finish.
  • Success check: The vinyl fully covers the placement outline before tackdown, and the vinyl edge stays under the satin stitch after finishing.
  • If it still fails: Remove and re-do immediately after tackdown if the vinyl shifted—do not continue hoping the satin stitch will hide it.
• Q: What are the critical safety steps for trimming glitter vinyl appliqué after tackdown to avoid garment damage and hand injuries?
  A: Trim on a stable surface with controlled “lift and snip” handling, because trimming while the hoop is floating is when most accidents and garment cuts happen.
  • Move: Place the hoop flat on a table (remove from the machine arm if possible) before trimming.
  • Lift: Gently lift excess vinyl up and away from stitches, then slide duckbill-style appliqué scissors flat against the fabric.
  • Cut: For inside cutouts (like the triangle in an “A”), pinch, make a small starter snip, then cut outward toward the tackdown line.
  • Success check: The cut edge is consistently within 1–2 mm of the tackdown stitches without cutting thread.
  • If it still fails: Stop and replace or sharpen scissors; dull blades force twisting and increase slip risk.
• Q: When should a shop switch from a Durkee tubular hoop to high-power magnetic embroidery hoops for knit shirt appliqué production, and what is the safe upgrade path?
  A: Upgrade to magnetic hoops when hoop burn, knit distortion, hooping inconsistency, or wrist fatigue becomes the bottleneck—especially in 20+ piece runs—then scale to multi-needle capacity if setup time is limiting profit.
  • Level 1 (Skill): Lock knits with mesh cutaway + spray, and hit the drum-skin tautness standard consistently.
  • Level 2 (Tool): Use magnetic hoops to reduce screw tightening, speed hooping, and keep clamping force consistent from shirt to shirt.
  • Level 3 (Capacity): Use multi-needle workflow to prep the next garment while the current one stitches (setup time is the variable you can control).
  • Success check: Hooping time drops and tension becomes repeatable without hoop burn or post-unhoop bubbling.
  • If it still fails: Treat magnets as a pinch hazard—keep fingers out of the snap zone and keep magnetic frames away from pacemakers/ICDs and sensitive electronics.
