A giant freestanding lace (FSL) build can feel intimidating the moment you lay the parts on the table. You are looking at hours of machine time, yards of thread, and a pile of disparate geometric shapes that must come together to form a coherent, organic creature. Once you glue, you’ve committed. There is no "Ctrl+Z" in physical assembly.

The good news: this Meganura dragonfly design is not just art; it is engineered to assemble cleanly. As long as you respect the stitched guidelines—treating them as blueprints rather than suggestions—and don't rush the bonding process, the result is structural and stunning.

In my 20 years of running commercial embroidery floors, I've learned that FSL assembly is less about artistic talent and more about process controls. Jonathan’s method is simple and repeatable: tail first, then lower wings, then upper wings. I will walk you through the exact assembly sequence shown in the video, but I will also layer in the "Chief Education Officer" insights—the sensory cues, the safety margins, and the shop-floor habits—that keep big FSL pieces flat, symmetrical, and display-ready.

The “Don’t Panic” Primer: Why Precision Matters in FSL

If you’re staring at a 21-inch wingspan and thinking “I’m going to glue this crooked,” you’re not alone. Large-scale FSL projects amplify tiny alignment errors. A one-degree shift at the body connection becomes a visibly skewed wingtip three inches away.

Here’s the calming truth: the embroidery digitizer has stitched the instructions directly onto the parts. Your job isn’t to eyeball angles or guess the biology of a dragonfly. Your job is to match edges to lines.

One critical mindset shift: Treat this like light fabrication, not sewing. You are building a rigid thread structure. The glue is your welding material. Your biggest risks are:

1. Thermal Distortion: Applying too much heat allows the thread "memory" to twist the part.
2. Drift: Moving the part before the bond transitions from liquid to solid.


Phase 1: Preparation & The "Hidden" Consumables

Before you touch the glue gun, we must stabilize your environment. In a professional shop, we don't clear a spot on a messy desk; we set up an assembly station.

The Essential Toolkit

Beyond the embroidered parts, you need specific tools to ensure safety and precision:

• Hot Glue Gun: Preferably a variable-temp gun set to low-medium. High heat can occasionally melt synthetic threads (polyester/rayon) or distort the stabilizer residue.
• Cutting Mat with Grid: This is your geometric reference plane.
• "Hidden" Consumables:
  • Silicone Finger Guards: To press hot lace without burning your skin.
  • Scrap Cardboard: To catch the "angel hair" stringing from the glue gun.
  • Tweezers: For removing stray glue strings while they are warm.

Pre-Flight Inspection: The Flatness Check

FSL parts effectively have "memory." Depending on how they were hooped, rinsed, and dried, they may want to curl. The Sensory Check: Lay the wings flat on your mat. Run your hand over them. Do they rock? Do they bow up?

• Action: If a part is warped, verify it is fully dry. You can gently press it under a heavy book overnight before assembly. Do not try to force a warped wing flat with glue alone; the tension will eventually pop the joint.


Prep Checklist: The "Zero-Error" Protocol

Perform this check before plugging in the glue gun.

• Inventory: Confirm all segmented tail parts, main body, and four wings are present and fully dry.
• Surface: Work surface is heat-safe, flat, and equipped with a 1-inch grid mat.
• Dry Fit: Slide every tab into its slot without glue to feel the friction fit. It should feel snug but not forced.
• Zone Defense: Establish a "Clean Zone" for assembly and a "Dirty Zone" for the glue gun rest.
• Nozzle Check: Wipe the cold glue gun nozzle to remove old charred glue that could smear black marks onto your pristine lace.

Warning: Thermal Safety
Hot glue can cause severe burns, and molten glue trapped in the intricate holes of lace is difficult to remove from skin quickly.
* Never use your bare thumb to compress a fresh glue joint on lace; the glue will seep through the mesh instantly.
* Use a silicon tool or a wooden craft stick to apply pressure.
* Unplug the gun immediately if you are stepping away.

Phase 2: The Anchor Point (The Tail)

The video starts with the tail-to-body connection. This order is non-negotiable. The tail acts as the "keel" of the ship. If the tail is straight, the rest of the body has a centerline to follow.

The Engineering Logic

The design features a specific alignment system: The Curved Limit Line. The stitched line on the tail is not straight; it has a subtle curve that mirrors the curve of the body piece. This is a brilliant "keying" mechanism. If you match the curves, the tail cannot be crooked.

Step-by-Step: Locking the Tail

1. Apply Adhesive: Place a thin bead of glue on the top tab of the tail piece. Avoid the edges to prevent squeeze-out.
2. Insertion: Slide the main body over the tail tab.
3. The Visual Anchor: Push the body down until it barely eclipses the stitched marking line on the tail.
   • Sensory Cue: You should see the stitched line disappear, but stopping immediately once it's covered. If you push further, you shorten the tail.
4. Curve Match: Wiggle the tail left/right until the curve of the tail stitch matches the curve of the body hem.
5. Compression: Press firmly with a tool for 10-15 seconds.


Pro Tip: The "Open Time" Window

Hot glue has an "open time"—the seconds where it is sticky but moveable.

• 0-5 Seconds: Slides easily. (Adjust alignment now).
• 5-15 Seconds: Tacky, resists movement. (Hold still).
• 15+ Seconds: Sets hard. (Do not move, or you will break the crystal bond).

If you find yourself struggling with part consistency before you even get to glue—perhaps your parts are slightly different sizes or shapes—look upstream at your hooping process. Inconsistent tension leads to inconsistent shrinkage. Commercial shops often use hooping stations to ensure every piece of stabilizer is drum-tight and identical, reducing geometric variance before the machine even starts.

Phase 3: The Foundation (Lower Wings)

Jonathan correctly advises attaching the bottom wings first. This builds the platform for the upper wings.

The Problem with Eyeballing

Novices align wings by looking at the tips (the far end). This is a mistake. A 1mm error at the root (the body connection) becomes a 10mm error at the tip. The Fix: Ignore the tip. Align strictly by the Root Edge.

Execution Sequence

1. Adhesive: Apply glue to the connection tab of Lower Wing #1.
2. Positioning: Slide the tab under the body.
3. Alignment: Align the wing’s root edge perfectly flush with the stitched outline on the body.
   • Visual Check: There should be no gap between the wing thread and the body thread. It should look like a continuous piece.
4. Set: Press and hold. The grid lines on your mat can help you visually verify the wing angle is reasonable, but trust the stitched line first.




Repeat for Lower Wing #2. Crucial Check: Once both lower wings are on, look at the dragonfly from directly above. Do the wings sit symmetrically on the grid? If one is higher, now is the only time you can reheat and gently nudge it.

Setup Checklist: The Mid-Point Audit

Stop here. Do not proceed to upper wings until these pass.

• Layering: Both lower wings are clearly under the body stack.
• Gap Analysis: No visible gaps between wing root and body outline.
• Symmetry: The assembly sits flat on the grid; lifting the tail does not cause one wing to droop.
• Cleanliness: No "angel hair" glue strings bridging the gap between wing and body.

Note for Batch Production: If you are making 50 of these for a craft show, manual hooping fatigue becomes your enemy. This is where tools like a hoop master embroidery hooping station pay for themselves by standardizing placement speed, ensuring that when you get to this assembly stage, every left wing matches every right wing perfecty.

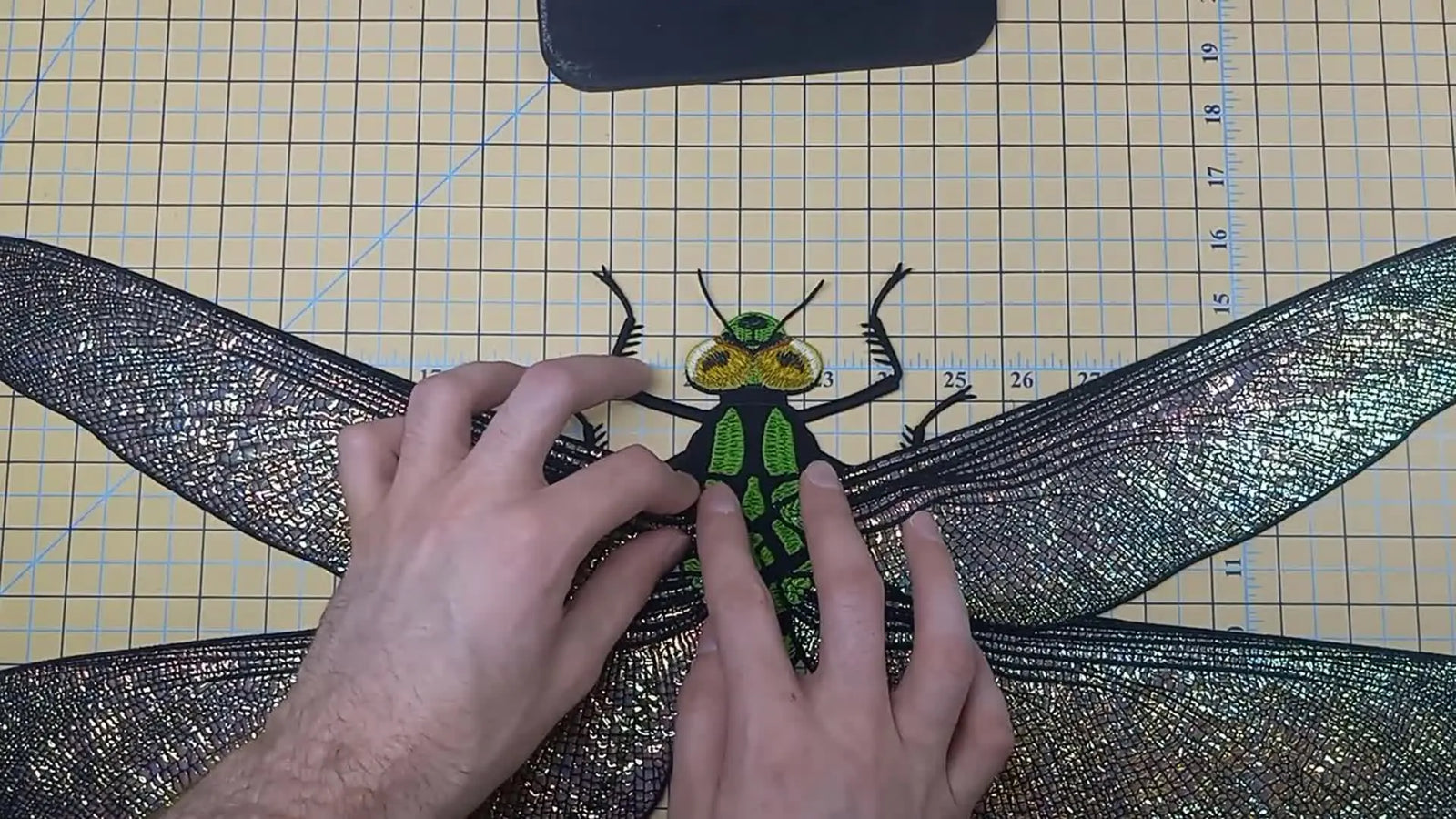

Phase 4: Use the Z-Axis (Upper Wings)

Now we create dimensionality. The upper wings create the "lifelike" shadow by interacting with the lower wings.

The "Slight Overlap" Technique

1. Adhesive: Apply glue to Upper Wing #1 tab.
2. Placement: Align to the upper body guideline.
3. The Z-Axis Check: The upper wing must very slightly overlap the lower wing.
   • Why? Real dragonfly wings operate on different planes. This overlap locks the two wings together structurally, making the final piece more rigid.
   • Sensory Cue: You should feel the upper wing frame resting on the lower wing frame. It should not press down hard (which bends the lower wing) nor float high (weak joint).




Repeat for Upper Wing #2. Watch out for "Drift." Gravity may pull the upper wing down while the glue sets. Support the wing tip with a small scrap of cardboard or your finger to maintain the correct plane until the glue cools.

Troubleshooting: The "It Looks Off" Rescue Guide

Even with the best instructions, reality happens. Here is your structured guide to recovering a fumbled assembly.

The "Why" Behind Toolkit Choices: A Decision Tree

Your success in assembly is actually determined hours before, during the machine setup. FSL requires absolute stability. Material shifting causes the "tabs" to be the wrong size, making assembly impossible.

This decision tree helps you choose the right workflow before you press "Start" on the machine.

START: Are you stitching true FSL (100% thread/stabilizer) or Appliqué?

1. True FSL (Heavy Thread Count)
   • Stabilizer: Heavyweight Water Soluble (Vilene/Badgemaster). Two layers recommended.
   • Hooping: MUST be drum-tight. If you struggle to tighten standard hoops without stripping the screw, switch to magnetic embroidery hoops. They clamp the slippery stabilizer firmly without distortion.
   • Machine: If using a single-needle, ensure bobbin is full. Stopping mid-design for a bobbin change on FSL can create a weak point in the lace.
2. Fabric-Based Assembly
   • Stabilizer: Cutaway or Tearaway depending on fabric weight.
   • Hooping: Fabric burn is the enemy. Delicate fabrics (silk/organza for wings) are easily crushed by traditional hoops.
     • Solution: Many professionals search for how to use magnetic embroidery hoop videos specifically to solve the "hoop burn" issue on delicate organza wings.
   • Production Volume:
     • Low: Standard hoop is fine.
     • High: Use embroidery magnetic hoops and a fixture like the hoopmaster home edition to maximize throughput.

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They can snap effective immediately, pinching skin severely.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Keep away from embroidery cards or USB drives.

Finishing & Display

Once the glue cures (allow 24 hours for full chemical bond strength), you have a few display options:

• Shadowbox: Use pins to float the body off the backing.
• Garment Attachment: If stitching onto a jacket, do not glue. Hand-tack the body and wing tips.
• Wall Art: Use the grid mat to center the dragonfly on a mounting board.

The Production Upgrade Path

This Meganura project is a perfect example of the "Hobbyist vs. Pro" divide. A hobbyist enjoys the 6 hours of stitching and 30 minutes of gluing for one dragonfly. A business owner needs to make 20 of them efficiently.

How to Scale This Project:

1. The Bottleneck: Changing thread colors and re-hooping.
2. The Tool Upgrade: If you are hooping lace 20 times a day, your wrists will suffer. magnetic hoops for embroidery machines reduce the physical strain of hooping significantly.
3. The Machine Upgrade: High-density FSL eats bobbin thread and requires constant color changes. A single-needle machine stops production every time you need to switch.
   • The Solution: A multi-needle machine (like the SEWTECH series) holds all your colors at once and holds larger bobbins. It turns a "babysitting" job into a "set it and forget it" production run.

Operation Checklist: Final Quality Control

Run this before you gift or sell the piece.

• Alignment: Body barely eclipses the tail line; tail reads straight.
• Wing Flushness: Lower wing roots are 100% flush with body guidelines.
• The Z-Overlap: Upper wings slightly overlap lower wings symmetrically.
• Structural Integrity: Gently shake the dragonfly. No rattles, no loose wings.
• Aesthetics: No visible glue blobs. No shiny strings.
• Flatness: Place on table. It sits relatively flat without rocking.

By following these engineering-grade steps, you move beyond "hoping it works" to "knowing it will fit." FSL is a challenge, but with the right prep, the right tools, and a calm assembly hand, it is incredibly rewarding. Happy stitching.

FAQ

• Q: What tools and consumables are required to assemble the Meganura dragonfly large-scale FSL parts with a hot glue gun?
  A: Use a low-to-medium hot glue setup plus a flat reference surface so alignment and safety stay controllable.
  • Set up a heat-safe table with a gridded cutting mat as the reference plane.
  • Use silicone finger guards (or a silicone tool) and tweezers to handle warm lace and remove glue strings.
  • Keep scrap cardboard nearby to catch glue “angel hair” and prevent mess on the lace.
  • Success check: Parts can be pressed and aligned without burning fingers, smearing glue, or losing the grid reference.
  • If it still fails: Stop and reset the station—most “crooked” assemblies start from an unstable work surface or rushed handling.
• Q: How do you check large-scale FSL wings for warping before assembling the Meganura dragonfly project?
  A: Do a flatness check first; do not try to force a warped FSL wing flat using glue.
  • Lay each wing on the mat and run a hand over it to feel rocking, bowing, or curl (“memory”).
  • Verify the part is fully dry before any bonding.
  • Press the warped piece under a heavy book overnight before assembly.
  • Success check: The wing rests flat on the grid without rocking when lightly tapped.
  • If it still fails: Pause assembly and re-address the stitch-out process (inconsistent hooping tension can create inconsistent parts).
• Q: What is the correct assembly order for the Meganura dragonfly large-scale FSL build to avoid crooked alignment?
  A: Assemble in this non-negotiable sequence: tail first, then lower wings, then upper wings.
  • Attach the tail to the body first so the tail becomes the straight “keel” centerline.
  • Glue both lower wings under the body next to create the foundation platform.
  • Add the upper wings last to build the Z-axis overlap and final rigidity.
  • Success check: From a top-down view on the grid, the body reads straight and wings sit symmetrically before moving on.
  • If it still fails: Do a full dry-fit again—forcing tabs or skipping the tail anchor commonly creates permanent skew.
• Q: How do you align the Meganura dragonfly FSL tail-to-body joint using the curved stitched limit line?
  A: Use the stitched curved limit line as a mechanical key—match curve to curve and stop at the “barely covered” mark.
  • Apply a thin bead of hot glue to the top tab only, keeping glue away from edges to prevent squeeze-out.
  • Slide the main body over the tail tab and push down until the body barely eclipses the stitched marking line.
  • Wiggle left/right to match the tail stitch curve to the body hem curve before the glue sets.
  • Success check: The stitched tail line is just covered (not deeply buried), and the tail reads straight as a centerline.
  • If it still fails: Re-do the joint during the glue open-time window—alignment must happen in the first seconds, not after it turns tacky.
• Q: How do you prevent asymmetrical wings when attaching the Meganura dragonfly lower wings in a large-scale FSL assembly?
  A: Align lower wings by the wing root edge to the body guideline, not by the wing tips.
  • Apply glue to the lower wing connection tab and slide the tab under the body.
  • Match the wing root edge perfectly flush to the stitched outline on the body.
  • Pause after both lower wings and inspect from directly above on the grid before proceeding.
  • Success check: No visible gap at the root; the root looks like one continuous thread line, and both wings mirror on the grid.
  • If it still fails: Reheat and nudge only while adjustment is still possible—do not wait until the upper wings are installed.
• Q: How do you fix a loose or wobbly wing joint on the Meganura dragonfly large-scale FSL piece after hot glue cooling?
  A: Stabilize the joint first, then re-bond carefully—avoid ripping the lace structure.
  • If glue is still warm: Compress the connection and inject a tiny dot of fresh glue.
  • If glue is cold: Carefully peel the joint apart without tearing threads, then re-glue with a thinner, centered bead.
  • Hold the joint still for the full cooling period instead of “testing” it early.
  • Success check: The wing no longer wobbles when gently shaken and the joint feels rigid without creaking or shifting.
  • If it still fails: Re-check for drift during cooling—movement during the set is a primary cause of weak “crystal” bonds.
• Q: What hot glue safety rules should be followed when assembling intricate large-scale FSL lace like the Meganura dragonfly?
  A: Treat hot glue like a burn hazard and never press fresh glue through lace with bare skin.
  • Never use a bare thumb to compress a fresh glue joint on lace; glue can seep through the mesh instantly.
  • Use silicone finger guards, a silicone tool, or a wooden craft stick to apply pressure.
  • Unplug the glue gun if stepping away, and keep a “dirty zone” for the gun rest to protect clean lace parts.
  • Success check: Joints are pressed firmly without skin contact, and no molten glue touches fingers or pools through lace holes.
  • If it still fails: Stop immediately and switch to safer pressing tools—most injuries happen when trying to “save” a slipping joint by hand.
