Giant Magnetic Hoop + Split Files on the Brother Luminaire 2: How to Stitch a Large Leaf Panel Without Losing Registration

The Anatomy of a 161,000 Stitch Failure: A Masterclass in Heavy Hoop Management

If you have ever watched a dense embroidery design run for hours and felt a cold knot in your stomach—whispering “Please don’t shift… please don’t shift…”—you are experiencing the specific anxiety of the “registration gap.” With large magnetic hoops and split files, registration is binary: it is either rock-solid, or it is a heartbreaking waste of expensive materials.

In this case study, we analyze a project where Sue attempts a massive wildflower leaf panel on a Brother Luminaire 2 (Innov-is XP2). She uses a large magnetic hoop to stitch Part A, then re-hoops for Part B using the built-in camera scan for alignment. The design is stunning, the machine is powerful—and the failure she encounters offers a lesson more valuable than a hundred perfect runs.

The critical variable here is scale: the design is 15.28" x 9.92" and involves 161,000 stitches. This is not a quick test. This is an engineering challenge.

The Calm-Down Moment: What a Split Design *Really* Means Before You Stitch

The first cognitive hurdle is the screen itself. You load what appears to be a single image, but the machine sees two distinct data sets.

When Sue calls up the design, she highlights a crucial “stop and look” moment: do not be fooled by a single thumbnail. You must verify the indicator showing two parts (A and B). On the Luminaire 2, this linkage is sophisticated—when Part A finishes, the machine holds the memory of Part B's position relative to A. However, this digital memory relies entirely on physical stability.

Expert Insight: A common trap for beginners is assuming the "Center of the Frame" equals the "Center of the Design." They are rarely the same in split files. Sue intentionally leaves extra fabric width on one side. This is your "error buffer." If the machine's geometric center is 2 inches left of the hoop's physical center, and you didn't leave fabric there, you will stitch on air.

If you are currently searching for a reliable workflow with a brother luminaire magnetic hoop, start here: Before you thread the needle, confirm that the machine's "center" and your fabric's "center" are aligned in reality, not just in theory.

The “Hidden” Prep Pros Don’t Skip: Building a Sandwich That Won't Creep

Stitching 161,000 stitches is an act of physical violence against fabric. The needle penetrates the material thousands of times per minute to add thread; this adds mass and tension, causing the fabric to shrink inward (the "draw-in" effect).

Sue’s substrate strategy is a classic stability play:

1. Canvas (Top structural layer)
2. Iron-on Interfacing (Fused to the canvas to stop distortion)
3. Batting (Volume)
4. Background Fabric (The base)

Why this matters: From a physics standpoint, large hoops amplify distortion. The farther the hoop frame is from the center of the design, the less tension control you have in the middle. The "trampoline effect" (bouncing fabric) causes skipped stitches and outlines that don't match. Sue notes later that she felt the pull and would use thicker interfacing next time.

The "Hidden" Consumables: Beginners often miss the invisible helpers. For a stack this thick, using a temporary spray adhesive (like Odif 505) between layers is mandatory to prevent "creep." Furthermore, having a new 90/14 Topstitch Needle is essential to punch through four layers without deflecting.

Prep Checklist (Do not touch the screen until these are done)

• Layer Verification: Is the interfacing fused perfectly? Bubbles equal puckers.
• Adhesion Check: If using spray or fusible fleece, ensure the "sandwich" acts as one solid unit.
• Tactile Tension Test: Drum on the fabric. It should sound like a dull thud, not a loose rattle.
• Geometry: Mark your horizontal and vertical centers with a friction pen or ironed crease.
• Buffer Zone: Cut your fabric 3-4 inches larger than the hoop on all sides.


Magnetic Hoop Handling: Preventing “Silent Shifts” and Torque

Sue employs a very large magnetic hoop (affectionately called the “big big big big hoop”). Magnetic hoops are a game-changer for avoiding "hoop burn" (the friction marks left by traditional screw frames), but they introduce a specific failure mode: Torque twist.

When Sue leans on the hoop edge to adjust the fabric, she inadvertently pulls the thread and tweaks the frame. Unlike screw hoops which are mechanically locked, magnetic hoops rely on vertical clamping force. If you apply horizontal pressure (leaning), you can slide the fabric between the magnets without realizing it.

Sensory Anchor: When using magnetic embroidery hoops, treat the hoop like a scientific instrument, not a handle. Listen for the distinct CLACK of the magnets engaging. If it sounds like a soft thud, fabric might be bunched between the magnets.

Warning: Magnetic Hazard
High-quality magnetic hoops use industrial-strength neodymium magnets. They snap together with enough force to pinch fingers severely. Never place the magnets near pacemakers or sensitive electronics. Keep fingers clear of the "snap zone" at all times.

Screen Setup: Selecting Part A vs. Part B Without Being Tricked

Sue selects the design and points to the “2” indicator. This is your map. The machine will display Part A (usually the center or top) and Part B (the extension).

The Physics of the Overlap: The "overlap area" is the critical zone. Both file parts share common coordinates here. If your fabric is not perfectly "squared" (90-degree threads relative to the hoop), the overlap will tilt.

Speed Management: For a 161,000 stitch design on a large hoop, inertia is your enemy. The heavy hoop moving rapidly can cause the machine to shake or the stepper motors to skip steps.

• Expert Recommendation: Do not run at max speed (1050 SPM). Cap your speed at 600-700 SPM. This safety buffer ensures the magnets hold despite the momentum of the heavy frame.


The Trace Trick: Verify Boundaries Before the First Stitch

This is the most critical manual step in the workflow. Sue uses the Luminaire 2’s Trace function but modifies it: she changes the specific needle position to check the corners.

Why the "Center Trace" is Insufficient: Tracing just the center tells you nothing about the edges. By moving the needle to the four extreme corners of the design bounding box, you verify:

1. Fabric Coverage: Will the needle hit the hoop frame or air?
2. Physical Clearance: Will the hoop hit the wall behind the machine?

For those learning how to use magnetic embroidery hoop workflows, this "Corner Trace" ritual is your insurance policy against a shattered needle or a shifted design.

Running Part A: What “Good Alignment” Looks Like

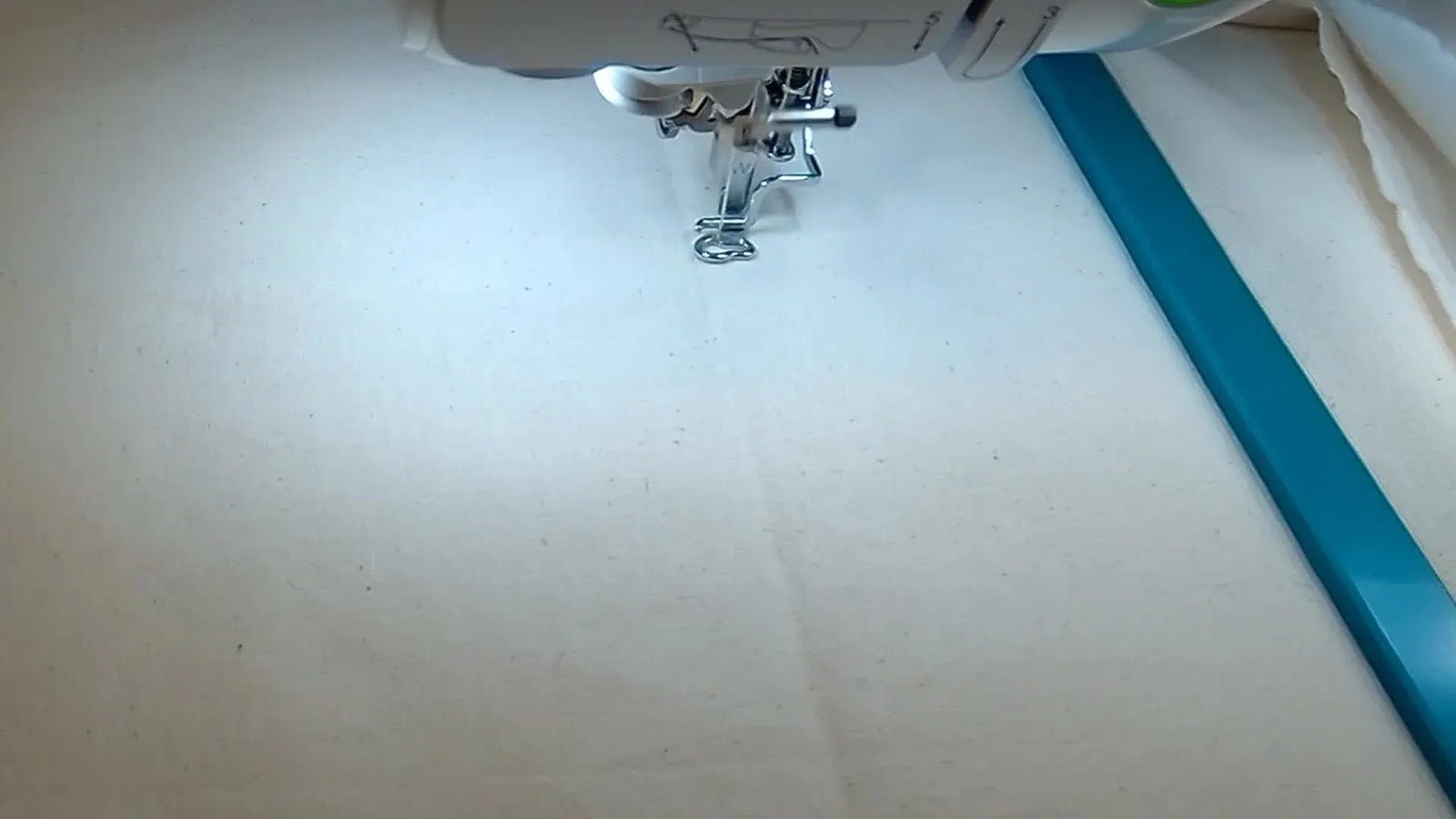

Sue switches cameras to confirm her physical alignment. She checks the center of the hoop against her ironed center lines.

Visual Check: Look at the needle bar. Is it perfectly perpendicular to your crosshair mark? Auditory Check: Start the machine. Listen for the first 100 stitches. A rhythmic thump-thump is good. A slapping sound means loose fabric. A grinding noise means the hoop is dragging on something.

She notes the needle is perfectly centered—“good guess”—and allows the 161k run to begin.

Re-hooping and Camera Scan: The Alignment Workflow

After Part A completes, the terror of "The Split" begins. Sue re-hoops the fabric to expose the area for Part B. The machine recognizes that Part A is done and prompts for Part B.

The Basting Stitch Cue: Sue notices the last stitch of Part A serves as a reference point. The Camera Scan: She uses the Luminaire’s built-in camera to scan the fabric background. The machine attempts to recognize the stitched pixels of Part A to calculate where Part B should land.

The Physical Reality Check: Sue drops a critical warning here: The hoop must travel very far back to scan and stitch Part B. You must ensure clearance.

• Concept: The "Sewing Field" is not just the plate; it is the entire excursion range of the pantograph (arm).




The “Red Outline” Moment: Why Dragging Fails

Sue attempts to drag the design on-screen to match her scanned fabric. Suddenly, she sees a red outline—the machine refuses to move the design where she wants it.

The "Ghost" Boundary: This happens because the machine calculates the boundary of the entire combined design, not just the visible Part B. Even if Part B fits in the hoop, if the machine thinks the invisible Part A would hang off the edge (based on your new rotation/position), it locks you out.

Lesson: If you stitch Part A crooked, you often cannot rotate Part B enough to fix it without hitting the software limits. Alignment depends on Part A being square to start with.

If you are using a magnetic hoop for brother, your "Can it fit?" check must happen in two dimensions:

1. Physical: Does the hoop fit the machine arm?
2. Digital: Does the rotated software design stay within the xy-axis limits?


The Clearance Disaster: How an External Mount Ruined the Project

Here lies the root cause of the failure. Sue’s registration is completely off—not by millimeters, but by inches. Why?

During the stitching of Part A, the large magnetic hoop traveled backward and struck an external camera mount she had clamped to the table.

The Mechanics of a "Strike": When a hoop hits an obstruction while the stepper motors are driving it:

1. The motors slip (lose steps).
2. The machine "thinks" the hoop is at X:500, but the hoop is physically at X:480.
3. The entire coordinate system is corrupted.
4. Part B will never, ever line up.

Immediate Diagnosis: If you hear a "bang" or "clunk" during a stitch out, do not continue. Your registration is lost. You must re-home the machine (turn off/on) to reset the axis, but your design on the fabric is likely ruined unless you can perfectly re-align.

Warning: Machine Safety
Keep your workspace "sterile." Scissors, nippers, clamps, and camera mounts must be outside the "Hoop Travel Zone." A hoop strike can strip gears in your embroidery unit, leading to expensive repairs.

Troubleshooting Split-Design Registration Errors

When a split design fails, emotional frustration often blocks logical analysis. Use this structured matrix to diagnose the error.

Decision Tree: Fabric vs. Stabilizer Choice

Sue used Canvas + Interfacing + Batting. She admitted she needed more. Use this logic flow to avoid under-stabilizing.

1. Is the Top Fabric Firm or Fluid?

• Firm (Canvas/Denim): Use 1 layer of Cutaway or Fused Interfacing.
• Fluid (Knits/Loose Weave): Must use fusible Poly-mesh Cutaway (No Show Mesh) + adhesive spray.

2. Is the Stitch Count over 50,000?

• Yes: You have entered the "High Density Zone." Treat any fabric like it is fluid. The massive thread count will distort even denim. Add a second layer of stabilizer.

3. Are you using a large Magnetic Hoop?

• Yes: Friction is your friend. If comparing dime magnetic hoops for brother vs. other brands, look for internal grip texture. If the hoop is smooth metal, use "Hoop Grip" tape or extra stabilizer to prevent sliding.


Setup Habits: The "Sterile Cockpit" Rule

Large hoops change the geography of your sewing room.

• The Clearance radius: Measure the diagonal length of your hoop. Ensure there is that much free space behind and to the left of your machine.
• Ergonomics: The more you reach over a 10-inch hoop to touch the screen, the more likely you are to lean on the frame.
• Tool Upgrade path: If you struggle with wrist pain from screwing hoops tight enough to hold 161k stitches, this is the trigger to upgrade to Sewtech Magnetic Hoops. They use vertical clamping force, eliminating radial wrist strain and hoop burn.

If you are using a dime snap hoop for brother luminaire style frame, ensure the top frame is fully seated. A 1mm gap on the magnet = 50% loss of holding power.

Setup Checklist (The "Pre-Flight" Check)

• Sterile Zone: Remove camera mounts, thread cones, and coffee mugs from behind the machine.
• Full Range Trace: Run a trace that physically moves the hoop to its furthest Y-axis limits. Watch the back of the machine.
• Link Check: Confirm Part 1 and Part 2 are loaded sequentially.
• Magnet Integrity: Run your finger along the magnetic frame. Is it seated flat? No fabric bunches lifting the magnets?
• Thread Path: Ensure thread is not caught under the hoop frame (common rookie mistake).


When It Goes Wrong: The "Restart Smarter" Plan

The comment section of Sue’s video validated a universal truth: we have all been there. One viewer suggested salvaging the ruined panel by cutting the "good" part into a cushion or bag front. This is an excellent way to mitigate financial loss on materials.

However, Sue’s corrective action is the gold standard: Downsize. Instead of forcing the giant master file, she decided to use the pre-split smaller files (5x7 or 6x10 versions) included with the design. This reduces the physics load on the hoop and makes registration easier.

The Upgrade Path: Moving from Frustration to Production

If this case study proves anything, it is that equipment limitations are real. If you are attempting production-level work on a domestic machine, you will eventually hit a ceiling.

Here is the logical path for upgrading your toolkit based on the pain points revealed here:

Level 1: The Stability Upgrade (Cost: $)

• Trigger: Fabric puckering or minor shifting.
• Solution: Upgrade to high-quality Cutaway Stabilizers and use Odif 505 spray. Stop trusting tearaway on dense designs.

Level 2: The Efficiency Upgrade (Cost: $$)

• Trigger: Hooping is slow, hurts your wrists, or leaves "burn marks" on velvet/delicate items.
• Solution: Magnetic Hoops. For domestic machines, they secure fabric faster and without distortion. This solves Sue's "leaning" issue by making hooping so easy you don't need to leverage your weight.

Level 3: The Scale Upgrade (Cost: $$$)

• Trigger: You need to run 161,000 stitches repeatedly, and the single-needle color changes are killing your profit margin.
• Solution: SEWTECH Multi-Needle Machines.
  • Why: A fixed tubular hoop system (unlike the moving flatbed of a domestic machine) has far better registration stability.
  • Volume: 15 needles mean no babysitting color changes.
  • Speed: Industrial platforms handle momentum better than plastic-chassis domestic machines.

Operation Checklist (During the Run)

• Hands Off: Do not touch the hoop while it is moving.
• Sound Check: Listen for the "click" of a needle strike or the "thud" of a hoop strike.
• Visual Scan: Watch the white bobbin thread. If you see it pulling up to the top, your tension is fighting the hoop movement.
• Intervention: If registration looks off after Part A, stop. Do not hope it will "fix itself" in Part B. It won't.

If you are experimenting with large frames like the dime magnetic hoop for brother, remember: The tool is only as good as the clearance you give it. One unseen camera mount can cost you a day of work. Clear your desk, trace your corners, and let the magnets do their job.

FAQ

• Q: How can Brother Luminaire 2 (Innov-is XP2) split-design embroidery avoid registration gaps when re-hooping Part A and Part B with a large magnetic hoop?
  A: Treat alignment as “physical first, camera second” and make Part A perfectly square before stitching anything dense.
  • Confirm the design is truly loaded as two linked parts (A and B) before starting.
  • Mark true horizontal/vertical centers on the fabric (pen lines or pressed creases) and align to the machine’s crosshair, not the thumbnail image.
  • Leave a generous fabric buffer (about 3–4 inches larger than the hoop on all sides) so an off-center design doesn’t stitch into “air.”
  • Success check: After setting Part A, the needle bar should land cleanly on the center crosshair and the first stitches should sound rhythmic (no slapping).
  • If it still fails… restart with the smaller pre-split files (5x7 or 6x10) instead of forcing the giant master split.
• Q: What “hidden prep” items are critical for a 161,000-stitch design on Brother Luminaire 2 (Innov-is XP2) with thick layers like canvas + interfacing + batting?
  A: Lock the layers into one stable “sandwich” before touching the screen, or the fabric will creep during a long run.
  • Fuse the iron-on interfacing smoothly (no bubbles) to reduce distortion under density.
  • Use temporary spray adhesive between layers so the stack behaves as one unit (creep control).
  • Install a fresh 90/14 Topstitch needle to reduce deflection through multiple layers.
  • Success check: Drum on the hooped fabric—aim for a dull thud, not a loose rattle.
  • If it still fails… add more stabilization (often thicker interfacing or an additional stabilizer layer is the safe next step).
• Q: How can magnetic embroidery hoops prevent “silent shifts” caused by torque twist when using a very large hoop?
  A: Stop using the magnetic hoop as a handle—horizontal pressure can slide fabric under the magnets without you noticing.
  • Seat the frame straight down and listen for a distinct “CLACK” that signals full magnet engagement.
  • Avoid leaning on the hoop edge when reaching for the screen or adjusting fabric tension.
  • Run a quick finger-check around the frame to confirm the magnets sit flat with no fabric bunched in the clamp zone.
  • Success check: The magnet ring sits flush all the way around, with no visible gaps; the fabric stays square when lightly tugged.
  • If it still fails… reduce speed (heavy hoop inertia can encourage movement) and add grip help (often extra stabilizer or hoop-grip tape can help).
• Q: How should Brother Luminaire 2 (Innov-is XP2) users use the Trace function to avoid needle hits and boundary surprises on large split designs?
  A: Do a corner-focused trace, not a center-only trace, to verify real clearance and real fabric coverage.
  • Move the needle position to each extreme corner of the design boundary box during Trace.
  • Watch for both risks: needle landing off fabric/into the frame and hoop travel hitting the wall or objects behind the machine.
  • Re-check clearance especially before Part B, because the hoop may travel very far back for scan/stitching.
  • Success check: The traced corners stay fully on fabric and the hoop completes the furthest travel without touching anything.
  • If it still fails… reposition the machine/worktable setup and repeat a full-range trace before restarting.
• Q: Why does Brother Luminaire 2 (Innov-is XP2) show a red outline and refuse dragging Part B into place after camera scan alignment?
  A: The machine enforces the boundary of the entire combined split design (Part A + Part B), so a crooked Part A can make Part B “digitally impossible” to reposition.
  • Assume the lockout is a geometry warning, not a touchscreen glitch.
  • Re-check that Part A was stitched square in the hoop (fabric grain at 90° to the hoop) before attempting rotation/drag fixes.
  • Avoid relying on “dragging to fix it”; plan alignment before stitching Part A.
  • Success check: Part B can be positioned without boundary warnings while staying within hoop limits.
  • If it still fails… restart with correctly squared hooping and, when available, use the digitizer-provided pre-split files rather than auto-splitting.
• Q: What should Brother Luminaire 2 (Innov-is XP2) users do immediately after a hoop strike (bang/clunk) when stitching with a large magnetic hoop?
  A: Stop immediately—continuing after a hoop strike can permanently destroy registration and may damage the embroidery unit.
  • Power-cycle (re-home) the machine to reset axis position before attempting any further stitching.
  • Inspect the workspace and remove obstructions (camera mounts, clamps, thread stands, tools) from the full hoop travel zone.
  • Re-run a full-range trace to confirm clear travel behind and to the left of the machine.
  • Success check: With the machine re-homed, the hoop can travel to its furthest limits smoothly with no contact or grinding.
  • If it still fails… do not retry the same alignment on the already-shifted fabric; repurpose the piece and restart on a fresh, properly cleared setup.
• Q: When do dense large-hoop projects justify upgrading from technique fixes to magnetic hoops or SEWTECH multi-needle machines?
  A: Use a staged upgrade: fix stability first, then reduce hooping stress with magnetic hoops, then scale up to multi-needle only when repeat production demands it.
  • Level 1 (Technique/consumables): Add proper stabilizer strategy and adhesive control if puckering or minor shifting appears.
  • Level 2 (Tooling): Move to magnetic hoops if screw-hooping causes hoop burn, wrist pain, or slow setup—especially on delicate or thick stacks.
  • Level 3 (Production): Consider SEWTECH multi-needle machines if you must run very high stitch counts repeatedly and single-needle color changes are killing throughput.
  • Success check: The chosen level reduces re-hooping retries and produces consistent alignment across Parts A and B.
  • If it still fails… downsize the design version (smaller split files) to reduce physics load before investing further.
