Generations Stamped Pattern Fills That Actually Stitch Clean: Build a Custom Motif, Control Spacing, and Avoid the “Why Does This Look Weird?” Moment

If you have ever stared at a "Complex Fill" in your digitizing software and felt a wave of disappointment because it looks flat, robotic, or just like everyone else's work, you are not alone. That flat look is the hallmark of "default settings."

To differentiate your work, you need texture. But hand-drawing texture takes hours. The "Stamped Pattern" feature in Generations is your shortcut to custom backgrounds without the manual labor.

However, software manuals rarely explain the physics of how these patterns translate to thread on fabric. In this guide, we are going to bridge the gap between clicking buttons and understanding the "hand" of the embroidery. We will walk through creating a source object (a simple star), saving it, and applying it with surgical precision using specific parameters like Maximum Step.

The Calm-Down Primer: What a Generations “Stamped Pattern” Really Does (and Why Yours Sometimes Looks Off)

Let’s demystify the engine under the hood. A stamped pattern isn't magic; it is a texture tiling engine. Imagine you are tiling a bathroom floor. You have a single tile (the "Source Motif") and a floor plan (the "Target Area"). Generations simply calculates how many tiles fit and how they are arranged.

When beginners try this, the result often looks "off"—either too sparse (gaps showing fabric) or too bulletproof (stiff and cardboard-like). This is rarely because your star or heart shape is wrong. It is usually a failure of Density Physics.

Your fill quality depends on three levers:

1. Repeat Density: How closely packed the rows and columns are.
2. Stagger: The offset that breaks the "grid" look to make it feel organic.
3. Stitch Length (Maximum Step): The most overlooked setting. This controls how long the thread travels before the needle penetrates the fabric again.

If you master these, you move from "software user" to "embroidery crafter."

The “Hidden” Prep Before You Draw Anything: Set Yourself Up for a Reusable Pattern Library

Before we draw a single node, we need to prepare not just the software, but your mindset for production. A stamped pattern is an asset. If you design it well once, it pays you back forever.

Physical & Mental Prep:

• The 3-Letter Rule: When naming patterns, use short, descriptive names (e.g., Star_5pt instead of star shape for background). You will thank yourself in six months.
• Stabilizer Reality Check: Stamped fills can be dense. If you plan to test this later on a standard cotton or twill, ensure you have a medium-weight Cutaway stabilizer. Tearaway often fails under the stress of repetitive stamped fills, leading to registration errors.
• Thread Check: Fills consume significantly more thread than outlines. Ensure your bobbin is full before starting your test sew-out to avoid mid-fill interruptions.

Prep Checklist (do this once per session):

• Grid Check: Confirm you are working on the main grid/canvas.
• Naming Protocol: Decide on a naming convention (e.g., Shape_Size_Type).
• Test Bed: Plan to test on a 4x4 inch (100mm) square first. Do not test on a final garment.
• Simplicity: Commit to keeping the first motif low-node count (clean geometric shapes stitch faster and cleaner).


Build the Source Motif in Generations: Drawing the Star Shape Without Overthinking It

The video demonstrates using a star, which is a classic choice because its points create excellent negative space interactions.

The Process:

1. Navigate to the Shape Toolbar on the left interface.
2. Select the Star icon.
3. Click and Drag on the grid to draw the star. Don't worry about the exact size yet (we can scale later), but aim for something visible—about 10mm is a good starting visual.
4. Press Enter to finalize the vector line work.
5. Press Escape to drop the tool.
6. Click Generate to render the stitches.

Cognitive Check: Does it look like a star or a blob? If the points are too sharp and thin, they might cause thread breaks on the machine. Slightly wider angles stitch better at high speeds.

Warning: Mechanical Safety. Keep fingers and tools away from the needle bar and trimmer during test sew-outs. Custom fills can create unexpected density spikes. Always run your first test at low speed (400-600 SPM) to listen for the "thump-thump" of needle struggle, which indicates you need to reduce density or change needles.

Save the Motif as a Stamped Pattern: The Exact Menu Path That Matters

This is where many users get lost because the menu logic is specific. You are not "saving a file"; you are "registering a system asset."

1. Selection: Right-click the star object. (The software requires the object to be active).
2. Navigation: Go to the top menu: Accessories.
3. Sub-menu: Select Stamped Pattern.
4. Action: Click Save Stamped Pattern.
5. Visual Confirmation: A dialog box appears. Type your name (e.g., "one star") and click OK.

Sensory Check: If you didn't get a confirmation popup or error message, assume it worked. The software is understated here.

Create a Target Fill Area: Why a Simple Rectangle Is the Smart Test Bed

Now, delete the source star. We don't need the "cookie cutter" anymore; we need the "dough."

1. Left-click the star to select it and press Delete.
2. Select the Rectangle Tool.
3. Draw a large rectangle (representing your fill area).
4. Visual Hack: Change the color to Cyan (or a high-contrast brightness). Dark blue or black makes it very hard to see the texture of the stamped pattern in the preview window.

This rectangle is your "Lab Bench." It allows you to judge spacing without the distraction of complex impressive borders.

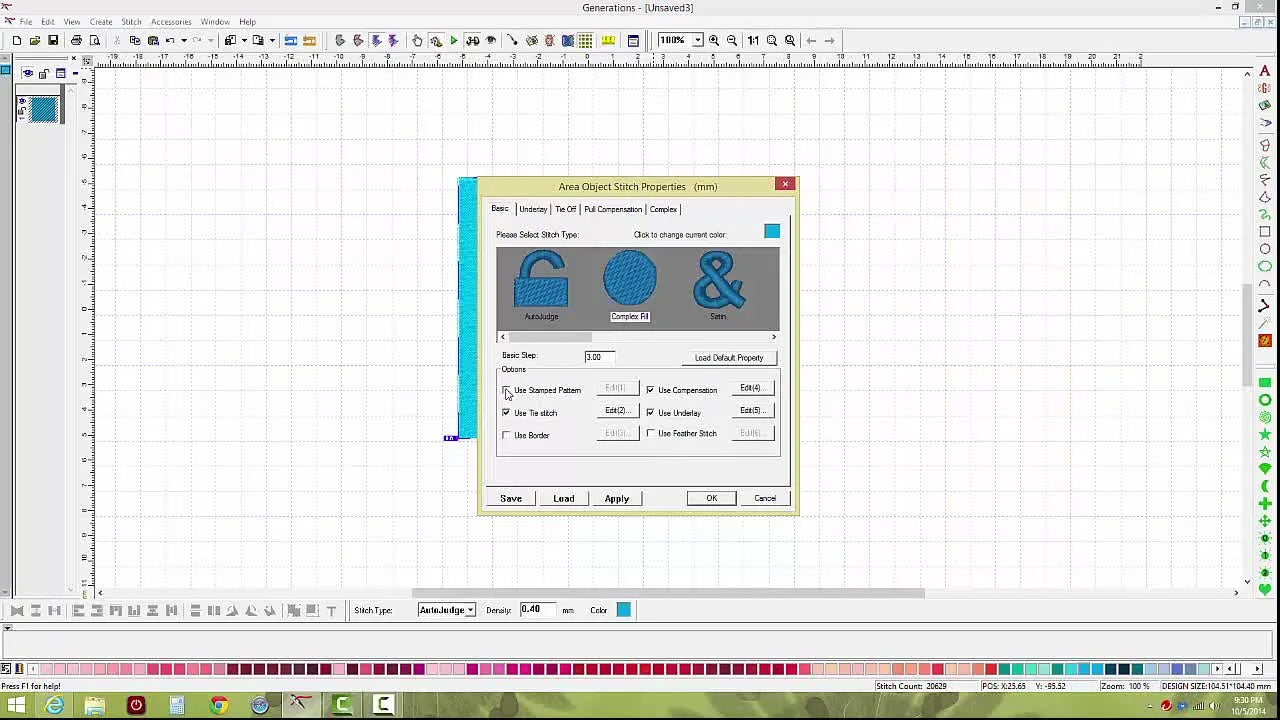

Turn On “Use Stamped Pattern” in Complex Fill: The Checkbox That Unlocks the Layout Window

This is the gateway step. You must tell the "Complex Fill" engine to stop doing a standard Tatami stitch and start using your custom motif.

1. With the rectangle selected, open Object Properties.
2. Ensure the stitch type is set to Complex Fill.
3. Locate the checkbox labeled Use Stamped Pattern and check it.

Action: As soon as you check that box, a new window—the Layout Window—should pop up automatically. This is your control center.

Make the Pattern Look Designed (Not Accidental): Rows/Columns = 9, Then Stagger With Handles

This is where art meets math. The default settings usually look terrible. We need to tighten them up.

The Sweet Spot Settings:

1. Pattern Selection: Ensure "one star" is highlighted in the list.
2. The Magic Number: Set Rows = 9 and Columns = 9.
   • Why? For most average-sized embroidery, "9" provides enough density to cover the fabric while leaving enough breathing room to see the shape.

Fine-Tuning with Visuals: Instead of guessing numbers, look at the green drag handles in the visual preview:

• Spacing: Drag handles to pull stars closer or push them apart.
• Stagger: Drag the top handle to slide the rows. A 50% offset (brick pattern) usually looks the most professional.
• Scaling: Use the "Lock" icon to scale the star up or down.

Goal: You want a texture that looks intentional. If the stars are perfectly aligned in a grid, it looks mechanical. A slight stagger creates "flow."

The “Reset” Trick When Generations Ignores You

Software creates friction. Sometimes you click a pattern to reset settings, and Generations just stares at you.

• The Glitch: Clicking the selected pattern again does nothing.
• The Fix: Click a neighboring pattern (any other pattern), let it load, and then click back to your star pattern. This forces the software to reload the default values. It’s a 2-second trick that saves 10 minutes of frustration.


Setup Checklist (before you commit the layout):

• Selection: Is "one star" actually selected?
• Density: Are Rows/Cols set to 9 (or your preferred baseline)?
• Stagger: Is there a visible offset (diagonal flow) in the preview?
• Consumables Prep: Do you have your fabric and [Hidden Consumable: Temporary Spray Adhesive] ready? Stamped fills can shift fabric; spray adhesive helps bond it to the stabilizer.

Generate, Then Judge Like a Shop Owner: Does the Texture Read at Real Size?

1. Click OK close layout.
2. Click OK to close properties.
3. Generate stitches.

The "10-Foot Rule" vs. "The Microscope": Zoom out on your screen. Does the texture read as a "textured field" or as "dotted noise"?

• If it looks like messy dots, your pattern might be too small.
• If it looks like separate floating stars, your spacing is too wide.

The Instructor notes: Direction matters. You can change the stitch angle of the fill. Sometimes rotating the fill by 45 degrees changes the light reflection and makes the pattern pop.

The Stitch-Physics Lever: Maximum Step at 2.5–3.0 to Change the Background Feel

This is the "Secret Sauce" section. Maximum Step (Stitch Length) controls the physics of the thread.

• Standard Tatami: usually ~4.0mm.
• Refined Stamped Fill: Needs to be shorter, around 2.5mm to 3.0mm.

Why change this?

1. Open the Complex Fill tab in properties.
2. Change Maximum Step to 2.5.
3. Regenerate.

The Result: A shorter stitch length forces the needle to penetrate more often. This creates a "tighter," more unified fabric surface. It creates a higher-resolution look.

• Warning: Going below 2.0mm creates bulletproof embroidery that is stiff and can break needles. Stay in the 2.5mm - 3.0mm safety zone.




Troubleshooting the Two Most Common “Why Isn’t This Working?” Moments in Generations Stamped Patterns

When things go wrong, don't panic. Use this logic flow:

The “Why” That Prevents Rework: Spacing, Stagger, and Maximum Step Are a Three-Knob System

You cannot change one without affecting the others.

• If you reduce spacing (more stars), you increase thread count. You may need to increase Maximum Step slightly to prevent the fabric from becoming a stiff board.
• If you increase spacing (fewer stars), the fabric shows through. You might need to lower Maximum Step to make the individual stars look sharper and more premium to compensate for the empty space.

Think of it as a mixer board: Balance the Volume (Density), the Rhythm (Stagger), and the Tone (Stitch Length).

Decision Tree: When to Upgrade Your Workflow From “Hobby Testing” to “Production Thinking”

Using stamped patterns increases stitch count and run time. This shifts the bottleneck of your operation from "designing" to "production."

Use this decision tree to identify if your tools match your ambition:

• Scenario A: The One-Off Hobbyist
  • Volume: 1-5 items.
  • Pain Point: Design time.
  • Solution: Stick to the standard hoops came with your machine. Focus on mastering the software settings above.
• Scenario B: The "Side Hustle" Batch
  • Volume: 20-50 patches or left-chest logos.
  • Pain Point: Hooping consistency and "Hoop Burn" (the shiny ring left on fabric).
  • Solution: This is the Trigger Point. Traditional hoops require constant loosening and tightening, often damaging delicate fabrics.
  • Upgrade: Many professionals search for a magnetic embroidery hoop. A magnetic frame allows you to clamp fabric instantly without forcing it into a ring, eliminating hoop burn and saving your wrists.
• Scenario C: The Production Run
  • Volume: 100+ items.
  • Pain Point: Thread changes and machine speed.
  • Solution: If you are stopping every 5 minutes to change threads on a single-needle machine, you are losing money.
  • Upgrade: Move to a multi-needle platform (like SEWTECH solutions) and integrate magnetic embroidery hoops for rapid-fire swapping.

Warning: Magnetic Safety. Powerful embroidery magnetic hoop systems use industrial-strength magnets. They can pinch fingers severely if snapped shut carelessly. Always keep them away from pacemakers and sensitive electronics.

The Upgrade Path That Feels Natural (Not Salesy): Match Tools to the Pain You Actually Have

Once your digital file is perfect (thanks to the Maximum Step and Layout settings), the physical execution becomes the new variable.

If you find that your perfectly digitized stamped pattern is puckering on the machine, the issue is often stabilization stability.

• Level 1 Fix: Use more spray adhesive and a high-quality Cutaway stabilizer.
• Level 2 Fix: Upgrade your work surface. A dedicated hooping station for machine embroidery ensures that every garment is hooped at the exact same tension and angle, reducing the variables that cause distortion.

Remember: The software creates the map, but the hoop and stabilizer are the terrain. You need to master both.

Operation Checklist: Your 60-Second Quality Control Before You Call It “Done”

• Naming: Is the source motif saved with a recognizable name?
• Activation: Is Complex Fill > Use Stamped Pattern checked?
• Layout: Did you start with Rows=9 / Cols=9 and adjust from there?
• Rhythm: Did you stagger the pattern to avoid the "Robot Grid" look?
• Physics: Did you set Maximum Step to 2.5mm - 3.0mm for a refined finish?
• Safety: Are you running the first test at slow speed?

Mastering stamped patterns isn't just about making background textures; it's about taking control of the machine's behavior. Once you can control density and texture, you stop hoping for good results and start commanding them. Happy stitching.

FAQ

• Q: In Generations software, why does clicking Reset in the Stamped Pattern Layout Window do nothing when adjusting a Complex Fill > Use Stamped Pattern background?
  A: This is a common Generations UI glitch—force a reload by switching patterns once.
  • Click a neighboring stamped pattern in the list (any other pattern).
  • Let it load visually, then click back to the intended pattern (for example, the saved star motif).
  • Reapply the baseline layout (Rows = 9, Columns = 9) and adjust with the green handles.
  • Success check: The preview changes immediately (spacing/stagger updates) instead of staying frozen.
  • If it still fails: Close the layout window with OK and reopen Object Properties to trigger a fresh load.
• Q: In Generations Complex Fill with Use Stamped Pattern, why does a stamped pattern background look too sparse (fabric gaps) or too “bulletproof” (stiff, cardboard-like)?
  A: Treat the result as a three-knob balance—start from a known baseline and adjust spacing, stagger, and stitch length together.
  • Set the Layout baseline to Rows = 9 and Columns = 9, then fine-tune spacing using the green drag handles.
  • Add stagger by offsetting rows (a “brick-like” offset often looks more natural than a perfect grid).
  • Set Maximum Step (stitch length) to 2.5–3.0 mm for a tighter, cleaner texture (avoid going below 2.0 mm).
  • Success check: Zoom out—texture reads as an intentional field, not random dots or separate floating shapes.
  • If it still fails: Reduce density or improve stabilization (cutaway stabilizer is the safer choice for dense stamped fills).
• Q: In Generations stamped pattern layout, why does a saved motif look squashed or stretched after dragging the green handles in the preview?
  A: The motif was scaled non-proportionally—use proportional scaling to protect the shape.
  • Locate and enable the Lock icon in the layout window to keep aspect ratio.
  • Scale again using the handles with Lock enabled.
  • Recheck spacing and stagger after scaling because scaling changes perceived density.
  • Success check: Points and angles of the motif (like a star) look symmetrical again in preview and after Generate.
  • If it still fails: Reopen layout and rebuild the layout from a baseline (Rows/Cols = 9) before fine adjustments.
• Q: In Generations Complex Fill > Maximum Step, what setting makes stamped pattern backgrounds look less harsh and more premium on fabric?
  A: Use a shorter stitch length—Maximum Step at 2.5–3.0 mm is a safe starting range for refined stamped fills.
  • Open Object Properties for the Complex Fill object.
  • Set Maximum Step to 2.5 mm, then Regenerate to compare.
  • If the fill starts feeling too stiff, increase slightly but stay within the 2.5–3.0 mm zone as a baseline.
  • Success check: The surface looks more unified and “high-resolution,” not jagged or ropey.
  • If it still fails: Check stabilizer strength (cutaway is recommended for dense repeats) and reduce overall layout density.
• Q: For Generations stamped pattern test sew-outs, what prep prevents mid-fill failures like shifting, registration issues, or running out of thread?
  A: Prep the test like production—dense stamped fills stress fabric, stabilizer, and bobbin more than normal fills.
  • Use a medium-weight cutaway stabilizer for testing; tearaway often fails under repetitive stamped fill stress.
  • Fill the bobbin before the test so the fill does not stop mid-run.
  • Bond fabric to stabilizer using temporary spray adhesive to reduce shifting during dense stitching.
  • Success check: The test square sews to the end without drift, and the fabric stays flat without waves or puckers.
  • If it still fails: Reduce stamped fill density (spacing/Rows/Cols) before blaming the motif shape.
• Q: What mechanical safety steps should be used when running a first test sew-out of a custom Generations stamped fill on an embroidery machine?
  A: Run the first sew-out slowly and listen—custom fills can create unexpected density spikes that strain the needle system.
  • Keep fingers and tools away from the needle bar and trimmer during operation.
  • Run the first test at low speed (about 400–600 SPM) to reduce risk while evaluating stitch behavior.
  • Stop immediately if a “thump-thump” sound appears; that often indicates needle struggle from excessive density.
  • Success check: The machine runs smoothly without rhythmic punching noises, and thread flow stays consistent through the fill.
  • If it still fails: Reduce density or adjust Maximum Step upward slightly (within the safe baseline), then retest before increasing speed.
• Q: When repeated stamped pattern production causes hooping inconsistency and hoop burn on delicate fabrics, when should the workflow upgrade to a magnetic embroidery hoop or to a multi-needle platform like SEWTECH machines?
  A: Upgrade based on the pain you actually feel—start with technique, then move to hooping tools, then capacity.
  • Level 1 (technique): Confirm stabilization (cutaway), use spray adhesive, and dial in Maximum Step (2.5–3.0 mm) and layout spacing to reduce puckering and stress.
  • Level 2 (tooling): If hoop burn and inconsistent tension are the recurring bottlenecks in batch work, a magnetic embroidery hoop can clamp faster and more consistently than traditional rings.
  • Level 3 (capacity): If frequent stops for thread changes on a single-needle machine limit output on 100+ item runs, a multi-needle platform such as SEWTECH solutions may fit the production need.
  • Success check: Rework drops—fewer rejects from hoop marks/registration shift, and more consistent texture across the batch.
  • If it still fails: Re-evaluate stabilization and density first; stamped fills can overwhelm any hoop if the design is too “bulletproof.”
• Q: What magnetic safety rules should be followed when using an embroidery magnetic hoop for production embroidery?
  A: Treat magnetic hoops as industrial pinch hazards—close them with control and keep them away from medical devices.
  • Keep fingers clear of the closing path; magnets can snap shut hard enough to injure.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Close the frame slowly and deliberately during garment loading to avoid sudden snapping.
  • Success check: The hoop closes without slamming, fabric stays positioned, and there is no finger pinch risk during setup.
  • If it still fails: Switch to a slower, two-hand closing method and confirm the hoop is seated evenly before starting the machine.
