FUWEI BF-1500 T-Shirt Embroidery With a Magnetic Hoop: The Fast, No-Wrinkle Setup That Keeps Your Design Out of the Frame

The Zero-Friction Guide to the FUWEI BF-1500: Mastering T-Shirt Production Without the "Hoop Burn"

If you’ve ever stared at a hooped T-shirt and thought, "One wrinkle and this whole chest logo is ruined," you’re not being dramatic—you’re being realistic. Knit fabrics are forgiving to wear, but they are unforgiving to embroider. A single millimeter of fabric creep can turn a $20 blank into a shop rag.

This breakdown of the FUWEI BF-1500 demo goes beyond the manual. We are looking at a complete, repeatable production loop: clamping a tee with a rectangular magnetic frame, mounting the rigid bracket, programming the Dahao A15 controller, and executing a flawless stitch-out.

The "Don't Panic" Primer: What the Machine Is Really Doing

A single-head industrial machine like the FUWEI BF-1500 is, at its core, a precision motion system. The needle moves up and down (Z-axis), while the pantograph moves your garment (X/Y-axis). Your primary job is to ensure three physical truths before you ever touch a button:

1. The garment is dead flat: No ripples, no stretch, no "drum skin" tension that snaps back later.
2. The connection is rigid: The hoop must become one with the pantograph.
3. The brain matches the body: The Dahao controller must know exactly which frame is attached, or it will drive a needle through metal.

When these align, embroidery is easy. When one is off, you get thread breaks, birdnesting, and broken needles.

The Hidden Prep Pros Do First: Backing, Handling, and Hygiene

Before the video’s first visible "snap" of the magnetic frame, there is a quiet preparation phase that separates hobbyists from professionals.

The Toolkit

• Garment: Grey cotton T-shirt (Knits require specific handling).
• Stabilizer (Backing): "Teriery" (or standard Cutaway/Tearaway depending on density).
• Hooping Tool: Rectangular Magnetic Frame.
• Hidden Consumables: Scissors, fabric marking pen (chalk/disappearing ink), and canned air/lint roller.

The "Clean Bench" Rule

If you are building a workflow around a magnetic hooping station, treat it like a surgical table. Keep the magnet faces free of lint, adhesive residue, and stray thread. A single piece of thread trapped between high-power magnets creates a "high spot." That high spot means uneven pressure, which leads to fabric slipping mid-stitch.

Warning: Magnetic Pinch Hazard. Keep fingers clear when the top and bottom magnetic frames come together. The snap force of industrial magnetic hoops is strong enough to pinch skin severely. Also, keep these frames away from pacemakers and magnetic storage media.

Prep Checklist (Do this *before* the shirt touches the hoop)

• Stabilizer Sizing: Cut your backing 1 inch larger than the hoop on all sides.
• Magnet Hygiene: Wipe the contact surfaces of the frame with a clean cloth.
• De-wrinkle: Pre-press the shirt if necessary. Embroidery cannot fix a crease; it merely sews it permanently into place.
• Visual Center: Mark your center chest point with a water-soluble pen or chalk to give yourself a target.
• Thread Plan: Physically line up your thread cones in order (1, 2, 3) to match your design file.


Hooping a T-Shirt With a Rectangular Magnetic Frame: The "Smooth, Don't Stretch" Technique

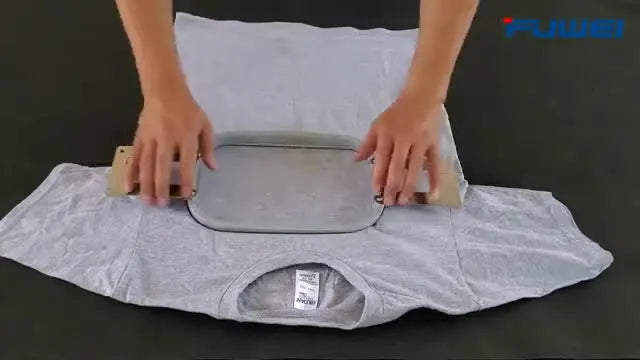

In the demo, the operator separates the frames, slides the bottom frame inside the shirt, smooths the fabric, and lets the magnets snap shut. This looks simple, but the tactile technique is specific.

The Physics of the "Gap"

Traditional screw hoops require you to pull fabric to generate tension, which often leaves "hoop burn" (permanent rings) on delicate cotton. Magnetic frames rely on vertical clamping pressure rather than radial friction. This allows the fabric to sit in its natural relaxed state.

The Hooping Sequence

1. Separate: Place top and bottom frames apart.
2. Insert: Slide the bottom frame inside the garment, under the target area.
3. Float: Place your backing under the bottom frame (or float it under the shirt if using a magnetic station).
4. Smooth (The Golden Rule): Use the palms of your hands to brush wrinkles away from the center. Do not pull. If you stretch the jersey knit now, it will pucker when you un-hoop it later.
5. Clamp: Align the top frame using the corner guides. Let it snap down.

Checkpoints & Sensory Cues

• Checkpoint: Look at the fabric at the inner edge of the frame.
  • Success: It looks flat and calm.
  • Failure: You see "stress lines" or ripples radiating from the edge.
• Checkpoint: The Tubular Hang.
  • Success: The rest of the shirt hangs loosely around the bottom frame, not twisted.
• Checkpoint: The Snap Sound.
  • Success: A sharp, solid "clack" means a secure lock. A muffled thud may indicate trapped fabric or thick seams interfering with the magnets.


Locking In the Bracket: Rigid Connection for High-Speed precision

The video shows the operator placing the metal bracket bar onto the pantograph drive rail, inserting thumb screws, and tightening with a T-handle hex key.

Do not trust "hand-tight." Industrial machines vibrate at high frequencies (800+ stitches per minute). A thumb screw tightened only by hand will loosen after 5,000 stitches.

The Tightening Protocol

1. Mount the bracket bar.
2. Insert screws.
3. Use the hex key to torque them down firmly.
4. The Wiggle Test: Grab the bracket and try to shake it. It should feel like it is welded to the machine. If there is any play, your design outlines will be shaky.

If you are evaluating a hooping station for embroidery or aftermarket brackets, judge them by this rigidity. If it wiggles, do not buy it.

Warning: Mechanical Safety. Power off the machine (or engage the emergency stop) before installing hardware on the drive rail. A sudden pantograph movement while your hands are in the mechanical assembly can cause severe injury.

Loading the Hooped Shirt: The "No-Drag" Loading Rule

The operator slides the shirt’s opening over the cylinder arm and clicks the magnetic hoop into the bracket slots.

Critical Friction Check

As you load, ensure the excess shirt fabric is not bunched up behind the machine arm or catching on the table.

• The Risk: If the shirt drags on the table, it pulls the hoop backward. This "drag" causes registration loss (where the outline doesn't match the fill).
• The Fix: Use clips or simply fold the excess fabric neatly so the hoop "floats" freely.
• Sensory Check: You should hear a distinct click when the hoop clips seat into the bracket. Give the hoop a gentle tug—it should not pop out.

For those learning hooping for embroidery machine setups, precise loading is just as important as the hooping itself.

Power-Up and The Dahao Controller: Patience Pays Off

Flip the red rocker switch and wait. The Dahao A15 is a computer. Allow it to fully boot to the main screen before touching inputs. Rapid tapping during boot-up can freeze the system or load corrupted data.

Importing the Design: Digital Hygiene

Navigate to the USB menu, select the file (DST/DSB), and confirm.

• File 205 is selected in the demo.
• Format: DST is the industrial standard. It contains X/Y coordinates and "Jump" commands, but no color information. This is why the next step is vital.




Mapping Colors (The Needle Assignment)

The video assigns the design’s color blocks to Needle 1, Needle 2, and Needle 3.

Why This Is Mandatory

Novices often think the machine "sees" the colors. It does not. A DST file only says "Stop and switch to the next needle."

• The Mapping: You are telling the brain: "When you see Color Block #1, use the thread on Needle Bar #1."
• Visual Check: Look at your physical machine using the "Top-Down" method.
  • Needle 1: Is it Blue?
  • Needle 2: Is it Red?
  • Needle 3: Is it White?
  • Does this match your screen?

Selecting the Frame Profile: The Safety Net

Navigate to the Frame Selection menu and choose the profile that matches your rectangular magnetic frame.

The Consequence of Skipping

The machine has "Software Limit Switches." By selecting the correct profile (e.g., Rectangular 300x200), the machine will refuse to move the needle outside that safe zone. If you skip this, or select a larger hoop than you are using, you risk slamming the needle bar into the metal frame at 800 RPM. This destroys the hook assembly and the frame.

When searching for how to use magnetic embroidery hoop tutorials, always verify if your machine requires specific frame parameters to be manually input or if it has a preset list.

Jog & Trace: The Final "Pre-Flight" Check

Use the arrow keys to move the hoop until the needle is over your marked center point on the shirt. Then, hit TRACE.

Interpreting the Trace

The machine will move the hoop around the outermost perimeter of the design.

1. Clearance: Does the presser foot come close to the magnetic frame edges? (Keep at least 10mm clearance for safety).
2. Placement: Is the design visually centered on the chest?
3. Distortion: Does the fabric ripple as it moves? If so, your hoop tension is too loose.

Setup Checklist (The "Go/No-Go" Decision)

• Bracket: Tightened with a tool? (Yes/No)
• Hoop: Seated with a "Click"? (Yes/No)
• Clearance: No fabric drag under the arm? (Yes/No)
• Needles: Screen colors match physical thread cones? (Yes/No)
• Trace: Completed without hitting the frame? (Yes/No)

Pressing Start: Monitoring the Stitch-Out

Press Start. The machine creates the lock stitches and accelerates.

Operation Checklist (The First 30 Seconds)

• Sound: Listen for a rhythmic thump-thump. A sharp clack-clack or grinding noise requires an immediate stop.
• Sight: Watch the white bobbin thread underneath (if visible on trace).
• Tension: Stitches should look plump and sit on top of the fabric. If they look flat or are pulling the fabric, tension is too tight.

Commercial Logic: When to Upgrade Your Toolset

If you are running a business, time is exact change. The FUWEI BF-1500 is a workhorse, but your efficiency often depends on the accessories.

• The Problem: "I spend more time hooping than sewing, and I still get hoop burns on dark shirts."
• The Solution: This is where magnetic embroidery frames pay for themselves. They eliminate the "unscrew-adjust-screw" cycle and prevent hoop burn, effectively increasing your shirts-per-hour output by 20-30%.
• The Problem: "I can't keep up with large orders of multi-color designs."
• The Solution: Single-head machines are great for starting, but if volume is your bottleneck, looking into multi-head or advanced multi-needle systems (like SEWTECH solutions) is the natural progression for scaling profitability.

Decision Tree: Stabilizer Selection for T-Shirts

The video uses "Teriery" (likely a tearaway/cutaway hybrid), but let's standardize this for results.

Q1: Is the garment a stretchy Knit (T-shirt, Polo)?

• YES: Use Cutaway Stabilizer. Knits stretch; stitches do not. Cutaway holds the fabric stable forever.
• NO: Proceed to Q2.

Q2: Is the garment a stable Woven (Dress shirt, Denim, Cap)?

• YES: Use Tearaway Stabilizer. It provides temporary support and removes cleanly.

Q3: Is the fabric white or light-colored?

• YES: Ensure your stabilizer is not too dark or heavy, as it may show through (use No-Show Mesh Cutaway).

Troubleshooting: The "Quick Fix" Table

The video shows a perfect run. You will likely face issues. Here is how to handle them.

The Final Word

The trace is your insurance policy. The magnetic hoop is your speed dampener. The bracket is your anchor. By treating the FUWEI BF-1500 setup as a disciplined checklist rather than a guessing game, you move from "hoping it works" to "knowing it will sell."

Combine a repeatable embroidery hooping system with these rigid setup protocols, and you’ll find that the machine becomes the most reliable employee in your shop.

FAQ

• Q: How do I prevent hoop burn on a cotton T-shirt when using a rectangular magnetic embroidery frame on a FUWEI BF-1500?
  A: Clamp the shirt flat in its relaxed state—smooth the knit, never stretch it, and let the magnets do the holding.
  • Pre-press the shirt to remove wrinkles before hooping.
  • Brush wrinkles outward with your palms from the center point; do not pull the fabric tight.
  • Wipe magnet contact faces so lint/thread does not create uneven pressure “high spots.”
  • Success check: The fabric at the inner hoop edge looks flat and calm with no stress lines or ripples.
  • If it still fails: Reduce thickness at the clamp area (avoid seams under the frame) and re-hoop; persistent ring marks may relax with steam after stitching.
• Q: What is the correct “success standard” for loading a hooped T-shirt on the FUWEI BF-1500 so the garment does not drag and cause registration errors?
  A: Load with a true “no-drag” setup so the hoop can move freely without the shirt pulling it backward.
  • Slide the shirt opening over the cylinder arm without bunching fabric behind the arm or catching on the table.
  • Fold or clip excess garment fabric so it floats and does not tug during pantograph travel.
  • Seat the magnetic hoop fully into the bracket slots before starting.
  • Success check: A distinct click is heard when the hoop seats, and a gentle tug does not pop it out.
  • If it still fails: Re-check for hidden fabric snag points under/behind the arm and re-run TRACE to confirm smooth travel.
• Q: How tight should the FUWEI BF-1500 hoop bracket screws be when mounting a rectangular magnetic frame bracket on the pantograph rail?
  A: Do not rely on hand-tight—tighten with a hex key and pass the wiggle test to prevent shaky outlines at high speed.
  • Power off the machine (or engage emergency stop) before installing or tightening hardware.
  • Torque the bracket screws firmly using a T-handle hex key, not just thumb pressure.
  • Perform the wiggle test by gripping the bracket and trying to shake it.
  • Success check: The bracket feels “welded” to the machine with zero play.
  • If it still fails: Remove and re-seat the bracket on the rail, then re-tighten; any remaining play usually means the mounting is not seated correctly.
• Q: How do I stop birdnesting (thread tangles under the needle plate) on a FUWEI BF-1500 during T-shirt embroidery?
  A: Re-thread the FUWEI BF-1500 from scratch and confirm the upper thread is correctly seated through every guide and the tension disks.
  • Cut the thread, pull it out, and re-thread the full path slowly (do not “patch” a missed guide).
  • Confirm the thread is actually between the tension disks (a common miss).
  • Start again and watch the first lock stitches closely.
  • Success check: The underside shows controlled bobbin thread with no growing “nest” forming immediately.
  • If it still fails: Stop immediately, remove the tangled thread mass, then re-check the threading path again before restarting.
• Q: Why is needle breakage likely if the Dahao A15 controller frame profile does not match the rectangular magnetic hoop on a FUWEI BF-1500?
  A: The wrong frame profile can let the machine drive outside the safe sewing area and strike the metal frame at speed.
  • Select the frame profile that matches the rectangular magnetic frame before sewing.
  • Run TRACE to confirm the needle path stays safely inside the hoop opening.
  • Keep at least 10 mm clearance between presser foot travel and the frame edges during trace.
  • Success check: TRACE completes the outer perimeter with no contact risk and comfortable clearance.
  • If it still fails: Stop and re-select the correct frame profile, then re-trace; do not “try it anyway” because a strike can damage the hook assembly.
• Q: What are the required safety precautions for industrial magnetic embroidery hoops during T-shirt hooping on a FUWEI BF-1500?
  A: Treat industrial magnetic hoops as pinch hazards—control the snap, keep fingers clear, and keep magnets away from sensitive devices.
  • Keep fingers out of the closing gap when the top and bottom frames come together.
  • Clean magnet faces so debris does not cause uneven clamping (which can also cause sudden shifts).
  • Keep magnetic hoops away from pacemakers and magnetic storage media.
  • Success check: The frame closes with a clean, solid clack while hands are safely clear and the clamp pressure feels even.
  • If it still fails: Slow the closing action and re-align using corner guides; if thick seams are interfering, reposition the hooping area.
• Q: If hooping and setup time is the bottleneck on FUWEI BF-1500 T-shirt orders, what is the practical upgrade path from technique fixes to magnetic hoops to higher-capacity machines?
  A: Start by tightening the process (Level 1), then reduce hooping friction with magnetic hoops (Level 2), and only then consider capacity upgrades if volume is the limit (Level 3).
  • Level 1 (Technique): Standardize a checklist—clean magnet faces, mark center chest, smooth-don’t-stretch hooping, tool-tighten bracket, run TRACE every time.
  • Level 2 (Tool): Use magnetic embroidery frames to eliminate screw-hoop cycles and reduce hoop burn, often improving shirts-per-hour in real production.
  • Level 3 (Capacity): If multi-color order volume is still the bottleneck after workflow and hooping upgrades, evaluate moving up to a multi-needle/multi-head production solution.
  • Success check: Hooping becomes repeatable (flat fabric, solid click seat, zero bracket wiggle) and throughput increases without added defects.
  • If it still fails: Track where minutes are lost (hooping vs. thread changes vs. rework from registration errors) and upgrade the step that is consistently limiting output.
