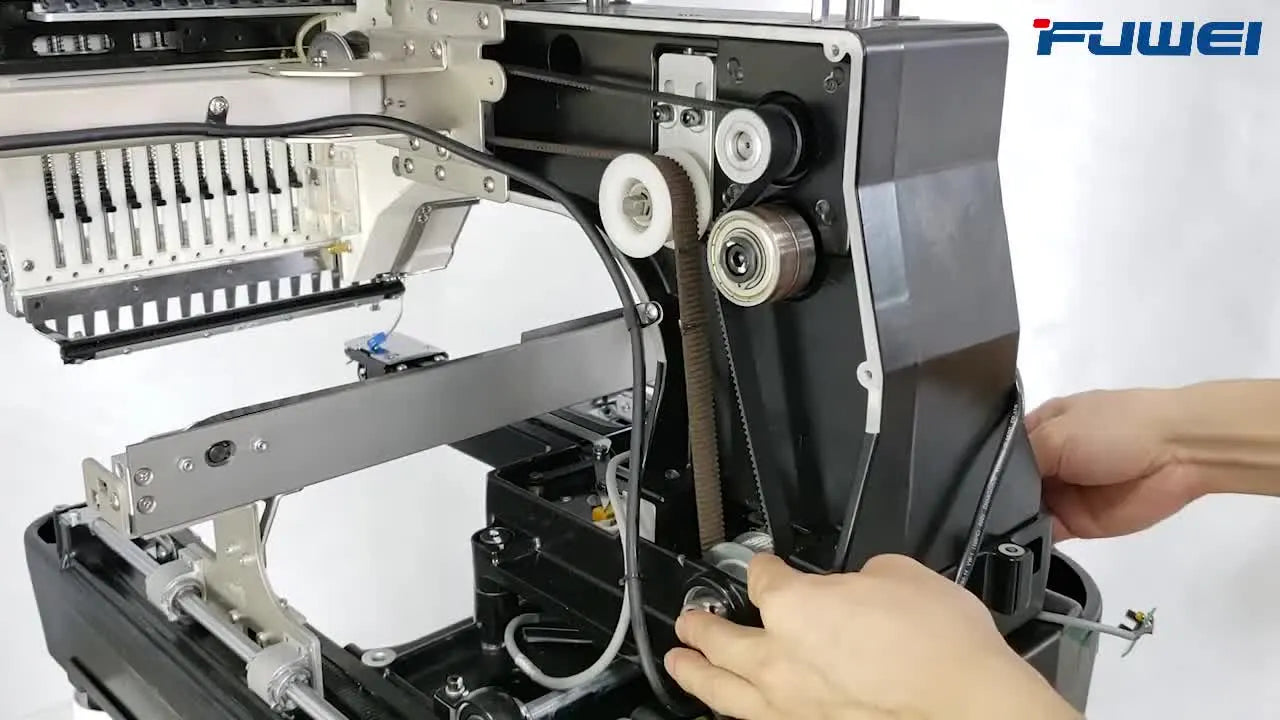

FUWEI BF-1500 Main Timing Belt Replacement: The Calm, Correct Way to Restore Timing (Without Creating a Bigger Problem)

The Pro’s Guide to FUWEI BF-1500 Timing Belt Replacement: Eliminate the “Slip” Risk

Author: Chief Embroidery Education Officer Reading Time: 8 Minutes Difficulty: Intermediate (Mechanical Confidence Required)

When your FUWEI BF-1500 starts losing registration (the outline doesn't match the fill) or making a grinding noise, the culprit is often a worn or stretching main timing belt. For a hobbyist, this is annoying. For a shop owner, this is a "Code Red"—every hour of downtime burns profit.

I have spent 20 years on production floors, and I can tell you: The belt isn't the problem; the fear of ruining the machine's timing is.

This guide transforms a terrifying mechanical surgery into a predictable, Lego-like process. We will follow the exact procedure shown in the video, but I will add the sensory checkpoints and safety margins that the camera doesn't show you.

The "Surgical Tray" Setup: Tools & Hidden Consumables

Do not start this repair until your workspace is prepped. Chaos leads to lost screws, and lost screws lead to panic.

The Essential Tool Kit (Video Standard):

• Hex Key Set (Metric): High-quality steel to prevent stripping soft bolts.
• Hex Driver: For long standoff screws.
• Red T-Handle Hex Wrench: For high-torque collar screws.
• Alignment Rod: CRITICAL. This is your timing lock.
• Large Flathead Screwdriver: Used as a lever bar.

The "Hidden" Consumables (The Pro List):

• White Lithium Grease: If the idler pulley feels dry.
• Fine-Tip Sharpie: To mark the shaft position before loosening (your backup safety net).
• Magnetic Parts Dish: To catch the tiny collar screws.
• Review Mirror: A small inspection mirror to see behind the head.

If you are managing a fleet, relying on a single head embroidery machine requires a proactive mindset. If you touch a screw, document it.

Phase 1: Prep Checklist (The "No-Go" Check)

• Power Down: Machine unplugged for at least 60 seconds to discharge capacitors.
• Parts Match: Confirm the new belt tooth count matches the old one before cutting the old one off (if applicable).
• Gravity Check: Clear the floor. If a screw falls, it vanishes.
• Rod Test: Insert the alignment rod into the maintenance hole to ensure you feel where it seats.

Warning: Pinch Hazard. This procedure involves high-torque leverage and moving gears. Keep fingers clear of the belt path when testing tension. If a screwdriver slips, let it drop—do not try to catch it.

Step 1: Isolate the Electronics (Rear Sensor PCB)

The first step is creating space. The green PCB board covers the main shaft collar.

The Action

1. Use the hex driver to unscrew the two gold hexagonal standoffs holding the PCB.
2. Gently pull the board back. Do not disconnect the wires unless absolutely necessary; just move it out of the crush zone.

The "Pro Feel" Check

• Visual: Check the capacitors on the board. Are they bulging? While you are here, inspect for "board rot" or dust buildup.
• Tactile: The standoffs should untwist smoothly. If they grind, check for thread corrosion.

Safety Net: if the board is dangling by wires, use a piece of painter's tape to secure it to the machine casing so it doesn't swing back and hit your tools.

Step 2: The "Timing Lock" (Shaft Collar Release)

This is the most dangerous step. If you loosen the collar without the alignment rod, you lose your sophisticated timing.

The Action

1. Insert the Alignment Rod: Place the metal rod into the side maintenance hole. rotate the main shaft by hand until the rod clicks or slides deep into the locking divot.
2. Lock it: The shaft should now be frozen. It cannot rotate.
3. Loosen: Use the designated hex key to loosen the collar set screws.

The Physics of "Why"

The collar connects the drive force to the needle bar. By using the rod, you are mechanically indexing the shaft at a specific degree (usually 100 degrees or Top Dead Center depending on model logic). The rod is your anchor.

Warning: Do not fully remove the collar screws! Just loosen them enough so the collar acts like a loose bracelet. If you take them out, you risk dropping them into the oil pan/casting void.

Step 3: Slackening the System (Idler Pulley)

Now you need to take the tension off the old belt.

The Action

1. Locate the white nylon idler pulley (the tensioner) on the side.
2. Loosen the central locking bolt.
3. Let gravity drop the pulley down.


Sensory Checkpoint

• Sight: The belt should go from taut to "floppy."
• Touch: You should be able to pinch the belt and pull it off the lower gear without using a tool to pry it.

Step 4: The Swap (Out with the Old, In with the New)

Remove the old belt through the casting gap and thread the new one in.

The Route (Critical Path)

1. Through the casting: Feed it carefully.
2. Lower Pulley (Main Shaft): Loop it here first.
3. Upper Pulley (Motor): Loop it over the top.
4. Idler Pulley: Ensure the smooth back of the belt rides against the white nylon roller.




The "Teeth" Inspection

• Look: Ensure the belt teeth are fully seated in the metal gear grooves.
• Feel: Run your finger along the edge. The belt should be centered, not hanging 1mm off the edge of the gear.

Step 5: The "Sweet Spot" Tensioning (The Art of the Feel)

This is where most beginners fail. Too tight = burnt bearings. Too loose = skipped stitches.

The Action

1. Insert the large screwdriver under the tensioner bracket (fulcrum point).
2. Leverage: Push down on the screwdriver handle to leverage the idler pulley up into the belt.
3. Lock: While holding that pressure, tighten the idler bolt.




The Sensory Calibration (Expert Tuning)

How do you know it's right without a fancy force gauge?

• The Deflection Test: Press the longest span of the belt with your index finger using moderate force (like pressing a doorbell).
  • Success: It deflects about 5mm to 6mm (1/4 inch).
  • Too Loose: Deflects easily (>10mm). It feels sloppy.
  • Too Tight: Ideally zero deflection or feels like a guitar string. This will cause a high-pitched whine and kill your motor.
• The Sound: Pluck the belt gently. It should make a dull, rhythmic "thump," not a high-pitched "ping."

Setup Checklist (Post-Tension)

• Visual: Belt is centered on all 3 contact points.
• Mechanical: The Idler bolt is torqued down tight.
• Clearance: No tools left inside the casting.

Step 6: Re-Locking the Timing (The Finale)

You must re-secure the connection between the drive and the shaft.

The Action

1. Rod Check: Ensure the alignment rod is still firmly seated in the locking hole. (Double-check this!)
2. Tighten Collar: Torque down the collar screws firmly.
3. Remove Rod: DO NOT FORGET THIS. Remove the alignment rod.
4. Reinstall PCB: Screw the sensor board back in place.

Troubleshooting: What if it sounds wrong?

Even pros need to troubleshoot. Here is your structured diagnostic table.

The "Business" Decision: When to Stop Fixing and Start Scaling

You just fixed your machine. Congratulations. But let's look at the reality of your shop. If you are spending your weekends doing timing belts and your weekdays fighting with hoop burns, your tools might be limiting your income.

Here is a logic path to decide your next move:

1. The Workflow Bottleneck (Hooping)

If your machine runs fine, but hooping takes longer than the actual embroidery, or if you are ruining garments with hoop marks, you need a Tool Upgrade.

• The Solution: Magnetic Hoops.
• Why: Terms like magnetic embroidery hoop are popular for a reason. They clamp automatically, hold thick jackets without "popping," and eliminate the wrist strain of screwing traditional hoops tight.
• Benefit: 30% faster prep time per garment.

Warning: High Magnetic Force. Magnetic hoops are incredibly strong. Keep them away from pacemakers, credit cards, and hard drives. Watch your fingers—they snap shut instantly.

2. The Volume Bottleneck (Single Needle Limits)

If you are turning away orders because you simply can't stitch fast enough, or if color changes on your commercial embroidery machines are eating up hours of production time, you need a Capacity Upgrade.

• The Trigger: Are you stitching more than 20 items of the same design per week?
• The Solution: A Multi-Needle Machine (like the SEWTECH ecosystem).
• Why: A proper comercial embroidery machine (or multi-needle setup) handles 12-15 colors without stopping. You press "Start" and walk away.
• Benefit: You stop being an operator and start being a business owner.

Operation Checklist (The Victory Lap)

Before you run a paid job, do this:

• hand-turn the main wheel for one full rotation to ensure no mechanical binding.
• Remove the alignment rod (Yes, verify it again).
• Run a test sew on scrap fabric at 400 SPM (Low Speed).
• Listen: Efficient machines have a rhythmic "hum," not a rattle.
• Inspect the test sew for registration accuracy.

This guide ensures your FUWEI acts as a profit center, not a mechanic's project. Keep your maintenance boring so your business can be exciting.

FAQ

• Q: What must be prepared before a FUWEI BF-1500 timing belt replacement to avoid lost timing and missing screws?
  A: Stop and set up the workspace first—most “timing disasters” start from poor prep, not the belt itself.
  • Unplug the FUWEI BF-1500 for at least 60 seconds and keep power disconnected during the work.
  • Confirm the new timing belt tooth count matches the old belt before removing the old belt.
  • Stage the alignment rod, fine-tip Sharpie, magnetic parts dish, and a small mirror where they cannot fall into the machine.
  • Tape the rear sensor PCB out of the crush zone instead of letting it hang by wires.
  • Success check: The alignment rod can be test-inserted and you can clearly feel where it seats; all tiny collar screws have a “home” (magnetic dish) before loosening anything.
  • If it still fails: Pause and document positions with a Sharpie mark before loosening the shaft collar screws.
• Q: How does the FUWEI BF-1500 alignment rod prevent timing loss during FUWEI BF-1500 shaft collar loosening?
  A: Insert the FUWEI BF-1500 alignment rod and lock the shaft before touching the shaft collar screws.
  • Insert the alignment rod into the side maintenance hole and hand-rotate the main shaft until the rod clicks/slides deep into the locking divot.
  • Verify the shaft is frozen (cannot rotate) before loosening the collar set screws.
  • Loosen collar screws only enough for the collar to act like a loose bracelet—do not fully remove the screws.
  • Success check: The main shaft cannot rotate by hand while the rod is seated, and the collar loosens without the shaft drifting.
  • If it still fails: Stop immediately and re-seat the alignment rod; do not continue if the shaft can still turn.
• Q: What is the correct FUWEI BF-1500 timing belt tension deflection (5–6 mm) and how can FUWEI BF-1500 belt tension be set without a force gauge?
  A: Use the FUWEI BF-1500 finger deflection test and aim for about 5–6 mm (1/4 inch) deflection on the longest belt span.
  • Loosen the idler pulley bolt, then lever the idler up using a large flathead screwdriver under the tensioner bracket.
  • Hold leverage steady and tighten the idler bolt while maintaining pressure (don’t let the screwdriver slip).
  • Press the longest belt span with moderate force (like pressing a doorbell) and measure the “feel” of deflection.
  • Success check: Belt deflects about 5–6 mm and “plucks” with a dull thump (not a high-pitched ping).
  • If it still fails: If the belt feels like a guitar string, reduce tension; if it slaps, increase tension and re-lock the idler bolt.
• Q: Why does a FUWEI BF-1500 make a screeching noise after timing belt replacement, and what is the fastest fix?
  A: A FUWEI BF-1500 screech right after belt replacement is most often over-tension—back off and re-tension to the 5–6 mm deflection target.
  • Loosen the idler pulley bolt slightly and reduce screwdriver leverage.
  • Re-tighten the idler bolt and re-check finger deflection on the longest span.
  • Inspect that the belt is centered on all contact points before running power.
  • Success check: Screeching disappears and the machine returns to a rhythmic hum (not a whine).
  • If it still fails: Inspect whether the belt teeth are fully seated in the gear grooves and the belt is not riding on the gear edge.
• Q: What causes a FUWEI BF-1500 “slapping” sound after installing a new timing belt, and how can FUWEI BF-1500 idler pulley tension be corrected?
  A: A FUWEI BF-1500 slapping sound usually means the timing belt is too loose—re-tension at the idler pulley and confirm the screwdriver did not slip during tightening.
  • Loosen the idler bolt, apply leverage to raise the idler pulley into the belt, then lock the bolt tight while holding pressure.
  • Confirm the belt is routed correctly and the smooth back of the belt rides against the white nylon idler roller.
  • Re-check finger deflection; overly easy deflection (>10 mm) indicates looseness.
  • Success check: Slapping stops and belt deflection returns to the 5–6 mm range.
  • If it still fails: Re-check that the belt teeth are fully seated and the belt is centered (not hanging off the gear edge).
• Q: What should be done immediately if a FUWEI BF-1500 needle hits the needle plate after timing belt replacement?
  A: Stop the FUWEI BF-1500 immediately—needle-to-plate contact strongly suggests timing drift from shaft collar movement.
  • Power down and do not run another stitch cycle.
  • Loosen the shaft collar, re-insert and seat the alignment rod to re-index the shaft, then re-tighten the collar screws firmly.
  • Hand-turn the main wheel one full rotation to check for any mechanical binding before applying power.
  • Success check: The hand rotation completes smoothly with no contact sounds and no “hard spots.”
  • If it still fails: Verify the alignment rod was fully seated during collar tightening; if uncertainty remains, consult the machine manual timing procedure before running at speed.
• Q: What are the key safety hazards during FUWEI BF-1500 timing belt replacement and how can pinch injuries be avoided?
  A: Treat the FUWEI BF-1500 belt path as a pinch zone—use controlled leverage and keep fingers out of the belt/gear line of fire.
  • Unplug the machine and wait at least 60 seconds before starting to allow capacitors to discharge.
  • Keep fingers clear while testing belt tension; if a screwdriver slips, let it drop instead of trying to catch it.
  • Do not fully remove shaft collar screws to avoid dropping them into the casting/oil pan void.
  • Success check: All tension checks are done with fingertips away from the belt path and no “near-miss” tool slips occur during leverage.
  • If it still fails: Reset the workspace (better tool angle, better lighting, parts dish) before applying force again.
• Q: When FUWEI BF-1500 downtime and hooping time keep hurting production, when should a shop move from technique optimization to magnetic hoops or a multi-needle SEWTECH embroidery machine?
  A: Use a three-level decision path: optimize belt/tension/maintenance first, upgrade to magnetic hoops when hooping is the bottleneck, and upgrade to a multi-needle SEWTECH machine when volume and color changes limit output.
  • Level 1 (Technique): Finish the belt job correctly—5–6 mm belt deflection, belt centered, test sew at 400 SPM on scrap, and confirm clean registration.
  • Level 2 (Tool): Choose magnetic hoops when hooping is slower than stitching or hoop marks ruin garments; plan for faster prep and less wrist strain.
  • Level 3 (Capacity): Choose a multi-needle setup when repeated color changes and weekly volume (for example, over 20 items of the same design per week) are causing missed orders.
  • Success check: The chosen upgrade removes the actual bottleneck (hooping time drops or unattended stitching time increases) rather than just “feeling” like new equipment.
  • If it still fails: Track one week of real bottlenecks (downtime minutes, hooping minutes, color-change minutes) and let that data decide the next step.
